USER MANUAL MD200C Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

ELECTRONIC DRUM SET USER MANUAL

MODEL: MD200C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: MD200C

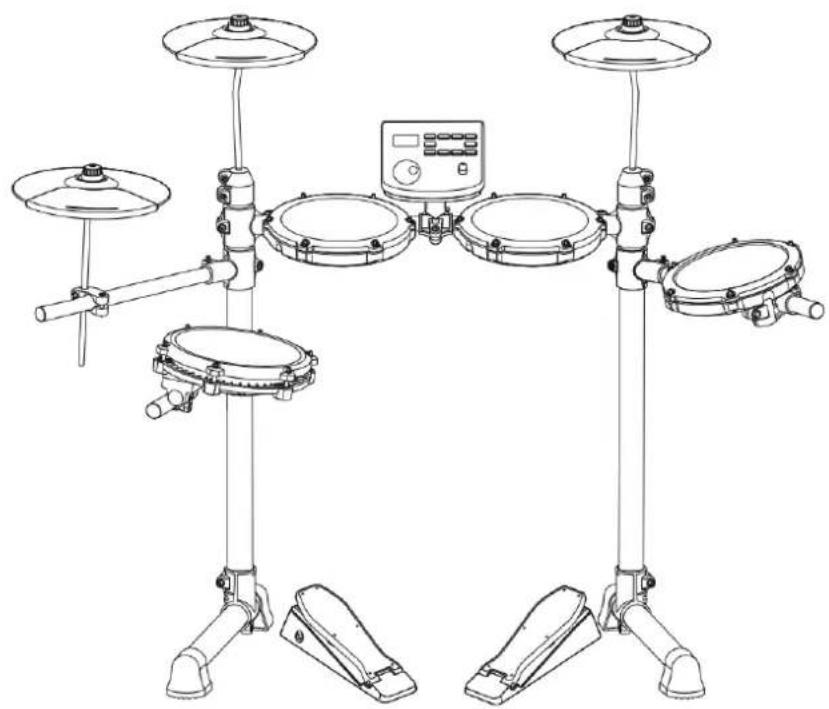

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you for choosing our electronic drum. Elegant and delicate electronic drum is the perfect combination of modern new electronic technology.

◆Before using this product, you must read the instructions in detail.

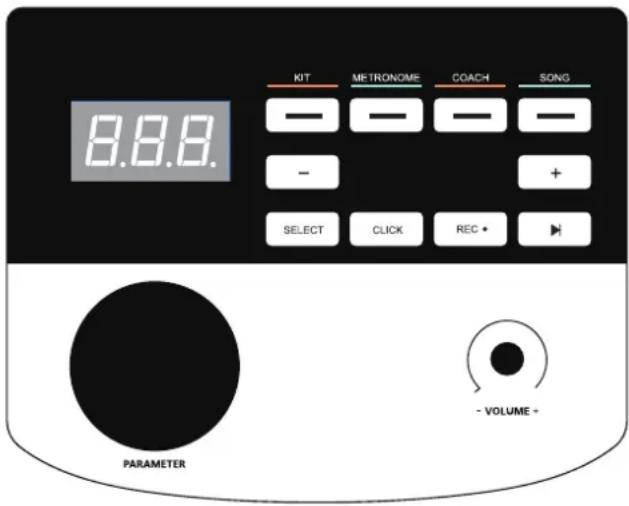

KIT METRONOME COACH SONG 8.8.8. - + SELECT CLICK REC + - VOLUME + PARAMETER

• 15 drum kits, 180 timbres
• 30 songs
- support the adjustment of sensitivity parameters of each drum
- three teaching modes
• speed control: 30 \~ 250 beats / min
- metronome: 1-9 types
- other functions: parameter storage, reset and recording;
- three digit LED display;
- interface: power supply DC, usbmidi, earphone, audio input, audio output increase cymbal

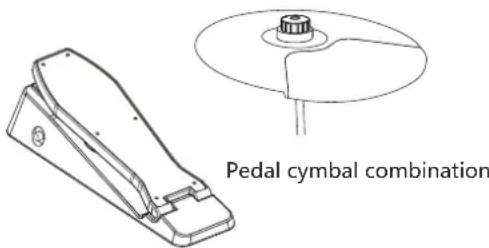

Pedal cymbal combination

REMARK!

- This product is an electro-acoustic instrument product. It is normal that there is a little current sound in the speaker or earphone after power-on. Keep away from "radio, TV, antenna receiver, router, refrigerator, TV, motor and other RF electrical interference sources" during using.

FUNCTION INTRODUCTION 1

CONTENS 2

INSTALLATION GUIDE 3

CHECK THE ATTACHED ITEMS 3

STAND PIPE FITTING 4

MOUNTING STAND----4

DRUM PAN INSTALLATION 5

SOUND MODULE INSTALLATION 5

INSTALL CYMBOLS, SOUND MODULE, PLACE PEDALS----6

INSERT CONNECTING CABLE OF HITTING PART 7

ILLUSTRATION OF SOUND MODULE PORT 8

POWER CORD CONNECTION 8

USB MIDI PORT 8

AUDIO OUTPUT PORT 8

AUDIO INPUT PORT 8

EARPHONE PORT 8

OPERATION GUIDE 9

POWER 9

DRUM KIT SELECTION 9

METRONOME 9

PRACTICE FUNCTION 9

COACH MODE 9

DEMO SONG 10

DRUM PARAMETERS 10

RECORDING FUNCTION 10

SAVE / RESET 10

USBMIDI 10

APPENDIX 11

DRUM TIMBRE 11

PRESET DRUM KITS 11

USER DEFINED DRUM KITS 11

• Please follow the instructions and read the "safety precautions" in the User Manual carefully before using.
• This product must be installed by adult, please do not let the minor install it independently.

01

Check the attached items

- After opening the package, please check whether it contains all the items immediately. If there are any missing, please contact your dealer.

Sound module Module bracket

Cymbal*3 Tom (3pcs)

Snare

Drum stick

Pedal*2

Signal connection cable

Power adapter

Drum key

Ride/Crash arm Hi-hat arm

02

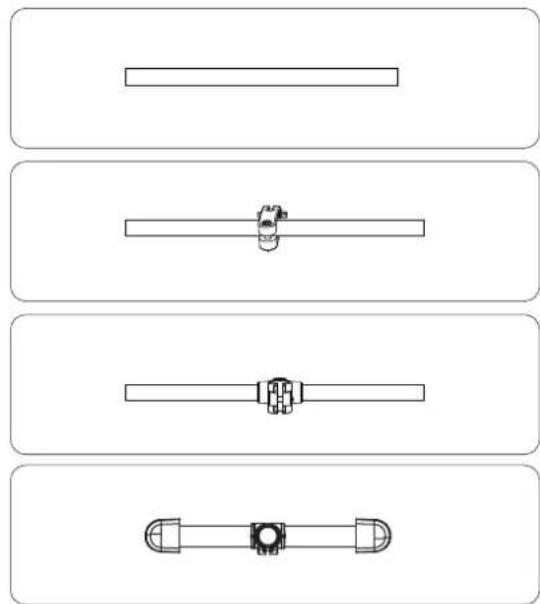

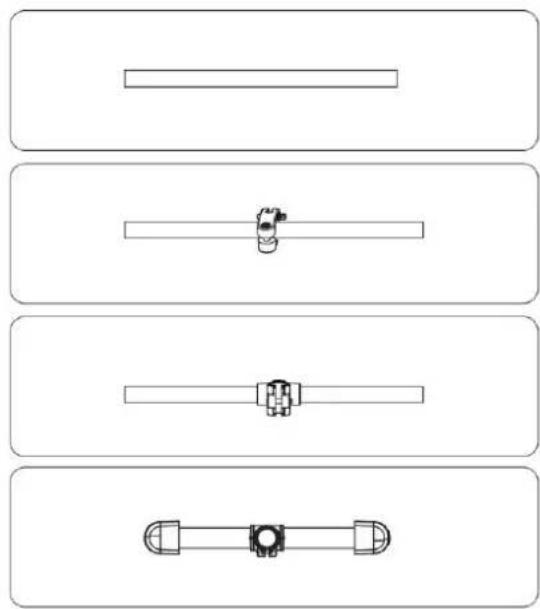

Stand pipe fitting

●The stand is located in a small individual package inside the box.

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four identical schematic diagrams of mechanical components or assemblies, each with a horizontal bar and a central connector (no text or symbols)

03

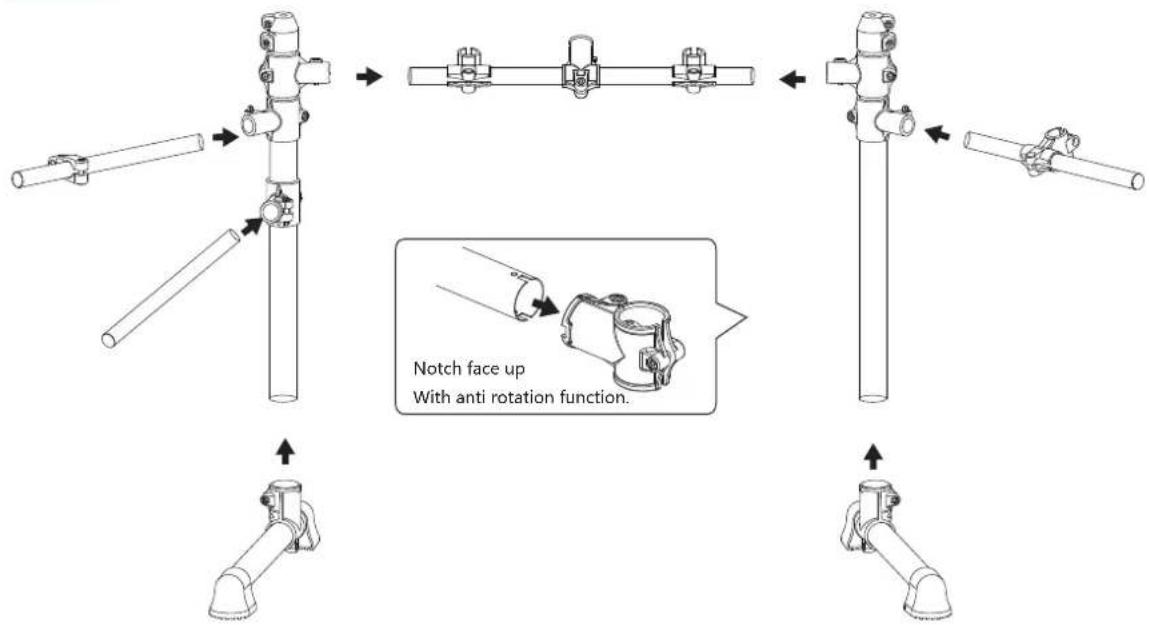

Mounting stand

- The stand must to be installed in place, and screw down the screws by the drum key.

Notch face up With anti rotation function.

04

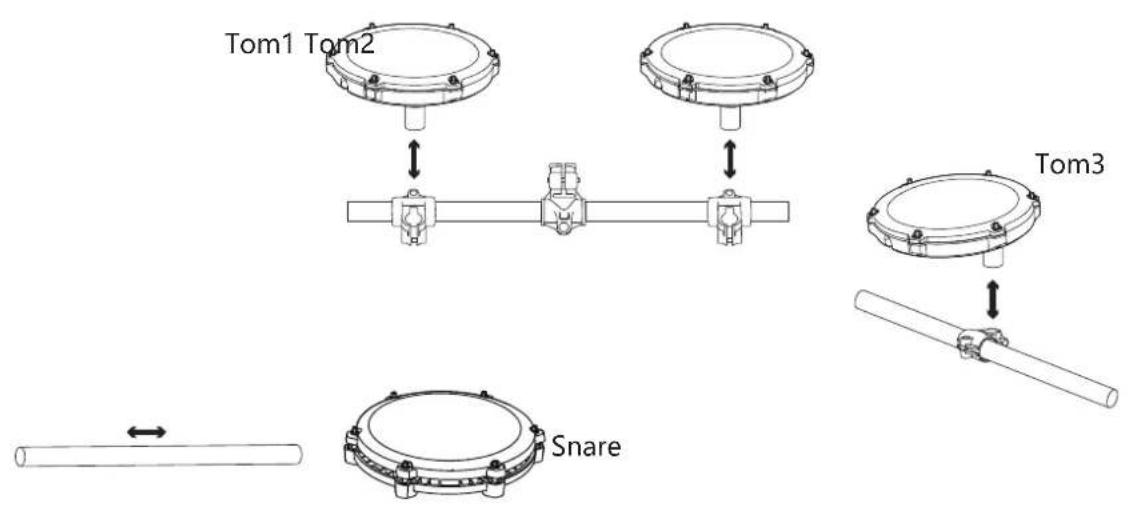

Drum pan installation

- Please be careful and do not to pinch your fingers when installing.

Tom1 Tom2 Tom3 Snare

05

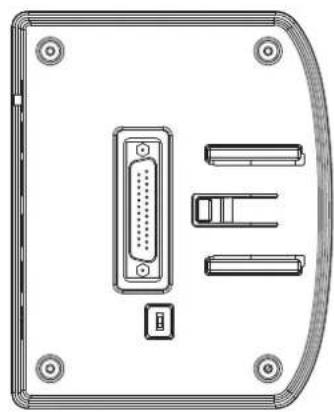

Sound module Installation

- Assemble the sound module with the stand before attaching it to the drum kit.

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Insert the main box bracket against the sound module track, and you will hear the clicking piece pop up when you insert it to the bottom.

06

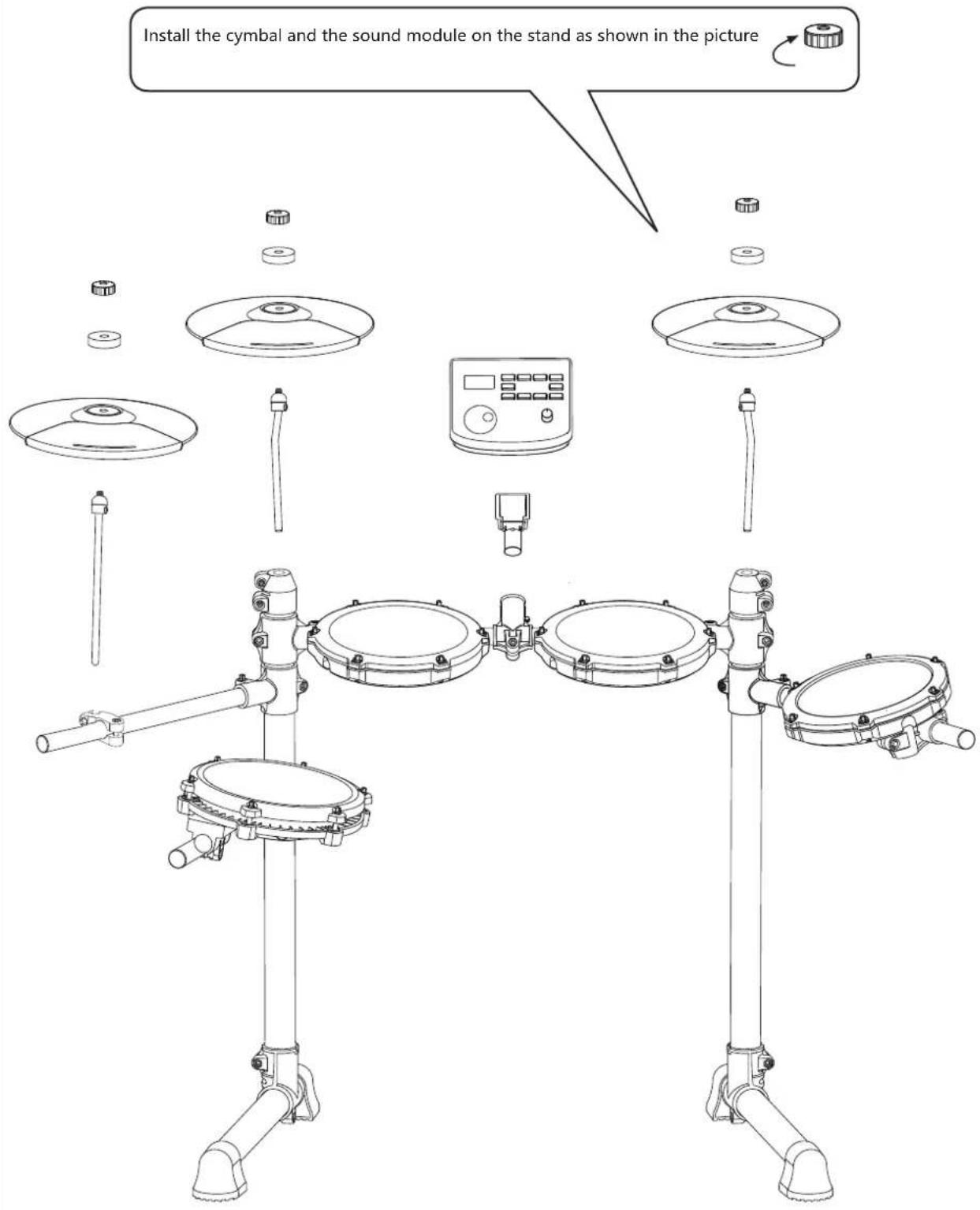

Install cymbals, sound module, place pedals

- Be sure not to tighten the cymbal too tightly, leave some space for them to snake up and down.

Install the cymbial and the sound module on the stand as shown in the picture

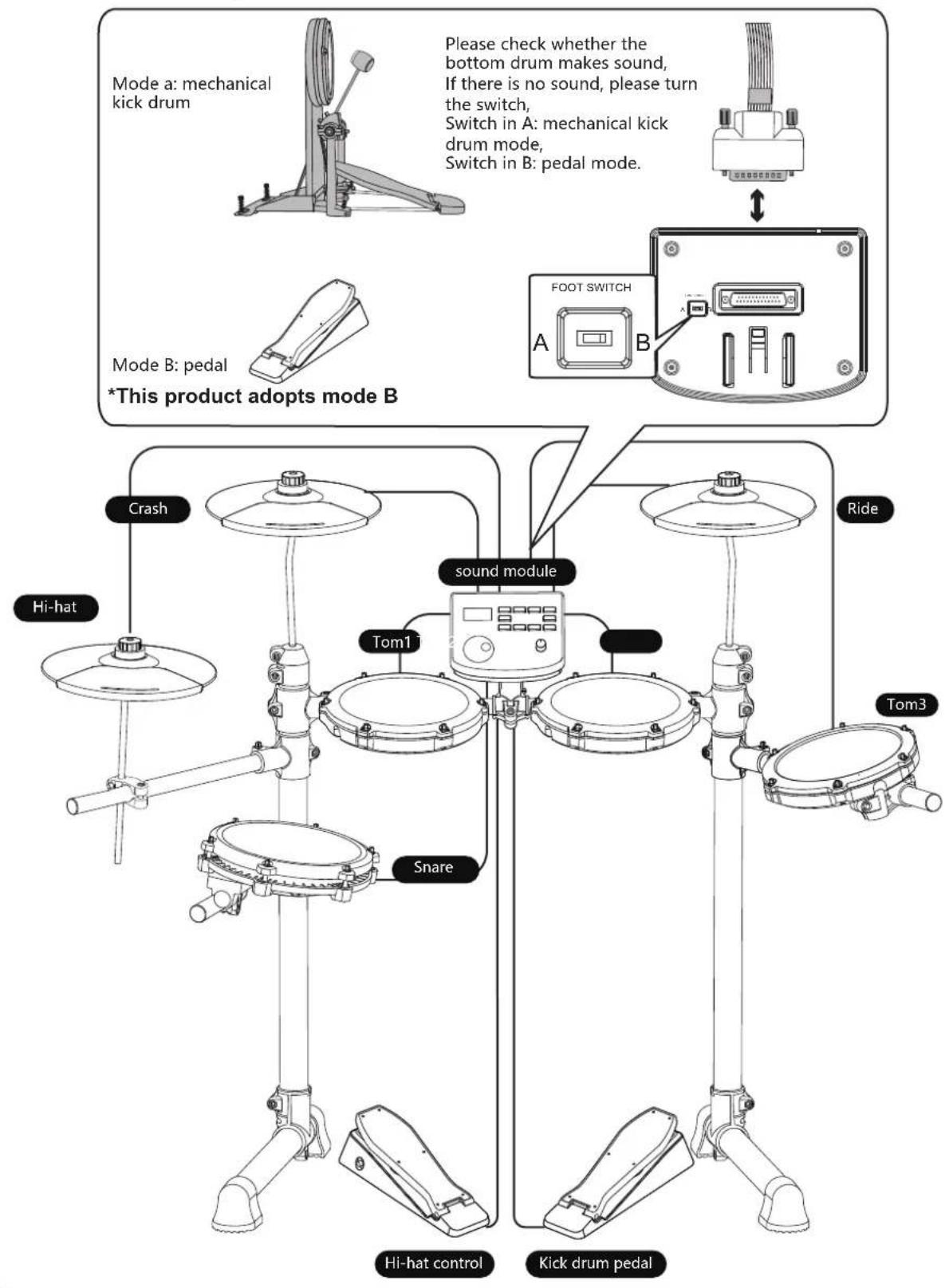

07 Insert connecting cable of hitting part

- Please insert the connection cable in place to avoid poor contact and insert it correctly as shown in the diagram.


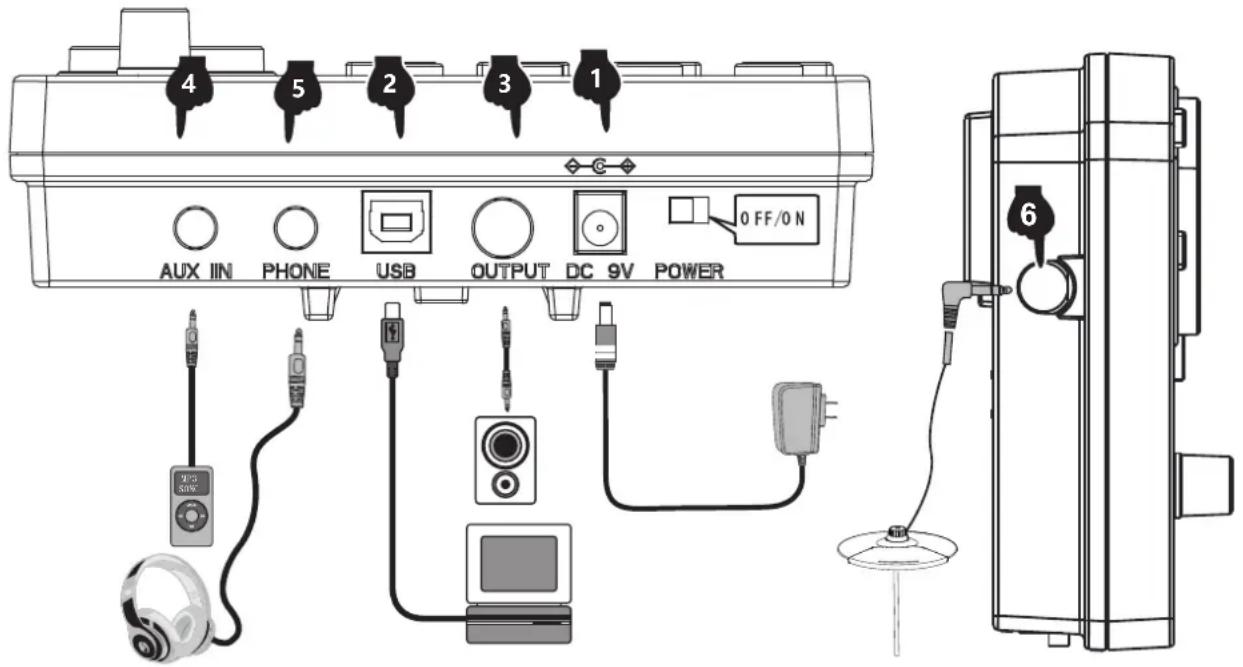

4 5 2 3 1 AUX IIN PHONE USB OUTPUT DC 9V POWER 0 FF/0 N 6 TWO TIME

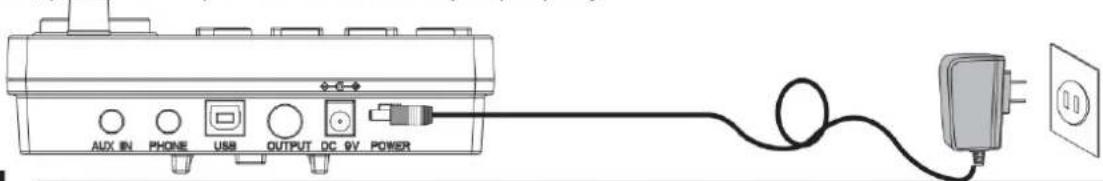

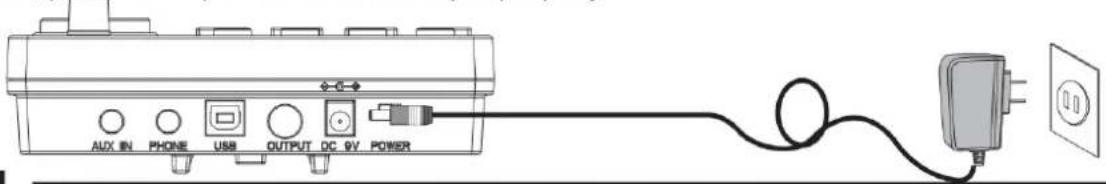

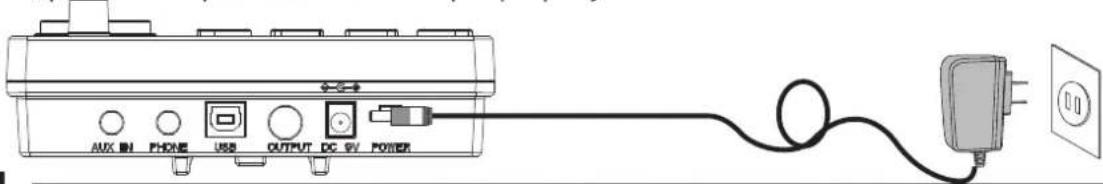

1 POWER CORD CONNECTION

1. When in use, connect the power terminal according to the diagram, insert the power outlet of the module box at one end and 100-240V household power outlet at the other end. (Fig. 1)
2. If you do not use this product for a long time, please pull out the power plug and keep it properly.

2 USB MIDI PORT

The use of electronic drum MIDI USB interface can interact with music devices with MIDI.

1. Through the pre-installed Music software on computers and mobile phones, we can learn to play, compose music, store and other functions. (Fig. 2)
2. When connected to a computer or mobile phone, the audio output of the device needs to be connected to the audio input socket of the sound module in order to synchronize the sound effects on the device. (Fig. 5)

3 AUDIO OUTPUT PORT

Audio output port can be connected with active speaker (special electronic drum speaker) and large audio equipment. (Fig. 3)

4 AUDIO INPUT PORT

Audio input port can connect the sound source playback device to the module box for playback (such as MP3. mobile phone and other audio signal input). (Fig. 4)

5 EARPHONE PORT

Connecting headphones monitors the details of percussion and does not disturb others when playing without connecting speakers. (Fig. 5)

6 INCREASE PORT

This port allows you to add a cymbal for easy expansion. (Figure 6)

1 POWER

Insert the DC plug into the DC 9V port on the top of the sound module. Slide the POWER switch to the right (viewed from the front) to power up the drum kit. To turn the drum kit off slide the switch to the left.

2 DRUM KIT SELECTION

Press the KIT button to show the current drum kit. Turn the parameter wheel or use the <- /+ > buttons to select the desired drum kit. There are 15 drum kits to choose from - see drum kit list on page 11.

3 METRONOME

1. Press the METRONOME button to enter the metronome mode.
2. The screen will display the speed value(120 BPM default speed). Turn the parameter wheel or use the +/- buttons to change the metronome speed. Press the CLICK button to start the metronome.
3. Press the SELECT button in metronome mode, and the screen will jump to the metronome parameter adjustment interface. You can press the +/- buttons to select the parameter you want to adjust:

A. r (beat type:2,4,8,16)
B. b (beat number: 01-09)
C. L(metronome volume: 00 (off) -31), and then turn the parameter wheel to adjust the parameter settings.

1. Once the parameters have been adjusted, press the SELECT button to confirm and exit the parameter interface. Then

2. Use the click button to start and stop the metronome as desired.

4 PRACTICE FUNCTION

The "coach" coach mode of this product can help establish speed, accuracy and endurance, and help cultivate the practice function of a better sense of rhythm. Make progress under the supervision of the "coach" coach mode! Press the "coach" button to enter the coach mode. In this mode, there are three practice modes. Select the practice mode through the data wheel or < + > < - > button.

1. Exercise mode 1: C-1 beat detection exercise: beat the drum at a fixed speed to train the accuracy of the blow.
2. Practice mode 2: C-2 silent strike mode: the metronome will sound one section and mute one section to train the strike accuracy without metronome prompt. It is an advanced version of practice mode 1.
3. Practice mode 3: C-3 speed strike practice, the metronome will automatically change the speed, increase from the slowest express to the fastest, and then reduce from the slowest express to the slowest speed, so as to practice the strike endurance.

5 COACH MODE

1. The "coach" training mode of this product can help establish speed, accuracy and endurance. Press the COACH button to enter the coach mode. In this mode, there are three practice modes. Use the parameter wheel to select which practice mode.

A. Exercise mode 1:C-1 beat detection exercise- beat the drum at a fixed speed to train the accuracy of the blow.
B. Practice mode 2:C-2 silent strike mode-the metronome will sound one section and mute one section to train when there is no beat.
C. Practice mode 3:C-3 speed strike practice-the metronome will automatically change the speed from the slowest to the fastest and then the fastest to the slowest.

1. Once the coaching mode has been chosen, press the CLICK button. The metronome beats will start and you can play along on the drum for practice.

2. 1. After four preliminary beats, the display will show:

(too slow)

(good)

(too fast)

1. Once you have completed the coaching mode a score will be displayed from 0-100 evaluating the accuracy of the exercise.

C-1 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the number of practice sessions as required (01-32). The number of sessions to practice determines the length of this exercise.

C-2 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the number of practice sessions as required(04-32). The number of sessions to practice determines the length of this exercise.

C-3 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the rate at which the BPM changes (01-09 BPM).

1. Press the CLICK button again to end the coach mode.

6 DEMO SONGS

1. Press the SONG button to enter the demo mode, there are 30 demos to choose from. The screen will display the current demo song number (01 -30).

2. Press the< ▶ button to start playina the demo songs. To stop playing press the < ▶ button again.

3. Turn the parameter wheel or press the +/- buttons to select a demo song.

4. Press the sELECT button in song mode to jump to the song parameter setting interface. You can turn the drum sound on or off by turning the parameter wheel (the drum sound is on by default).

5. Press the SELECT button to confirm and exit the parameter interface.

7 DRUM PARAMETERS

1. Press the KIT button and the screen will display 01 (drum kit number). Press SELECT to enter the drum parameter adjustment mode.
2. Tap the drum you want to adjust, and then press the +/- buttons to select the parameter for adjustment.Sensitivity S (01-06).Trigger threshold t(01 - 32). Crosstalk threshold c (01 -32)Repeated trigger r(01-32) Drum Force V(01-03). Drum volume L (00 - 31).
3. Change the parameters by rotating the parameter wheel and long press the - button to save. The screen with display SAV to indicate the parameter adjustment has been saved successfully.
4. To restore the drum parameters back to factory settings long press the + button until the screen displays RES.PLEASE NOTE:The parameters for the 3 tom drums can not be set individually.

1. Press the button when the indicator light is in the "KIT" and "CLICK" states, and the screen displays the words "REC" in the breathing flashing state, entering the recording preparation state.
2. Tap any drum and the metronome sounds. At this time, the screen displays "---" in the flashing state of breathing and starts recording.
3. Press the key or key again, the recording stops and "A-1" is displayed on the screen.
4. Press < ➤ to start playing the current recording, and press again to stop playback.
5. If you enter the recording preparation state again without any knocking, the "A-1" recorded last time is played back.

9 SAVE / RESET

1. To save parameters long press the <-> button and the screen will display SAV.
2. To reset parameters long press the <+> button and the screen will display RES res.

10 USBMIDI

To use the drum kits MID function plug aUSB-B data cable (not included with this drum kit) into the control unit and connect to PC/Smartphone.

Timbre

Kick

1. Funk Kick

2. Original Kick

3. Poprock Kick

4. Rock Kick

5. Seesion Kick

6. SpeedMetal Kick

7. ClassicDry Kick

8. Modern Kick

9. Jazz Kick

10. Blues Kick

11. Popular Kick

12. Fuse Kick

13. Dancehall Kick

14. Synthgaze Kick

15. Standard Kick

Snare

1. Funk Snare

2. Original Snare

3. Poprock Snare

4. Rock Snare

5. Seesion Snare

6. SpeedMetal Snare

7. ClassicDry Snare

8. Modern Snare

9. Jazz Snare

10. Blues Snare

11. Popular Snare

12. Fuse Snare

13. Dancehall Snare

14. Synthgaze Snare

15. Standard Snare

16. Funk Snare Rim

17. Original Snare Rim

18. Poprock Snare Rim

19. Rock Snare Rim

20. Seesion Snare Rim

21. SpeedMetal Snare Rim

22. ClassicDry Snare Rim

23. Modern Snare Rim

24. Jazz Snare Rim

25. Blues Snare Rim

26. Popular Snare Rim

42 . Fuse Snare Rim

1. Dancehall Snare Rim

2. Synthgaze Snare Rim

3. Standard Snare Rim

Tom

46 . Funk Tom1

1. Original Tom1

2. Poprock Tom1

3. Rock Tom1

4. Seesion Tom1

5. SpeedMetal Tom1

6. ClassicDry Tom1

7. Modern Tom1

8. Jazz Tom1

9. Blues Tom1

10. Popular Tom1

57 . Fuse Tom1

1. Dancehall Tom1

2. Synthgaze Tom1

3. Standard Tom1

61 . Funk Tom2

1. Original Tom2

2. Poprock Tom2

3. Rock Tom2

4. Seesion Tom2

5. SpeedMetal Tom2

6. ClassicDry Tom2

7. Modern Tom2

8. Jazz Tom2

9. Blues Tom2

10. Popular Tom2

72 . Fuse Tom2

1. Dancehall Tom2

2. Synthgaze Tom2

3. Standard Tom2

76 . Funk Tom3

1. Original Tom3

2. Poprock Tom3

3. Rock Tom3

4. Seesion Tom3

5. SpeedMetal Tom3

6. ClassicDry Tom3

7. Modern Tom3

8. Jazz Tom3

9. Blues Tom3

10. Popular Tom3

87 . Fuse Tom3

1. Dancehall Tom3

2. Synthgaze Tom3

3. Standard Tom3

Crash

91 . Funk Crash1

1. Original Crash1

2. Poprock Crash1

3. Rock Crash1

4. Seesion Crash1

5. SpeedMetal Crash1

6. ClassicDry Crash1

7. Modern Crash1

8. Jazz Crash1

9. Blues Crash1

10. Popular Crash1

102 . Fuse Crash1

1. Dancehall Crash1

2. Synthgaze Crash1

3. Standard Crash1

4. Funk Crash2

5. Original Crash2

6. Poprock Crash2

7. Rock Crash2

8. Seesion Crash2

9. SpeedMetal Crash2

10. ClassicDry Crash2

11. Modern Crash2

12. Jazz Crash2

13. Blues Crash2

14. Popular Crash2

117 . Fuse Crash2

118 . Dancehall Crash2

1. Synthgaze Crash2

2. Standard Crash2

Ride

121 . Funk Ride

1. Original Ride

2. Poprock Ride

3. Rock Ride

4. Seesion Ride

5. SpeedMetal Ride

6. ClassicDry Ride

7. Modern Ride

8. Jazz Ride

9. Blues Ride

10. Popular Ride

132 . Fuse Ride

133 . Dancehall Ride

1. Synthgaze Ride

2. Standard Ride

HiHat

136 . Funk Hi-Hat Open

1. Original Hi-Hat Open

2. Poprock Hi-Hat Open

3. Rock Hi-Hat Open

4. Seesion Hi-Hat Open

5. SpeedMetal Hi-Hat Open

6. ClassicDry Hi-Hat Open

7. Modern Hi-Hat Open

8. Jazz Hi-Hat Open

9. Blues Hi-Hat Open

10. Popular Hi-Hat Open

147 . Fuse Hi-Hat Open

148 . Dancehall Hi-Hat Open

1. Synthgaze Hi-Hat Open

2. Standard Hi-Hat Open

151 . Funk Hi-Hat Close

1. Original Hi-Hat Close

153 . Poprock Hi-Hat Close	163 . Dancehall Hi-Hat Close	173 . Modern Hi-Hat Pedal
154 . Rock Hi-Hat Close	164 . Synthgaze Hi-Hat Close	174 . Jazz Hi-Hat Pedal
155 . Seesion Hi-Hat Close	165 . Standard Hi-Hat Close	175 . Blues Hi-Hat Pedal
156 . SpeedMetal Hi-Hat Close	166 . Funk Hi-Hat Pedal	176 . Popular Hi-Hat Pedal
157 . ClassicDry Hi-Hat Close	167 . Original Hi-Hat Pedal	177 . Fuse Hi-Hat Pedal
158 . Modern Hi-Hat Close	168 . Poprock Hi-Hat Pedal	178 . Dancehall Hi-Hat Pedal
159 . Jazz Hi-Hat Close	169 . Rock Hi-Hat Pedal	179 . Synthgaze Hi-Hat Pedal
160 . Blues Hi-Hat Close	170 . Seesion Hi-Hat Pedal	180 . Standard Hi-Hat Pedal
161 . Popular Hi-Hat Close	171 . SpeedMetal Hi-Hat Pedal
162 . Fuse Hi-Hat Close	172 . ClassicDry Hi-Hat Pedal

Drum combination timbre
User drum kit

01	Funk	04	Rock	07	ClassicDry	10	Blues	13	Dancehall
02	Original	05	Seesion	08	Modern	11	Popular	14	Synthgaze
03	Poprock	06	SpeedMetal	09	Jazz	12	Fuse	15	Standard

Demostration song

Song 001	Song 005	Song 009	Song 013	Song 017	Song 021	Song 025	Song 029
Song 002	Song 006	Song 010	Song 014	Song 018	Song 022	Song 026	Song 030
Song 003	Song 007	Song 011	Song 015	Song 019	Song 023	Song 027
Song 004	Song 008	Song 012	Song 016	Song 020	Song 024	Song 028

PRODUCT MAINTENANCE

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX BI PHONE USB OUTPUT DC PV POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPB

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion House,

London Road. Staines-upon-Thames. Surrey. TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

www.vevor.com/support

INTRODUCTION DES FONCTIONS

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four horizontal rectangular panels with internal geometric shapes, no text or symbols present

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four horizontal rectangular panels with internal geometric shapes, no text or symbols present

Montageständer

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (€) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

BATTERIA ELETTRONICA

MANUALE D'USO

MODELLO: MD200C

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

www.vevor.com/support

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four identical schematic diagrams of horizontal bars with internal geometric shapes, no text or symbols present.

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

www.vevor.com/support

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four horizontal rectangular panels with internal geometric shapes, no text or symbols present

Soporte de montaje

Technical line drawing of a computer monitor rear panel with visible ports and internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (€) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DE LA CE

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines upon Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four horizontal rectangular panels with internal geometric shapes, no text or symbols present

Stojak montażowy

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australii

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPREZENT KE

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

ELEKTRONISCH DRUMSET HANDLEIDING

MODEL: MD200C

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

OPSLAAN / RESETTEN 10

USBMIDI 10

BIJLAGE 11

TROMMEL TIMBRE 11

VOORAF INGESTELDE DRUMKITS 11

DOOR GEBRUIKER GEDEFINIEERDE DRUMKITS 11

DEMONSTRATIELIED 11

PRODUCTONDERHOUD 12

VEILIGHEIDSMAATREGELEN---- 13

INSTALLATIE GIDS

OPMERKING!

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four identical schematic diagrams showing horizontal bars and a central connector or connector, arranged vertically (no text or symbols)

Montagestandaard

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

9 OPSLAAN / RESETTEN

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ELEKTRONISKT TRUMSET

ANVÄNDARMANUAL

MODELL: MD200C

Line drawing of a four-mach drum set with control panel and tripod legs (no text or symbols)

Pedal cymbal komb

ANMÄRKNING!

INSTALLATIONSGUIDE 3

KONTROLLERA BILAGADE ARTIKLAR 3

STÅR RÖRBESLAG 4

MONTERINGSSTÄLL 4

INSTALLATION AV DRUM PAN 5

INSTALLATION AV LJUDMODUL 5

INSTALLERA CYMBALER, LJUDMODUL, PLATSPEDALER 6

SÄTTA ANSLUTNINGSKABEL FÖR SLAGDELEN 7

ILLUSTRATION AV LJUDMODULPORT 8

Technical line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Line drawing of a vertical cylindrical mechanical component with multiple ports and mounting brackets (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Four horizontal rectangular panels with internal geometric shapes, no text or symbols present

Monteringsstativ

Technical line drawing of a computer rear panel with internal components (no text or symbols)

Simple line drawing of a rectangular object with a handle extending from its top (no text or symbols)

1. Poprock Hi-Hat Stäng

2. Rock Hi-Hat Close

3. Seesion Hi-Hat Stäng

4. SpeedMetal Hi-Hat Stäng

5. ClassicDry Hi-Hat Close

6. Modern Hi-Hat Close

7. Jazz Hi-Hat Close

8. Blues Hi-Hat Stäng

9. Populära Hi-Hat Close

10. Säkring Hi-Hat Stäng

11. Dancehall Hi-Hat Close

12. Synthgaze Hi-Hat Close

13. Standard Hi-Hat Stäng

14. Funk Hi-Hat Pedal

15. Original Hi-Hat Pedal

16. Pop Rock Hi-Hat Pedal

17. Rock Hi-Hat Pedal

18. Seesion Hi-Hat Pedal

19. SpeedMetal Hi-Hat Pedal

20. ClassicDry Hi-Hat Pedal

21. Modern hi-hatpedal

22. Jazz Hi-Hat Pedal

23. Blues Hi-Hat Pedal

24. Popular Hi-Hat Pedal

25. Fuse Hi-Hat Pedal

26. Dancehall Hi-Hat Pedal

27. Synthgaze Hi-Hat Pedal

28. Standard Hi-Hat Pedal

Careful maintenance and protection of the product, to extend the service life of the product, reduce the fault has a very important role.

1 AVOID HEATING, DAMPNESS OR DIRECT SUNLIGHT

Do not over expose the product to direct sunlight, or place it near air conditioning or extremely hot place.

2 DO NOT USE NEAR THE TV OR RADIO

This product may cause video or audio interference to the reception of TV and radio. If this happens, the product should be removed from the TV or radio.

3 NO DILUENTS OR SIMILAR CHEMICALS SHOULD BE USED FOR CLEANING

Clean the product with a soft cloth wetted with weak water solution and neutral detergent. Soak the cloth in a solution and wring it dry until it approaches drying.

4 DO NOT SHAKE, AVOID COLLISION

When moving, the product should be handled carefully and lightly. Violent vibration and collision are strictly prohibited in order to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (€) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
