USER MANUAL MX-5087 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Extendable Underhood Rechargeable Floodlight User Manual

MODEL:MX-5087

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:MX-5087

Orange Yevor iron iron with black handle and coiled cord (no text or symbols visible)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device cause harmful interference, and (2) this device must acce interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

WARNING:

To prevent serious injury, FIRE, and EXPLPSION:

1. Do not disassemble the device.
2. The LED light is very bright. Do not look directly into the light beam point the light beam at others!
3. Do not operate in direct sun light or extreme temperature condition
4. Operating temperature, -4^ ( -20^ ) to 122^ ( 50^ )
5. Keep dry. Do not open, drop, short-circuit, incinerate, expose to temperatures high than 140^ F ( 60^ C), or charge/use if damaged.
6. Do not submerge Light.
7. Do not operate it explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
8. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
9. Keep away from children! Children should be supervised in order to ensure that they do not play with the device!

NOTICE:

1. Do not place the magnetic work light in a strong magnetic or ele field environment to prevent affecting its magnetic adhesion effect and performance.
2. Do not use the work light during charging to avoid affecting the effector causing damage.
3. Do not use or charge the work light in damp or high-temperature environments to prevent affecting its performance and lifespan.
4. Do not leave the Battery in a discharged state. Charge the Battery 3 months if the Work Light is not in use. This will keep the Battery wearing down and add to its life. Do not charge the work light at temperatures below 40 (4.4°C).

PERFORMANCE PARAMETER

Model	MX-5087
Battery Capacity	6000mAh
Brightness	2300LM
Color Temperature	6000-7000K
Power	25W
Lighting Time	2H(High) / 4H(Mid) / 8H(Low)
Material	PA66+ABS+AL
USB Cable	Type-C
Charging Time	6.5H
Charging voltage	DC5V 2A

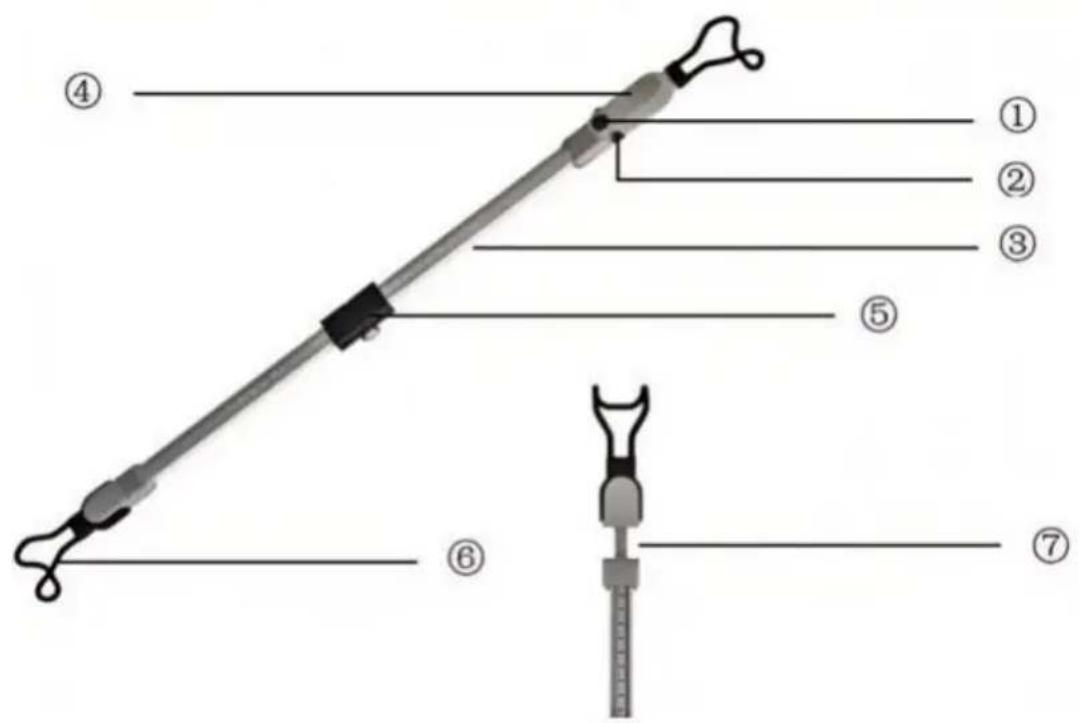

PRODUCT OVERVIEW

Labeled diagram of a mechanical device with numbered parts for identification

1. Mode switch 2. Power Bank/Out port
   3.LED 4.Charging port
   5.Folding device 6.Rotary Hook
2. Stretch

CHARGING INSTRUCTIONS

The Charge Light Indicator will light up Blue flash during charging. If approximately 6.5 hours the charge Light Indicator turns Blue, indicating the Work Light is fully charged and ready for use. Unplug the chargi cable.

OPERATING

1. Press the MODE switch repeatedly to select from the available mod High→Medium→Low.
2. Press and hold the power switch for 2 seconds in any gear, and will be turned off. When turned on again, it will return to that gear.

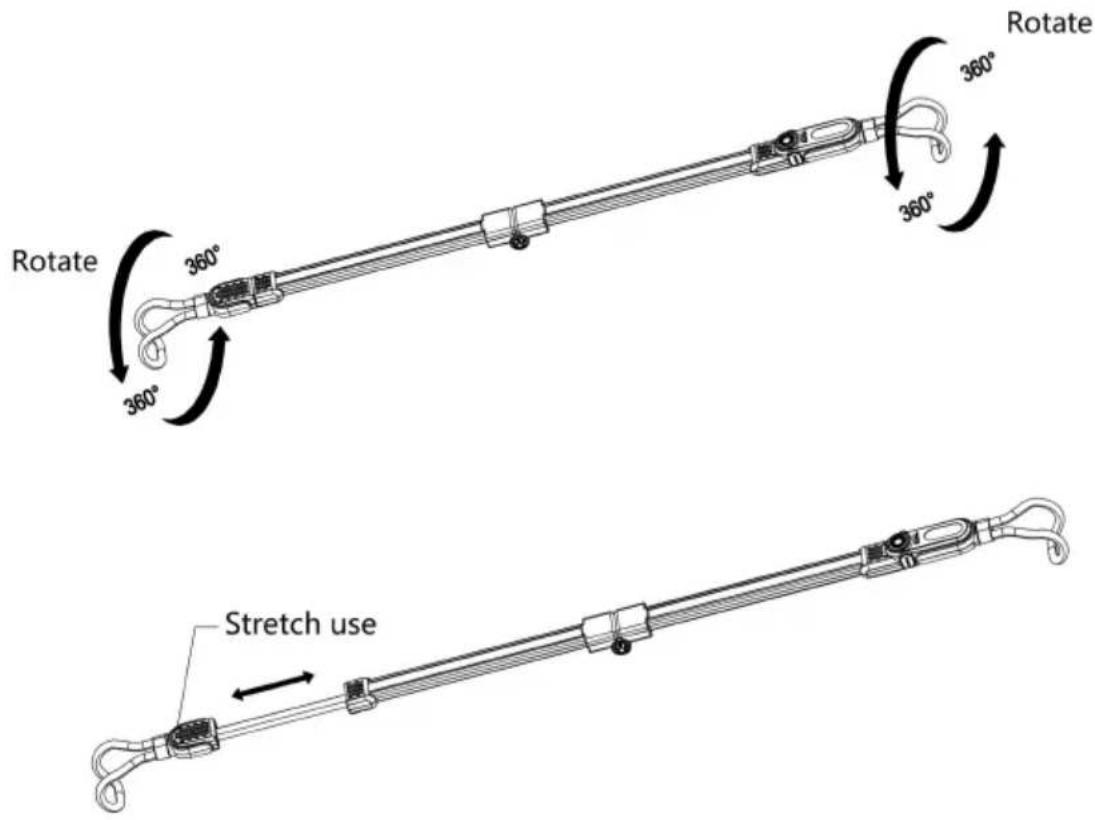

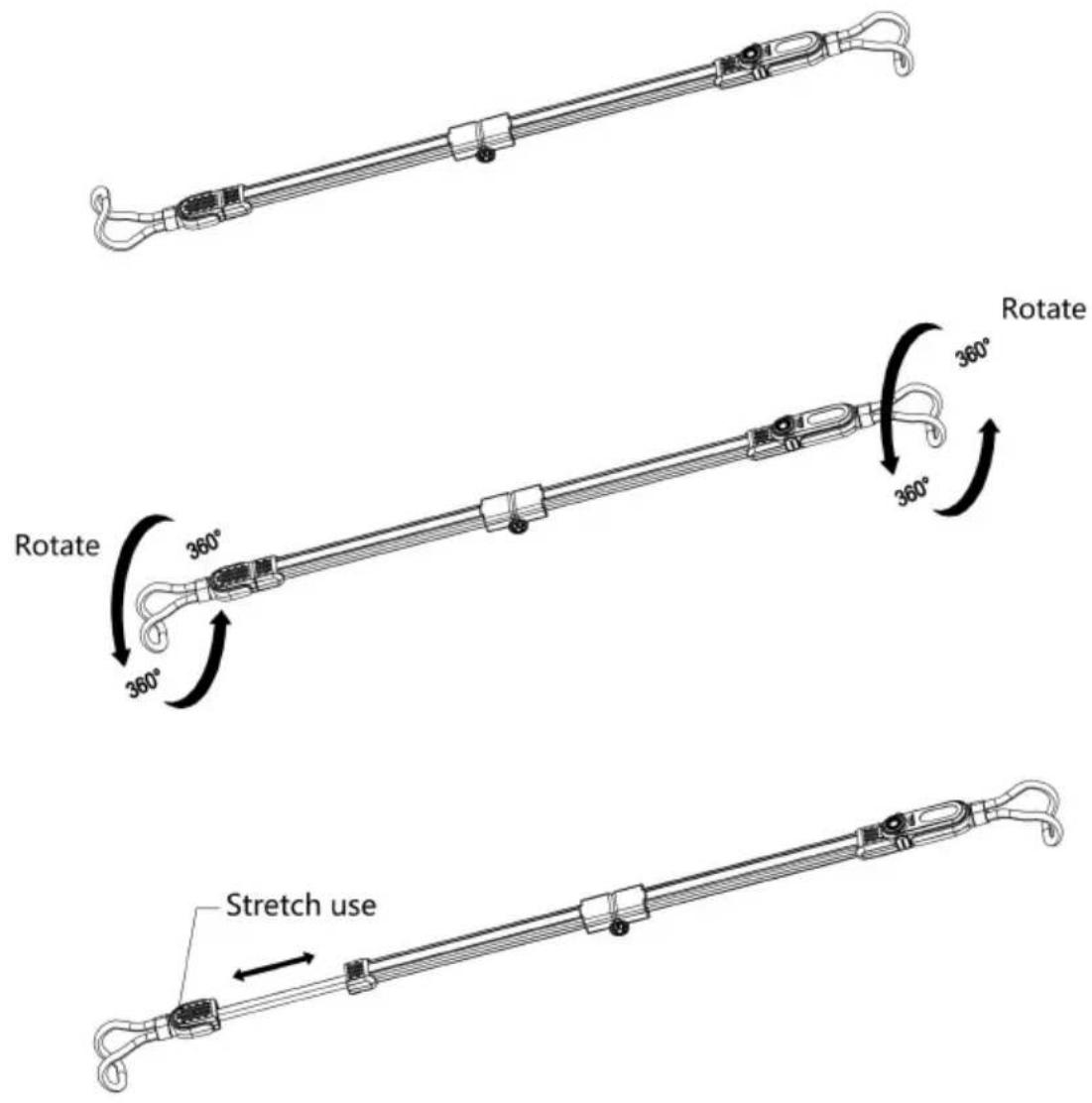

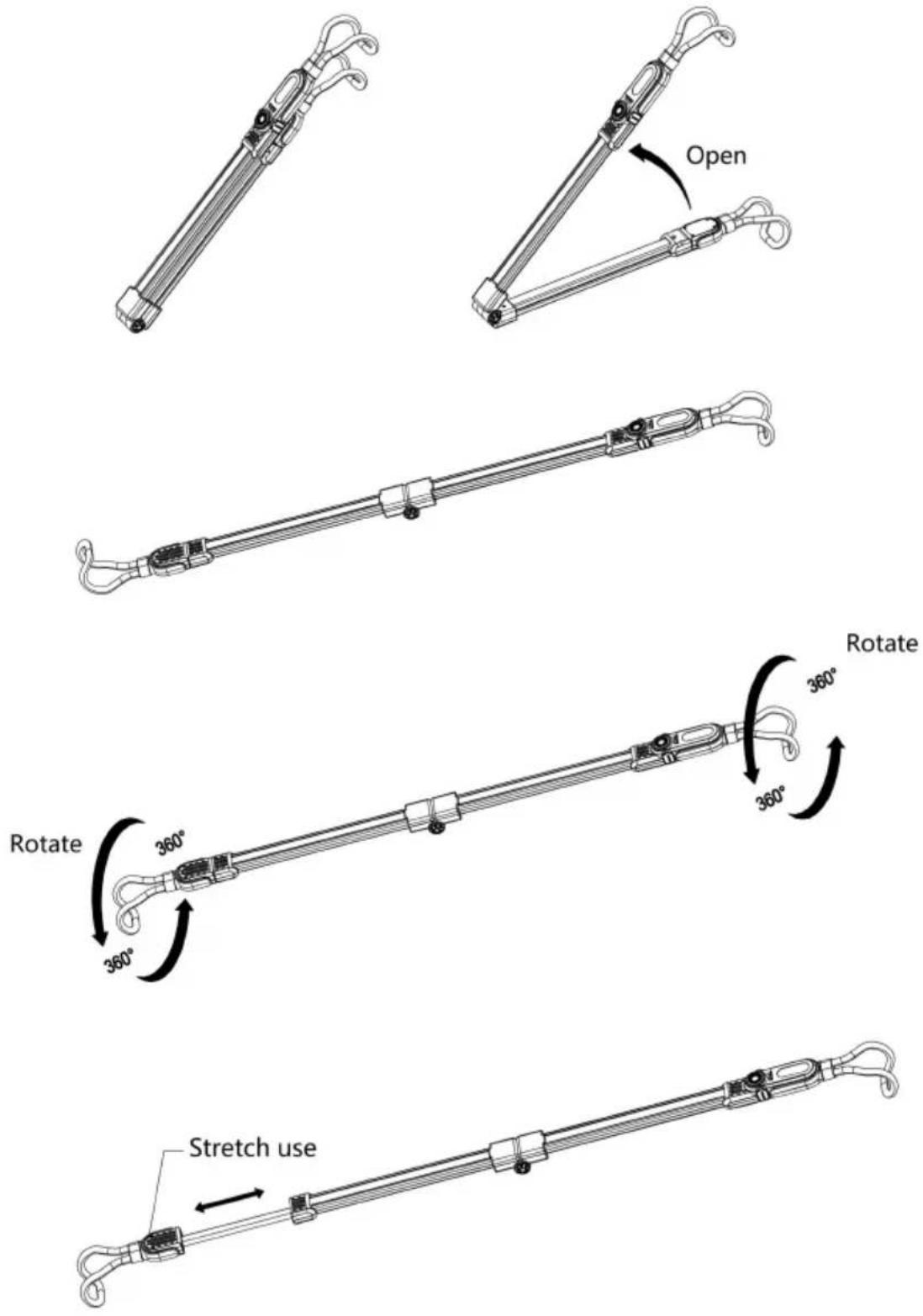

Open Rotate 360° 360° Rotate 360° Stretch use

ACCESSORIES LIST

1.TYPE-C charging cable *1
2.User Manual *1

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
