USER MANUAL NR-GR-02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RATTAN COFFEE TABLE USER MANUAL

MODEL NO.: NR-GR-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Coffee Table

MODEL NO.: NR-GR-02

Technical line drawing of a rectangular frame with hexagonal patterns and wooden supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

DO NOT CLIMB

Please do not let your child climb on the product. If y kids or animals who like to climb, we highly recommend using the wall anchors and brackets/straps that come the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Coffee Table.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Coffee Table.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	NR-GR-02
Product Dimensions (LxWxH)(mm)	1200*559*435
Net Weight(kg)	About 12.4

*Products such as specifications, appearance, and design are subject to modification without prior notice.

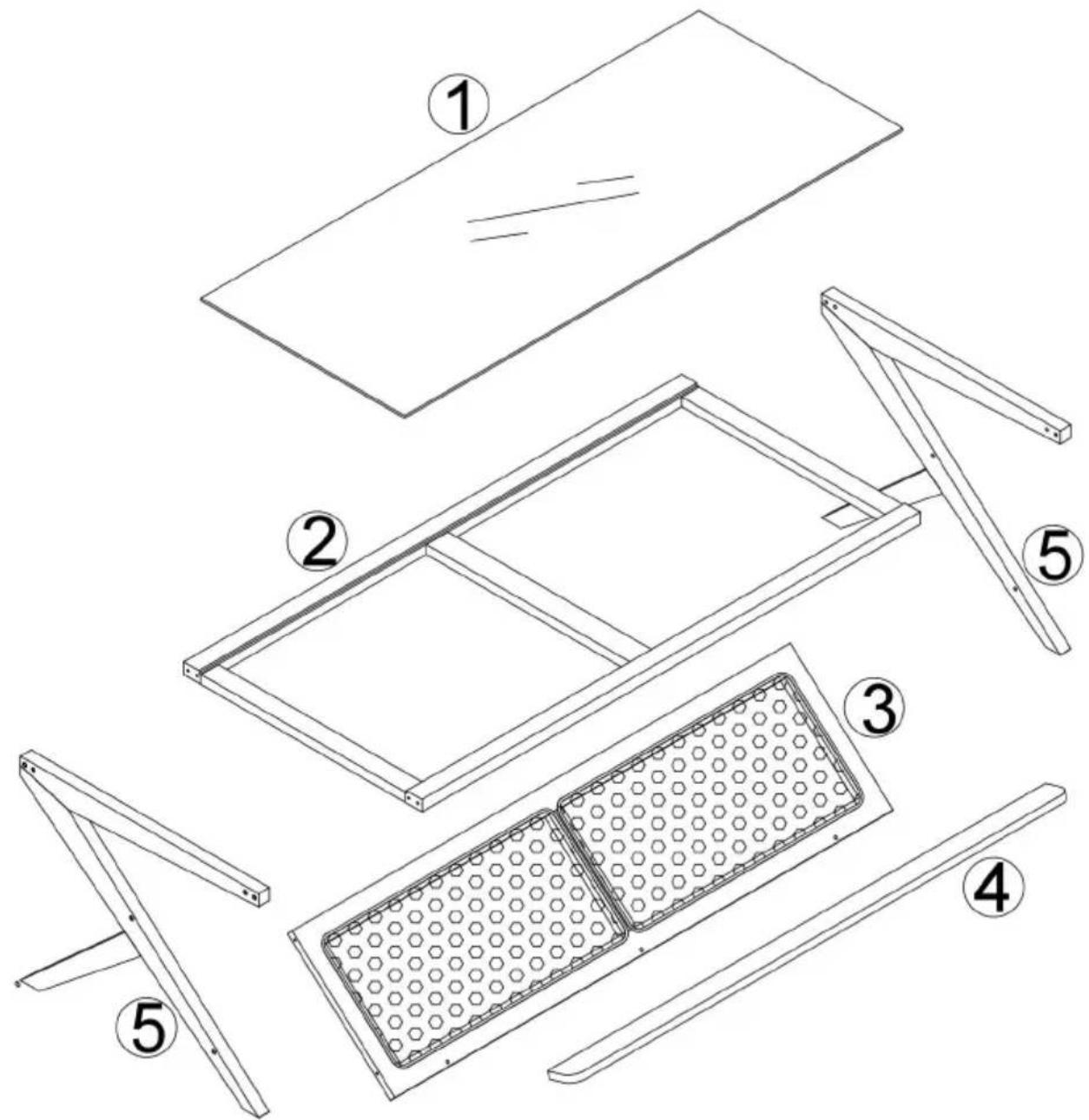

PACKAGE CONTENTS

Technical diagram showing exploded view of a mechanical assembly with numbered components

ASSEMBLY STEPS

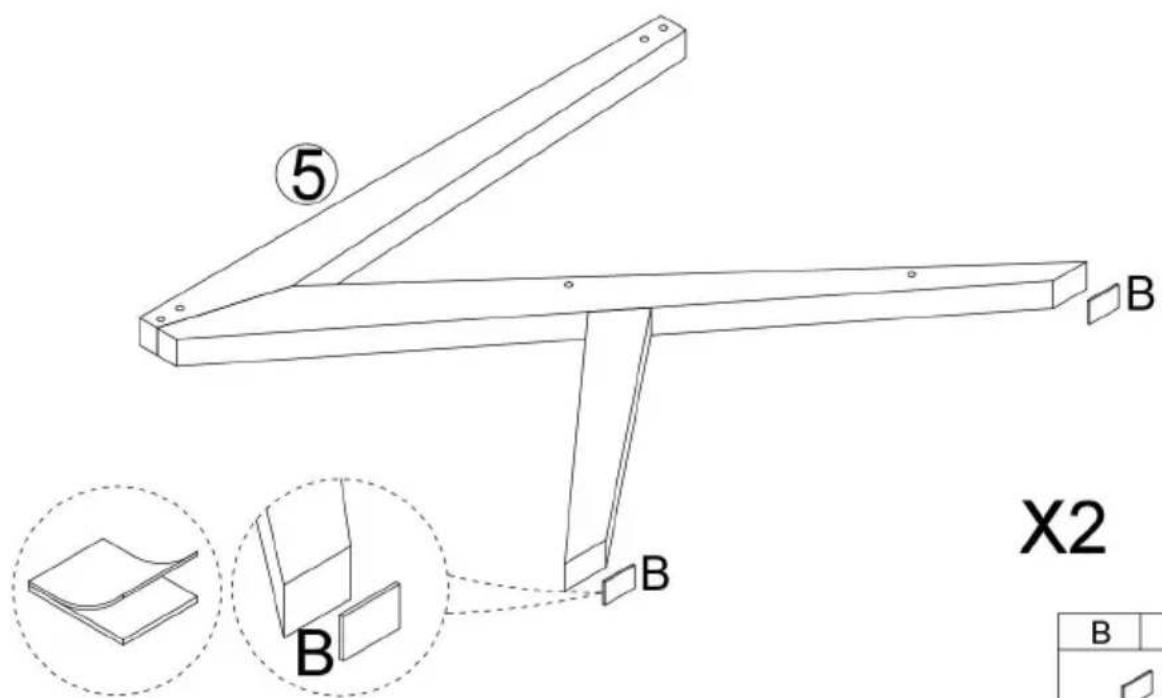

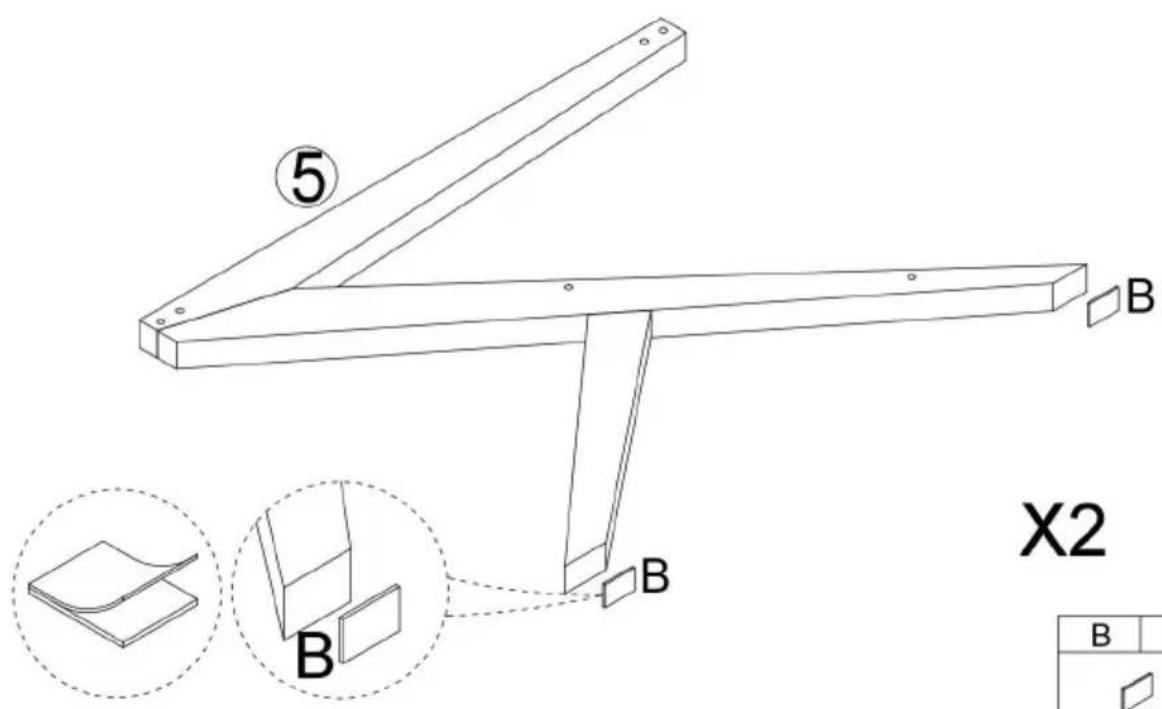

Step 1

A A ⑤ A A ② A

A	X4
M5x40mm

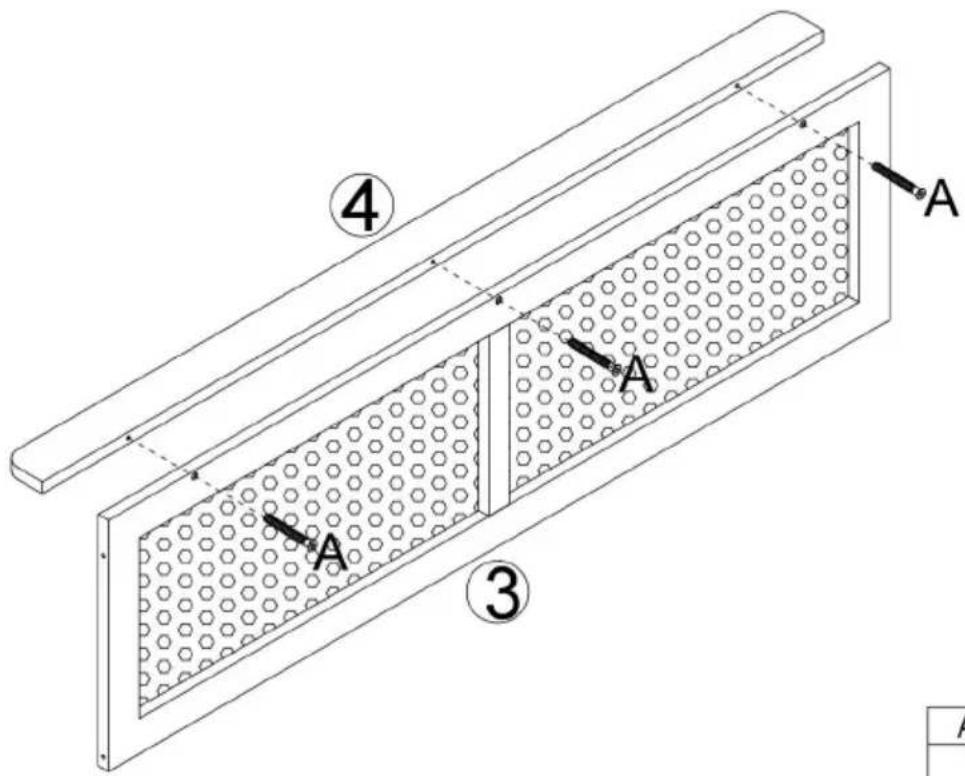

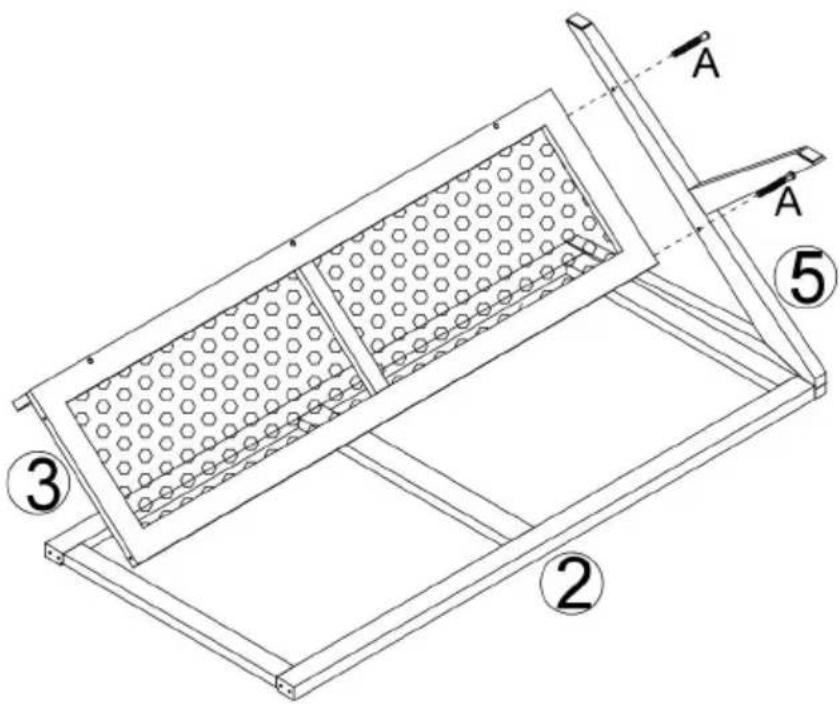

Step3

④ A A A ③

A	X3
M5x40mm

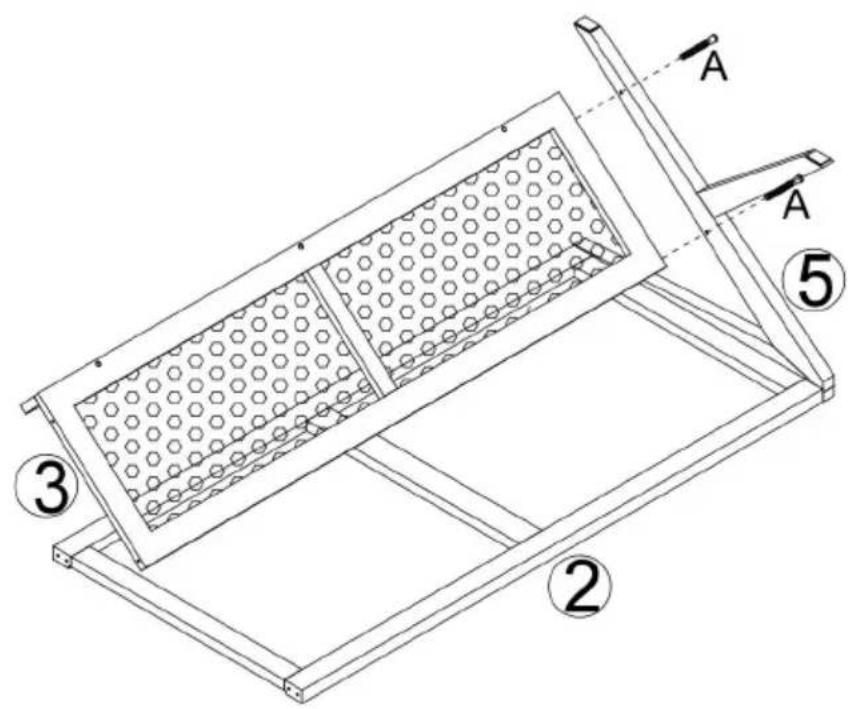

Step4

Technical diagram of a mechanical assembly with labeled components and directional arrows

A	X2
M5x40mm

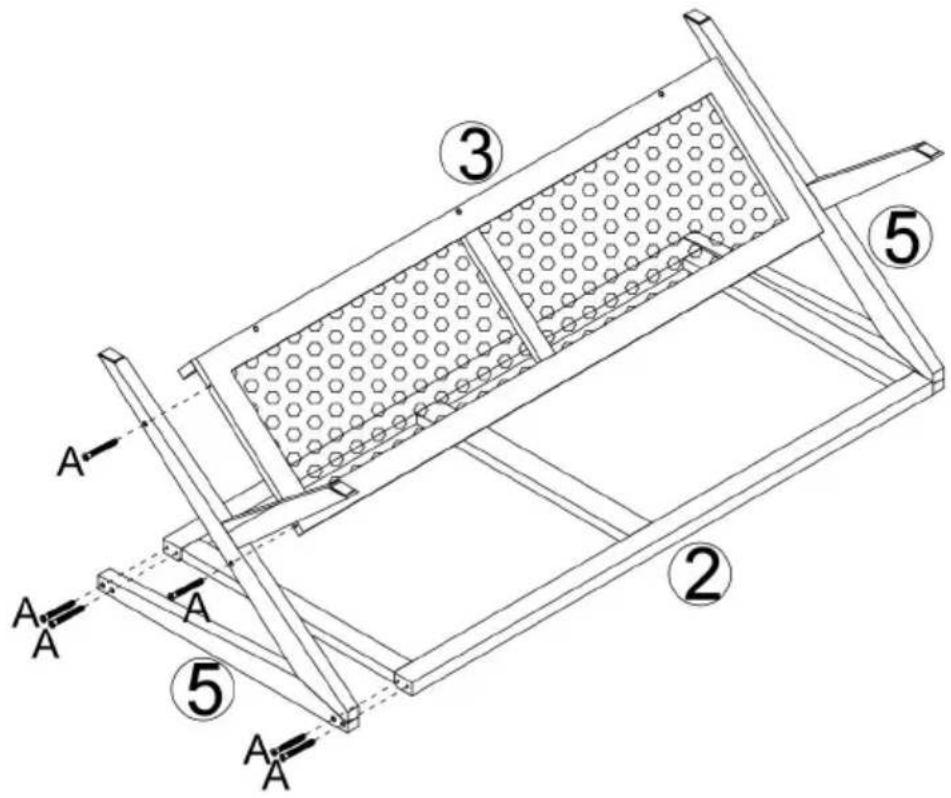

Step5

Technical diagram of a mechanical device with labeled components and directional arrows

A	X6
M5x40mm

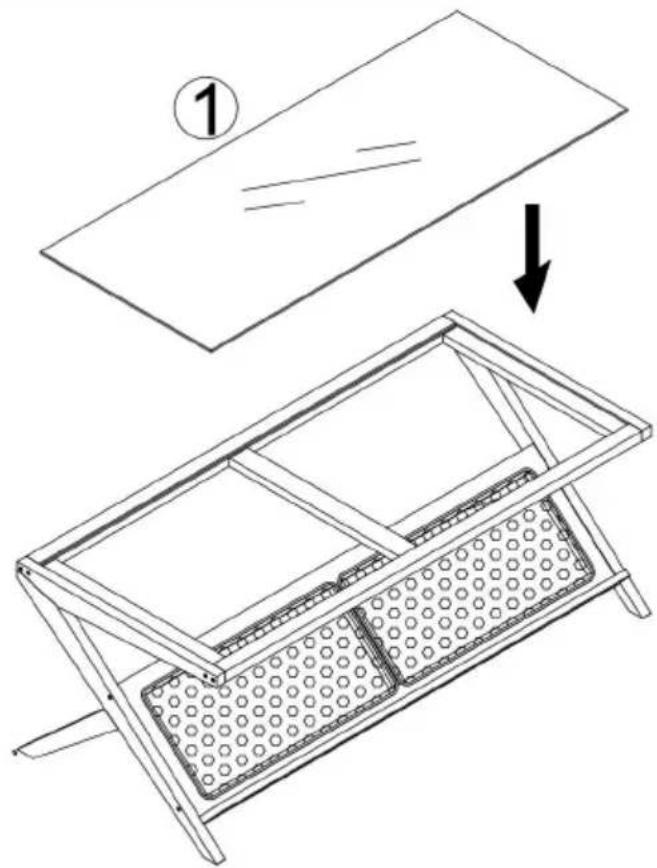

Step6

Technical diagram showing a folding panel with an arrow indicating downward motion, labeled with number 1 and a circular patterned inner panel.

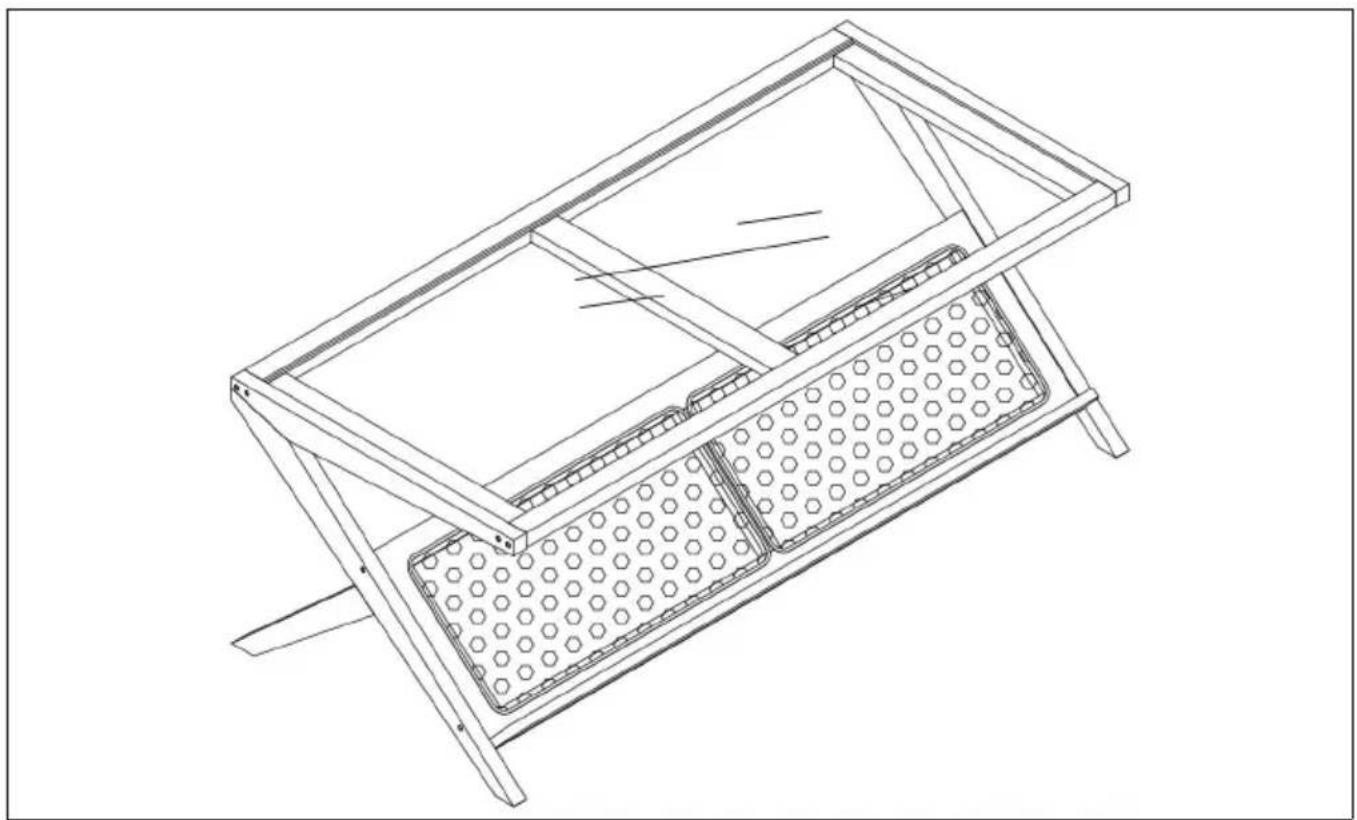

COMPLETION

Line drawing of a wooden folding tray with perforated inner panel and support frame (no text or symbols)

WARNING

Symbol of a person climbing a slope with a diagonal line, enclosed in a circle (no text or numbers present)

Children have died from furniture tipover. To reduce the risk of furniture tipover:

• ALWAYS install tipover restraint provided.
• NEVER put a TV on this product.
• NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
• NEVER open more than one drawer at a time.
• Place heaviest items in the lowest drawers.

TV

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
