USER MANUAL JC-01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ICE BATH

MODEL:JC-01/JC-02/JC-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

ICE BATH

MODEL: JC-01/JC-02/JC-03

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operation or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable proper

- Avoid children using the product. And this product is not a toy. Do not a children to play.

SET UP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Product capabilities apply to properly and completely assembled product only
4. Choose a suitable location near a water source and drainage. Please note will not be able to move the tub after filling it with water, as it will be extra heavy. We recommend testing the drain valve before filling the tub to make can reach the drainage location. The drain hose is about 29.5" long.
5. Be sure to set up on a flat, sturdy, non-slip surface, free of obstructions.
6. We recommend using the tub outdoors or using indoors over sealed or waterproof flooring to avoid water damage during filling, draining, entering or exiting the tub.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING: DROWNING HAZARD Never leave children or vulnerable

adults unattended near the tub. Children and vulnerable adults must be super at all times.

WARNING:

To reduce the risk of serious injury or death:

- Never use for longer than 10-15 minutes to avoid hypothermia. Get out of the tub and move to a warm location at the first sign of discomfort or if you eat any of the following symptoms, shivering or shaking, rapid breathing, clumsiness, or lack of coordination, difficulty concentrating, sleepiness, pale skin color, or sense of discomfort of pain. Drink a warm beverage and wrap yourself in a b Seek medical attention if your symptoms worsen or do not improve. Consult your physician before using the product again.

- If someone in your household experiences any of the following symptoms of moderate to severe hypothermia, help them exit the tub and move to a warr location if safe to do so: slurred speech, confusion body temperature below dilated pupils, slow shallow breathing absence of shivering/shaking, drowsiness fatigue, slow reflexes, or loss of consciousness. Hypothermia is a medical emergency; seek immediate medical attention.

- Do not place electrical appliances, such as a computer, radio, TV, or phon within 6 feet of the tub to avoid the risk of electric shock, injury, or death.

- Do not use during severe weather conditions, such as electrical storms or winds.

- Keep away from heat and open flames; the material will burn or melt whe contact with open flames or heat.

- Do not sit or stand on the edge of the tub.

- Never jump or dive into or out of the tub.

- Use the product only on a flat, sturdy, non-slip surface. Do not use on his slopes, or near stairs or bodies of water.

- Drink plenty of liquids before and after use to avoid dehydration.

- Stop using the product immediately if you feel pain or discomfort.

- This product is for adult use only. Keep children, pets, and vulnerable adult away from the product at all times. Never leave children, pets, and vulnerable adults unattended near the product.

- This product is not intended for use by people with reduced physical sense mental capabilities unless supervised by a responsible adult.

CAUTION:

To reduce the risk of minor or moderate injury, or damage to the product or property:

• Always inspect the product for damage, wear and tear. Check the drainpipe and drain stopper to ensure they are both securely closed. Do not use if da worn, malfunctioning, or missing parts. Do not use the product again until the problem has been fixed.
• Do not allow more than one person to use the product at a time.
• Only inflate the headrest with the included air pump, or another low-pressure device designed to inflate air beds and inflatables. Do not use an air compression shop vacuum, vacuum cleaner, or compressed air to inflate, as this could cause the headrest to burst which may result in injury.
• Do not fill the headrest with water or other liquids. Fill with cold air only; c fill with hot air.

NOTICE

• The product is intended for in-home use only. Do not use the product in commercial, rental, institutional, or therapeutic setting.
• Dispose of the product and all parts according to local and federal regulati
• Prolonged exposure to sunlight can damage or degrade the product. Keep sharp objects away to avoid damaging the product.
• Remove all items, especially sharp objects, from your hands and pockets before using.
• Do not wear jewelry, belts, or other accessories that could puncture the product.
• Do not wear jewelry that could become tarnished.

SPECIFICATION

Model	JC-01	JC-02	JC-03
Main Material	PVC,EPE
Size (mm)	∅ 800*750	∅ 850*750	∅ 900*750
Color	Black
Applicable temperature (°CF)	-20~60/-4~140
Capacity(L/gal)	290/77	330/87	370/98

SETUP GUIDE

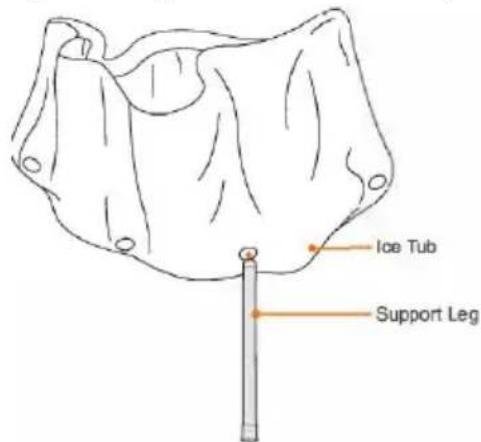

STEP1. UNFOLD THE TUB AND INSERT THE LEGS

1. Gather the ice tub and support legs(6 or 8 legs).
2. Locate the holes for the support legs, near the bottom edge of the tub.
3. Insert a support leg through each hole. (See Fig.1)

Ice Tub Support Leg

Make sure the foot ioutside of the hole

fig.1

1. Set the tub upright. Pull the legs apart, so the bottom of the tub is flat ground.
2. Located the deflated headrest at the top of the top and pull it up so that ready for inflation in the next step.

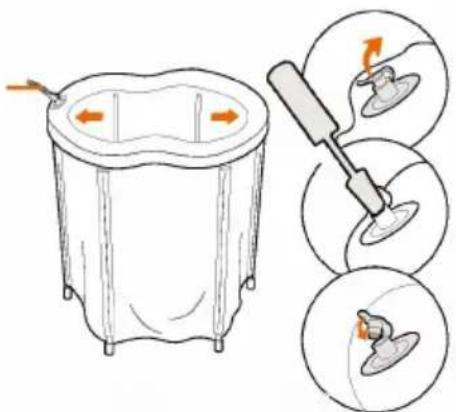

STEP 2: INFLATE THE HEADREST

1. Locate the air pump
2. Locate the air-valve plug on the headrest ring.
3. Pull the tab on the stopper to open the air valve and insert the air pum (See Fig.2)

Air Pump Hose and Nozz

Illustration of a cylindrical container with arrows indicating flow, accompanied by three circular insets showing mechanical components (no text or symbols)

Fig.2

1. Hold the air valve firmly around the nozzle to keep air from escaping as inflate the headrest.
2. When fully inflated, the headrest will be firm and have no creases. Be can not to over inflate it.
3. Reinsert the stopper to close the air valve. Press the air valve gently into inflated ring.

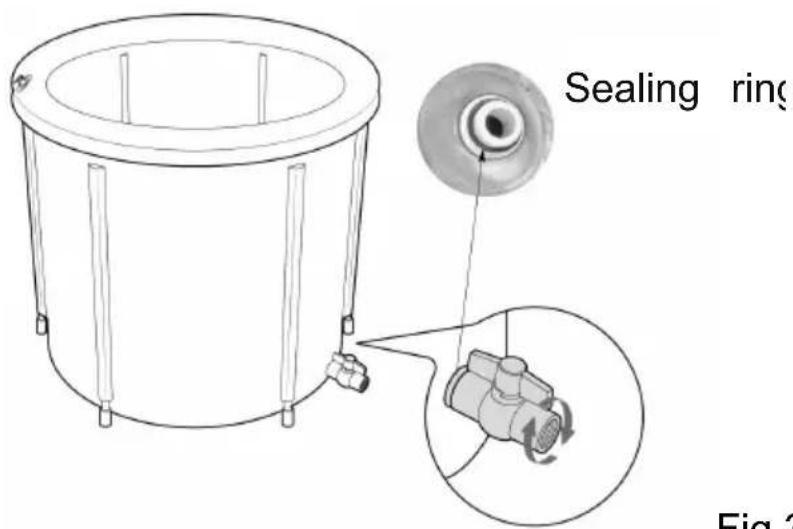

STEP 3: TIGHTEN THE DRAIN VALVE

1. Locate the drain valve on the outside of the tub.
2. 1. Rotate the drain valve counterclockwise to tighten it and prevent leaks. Drain valve should be just hand-tight, so stop tightening when you start to feel resistance. Do not over tighten as this can damage your ice tub.

Note: Add a sealing ring (in accessories) between the drain valve and the outlet to prevent leakage at the drain valve connector.

Sealing ring Fig 1

Fig.3

BEFORE USING THE TUB FOR THE FIRST TIME

1. Wash the inside of the tub with warm, soapy water. Rinse the tub thorou and wipe it down with a clean, dry cloth

2. Then, add room -temperature water to the tub using a hose or a bucket.

A). We recommend filling the tub about halfway full and adjusting the water little at a time if needed.

B). Never fill the tub more than 2/3 of the way full. Your body will displace when you get in, which can cause the tub to over flow if it's too full.

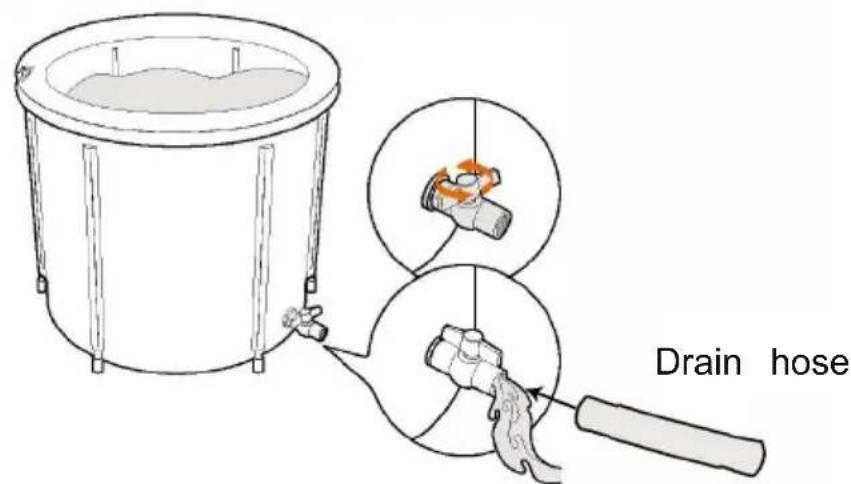

DRAINING THE TUB

1. Locate the included drain hose.

2. Pull the ends of the drain hose apart to extend it.

3. Slide the end of the drain hose over the drain valve.

4. Direct the other end of the drain hose to a suitable drainage location, such nearby sink, bathtub, or a suitable area of your yard if your ice tub is set outside.

5. Remove the stopper from the drain at the bottom of the tub.

6. Open the drain valve by turning the handle counterclockwise one 1/4 turn, is in line with the drain valve.(See Fig.4)

Drain hose

Fig.4

Note: Always be sure to attach the drain hose to the drain valve before drate the ice tub.

1. When the water is completely drained, always remember to close the drain valve by turning the knob clockwise.

CLEANING THE TUB

1. Drain the tub.
2. Wash the inside of the tub with warm water and mild soap.3. Rinse the thoroughly and allow it to completely dry before using it again, or folding and storing it.

NOTES:

• We recommend washing the tub once a week with mild soap and water.
• Regularly clean your ice tub to prevent bacteria growth and deterioration of tub materials. Regularly cleaning your tub also helps keep the water hygienic.
• Do NOT use harsh detergents or abrasive, corrosive, solvent, or chemical cleaners.
• Do NOT add chlorine or bromine to the water as they will damage or deg the tub. Use of such chemicals is forbidden and will void your warranty.
• Be sure to regularly clean the drain valve, drain hose, and other accessories with mild soap and water.

KEEPING YOUR ICE TUB WATER CLEAN

• Shower or bathe with soap and water before each use.
• Always cover the tub with the all-weather lid when not in use to keep you clean and keep out bugs, dirt, and debris.
• If using your tub outdoors, make sure to wear shoes on your walk to the or carefully rinse your feet before getting in.
• Do not add soap, oil, bath salts, or other products to the water.

STORING THE TUB

1. Deflate the headrest and tuck it inside the tub.
2. Remove the support legs and set them aside.
3. Lay the tub fat on the ground and fold the bottom edge of the tub up.
4. Fold each side of the tub toward the center. Fold the tub in half, left to Then fold in half top to bottom.
5. Store the folded tub and all accessories together in the included box.

NOTES:

• We recommend thoroughly washing the tub before storing it.
• Always make sure the tub is completely dry before storing. if the tub is d when stored, mildew can grow
• Store it in the storage bag.
• We recommend storing the tub if you won't be using it for a long time.
• Store indoors, in a cool, dry location.
• Do not store in direct sunlight, in a high-temperature or high-temperature environment, or near heat sources.

REPAIRING THE TUB

Self-adhesive repair patches are included in case your tub gets punctured, to begins to leak.

To repair the tub:

1. Drain and wash the tub.
2. Allow the tub to completely dry.
3. Remove the backing from a repair patch.

Press the patch firmly to the punctured or torn area for at least two minutes

PACKAGE LIST

No.	Name	Picture	QTY(pcs)
1	Ice tub		1
2	Support legs		6(JC-03 is 8)
3	Drain hose		1
4	Valve(1/2")		1
5	barrel cover		1
6	inflator		1
7	Storage bag		1
8	Water pad		1
9	repair patch		2
10	Sealing ring		2
11	Manual		1
