Product Type	Chest Freezer / Built-in Ice Bucket
Brand	Vevor
Model	ICB-FR201412 and ICB-SR181214
Exterior Material	Brushed Stainless Steel
Insulation	Double layer with high-density polyurethane
Capacity	ICB-FR201412: 31 L; ICB-SR181214: 28 L
Cutout Dimensions (L×W×H)	ICB-FR201412: 490×337×490 mm; ICB-SR181214: 390×238×300 mm
Cold Retention Time	Up to 24 hours
Main Functions	Keep ice cubes, bottles, and drinks cold; thermal insulation; anti-condensation (XPE sponge)
Supplied Accessories	Lid, sealing ring, filter, siphon, screws
Maintenance and Cleaning	Drain water after each use; dry if not used for extended period; change ice regularly
Safety Instructions	Keep out of reach of children (small parts); use only on a clean, stable surface; avoid sharp objects
Intended Use	Domestic and professional use (bars, restaurants, patios, pools)
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importers	Australia: SIHAO PTY LTD; United States: Sanven Technology Ltd; United Kingdom: (address in Frankfurt)

Frequently Asked Questions - ICB-FR201412 Vevor

How to install the Vevor ICB-FR201412 ice bucket?

Place part no. 4 in the basin hole, install parts no. 5/6/7, tighten the screw with the wrench, then fix parts no. 8/9. Finally, place parts no. 1/2/3 into part no. 4. Follow the indicated cutout dimensions.

What is the capacity of the ICB-FR201412 model?

The capacity is 31 liters (measured with water). Actual ice capacity is lower due to different density.

How long does the ice bucket maintain temperature?

It provides insulation effect up to 24 hours thanks to its double layer and high-density polyurethane.

How to clean and maintain the device?

After each use, drain the melted water. For prolonged storage, drain all water and dry the interior to prevent odors and bacteria. Replace ice regularly.

What accessories are supplied with the product?

The kit includes a lid, two sealing rings, a filter, a siphon, and screws. Refer to the accessory list in the manual.

Is the ice bucket suitable for professional use?

Yes, it is designed for bars, restaurants, patios, and pools. It keeps drinks cold during parties, barbecues, or events.

What are the required cutout dimensions?

For model ICB-FR201412: 490×337×490 mm. For ICB-SR181214: 390×238×300 mm. The height corresponds to the installation space.

Is the product safe for children?

Caution: The product contains small parts that pose a choking hazard. Keep them out of reach of children during assembly. Keep the work area clean.

How to prevent condensation on the sides and bottom?

The ice bucket is wrapped with XPE sponge that prevents condensation and water droplets on external surfaces.

Where to find technical support for this product?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL ICB-FR201412 Vevor

DROP-IN ICE CHESTS

INSTRUCTIONS

Model: ICB-FR201412 / ICB-SR181214

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

DROP-IN ICE CHESTS

Model: ICB-FR201412 / ICB-SR181214

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep the work area clean and well-lit, and keep spectators and children out of the work area.
2. Assemble only according to the ice chest parameters. Improper assembly creates hazards.
3. Use as intended only.
4. Keep away from sharp points, blades, and other items, so as not to damage the product.

NOTE:

1. The illustration shown is for reference only. It may not represent the actual product purchased.
2. Please follow the installation steps to mount this drop-in ice chest. Incorrect installation steps may cause damage or trouble.
3. Installation is easy. Please handle it gently.

SAVE THESE INSTRUCTIONS

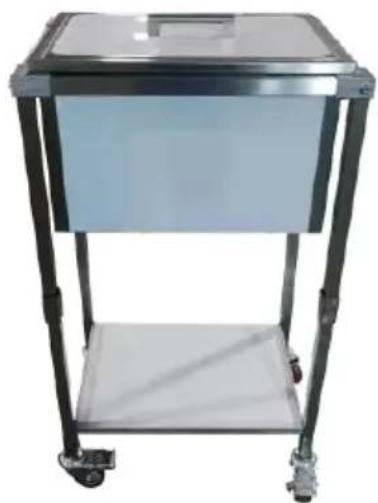

PRODUCT DESCRIPTION

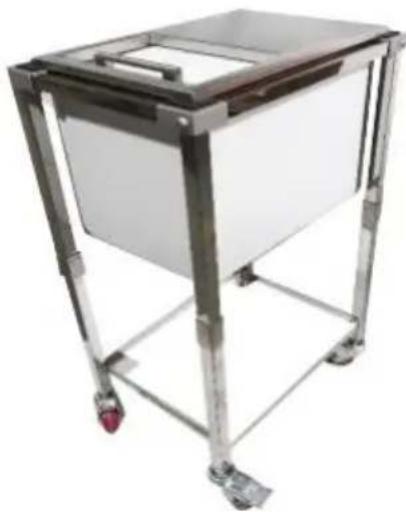

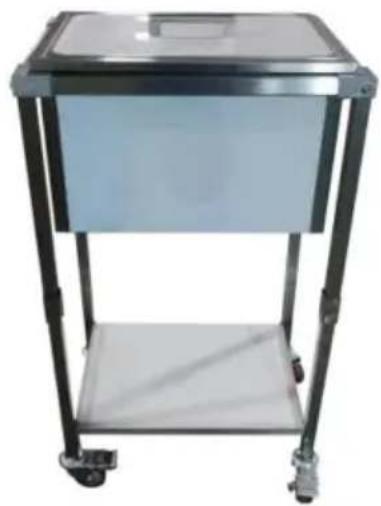

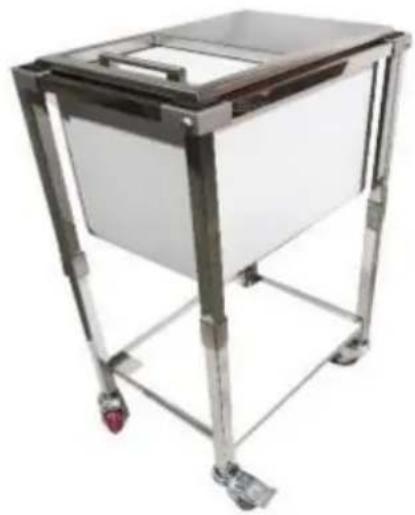

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with an adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.
2. The ice bucket with lid is a versatile and essential accessory. It can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties, or barbecue.
3. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents the side and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

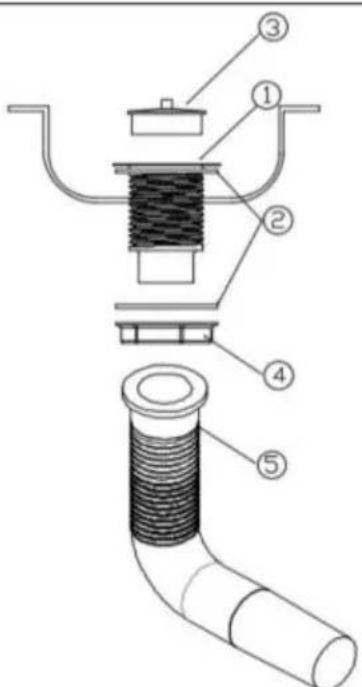

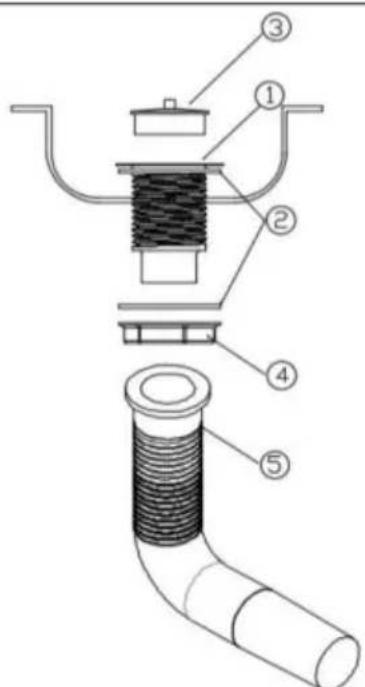

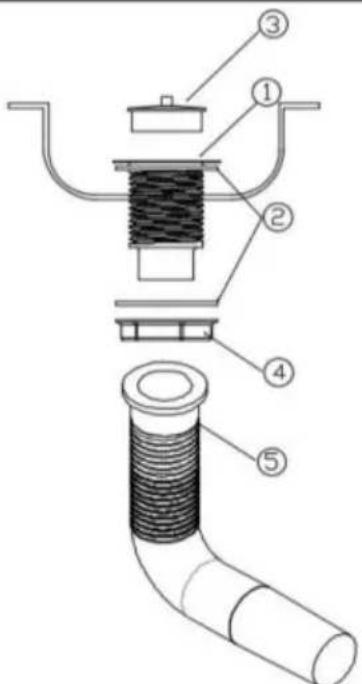

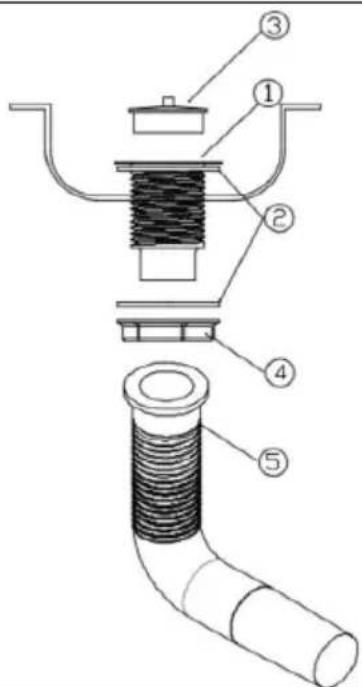

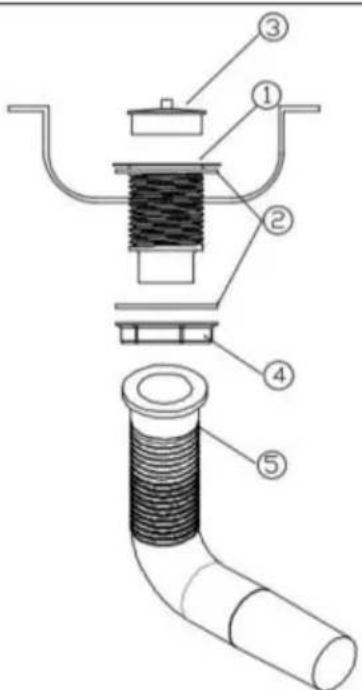

Filter Components
Name	Qty	Picture	Name	Qty	Picture
1 Cup	1		2 Seal ring	2
3 Lid	1		4 Screw	1
5exhalent siphon	1

Components
Name	Qty	Picture	Name	Qty	Picture	Name	Qty	Picture
A	1		B	1		C	1
D	2	(339/288mm)	E	2	(491/442mm)	F	4	(418mm)
G	4	(418mm)	H	1	(4mm)	I	1	(4mm)
J	4		K	4		L	2
M	2		T	4		O	4
P	1		Q	1		R	1
S	4		1			2

3		5
6	7	8

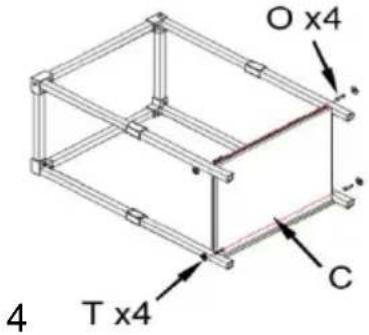

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on part 1. 2: Tighten the screw with the key, and tighten parts No. 8/9 on part 7. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

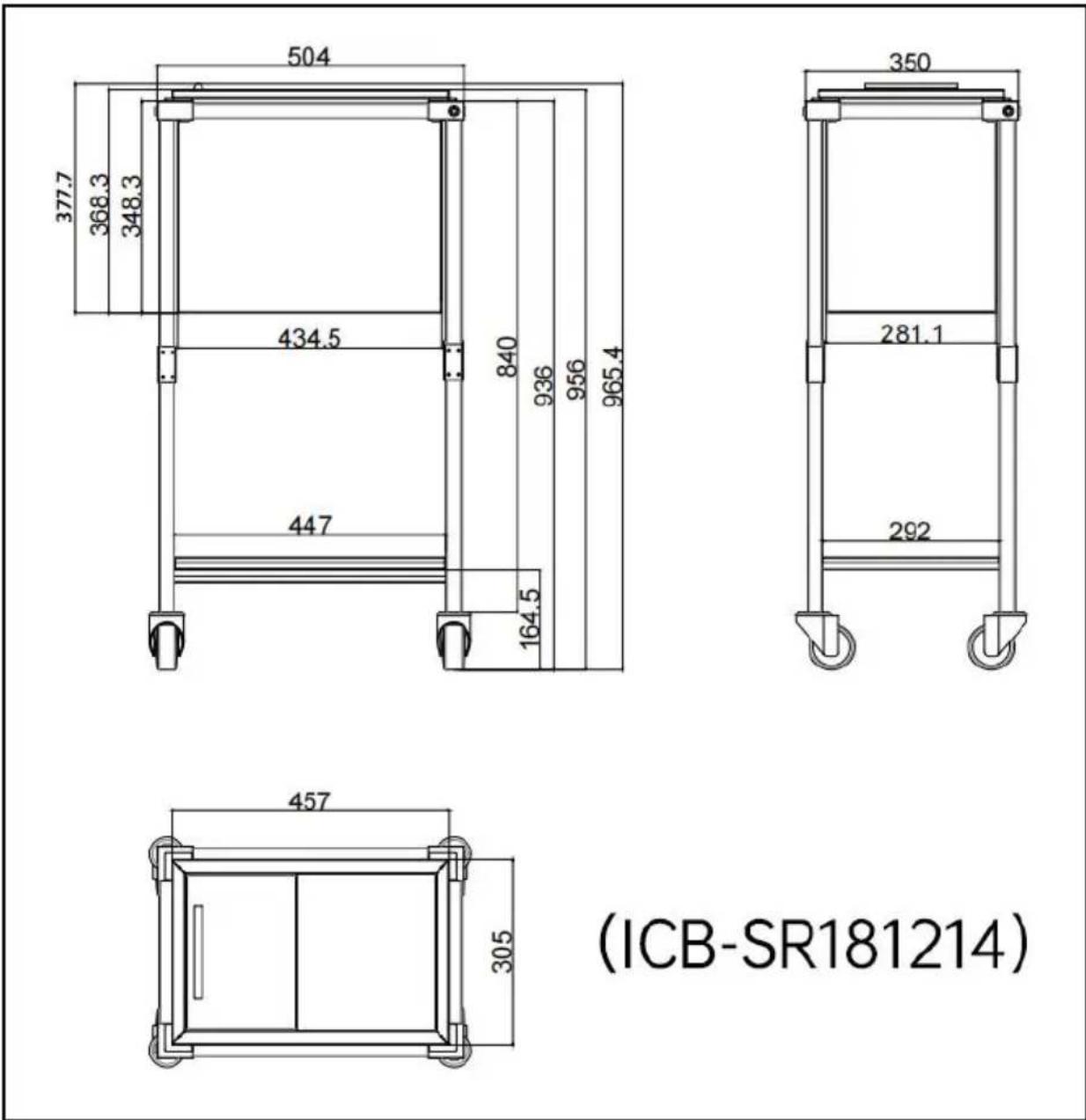

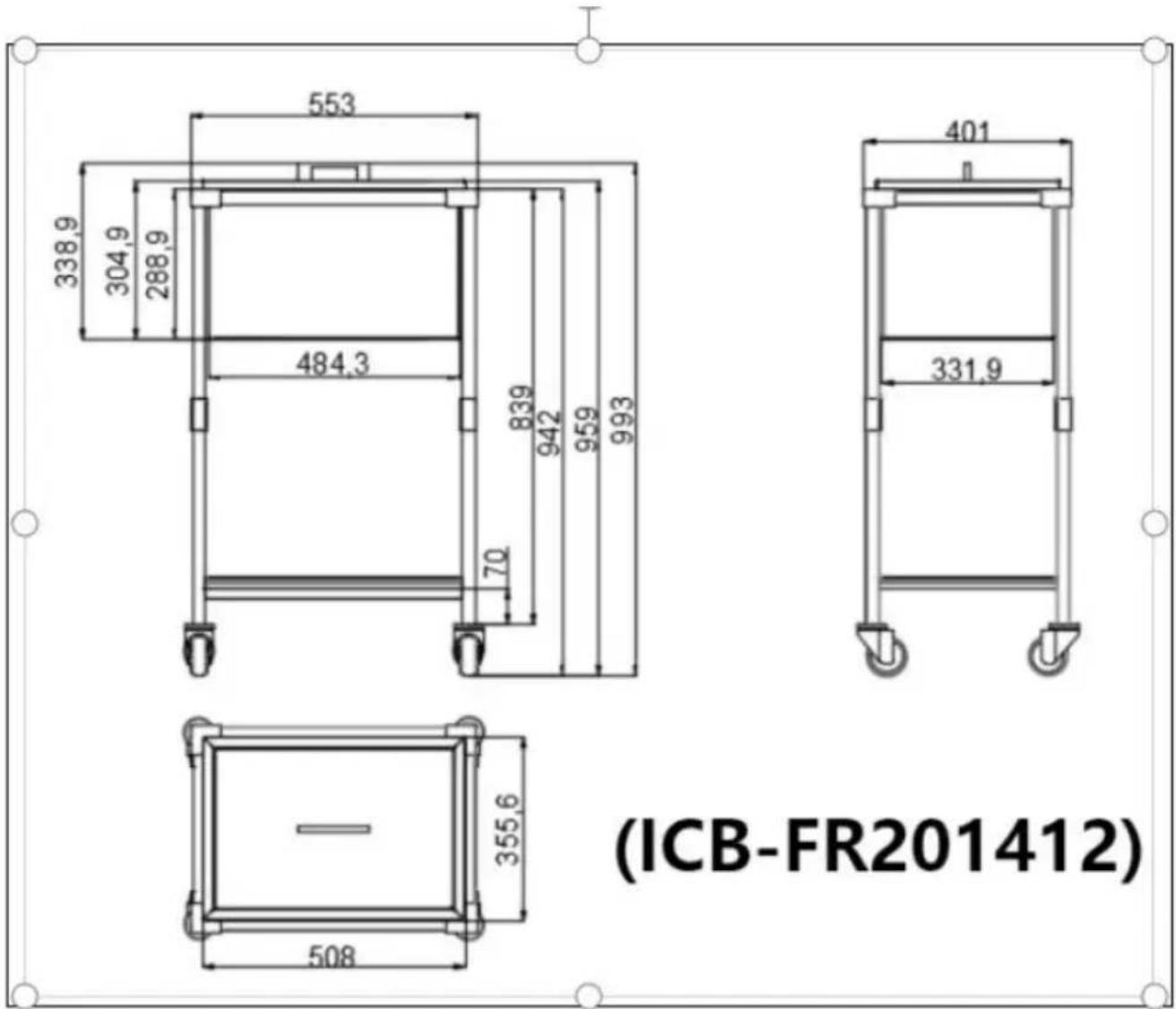

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
ICB-FR201412	490*337*490	31	Can provide 24H Insulation effect.
ICB-SR181214	390*238*300	28

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment. 2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation. 3. The product capacity data in the table is calculated by the density of water, and there will be some errors in practice, which is a normal phenomenon. 4. Because the volume and density of ice is different from that of water, the loading capacity of the two is also different. For example, when 10 kg can fill the ice bucket, if replaced with water, it takes 23 kg of water to fill the ice bucket.

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to replacing the ice and water in time.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Built-in Coolers

INSTRUCTIONS

Built-in refrigerators

Composants
Nom Qté Image Nom Qté Image Nom Qté Image
UN	1		B	1		C	1
D	2	(339/288 mm)	ET	2	(491/442 mm)	F	4	(418 mm)
G	4	(418 mm) (4 mm)	H	1			1	(4 mm)
J	4		K	4		L	2
M	2		T	4		Le 4
P	1		Q	1		R	1
S	4		1			2

3		5
6	7	8

YH CONSULTING LIMITED. A/S YH Consulting Limited, office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Built-in refrigerators

INSTRUCTIONS

Model: ICB-FR201412/ICB-SR181214

www.vevor.com/support

VEVOR

Built-in refrigerators

Model: ICB-FR201412/ICB-SR181214

YH CONSULTING LIMITED. C/O YH Consulting Limited, office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG-Vertreter

Built-in Ice Makers

INSTRUCTIONS

Model: ICB-FR201412/ICB-SR181214

Built-in Ice Makers

Model: ICB-FR201412/ICB-SR181214

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- on-Thames, Surrey, TW18 4AX

Built-in Ice Makers

INSTRUCTIONS

Model: ICB-FR201412/ICB-SR181214

Built-in ice makers

Model: ICB-FR201412/ICB-SR181214

Componentes
Nombre	Cant.	Imagen Nombre	Cant.	Imagen Nombre	Nombre Cant.	Imagen
A	1		B	1		do	1
D	2	(339/288 mm)	Y	2	(491/442 mm)	F	4	(418 mm)
GRMZ	4	(418 mm)	H	1	(4 mm)	I	1	(4 mm)
Yo	4		K	4		Yo	2
EHTM	2		T	4		EI 4
PAG	1		Q	1		R	1
S	4		1			2

3	4 1×4	5
6	7	8

YH CONSULTING LIMITED. A/C YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

BUILT-IN ICE MAKERS

INSTRUCTIONS

Models: ICB-FR201412/ICB-SR181214

Affordable. Reliable. Home Improvement.

BUILT-IN ICE MAKERS

Models: ICB-FR201412/ICB-SR181214

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

INSTRUCTIONS

Model:ICB-FR201412/ICB-SR181214

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

Model:ICB-FR201412/ICB-SR181214

ACCESSORY LIST

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHEST

INSTRUCTIONS

Model: ICB-FR201412/ICB-SR181214

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DROP-IN ICE BIN

Model: ICB-FR201412/ICB-SR181214

Komponenter
Namn	Antal Bild	Namn	Antal Bild	Namn	Antal Bild
A	1		B	1		C	1
D	2	(339/288 mm)	001	2	(491/442 mm)	F	4	(418 mm)
G	4	(418 mm)	H	1	(4 mm)		1	(4 mm)
J	4		K	4		L	2
M	2		T	4		Den	4
P	1		Q	1		R	1
S	4		1			2

3		-
6	7	8

Installation steps:

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
