Product Type	Flush-mount Ice Bucket
Brand	Vevor
Model	ICB-S181214
Capacity	27,1 L
Dimensions (L × W × H)	455 × 305 × 400 mm
Recommended cutout size	455 × 305 × 400 mm
Material	Brushed stainless steel
Insulation	Double layer with high-density polyurethane
Lid seal	Adhesive tape for sealing
Cooling retention time	Approximately 24 hours
Included accessories	1 lid, 1 gasket, screws, key, 1 siphon (as per list)
Recommended use	Bar, terrace, garden, pool, restaurant
Maintenance	Empty water after use, dry, avoid bacteria
Safety	Small parts, keep out of reach of children
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, China
EU importer	Office 147, Centurion House, London

Frequently Asked Questions - ICB-S181214 Vevor

How to install the Vevor ICB-S181214 ice bucket?

Installation involves placing part #4 into the basin hole, then install parts #5/6/7, tighten the screws with the key, and finally place the lid (parts #1/2/3). Follow the installation steps in the manual.

What is the ice bucket's ice cube capacity?

The capacity is 27.1 liters. In practice, the ice load is less than that of water: for example, 10 kg of ice fills the bucket, while it would take 23 kg of water.

How long does the ice stay cold?

Thanks to the double-layer insulation made of high-density polyurethane and the lid seal, ice can stay cold for up to 24 hours under normal conditions.

How to clean the ice bucket after use?

Empty the melted water after each use, then completely dry the interior to avoid bacteria. If inactive for a long time, keep the bucket dry.

Can I use the ice bucket for hot drinks?

No, this product is designed only for keeping drinks cold (wine, beer, cocktails, juice). It is not suitable for hot liquids.

Is the lid airtight?

Yes, the lid is sealed with an adhesive tape to prevent heat loss and maintain freshness.

Is it easy to flush-mount into a counter?

Yes, it is designed for flush-mounting. The recommended cutout size is 455×305×400 mm. Follow the instructions for proper installation.

What type of insulation is used?

The insulation is double layer with high-density polyurethane. Additionally, the sides and bottom are covered with XPE foam to prevent condensation.

Are spare parts available?

Spare parts are not listed, but you can contact Vevor support at www.vevor.com/support for information on spare parts.

How to avoid condensation on the outside of the bucket?

The XPE foam on the sides and bottom prevents condensation. Make sure the bucket is properly installed and the lid seal is in good condition.

USER MANUAL ICB-S181214 Vevor

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

INSTRUCTIONS

Model: ICB-W201613 / ICB-W281617 / ICB-W282017 /

ICB-F201412 / ICB-F221712 / ICB-S181214 /

ICB-S241813

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

Model: ICB-W201613 / ICB-W281617 / ICB-W282017 / ICB-F201412 / ICB-F221712 / ICB-S181214 / ICB-S241813

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep the work area clean and well lit, and keep spectators and children out of the work area.
2. Assemble only according to the ice chest parameters. Improper assembly creates hazards.
3. Use as intended only.
4. Keep away from sharp points, blades, and other items so as not to damage the product.

NOTE:

1. The image shown is for illustration purposes only. It may not represent the actual product purchased.
2. Please follow the installation steps to mount this drop-in ice chest. Incorrect installation steps may cause damage or trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design achieves better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with an adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.
2. The ice bucket with lid is a versatile and essential accessory that can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties,

barbecue.

1. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents the side and bottom from condensation, which leads to the problem of dripping water on the surface.

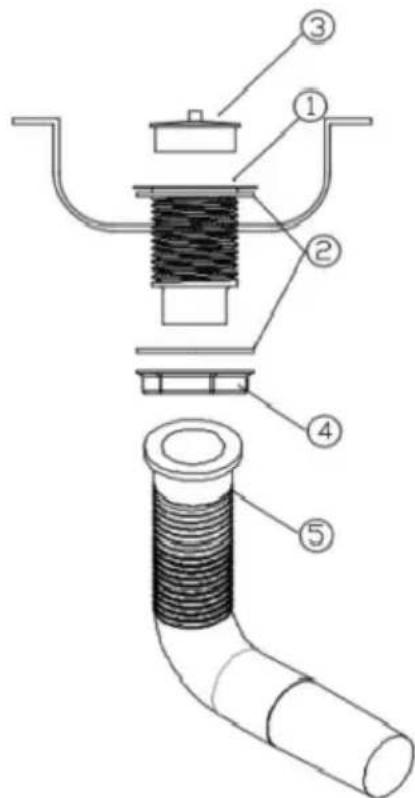

LIST OF ACCESSORIES

Filter Components
Name	Qty	Picture	Name	Qty	Picture
1 Cup	1		2 Seal ring	2
3Lid	1		4Screw	1
5exhalent siphon	1

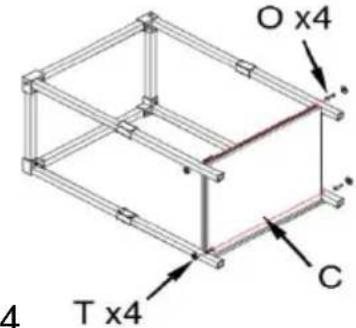

Components
Name	Qty	Picture	Name	Qty	Picture	Name	Qty	Picture
A	1		B	1		C	1
D	2	(339/288mm)	E	2	(491/442mm)	F	4	(418mm)
G	4	(418mm)	H	1	(4mm)	I	1	(4mm)
J	4		K	4		L	2
M	2		T	4		O	4
P	1		Q	1		R	1
S	4

3		5
6	7	8

Components
Name	Qty	Picture	Name	Qty	Picture	Name	Qty	Picture
A	1		B	1		C	1
D	2		E	2		F	4
G	4		H	1		I	1
J	4		K	4		L	2
M	2		T	4		O	4
P	1		Q	1		R	1
S	4
			1			2

3		5
6	7	8

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on it. 2: Tighten the screw with the key, and tighten parts 8/9 on part 7. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

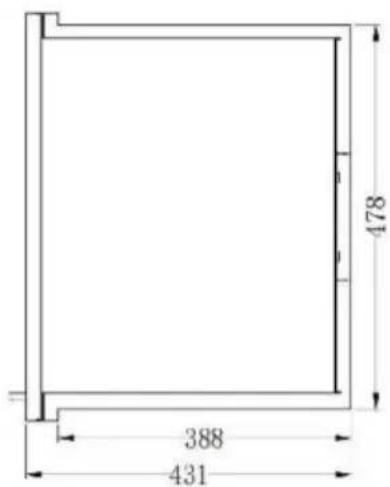

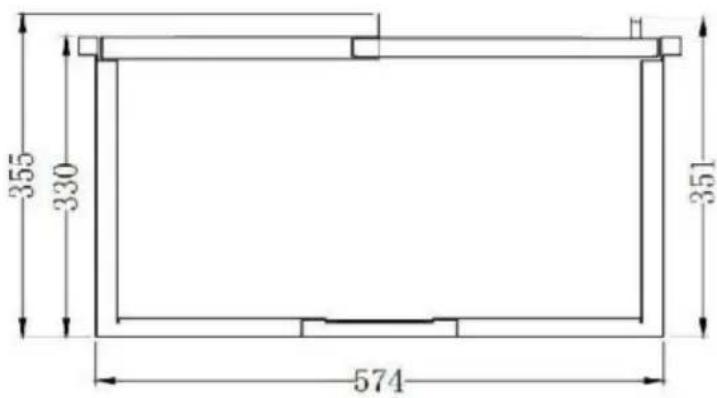

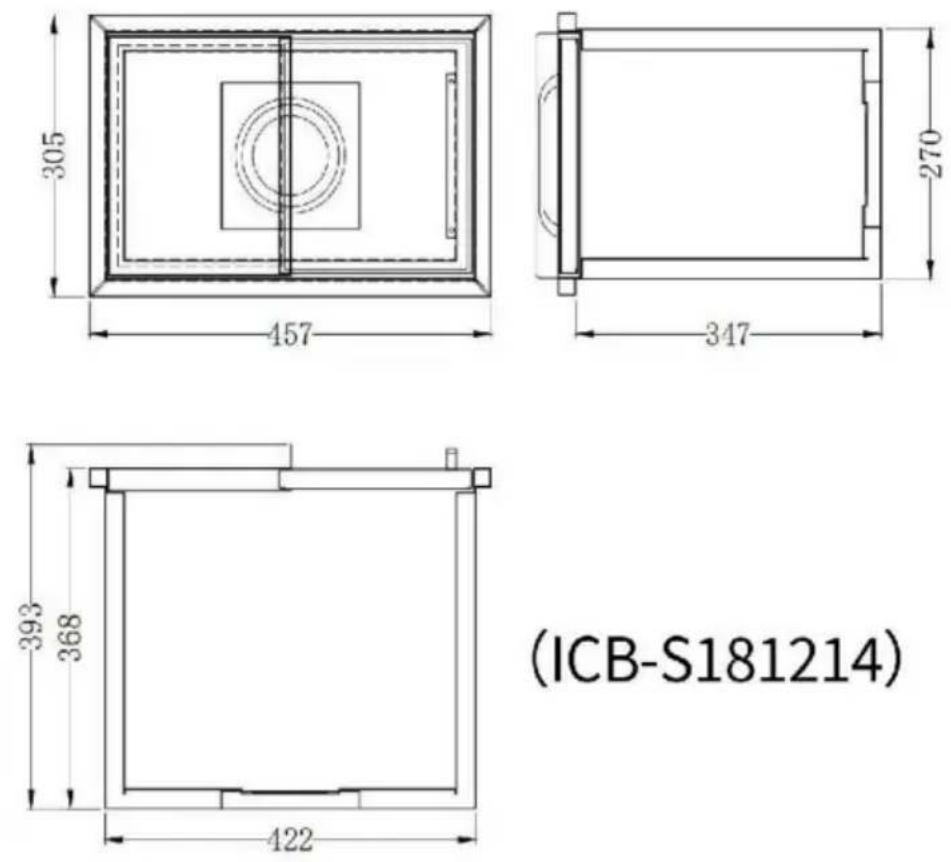

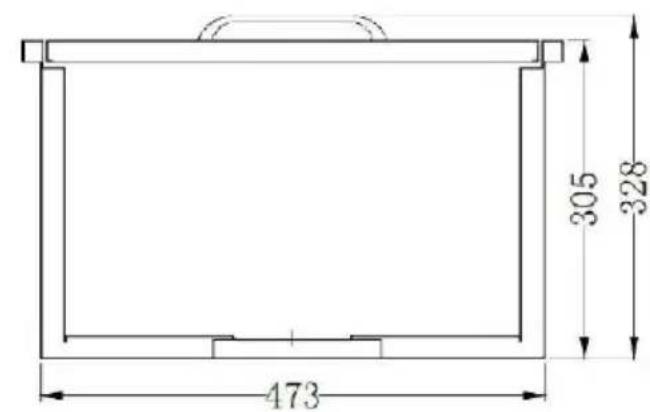

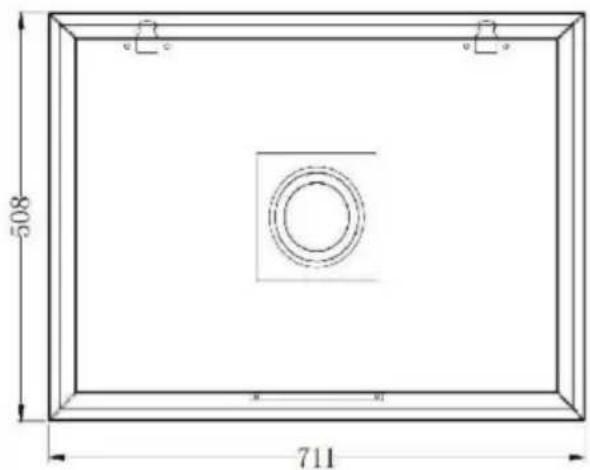

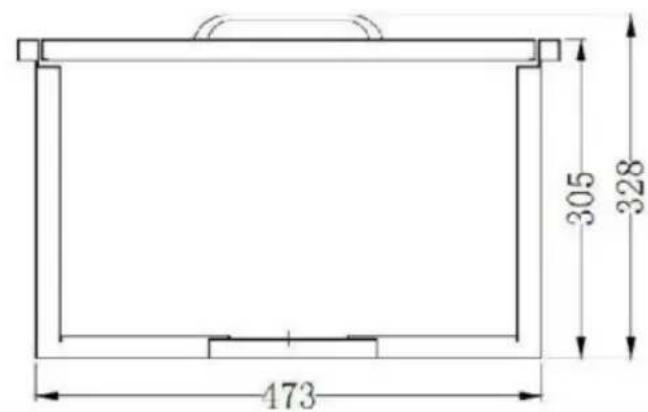

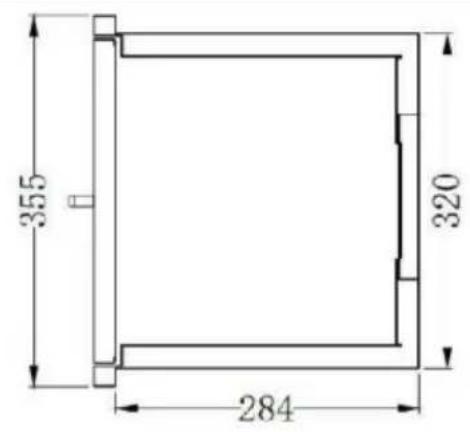

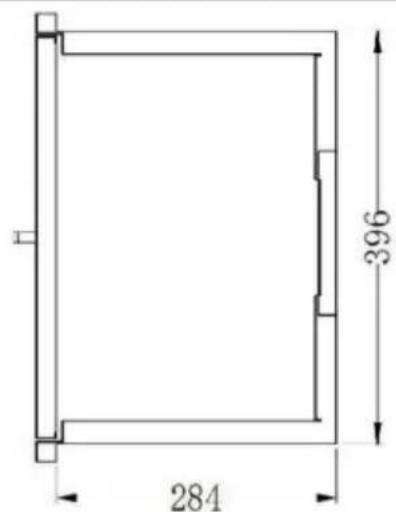

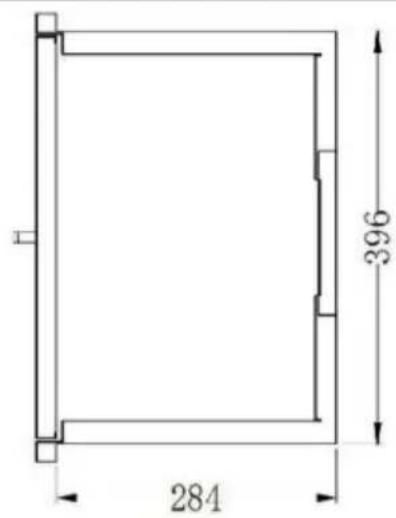

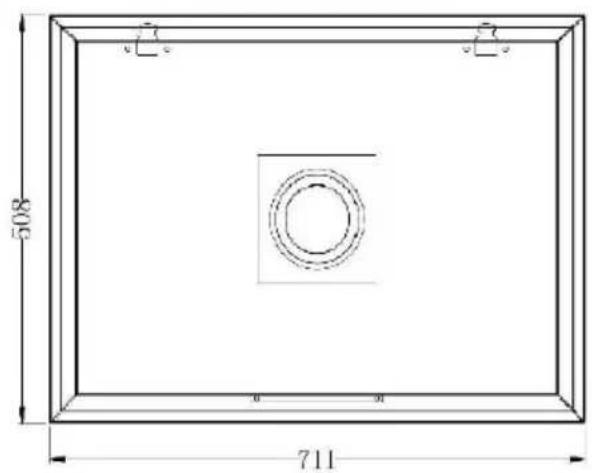

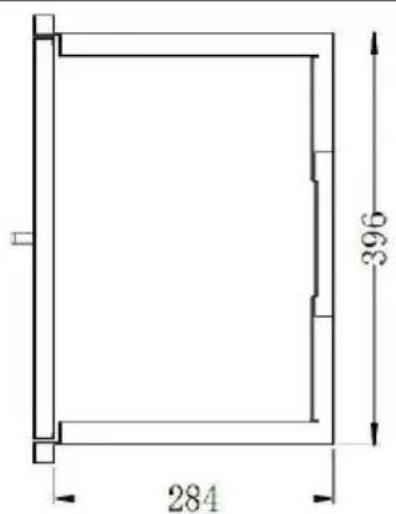

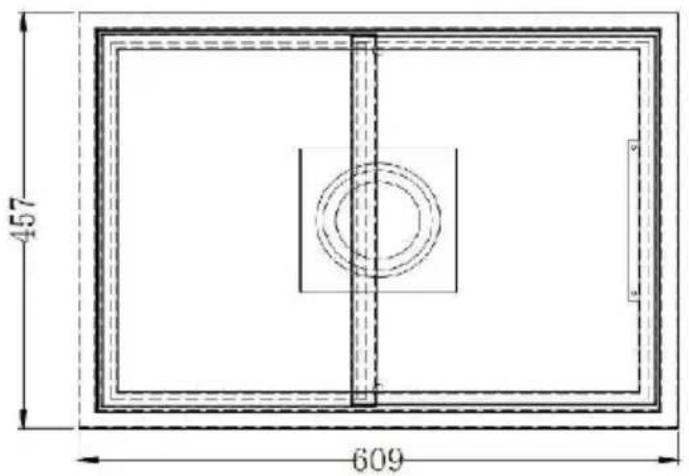

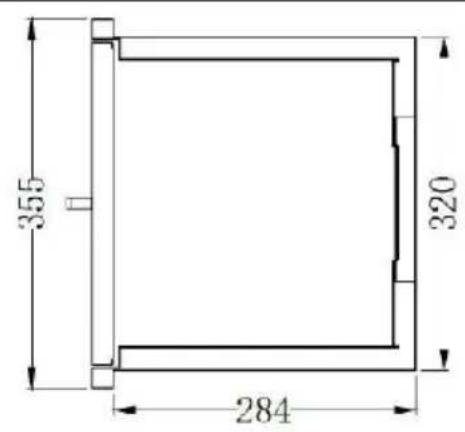

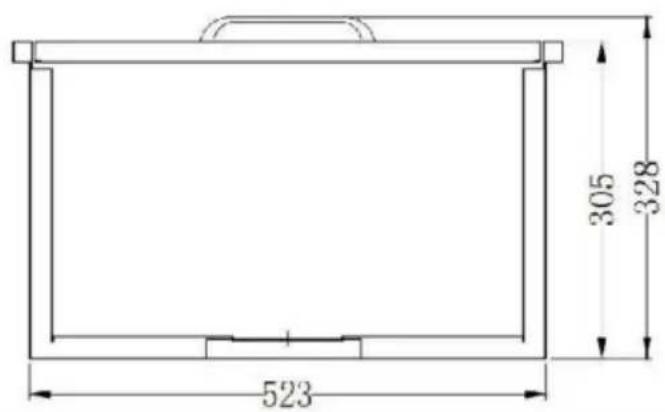

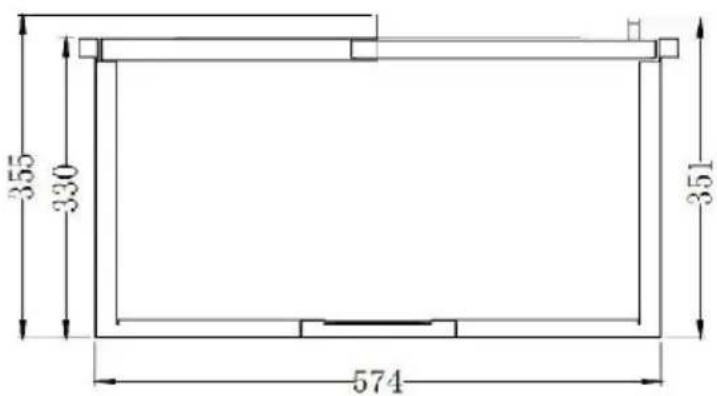

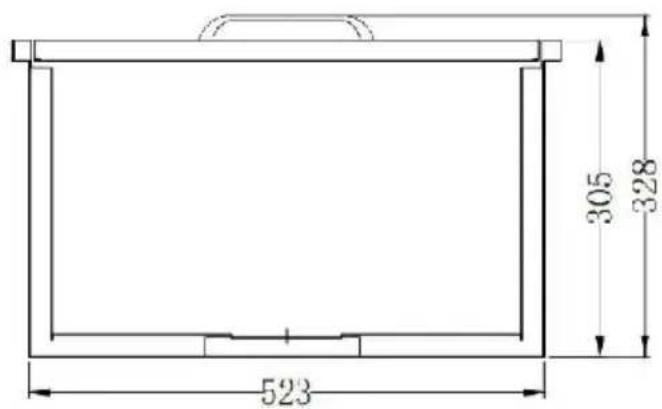

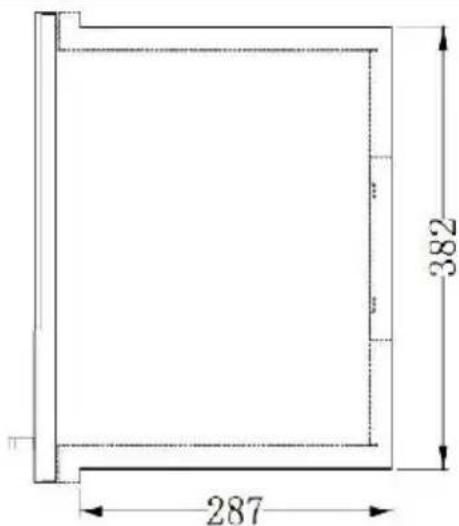

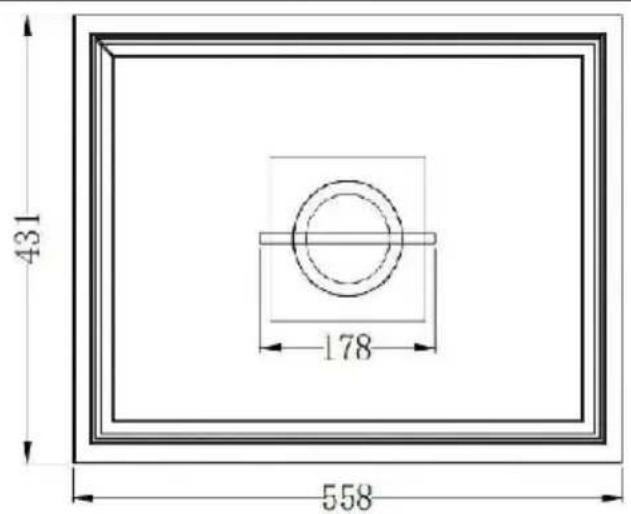

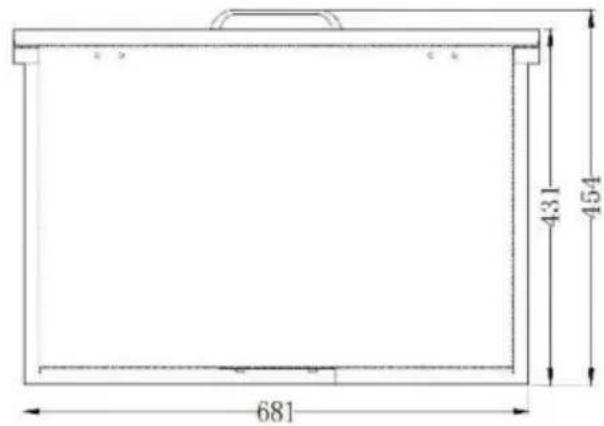

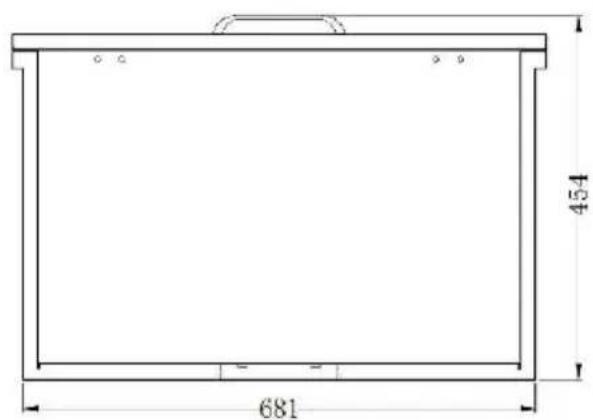

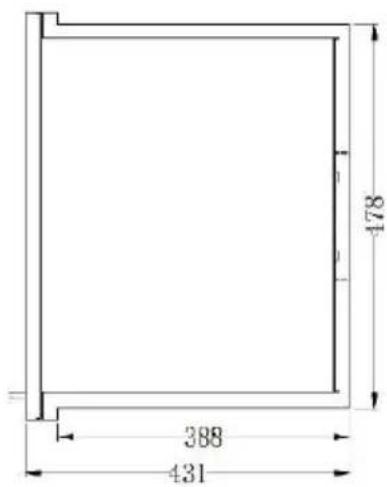

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
ICB-W201613	507*407*365	42.4	Can provide 24H Insulation effect.
ICB-W281617	710*406*460	82.8
ICB-W282017	709*508*458	107.5
ICB-F201412	508*355*330	30
ICB-F221712	558*430*329	42.9

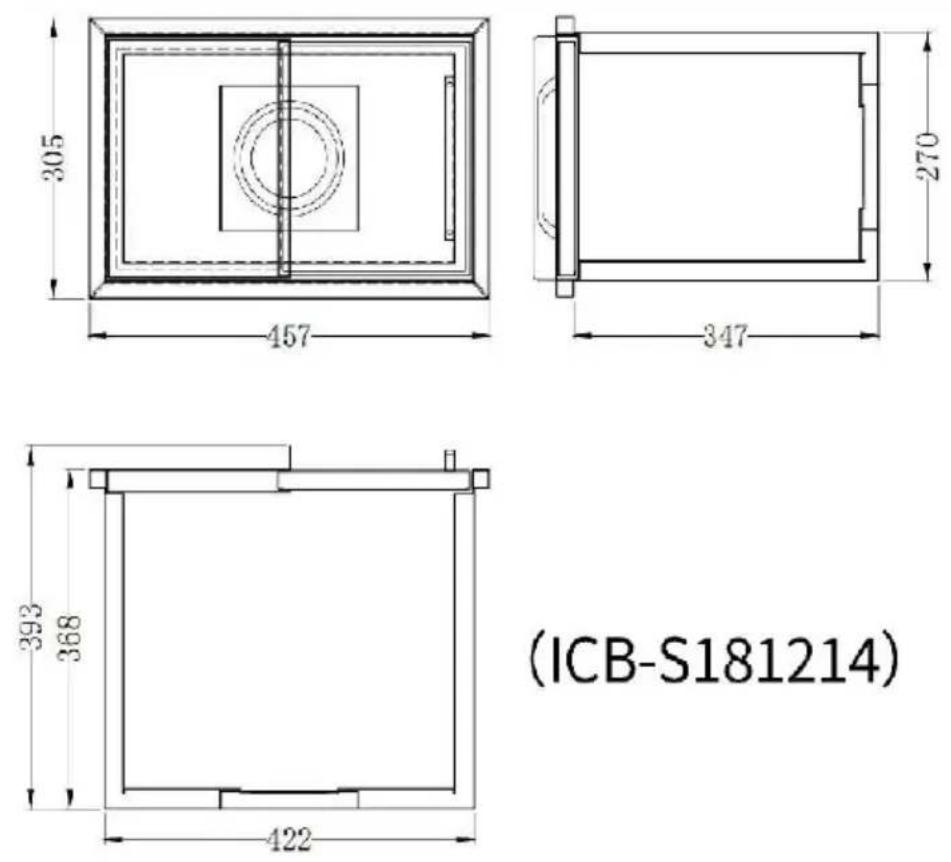

ICB-S181214	455*305*400	27.1
ICB-S241813	610*457*331	54.6

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment. 2. The height dimension in the "Cut-out size" dimensions is the height reserved for installation. 3. The product capacity data in the table is calculated by the density of water, and there will be some errors in practice, which is a normal phenomenon. 4. Because the volume and density of ice is different from that of water, the loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water to fill the ice bucket.

(ICB-W201613)

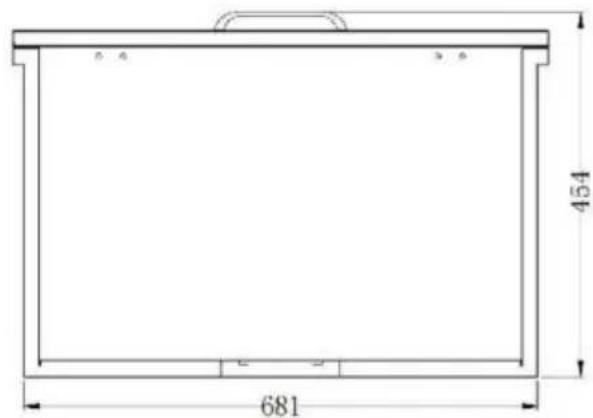

(ICB-W282017)

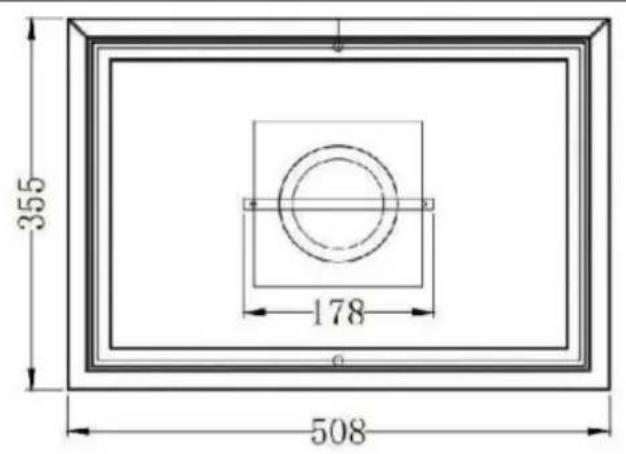

(ICB-F201412)

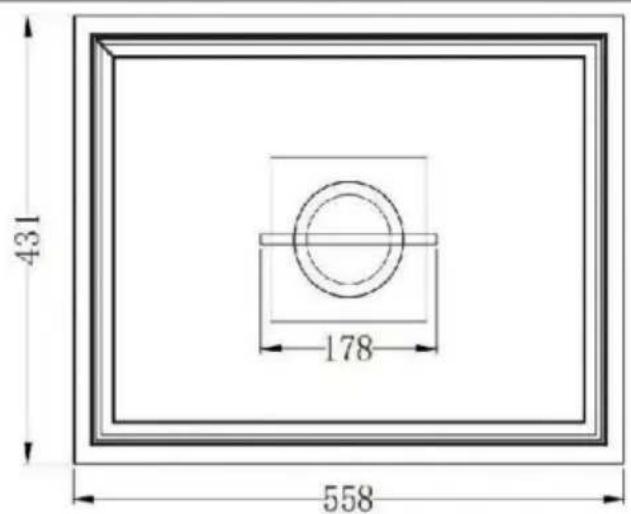

(ICB-F221712)

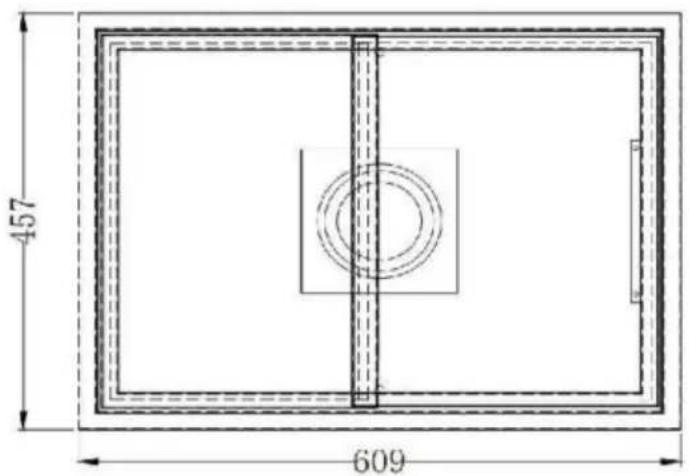

(ICB-S241813)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Built-in ice makers

INSTRUCTIONS

Model: ICB-W201613 / ICB-W281617 / ICB-W282017 /

ICB-F201412 / ICB-F221712 / ICB-S181214 /

ICB-S241813

Affordable. Reliable. Home Improvement.

Built-in refrigerators

Model: ICB-W201613 / ICB-W281617 / ICB-W282017 / ICB-F201412 /

ICB-F221712 / ICB-S181214 / ICB-S241813

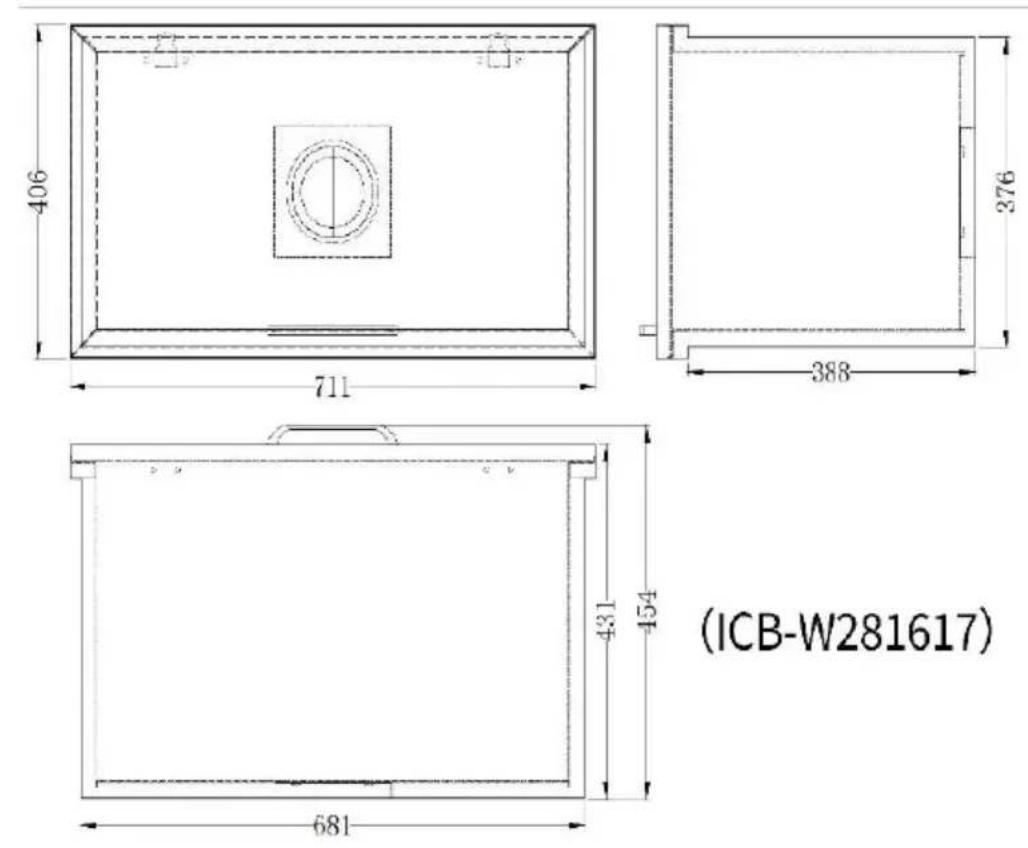

(ICB-W281617)
