USER MANUAL ICB-F201412 Vevor

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

INSTRUCTIONS

Model:ICB-W201613 /ICB-W281617/ICB-W282017/

ICB-F201412/ICB-F221712/ICB-S181214/

ICB-S241813

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DROP-IN ICE CHESTS

Model:ICB-W201613/ICB-W281617/ICB-W282017/ICB-F201412/ICB-F221712/ICB-S181214/ICB-S241813

Open metallic box with lid open, showing internal structure and two side fixtures (no text or symbols)

Open metallic box with lid and central sink, no visible text or symbols

3D rendering of a rectangular metal enclosure with a lid and internal sink (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before asser installing, operating, or servicing this product. Failure to these warnings and instructions can cause personal damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep work area clean and lighted, and keep spectators and children out of the work area.
2. Assemble only according to ice chest parameter. Improper assembly create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades and other items, so as not to s the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in ice chest. installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a adhesive strip to prevent heat loss and ensure your ice stays cool for long time.
2. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside and restaurants, perfect for any casual occasion such as dinner, sports pa

barbecue.

1. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter Components
Name	Qty	Picture	Name	Qty	Picture
1 Cup	1		2 Seal ring	2
3Lid	1		4Screw	1
5exhalent siphon	1

Components
Name	Qty	Picture	Name	Qty	Picture	Name	Qty	Picture
A	1		B	1		C	1
D	2	(339/288mm)	E	2	(491/442mm)	F	4	(418mm)
G	4	(418mm)	H	1	(4mm)	I	1	(4mm)
J	4		K	4		L	2
M	2		T	4		O	4
P	1		Q	1		R	1
S	4
			1			2

3		5
6	7	8

Close-up of a black flexible hose with threaded end and metallic connector (no text or symbols visible)

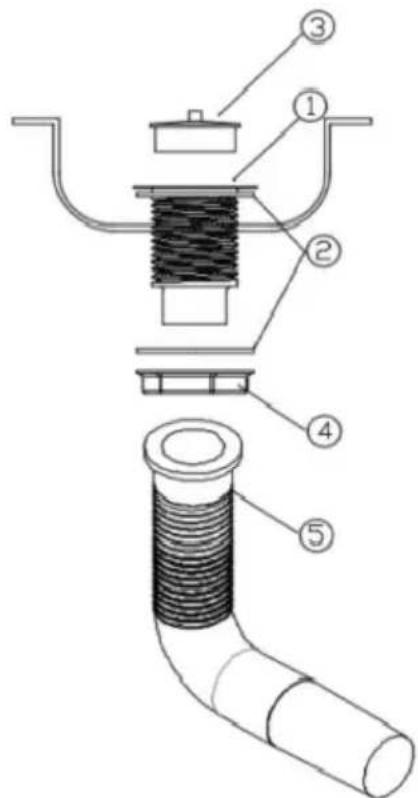

Technical diagram of a pipe fitting with numbered components for identification

Components
Name	Qty	Picture	Name	Qty	Picture	Name	Qty	Picture
A	1		B	1		C	1
D	2		E	2		F	4
G	4		H	1		I	1
J	4		K	4		L	2
M	2		T	4		O	4
P	1		Q	1		R	1
S	4
			1			2

3		5
6	7	8

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on 1 2: Tighten the screw with the key, and tighten the 8/9 part on the 7 3: Place part No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
ICB-W201613	507*407*365	42.4	Can provide 24H Insulation effect.
ICB-W281617	710*406*460	82.8
ICB-W282017	709*508*458	107.5
ICB-F201412	508*355*330	30
ICB-F221712	558*430*329	42.9
ICB-S181214	455*305*400	27.1
ICB-S241813	610*457*331	54.6

NOTE:

1."Cut-out size" is the recommended size. For details, see the actual installation environment.
2."Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

406 508

100 100 382 287

484 353

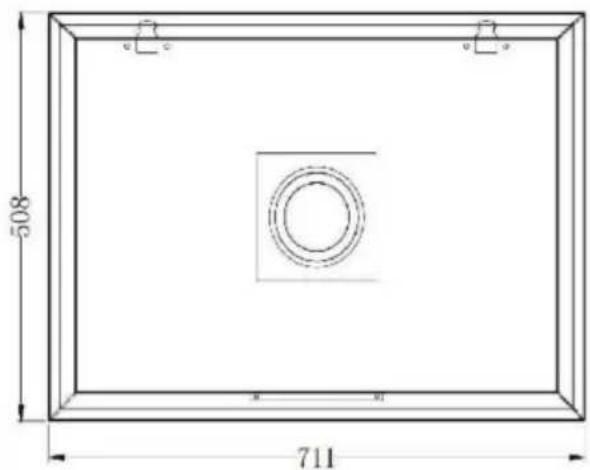

(ICB-W201613)

508 711

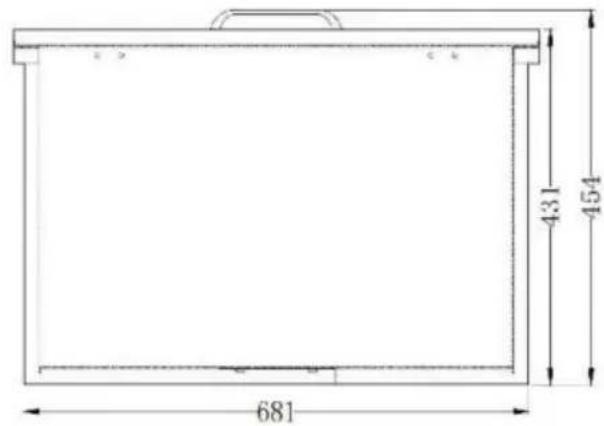

388 431 178

681 454

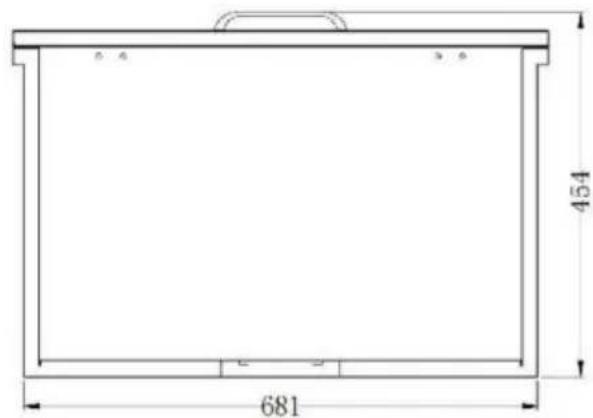

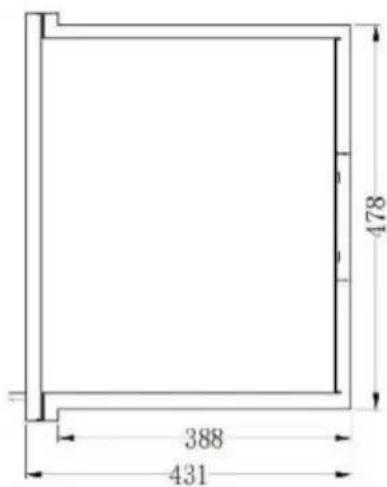

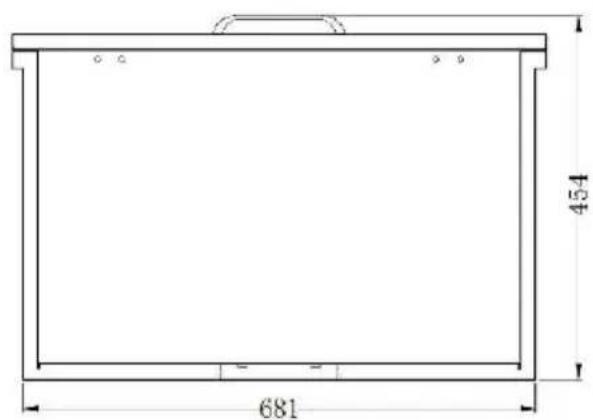

(ICB-W282017)

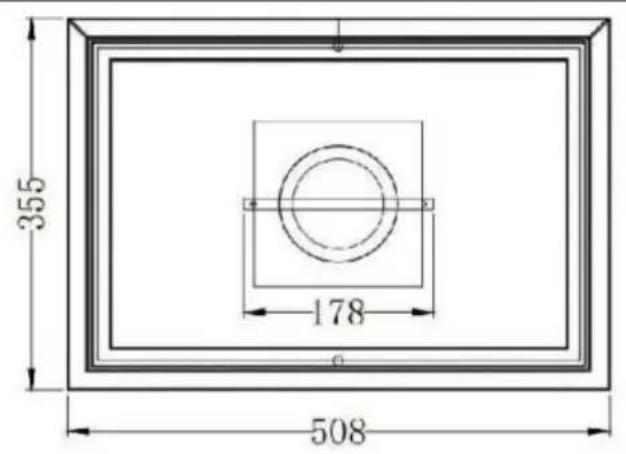

355 178 508

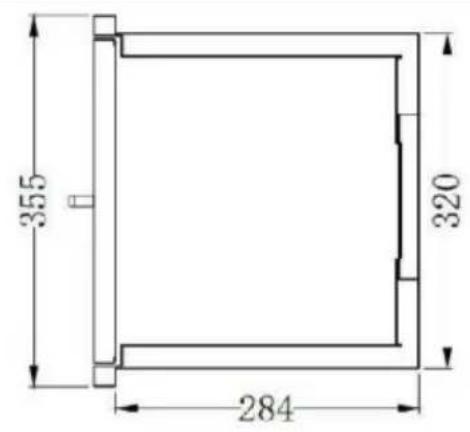

355 320 284

473 305 328

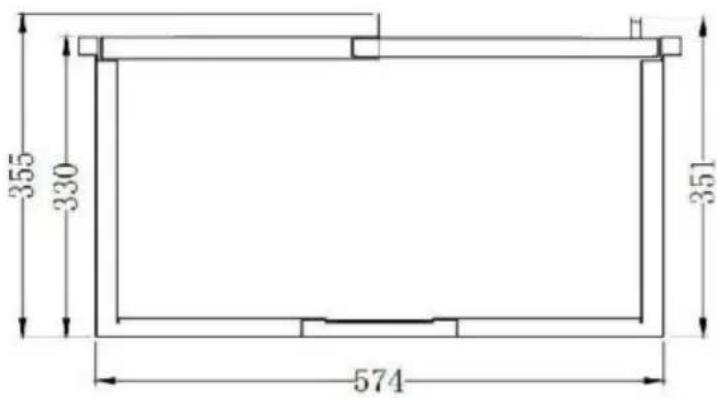

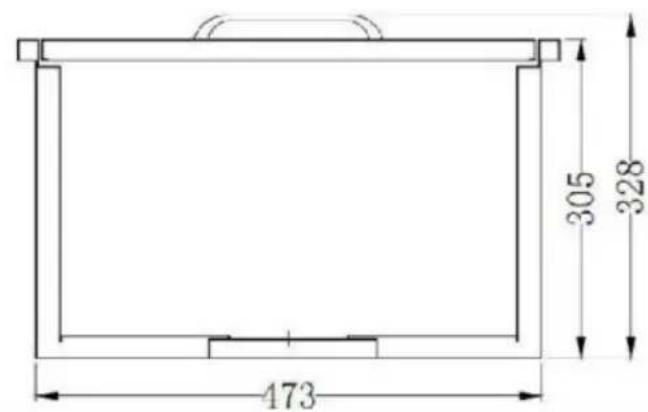

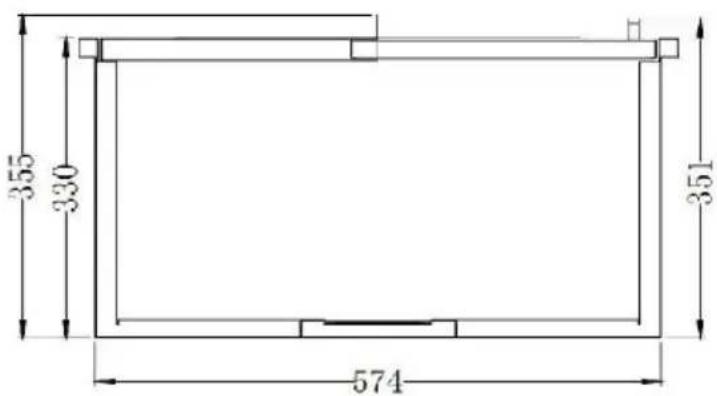

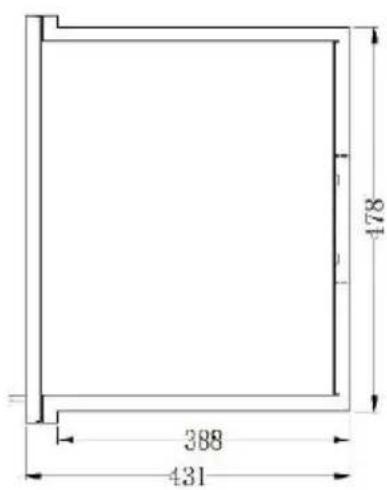

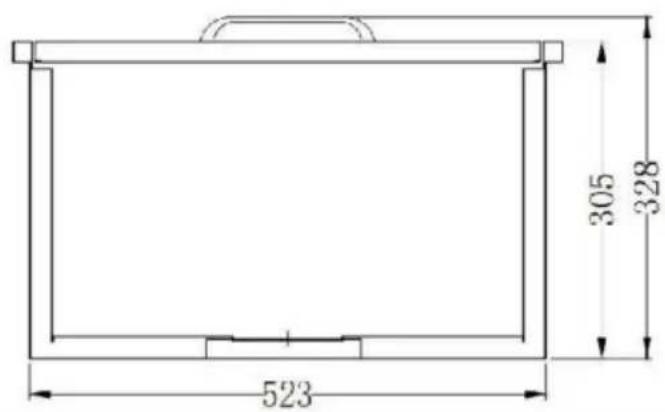

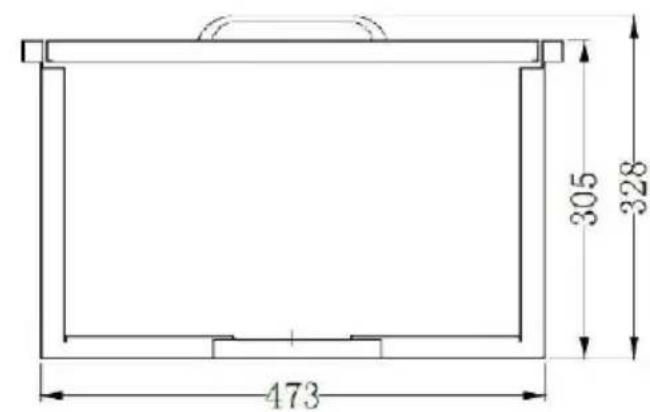

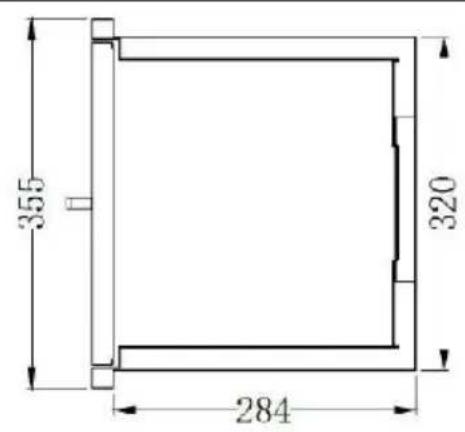

(ICB-F201412)

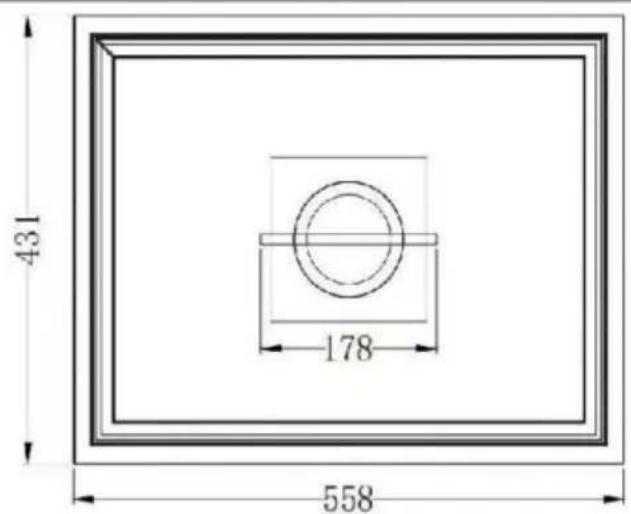

431 178 558

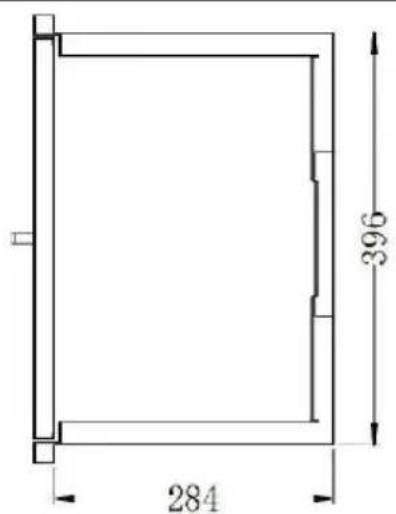

284 396

523 305 328

(ICB-F221712)

457 609

309 422

355 330 351 574

(ICB-S241813)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Glacières encastrables

INSTRUCTIONS

Modèle : ICB-W201613 /ICB-W281617/ICB-W282017/

ICB-F201412/ICB-F221712/ICB-S181214/

ICB-S241813

Affordable. Reliable. Home Improvement.

Glacières encastrables

Modèle : ICB-W201613/ICB-W281617/ICB-W282017/ICB-F201412/

ICB-F221712/ICB-S181214/ICB-S241813

Open metallic box with lid and side connectors (no text or symbols visible)

Open gray metal drawer with lid and central sink (no text or symbols visible)

Exterior view of a rectangular metal enclosure with a lid and internal sink (no text or symbols visible)

Technical drawing of a rectangular frame with a central circular recess and dimension labels (406 and 711), no readable text or symbols beyond measurement indicators.

388 376

681 431 454

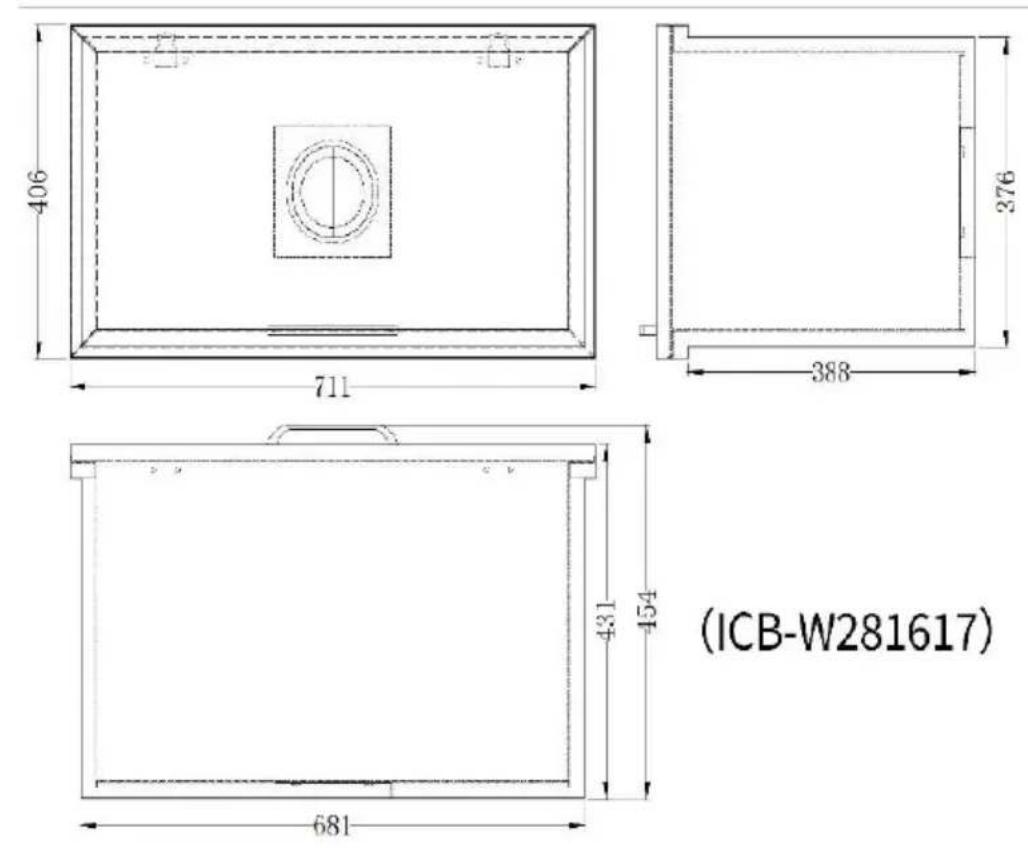

(ICB-W281617)
