USER MANUAL K2E01006 Vevor

Affordable. Reliable. Home Improvement.

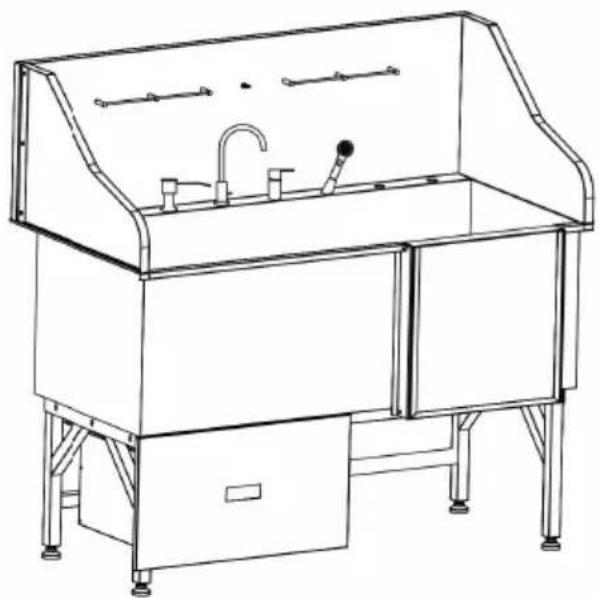

DOG GROOMING TUB

MODEL: K2E01005 / K2E01006

MODEL: K2E01005 / K2E01006

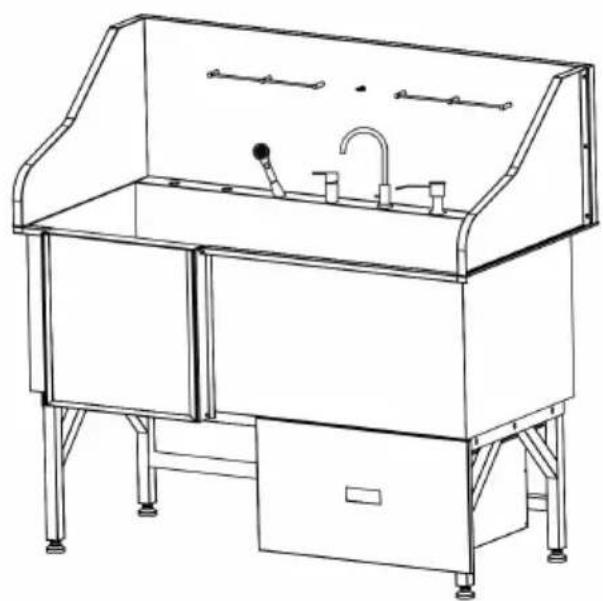

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.
• Please wipe the cylinder dry with a cloth after use to extend the

life.

- Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled pro only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning!Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:
   Phillips screwdriver, M4 wrench, Spirit level,
2. Necessary safety equipment:
   Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to av possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

1 pc	1 pc	1 pc	1 pc
1: Bottom bracke	2: Tub2-1: Sealing Strip	3: Left side panel	4: Right side panel
			[CGWK]
1 pc	2 pcs	1 set	1 set
5: Back panel	6: Plastic Floo Grate	7: Faucet	8: Shower base
1 set	1 set	1 set	1 pc
9: Shower	10: Faucet switch	11: Soap Dispenser	12: Sealing tape
[2X26]			[3WGC]
1 set	4 pcs	6 pcs (M8)	6 pcs (M8)
13: Strainer13-1: Drain Pipe13-2: Transparent Cove	14: Adjustable foot	15: Washer	16: Washer
6 pcs (M8*50mm)	6 pcs (M8)	4 pcs(M8*20mm)	16 pcs(M6*16mm)
17: Screw	18: Flange nu	19: Screw	20: Screw
			[QWHQ]
7 pcs (M8)	1 pc	2 pcs	4 pcs
21: Self-locking nuts	22: Ring	23: Steel rod	24: Hanging column
[WXY]
2 pcs	1 set	2 pcs	1 pair

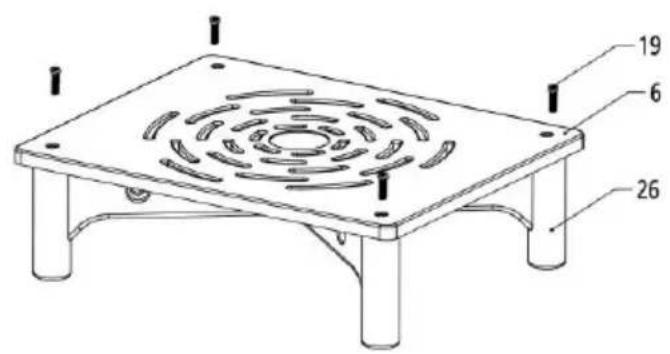

25: Through hole hanging column	26: Plastic FlocGrate Rack26-1: Down Base26-2: Up Base26-3: Anti-slip Mat	27: Sling	28: Plastic Gloves
1 pc	1 pc	1 pair	1 pc
29: Comb	30: Licking tray	31: Nylon Gloves	32: Wiper
1 pc	2 pcs
33: Scouring pad	34: Adapter (G1/2 to NPT9/16)

Installation steps

* Caution: Before installing the product, wear gloves and goggles to possible physical damage during installation.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

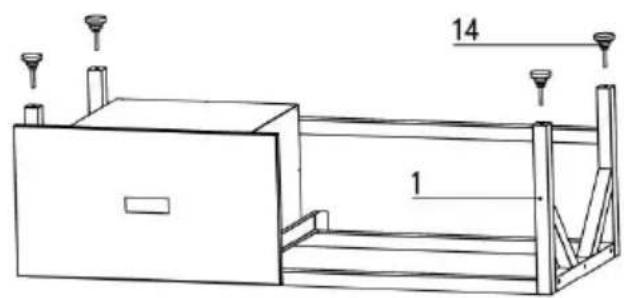

① Install the adjustable feet of the H rack.

Caution: Ensure that the depth of adjustable feet is less than 12mm and try to make the four adjustable feet screw in the same depth. Please tighten the spare nu during the installation and adjust it later.

Left Door Bracket Right Door Bracket

Simple line drawing of a horizontal beam supported by a vertical support with a pointer and scale, no text or symbols present.

Simple line drawing of a structural frame with supports and a hanging triangular object (no text or symbols)

② Flip the bottom bracket, adjust the height of the feet to m height of water outlet side is 1-2 degrees lower than the other a spirit level to show)

1 2 15 16 17 18

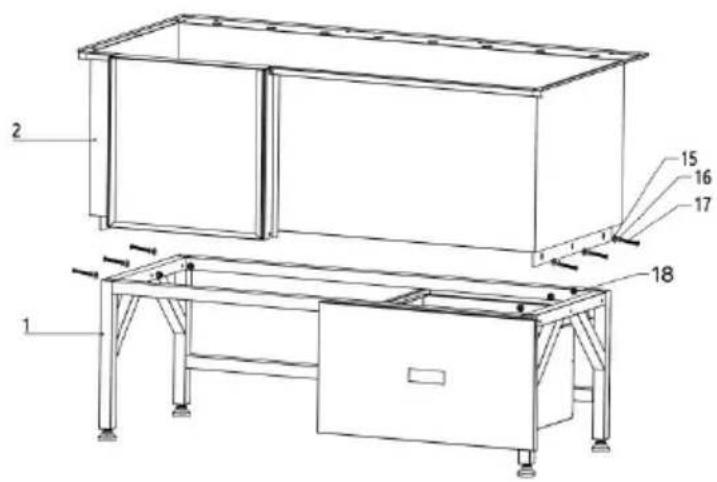

③ Use screw to fix the bo bracket and tub.

Technical diagram of a mechanical or industrial device with labeled components and an inset view showing a component.

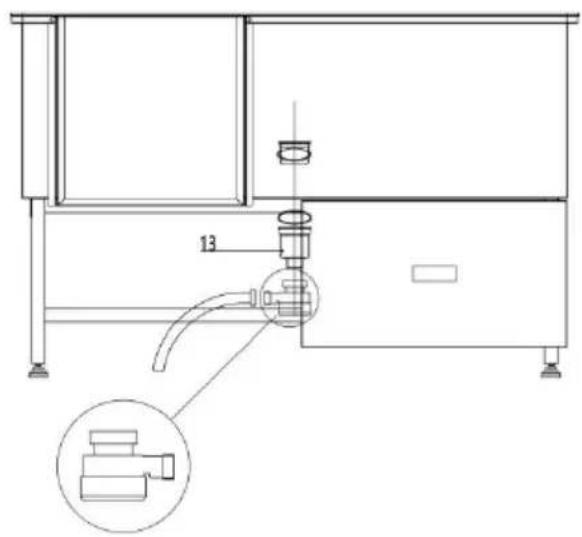

④ Install the strainer, ensu that the sealing ring is free dislocation and wrinkles.

Caution: When installing, please pay attention to whether the sealing ring is placed correctly, avoid water leakage due to incorrect se installation. And check whether the transparent cov of the drain is tightened.

©

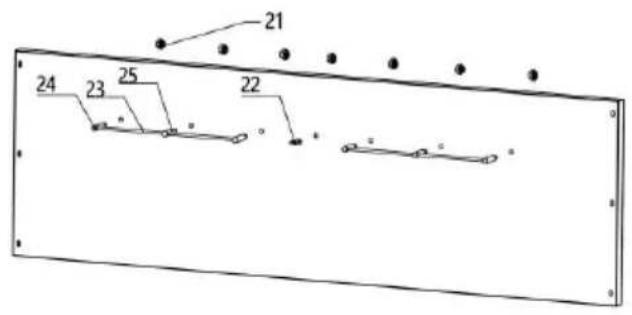

21 24 23 25 22

⑧ Install the a hging rod.

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

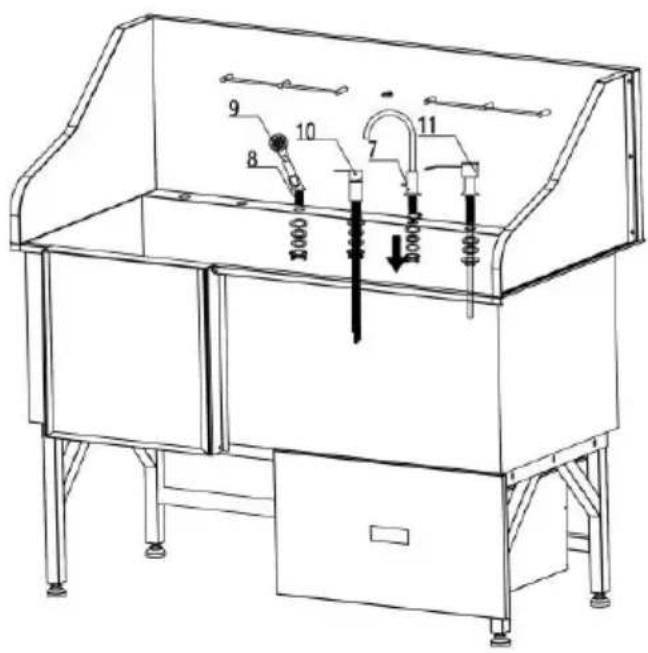

⑨ Install the Faucet, Showe base, Faucet switch and Soa Dispenser

* Please refer to the faucet installation instructions to inst the faucet

Caution: Please determine whether to install adapter according to the actual wat pipe specifications.

34

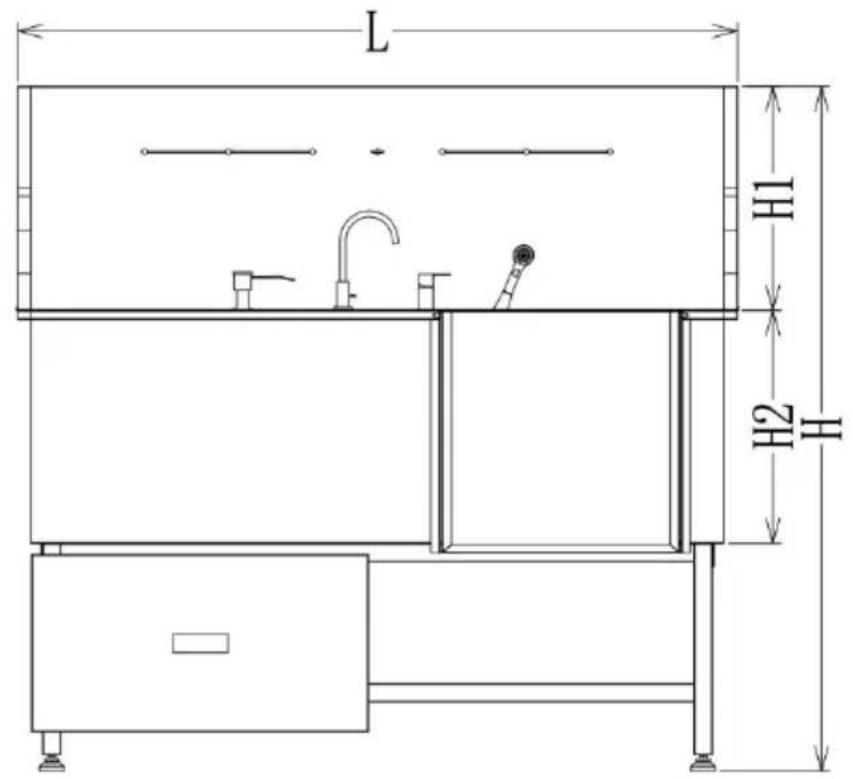

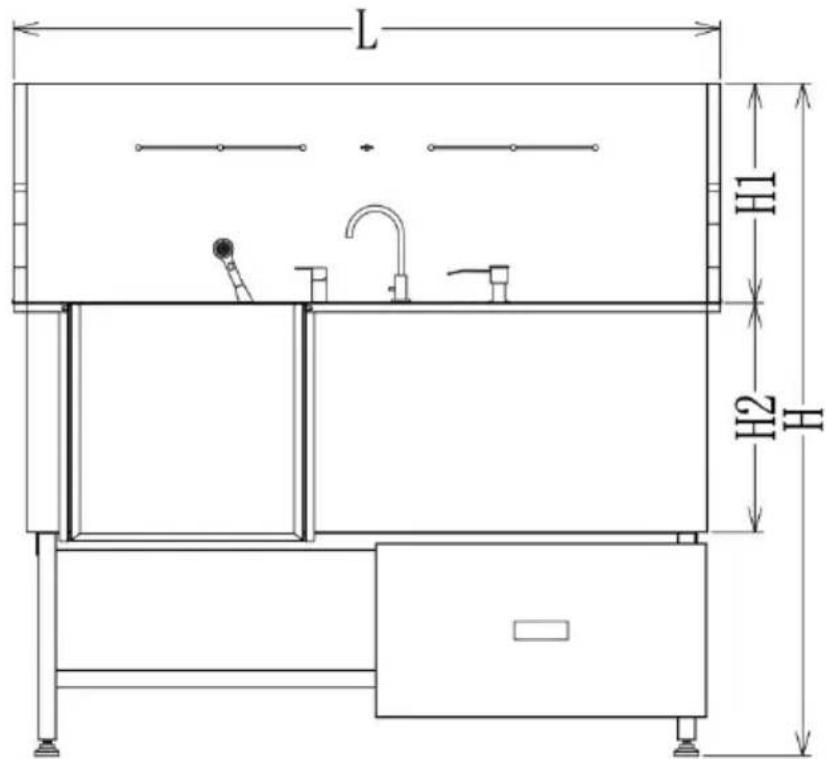

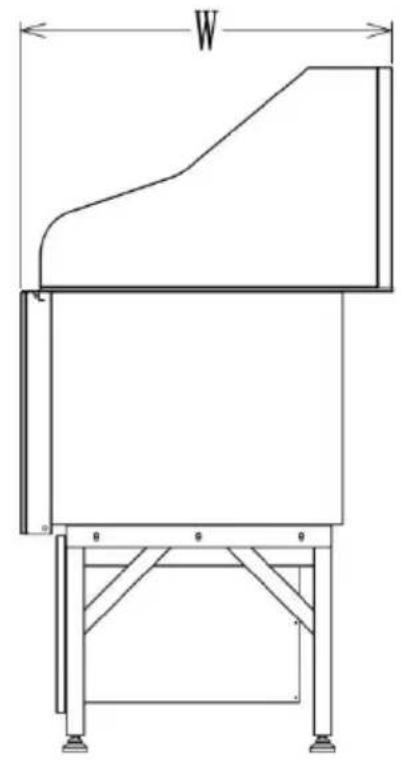

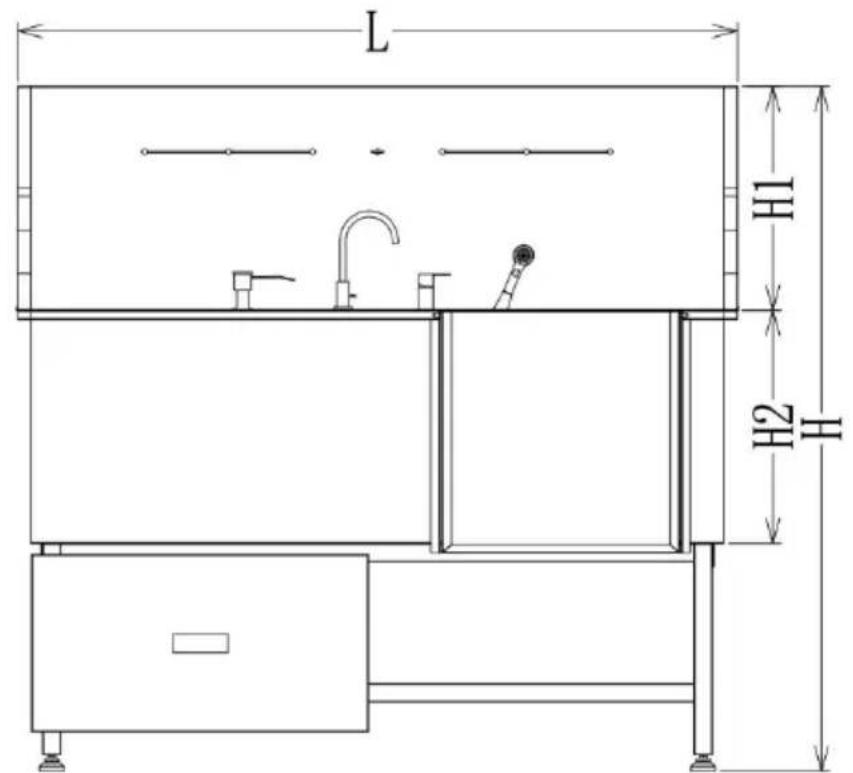

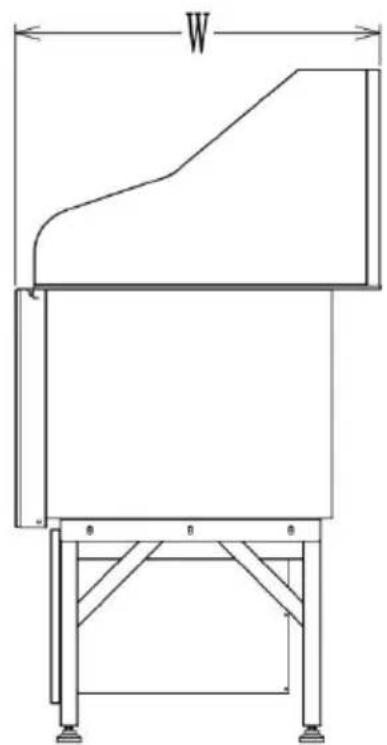

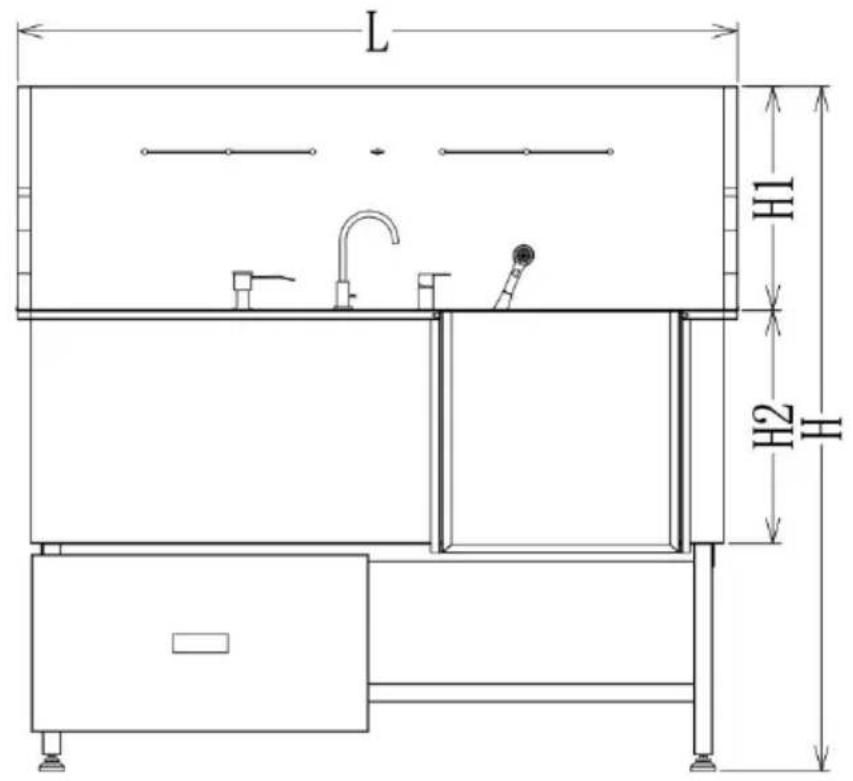

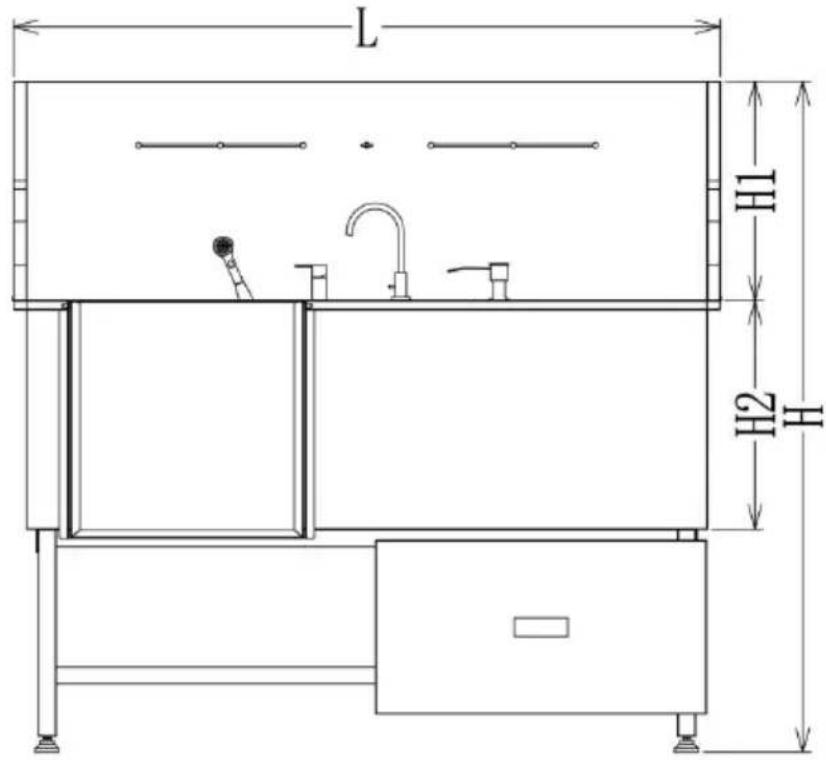

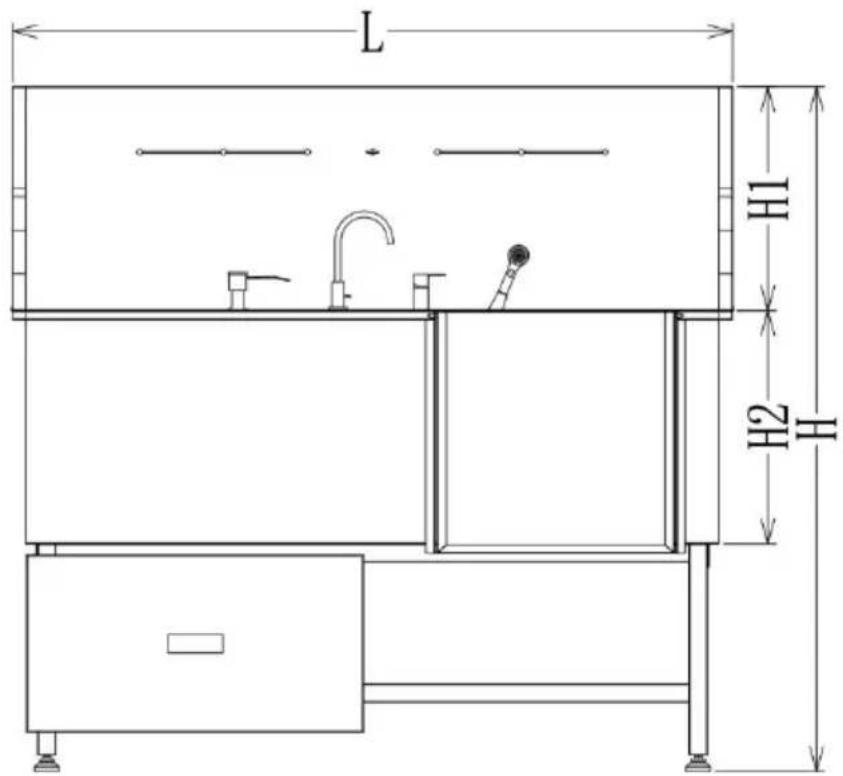

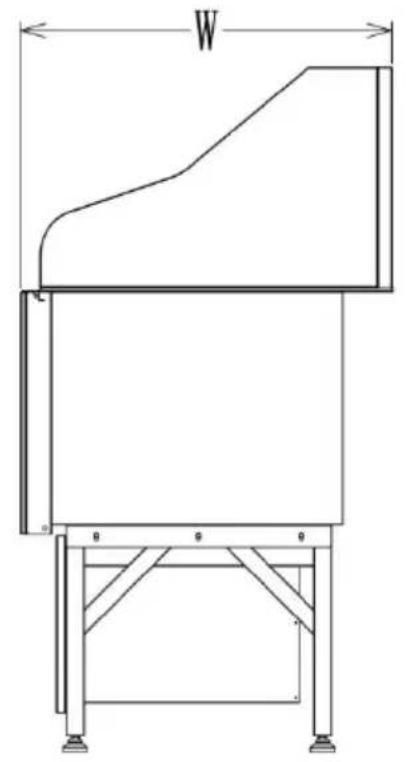

Left Door

L H1 H2 H

W

Right Door

L H1 H2 H

W θ θ θ

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K2E01005	1.11	440	L x W x H: 59 x 2
K2E01006	1.11	440	L x W x H: 59 x 2

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch).

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal o
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogg
3. Please clean the transparent cover of the drain regularly, After

disassembly like a nut, it can be easily cleaned, and be careful not the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage injury to yourself or your pet. Follow the instructions carefully and cor customer service or a local contractor if any point is confusing, too for you to do on your own, or requires special modification for your Keep these instructions for future reference. Provide them to anyone will use this device and provide them with this device if it is ever sold to a third party.

- ONLY use this bathtub for its intended purpose, bathing medium-size

pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity whose predisposition becomes violent upon contact with water, or who physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow the play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with nonidentical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg).

Particularly for larger animals, be careful to prevent them from jumping moving in such a way that causes violent impacts as this might exceed capacity.

• DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected possible splashing during bathing. DO NOT use any chargers or exter cords closer than this distance without similar protection.

•Electrical devices such as electrical transformers, televisions, lights, an

telephones should be at least 6'7" (2 m) away from this bathtub at . In particular, never bring a chargingcell phone near the bathtub and r allow any electrical device to be placed or used in such a way that fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that do its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.

- An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.

- Make sure your water supply for this bathtub is turned off during installation.

- NEVER allow the water level to rise above the level of your pet's during use.

- DO NOT set up or leave this bathtub in temperatures below 32^ . Do not turn on the shower if there is any possibility water in its line frozen.

- DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathingwater. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.

- DO NOT allow dirty and stagnant water to remain in this bathtub long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

- Adequate ventilation should be provided to safely deal with the expected

heat and humidity.

- The water temperature should be close to your pet's body temperat. Water that is either too cold or too hot will cause discomfort, may in your pet's skin, and may even cause injury or illness.Before use, lear about the appropriate water temperatures for bathing your pet.For best results, set your water heater's maximum temperature accordingly if possible.If adding preheated water, make sure it is within the tempera range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

BAIGNOIRE DE TOILETTAGE POUR CHIEN

MODÈLE : K 2 E010 05 / K 2 E010 06

MODÈLE : K 2 E010 05 / K 2 E010 06

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side fixtures (no text or symbols)

Simple line drawing of a dog in profile view (no text or symbols)

Simple line drawing of a horizontal beam supported by a support structure with a pointer and scale (no text or symbols)

Simple line drawing of a structural frame with supports and a triangular load, no text or symbols present

Technical diagram of a two-story office or storage unit with labeled components and structural details

Technical line drawing of a two-part mechanical device with numbered components

Technical diagram of a square electronic device with labeled components including a perforated top and three numbered parts.

Line drawing of a simple kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Porte de gauche

L H1 H2 H

W B B B

Porte droite

L H1 H2 H

W

Modèle#	L(mm)	Hmm)	H 1 (mm)	H 2 (mm)	L (mm)	Poids net (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HUNDEPFLEGEWANNE

MODELL: K 2 E010 05 / K 2 E010 06

MODELL: K 2 E010 05 / K 2 E010 06

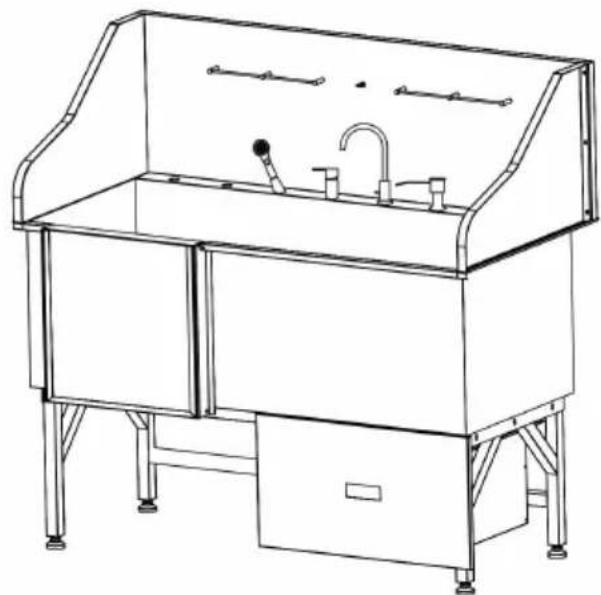

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side table (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Simple line drawing of a horizontal beam supported by a vertical support with a pointer and angle marker (no text or symbols)

Simple line drawing of a structural frame with supports and a hanging triangular component (no text or symbols)

Technical diagram of a two-story office or storage unit with labeled components and structural details

Technical line drawing of a two-part mechanical device with numbered components

Technical diagram of a square electronic device with labeled components and internal structure

Line drawing of a stainless steel kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Linke Tür

L H1 H2 H

W B B B

Rechte Tür

L H1 H2 H

W

Modell#	L (mm)	Hmm)	H 1 ( mm)	H 2 (mm)	B (mm)	Nettogewicht (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

VASCA PER LA TOELETTATURA DEI CANI

MODELLO: K 2 E010 05 / K 2 E010 06

MODELLO: K 2 E010 05 / K 2 E010 06

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side table (no text or symbols)

Simple line drawing of a dog in profile view (no text or symbols)

Simple line drawing of a horizontal beam supported by a support structure with a pointer and scale (no text or symbols)

Simple line drawing of a structural frame with supports and a hanging triangular component (no text or symbols)

Technical diagram of a two-story office or storage unit with labeled components and structural details

Technical line drawing of a two-part mechanical device with labeled parts 3, 4, and 5, showing structural components.

Technical diagram of a square electronic device with labeled components and internal structure

Line drawing of a stainless steel kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Porta sinistra

L H1 H2 H

W B B B

Porta destra

L H1 H2 H

W

Modello#	L(mm)	Hmm)	Altezza 1 (mm)	Altezza 2(mm)	L(mm)	Peso netto (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

©

MODELO: K 2 E010 05 / K2E01006

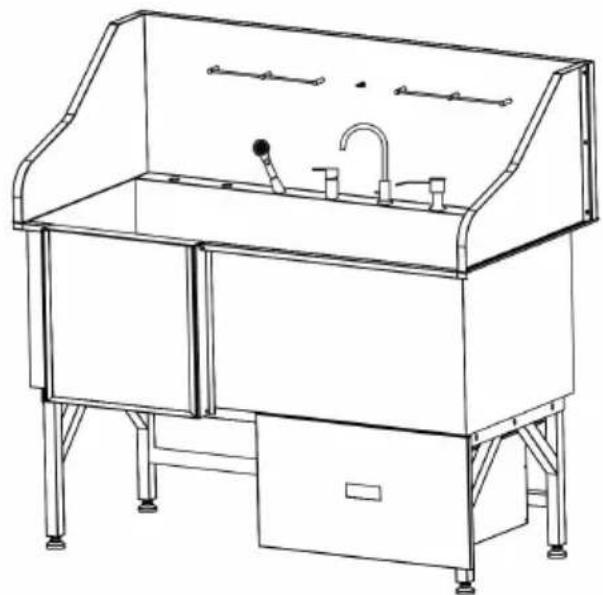

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side fixtures (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Simple line drawing of a horizontal beam supported by a support structure with a pointer and scale (no text or symbols)

Simple line drawing of a structural frame with supports and a hanging triangular component (no text or symbols)

Technical diagram of a two-story office or storage unit with labeled components and structural details

Technical line drawing of a two-part mechanical device with labeled parts 1 through 5

Technical diagram of a square electronic device with labeled components including a perforated top and three numbered parts.

Line drawing of a simple kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Puerta izquierda

L H1 H2 H

W B B B

Puerta derecha

L H1 H2 H

W

Modelo#	Longitud (mm)	Mmm)	Alto 1 ( mm)	Alto 2 (mm)	Ancho (mm)	NO (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

Modelo#	Volumen (CBM)	Capacidad de carga (libras por segundo)	Mascota recomendada (en)
K2E01005	1.11	440	Largo x Ancho x Alt 59 x 27 x 45
K2E01006	1.11	440	Largo x Ancho x Alt 59 x 27 x 45

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

WANNA DO PIELEGNACJI PSÓW

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side fixtures (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Simple line drawing of a structural frame with supports and a suspended object (no text or symbols)

Simple line drawing of a mechanical setup with supports and a suspended object (no text or symbols)

Technical diagram of a two-story office or storage unit with labeled components and structural details

Technical line drawing of a two-part mechanical device with labeled parts 3, 4, and 5, showing structural components.

Technical diagram of a square electronic device with labeled components and internal structure

Line drawing of a stainless steel kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Lewe drzwi

L H1 H2 H

W B B B

Prawe drzwi

L H1 H2 H

W G G G

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HONDENTRIMBAK

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side table (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Simple line drawing of a horizontal beam supported by a support structure with a pointer and scale (no text or symbols)

Simple line drawing of a structural frame with supports and a triangular load, no text or symbols present

Technical diagram of a two-story office or storage unit with labeled components and structural details

Line drawing of a simple kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Linkerdeur

L H1 H2 H

W B B B

Rechterdeur

L H1 H2 H

W G G G

Model#	Lengte (mm)	Hoogte (mm)	Hoogte 1 ( mm)	Hoogte 2(mm)	Breedte (mm)	NW (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Model#	Volume (CBM)	Laadvermogen (lbs)	Aanbevolen huisdier (in)
K2E01005	1.11	440	L x B x H: 59 x 2
K2E01006	1.11	440	L x B x H: 59 x 2

OPERATION

"C": Koud water; "H": Warm water

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

HUNDTRIMNINGSBADKAR

MODELL : K2 E010 05 / K2 E010 06

MODELL : K2 E010 05 / K2 E010 06

Line drawing of a stainless steel kitchen sink with faucet and control panel (no text or symbols)

Line drawing of a stainless steel kitchen sink with faucet and side fixtures (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Simple line drawing of a horizontal beam supported by a support structure with a pointer and scale (no text or symbols)

Simple line drawing of a structural frame with supports and a triangular load, no text or symbols present

Technical diagram of a two-story office or storage unit with labeled components and structural details

Line drawing of a stainless steel kitchen appliance with a vent on top and a downward arrow indicating a component (no text or symbols)

Technical line drawing of a laboratory apparatus with numbered components and measurement annotations

DIMENSIONS AND PARAMETERS

Vänster dörr

L H1 H2 H

W B B B

Höger dörr

L H1 H2 H

W

Modell#	L(mm)	H(mm)	H1 (mm)	H2 (mm)	B (mm)	NV (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Modell#	Volym (CBM)	Lastkapacitet ( lb /s)	Rekommenderat husdjur (i)
K2E01005	1.11	440	L x B x H: 59 x 2
K2E01006	1.11	440	L x B x H: 59 x 2

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
