Mail Organizer

MODEL NO.: KL-FC10/KL-FC11/KLFC-19/KLFC-20

Isometric line drawing of a multi-level shelving unit with no text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Mail Organizer.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.

2. Do not exceed weight capacities, before moving.

3. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Mail Organizer.

4. Use as intended only.

5. Inspect before every use; do not use if parts are loose or damage

TECHNICAL SPECIFICATIONS

Model	KL-FC10/KL-FC11/KLFC-19/KLFC-20
Main Material	Board
Color	Black/Retro Brown/Grey/White
Product Dimensions (LxWxH)	997*305*680 mm
Packing Size (LxWxH)	1075*380*210 mm
Net Weight (kg)	33.3
Gross Weight (kg)	34.95

PACKAGE CONTENTS

A x20 E x16 B x20 F x128 C x20 G x20 D x16 3.5*14

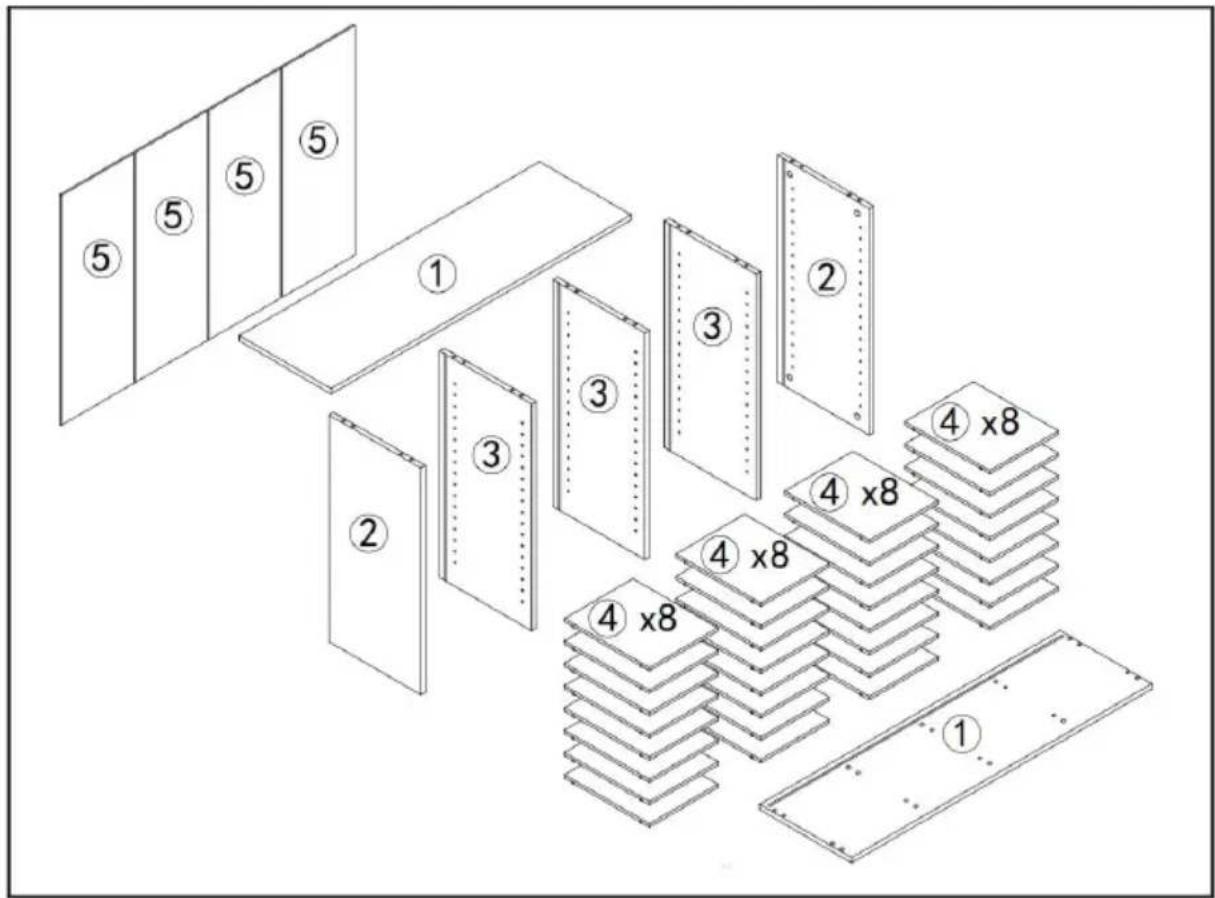

Diagram illustrating the assembly of 10 rectangular panels labeled with numbers and cross symbols, likely for architectural or engineering design.

ASSEMBLY STEPS

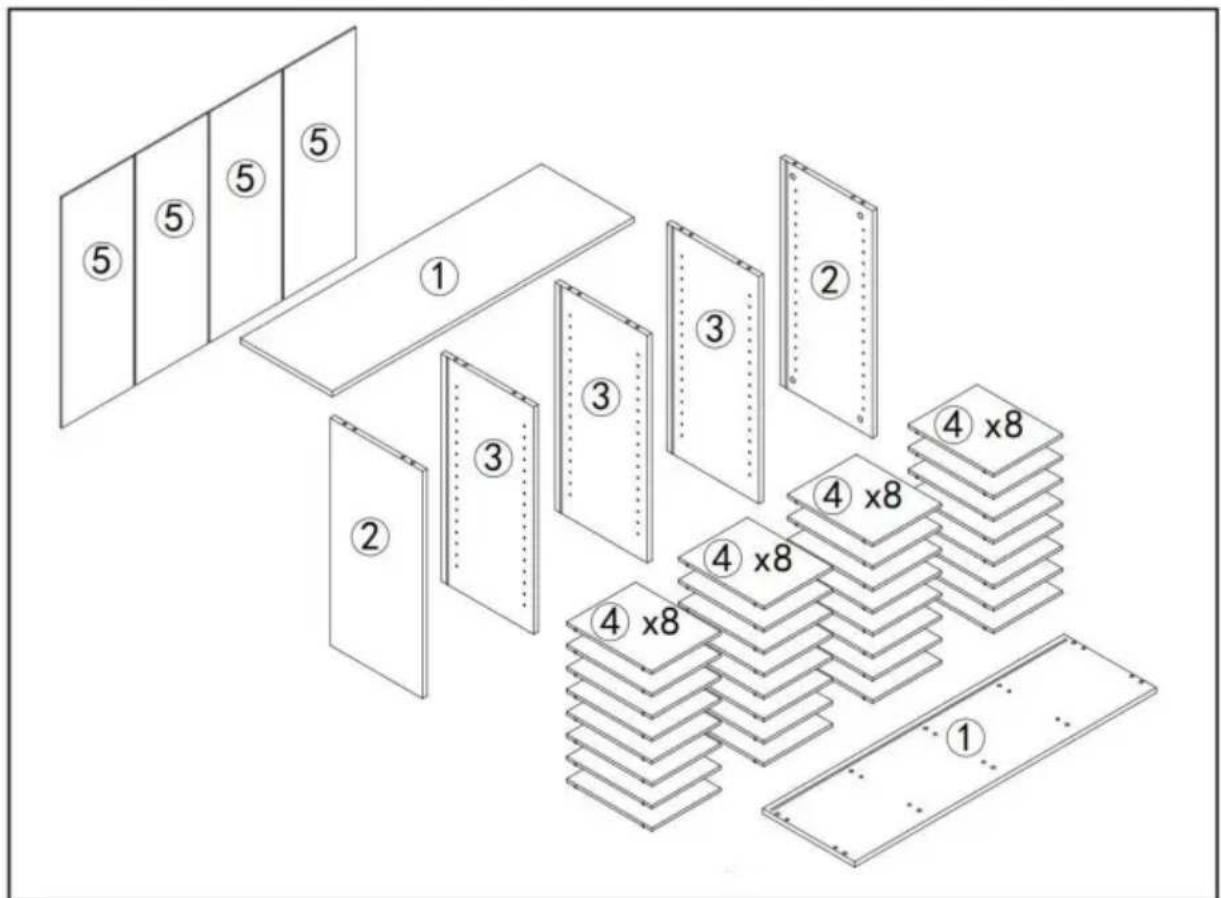

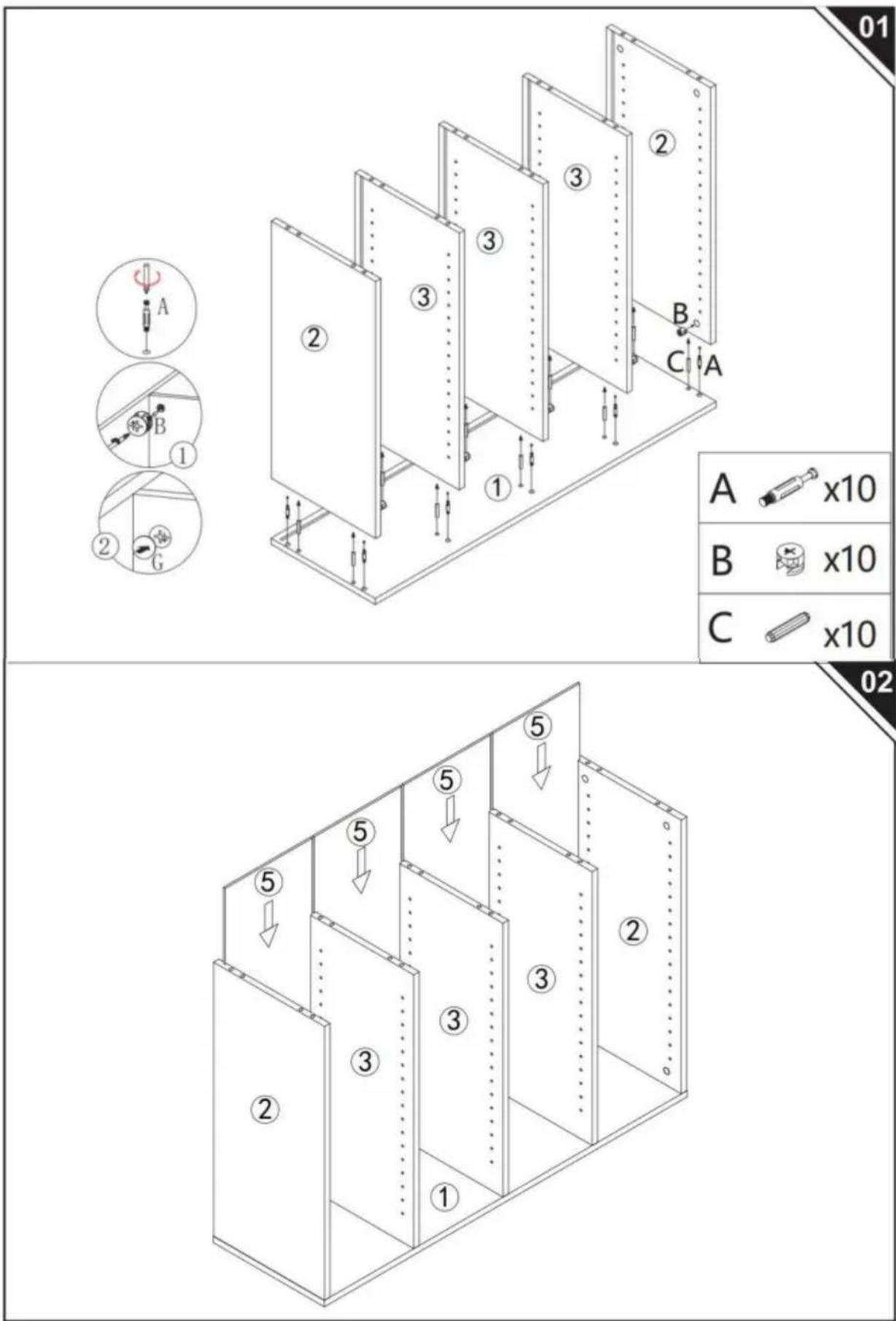

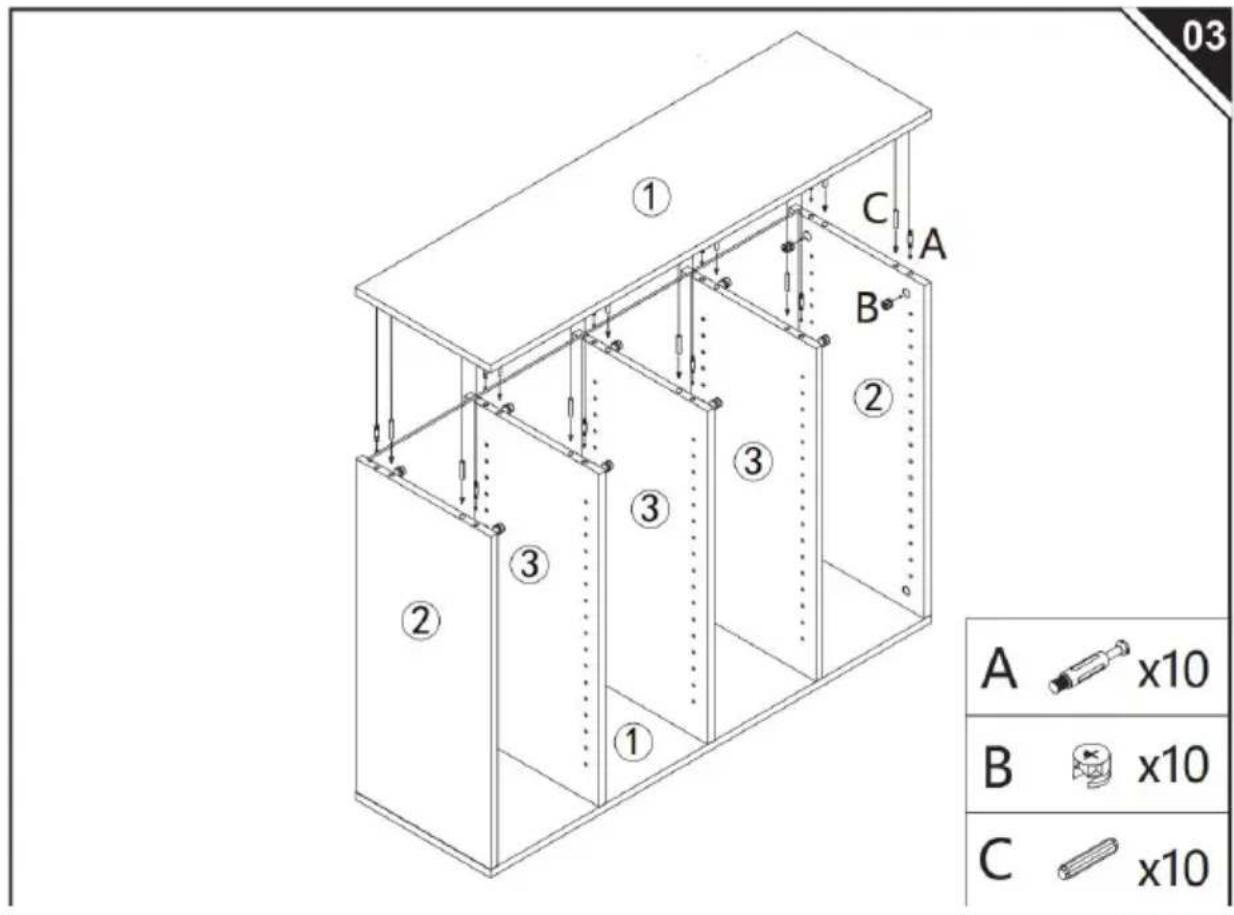

01 A x10 B x10 C x10 02 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

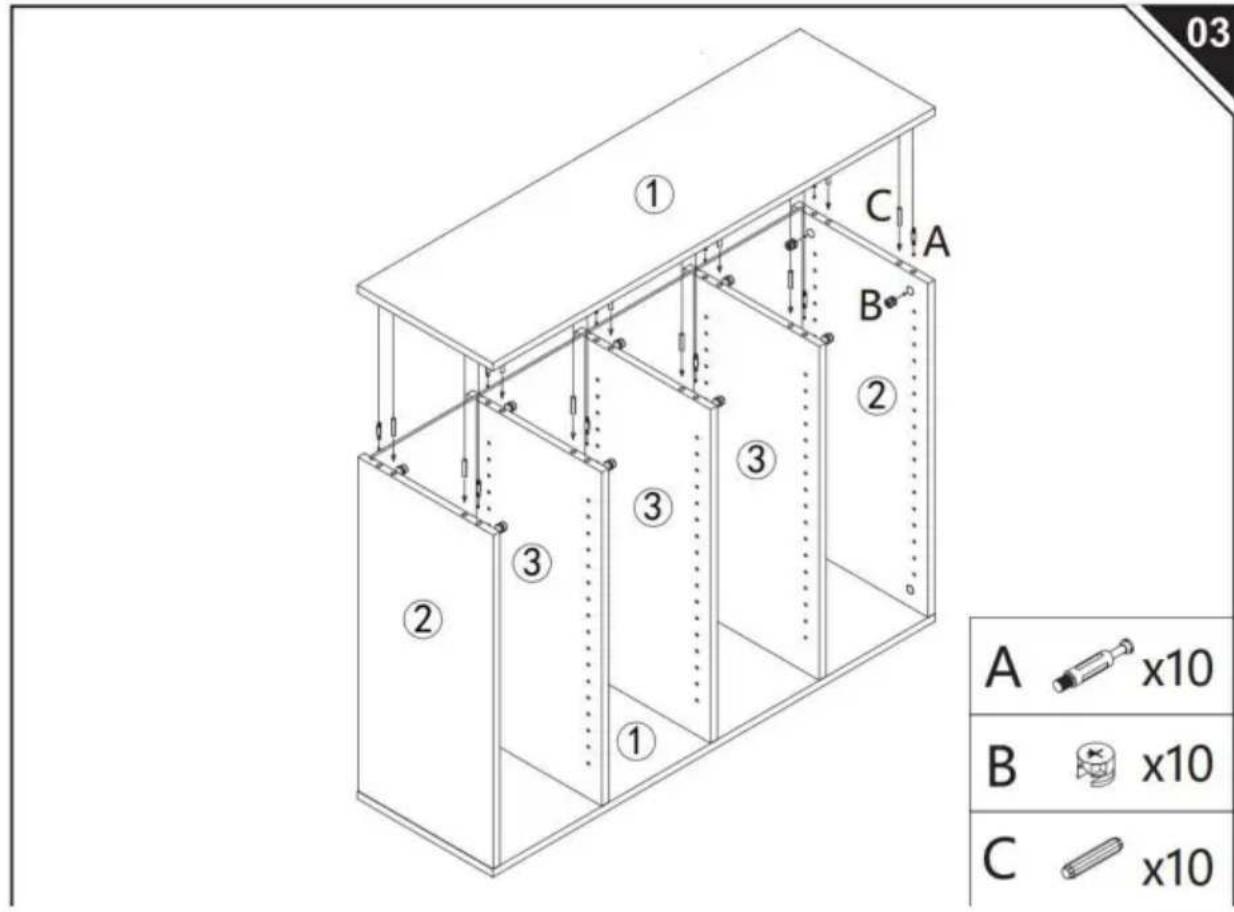

03 A x10 B x10 C x10

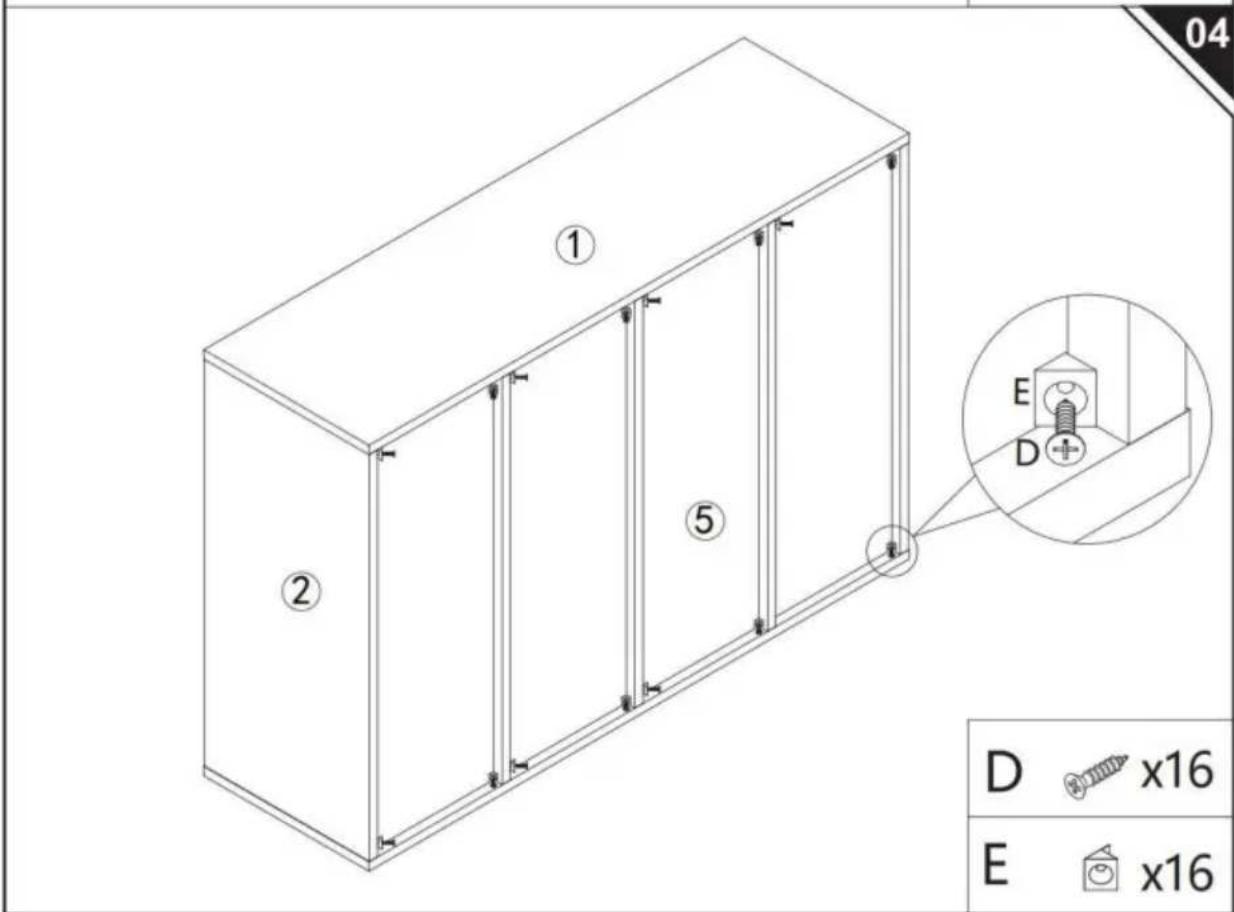

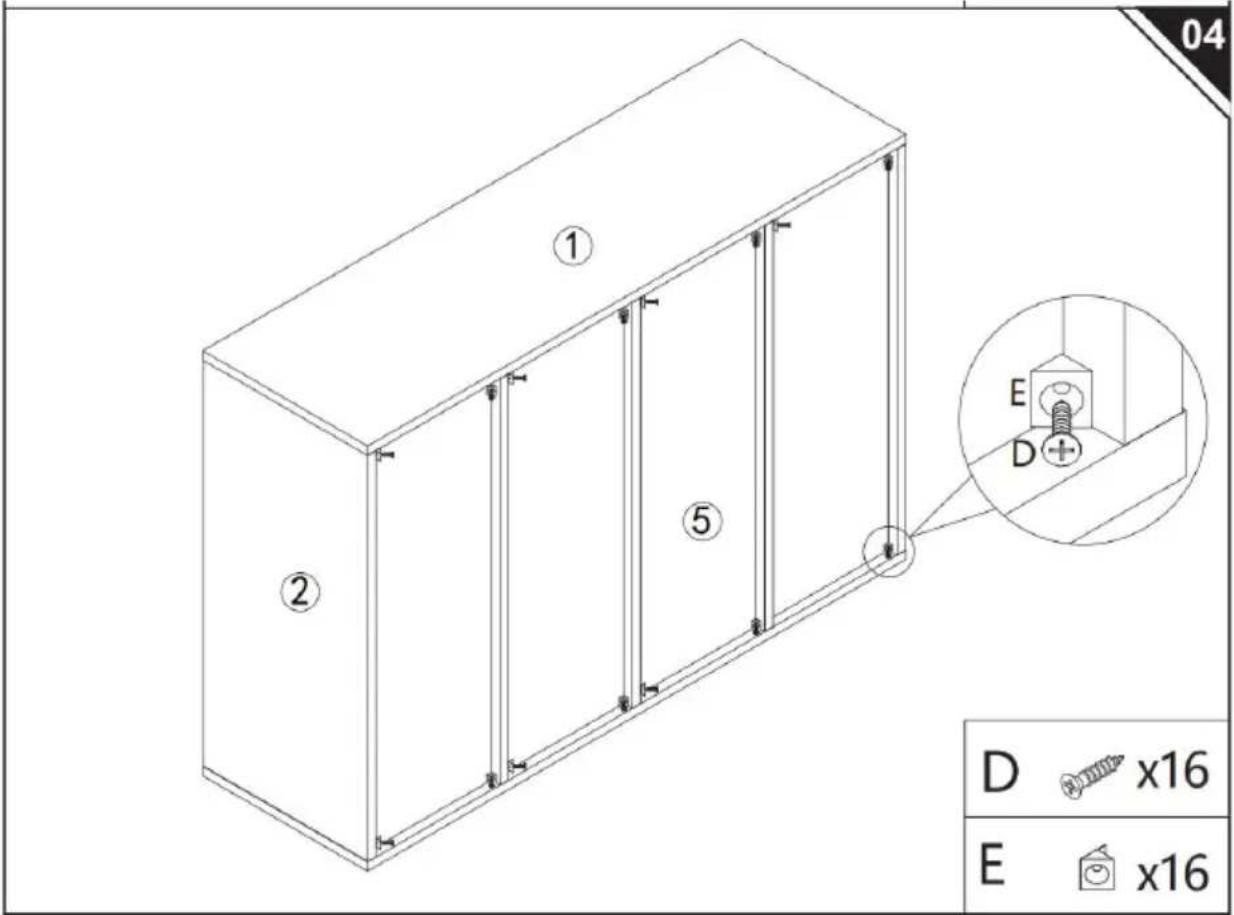

04 ① ② ⑤ E D + D x16 E x16

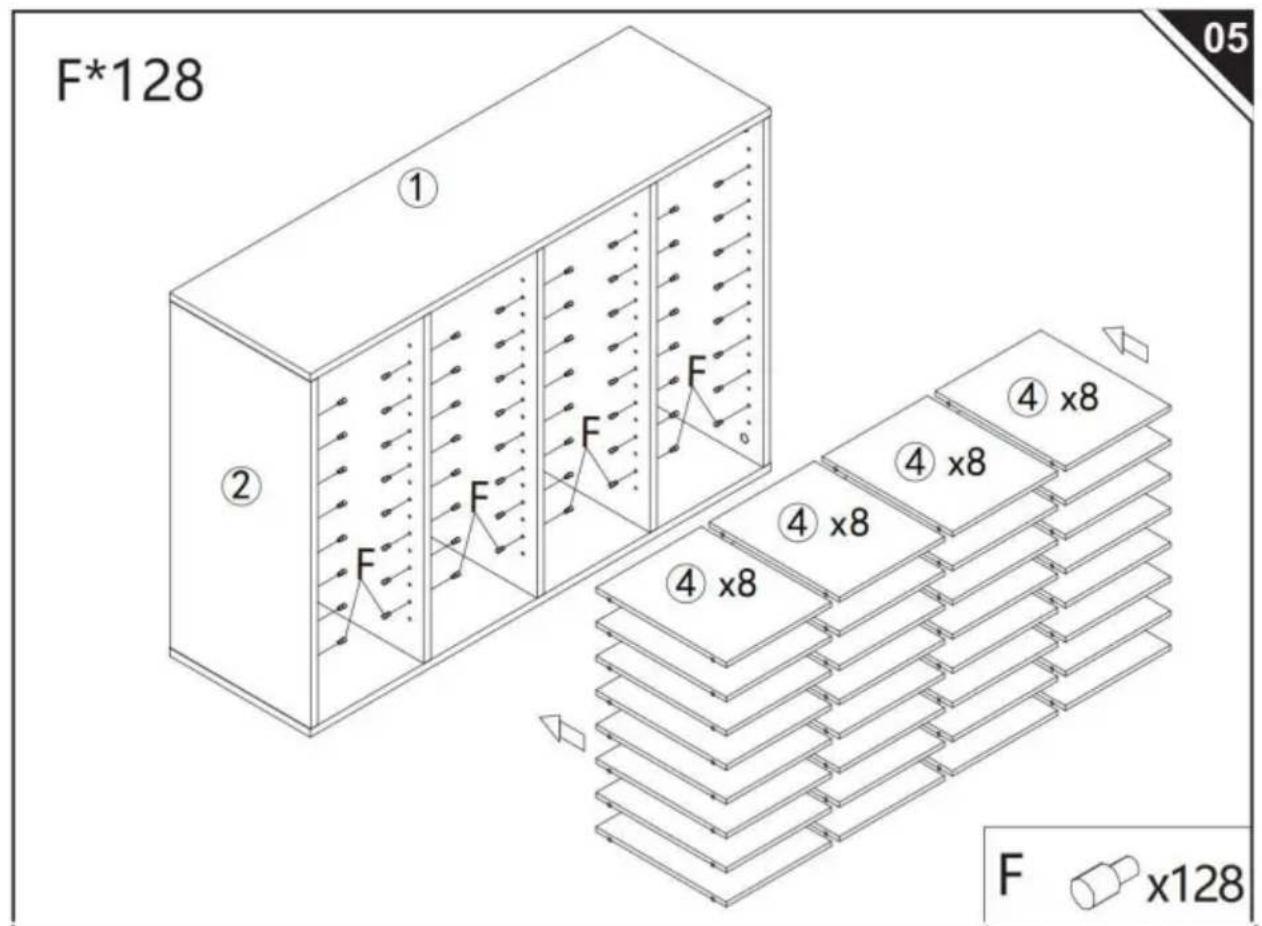

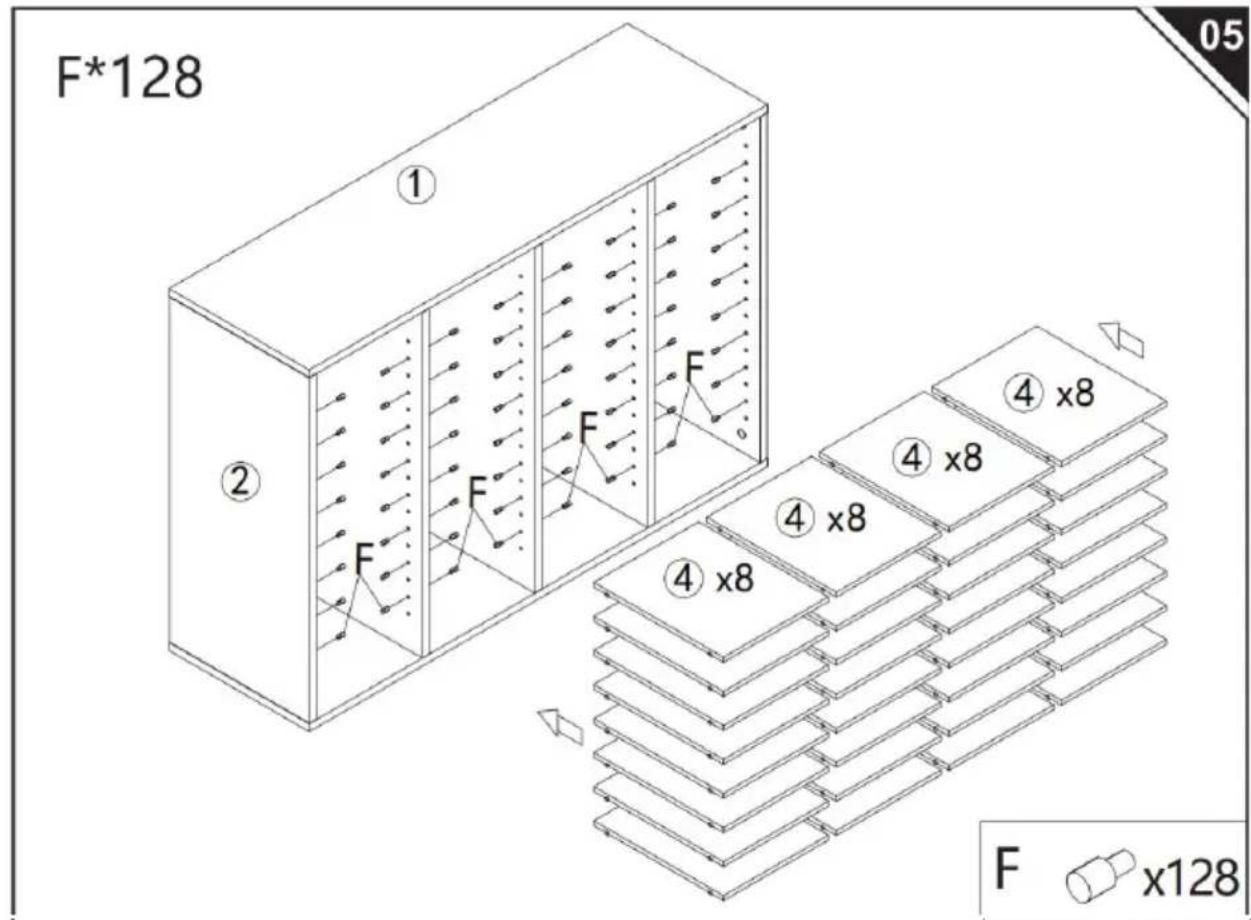

F*128 05 ① ② ③ ④ x8 ④ x8 ④ x8 ④ x8 F x128

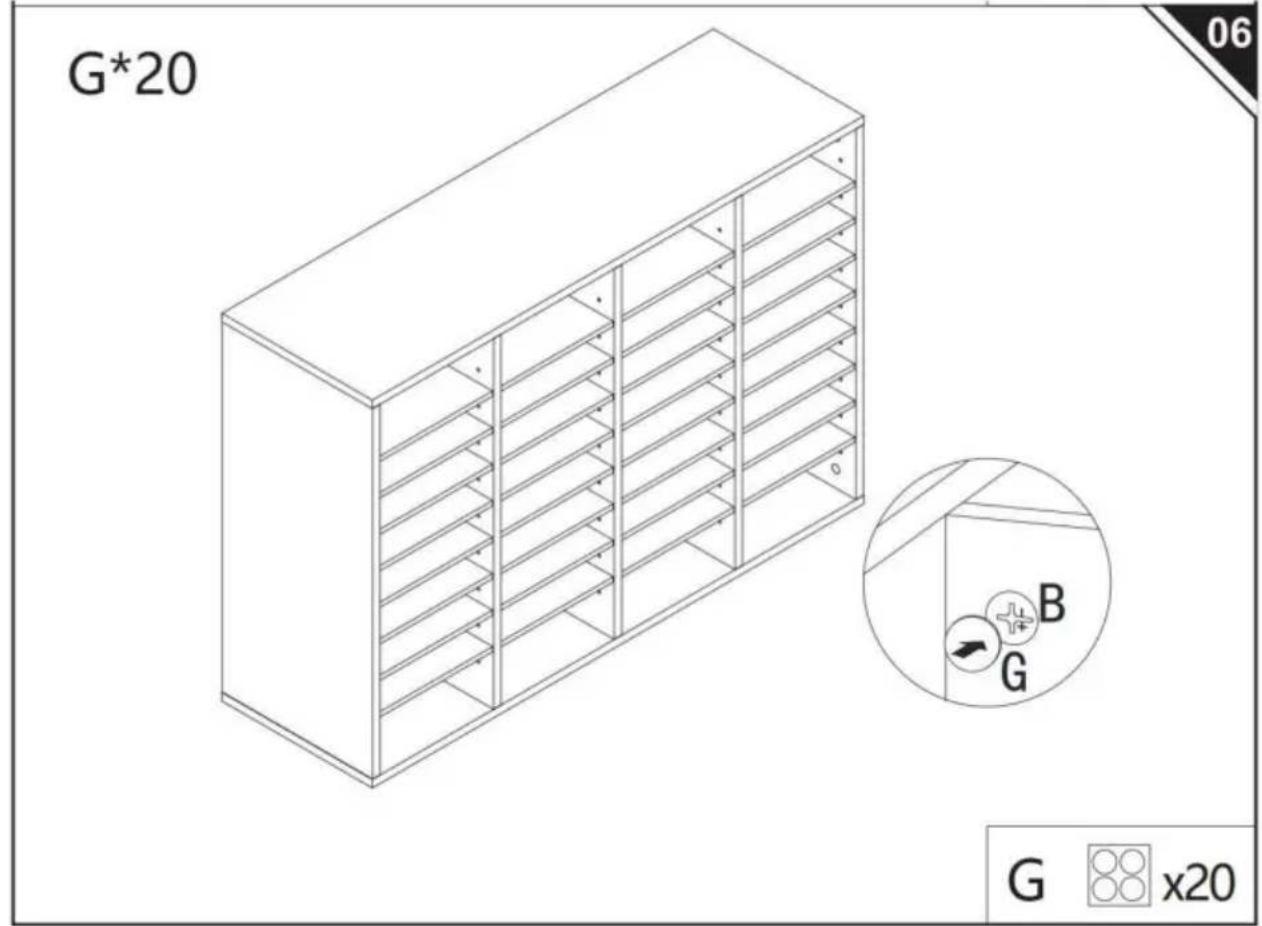

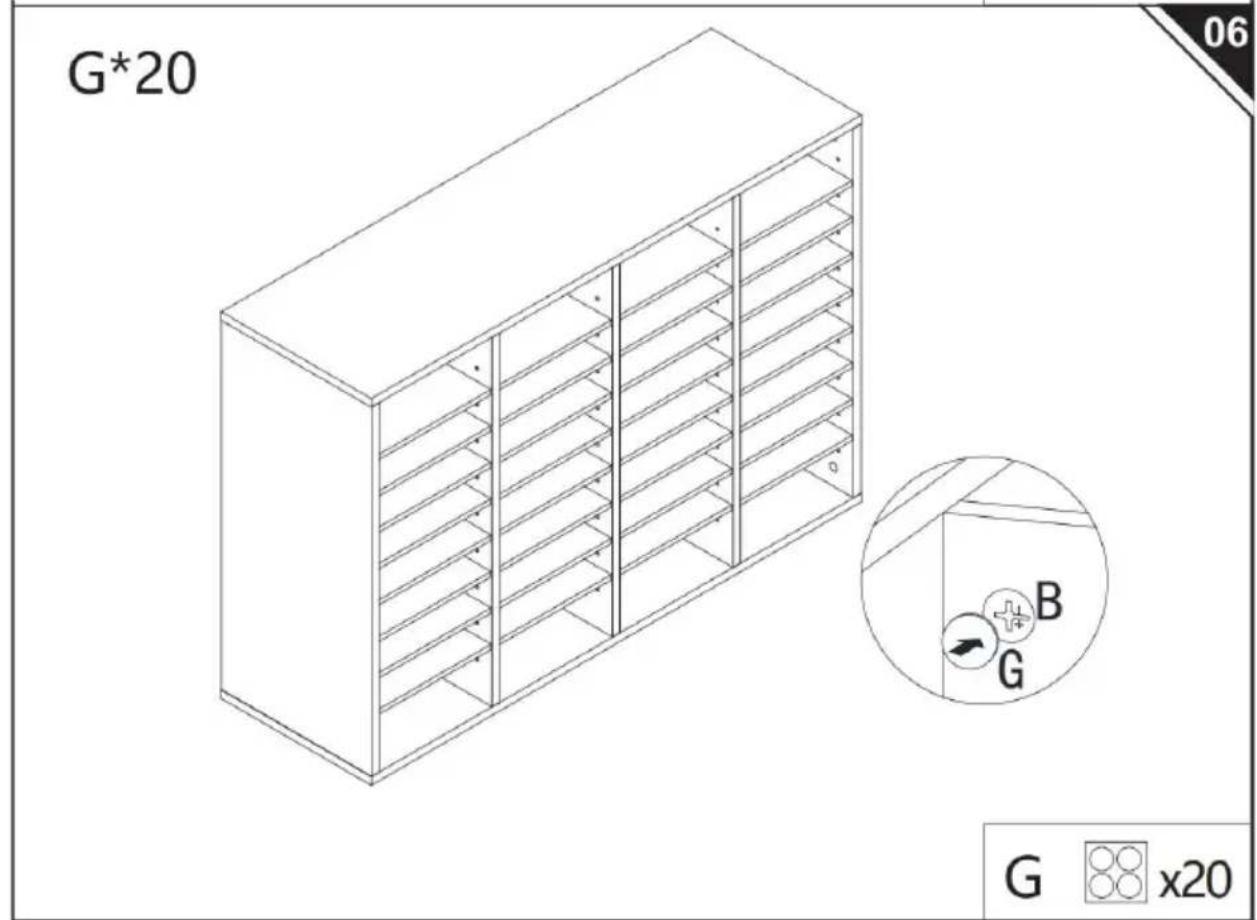

G*20 06 G x20

COMPLETION

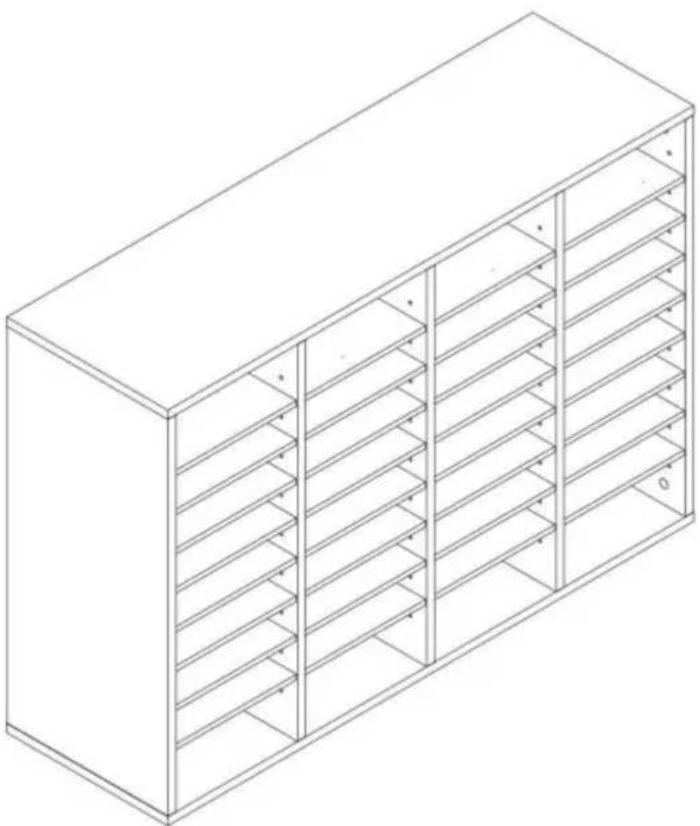

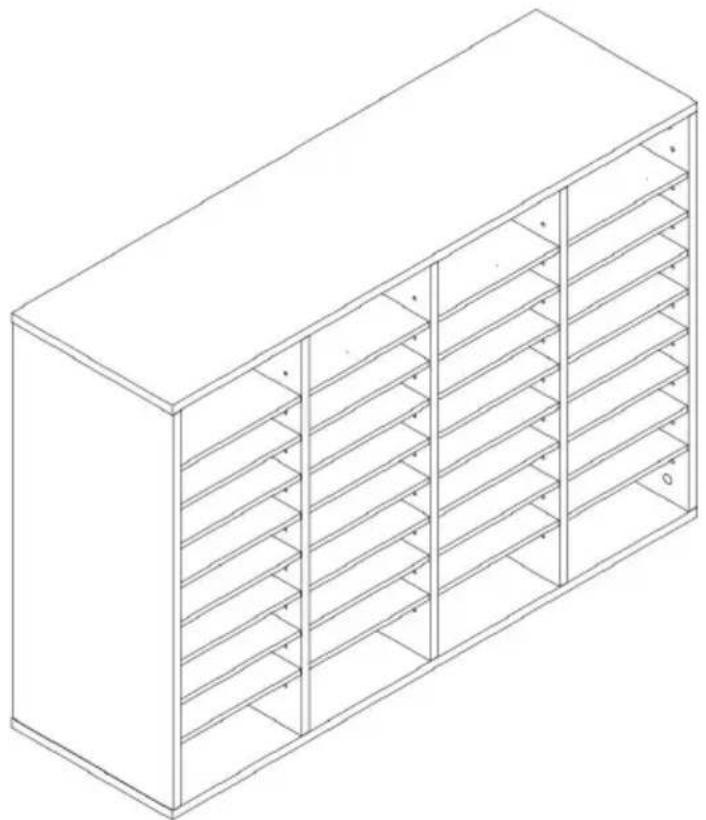

Isometric line drawing of a multi-level shelving cabinet (no text or symbols)
