DESK SHELF

MODEL:KLBS-10/KLBS-11/KLBS-12

Desk Shelf installation guide: https://youtu.be/LKytGVU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:KLBS-10 / KLBS-11/KLBS-12

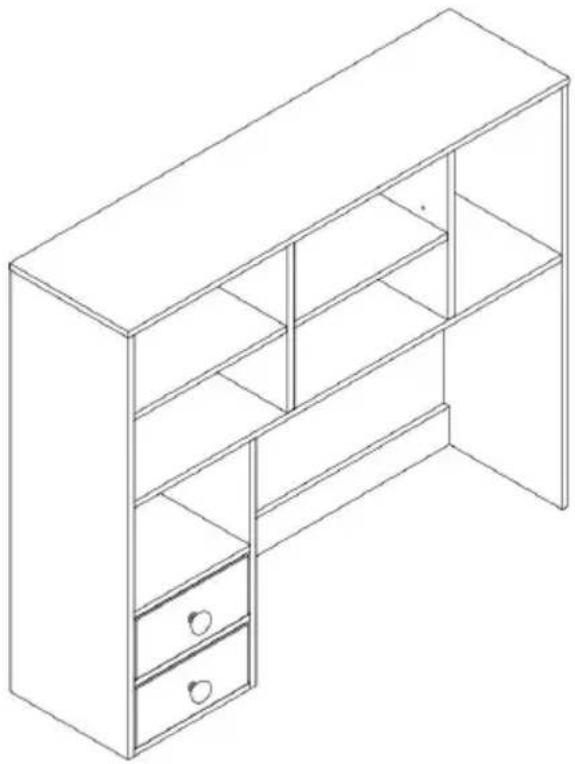

Line drawing of a multi-level office cabinet with two drawers and shelves (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Desk Shelf.
8. If possible, you can use power tools to make assembly easier.
9. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. Do not exceed specified weight capacities.
2. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Desk Shelf.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

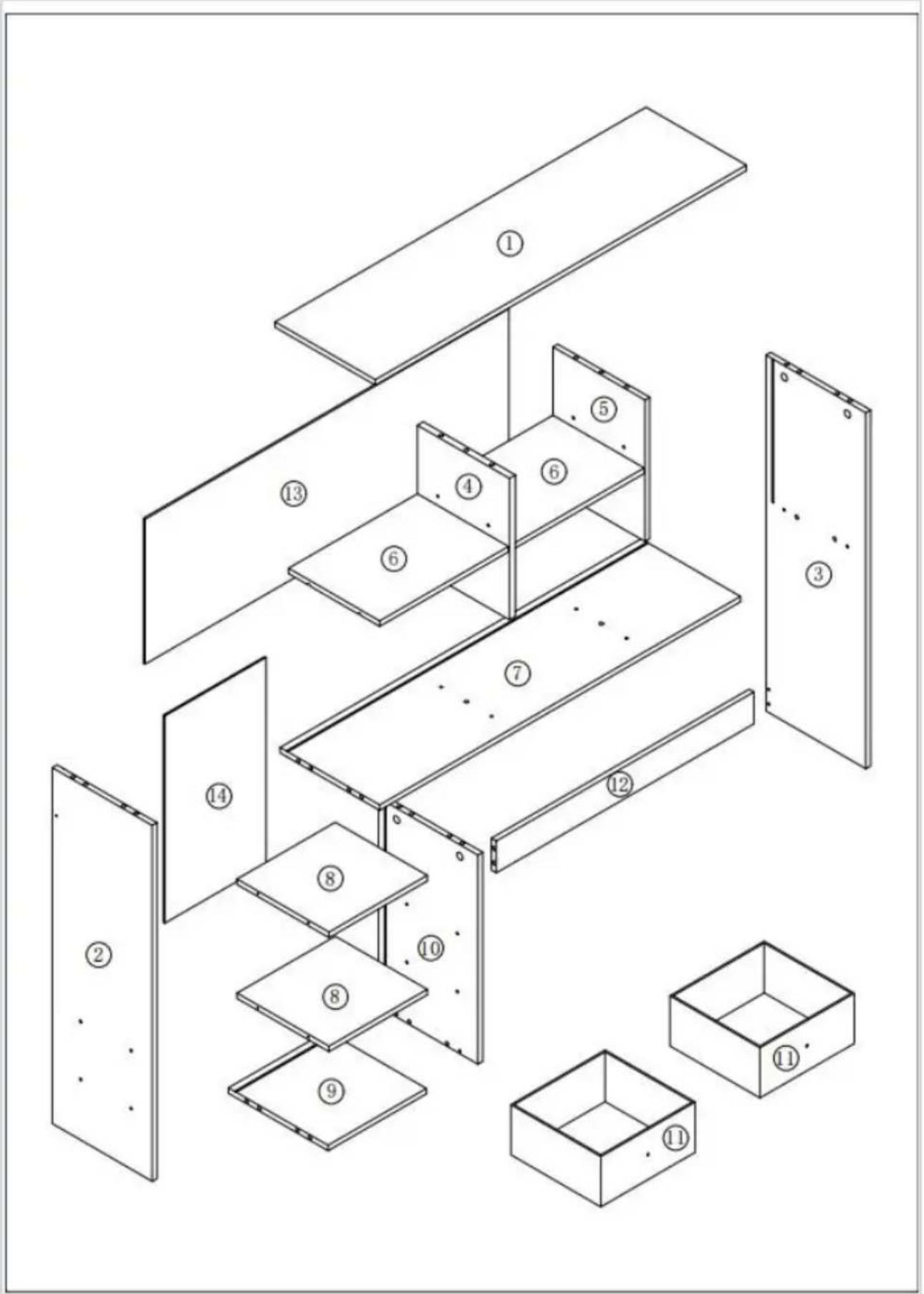

Exploded view diagram of a modular storage or packaging system with numbered components for identification.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
_c074 ∅6×32mm		∅15×9.5		∅8×30		∅5
E	X12	F	X2	G	X10	H	X8
∅4×35mm		M4×8		M3×14mm		12*30
I	X22	J	X2		X1
∅20

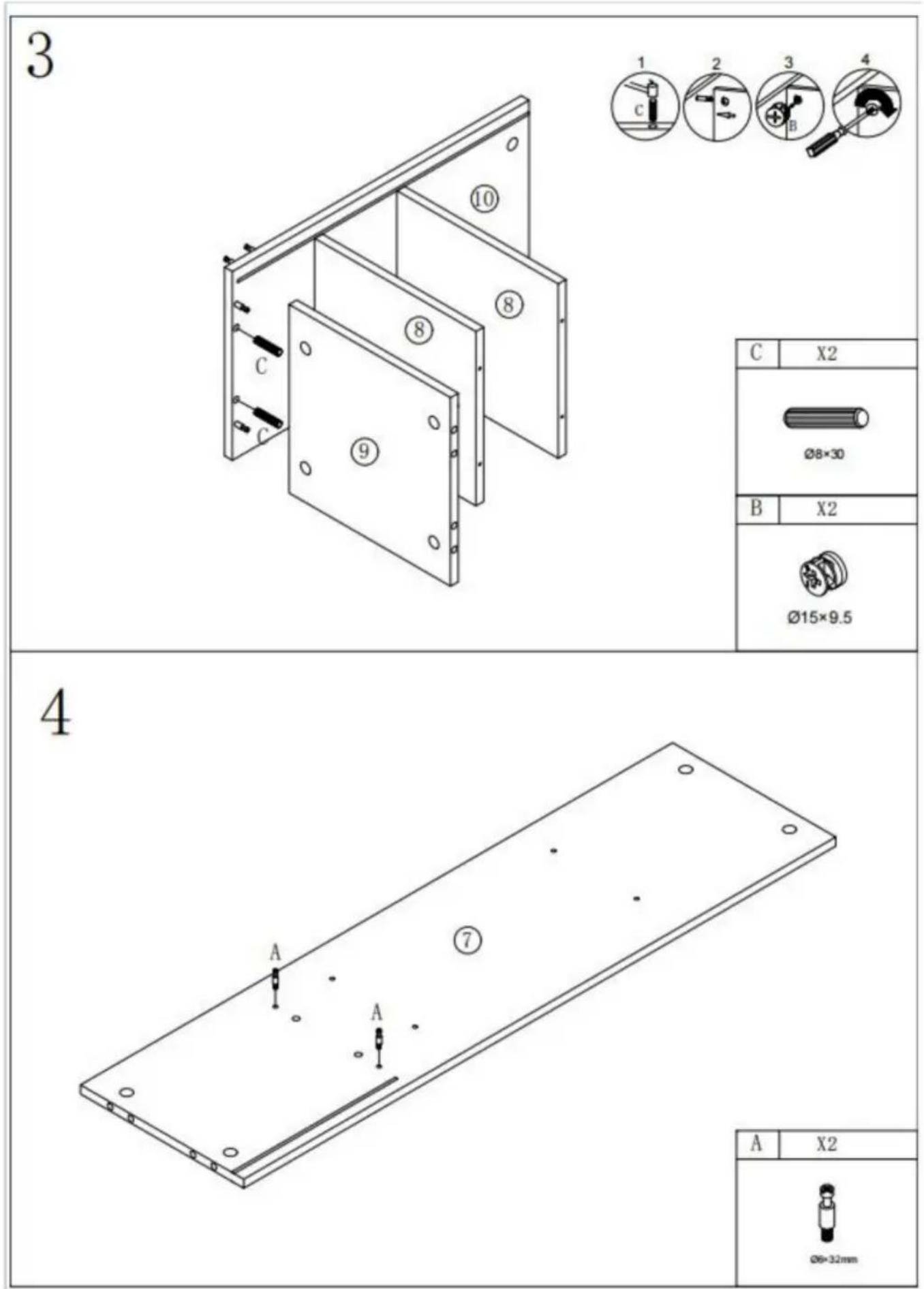

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

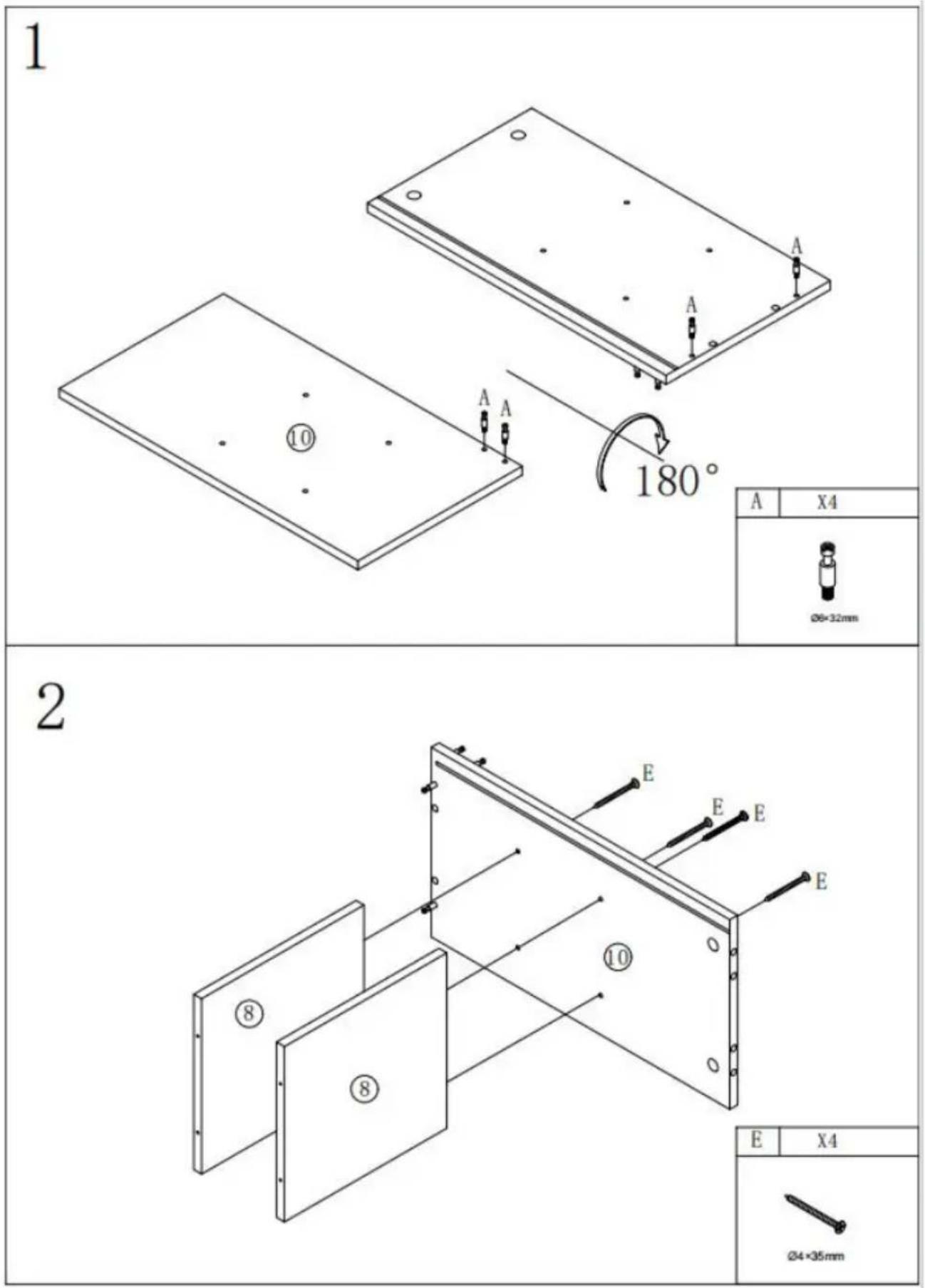

1 2 3 4

C	X2
B	X2

4

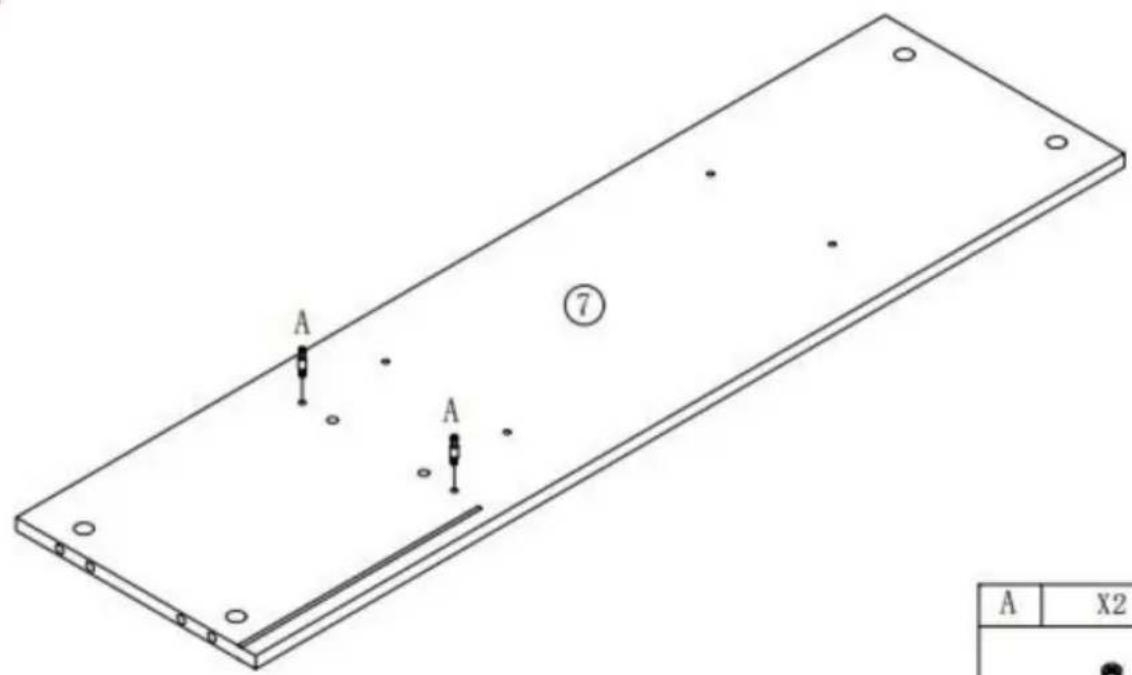

A A ⑦ A X2

A	X2

5

Technical diagram showing assembly of two metal beams with labeled components (C) and numbered parts (7, 9, 10)

1 2 3 4

C	X2
B	X2

6

Technical diagram of a structural assembly with numbered components and directional arrow indicating motion or force

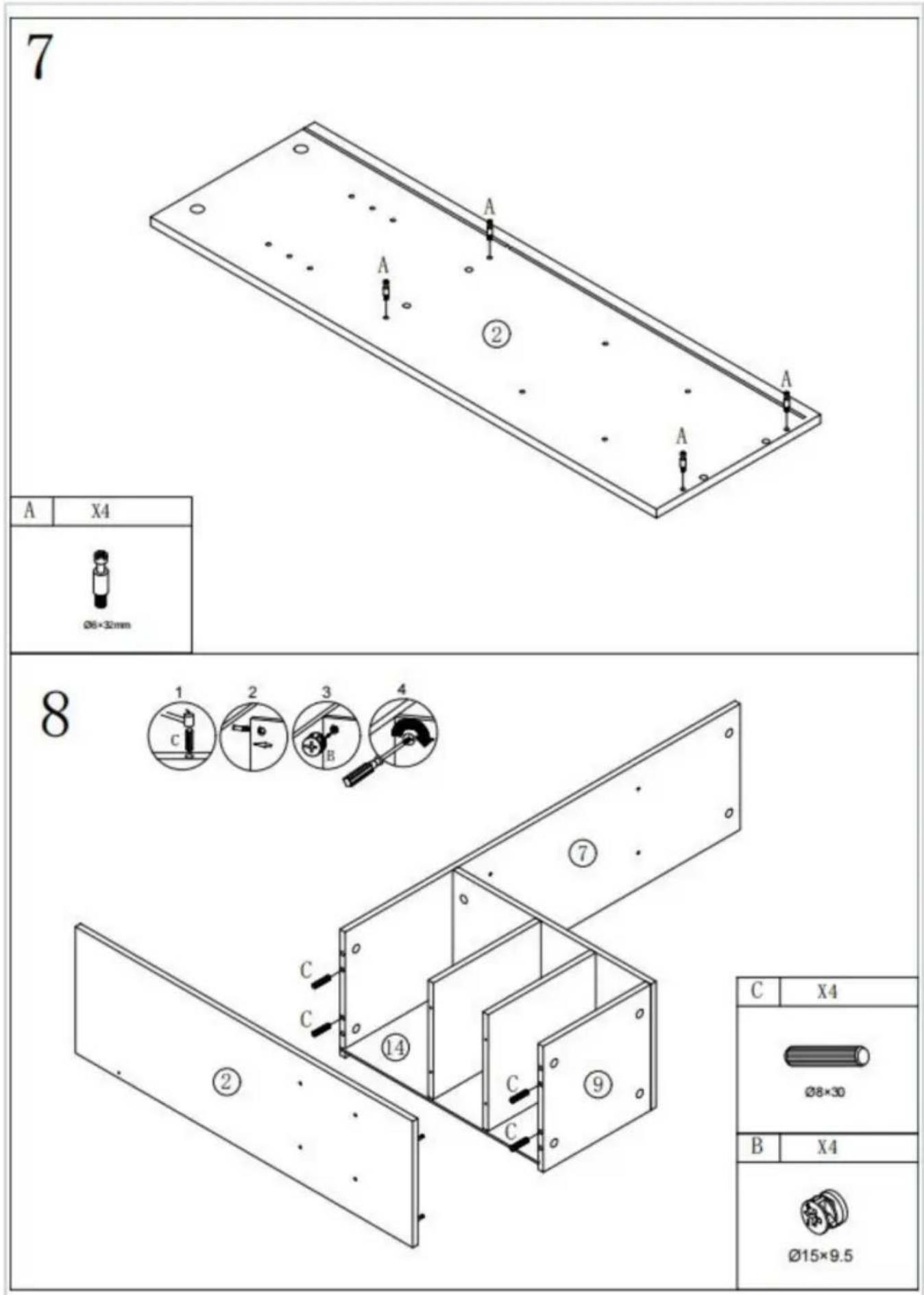

7 A X4 Ø6×32mm 8 1 2 3 4 C C B ①②③④⑦ C C C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9

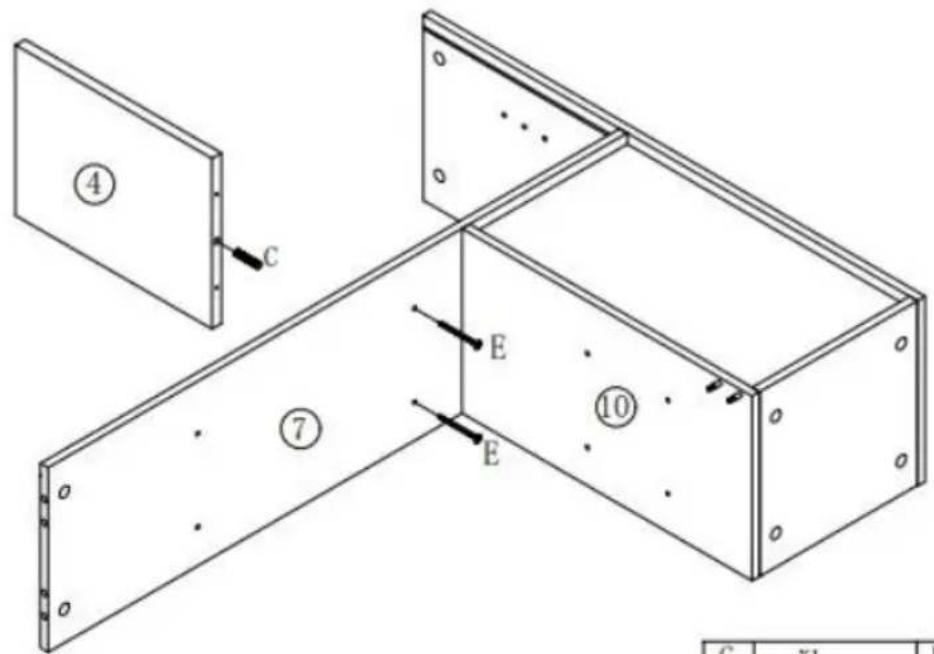

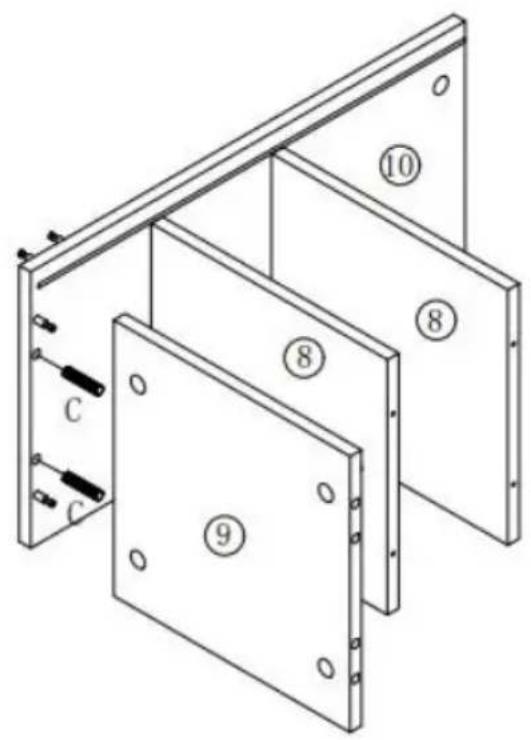

Technical diagram of a structural panel with labeled components and internal lines, marked as figure ②

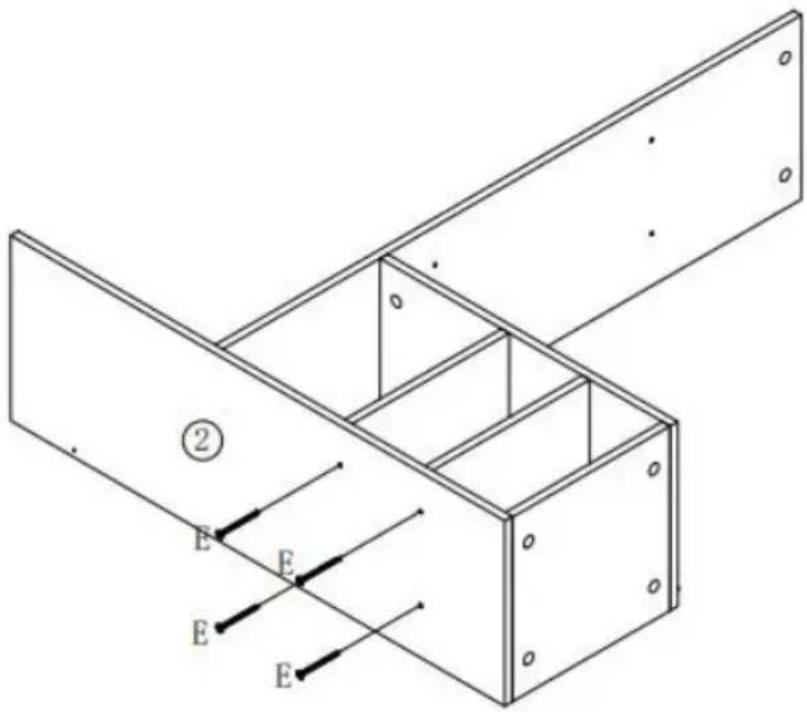

E	X4

24×35mm

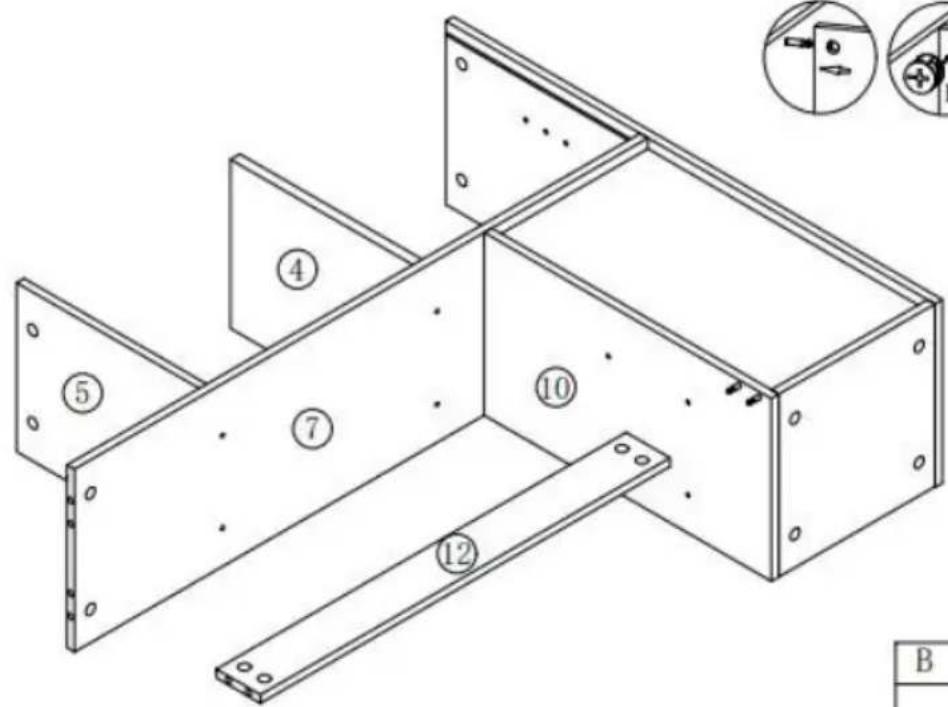

10

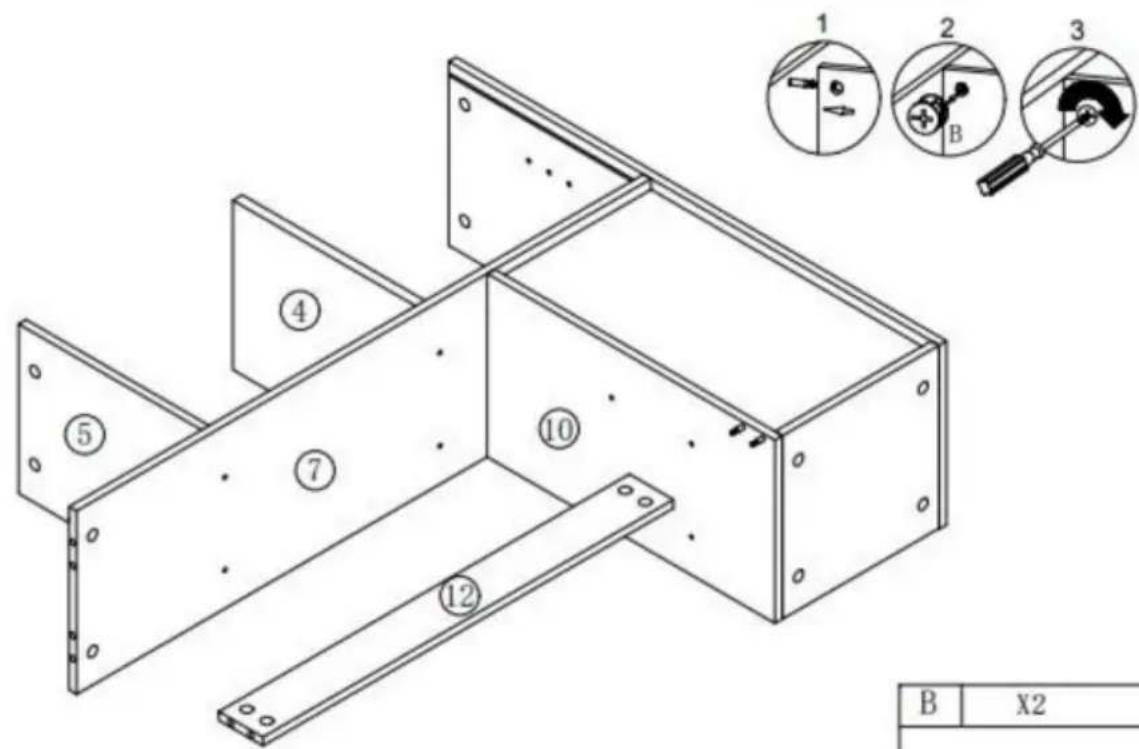

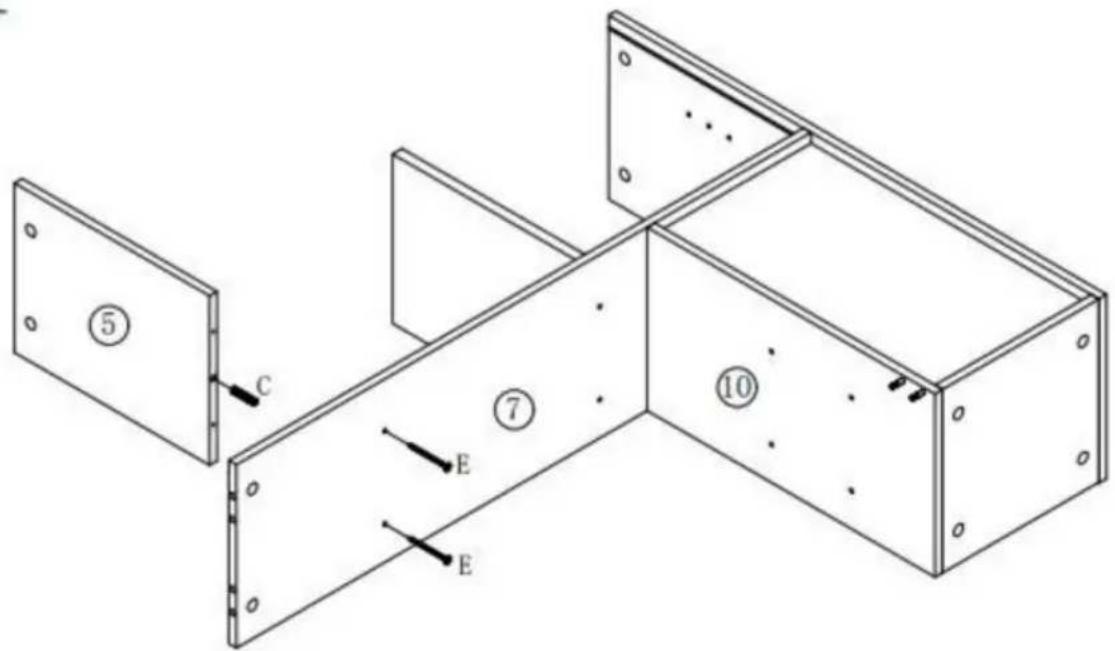

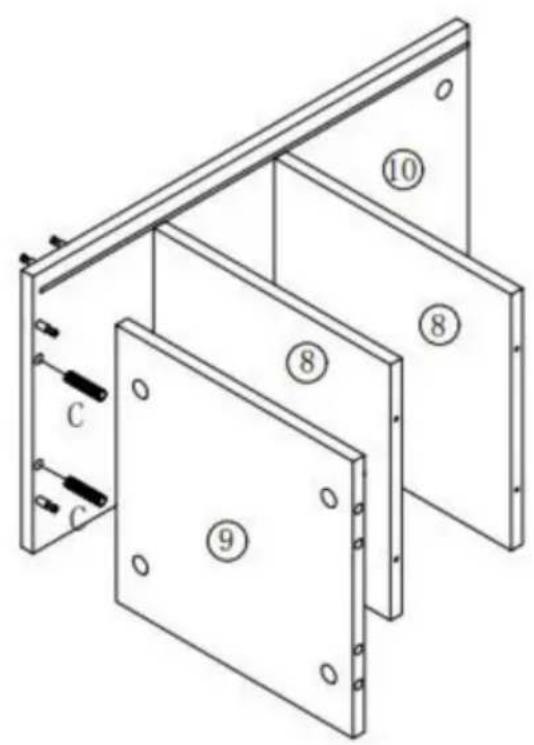

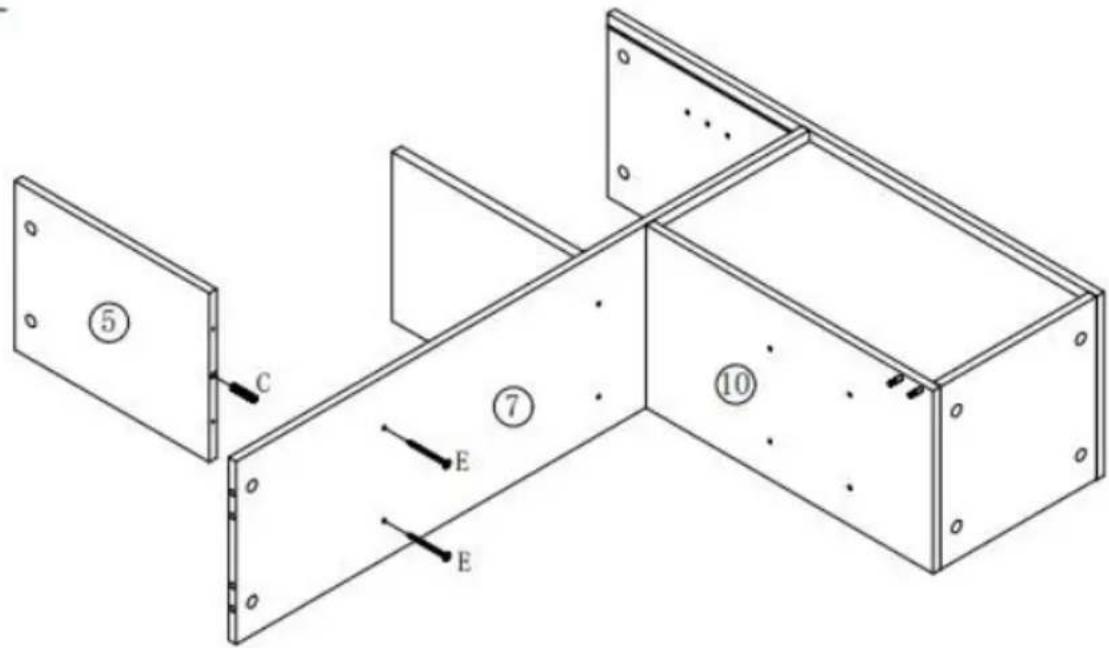

④ C E ⑦ E ⑩ C X1 1

C	X1	E	X2
∅8×30		∅4×35mm

28>30
24×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2
			G4+35mm

12

Technical diagram of a metal frame structure with numbered components and assembly details

1 2 B 3

B	X2

∅15×9.5

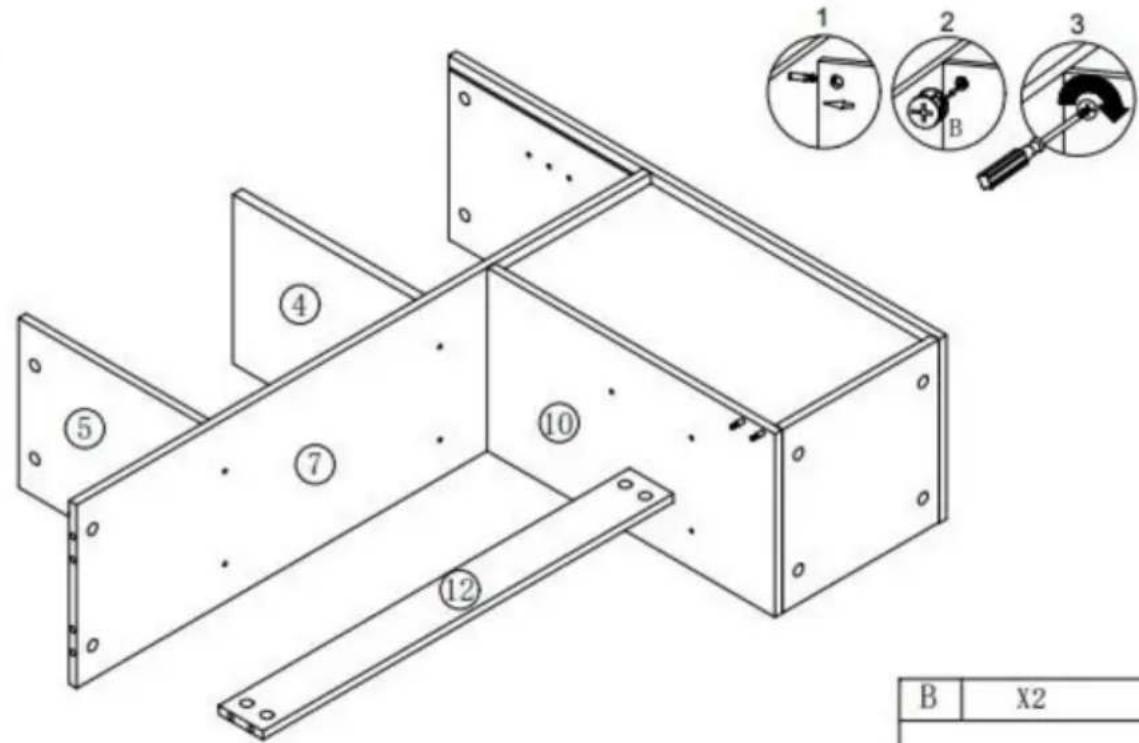

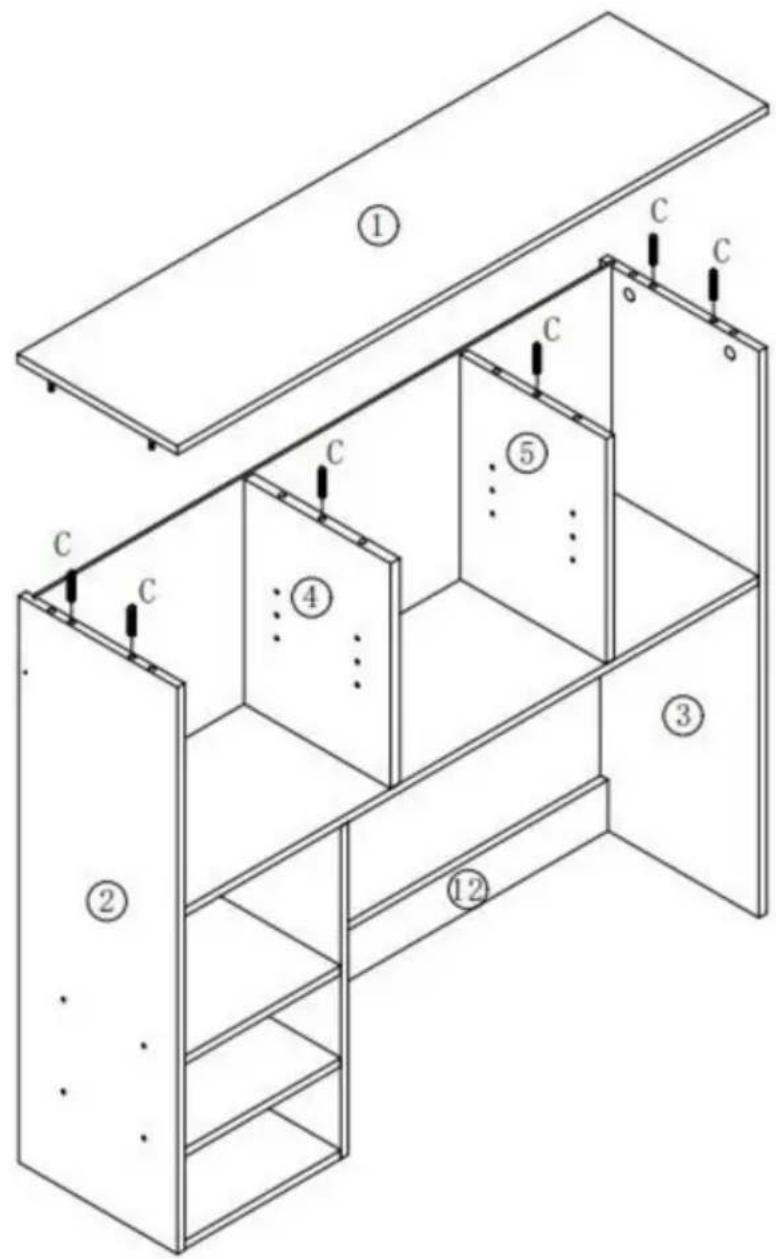

13 A X4 Ø6+32mm 14 ① ② ③ ④ C B ⑤ ⑦ ② ③ B X4 C X2 Ø15×9.5 Ø8×30

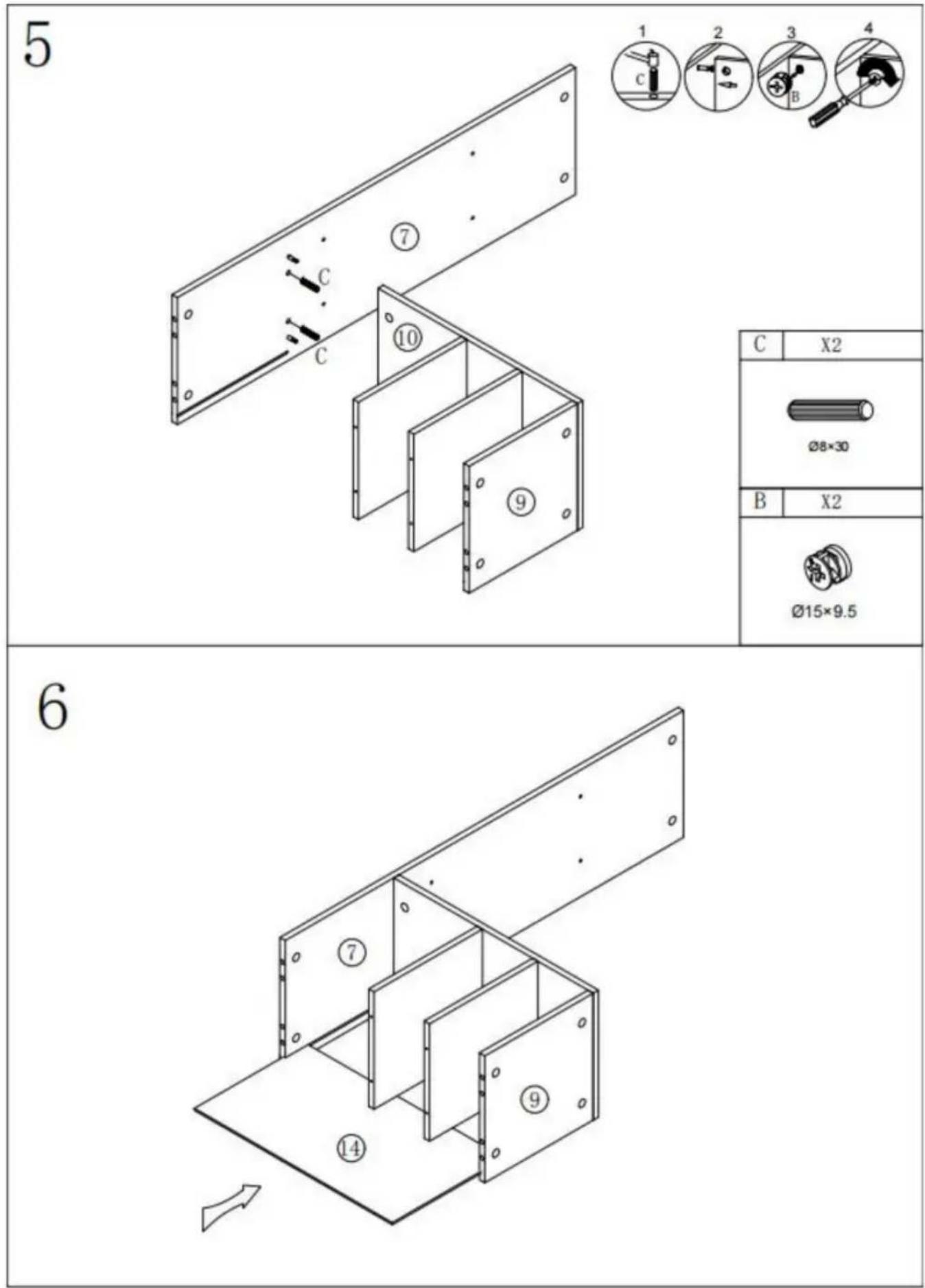

15

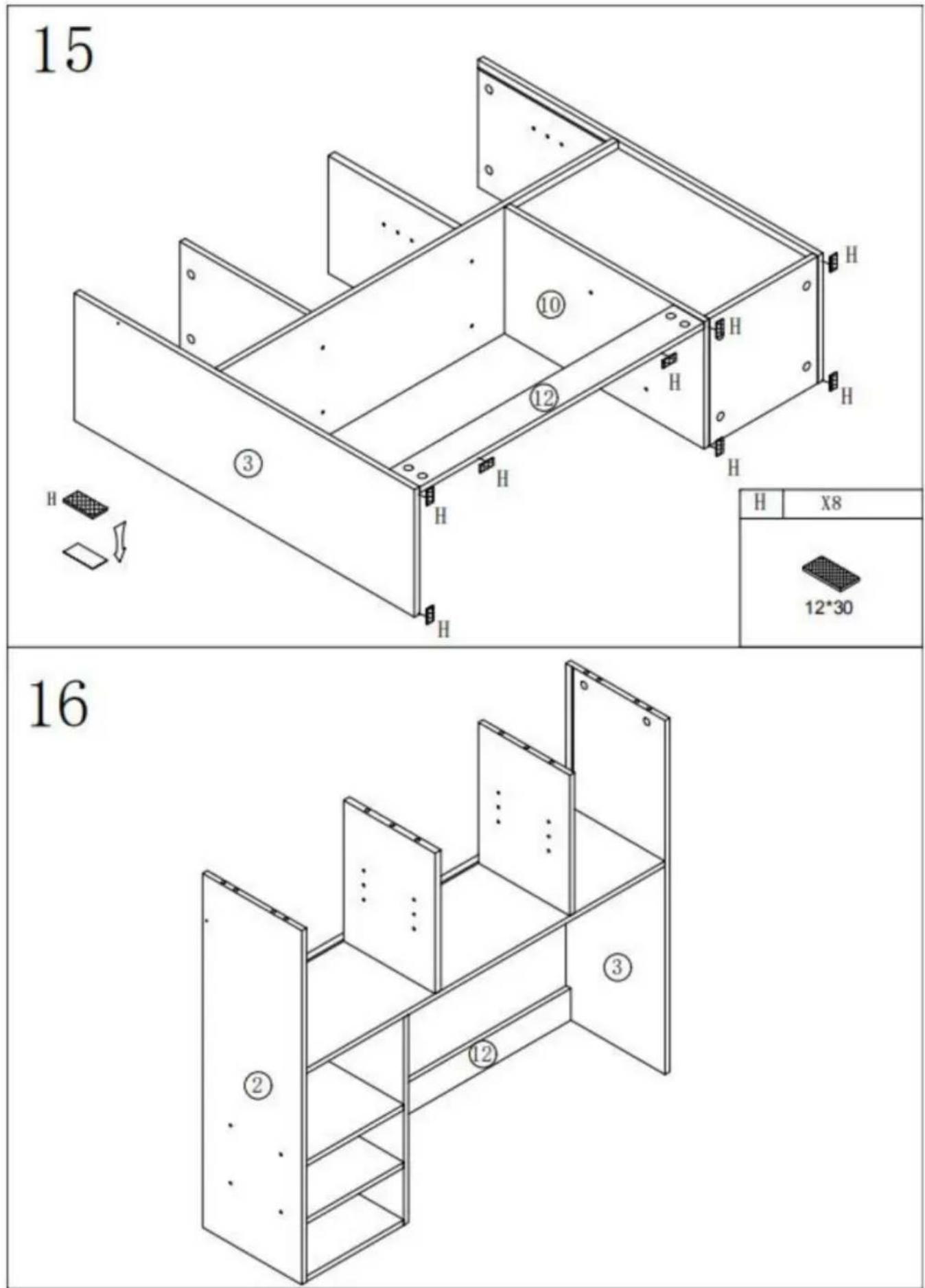

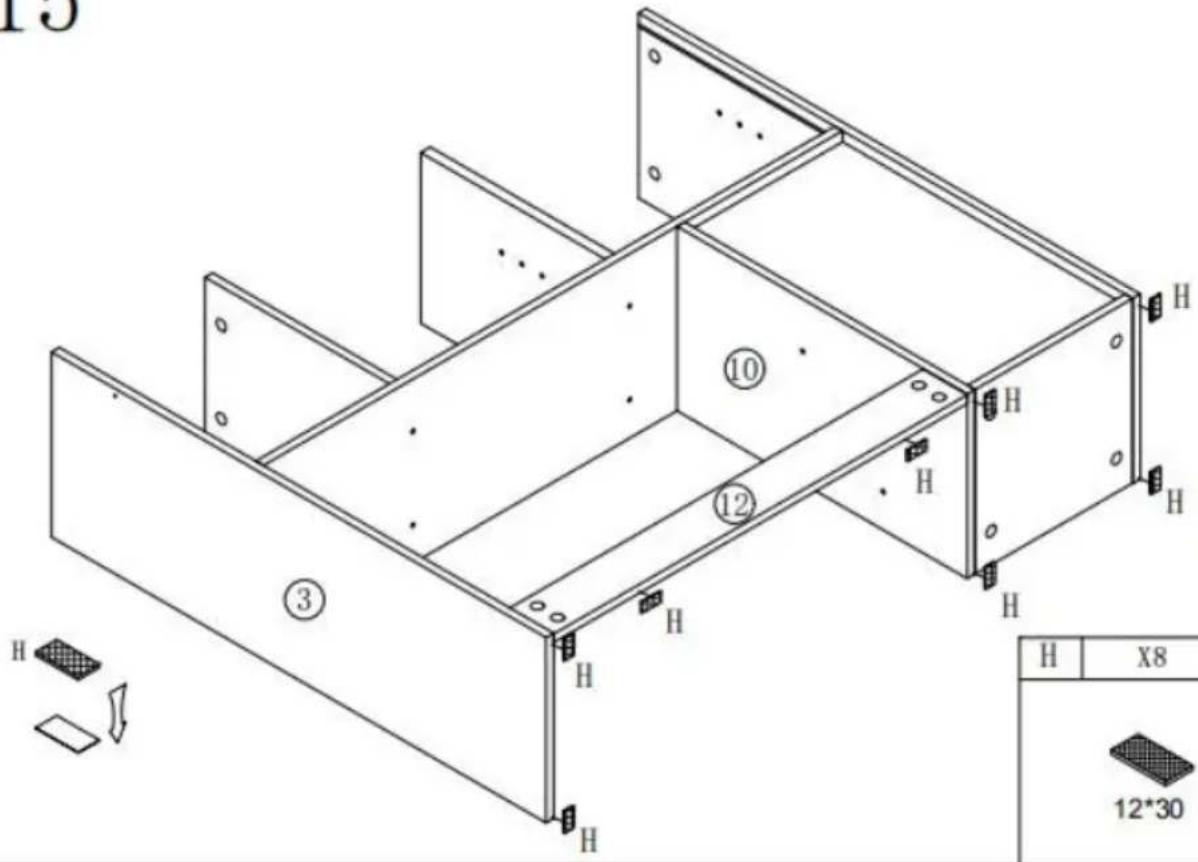

15 ⑩ ⑫ ⑫ ⑫ H H H H H H H H ③ H X8 12*30

H	X8

16

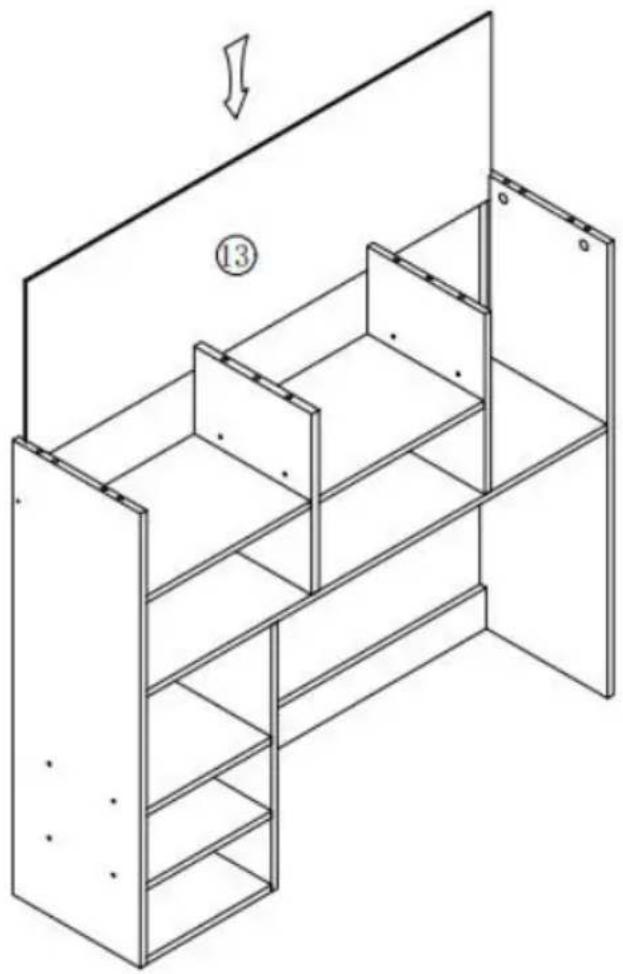

Technical diagram of a multi-level storage or rack system with numbered components labeled ②, ③, and ①2.

17

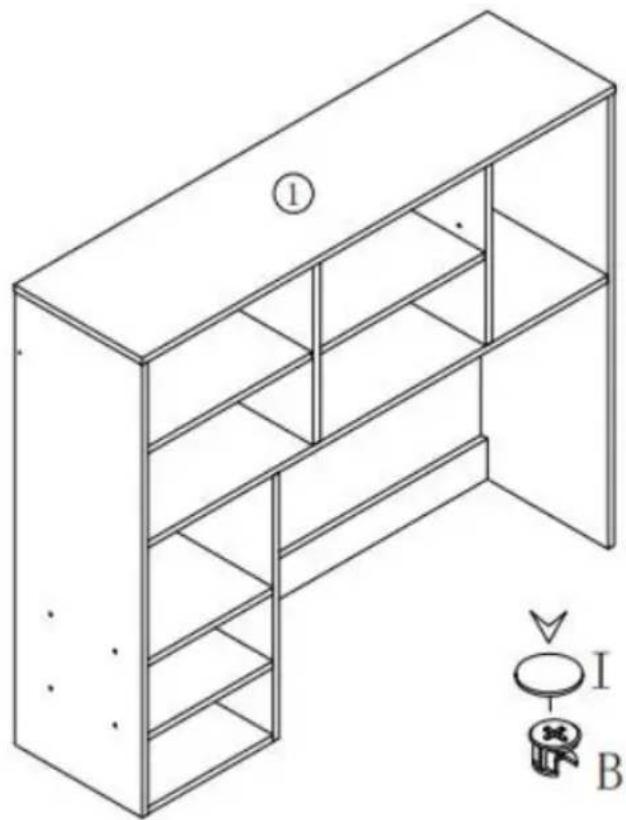

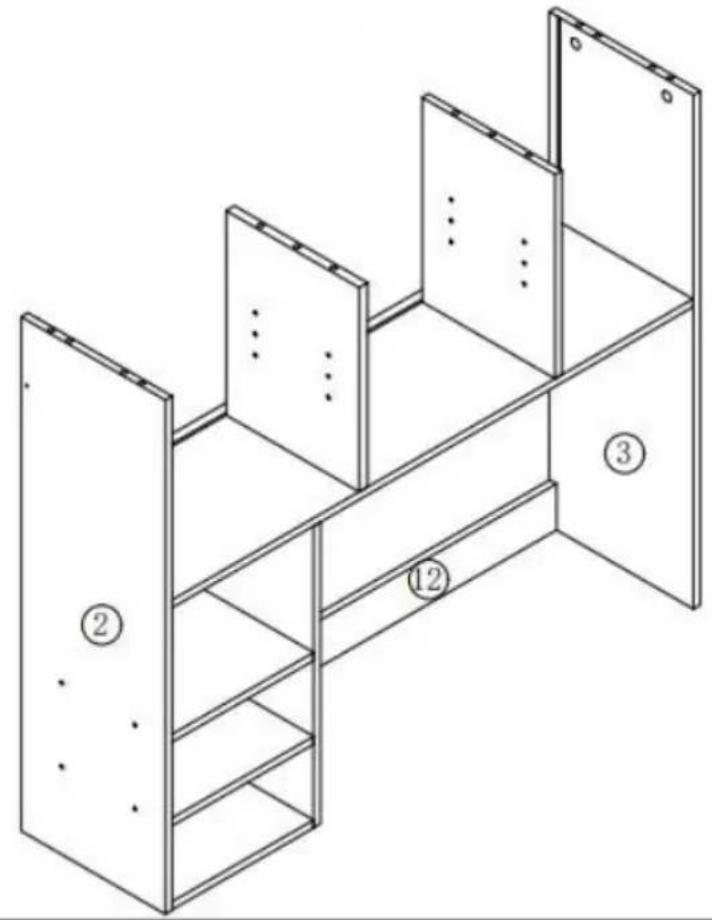

Isometric line drawing of a multi-level shelving unit with numbered components and an arrow indicating direction (no text or symbols)

18

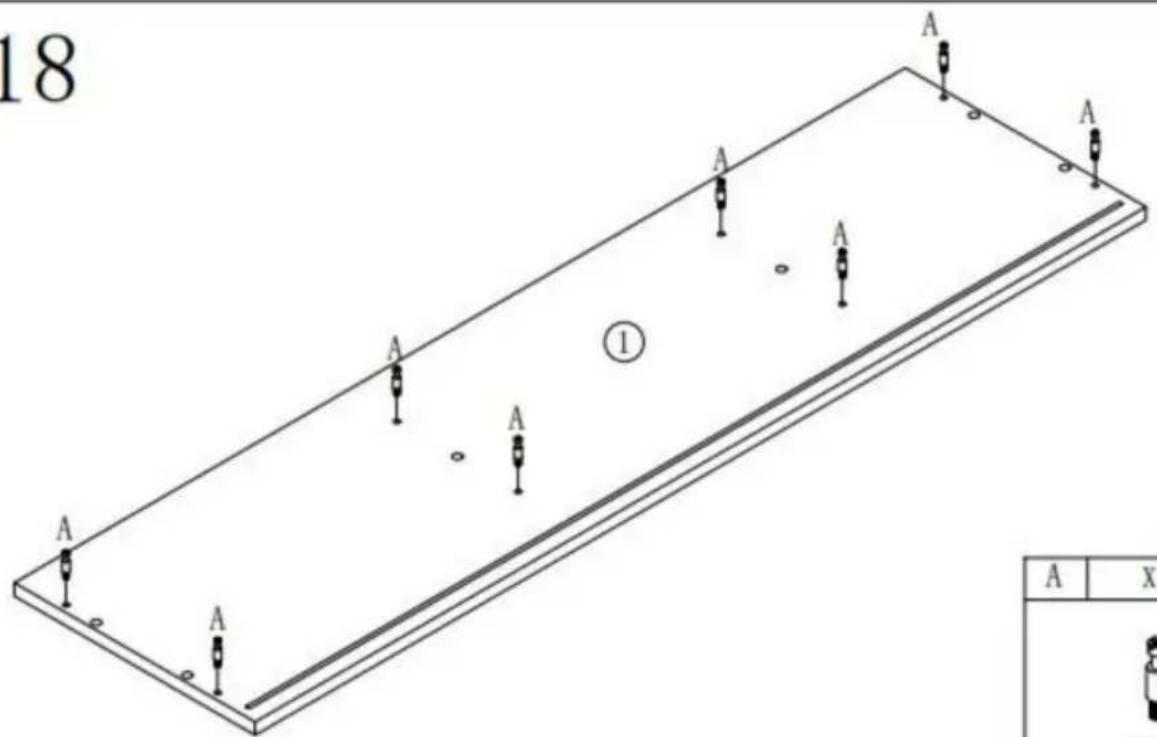

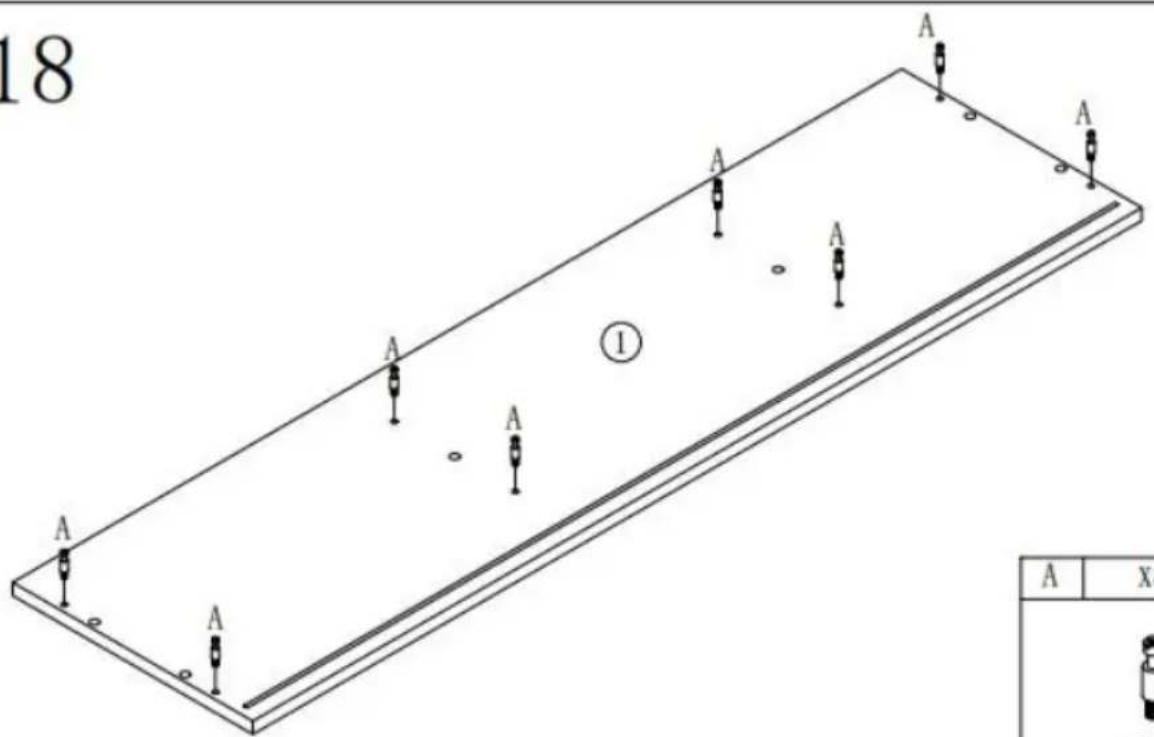

18 A A A A A A A ① A X

A	X8

19

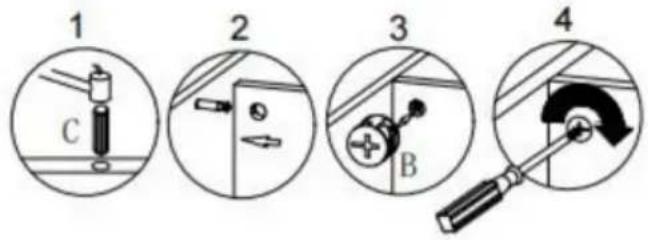

1 C 2 B 3 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

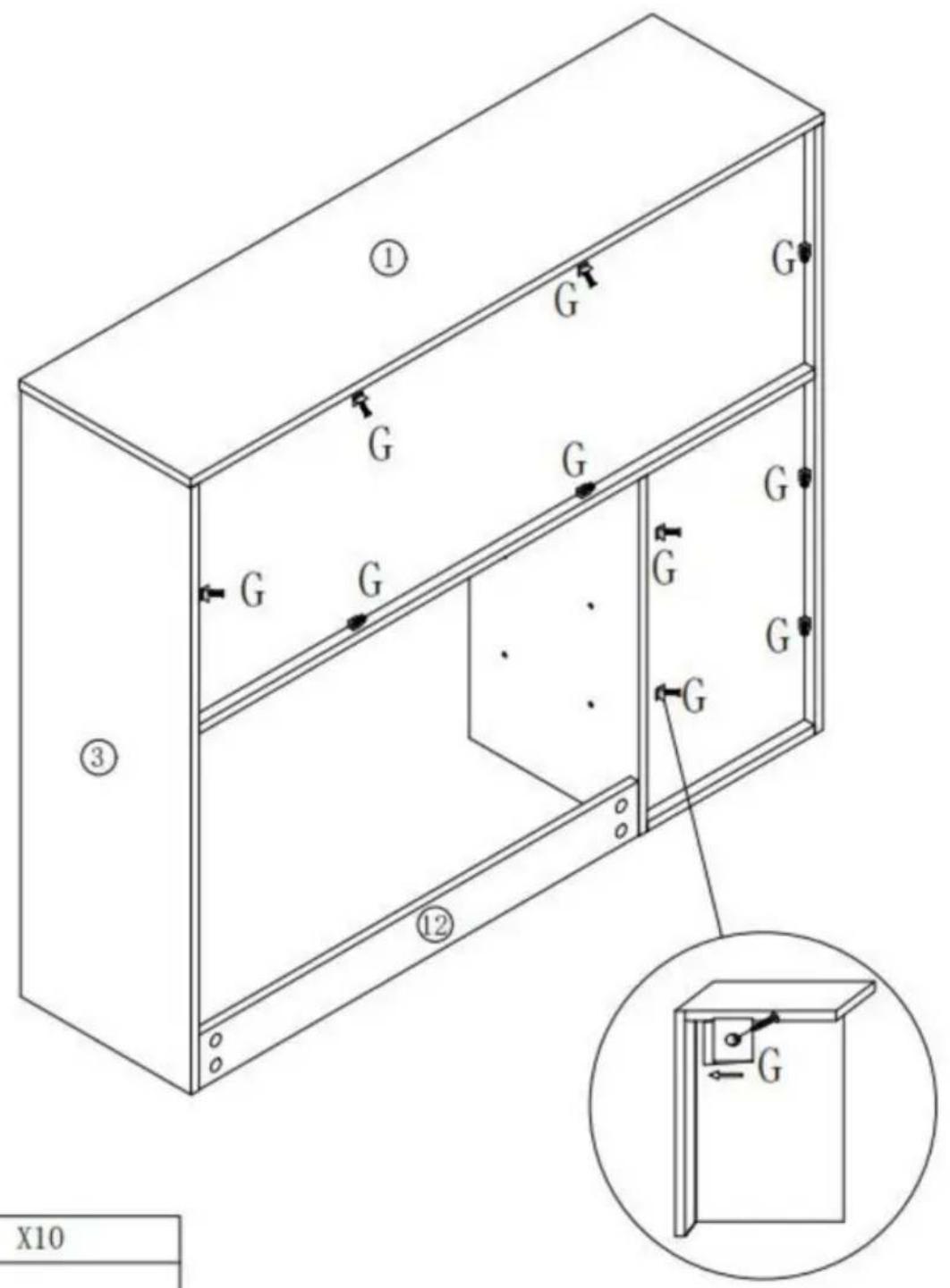

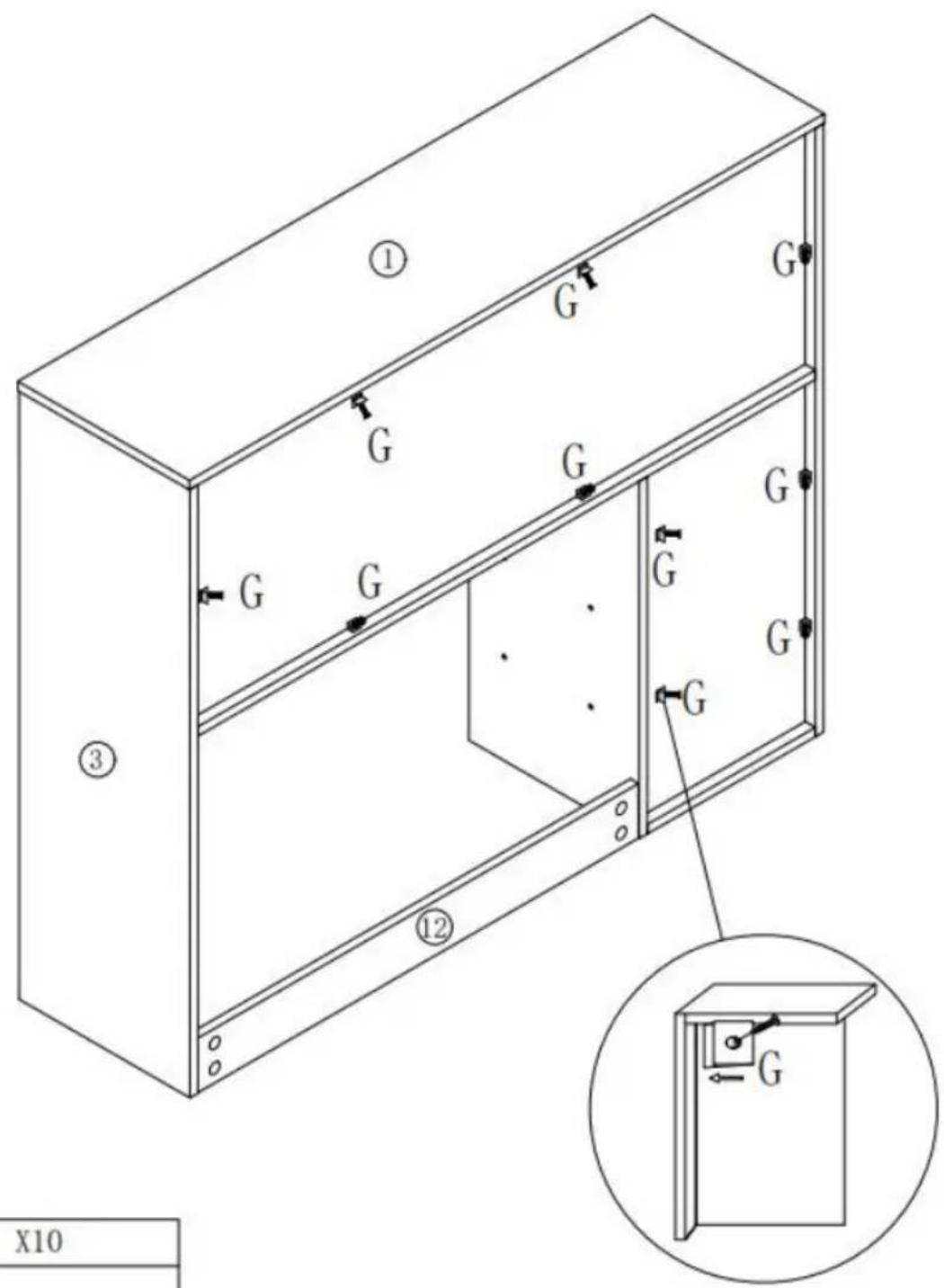

① G G G G G G G ③ ⑫ X10

G X10 M3×14mm

21

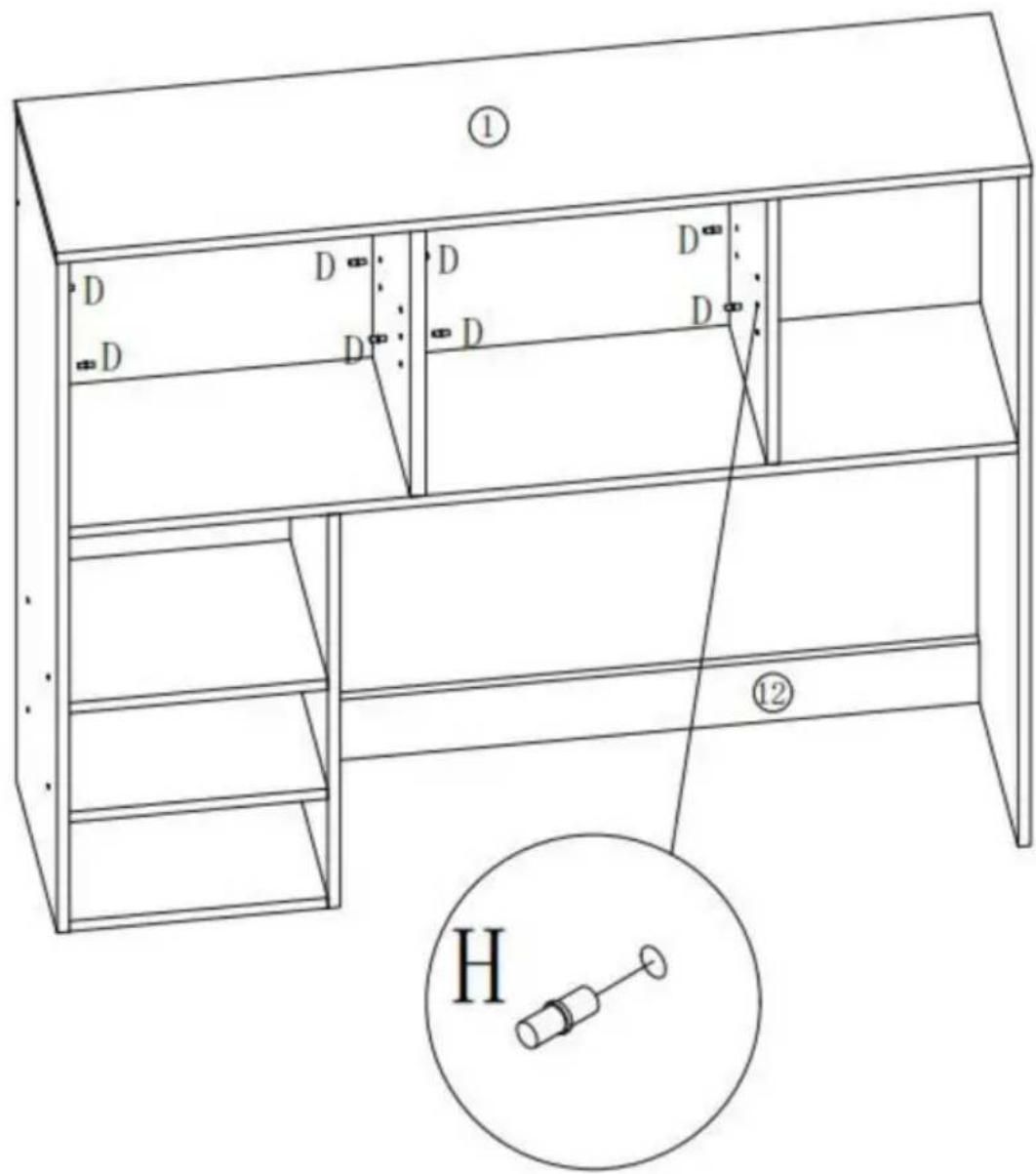

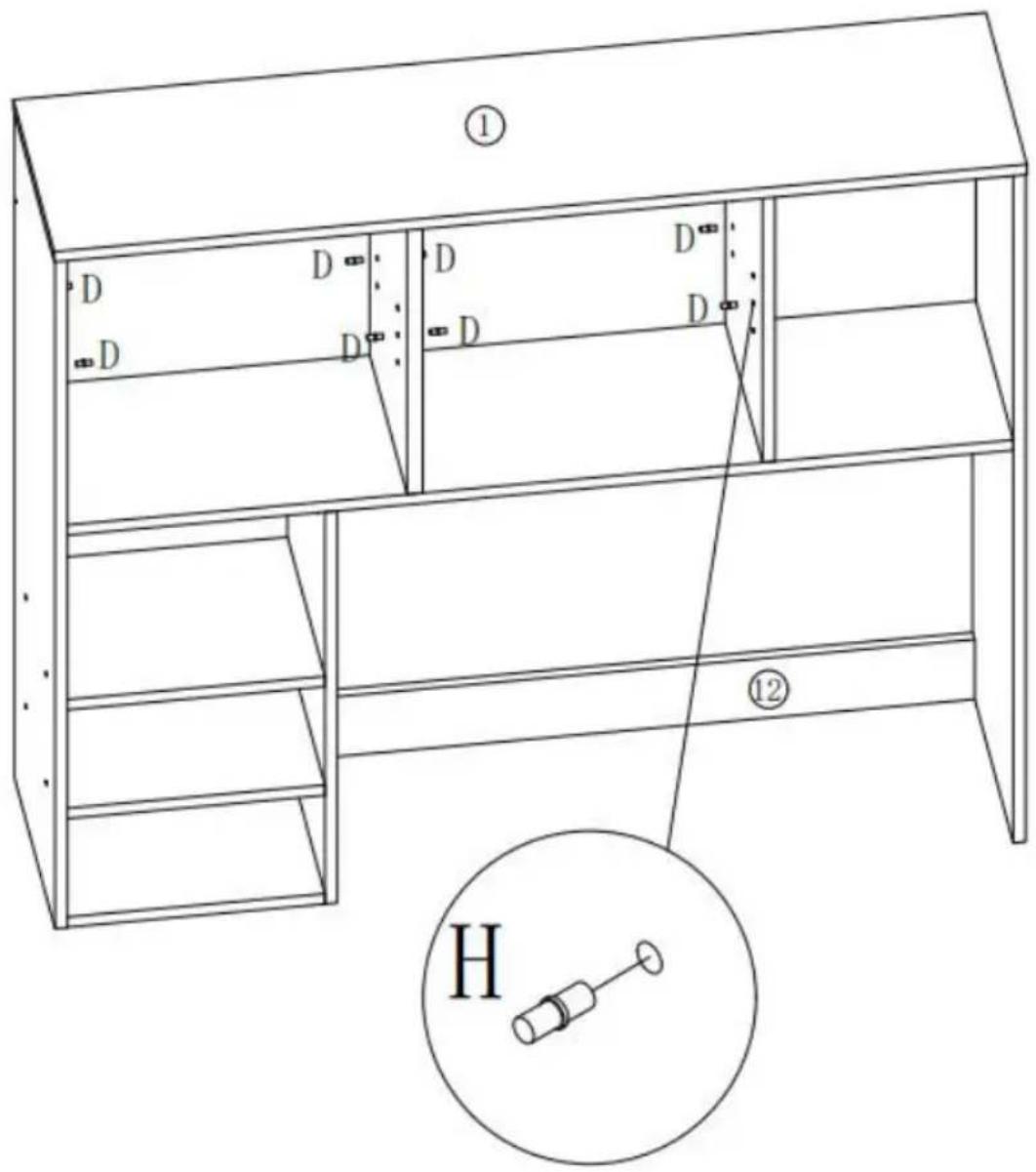

① D D D D D D D ⑫ H

D	X8

22

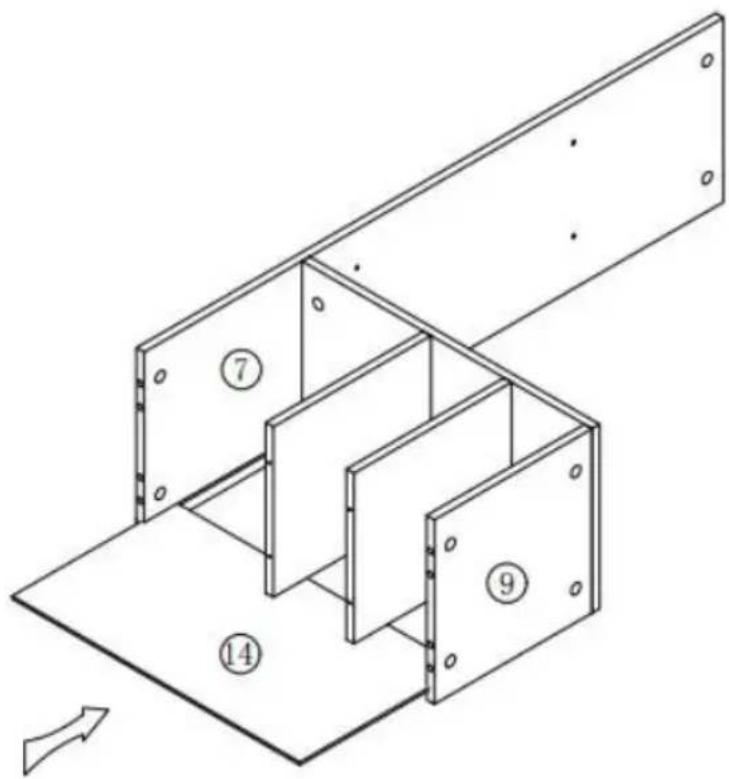

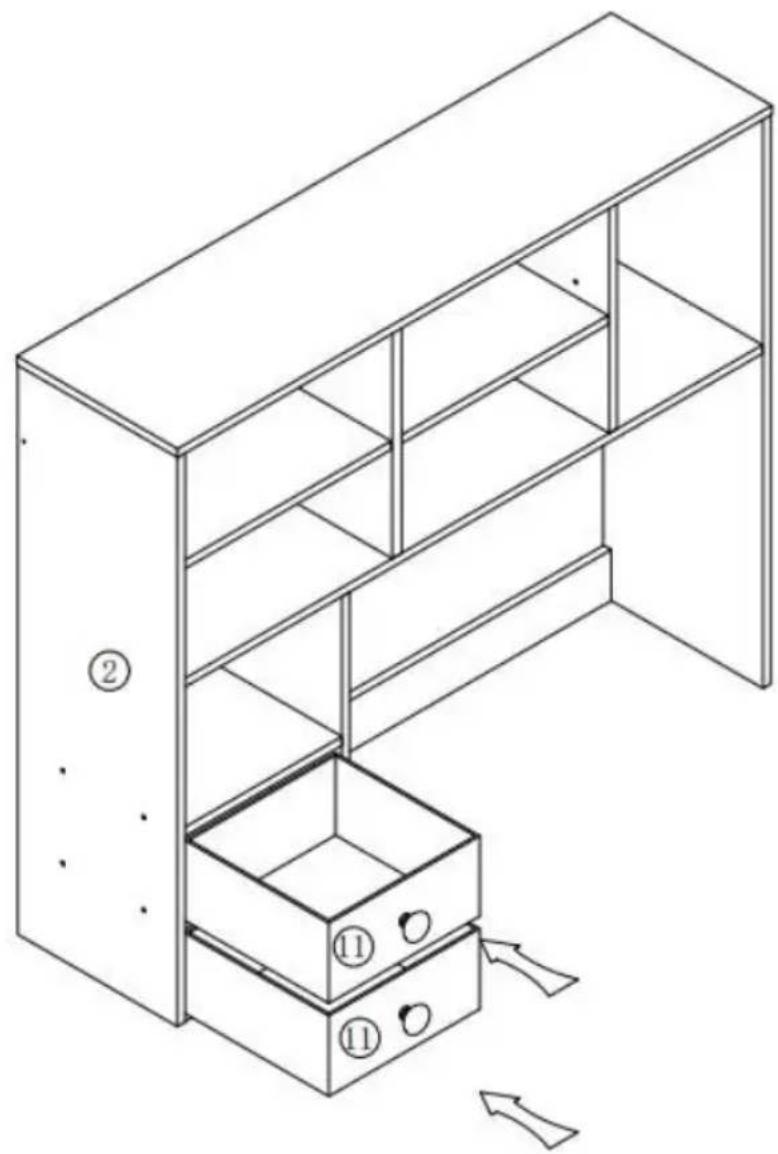

Isometric diagram of a multi-level cabinet with numbered compartments and directional arrows indicating movement or assembly.

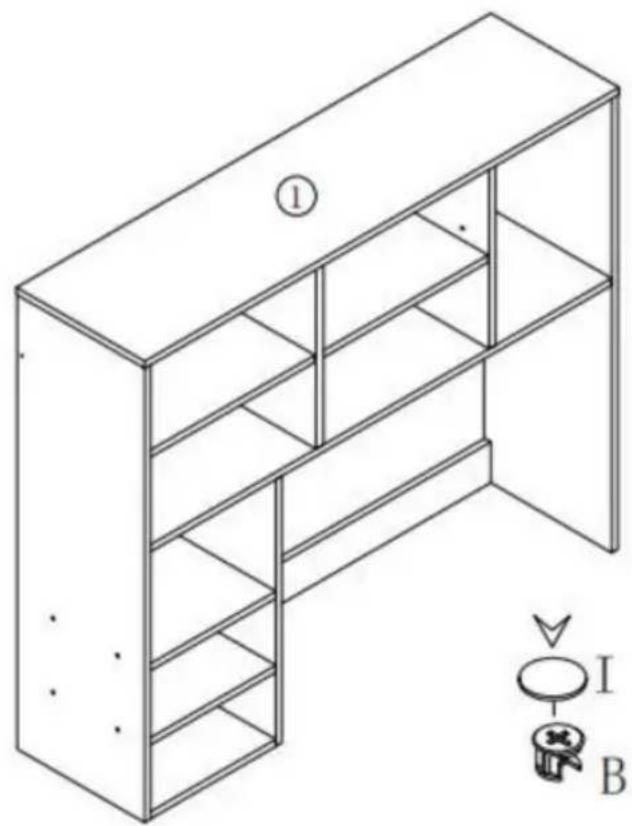

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

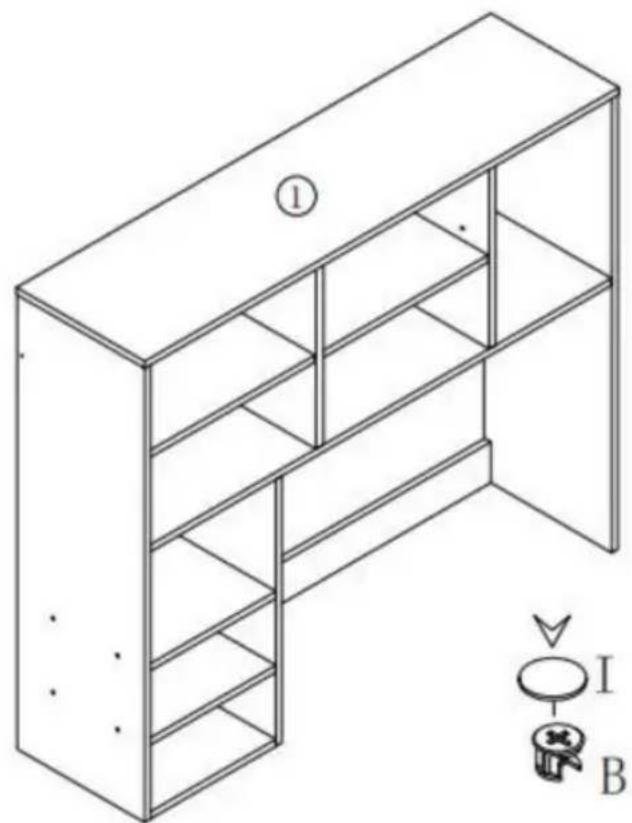

I	X22

24

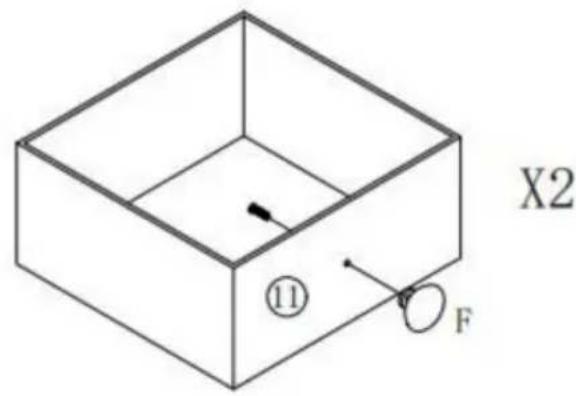

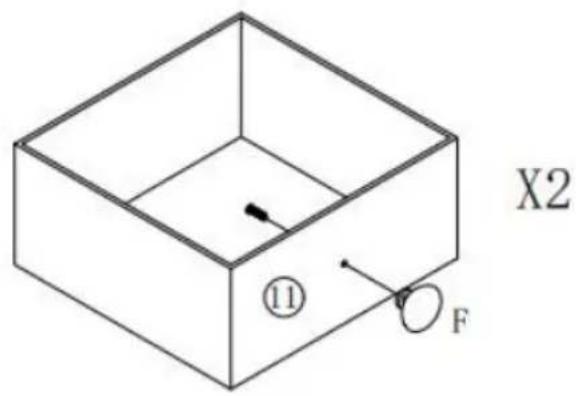

X2 ⑪ F

F X2 M4×8

25

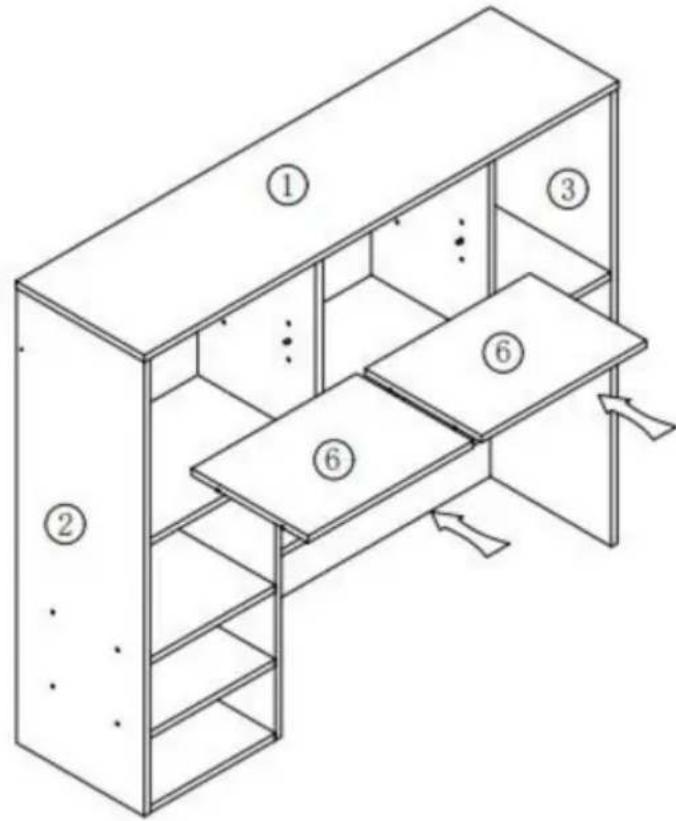

Line drawing of a multi-level storage cabinet with numbered compartments and an open drawer (no text or symbols)

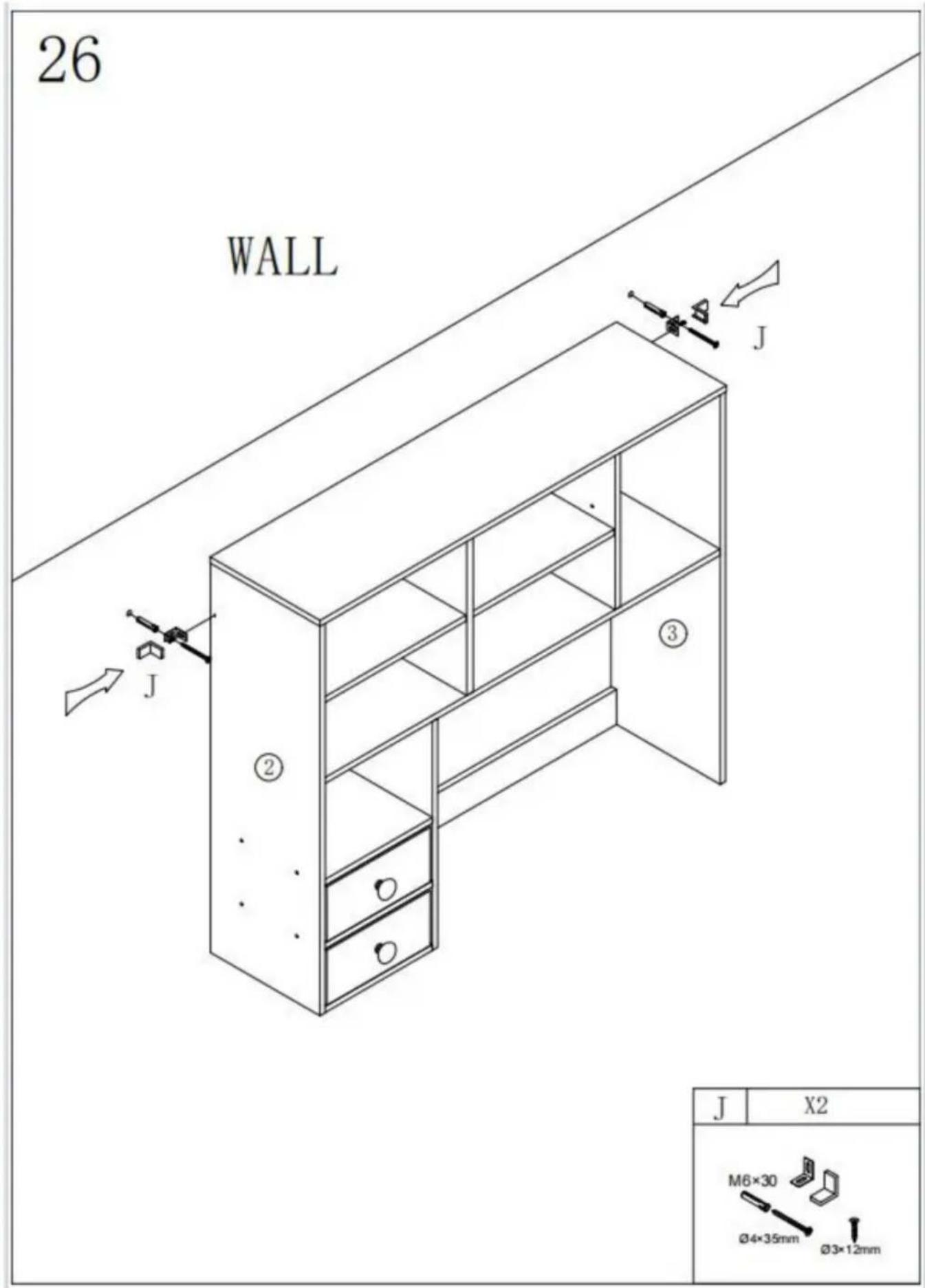

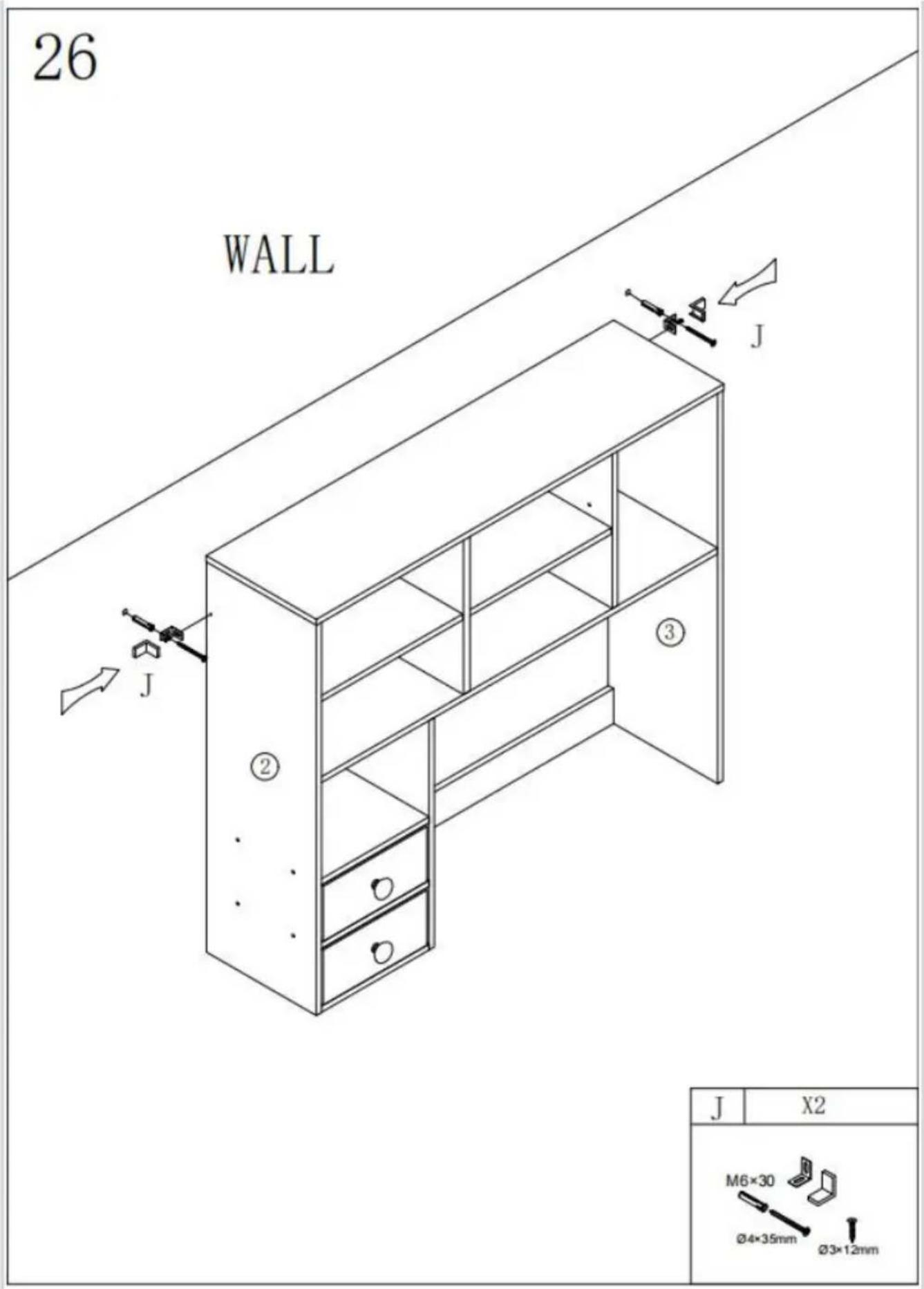

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PRODUCT PARAMETER

Model	KLBS-10	KLBS-11	KLBS-12
Colour	Black	White	Wood
Safe Loading Weight	100 lbs
Product Size(L×D×H)	940*254*792mm
Net Weight	15.25kg

* Products such as specifications, appearance, and design are subject to modification without prior notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : KLBS-10/KLBS-11/KLBS-12

MODÈLE : KLBS-10 / KLBS-11/KLBS-12

Line drawing of a simple 3D cabinet with two drawers and one open door (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		-TWZX]∅5
E	X12	F	X2	G	X10	H	X8
		M4×8		M3×14mm		12*30
I	X22	J	X2		X1

ÉTAPE D'ASSEMBLAGE

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

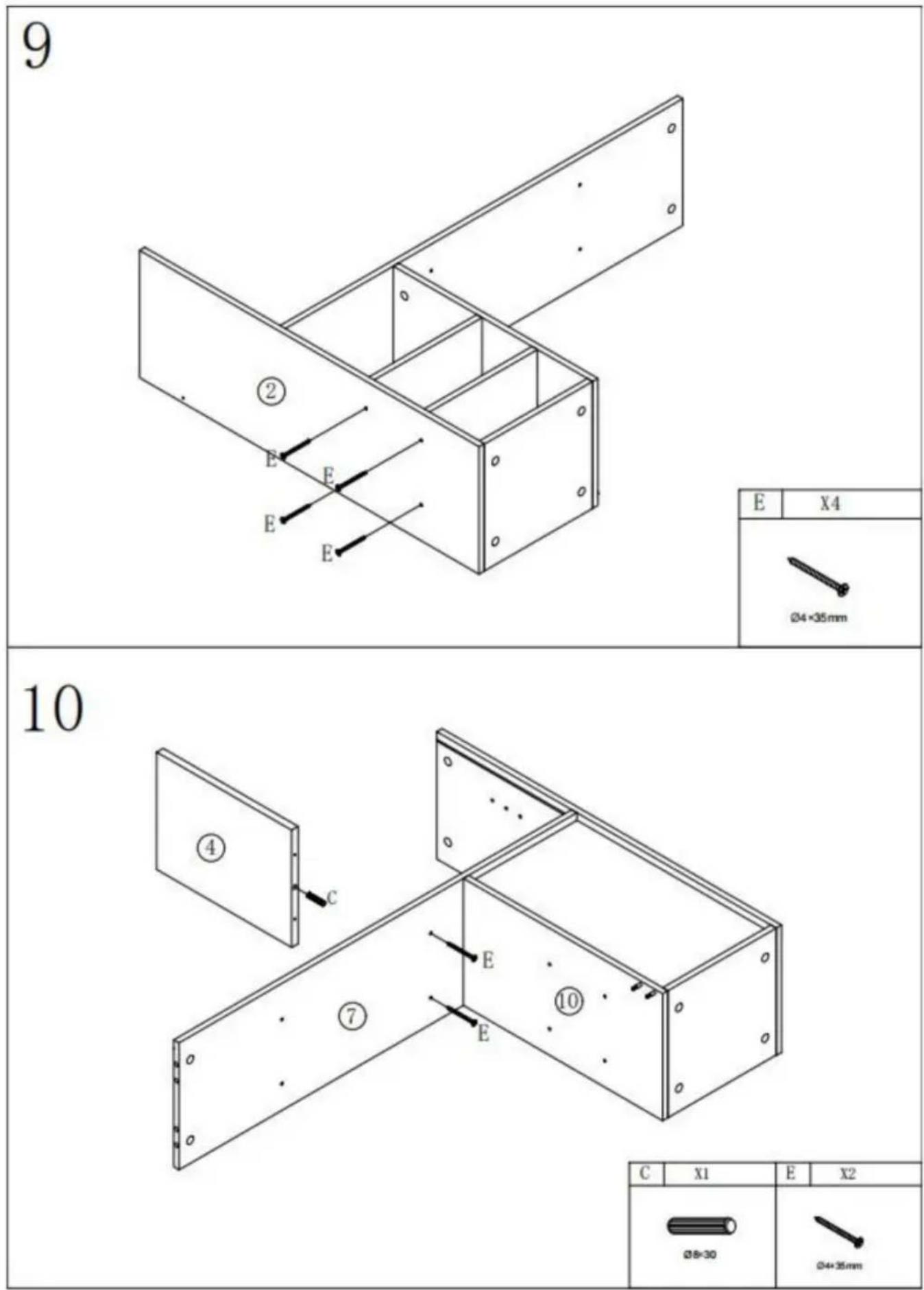

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 ① ② ③ ④ ⑤ ⑦ ⑩ ⑫ ⑫

B	X2

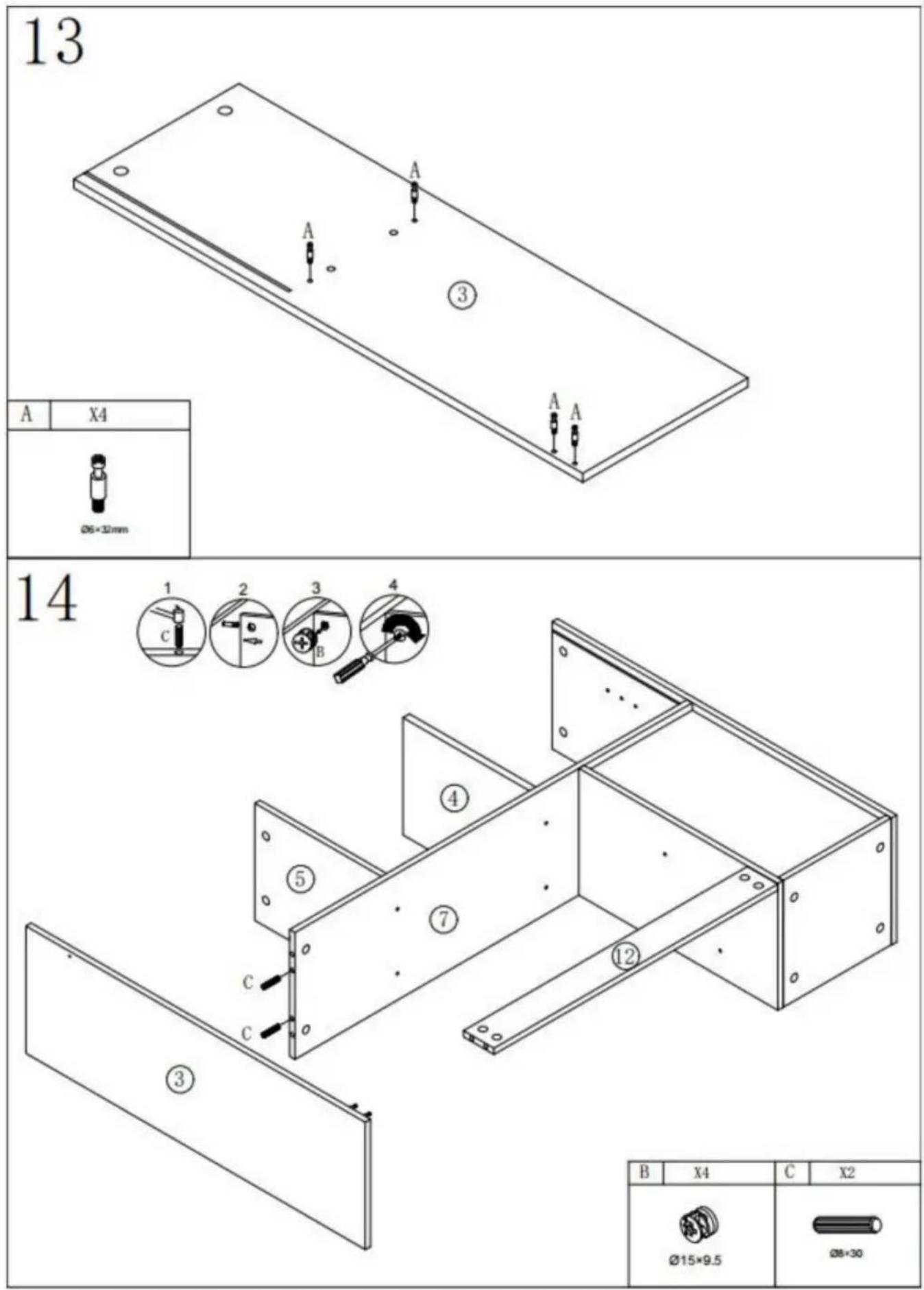

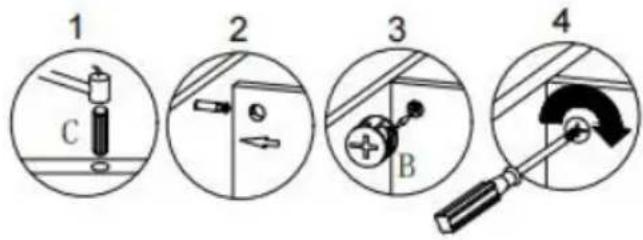

13 A X4 Ø6×30mm 14 1 C 2 3 4 C B ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ③ ⑫ ⑫

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

22

Isometric diagram of a multi-level office or cabinet with numbered compartments and drawers, showing structural layout.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with numbered compartments and an open door (no text or symbols)

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PARAMÈTRE DU PRODUIT

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: KLBS-10/KLBS-11/KLBS-12

MODELL: KLBS-10 / KLBS-11/KLBS-12

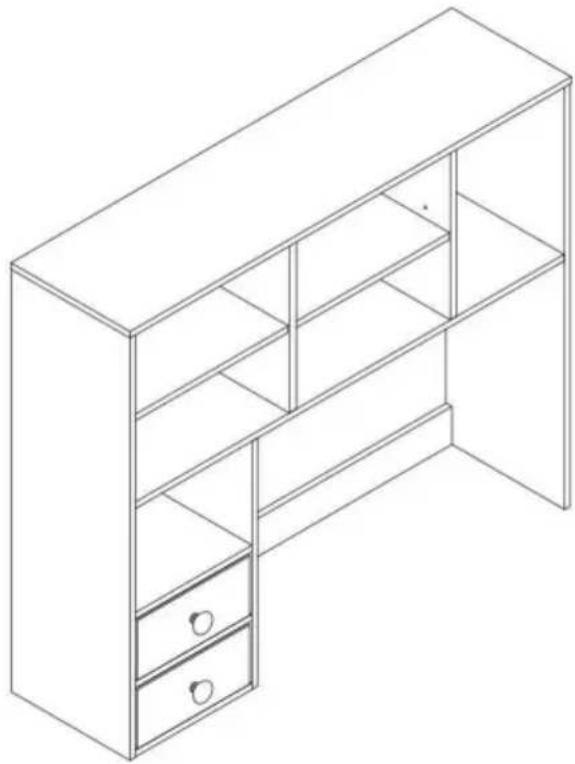

Line drawing of a multi-level office cabinet with drawers and drawers (no text or symbols)

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		- ∅5
E	X12	F	X2	G	X10	H	X8
		M4×8		M3×14mm		12*30
I	X22	J	X2		X1
				[S2X4]

MONTAGESTRITT

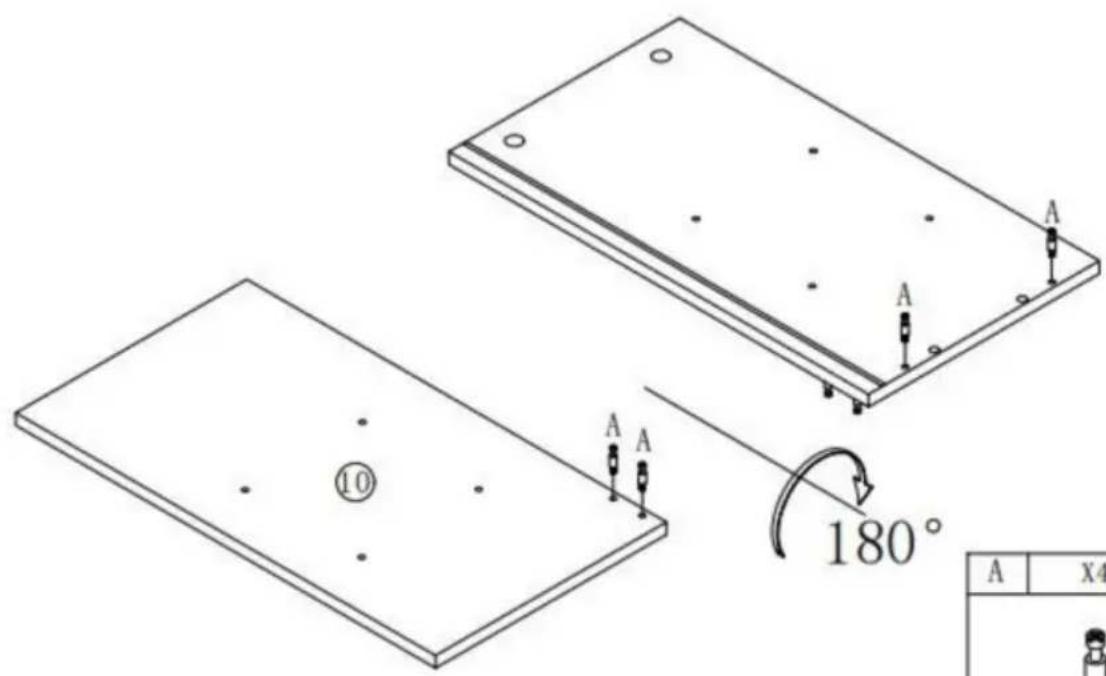

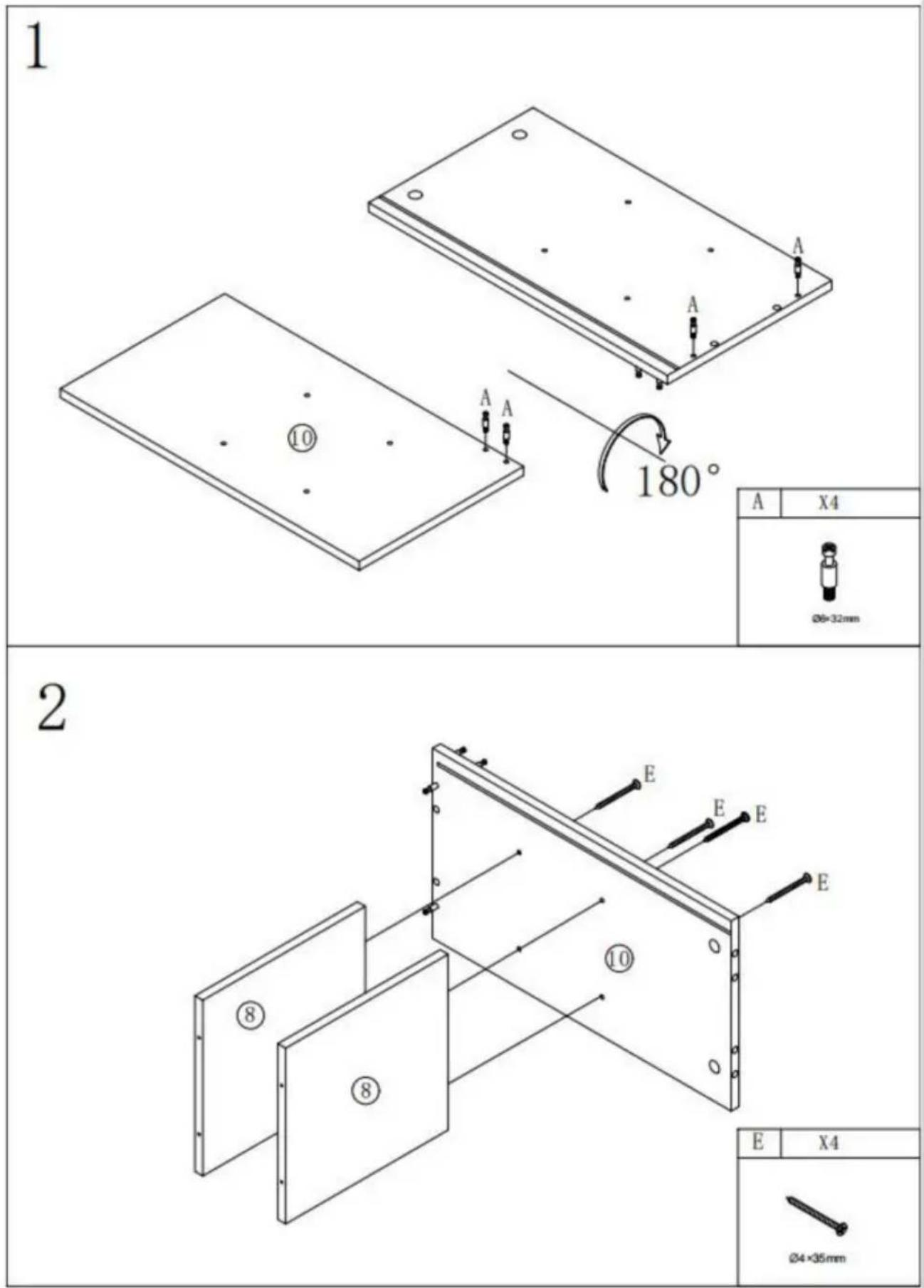

1

A A A ⑩ A A 180° A X4

A	X4

2

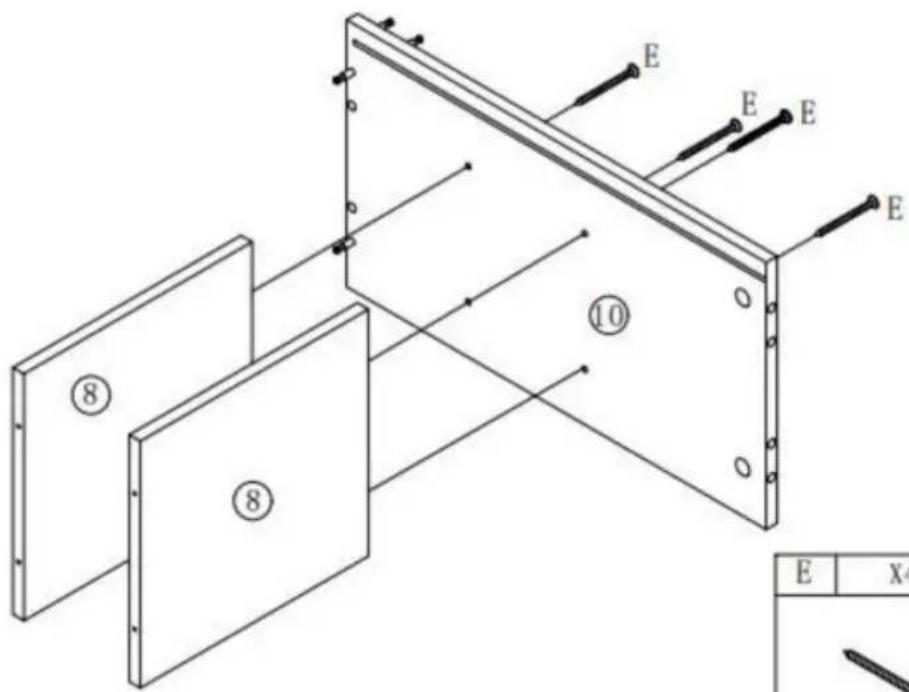

E E E E ⑩ ⑧ ⑧ E X4

E	X4

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 4 5 7 10 12 B

B	X2

13 A X4 Ø6×32mm 14 ① ② ③ ④ C B ⑤ ⑦ ② ③ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ③ ⑫ ⑫

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

©

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with two internal compartments and an open door, showing no text or symbols.

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PRODUKTPARAMETER

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey,

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO:KLBS-10/KLBS-11/KLBS-12

MODELLO:KLBS-10 / KLBS-11/KLBS-12

Line drawing of a multi-level office cabinet with drawers and drawers (no text or symbols)

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		-HA65-∅5
E	X12	F	X2	G	X10	H	X8
		M4×8		M3×14mm		-12*30
I	X22	J	X2		X1

FASE DI MONTAGGIO

1

A A A A ⑩ 180° A X4

A	X4

2

E E E E ⑩ ⑧ ⑧ E X4

E	X4

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

1 2 3 4

C	X2
B	X2

4

A A ⑦ A X2

A	X2

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 4 5 7 10 12 B X2

B	X2

13 A X4 Ø6×30mm 14 1 C 2 3 4 C B ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ③ ⑫ ⑫

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 C 2 3 B 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

22

Isometric diagram of a multi-level office or cabinet with numbered compartments and drawers, showing structural layout.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with numbered compartments and an open door (no text or symbols)

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey,

Modello TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO:KLBS-10/KLBS-11/KLBS-12

MODELO: KLBS-10 / KLBS-11 / KLBS-12

Line drawing of a simple 3D cabinet with two drawers and one open door (no text or symbols)

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		∅5
E	X12	F	X2	G	X10	H	X8
		∅4×35mm	M4×8	M3×14mm		12*30
I	X22	J	X2		X1

PASO DE MONTAJE

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

1 2 3 4

C	X2
B	X2

4

A A ⑦ A X2

A	X2

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 4 5 7 10 12 B

B	X2

13 A X4 Ø6×32mm 14 ① ② ③ ④ C B ⑤ ⑦ ② ③ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ① ③

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or storage unit with numbered components and labeled sections (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8

22

Isometric diagram of a multi-level office or cabinet with numbered compartments and drawers, showing structural layout.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with numbered compartments and an open door (no text or symbols)

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PARÁMETRO DEL PRODUCTO

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL:KLBS-10/KLBS-11/KLBS-12

MODEL:KLBS-10 / KLBS-11/KLBS-12

Line drawing of a simple modular cabinet with two drawers and one shelf (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		- ∅5
E	X12	F	X2	G	X10	H	X8
		[TSZZ]M4×8		M3×14mm		12*30
I	X22	J	X2		X1

KROK MONTAŻU

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

1 2 3 4 C B

C	X2
B	X2

4

A A ⑦ A X2

A	X2

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 4 5 7 10 12 B

B	X2

13 A X4 Ø6×32mm 14 ① ② ③ ④ C B ⑤ ⑦ ② ③ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ① ③

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or storage unit with numbered components and labeled sections (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

22

Isometric diagram of a multi-level cabinet with numbered compartments and directional arrows indicating movement or flow.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols on the cabinet itself)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with two internal compartments and an open door, showing no text or symbols.

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PARAMETR PRODUKTU

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KLBS-10/KLBS-11/KLBS-12

MODEL: KLBS-10 / KLBS-11/KLBS-12

Line drawing of a simple modular cabinet with two drawers and one shelf (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		-XC8K)∅5
E	X12	F	X2	G	X10	H	X8
		M4×8		M3×14mm		12*30
I	X22	J	X2		X1

MONTAGESTAP

1

A A A A ⑩ 180° A X4

A	X4

2

E E E E ⑩ ⑧ ⑧ E X4

E	X4

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

1 2 3 4 C B

C	X2
B	X2

4

A A ⑦ A X2

A	X2

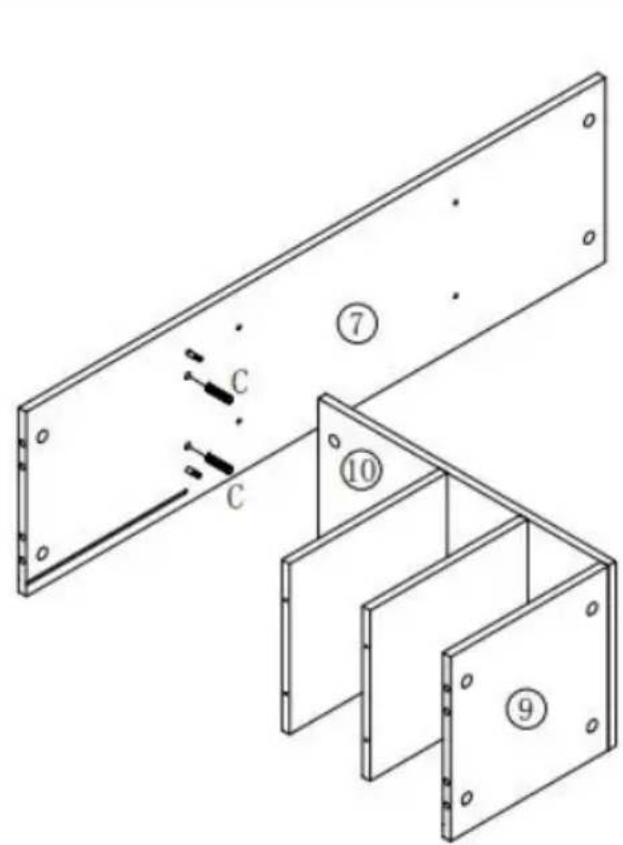

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 4 5 7 10 12 B

B	X2

13 A X4 Ø6×32mm 14 ① ② ③ ④ C B ⑤ ⑦ ② ③ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ① ③

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

22

Isometric diagram of a multi-level office or cabinet with numbered compartments and drawers, showing structural layout.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with numbered compartments and an open door (no text or symbols)

©

PRODUCTPARAMETER

Model	KLBS-10	KLBS-11	KLBS-12
Kleur	Zwart	Wit	Hout
Veilig laadgewicht	100 pond
Productafmetingen (L×B×H)	940*254*792mm
Netto gewicht	15,25 kg

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:KLBS-10/KLBS-11/KLBS-12

MODELL:KLBS-10 / KLBS-11/KLBS-12

Line drawing of a simple 3D cabinet with two drawers and one open door (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical diagram of a multi-level storage or packing system with numbered components, likely for architectural or engineering purposes.

A	X22+1	B	X22+1	C	X18+1	D	X8+1
		∅15×9.5		∅8×30		-X62C]∅5
E	X12	F	X2	G	X10	H	X8
		M4×8		M3×14mm		12*30
I	X22	J	X2		X1
		∅20

MONTERINGSTEG

1

A A A A ⑩ 180° A X4

A	X4

2

E E E E ⑩ ⑧ ⑧ E X4

E	X4

3

Technical diagram of a structural panel assembly with numbered components and labeled parts (C, 8, 9, 8, 10)

1 2 3 4

C	X2
B	X2

4

A A ⑦ A X2

A	X2

7 A X4 Ø6×30mm 8 C 1 2 3 4 C C B ①④ ② C ⑨ C X4 Ø8×30 B X4 Ø15×9.5

9 ② E E E E E E E X4 Ø4×35mm 10 ④ C E E ⑦ E ⑩ C X1 E X2 Ø8=30 Ø4×35mm

11

Technical diagram of a structural panel assembly with labeled components and directional arrows

C	X1	E	X2

12

1 2 3 B X2 ① ② ③ ④ ⑤ ⑦ ⑩ ⑫ ⑫

B	X2

13 A X4 Ø6×30mm 14 1 C 2 3 4 C B ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ B X4 C X2 Ø15×9.5 Ø8×30

15 H ③ H H H H ⑩ ⑫ H H H H H X8 12*30 16 ② ① ③

17

Isometric line drawing of a multi-level shelving unit with a cabinet and shelf, no text or symbols present

18

18 A A A A ① A A A A A A x

A	X8

19

1 2 3 4

Technical diagram of a multi-level cabinet or shelving unit with numbered components and labeled parts (①–⑤)

C	X6
B	X8

20

① G G G G G G ③ ⑫ G G G G X10

G X10 M3×14mm

21

① D D D D D D D ⑫ H

D	X8
∅5

22

Isometric diagram of a multi-level office or cabinet with numbered compartments and drawers, showing structural layout.

23

Isometric line drawing of a multi-level shelving cabinet with labeled components (no text or symbols beyond labels)

I	X22

24

X2 ⑪ F

F X2 M4×8

25

Line drawing of a multi-level storage cabinet with numbered compartments and an open door (no text or symbols)

26 WALL J ② ③ J X2 M6×30 Ø4×35mm Ø3×12mm

PRODUKTPARAMETER

Modell KLBS-12	KLBS-10	KLBS-11
Färg	Svart	Vit	Trä
Säker lastvikt	100 lbs
Produktstorlek (L×D×H)	940*254*792mm
Nettovikt	15,25 kg

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
