RATTAN ACCENT CABINET USER MANUAL

MODEL NO.: KLSB-01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Accent Cabinet

MODEL NO.: KLSB-01

Line drawing of a two-tiered cabinet or enclosure with mesh windows and side panels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Accent Cabinet.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Accent Cabinet.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	KLSB-01
Quantity	2 pcs
Product Dimensions (LxWxH)(mm)	750*360*860 (1pcs size)
Net Weight(kg)	About 46.1

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

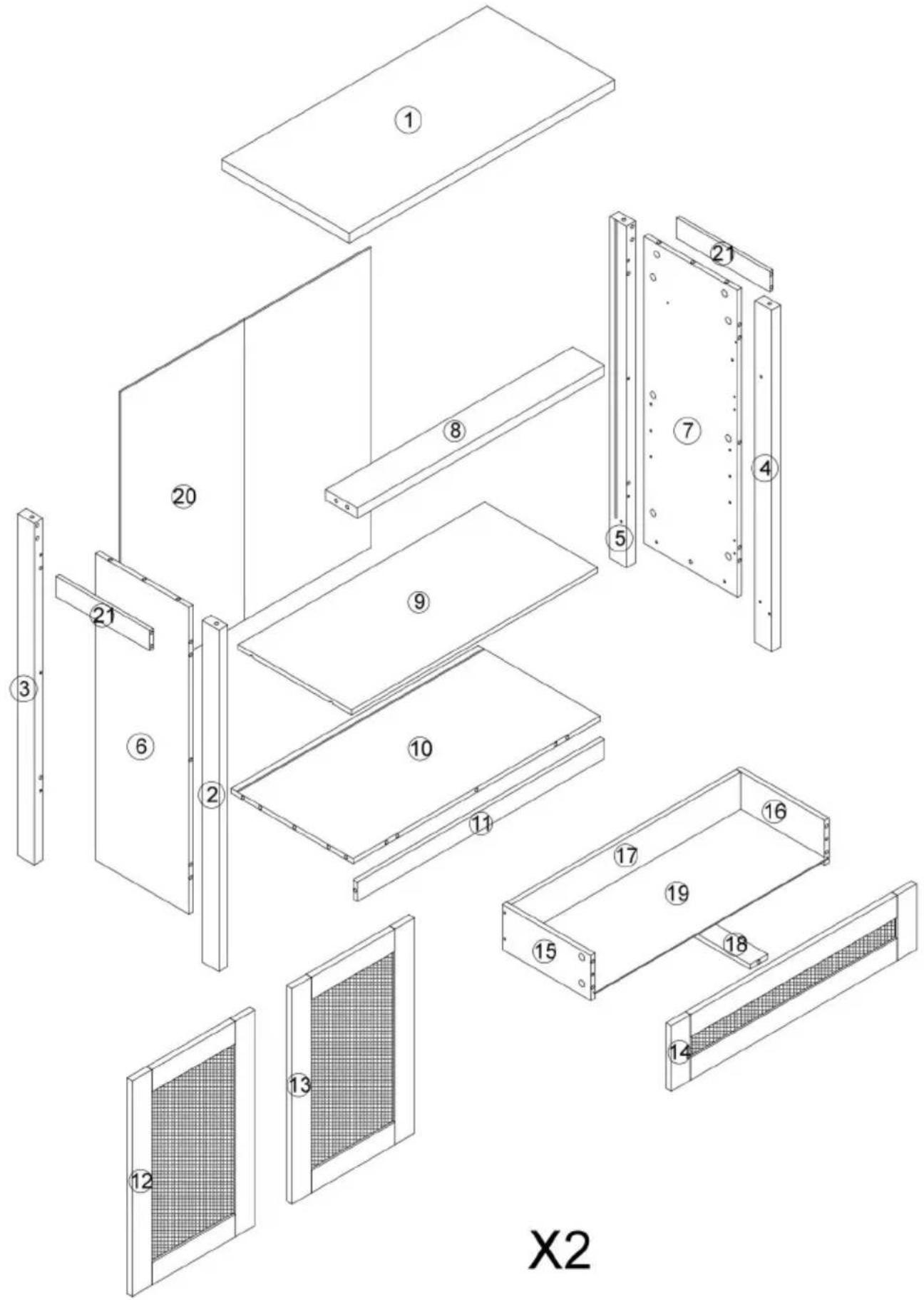

A	X78+1	B	X78+1	C	X36	D	X20
[681K]∅6×32mm		∅15×9.5		∅8×30		∅6×30
E	X36+1	F	X48+1	G	X8	H	X8
[0004]∅3×14mm		∅3.5×12mm		∅3.5×35mm		[40°C2]∅5
I	X4	J	X4	K	X8	L	X78
∅3×14mm		[AOXO]∅3×14mm		[97A3]3mm		∅20
M	X20	N	X2	O	X6	P	X8
∅3×14mm		100mm		64mm
Q	X2
250mmCL

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑸ ⑨ ⑩ ⑪ ⑫ ⑬ X2

1

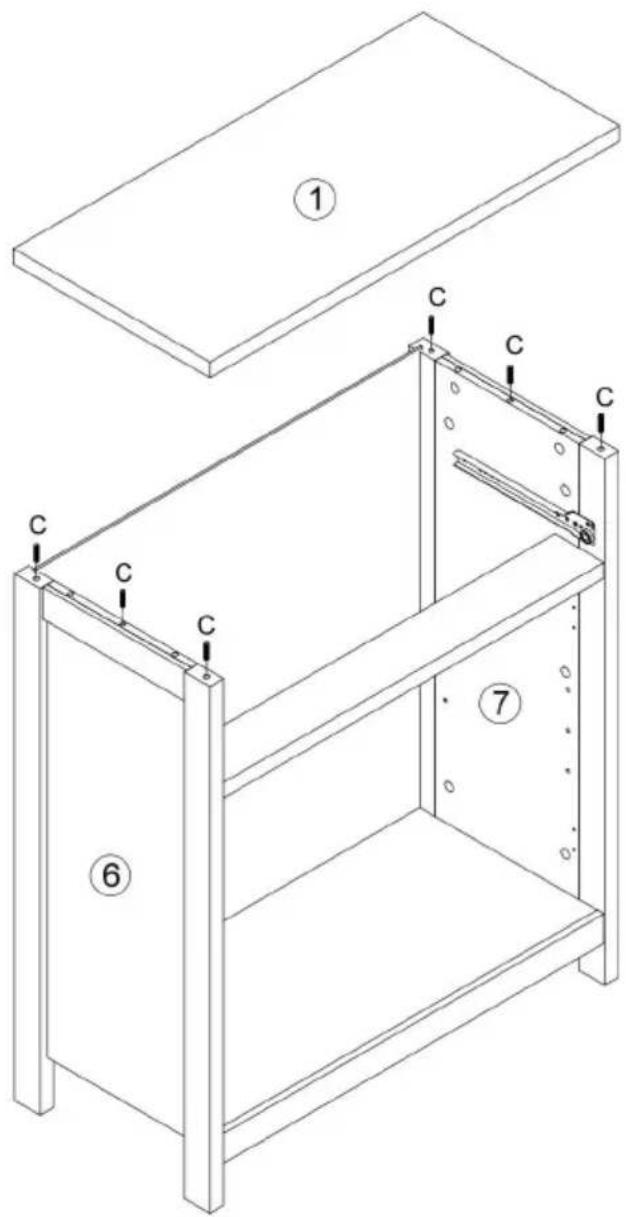

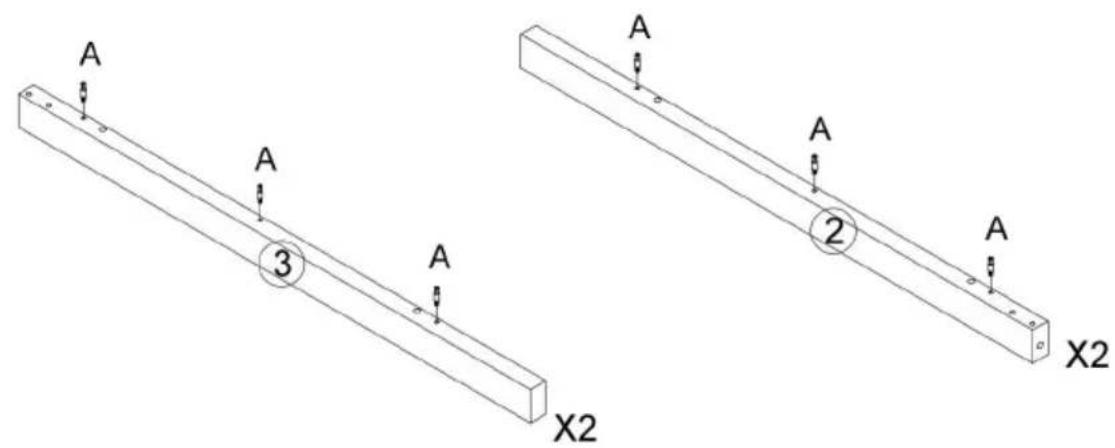

A A A 3 A A 2 A X2 X2

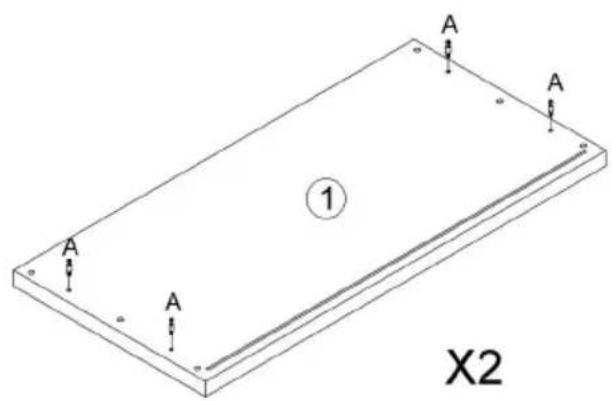

A X12 Ø6×32mm

2

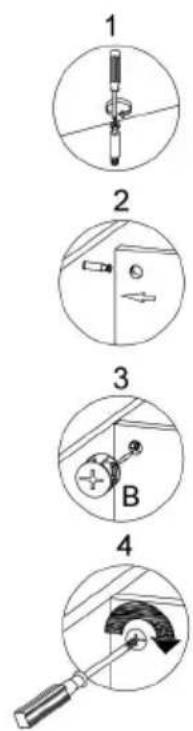

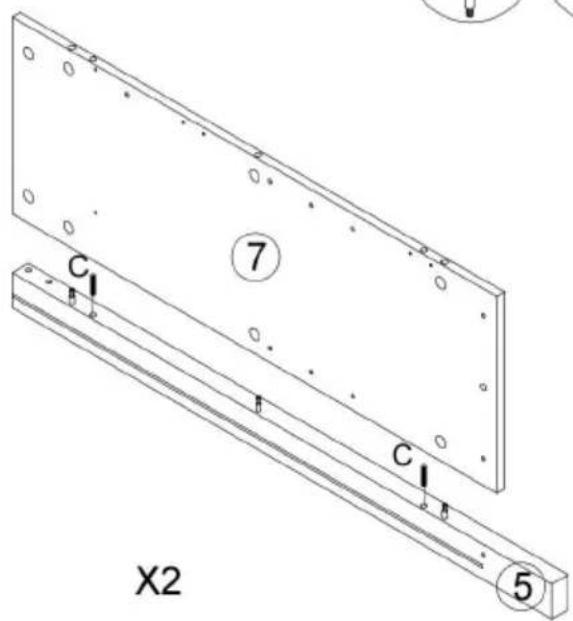

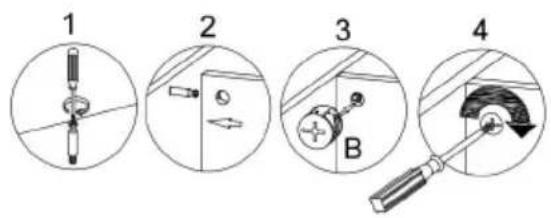

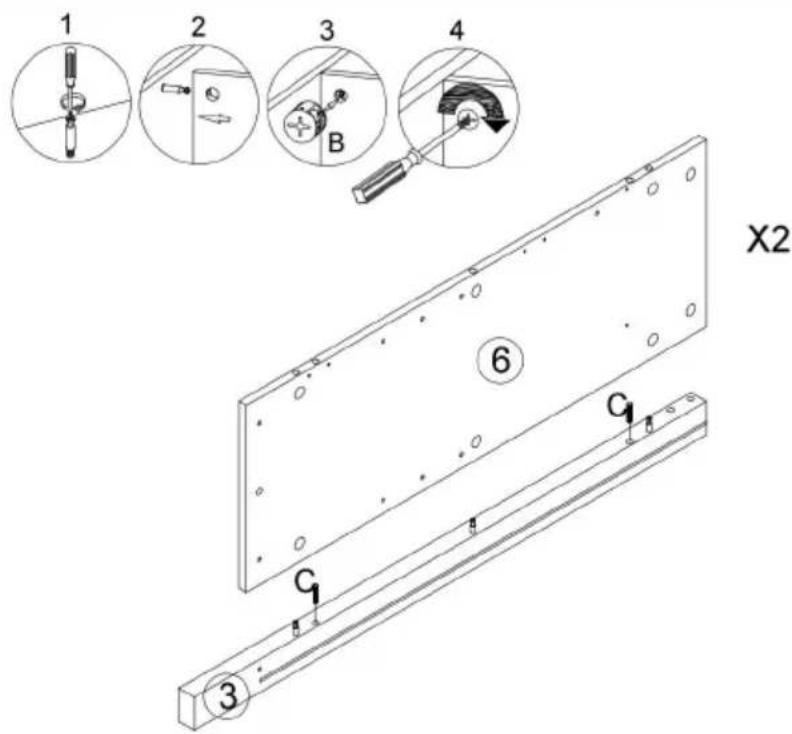

1 2 3 4 B 6 C X2 3

B X6 Ø15×9.5 C X4 Ø8×30

3

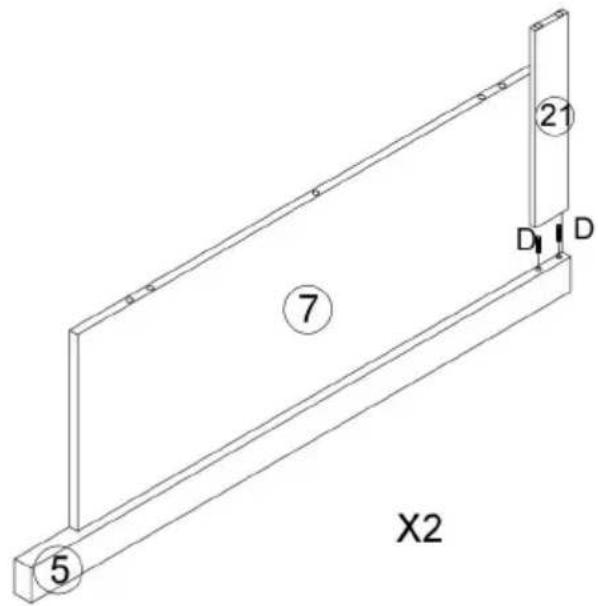

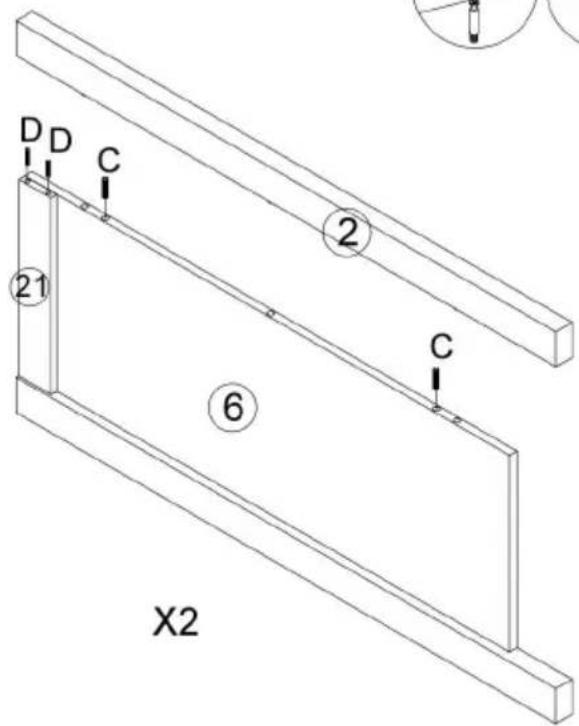

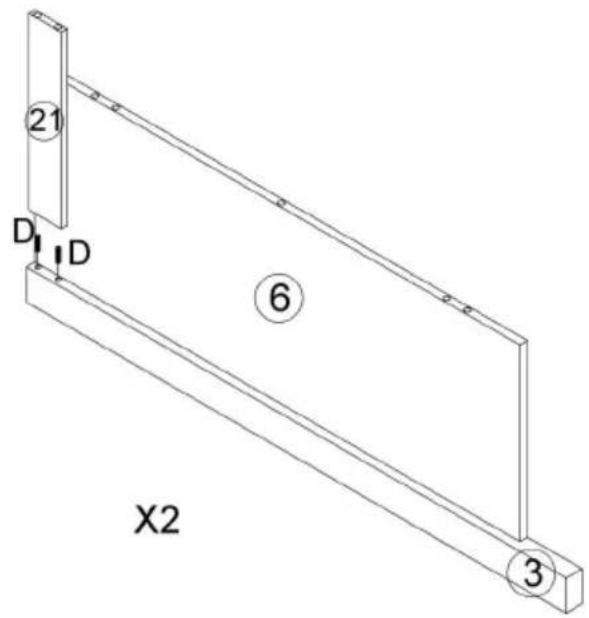

21 D1 D 6 X2 3

D | X4 Ø6×30

4

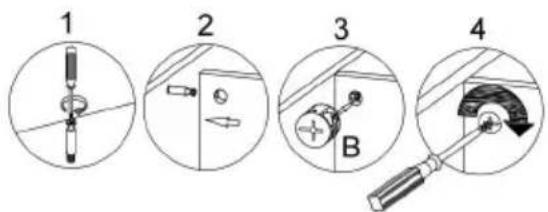

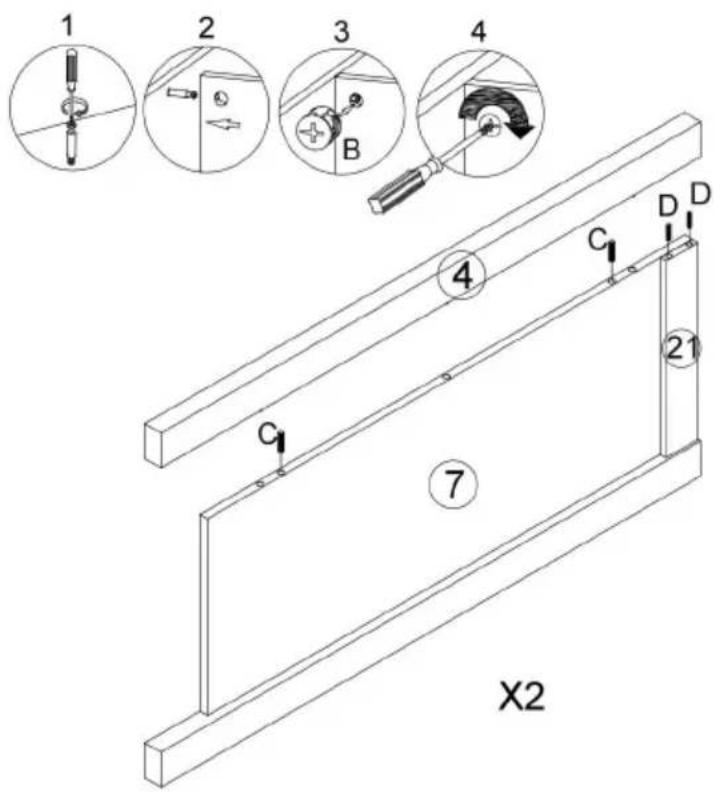

1 2 3 B 4

D D C ② ⑥ C X2

B	X6
C	X4
D	X4

5

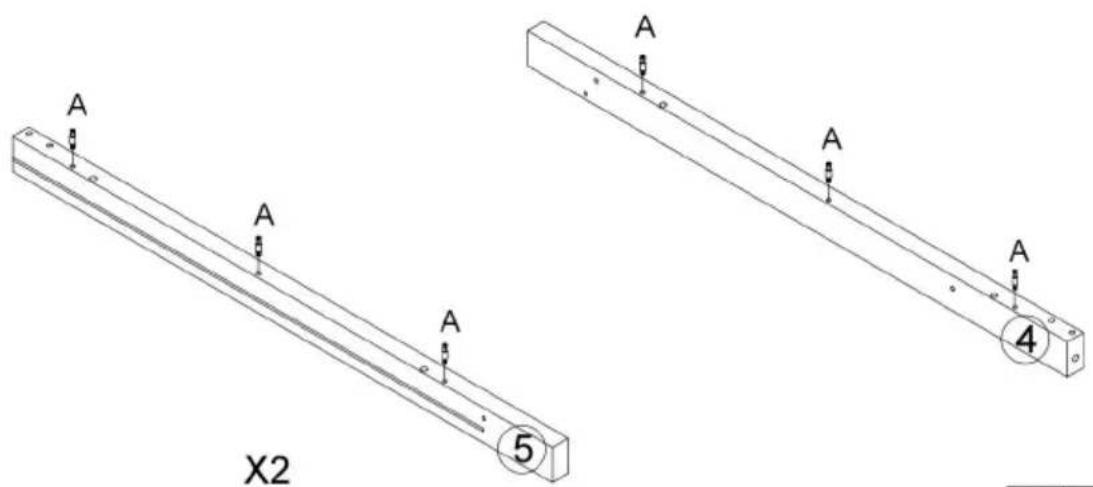

A A A A A A A 4 X2 5

A X12 Ø6×32mm

6

1 2 3 B 4

7 C C X2 5

B X6 Ø15×9.5 C X4 Ø8×30

7

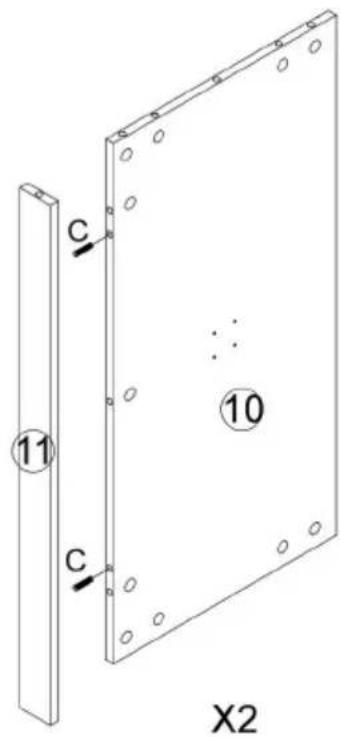

X2 ⑦ ⑤ ②1 D D X2

D | X4 Ø6×30

8

1 2 3 4 B C D C D 21 7 X2

B	X6
C	X4
D	X4

9

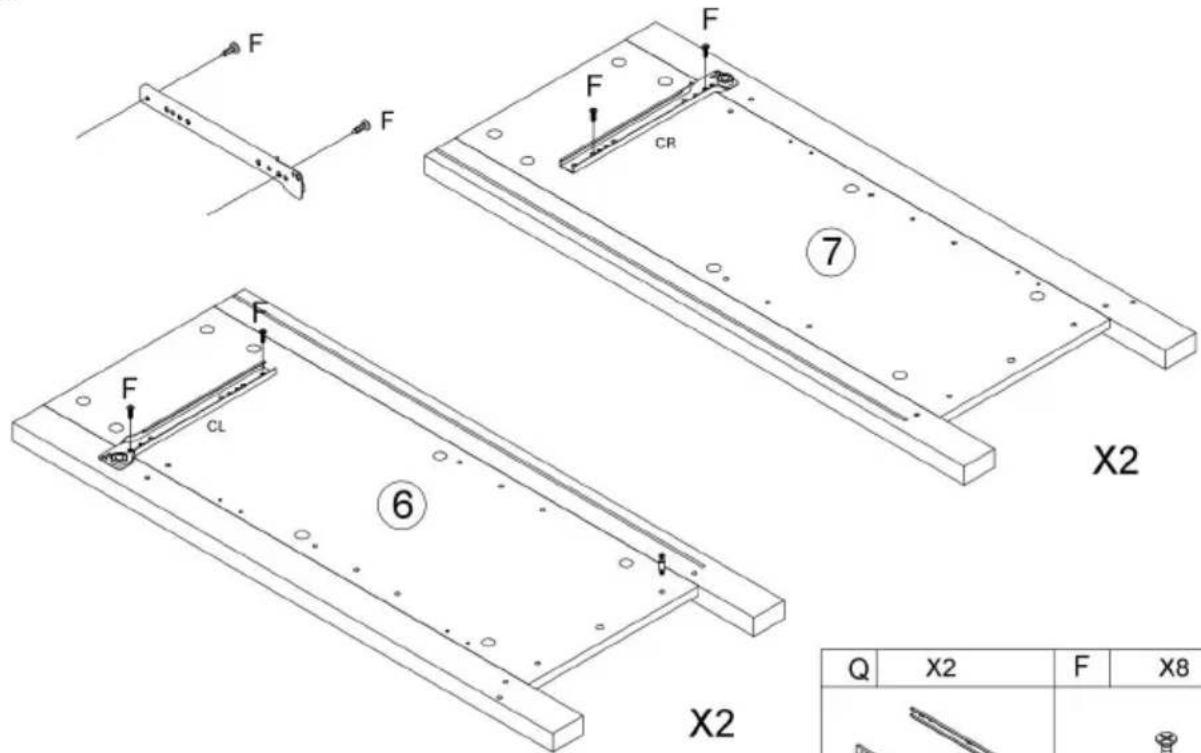

F F F CR ⑦ X2 F F CL ⑥ X2 Q X2 F X8

Q	X2	F	X8

10

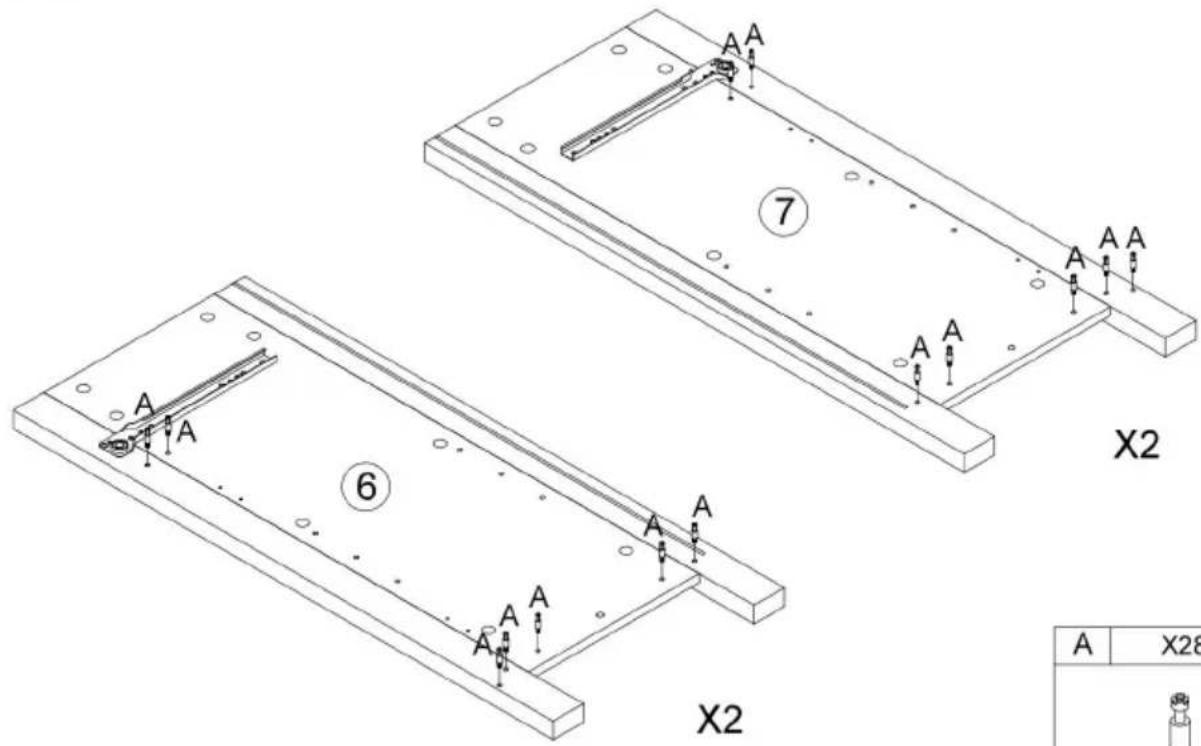

A A A A A A A A A ⑦ X2 ⑥ X2 A X28

A	X28

11

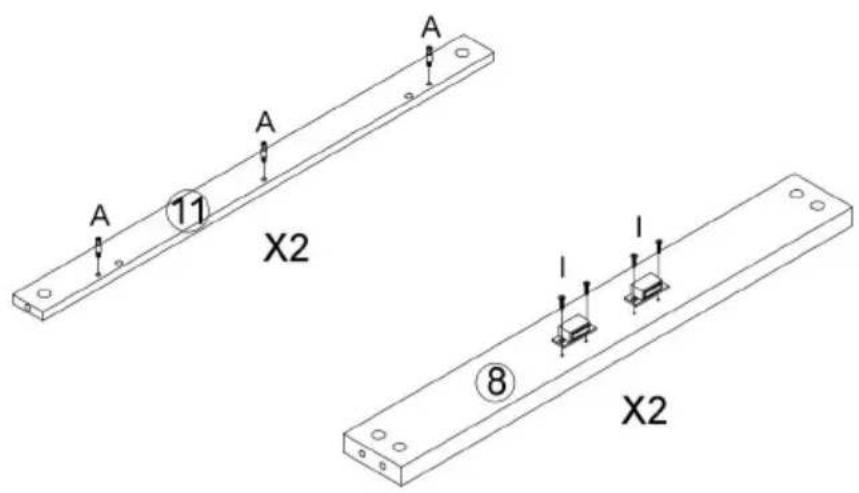

A 11 X2 A I I 8 X2

I	X4
∅3×14mm
A	X6
∅6×32mm

∅3×14mm

A	X6

∅6×32mm

12

1 2 3 B 4

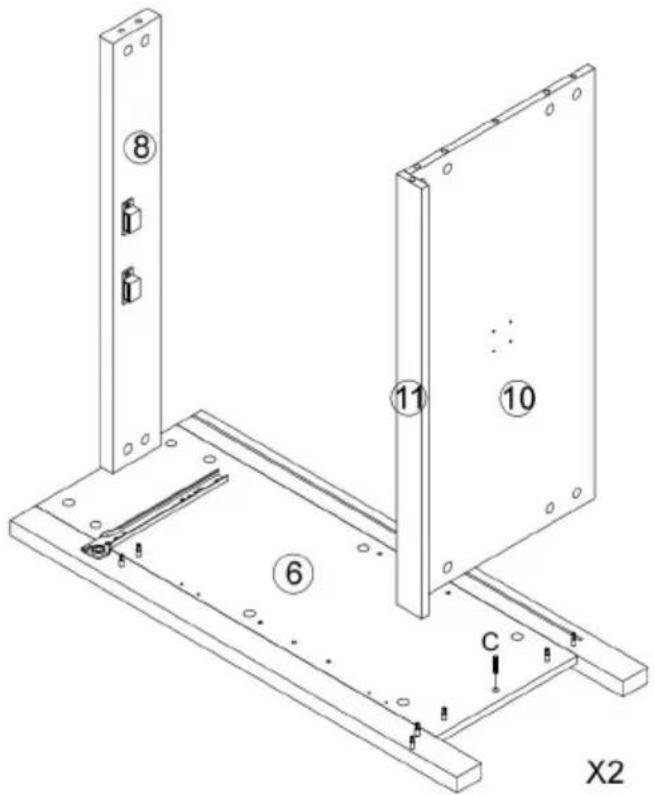

C 11 C 10 X2

B	X6
∅15×9.5
C	X4
∅8×30

∅15×9.5
∅8×30

13

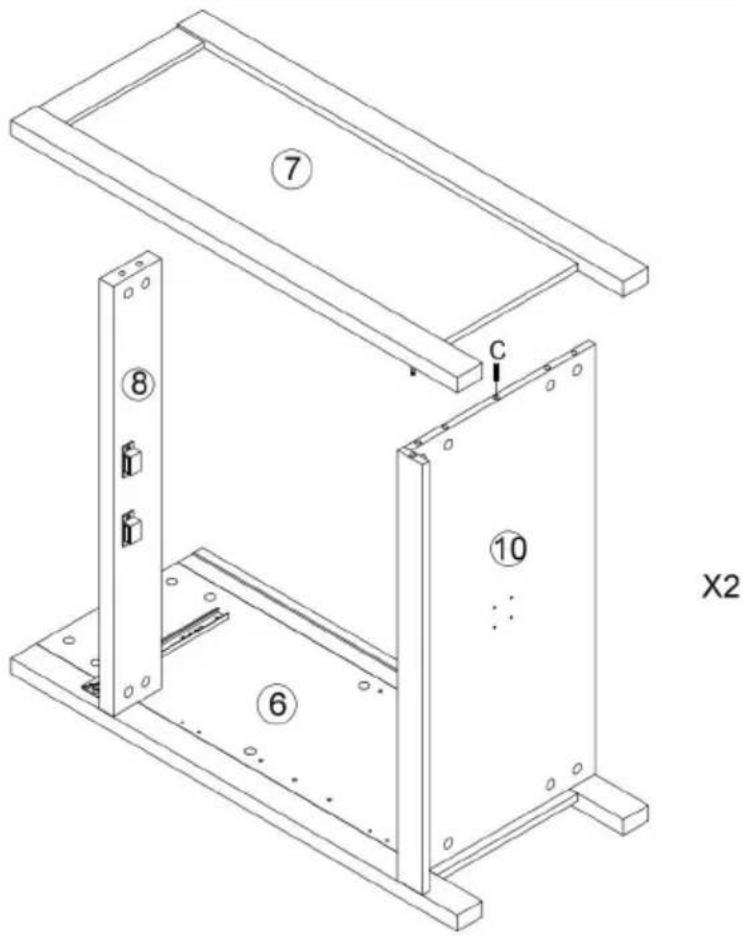

Diagram showing four steps of a tool or device operation with labeled parts and directional arrows

⑧ ⑥ ⑪ ⑩ C X2

B | X14 Ø15×9.5 C | X2 Ø8×30

14

Diagram showing four steps of a tool or device operation: initial setup, folding, disassembly, and final assembly.

⑦ ⑧ C ⑩ X2 ⑥ ...

B | X14 Ø15×9.5 C | X2 Ø8×30

15

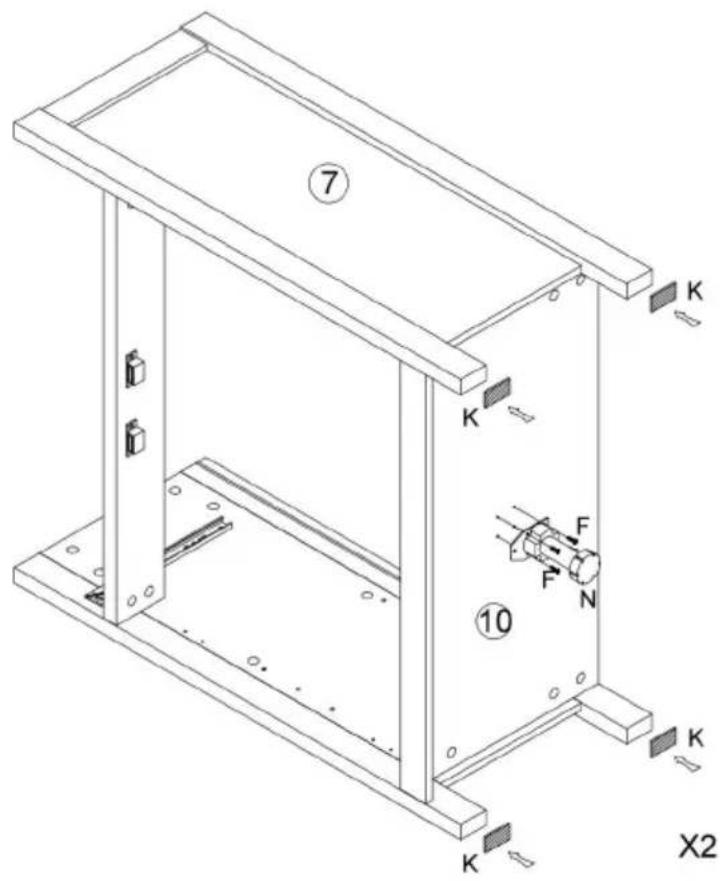

⑦ K K F F N ⑩ K K X2

K	X8
F	X8
N	X2

16

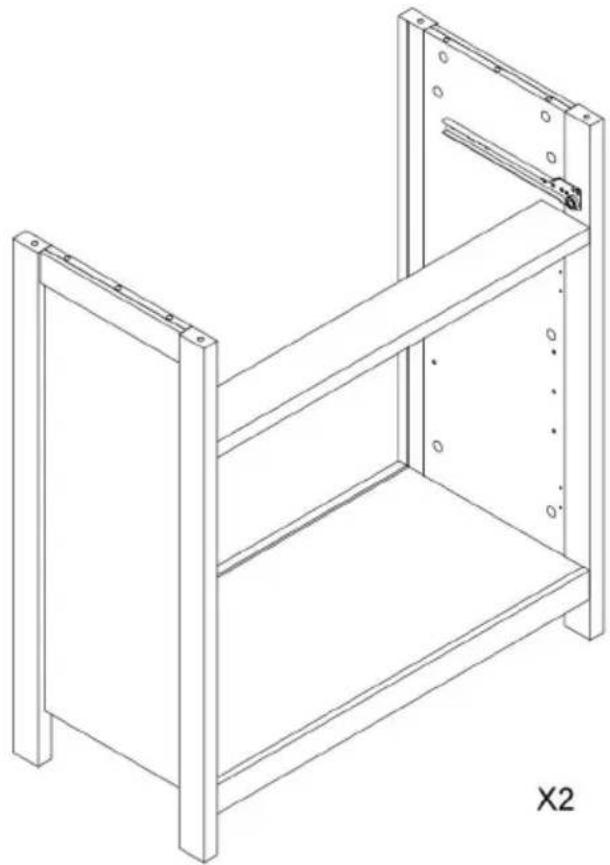

Isometric line drawing of a two-tiered metal shelf assembly (no text or symbols)

17

Technical line drawing of a two-tiered shelving unit with labeled components (X2, 20), no text or symbols present.

18

Isometric view of a rectangular plate with labeled points A and numbered circle (no text or symbols beyond labels)

19

Diagram showing four steps of a tool or device operation: initial setup, folding, disassembly, and final assembly.

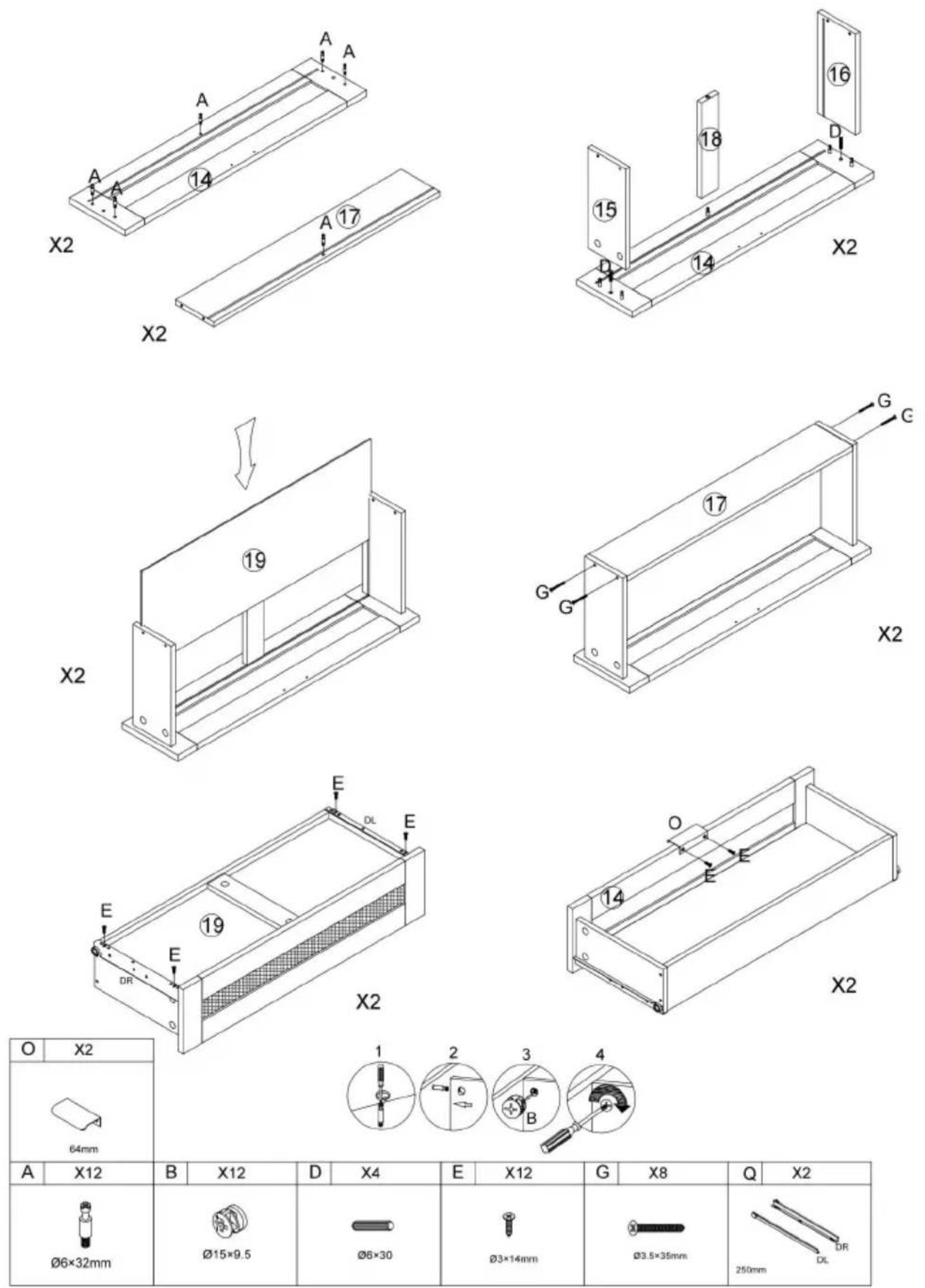

Technical diagram of a two-tiered storage cabinet with labeled components and mounting points

X2

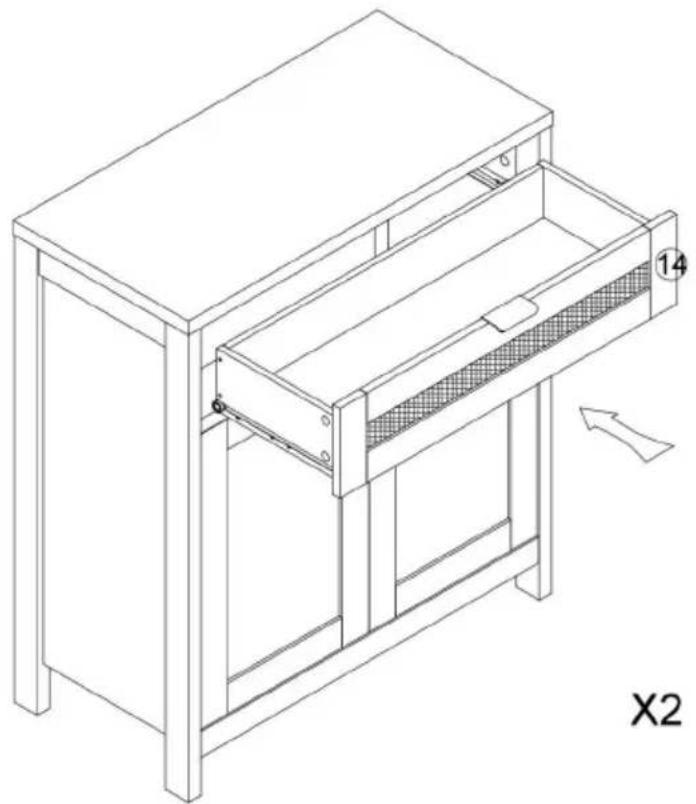

B X8 Ø15×9.5 C X12 Ø8×30

20

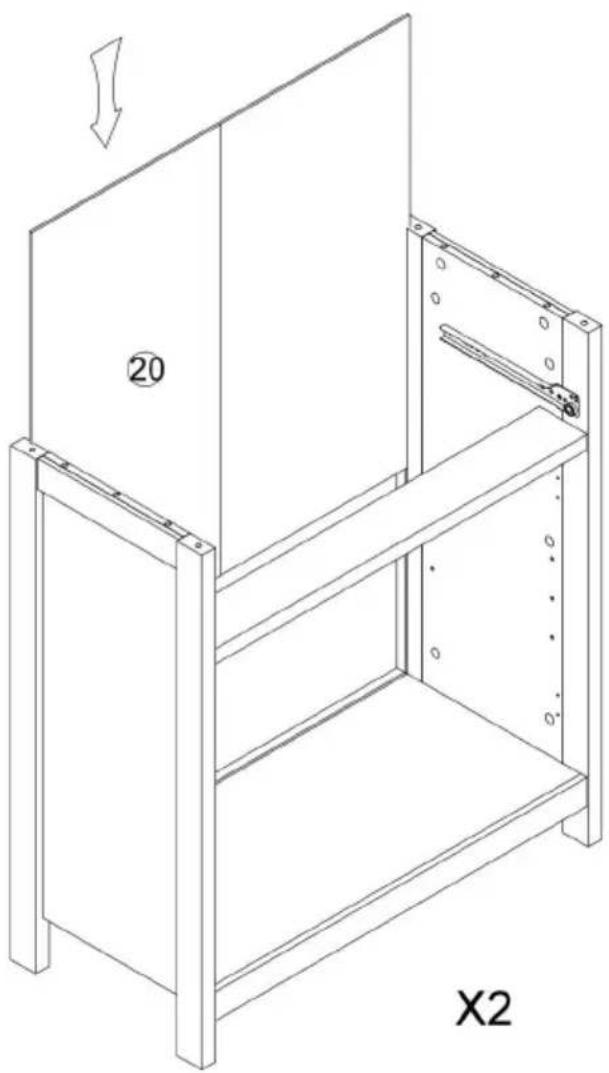

Technical diagram of a cabinet with numbered components and labeled parts, including a magnified inset showing internal structure.

X2

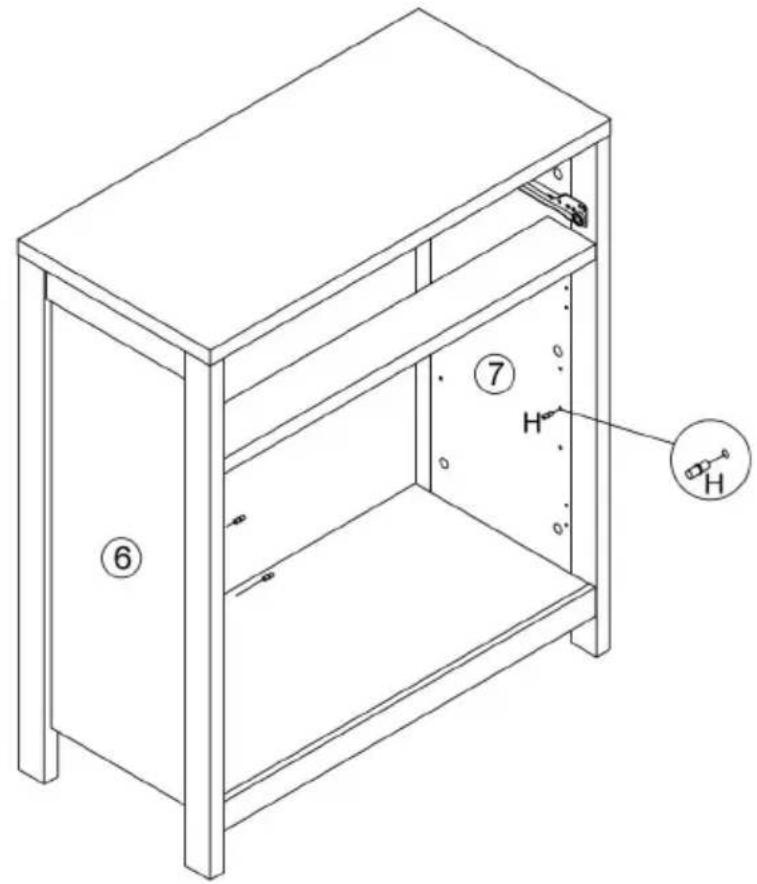

H X8 Ø5

21

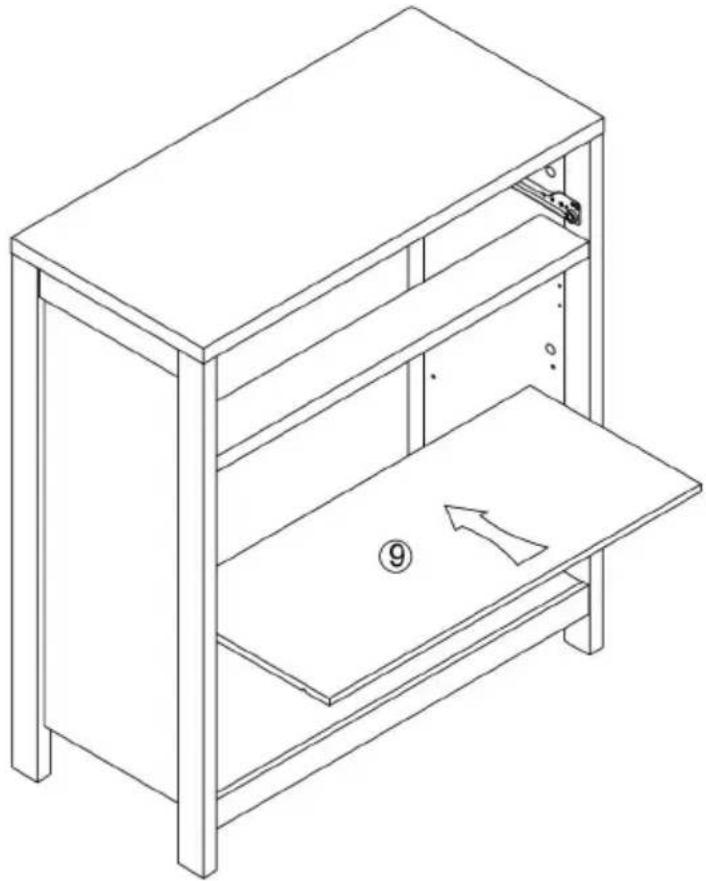

Line drawing of a two-tiered cabinet or shelf with a handle and internal compartments, no text or symbols present.

X2

22

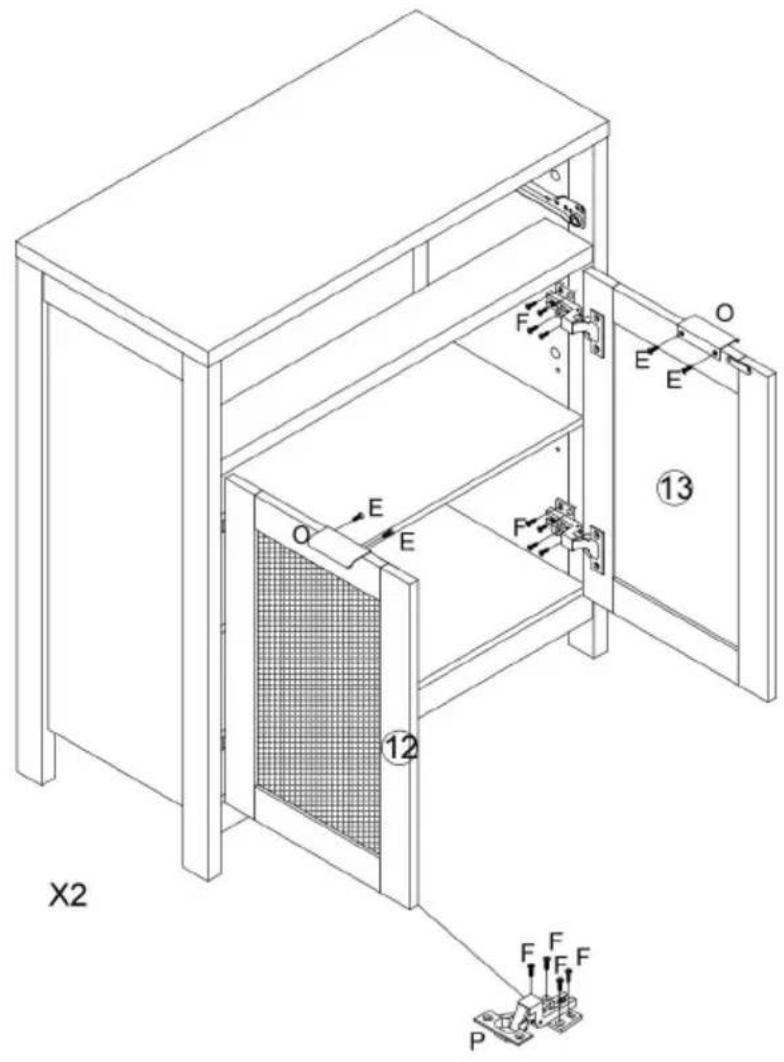

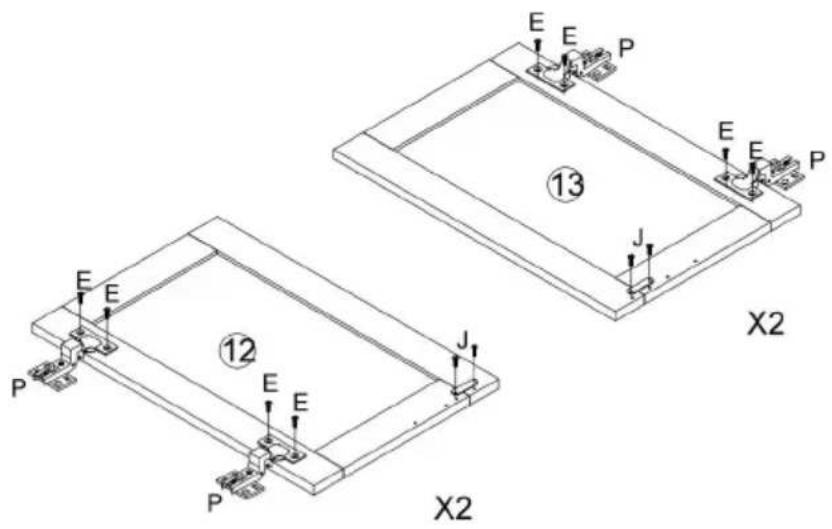

E E P ⑬ E E P J E E P E E 12 X2 P E E E J P X2

J	X4
E	X16
P	X8

23

X2 12 13 P F F F O E E E O E

F	X32
O	X4
E	X8

24

25

Line drawing of a mechanical cabinet or drawer with internal compartments and a handle, labeled X2 (no text or symbols on the diagram itself)

26

Isometric line drawing of a cabinet with labeled parts and a magnified inset showing a door-like object (no text or symbols present)

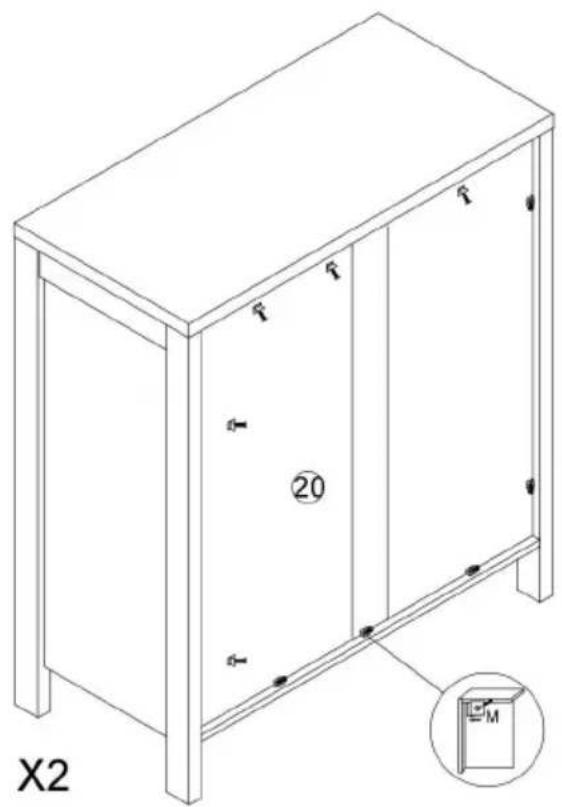

M X20 Ø3×14mm

27

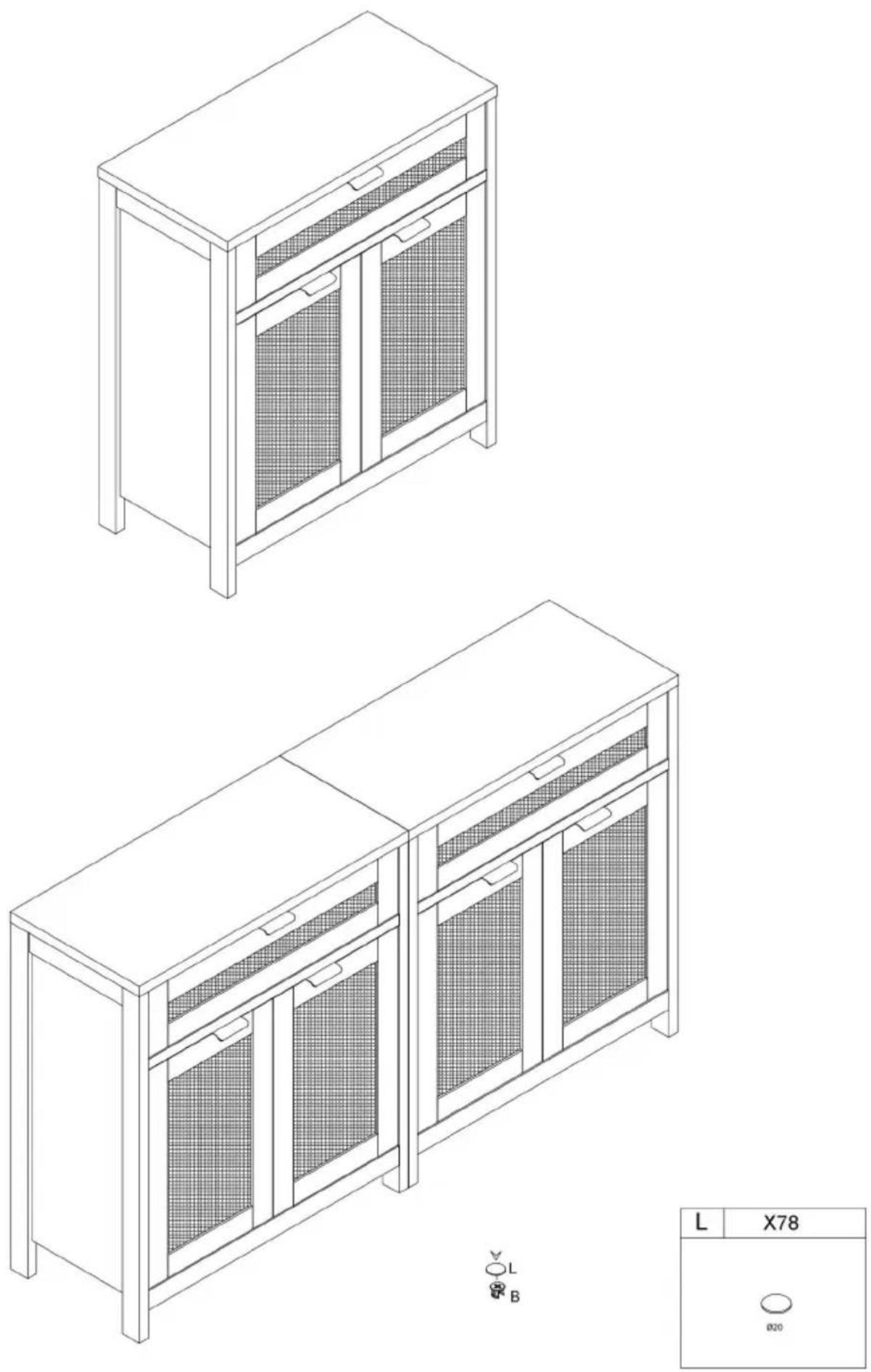

L	X78

COMPLETION

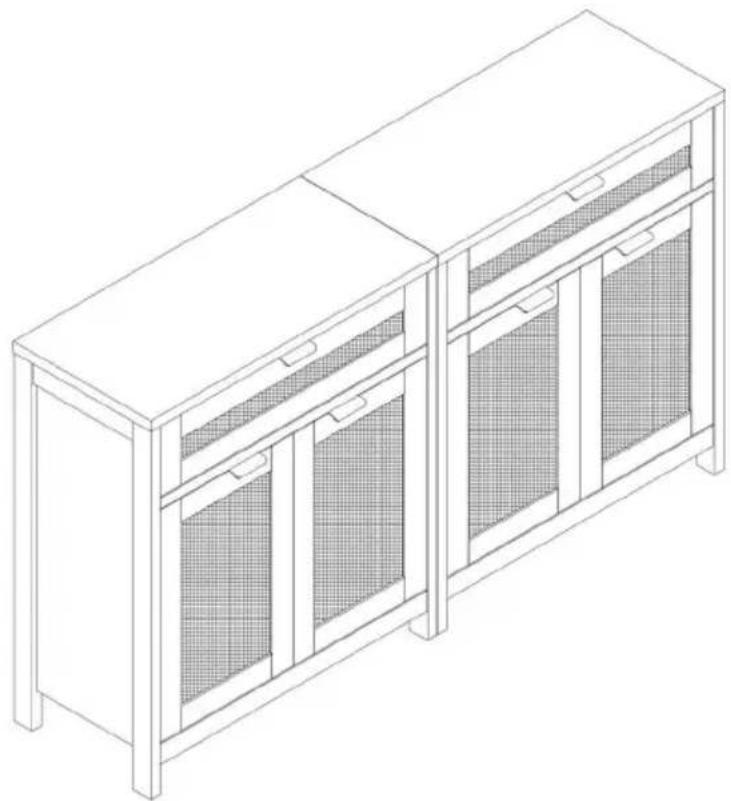

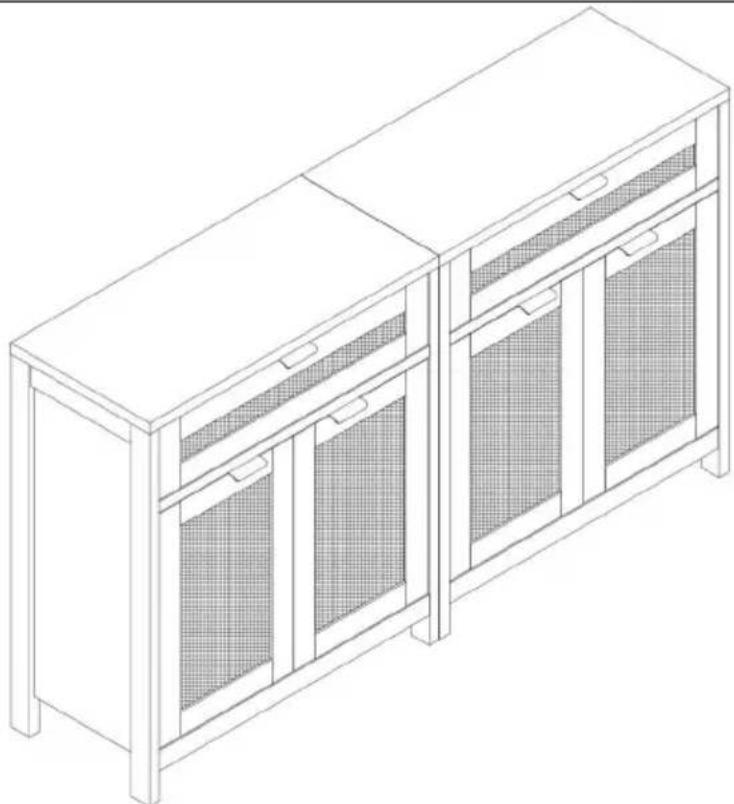

Isometric line drawing of a two-tiered cabinet or enclosure with front panels and side drawers (no text or symbols)
