K1E01016 - Grooming set Vevor - Free user manual and instructions

Product Type	Dog Grooming Bathtub
Brand	Vevor
Model	K1E01016
Dimensions (L × W × H)	870 × 488 × 1060 mm
Net Weight	21.4 kg
Load Capacity	220 lb (approximately 100 kg)
Recommended Pet Dimensions	L 33 × W 16 × H 18 inches
Volume	0.21 m³
Main Material	Sturdy plastic and stainless steel
Color	White / Gray (depending on model)
Water Supply	Hot and cold water connection (600 mm hose)
Faucet Type	Mixing faucet with shower head
Included Accessories	Shower head, shower hose, storage basket, step board, comb, shower holder, key, gloves, sealing tape, filter
Main Functions	Bath with hot/cold water, detachable shower, built-in storage, access steps
Maintenance and Cleaning	Clean with a soft cloth and mild detergent; regularly clean the filter to avoid clogging
Assembly Required	Yes, necessary tools: Phillips screwdriver, M4 wrench, spirit level
Safety	Do not allow children to use; do not place on uneven surface; do not overload
Warranty	Electronic warranty via www.vevor.com/support
Repairability	Spare parts available: faucet, hoses, seals, adjustable feet
Certifications	Complies with CE safety standards (not explicitly stated)

Frequently Asked Questions - K1E01016 Vevor

What are the dimensions of the K1E01016 bathtub?

The dimensions are 870 mm long, 488 mm wide, and 1060 mm high. The tub measures approximately 200 mm deep.

What is the maximum weight the bathtub can support?

The load capacity is 220 lb (approximately 100 kg), suitable for most large dogs.

Does the bathtub require assembly?

Yes, assembly is required. Follow the provided instructions. Necessary tools include a Phillips screwdriver, an M4 wrench, and a spirit level.

How to connect hot and cold water?

Use the supplied inlet hoses (600 mm). Connect the hose marked 'H' to the hot water source and the other to cold water. Ensure the sealing rings are in place. Use the sealing tape to prevent leaks.

Can the feet height be adjusted?

Yes, the feet are adjustable with a minimum depth of 12 mm. Use the spare nut to hold them in place after adjustment.

How to clean the bathtub after use?

Clean the bathtub with a soft cloth or sponge and a mild detergent. Regularly remove hair from the drain filter to avoid clogging.

What to do in case of a faucet leak?

Check that the rubber sealing plug is properly installed. If damaged, replace it.

What are the recommended pet dimensions?

The recommended pet dimensions are 33 inches long, 16 inches wide, and 18 inches high (approximately 84 × 41 × 46 cm).

Is the bathtub suitable for small dogs?

Yes, it can accommodate small dogs, but the steps and height may be more practical for medium to large dogs.

Where to find spare parts or technical support?

Visit www.vevor.com/support for technical assistance and electronic warranty. Spare parts include the faucet, hoses, seals, and adjustable feet.

USER MANUAL K1E01016 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

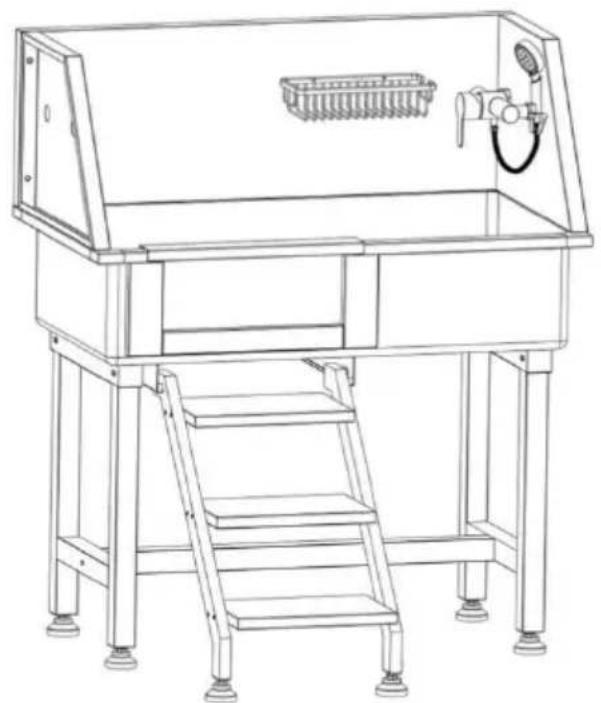

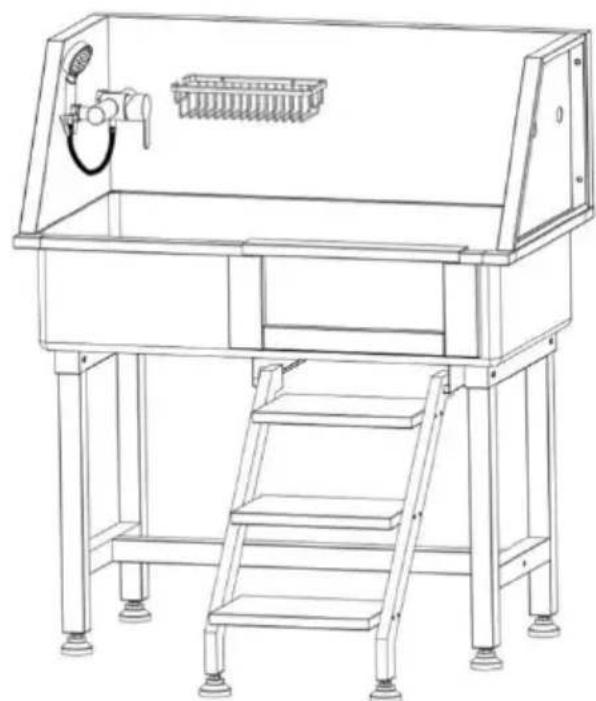

DOG GROOMING TUB

MODEL: K1E01015/K1E01016

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOG GROOMING TUB

MODEL: K1E01015/K1E01016

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using the grooming tub. This product is not a toy. Do not allow children to play with it.
• Keep away from sharp points, blades, and other items. Assembly precautions
• Assemble only according to these instructions. Improper assembly can create hazards.
• Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
• Product capabilities apply to properly and completely assembled products only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level.

2. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the best possible results.

Parts List:

A*2	B*1	C*1	D*1
H rack	Tub	Right side pane	Left side panel
E*1	F*1	G*1	H*1
Door	Horizontal tube	Back panel	Faucet switch
		W
J*1	K*1	L*1	M*2 (600mm)
Storage basket	Shower head	Shower hose	Inlet pipe
N*1	P*4 (M4*15mm)	Q*4 (M4)	R*2
Strainer	Screw	Hex flange nut	Nut
S*1	T*1	U*6	W*2
Shower bracket	Comb	Adjustable foot	Play ball
Y*14 (M6*15mm)	Z*12 (M6*35mm)	AA*4 (M8)	AC*6
Screw	Screw	Flange nut	Washer
AD*2	AE*1	AF*1	AG*1
Nut	Sealing tape	Gloves	Wrench
AH*3	AJ*2	AK*2	AL*6 (M8*50mm)
Stair board	Ladder rod	Washer	Screw

Installation steps

① Install the adjustable feet(U) the H rack(A), and fix the horiz tube(F) to the H rack(A) Caution:Ensure that the depth of adjustable feet is not less than 12mm, and try to make the four adjustable feet screw in the sand depth. Please tighten the spare during the installation, and adjust later.
② Flip the bottom bracket and screw(AL), washer(AC) and flange nut(AA) to fix the bottom bracket and tub(B)
Left Door	Right Door
③Adjust the height of the feet to make sure the height of wa side is 1-2 degrees lower than the other side (use a spirit lev	④Install the strainer(N),Ensure th the sealing ring is free of disloc and wrinkles. Caution:When installing, please pay attention to whether the se ring is placed correctly,avoid wat leakage due to incorrect seal installation.
⑤Use screw(Y) to fix the left a right side board(D&C), then use screw(Y) to fix the back panel(C last to use screw(Y) to fix side board(D&C) and back board(G)	⑤Use screw(Y) to fix the left a right side board(D&C), then use screw(Y) to fix the back panel(C last to use screw(Y) to fix side board(D&C) and back board(G)
⑥Install door(E) and water filter plate (F)	⑥Install door(E) and water filter plate (F)
⑦ Use screw(Z) to fix the stair board(AH) and ladder rod(AJ), then install the adjustable feet(U) on bottom of the ladder rod(AH).Caution:Ensure that the depth or adjustable feet is not less than 12mm, and try to make the two adjustable feet screw in the sand depth. and tighten the spare nut during the installation.
⑧ Install the stairs into the chas rails
Q*2 P*2 J*1	⑨ Use screw(P) and hex flange nut (Q) to install the storage basket(J) to the b panel(G)

Use screw (P) and hex flange (Q) to install the shower bracket on the right side panel (C).

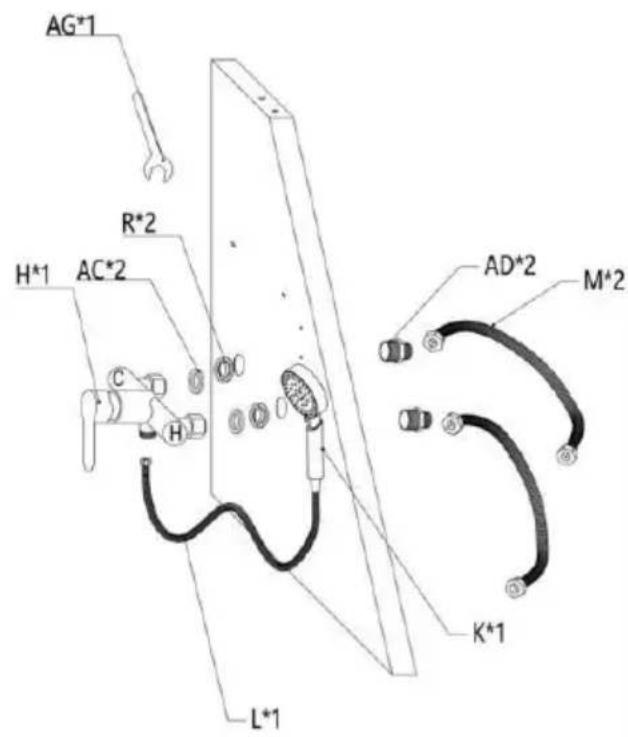

Install hot and cold shower switch and water inlet. Caution: Before you do this, measure that your water source is on the left or right side of the bathtub, and select the direction of installation of the tap switch. Step 1: Pass the straight all-copper connector (AD) through the side panel (1/2" end facing outside), screw in R2 into the other end of the connector, and use wrench (AG) to screw down.

Step 2: Align the faucet switch (H) with the connector (AD), then tighten the two nuts on the switch (H), and note that the sealing ring nut is intact.

Step 3: Connect the hose (M) at the water inlet end and the shower hose (L) at the faucet outlet. Also, when tightening the nut, pay attention to whether the sealing ring inside the nut is intact.

Step 4: The other end of the hose (M) is connected to the water source. Pay attention to the hot and cold water mark on the faucet switch: red represents hot water, and connect the hose on this side to the hot source, while the other side is connected to the cold. Also pay attention to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long. If you want to extend it, please purchase it separately (Caliber: 20mm). Caution: Optional use of sealing tape (AE) when installing the nut can make the installation more sealed and help prevent water leakage at the joint.

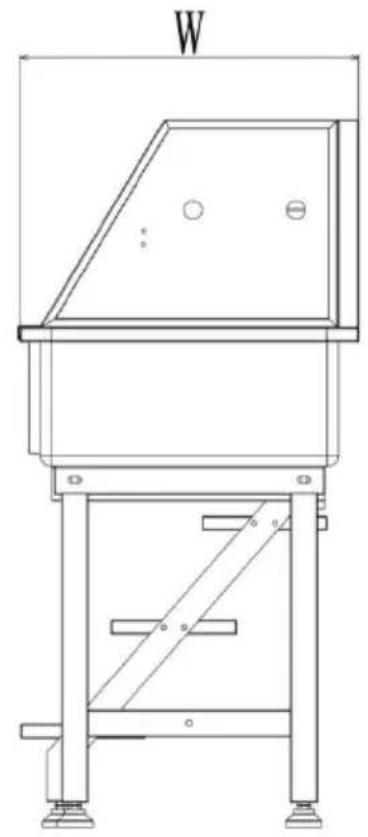

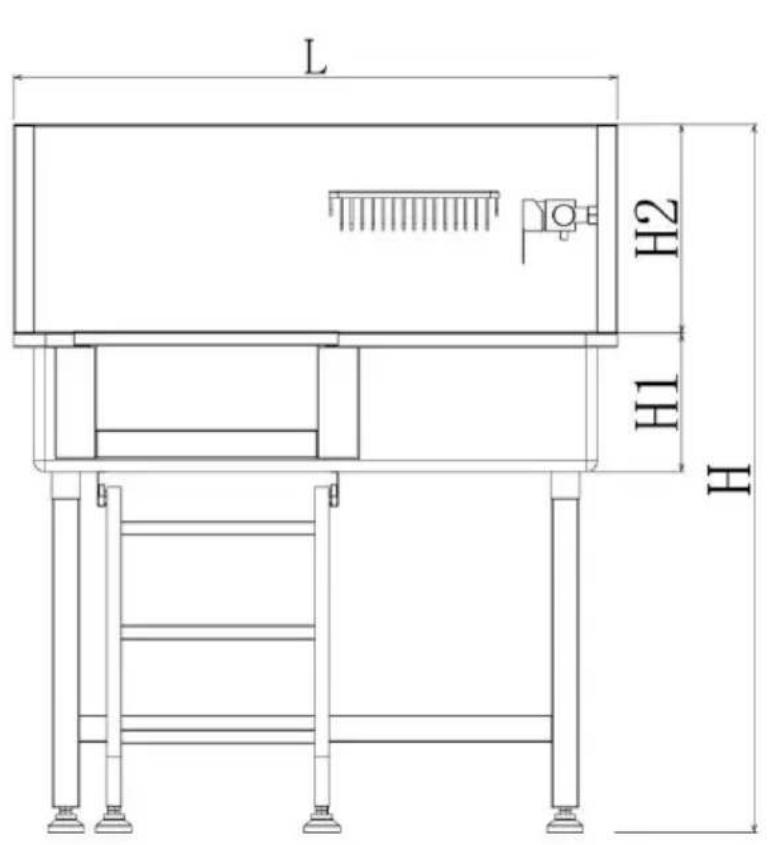

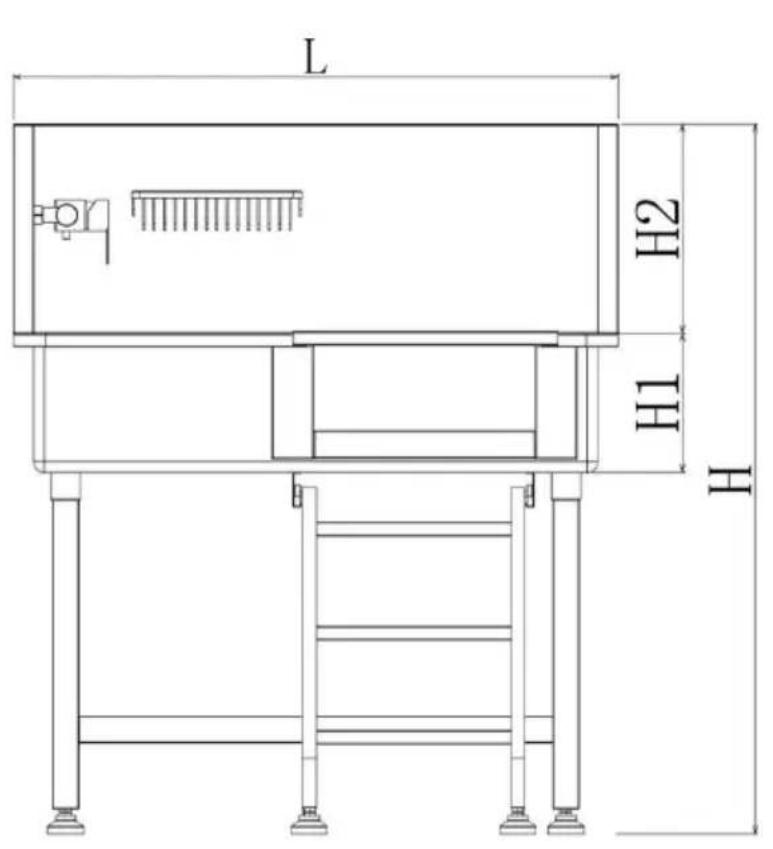

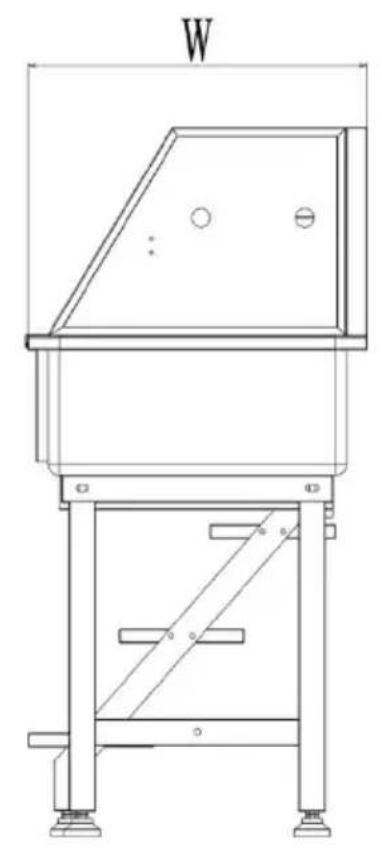

DIMENSIONS AND PARAMETERS

Left Door

Right Door

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K1E01015	870	1060	200	300	488	21.4
K1E01016	870	1060	200	300	488	21.4

Model#	Volume (CBM)	Loading Capacity (Ibs)	Recommended pet (in)
K1E01015	0.21	220	L×W×H:33×16×18
K1E01016	0.21	220	L×W×H:33×16×18

OPERATION

1. Make sure the water pipe connection is complete and the water is flowing normally. (Connect the hot and cold water pipes according to the hot and cold water signs of the faucet switch)

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the tub itself or hold the pet inside the tub by yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal out.
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent. 2. Pay attention to regularly clean the hair from the drain to avoid clogging.
2. Please clean the transparent cover of the drain regularly. After disassembly like a nut, it can be easily cleaned, and be careful not to leave the seal ring when installing it back.

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug is installed. If it is damaged, it needs to be replaced in time.
