USER MANUAL GN-1200R2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

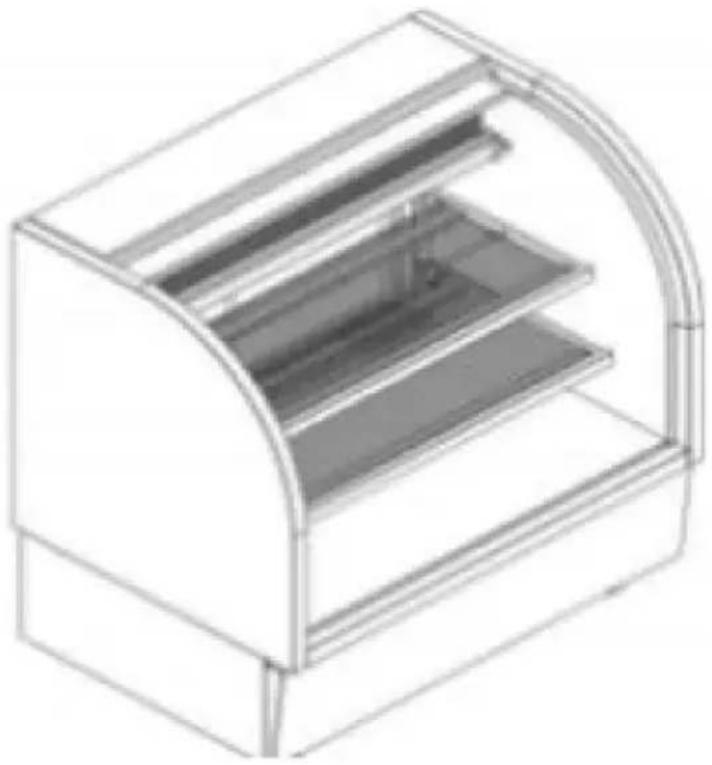

REFRIGERATED SHOWCASE

MODEL:GN-1200R2、GN-2000R2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an est of savings you might benefit from buying certain tools with us compared to the major top b and does not necessarily mean to cover all categories of tools offered by us. You are ki reminded to verify carefully when you are placing an order with us if you are actually sa half in comparison with the top major brands.

MODEL:GN-1200R2、GN-2000R2

Line drawing of a three-tiered storage cabinet or enclosure with curved top and side panels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Cautions

1. A separate single-phase three pole power socket must be used, a socket ground terminal (E) must be reliably grounded. Never use water gas pipes as grounding terminals. Otherwise, if an unexpected malfunction occurs in the electrical system, grounding protection will be lost, endangering personal and property safety.
2. Do not place the power cord directly on the bottom surface or or pedestrian walkways. Use a groove plate with a certain strength to s for protection. Or introduce grooves and cover them to avoid heavy pressure and damage to sharp tools.
3. It is strictly prohibited to store hazardous materials that are volatile corrosive, radioactive, flammable, explosive, toxic, or contaminating food inside the cabinet.
4. When cleaning the product, be sure to cut off the power supply. Rinse with water to prevent electrical appliances from getting damp, lead electricity after soaking in water, or other accidents.
5. If there is an electrical and refrigeration system malfunction with the product, non professional electricians and personnel without sufficient refrigeration technology and experience should not tamper with or disassemble it for repair without authorization, in order to avoid expansion the accident and even causing greater losses.

Please note that our company shall not be held responsible for any electrical damage or other accidents and losses caused by non-comp operation and use.

Precautions for use

1. When handling, gently push and place, and the inclination should exceed 45 degrees.
2. The product should be placed in a ventilated, cool, dry place, away from heat sources and dust. Avoid direct sunlight to avoid affecting the cooling effect, and the ground should be flat and sturdy. The distance between the perimeter of the cabinet and walls and other objects should not be less than 10 centimeters to ensure good heat
   dissipation of the condenser. Display cabinets should be placed at designated points to prevent displacement of the cabinet body under external forces.
3. The applicable power supply of this product is 110V\~120V /220V\~2f. If the voltage does not meet the requirements, please install a power stabilizer with a capacity that matches the power of the display cabin. After confirming that the voltage is correct, you can plug in the plug turn on the appliance. After turning on the appliance for 20 minutes, whether the appliance is running normally and whether the cooling eff is obvious.
4. Before using it, it is necessary to run it for a period of time in confirm that the refrigeration system is working properly. Only when the temperature inside the cabinet drops to the normal requirements, can food be placed in the food tray for refrigeration.
5. Too much overheated food should not be placed on the surface of a cabinet to prevent excessive instantaneous load.
6. When the product is not used for a long time, it should be clear inside and outside, then air dried and placed in a dry, cool and verplace, and checked regularly to prevent rodent damage. When restarting it is necessary to strictly check whether the electrical circuit has been bitten by mice. After inspection, it can be restarted for use.
7. Non professionals are not allowed to open or replace components, electrical components, and refrigeration units on the refrigerator without authorization.

8. If the power cord is damaged, to avoid danger, it must be replaced professional electrical maintenance personnel.

9. If you believe that you cannot troubleshoot the problem on your o please promptly seek professional assistance or notify our technical personnel for troubleshooting.

Common Faults and Troubleshooting

If you think this product has a malfunction, please check, eliminate all handle it according to the table below. If it still does not work properly please contact our company immediately. Non-professionals should not dismantle and maintain the product structure, electrical components and refrigeration system without authorization. When checking and eliminating the malfunctione sure to ask professional technicians to inspect and repair it, otherwise it is easy to cause accidents and cause greater losses. If you find that the product is charged, please cut off power supply immediately and then ask professionals to check and handle it.

Common Troubleshooting

Faults	Fault Causes	Scope of Examination	Troubleshooting
Compressor or not working	Power off	Check by multimeter	Switch on
	Plug loose	Check	Plug in tightly
	Starter relay sockeloose	Dismount shroud for check	Plug the pin tigh
Over high temperature Inside the showcase	The storied goods are too much insid the showcase.		Reduce food
	Ambient temperature too hig	Test by thermometer	Change ambient temperature
Too loud noise	The showcase is r placed stable.	Check	Placed stable
	Fan and compress castors footing loos	Check	Fasten the footing screws

Non-faults

1. The surface temperature of the air outlet panel of the unit box is | and the surface will become hot. This part cannot be blocked, which affect the normal operation of the refrigeration system.
2. The surface will become hot when the compressor is running: When compressor is working normally, the surface temperature is high, which a normal phenomenon. Do not touch it with your hands.
3. Condensation on the glass surface: When the ambient temperature is high and the humidity is high, dew is easy to form on the outer surface the glass. Please wipe it dry with a soft dry cloth; or turn on the heating wire defog function.
4. The room temperature is lower than the temperature controlled by the thermostat, causing the compressor to not operate: Because the room temperature is lower than the temperature of the temperature controlled by the data collected by the temperature sensor is not enough to start the compressor.

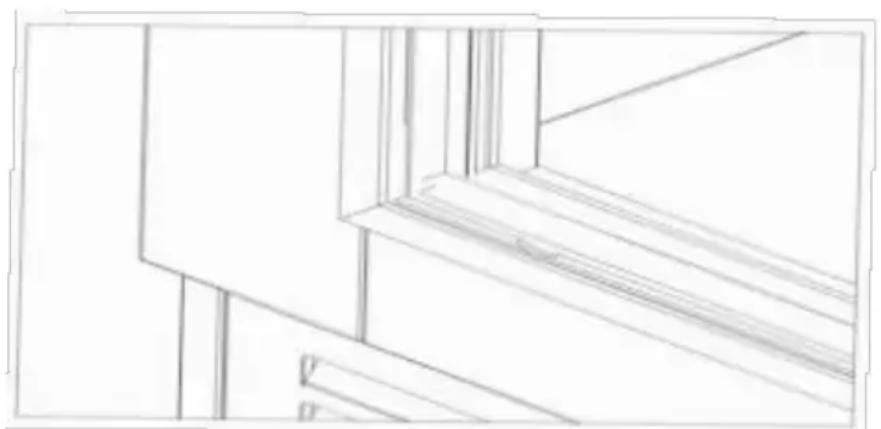

About Sliding Door Positioning Slot

Architectural line drawing of a window frame structure (no text or symbols)

The sliding door positioning groove is an important design in the slidi door system, which is mainly used to ensure that the sliding door re stable and accurately positioned during use. The groove on the lower is not a defect of the product, but a necessary design to achieve the sliding door positioning function.

Function and role

Positioning function: The sliding door positioning groove can effectively prevent the sliding door from deviating on the track, ensuring that the sliding door is always in the correct position when opening and closir Stability: The positioning groove enhances the overall stability of the sliding door and prevents the sliding door from shaking or derailing d use.

Frequently Asked auestions and Answers

Will the positioning groove affect the appearance of the sliding door?

The positioning groove is usually located in the lower slide of the sliding door, which will not affect the appearance design and overall appearance of the sliding door.

Is the lower slide easy to damage?

The lower slide is designed to be sturdy and durable, and will not be damaged under normal use. However, it is necessary to avoid heavy impact and excessive wear.

How to clean the lower slide?

Use a clean soft cloth or brush to gently clean the dust and debris lower slide. Avoid using corrosive detergents.

The lower slide groove design is an indispensable part of the sliding system, which is mainly used to achieve the stability and positioning function of the sliding door. It is not a defect of the product, but is provide users with a better experience and safety guarantee. Therefore during use and maintenance, please correctly understand and treat the role and importance of the sliding door positioning groove.

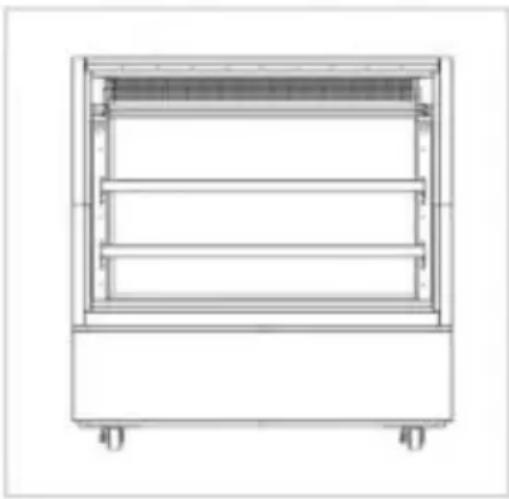

Guidelines for shelf adjustment

Technical line drawing of a three-tiered storage unit or enclosure with mounting feet (no text or symbols)

1. Empty the display cabinet

Remove all food and decorations: Make sure the interior of the display cabinet is empty for easy operation.

Clean the shelves: Wipe the shelves with a clean damp cloth to ens that they are dust-free and stain-free.

2. Adjust the height of the shelves

Release the fixing clips: There are usually fixing clips on both sides each shelf, which can be loosened for adjustment.

Move the shelves: According to the predetermined cake height, move shelves down to the hole position.

Fix the shelves: After adjusting to the required height, re-fix the clips ensure that the shelves are stable.

3. Safety inspection

Check the stability of the shelves: Make sure that each shelf is firmly fixed and not loose.

4. Regular inspection and maintenance

Regularly check the fixing of the shelves: Avoid accidents caused by looseness.

Keep clean: Clean the shelves after the end of business every day ensure hygiene.

Precautions

Avoid overloading: Each shelf has a certain load-bearing limit to avoid overloading cakes.

Keep the cabinet door closed: After adjustment, make sure the display cabinet door is closed to maintain temperature and humidity.

Packing List

No.	Item	Qty	Remark
1	Display Refrigerator	1 set
2	Manual	1 pcs

Warning!

1. To maintain ventilation, the cabinet should be at least 10 cm awa the wall and other objects.

2. When cleaning, the power supply must be cut off. Use detergent, water and wet cloth to wipe. Do not use solvents that are harmful to human body or corrosive to the cabinet. It is strictly forbidden to use spray to

avoid damaging electrical components and causing leakage accidents.

1. Electrical appliances such as high-temperature sterilizers and ozone generators are not allowed to be used in the food storage room inside a cabinet.

2. When replacing lighting fixtures, first disconnect the power supply, unplug

the light strip lead from the connector, then unscrew the lampshade f screws, disassemble the side cover of the lampshade, pull the light s out of the buckle, then insert the new light strip into the buckle, inst side cover, fix the lampshade, and then insert the lead into the conn and turn on the power. Check whether it is working properly. If it is working properly, please troubleshoot it according to the troubleshooting method.

1. If the power cord is damaged, it must be replaced by a professic electrical maintenance personnel to avoid danger.

2. Adults with physical or mental disabilities and minors are prohibited from using this product.
