USER MANUAL K2E01010 Vevor

Affordable. Reliable. Home Improvement.

DOG GROOMING TUB

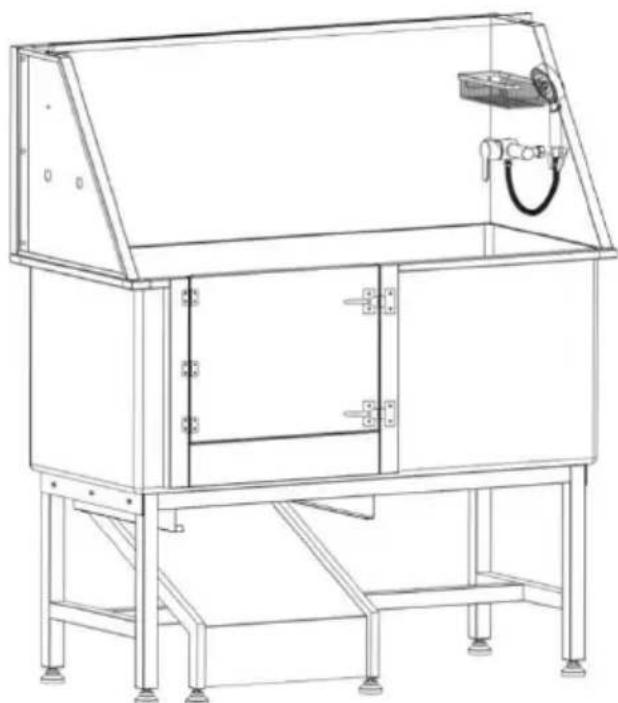

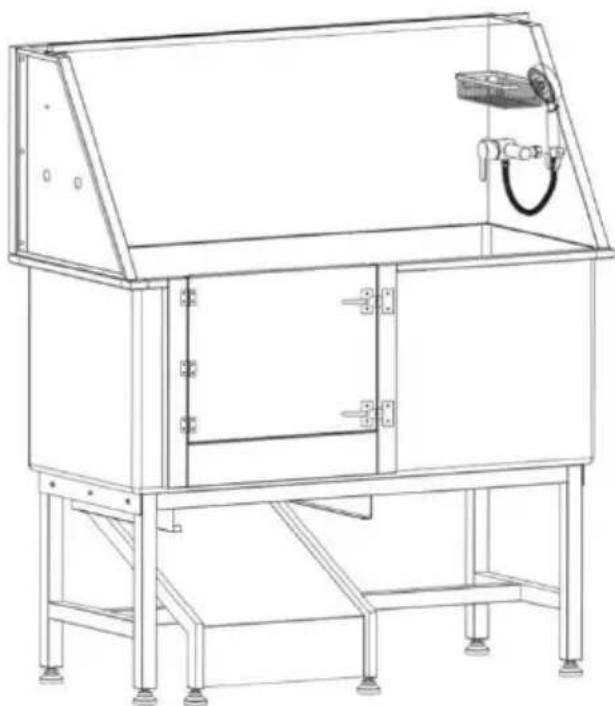

MODEL:K2E01007 / K2E01010

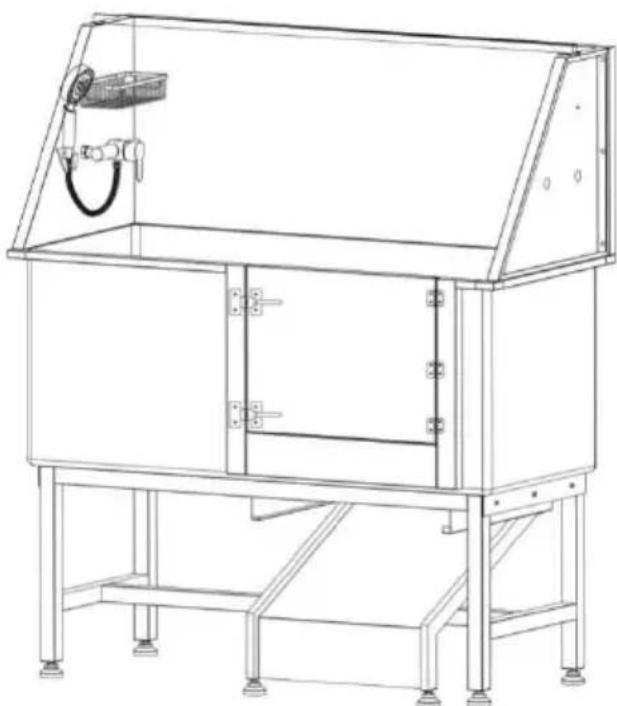

MODEL: K2E01007 / K2E01010

Technical line drawing of a mechanical cabinet or enclosure with mounting legs and internal compartments (no text or symbols)

Technical line drawing of a mechanical cabinet or enclosure with mounting legs and a side-mounted device (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.
• Please wipe the cylinder dry with a cloth after use to extend the life.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning!Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to av possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

1 pc	1 pc	1 pc	1 pc
1: Bottom bracket	2: Tub2-1: Sealing Strip	3: Right side panel	4: Left side panel
1 pc	2 pcs	1 pc	1 pc
5: Door	6-1: Small Plastic Floor Grate6-2: Big Plastic Floor Grate	7: Back panel	8: Faucet switch
1 pc	1 pc	1 pc	2 pcs (600mm)
9: Storage basket	10: Shower head	11: Shower hos	12: Inlet pipe
13-1
1 pc	18 pcs (M4*16mm)	4 pcs (M4)	2 pcs
13: Strainer 13-1: Drain Pipe 13-2: Transparent Cover	14: Screw	15: Hex flange nut	16: Nut
1 pc	1 pc	6 pcs	2 pcs
17: Shower bracket	18: Comb	19: Adjustable foot	20: Sling
2 pcs	20 pcs (M6*16mm)	6 pcs (M8*16mm)	1 pair
21: Play ball	22: Screw	23: Screw	24: Plastic Gloves
2 pc	1 pc		1 pc
25: Washer	26: Crossbar		27: Ramp
			[c83c]
2 pcs	1 pc	1 set	1 pc
28: Nut	29: Sealing tap	30: Base30-1: DownBase30-2: Up Base30-3: Anti-slipMat	31: Wrench
2 pc	1 pair	1 pc	4 pcs(M8*20mm)
32: Latch	33: NylonGloves	34: Wiper	35: Screw
1 pc	2 pcs

36: Scouring pad

37: Adapter (G1/2 to NPT9/16)

Installation steps

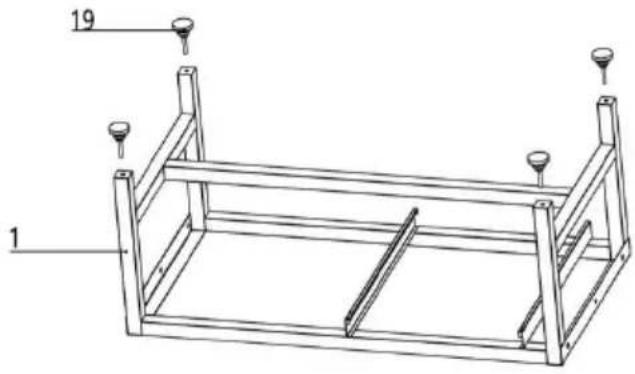

	1 Install the adjustable feet to H rack.Caution: Ensure that the depth adjustable feet is not less than 12mm and try to make the fo adjustable feet screw in the sa depth. Please tighten the spare nut during the installation and adjust it later.
Left Door Bracket	Right Door Bracket
2 Flip the bottom bracket, adjust the height of the feet to mal height of water outlet side is 1-2 degrees lower than the other a spirit level to show)

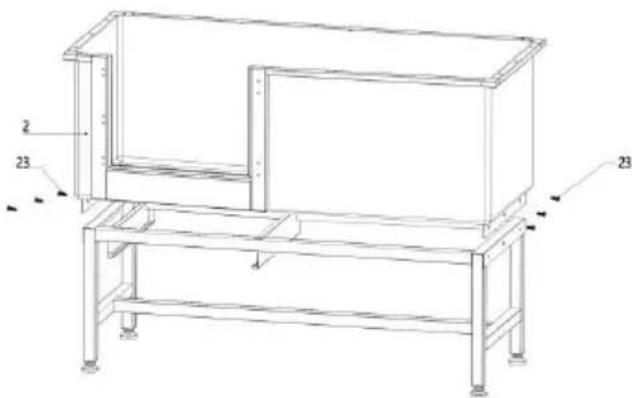

	3 Use screw to fix the botto bracket and tub.

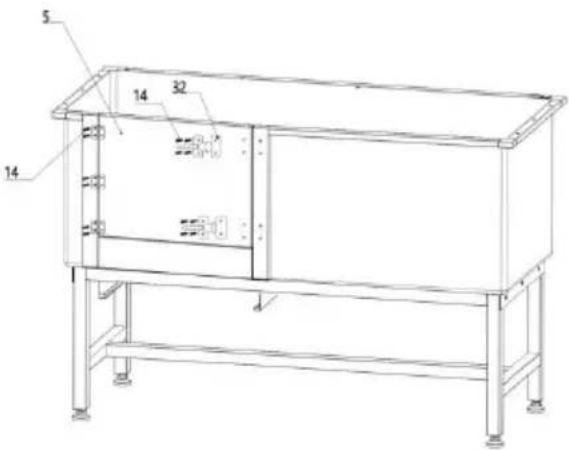

	4 Use Screw and hinge to 1 door to the tub and install the with screw.

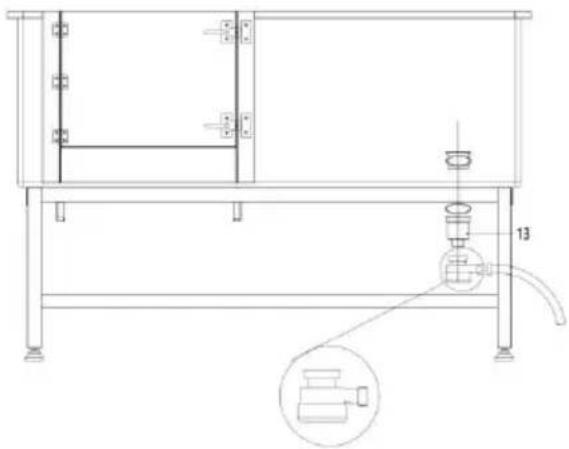

	5 Install the strainer, ensure th the sealing ring is free of dislocation and wrinkles.Caution: When installing, pleas pay attention to whether the sealing ring is placed correctly, avoid water leakage due to incorrect seal installation. And check whether the transparent cover of the drain is tightened6 Use screw to fix the left right sideboard, then use screw fix the back panel, last to use screw to fix sideboard and ba board.

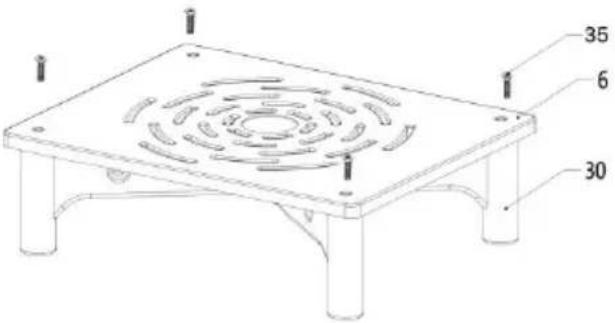

	7 Install the bottom rack to th water filter plate.

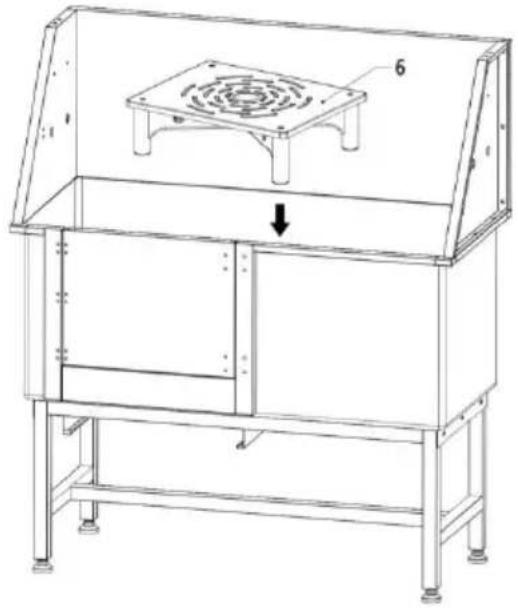

	8 Put the water filter plate to tub.

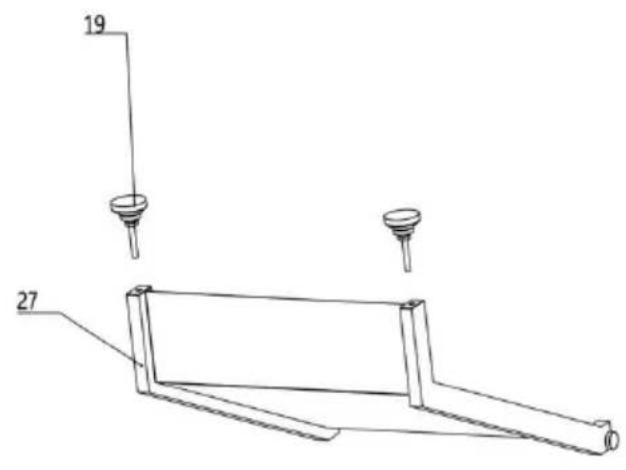

	9 Install the adjustable feet of the bottom of the ramp.Caution: Ensure that the depth adjustable feet is not less than 12mm and try to make the tv adjustable feet screw in the sa depth. and tighten the spare r during the installation.
	10 Install the ramp into the o rails

Left Door Bracket
Right Door Bracket

Technical diagram of a mechanical assembly with numbered components and internal parts

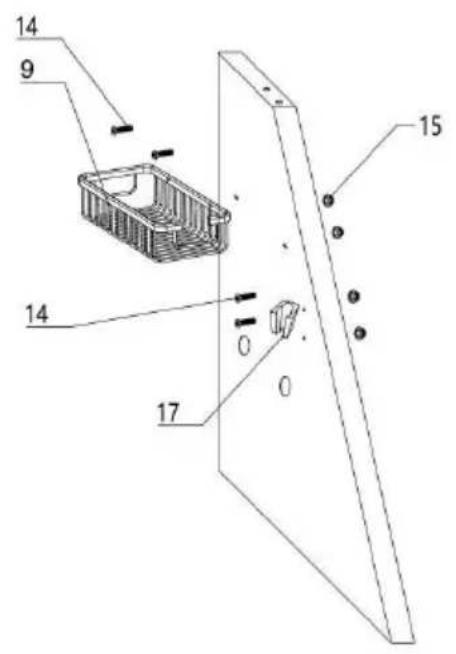

⑪ Use screw and hex flange to install the storage basket a shower bracket to the right-side panel.

31 16 25 8 C H 11 28 12 10 37

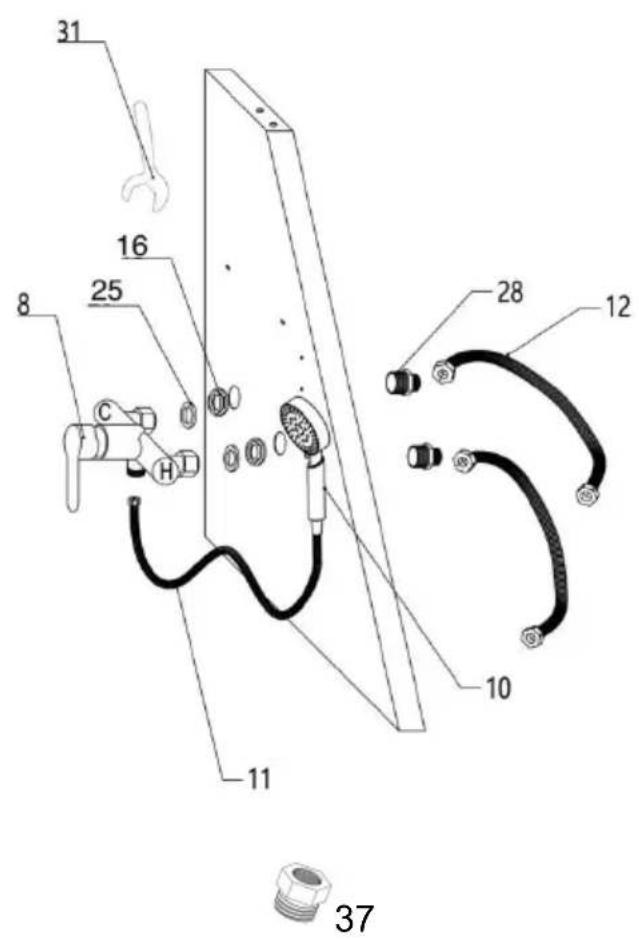

⑫ Install hot and cold show switch and water inlet.

Caution: Before you do this, make sure that your water source is on the left or right side of the bathtub, and select the direction of installation of the tap switch.

Step1: Pass straight all-copper connector through side panel (1/2"end facing outside), screw nut into the other end of the connector and use wrench screw down.

Step2: Align the faucet switch with the connector, then tighten nuts on the switch and note that the sealing ring inside the n

Step3: Connect the hose at the water inlet end and the shower hose at the faucet outlet. Also, when tightening the nut, pay attention to the sealing ring inside the nut is intact.

Step4: The other end of the hose is connected to the water source, pay attention to the hot and cold water mark on the faucet switch, represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape when installing the nut. make the installation more sealed and help prevent water leakajoint.

Caution: Please determine whether to install adapter according actual water pipe specifications.

22 26 22 20

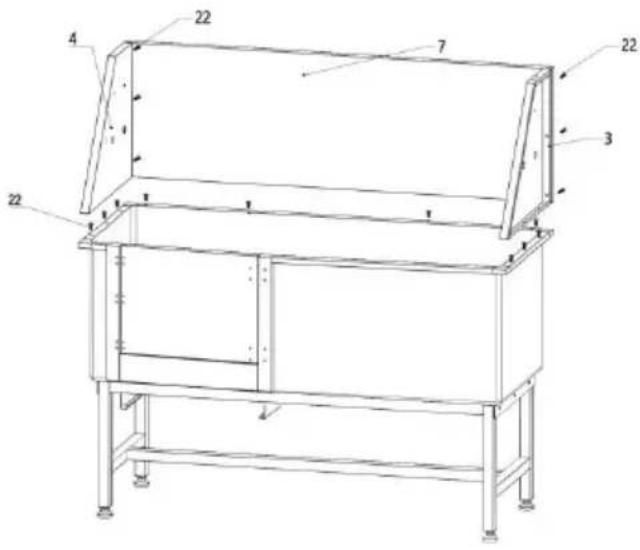

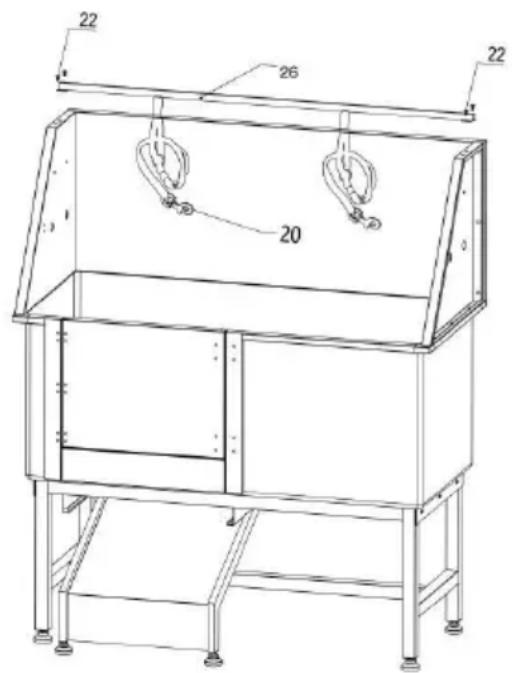

⑬ Use screw to fix the cross the left and right-side panel, the install the sling.

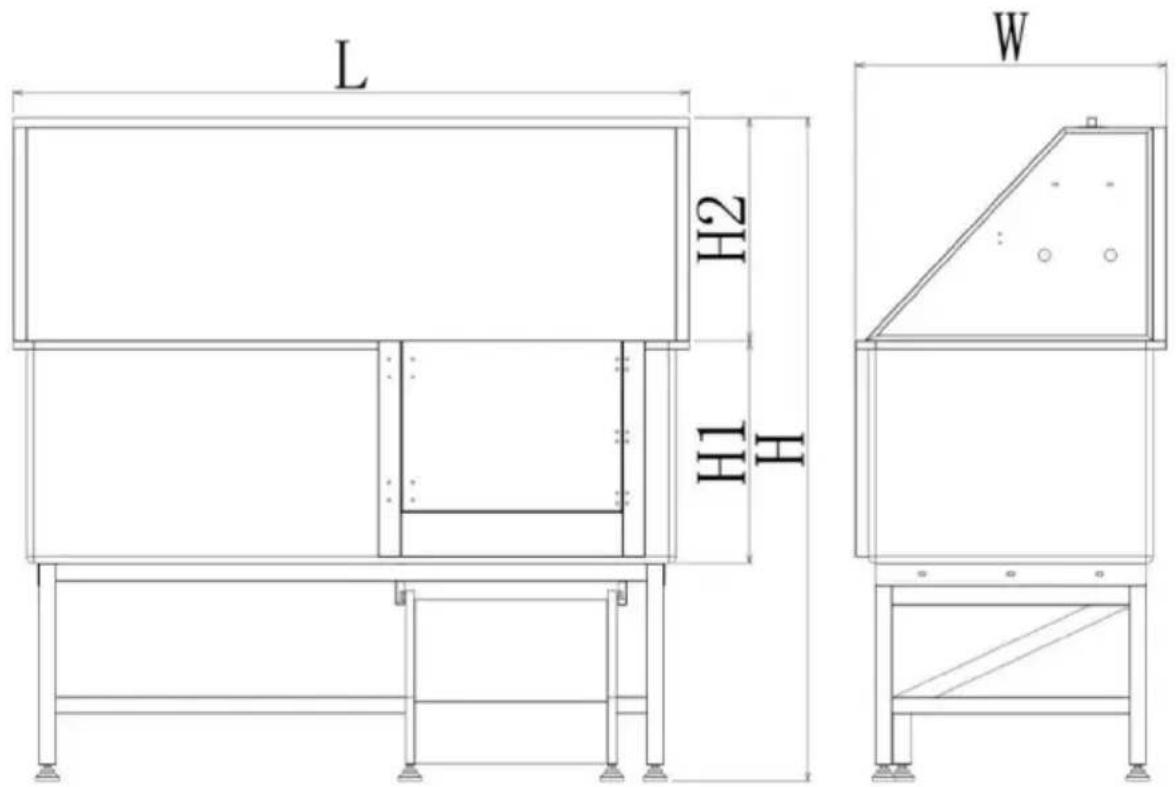

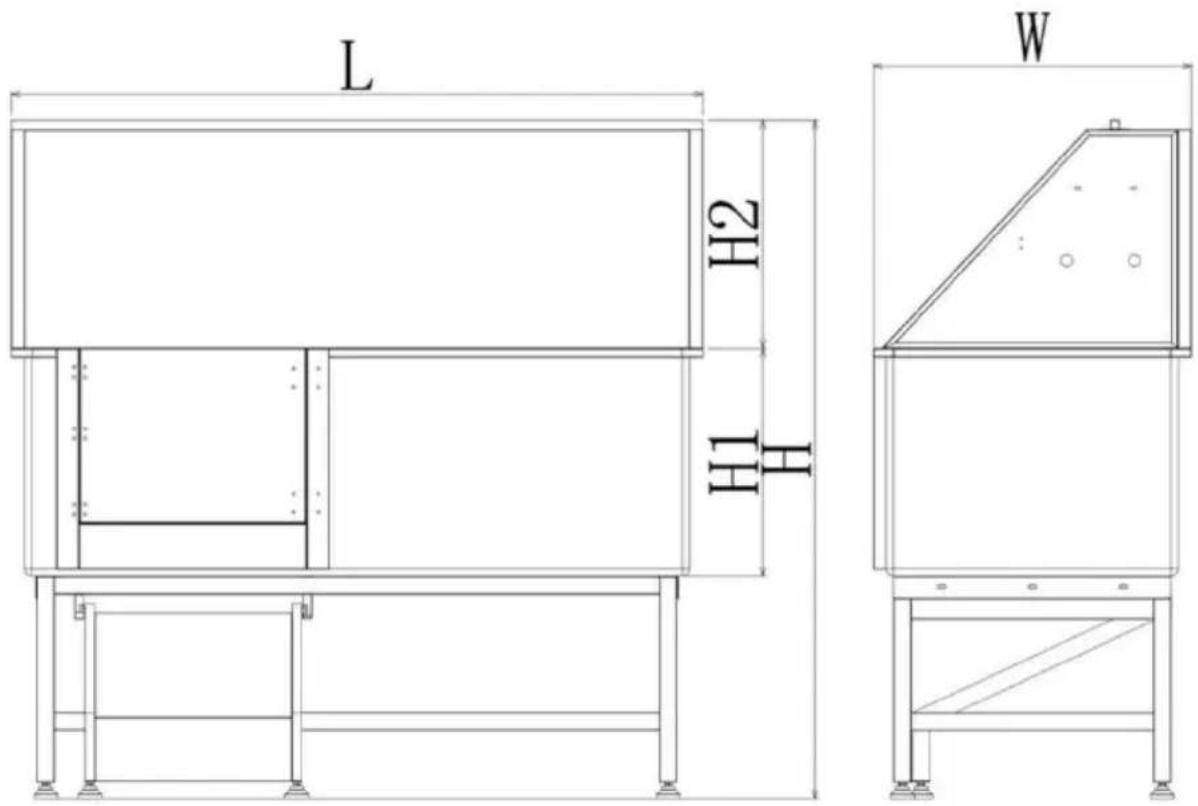

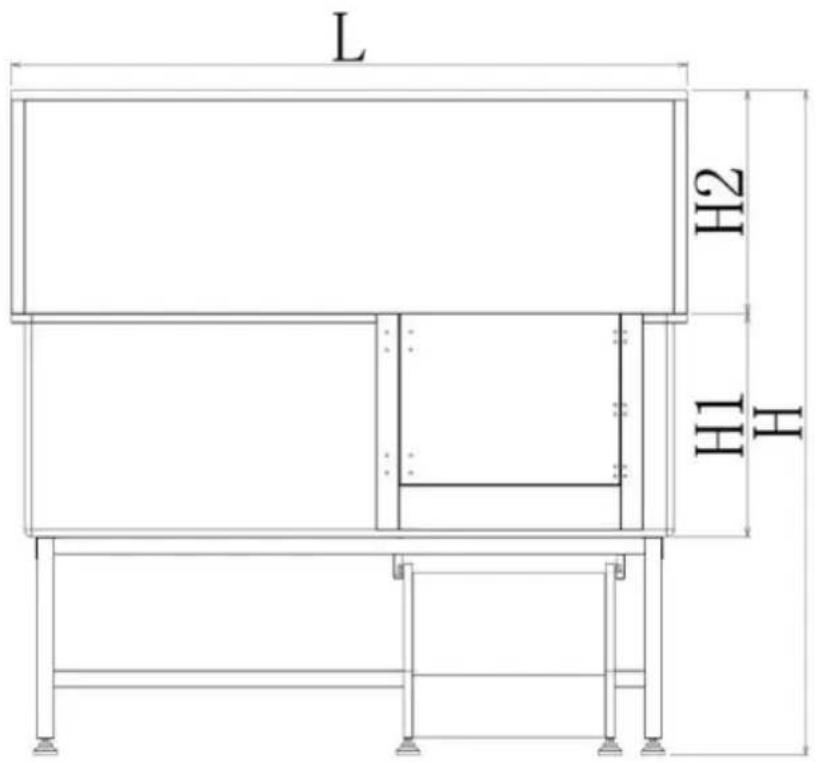

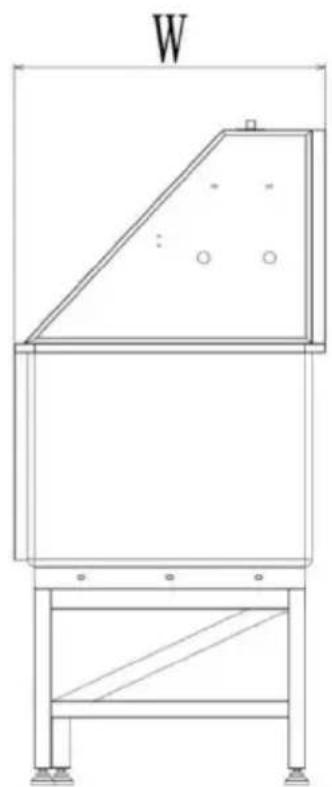

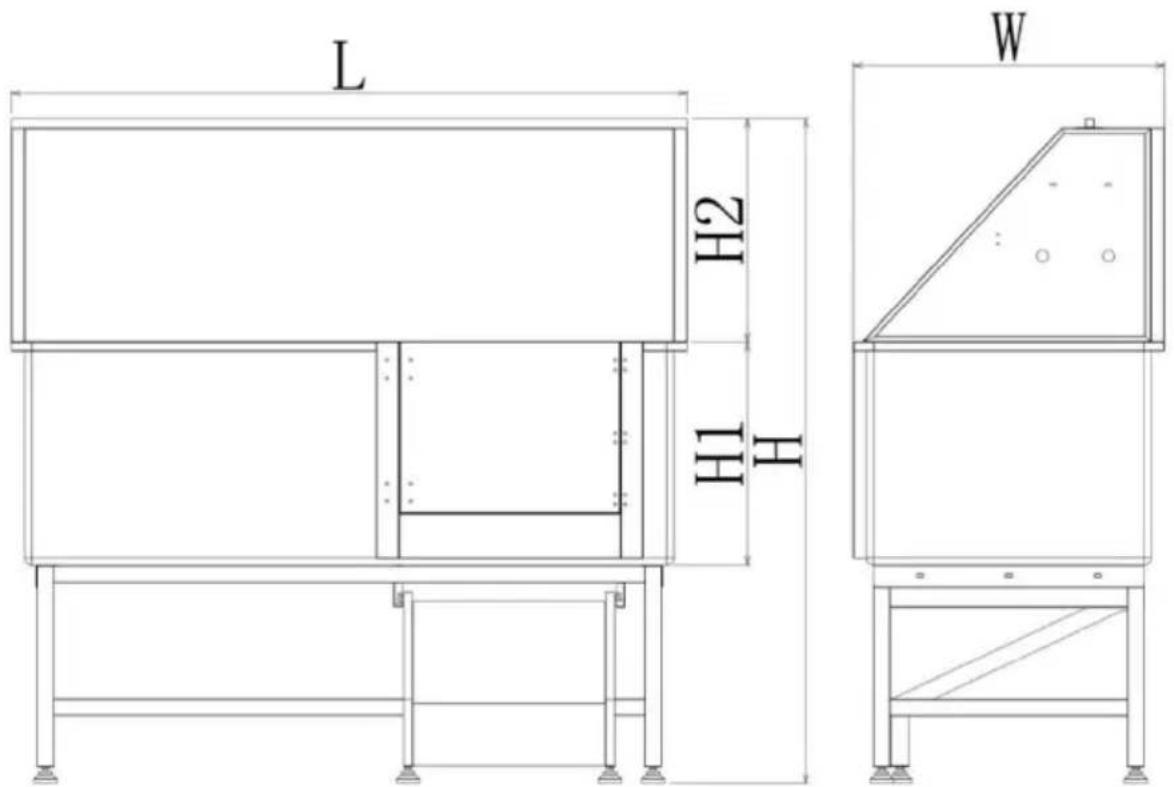

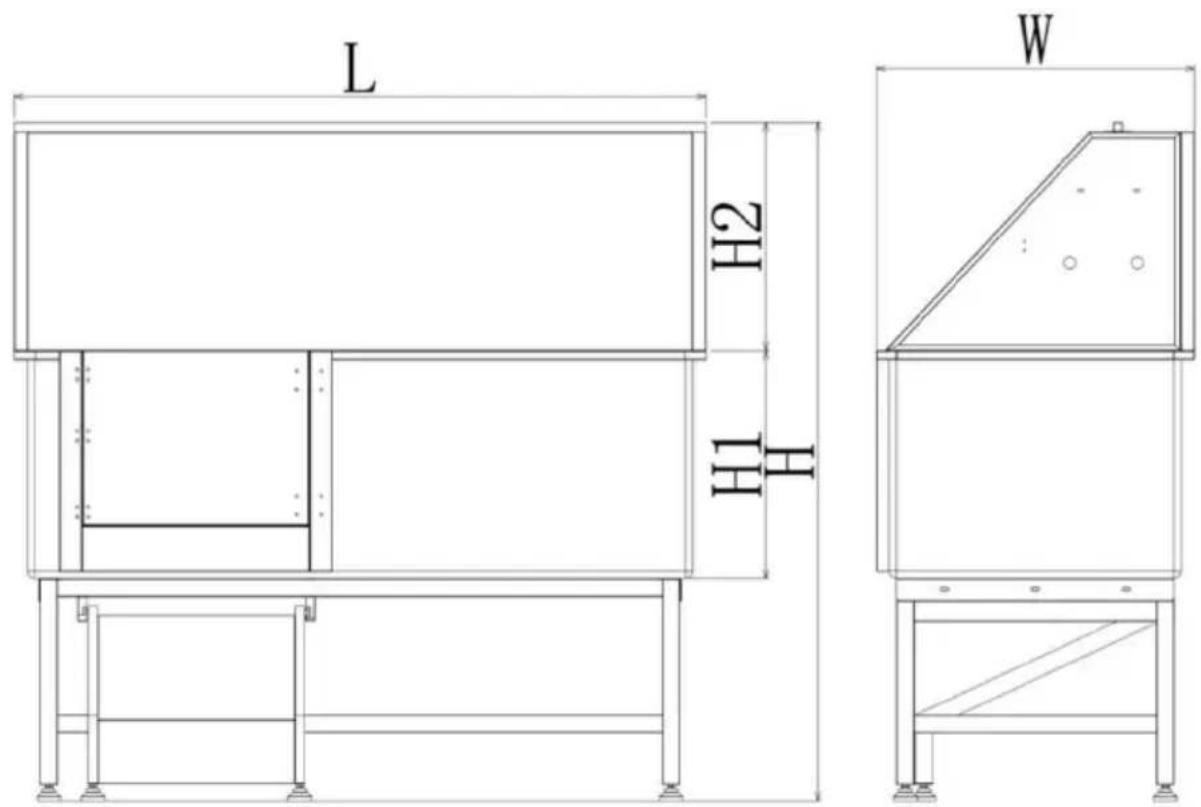

DIMENSIONS AND PARAMETERS

Left Door

L H2 H1 H W

Right Door

L H2 H1 H W

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W.(kg)
K2E01007	1270	1491	500	480	597.5	48.8
K2E01010	1270	1491	500	480	597.5	48.8

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K2E01007	0.64	330	L×W×H:48×25×40
K2E01010	0.64	330	L×W×H:48×25×40

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch).

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal o
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogc
3. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not

the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage injury to yourself or your pet. Follow the instructions carefully and cor customer service or a local contractor if any point is confusing, too for you to do on your own, or requires special modification for your Keep these instructions for future reference. Provide them to anyone will use this device and provide them with this device if it is ever sold to a third party.

- ONLY use this bathtub for its intended purpose, bathing medium-size pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity whose predisposition becomes violent upon contact with water, or who physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow the play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with nonidentical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg).

Particularly for larger animals, be careful to prevent them from jumping moving in such a way that causes violent impacts as this might exceed capacity.

- DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected possible splashing during bathing. DO NOT use any chargers or exter cords closer than this distance without similar protection.

- Electrical devices such as electrical transformers, televisions, lights, an telephones should be at least 6'7" (2 m) away from this bathtub at . In particular, never bring a chargingcell phone near the bathtub and r allow any electrical device to be placed or used in such a way that fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that do its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.

- An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.

- Make sure your water supply for this bathtub is turned off during installation.

- NEVER allow the water level to rise above the level of your pet's during use.

- DO NOT set up or leave this bathtub in temperatures below 32^ . Do not turn on the shower if there is any possibility water in its line frozen.

- DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathingwater. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.

- DO NOT allow dirty and stagnant water to remain in this bathtub long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

• Adequate ventilation should be provided to safely deal with the expected heat and humidity.
• The water temperature should be close to your pet's body temperat. Water that is either too cold or too hot will cause discomfort, may in your pet's skin, and may even cause injury or illness.Before use, lear about the appropriate water temperatures for bathing your pet.For best results, set your water heater's maximum temperature accordingly if possible.If adding preheated water, make sure it is within the tempera range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

BAIGNOIRE DE TOILETTAGE POUR CHIEN

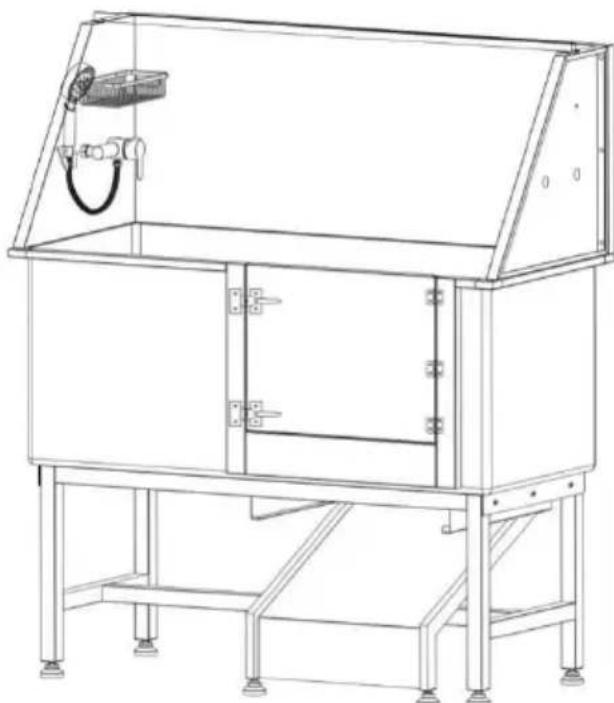

MODÈLE : K 2 E010 07 / K 2 E010 10
