FARMHOUSE COFFEE TABLE USER MANUAL

MODEL:KLLT-08

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rectangular coffee table with vertical slats and side drawers (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Farmhouse Coffee Table.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Farmhouse Coffee Table.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

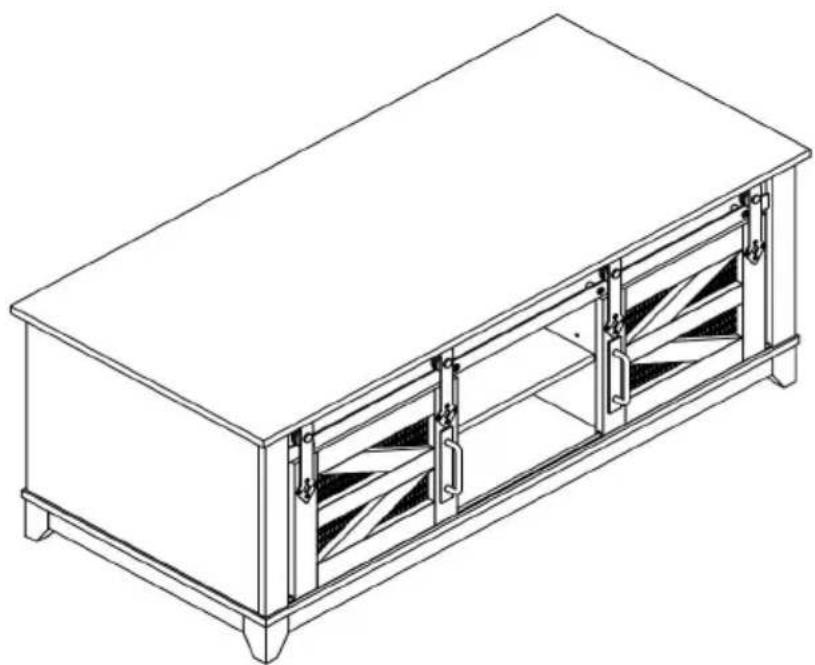

Line drawing of a rectangular coffee table with vertical slats and side supports (no text or symbols)

		∅240∅8*40	∅402M7*50	∅700M3.5*14
A*34	B*34	C*26	D*4	E*36
M3.5*14	M6*35		∅20
F*16	G*4	H*12	I*34	J*8
	M4*22			mm
K*10	L*2	M*4	N*2	O*4
P*1

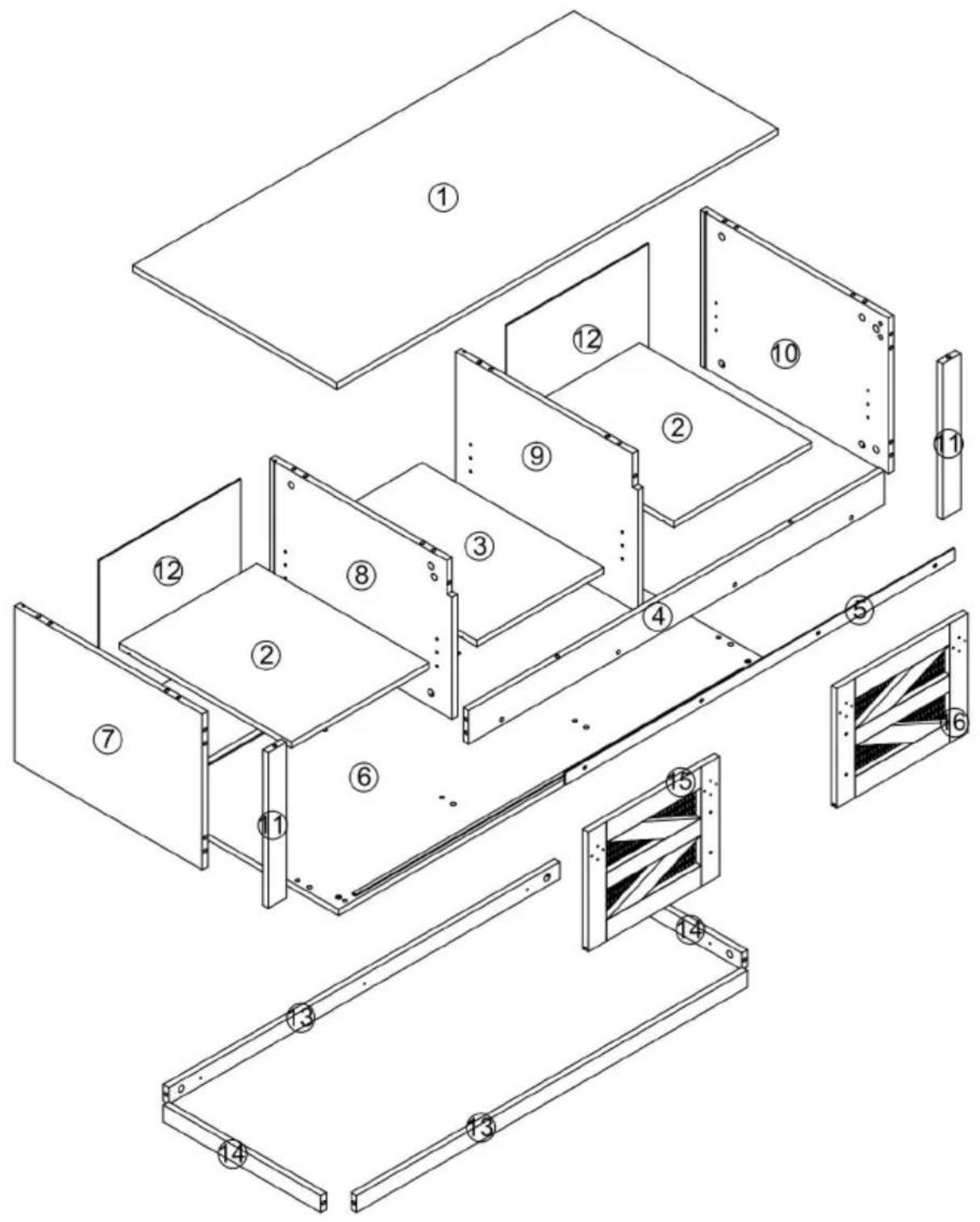

Technical diagram of a modular assembly with numbered components, likely for architectural or engineering purposes.

ASSEMBLY STEP

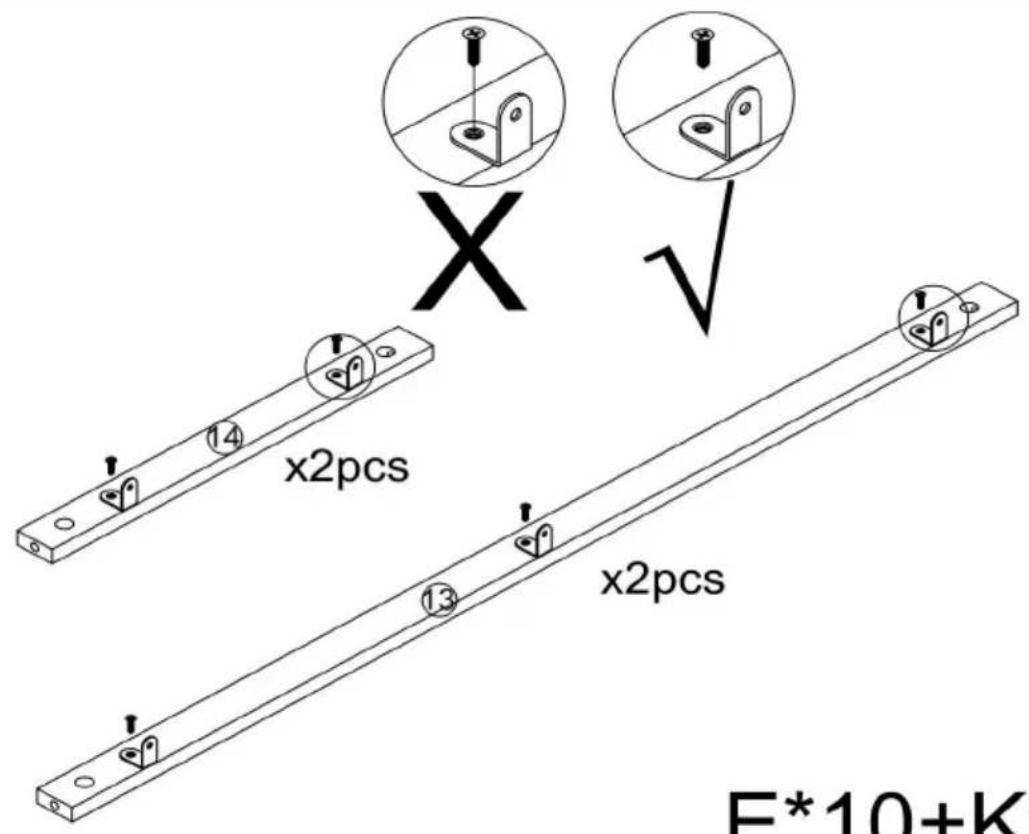

1

X x2pcs x2pcs F*10+K

E*10+K*10
2

x4pcs

Technical diagram illustrating three-step machining process: step-by-step assembly, detailed view of cylindrical workpiece, and final drilling with tool.

Isometric line drawing of a metal bracket with mounting holes and two circular holes, labeled 'x2pcs' (no text or symbols on the structure itself)

A*8+B*4+M*4

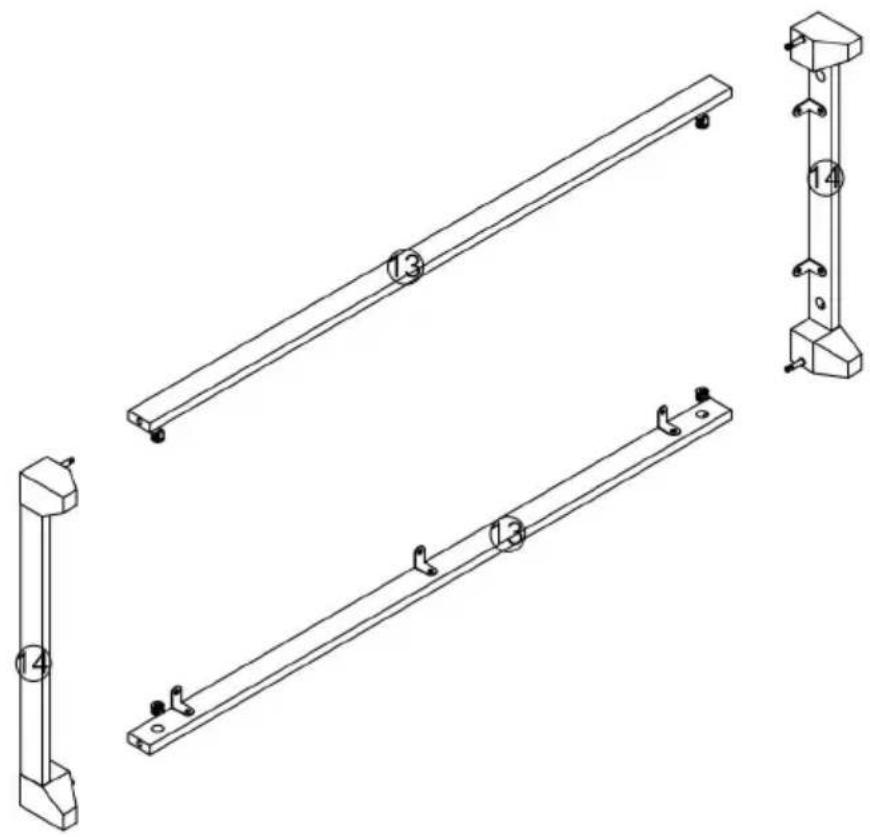

3

Technical line drawings of four different metal frame structures with mounting feet and mounting brackets (no text or symbols)

B*4

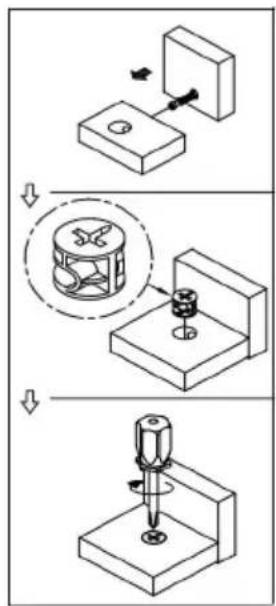

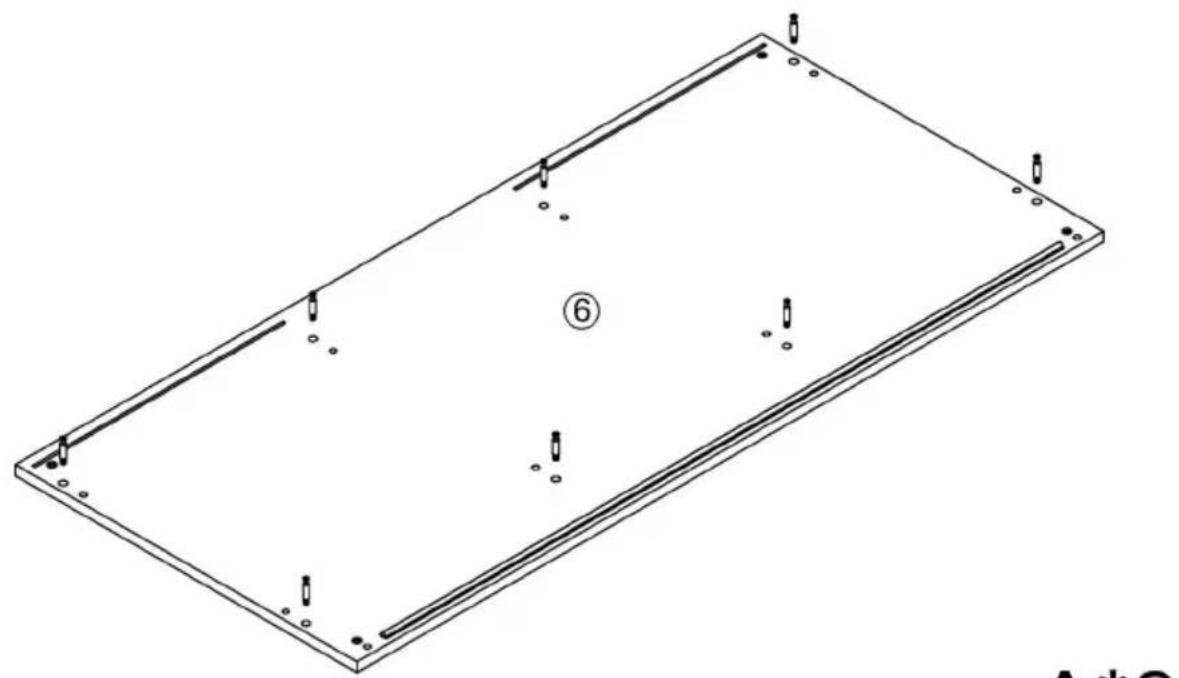

4

Isometric line drawing of a rectangular frame with bolt holes and a numbered circle (6), no text or symbols present.

A*8

5

Technical line drawing of a structural frame with numbered components (no text or symbols)

D*4
6

Isometric line drawing of a rectangular plate with bolt holes and a circular hole labeled '10' (no text or symbols beyond the number)

Technical line drawing of a rectangular electronic component with mounting holes and a central circular feature (no text or symbols)

A*2+C*12

7

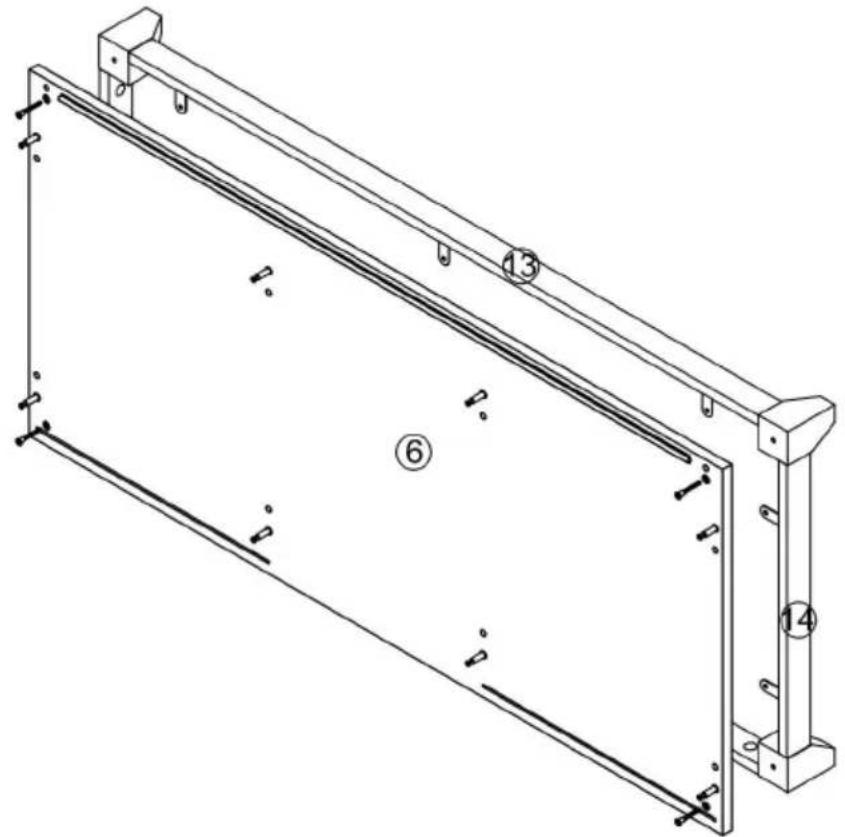

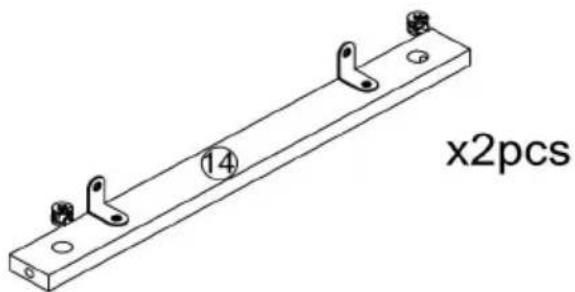

x2pcs ⑪ ④

A*6+C*6

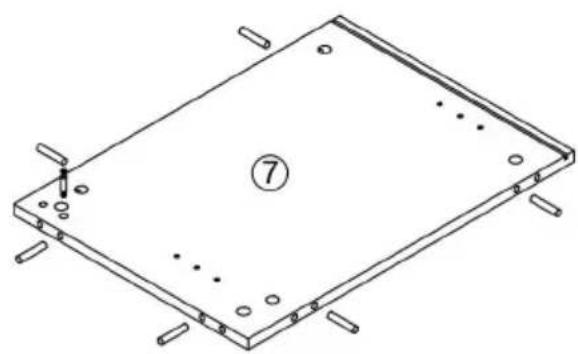

8

Technical line drawing of a rectangular panel with mounting holes and a separate mounting bracket (no text or symbols)

Technical line drawing of a rectangular panel with mounting holes and two side views labeled ⑦ and ⑪ (no text or symbols beyond labels)

B*4

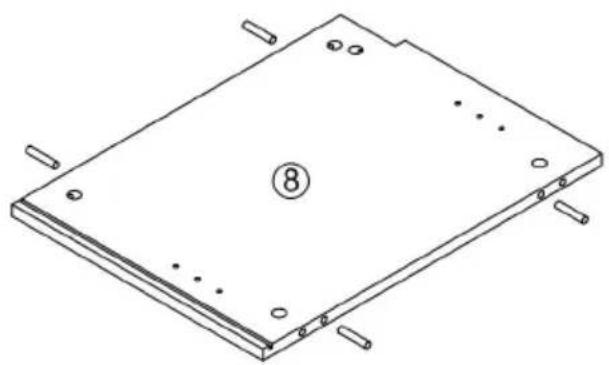

9

Isometric line drawing of a rectangular electronic component with mounting holes and numbered circular feature (no text or symbols)

Isometric line drawing of a rectangular plate with mounting holes and numbered label (9), no text or symbols present.

C*8

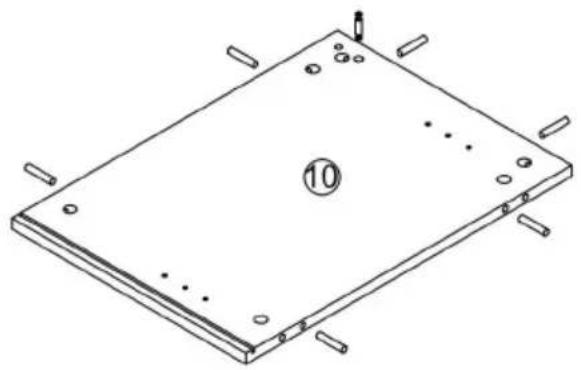

10

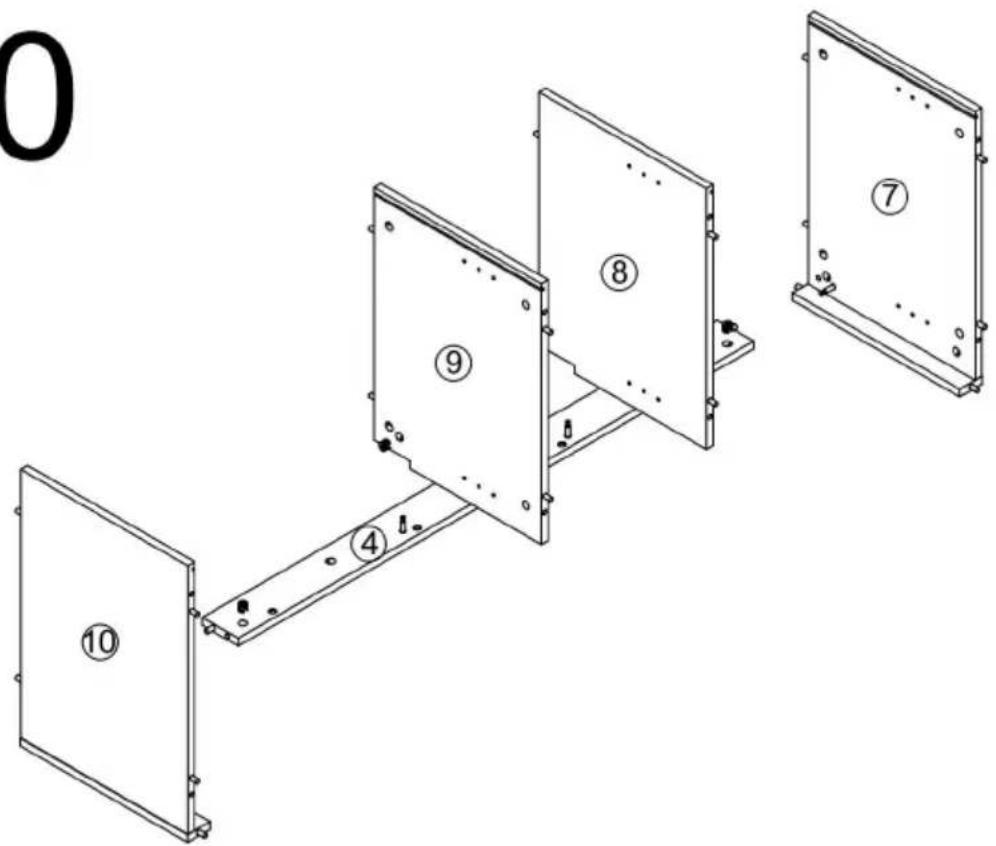

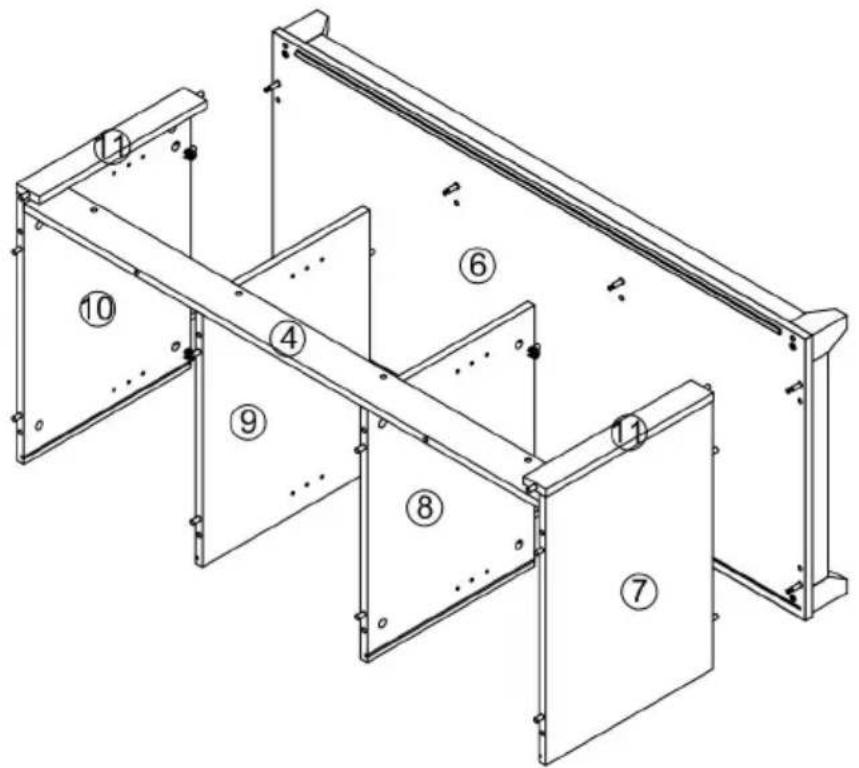

0 ⑩ ④ ⑨ ⑧ ⑦

B*4

11

Technical diagram of a structural frame assembly with numbered components for identification

B*8

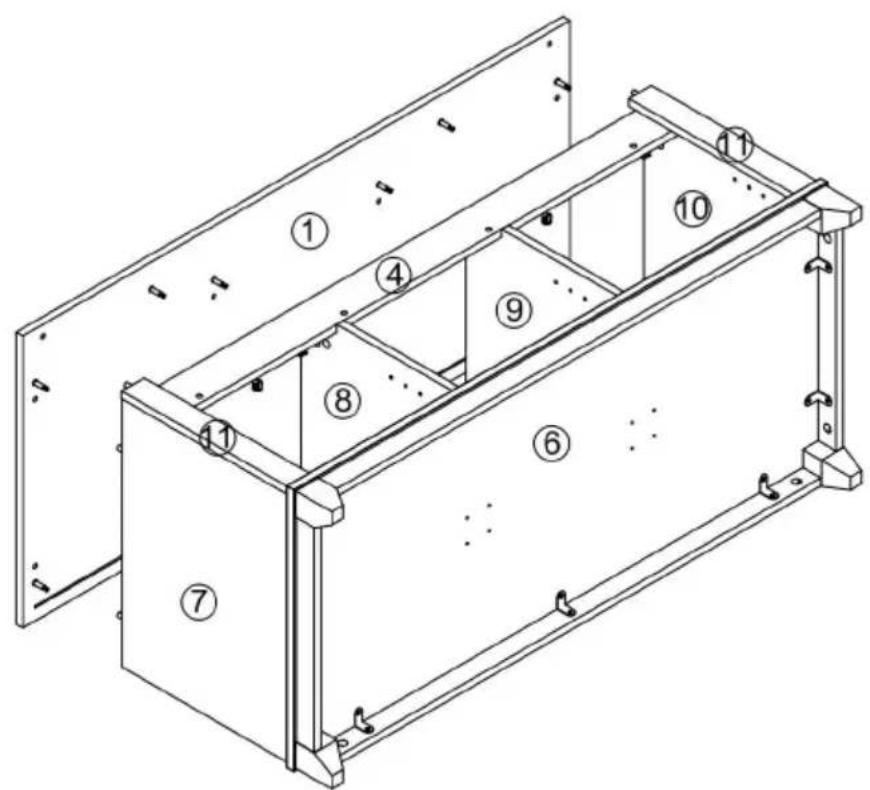

12

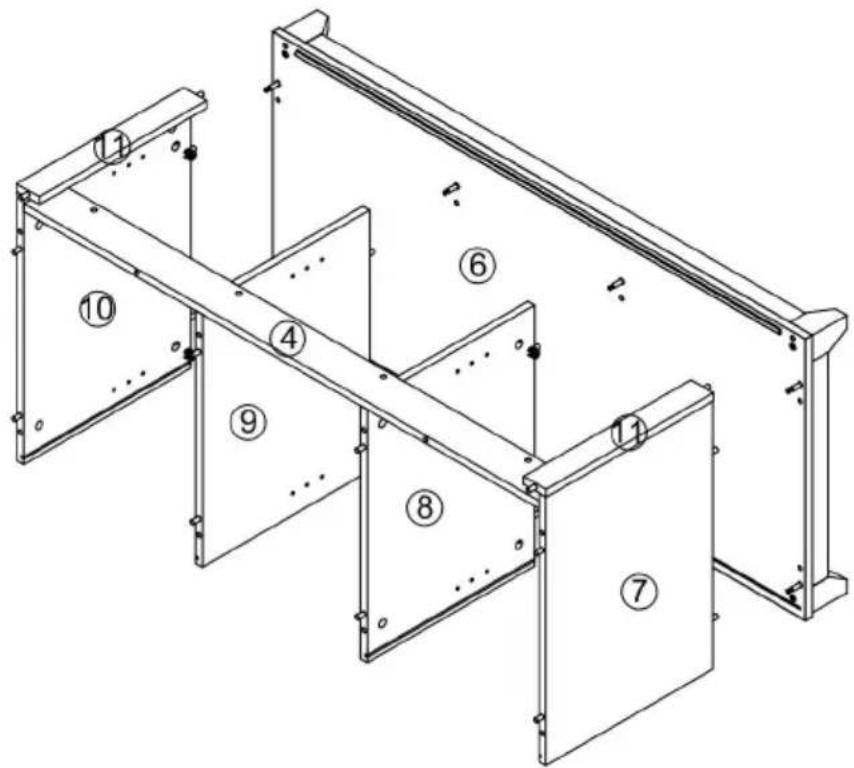

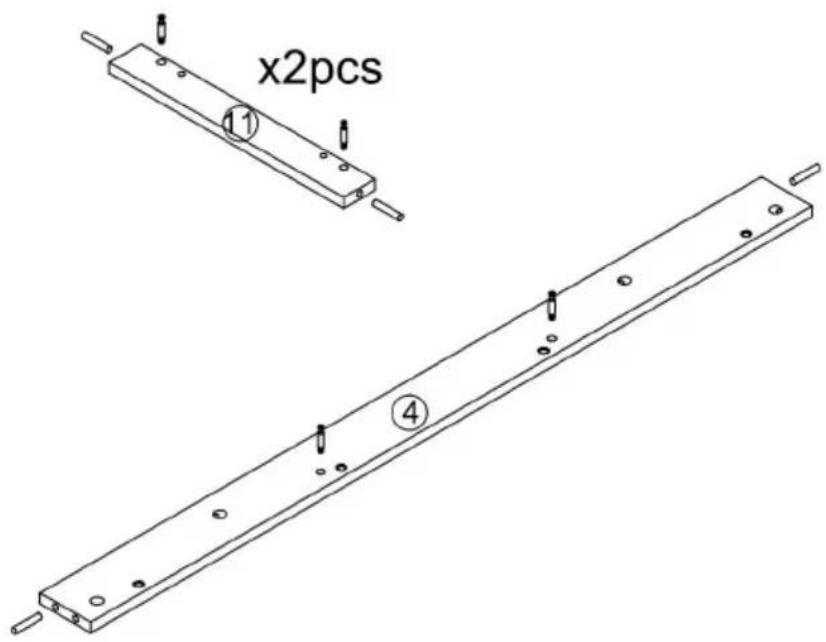

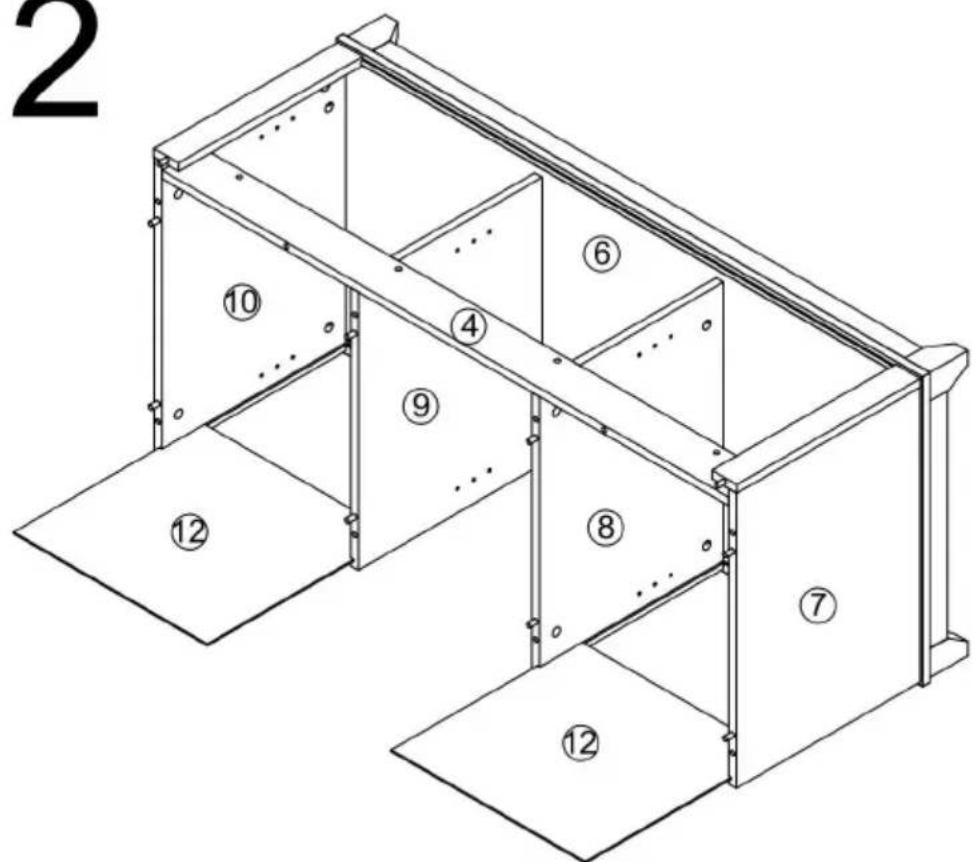

2 ⑩ ④ ⑥ ⑨ ⑧ ⑦ ⑫ ⑫

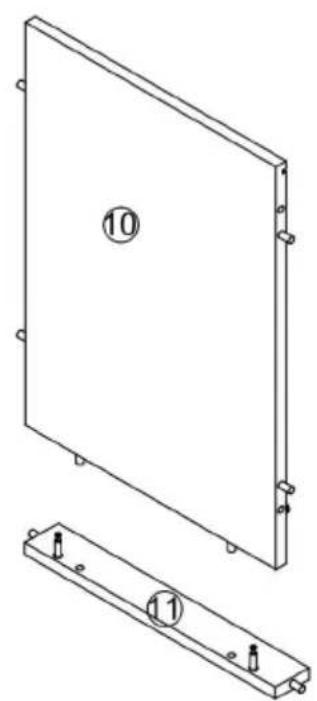

13

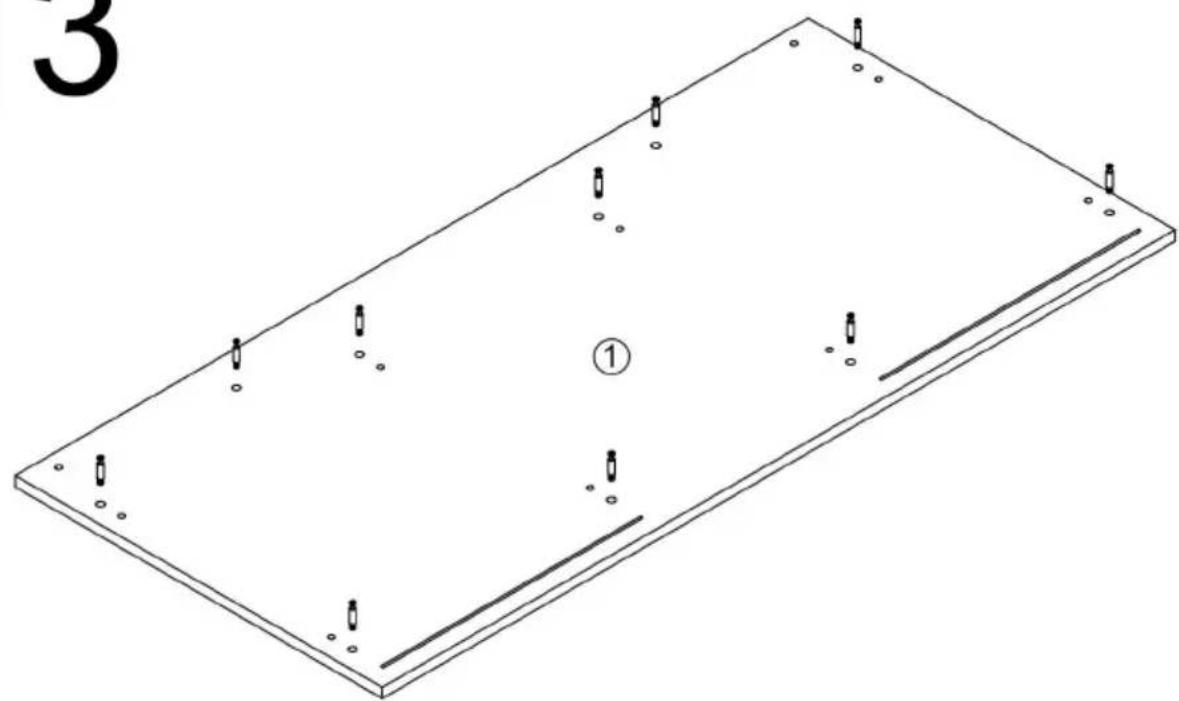

Isometric line drawing of a rectangular plate with six small cylindrical objects and mounting holes, labeled with number 3 (no text or symbols on the diagram itself)

A*10

14

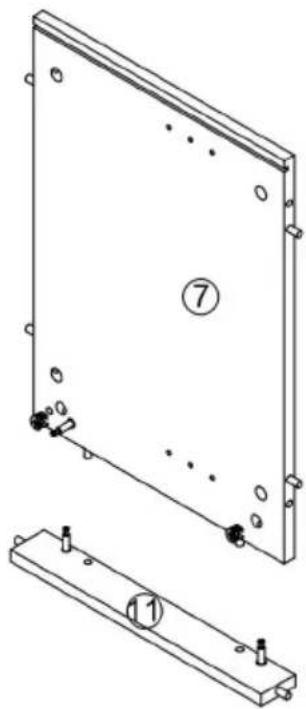

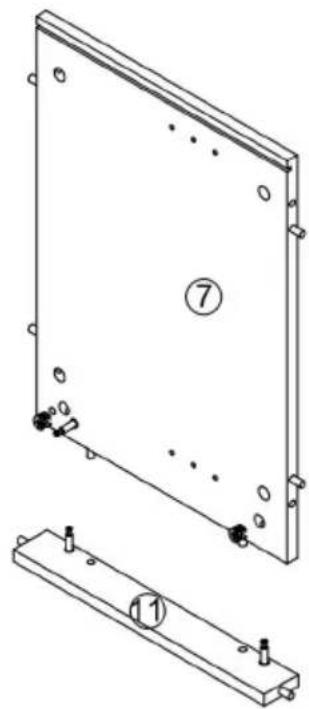

Technical diagram of a structural frame assembly with numbered components for identification

B*10

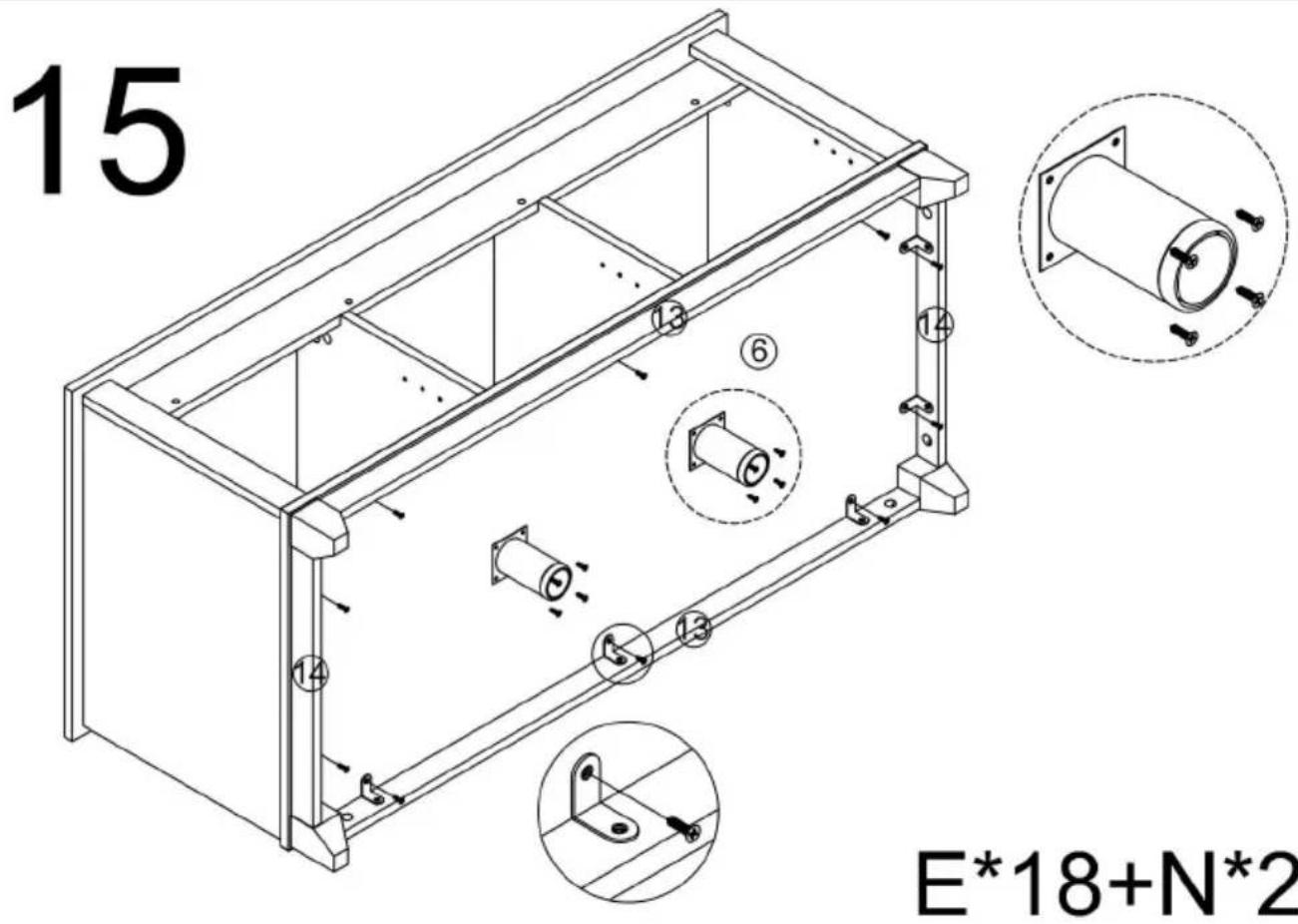

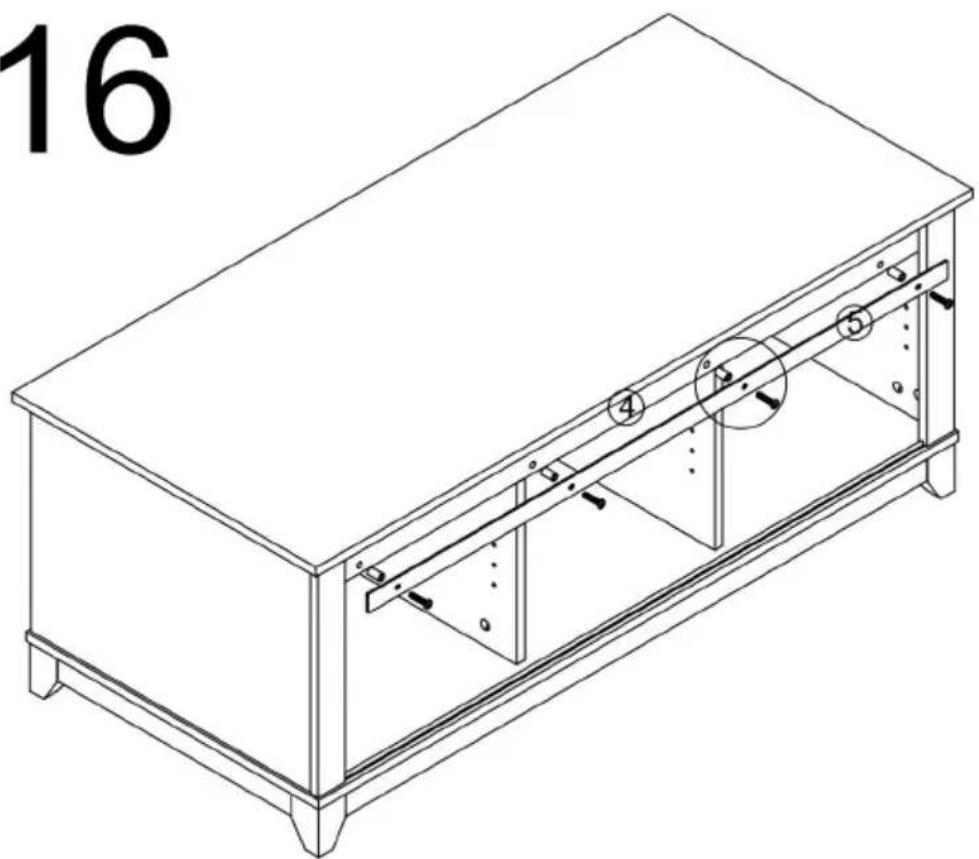

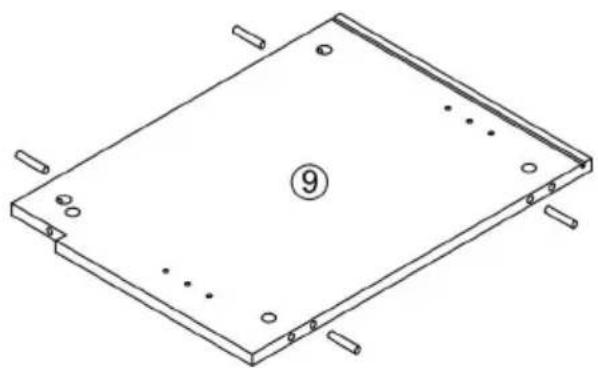

16

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

G*4

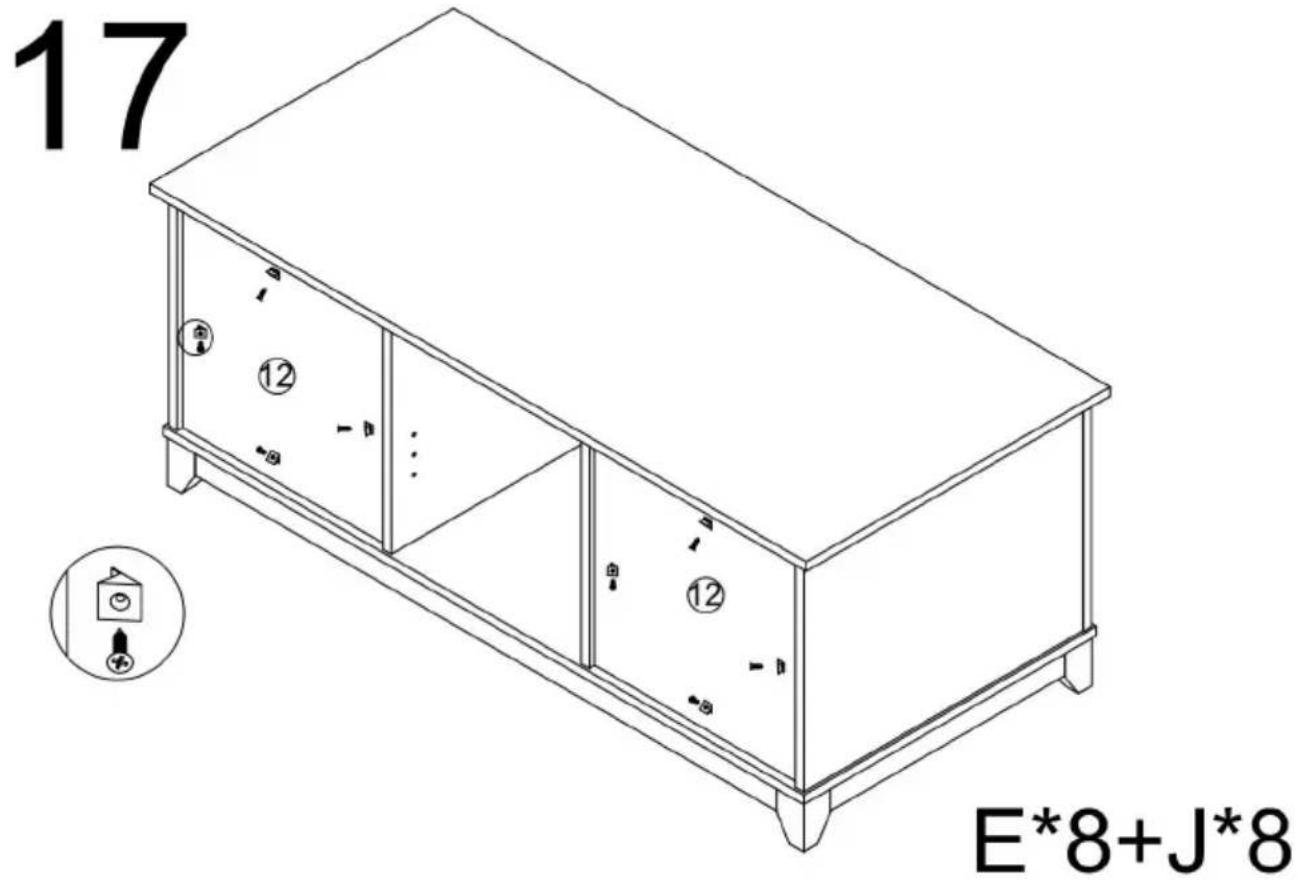

17 E*8+J*8

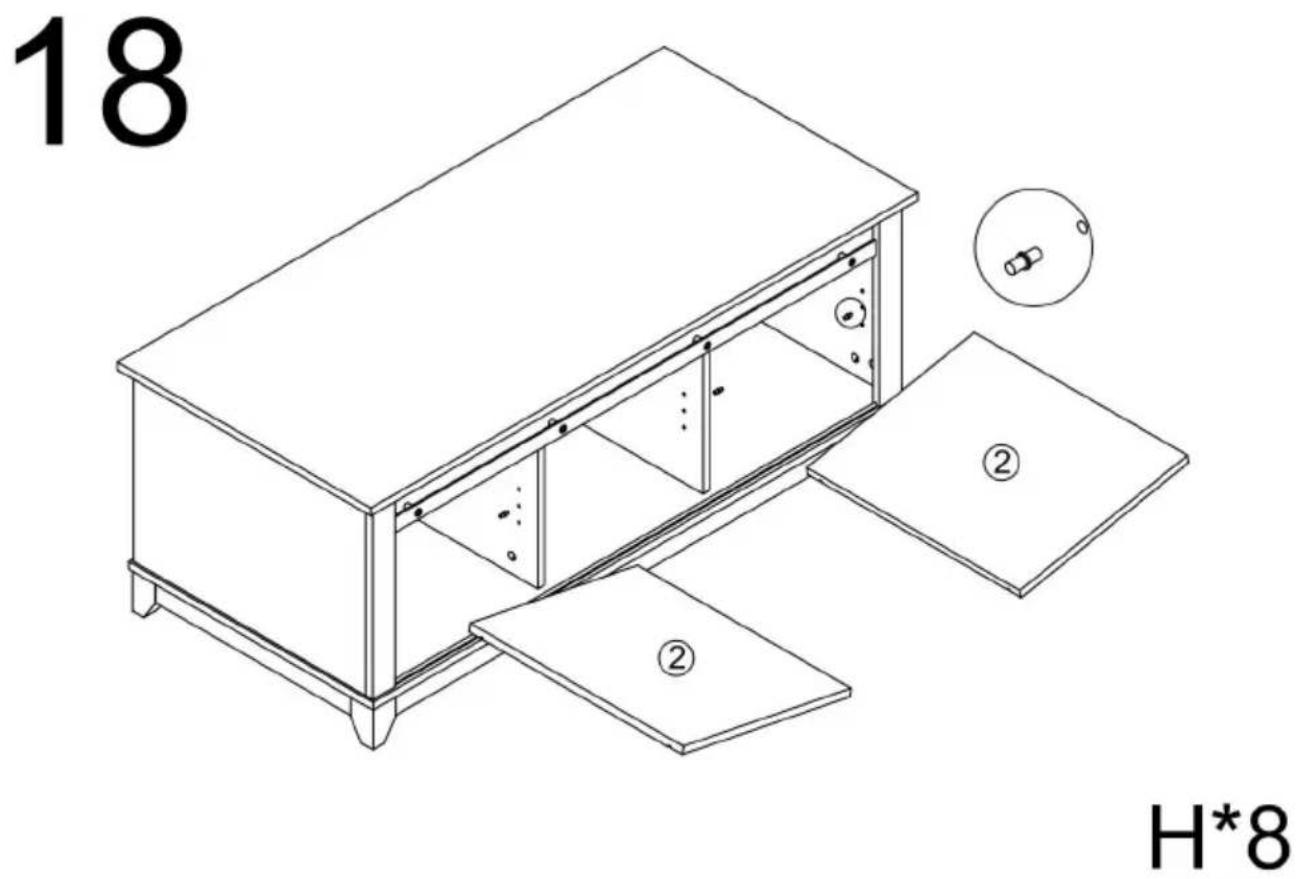

18 ② ② H*8

19

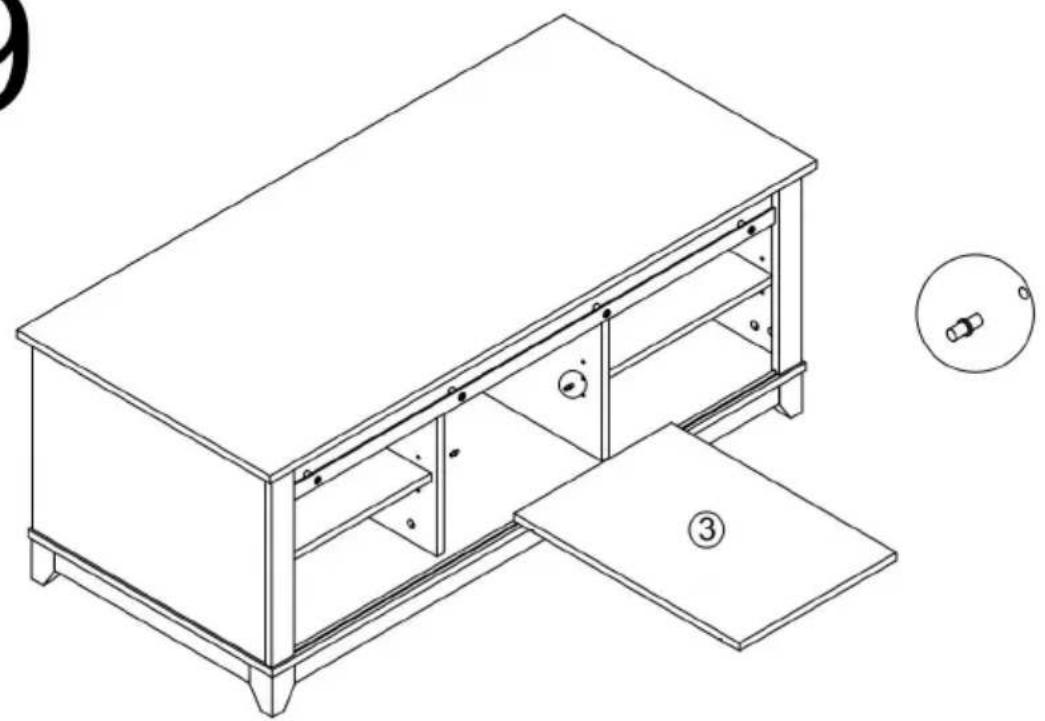

Line drawing of a coffee table with shelves, legs, and a separate open drawer (no text or symbols)

H*4

20

Technical line drawing of a rectangular electronic device with internal components and mounting feet (no text or symbols)

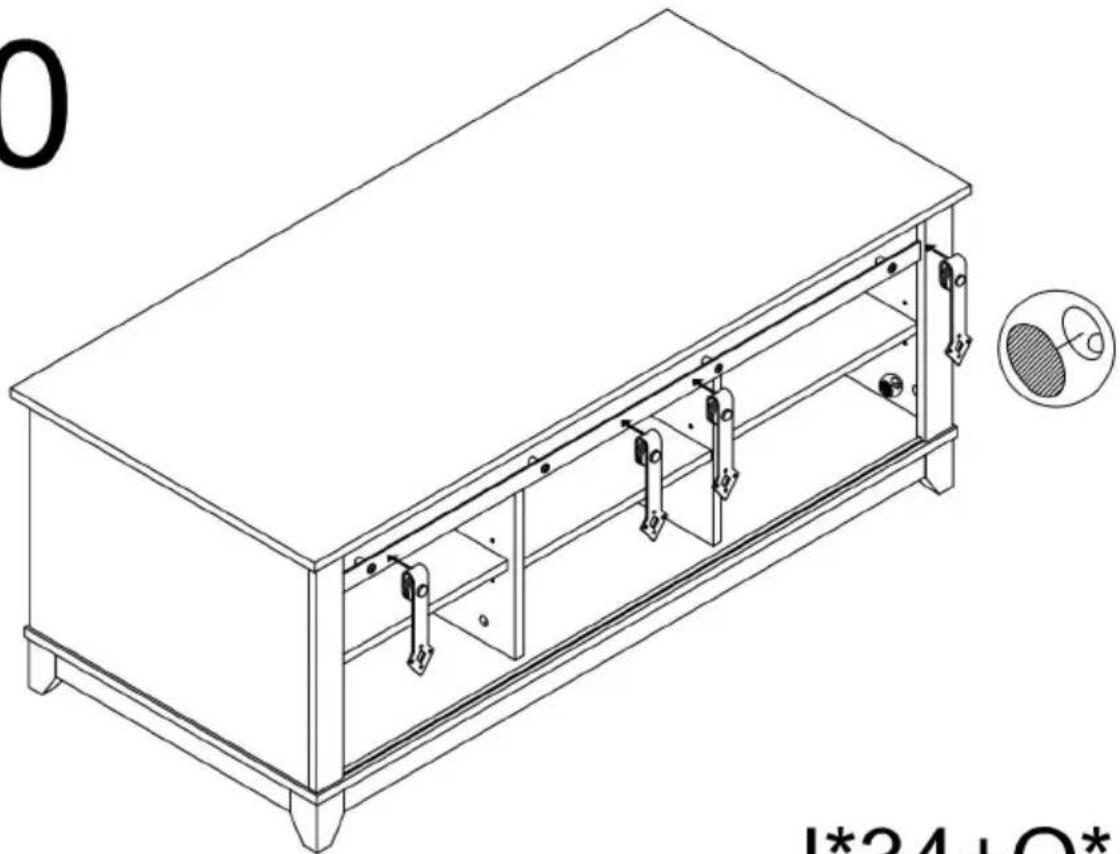

I*34+O*4

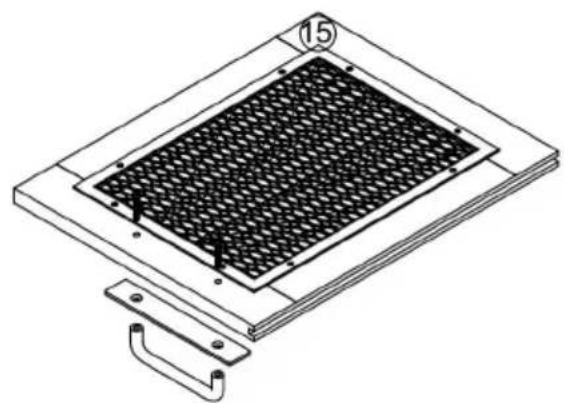

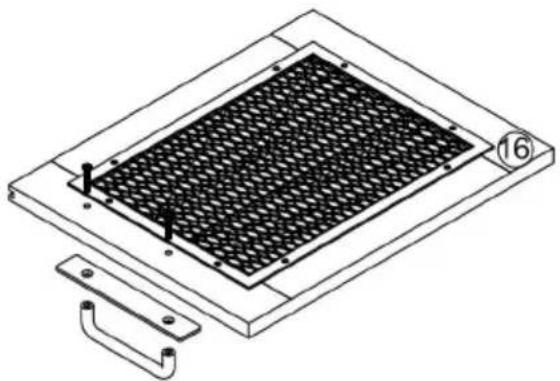

21

Diagram showing two mechanical clamping or bracketing setups with arrows indicating direction (no text or symbols)

Technical line drawing of a grid-patterned rectangular component with mounting flanges and a numbered label (15), no readable text or symbols present.

Technical line drawing of a grid-patterned rectangular component with mounting bracket and handle (no text or symbols)

L*2

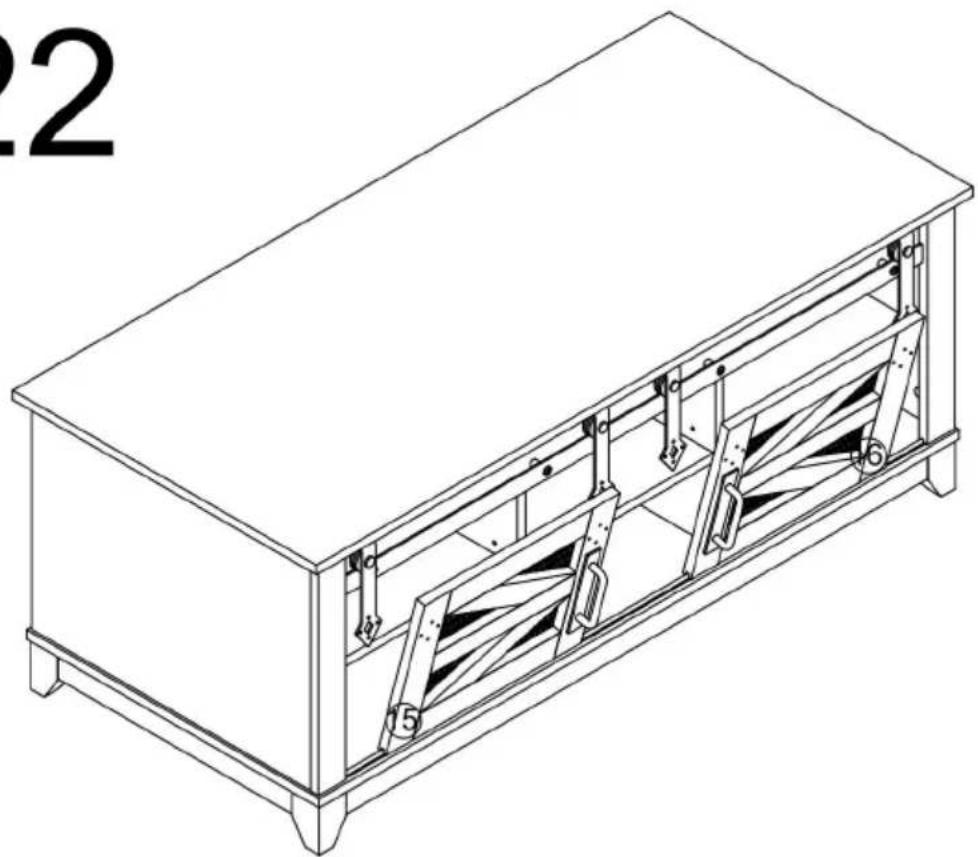

22

Isometric line drawing of a rectangular box with internal compartments and numbered components (no text or symbols)

23

Technical line drawing of a rectangular mechanical device with internal structural components and a close-up inset showing a bracket detail (no text or symbols)

F*16

24

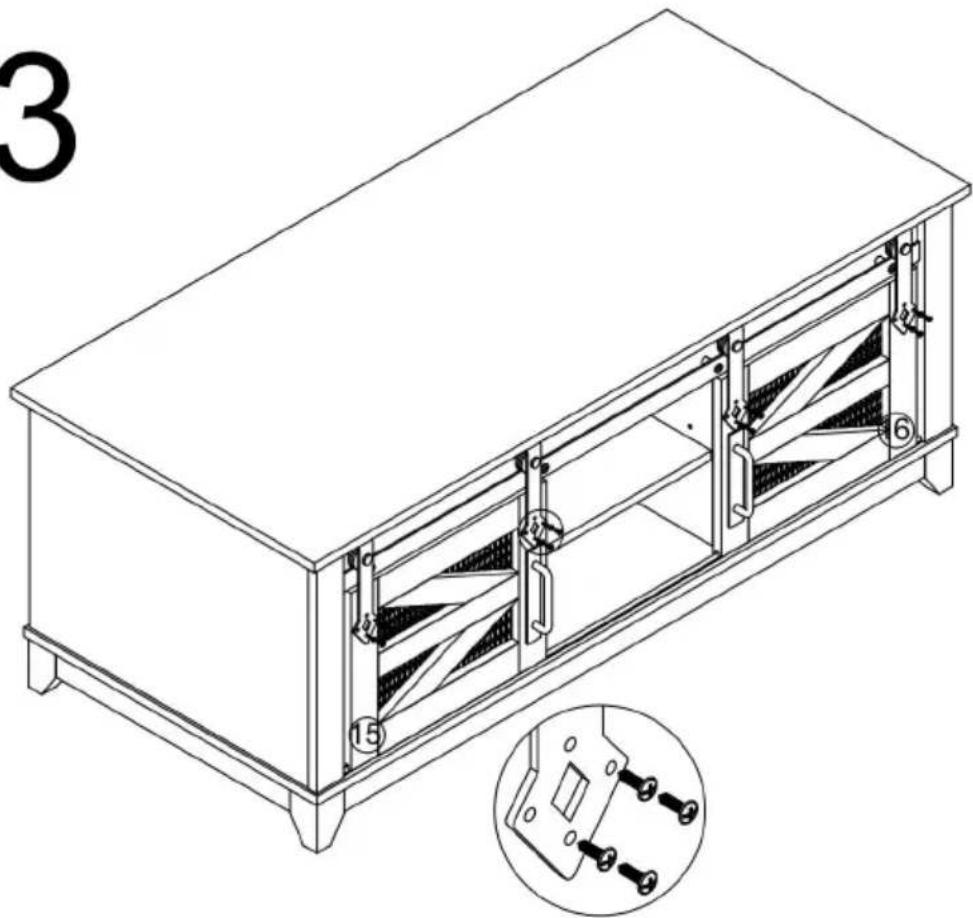

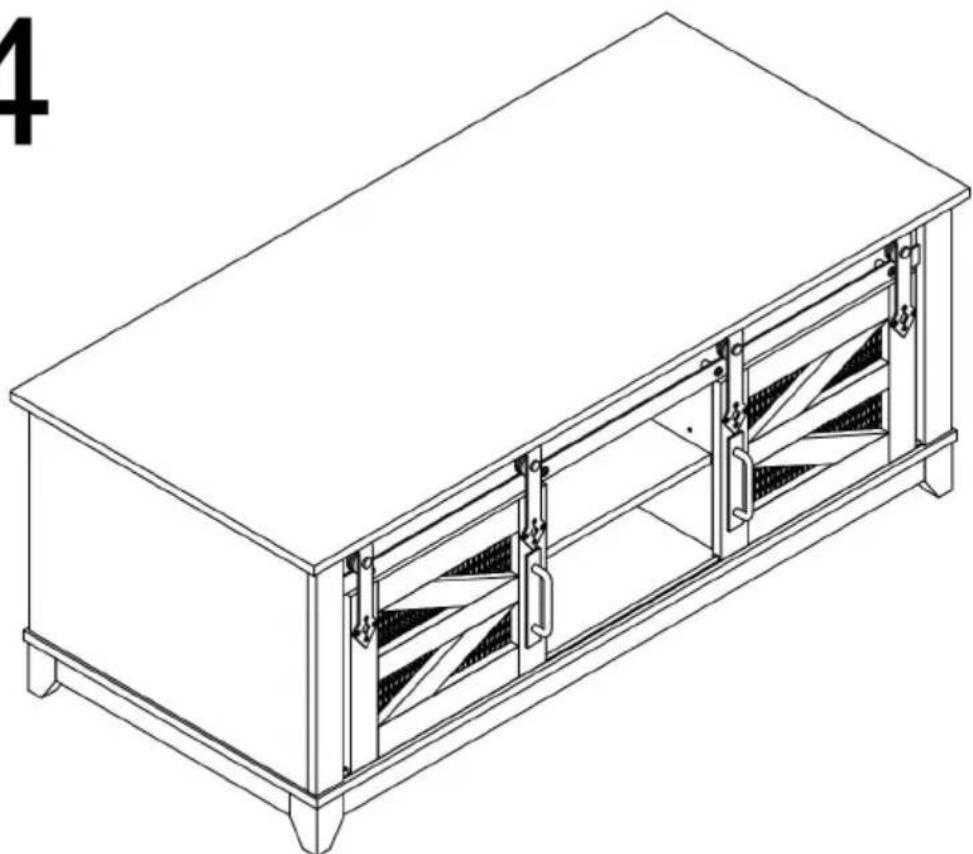

Isometric line drawing of a rectangular coffee table with slatted side panels and metal frame (no text or symbols)

PRODUCT PARAMETER

Model	KLLT-08
Safe Loading Weight	150 LBS
Colour	Wood color + White
Product Size	1210*560*481mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®
