DESK SHELF

MODEL:KLBS-04 / KLBS-05/KLBS-06

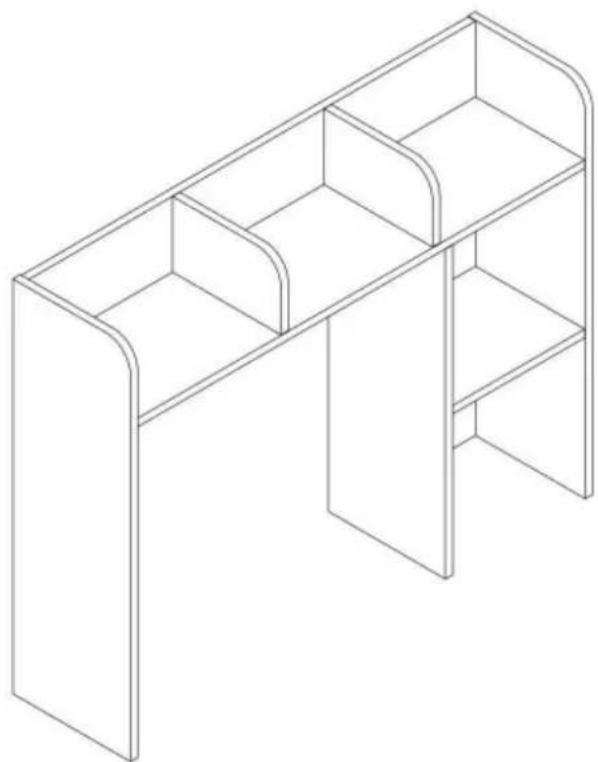

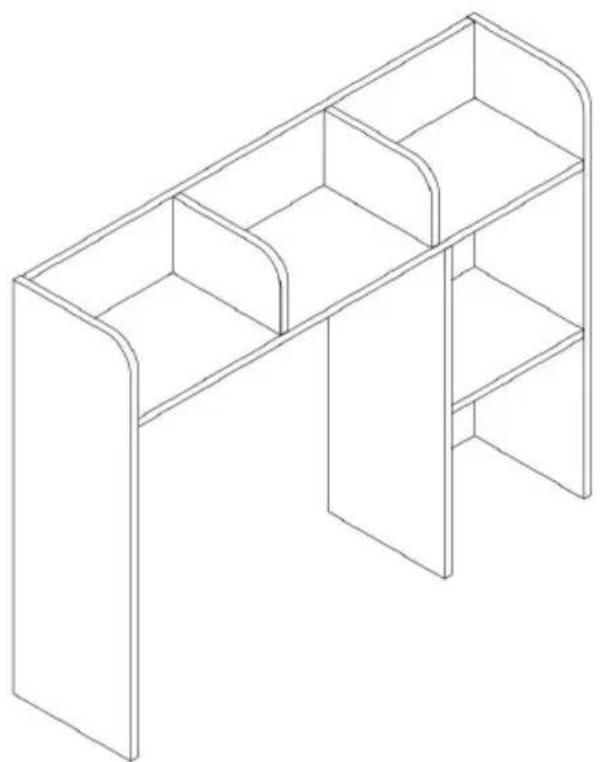

Isometric line drawing of a multi-level cabinet or shelf unit (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Desk Shelf.
8. If possible, you can use power tools to make assembly easier.
9. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. Do not exceed specified weight capacities.
2. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Desk Shelf.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

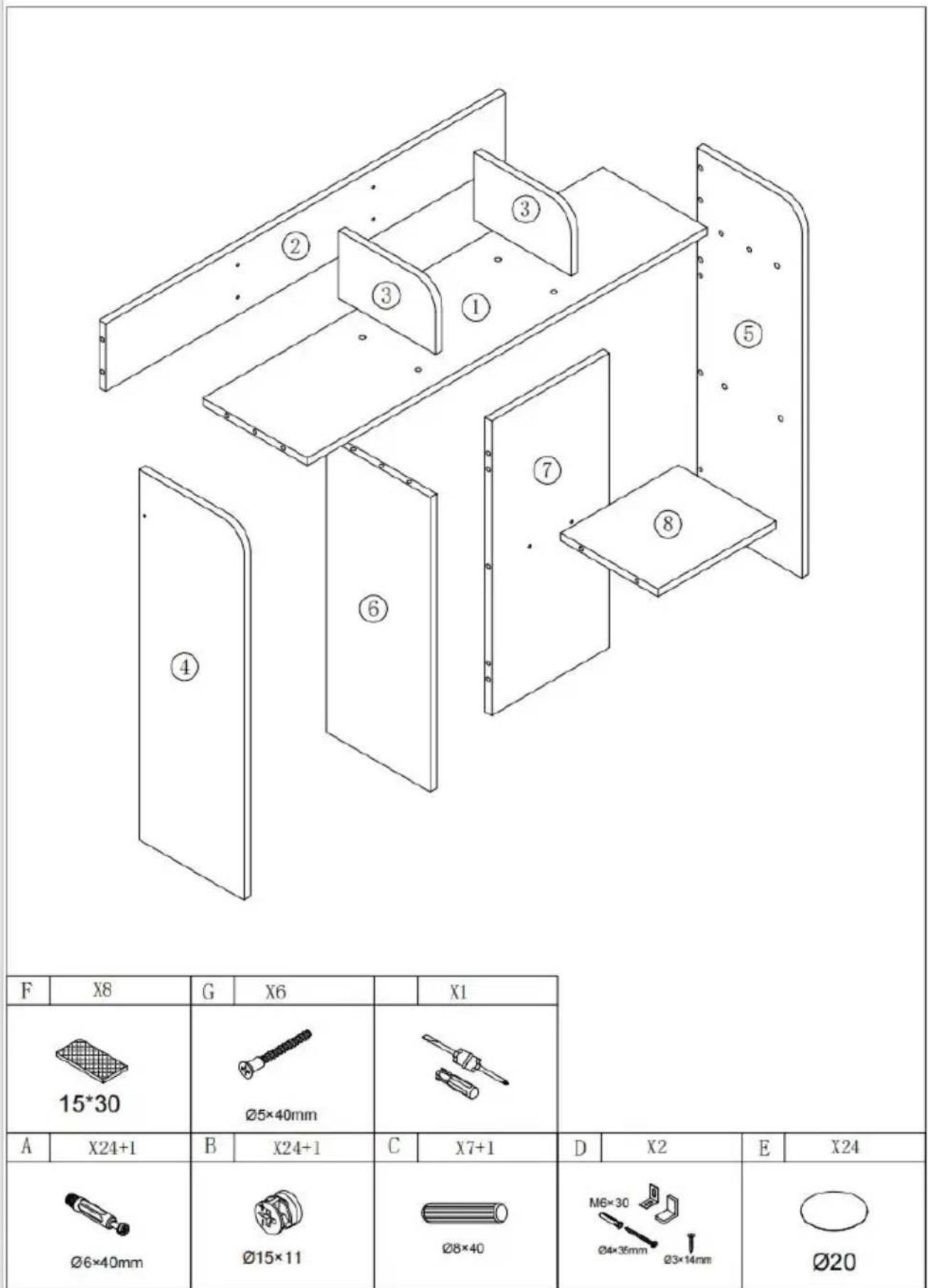

F X8 G X6 X1 15*30 Ø5×40mm A X24+1 B X24+1 C X7+1 D X2 E X24 Ø6×40mm Ø15×11 Ø8×40 M6×30 Ø4×35mm Ø3×14mm Ø20

ASSEMBLY STEP

1

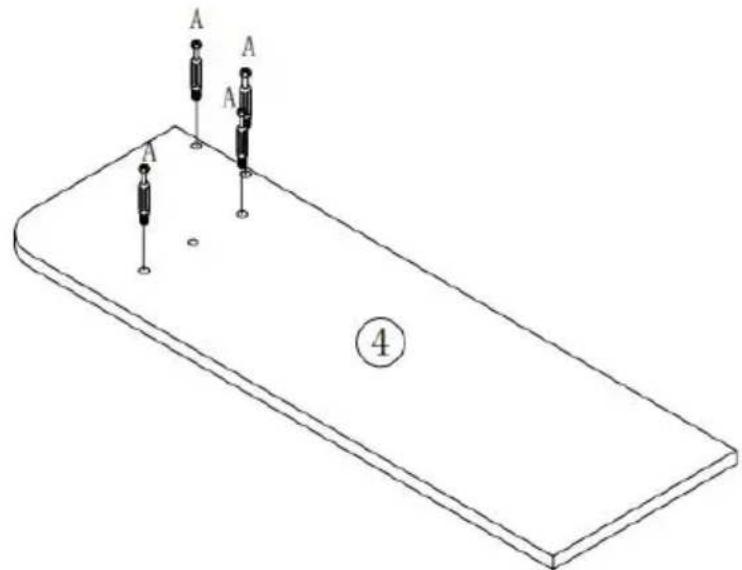

Isometric diagram of a rectangular plate with three vertical supports labeled A and a numbered circle (no text or symbols on the plate itself)

A X4 Ø6×40mm

2

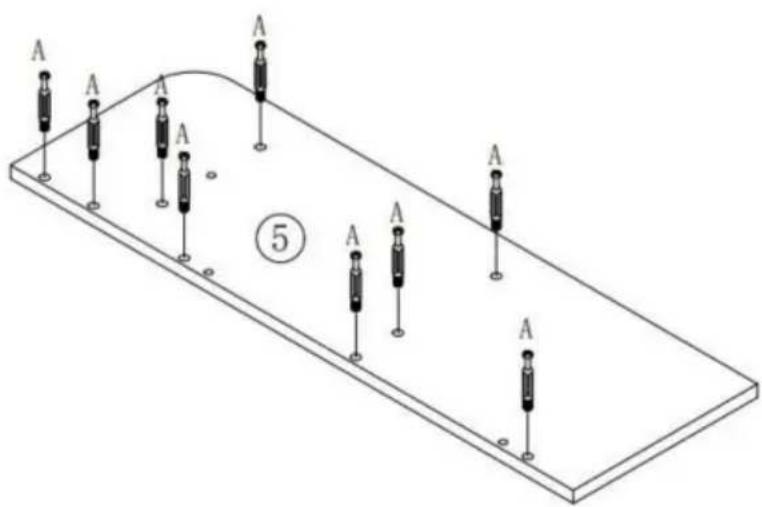

Isometric diagram of a rectangular plate with multiple vertical cylindrical sensors labeled 'A', no text or symbols present.

Λ X9 Ø6×40mm

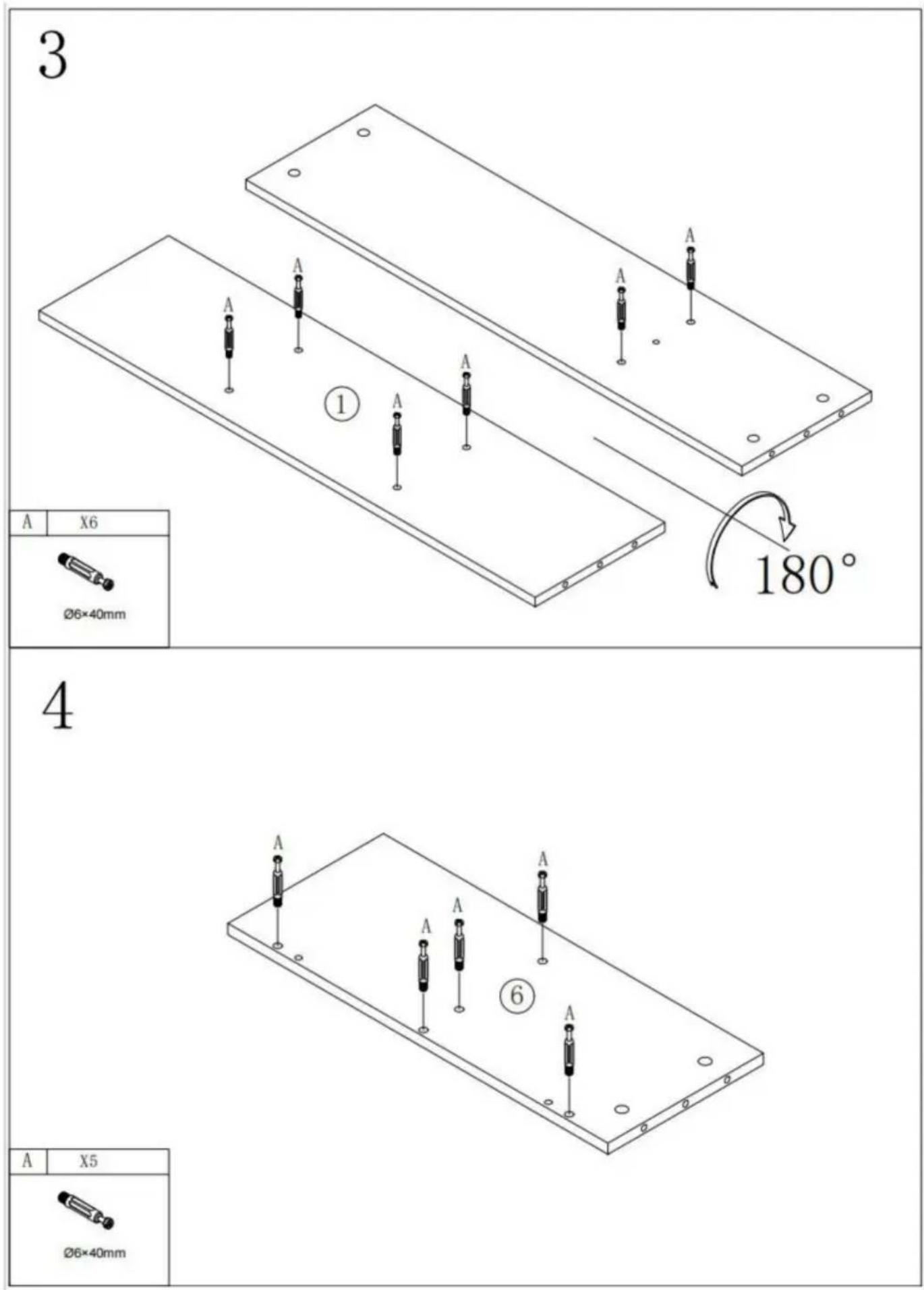

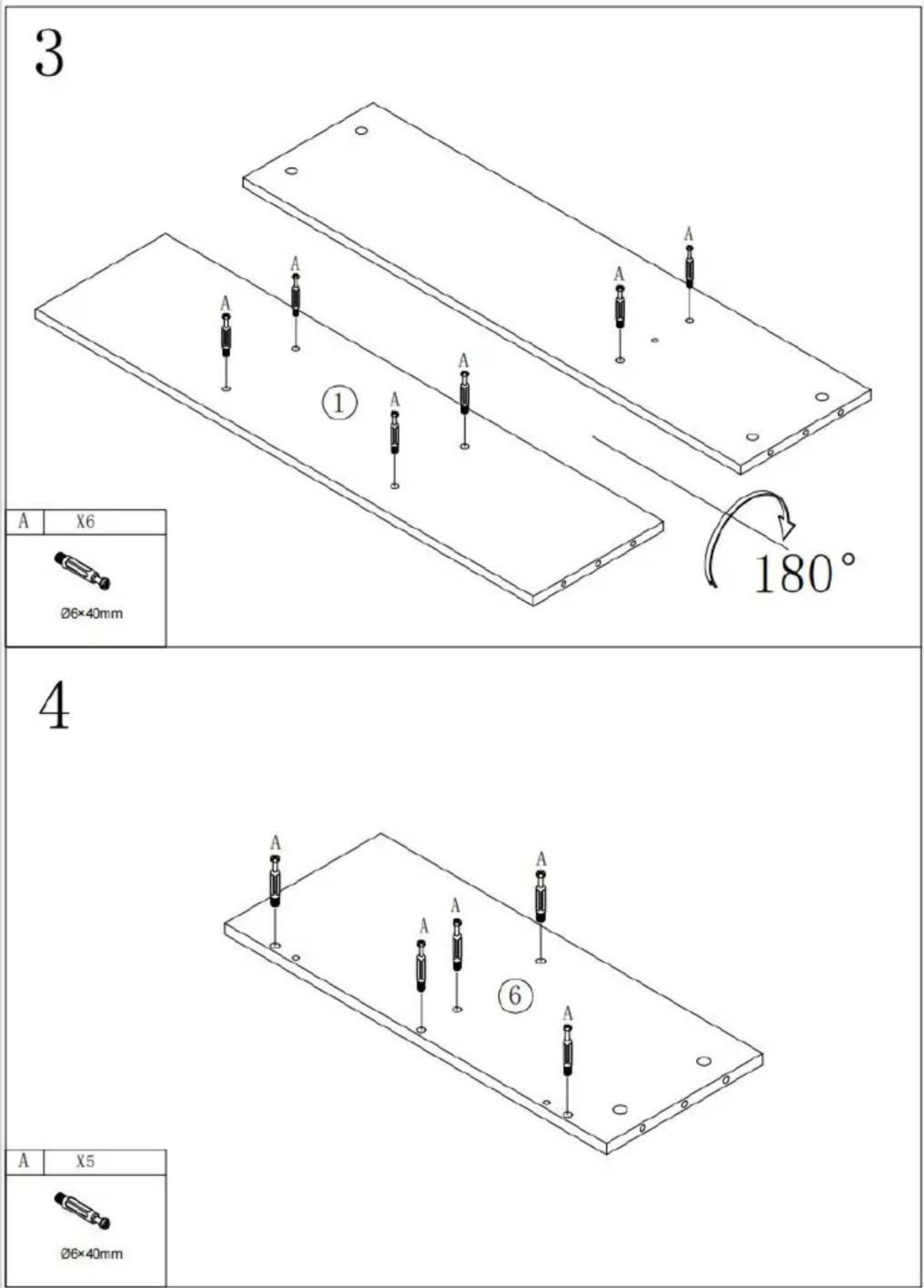

3 A X6 Ø6×40mm ① A A A A 180° 4 A X5 Ø6×40mm ⑥ A X5

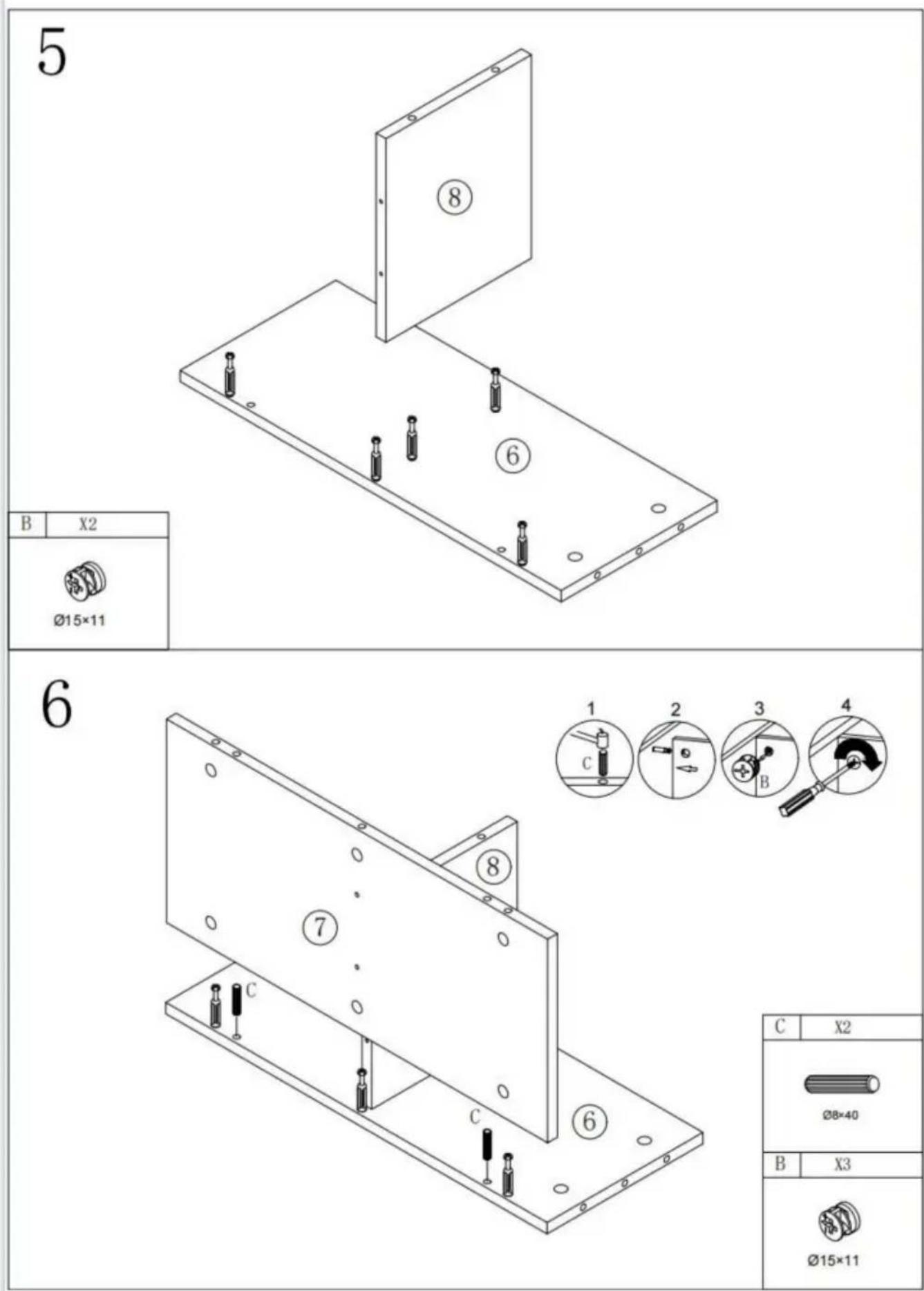

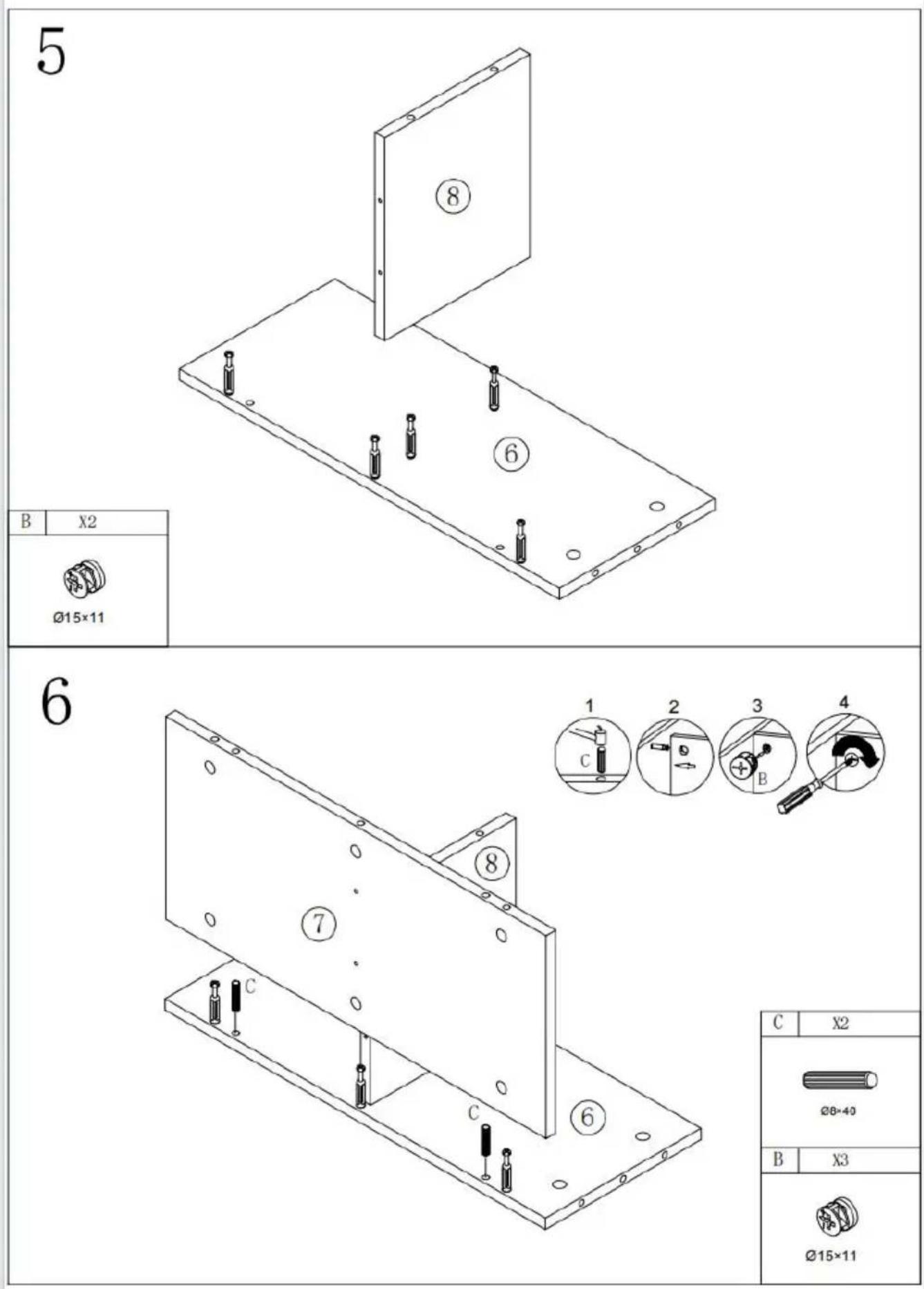

5 B X2 Ø15×11 6 C X2 Ø8-40 B X3 Ø15×11

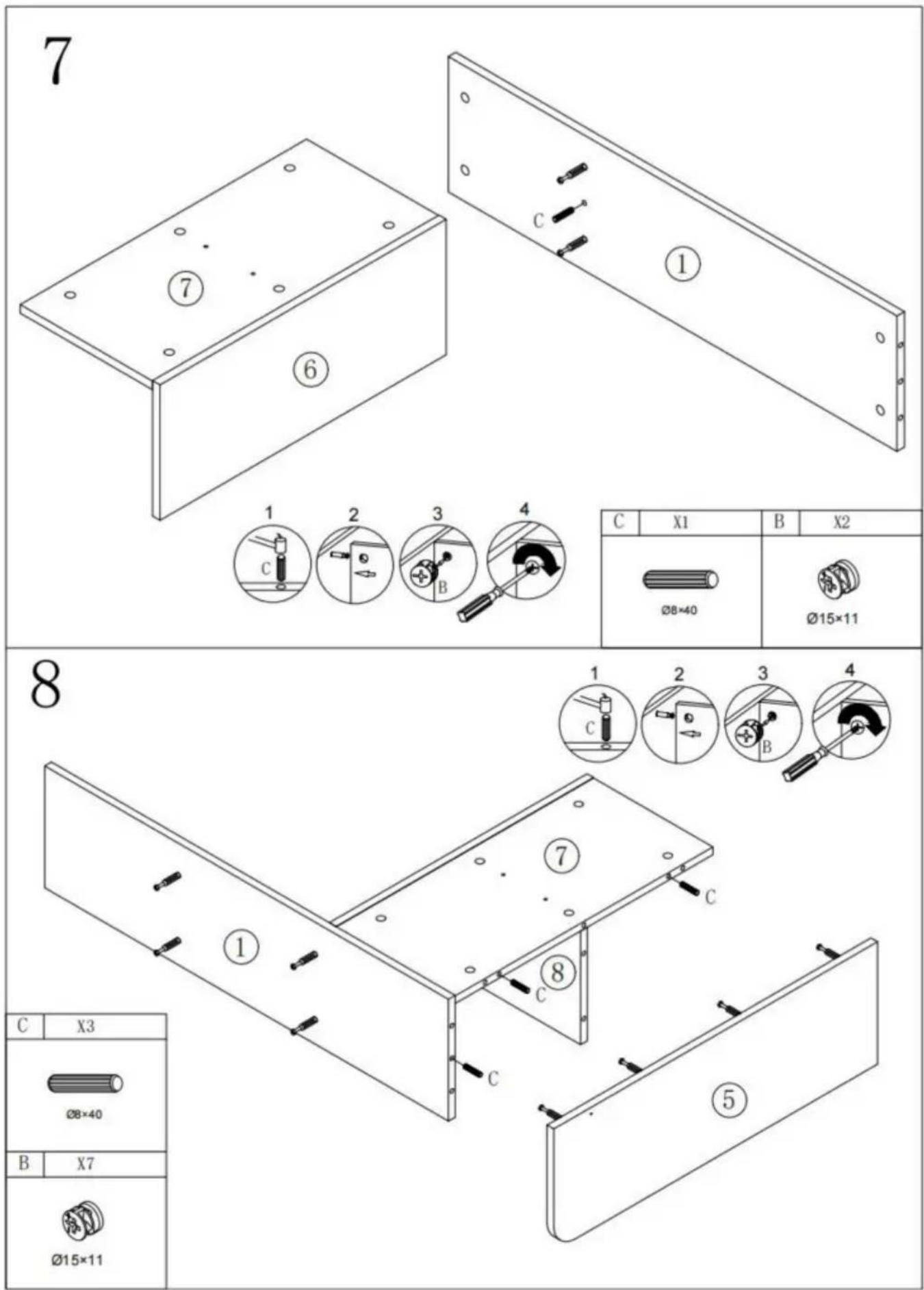

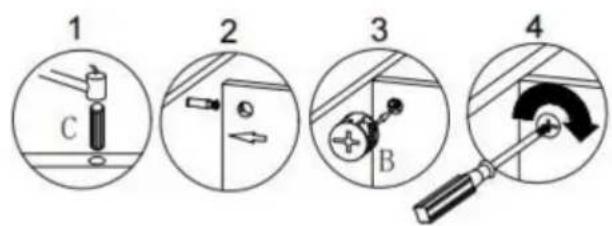

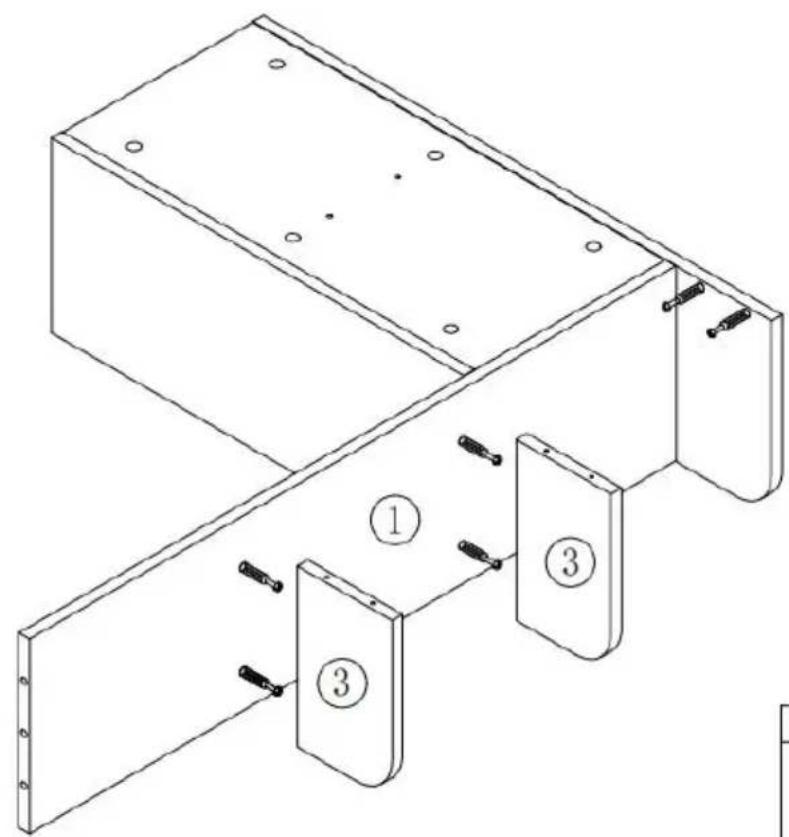

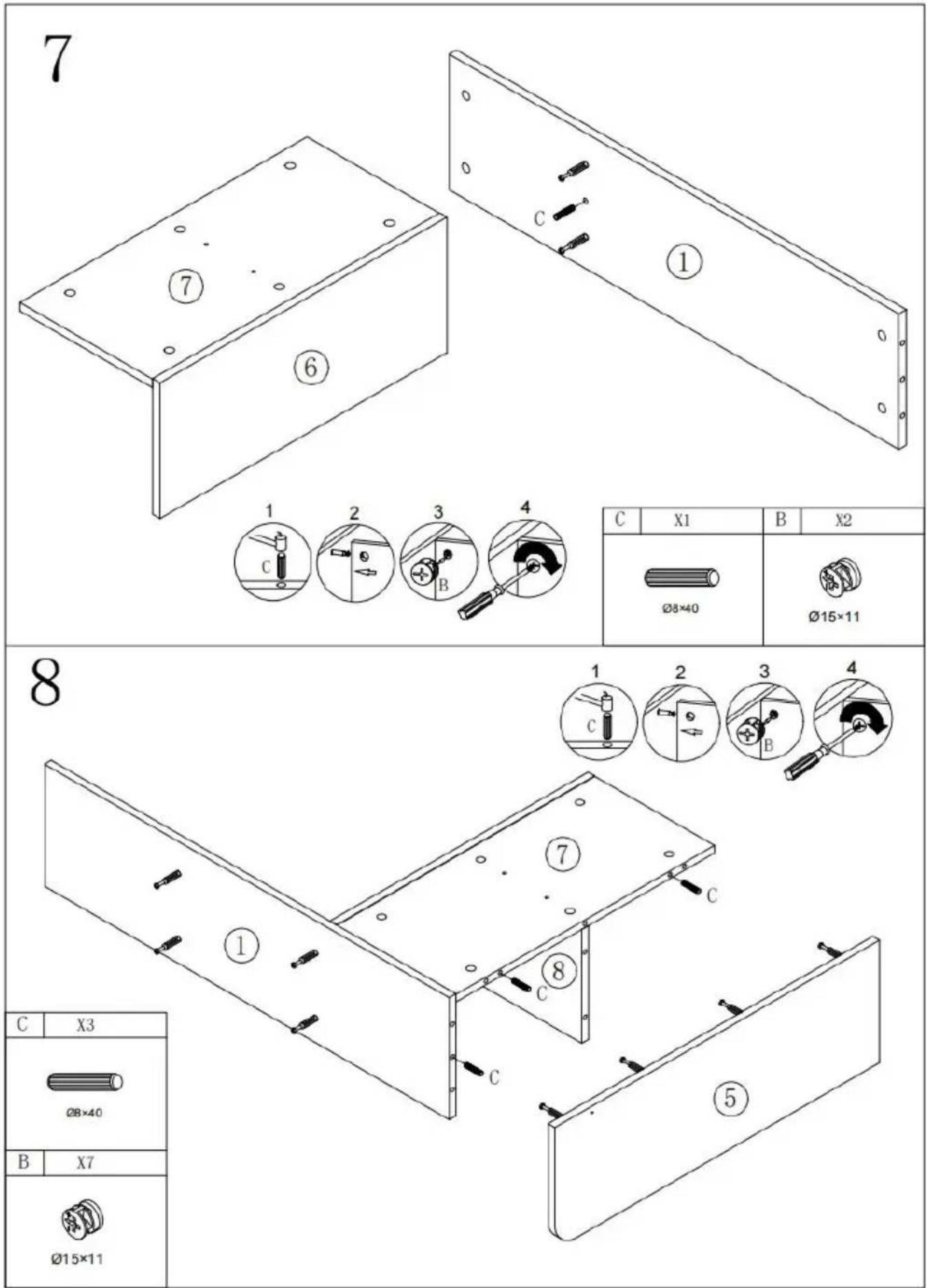

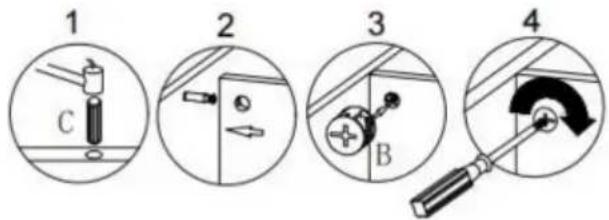

7 ⑦ ⑥ C ① 1 2 3 4 C X1 B X2 Ø8×40 Ø15×11 8 ① ② ③ ④ C X3 Ø8×40 B X7 Ø15×11 ⑤ C ⑦ ⑧

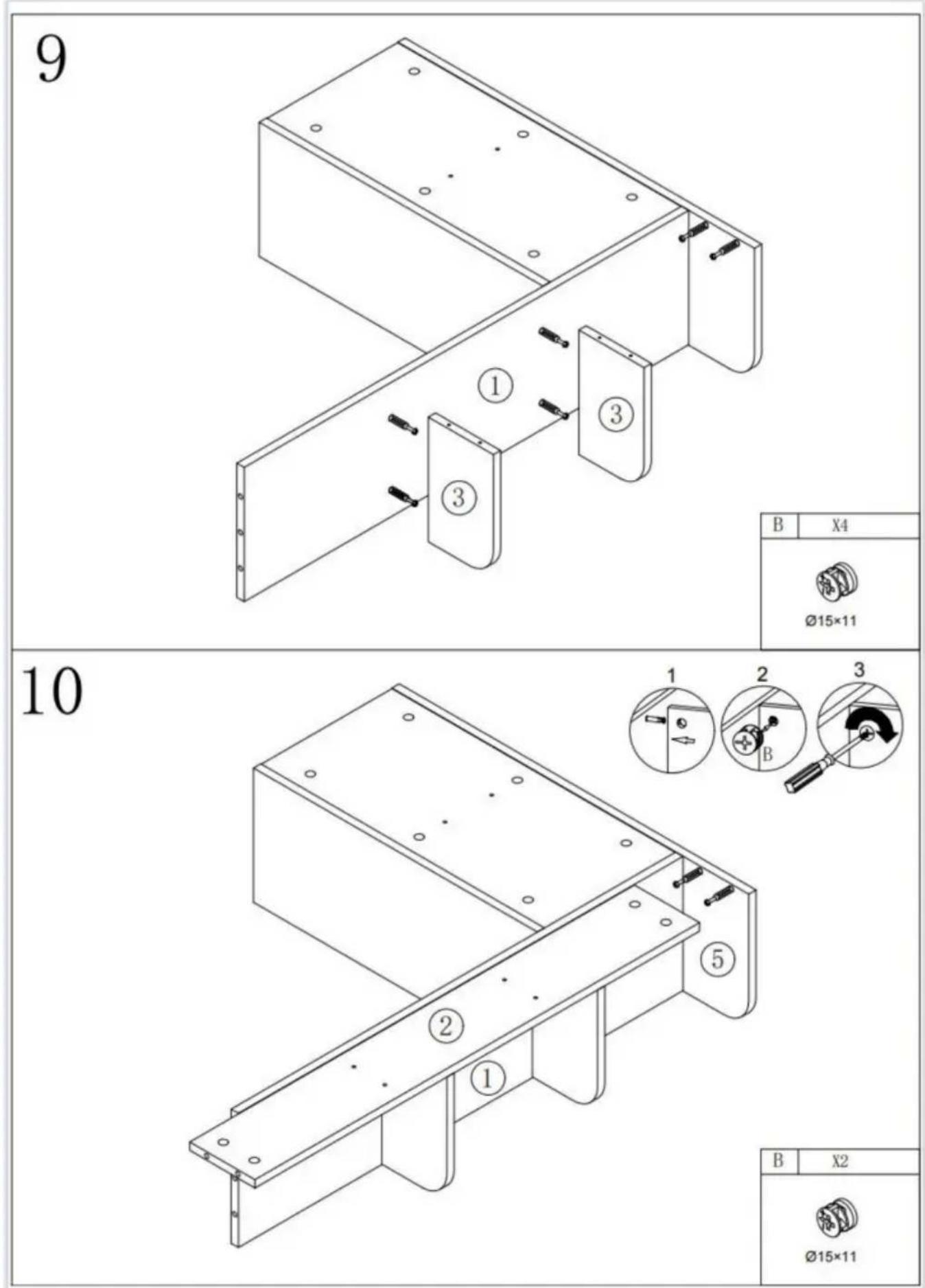

9

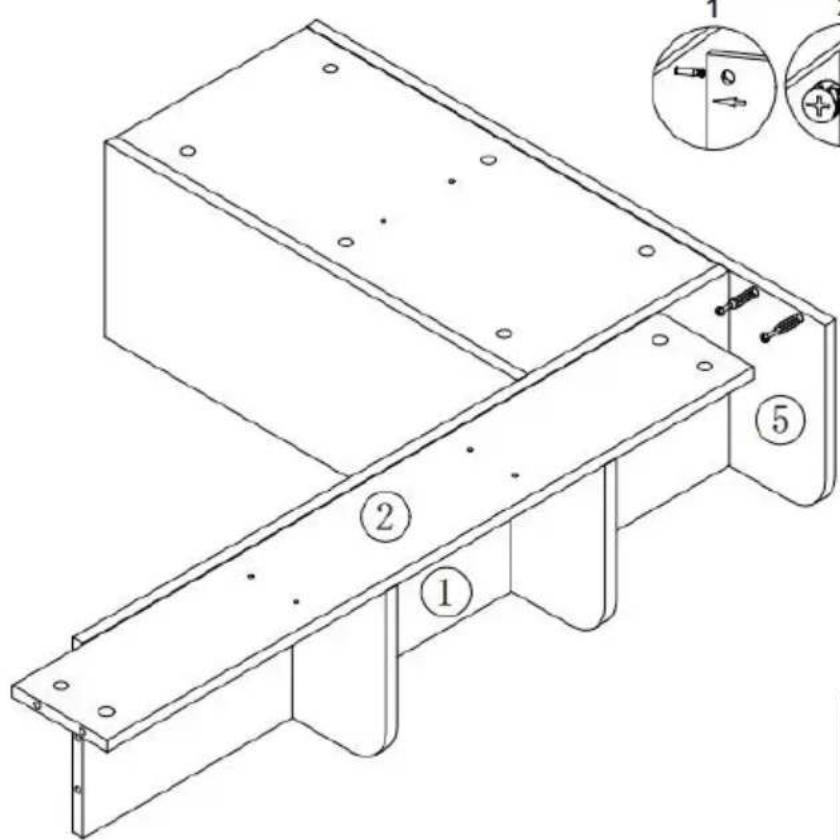

Technical diagram of a structural assembly with labeled components 1, 2, and 3

B	X4

∅15×11

10

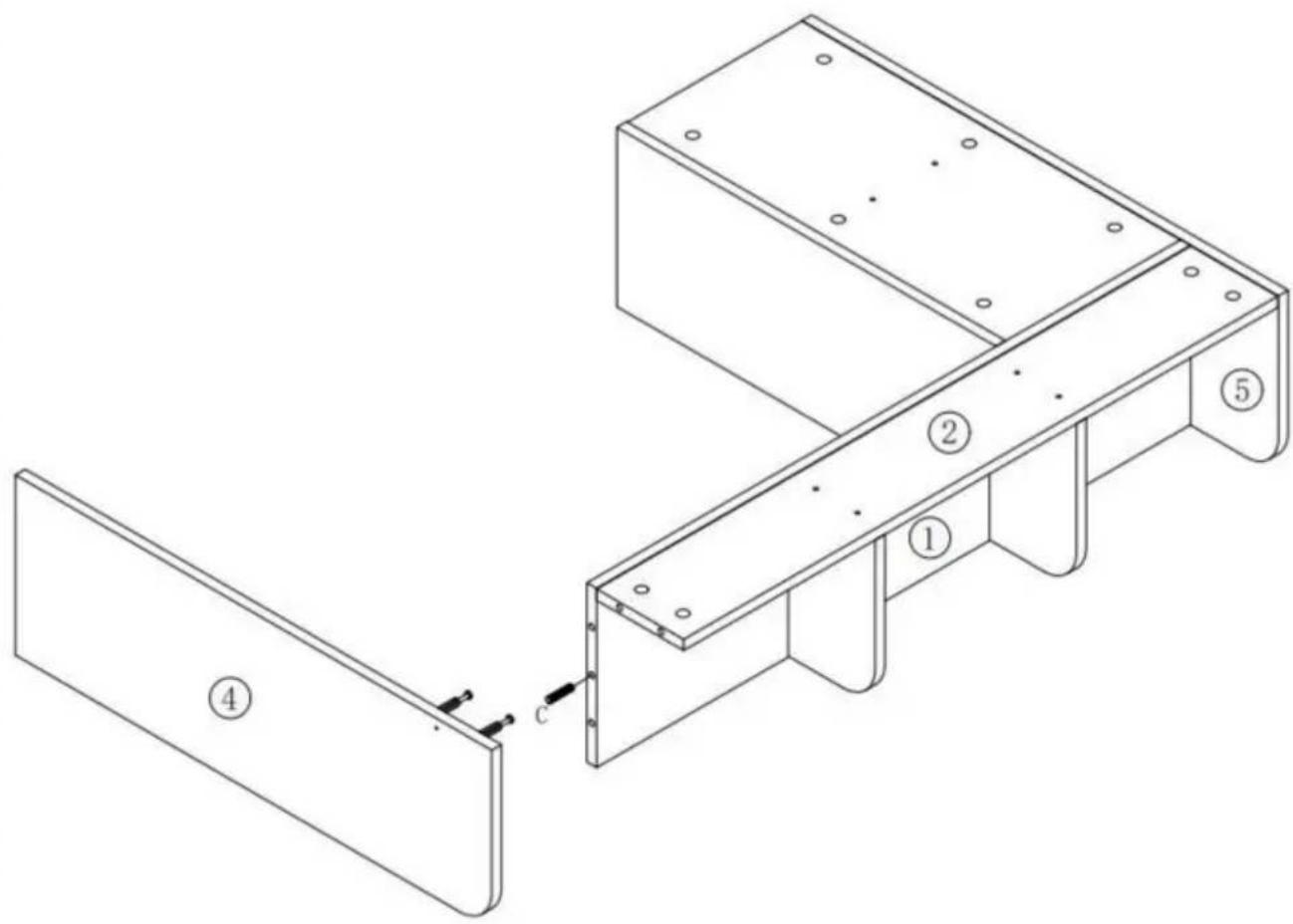

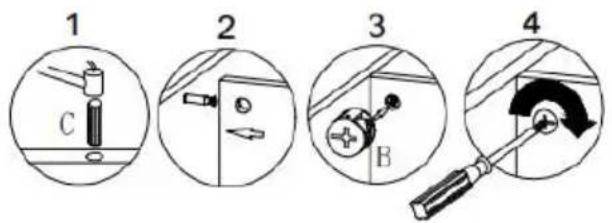

Technical diagram of a metal bracket assembly with numbered components and close-up insets showing tool positioning.

B	X2

∅15×11

11

1 2 3 4 C B

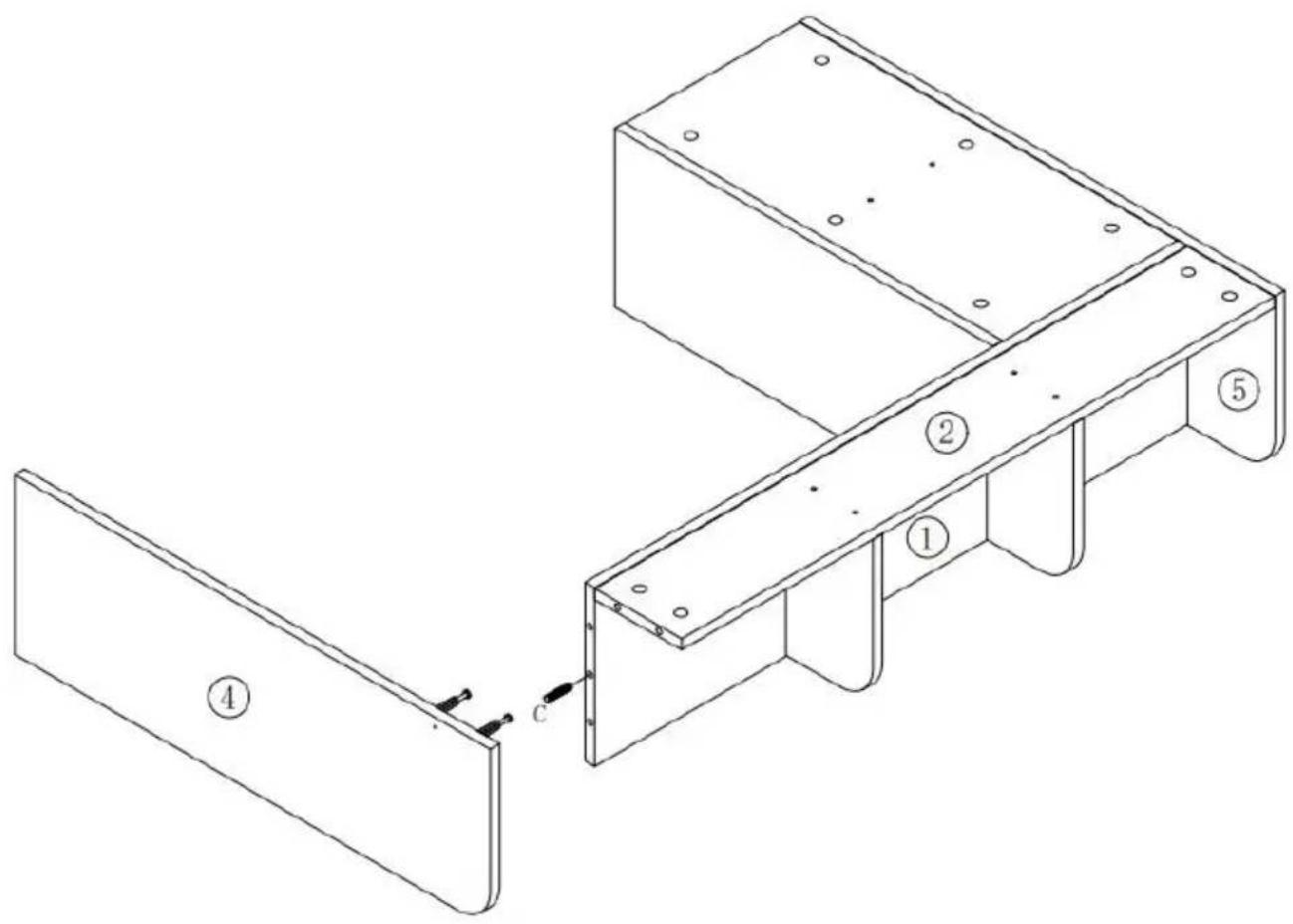

Technical diagram of a structural assembly with numbered components and connection point labeled 'c'

C | X1 Ø8=40 B | X4 Ø 15×11

12

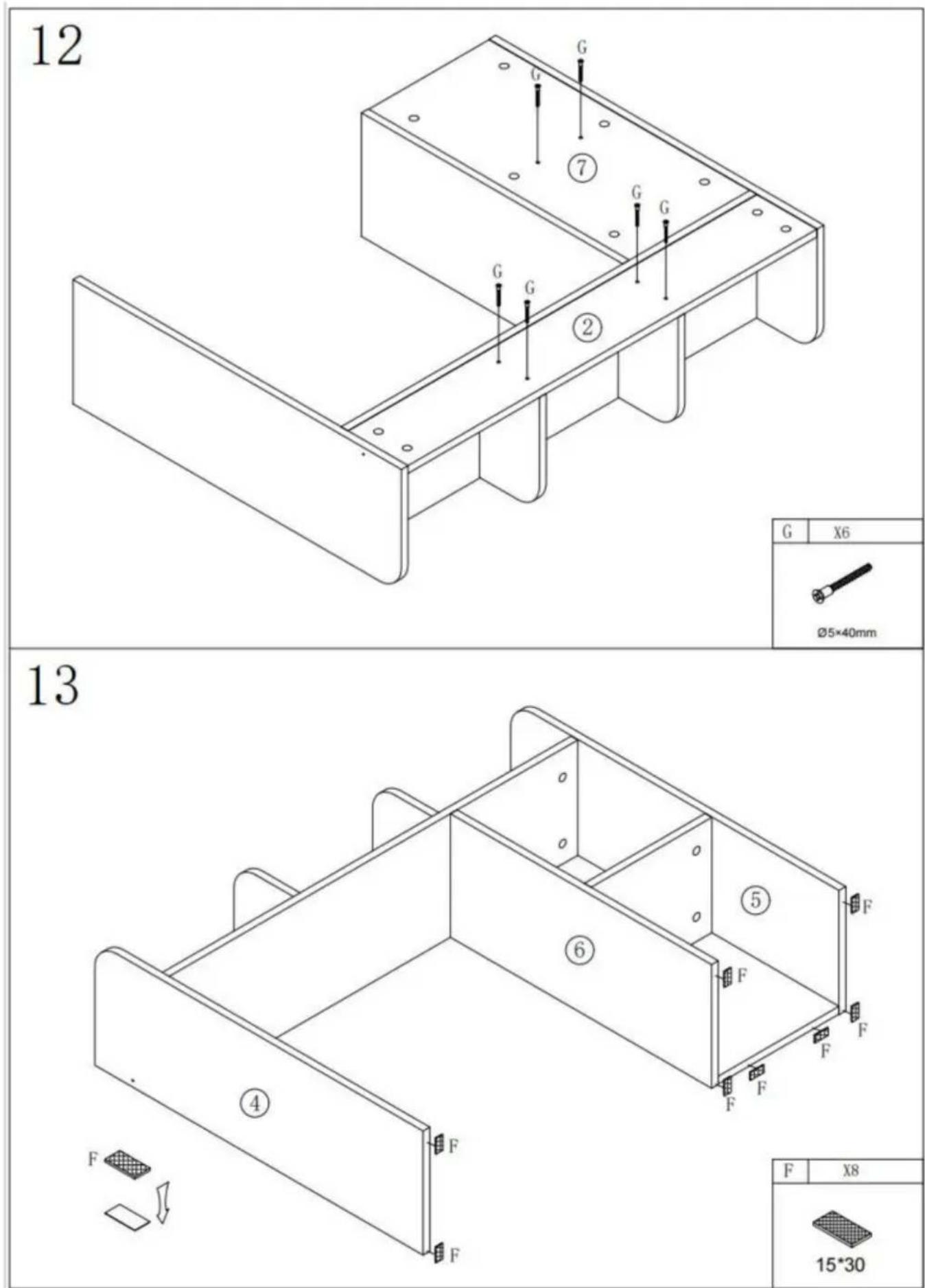

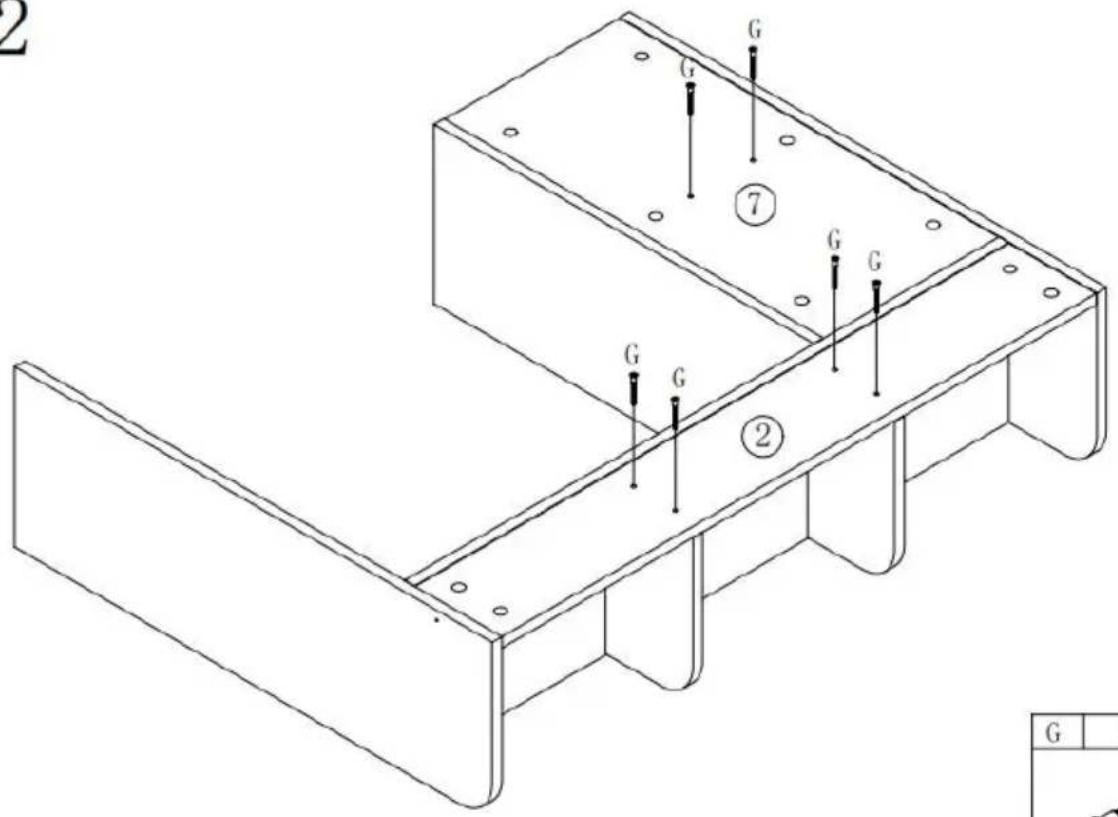

2 G G G ⑦ G G G G ② G

G X6 Ø5×40mm

13

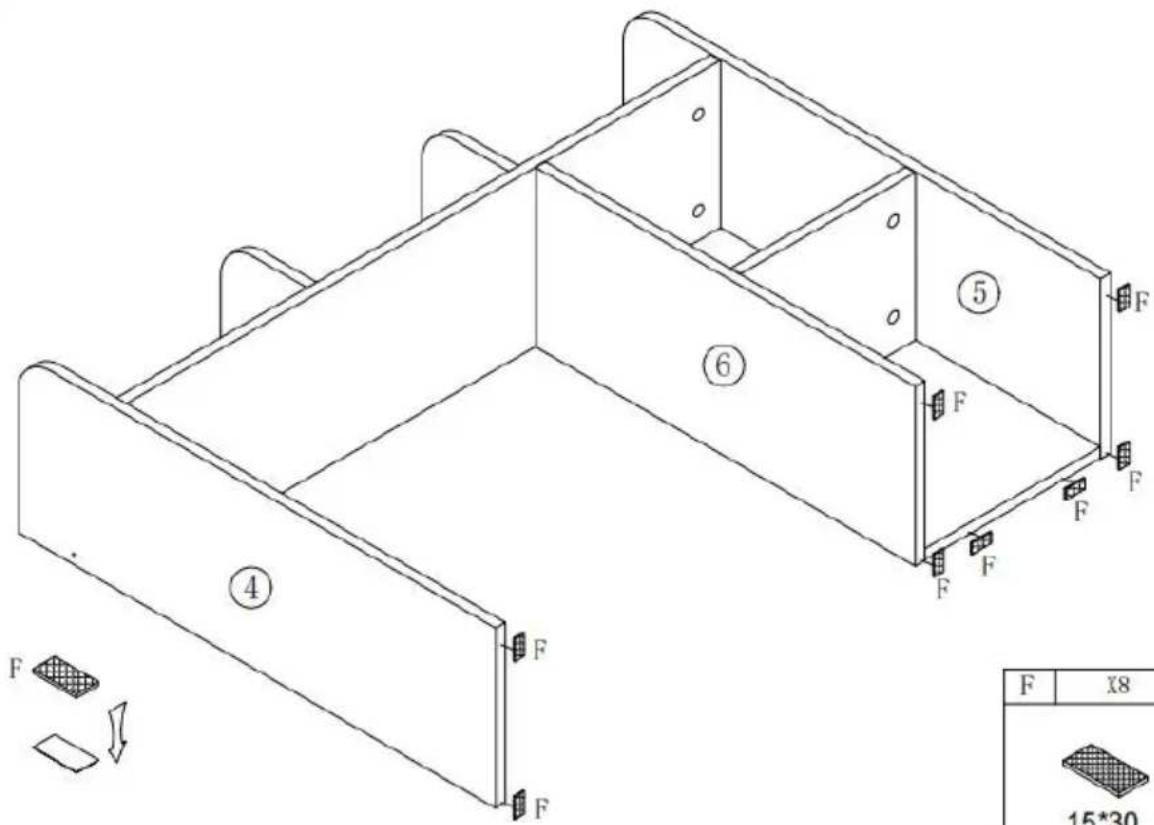

④ ⑥ ⑤ F F F F F F F F F F F F F X8 15*30

F X8 15*30

14

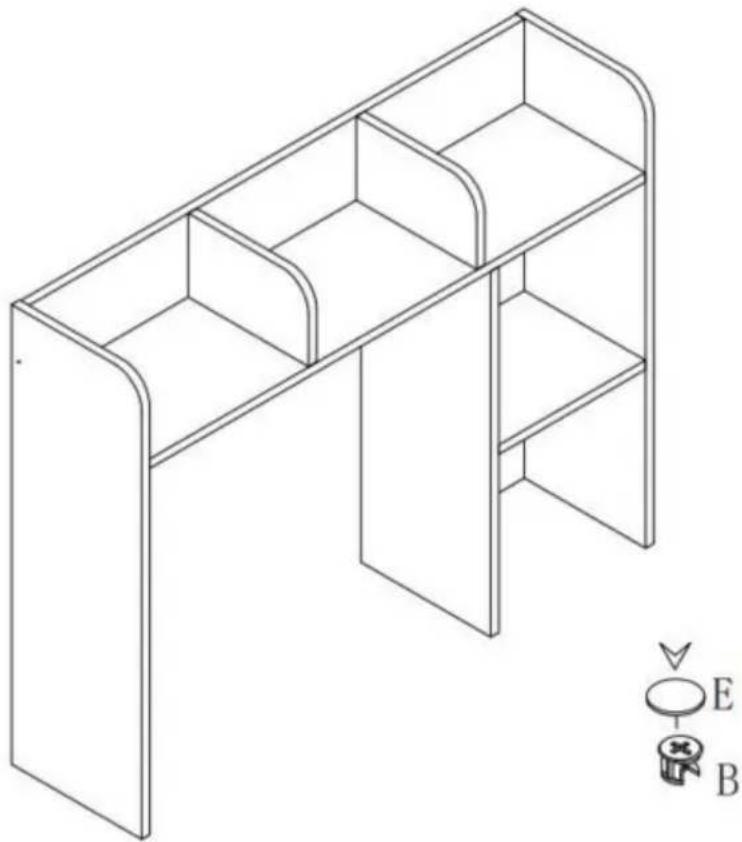

Isometric line drawing of a multi-level storage cabinet or rack unit with no text or symbols

E	X24

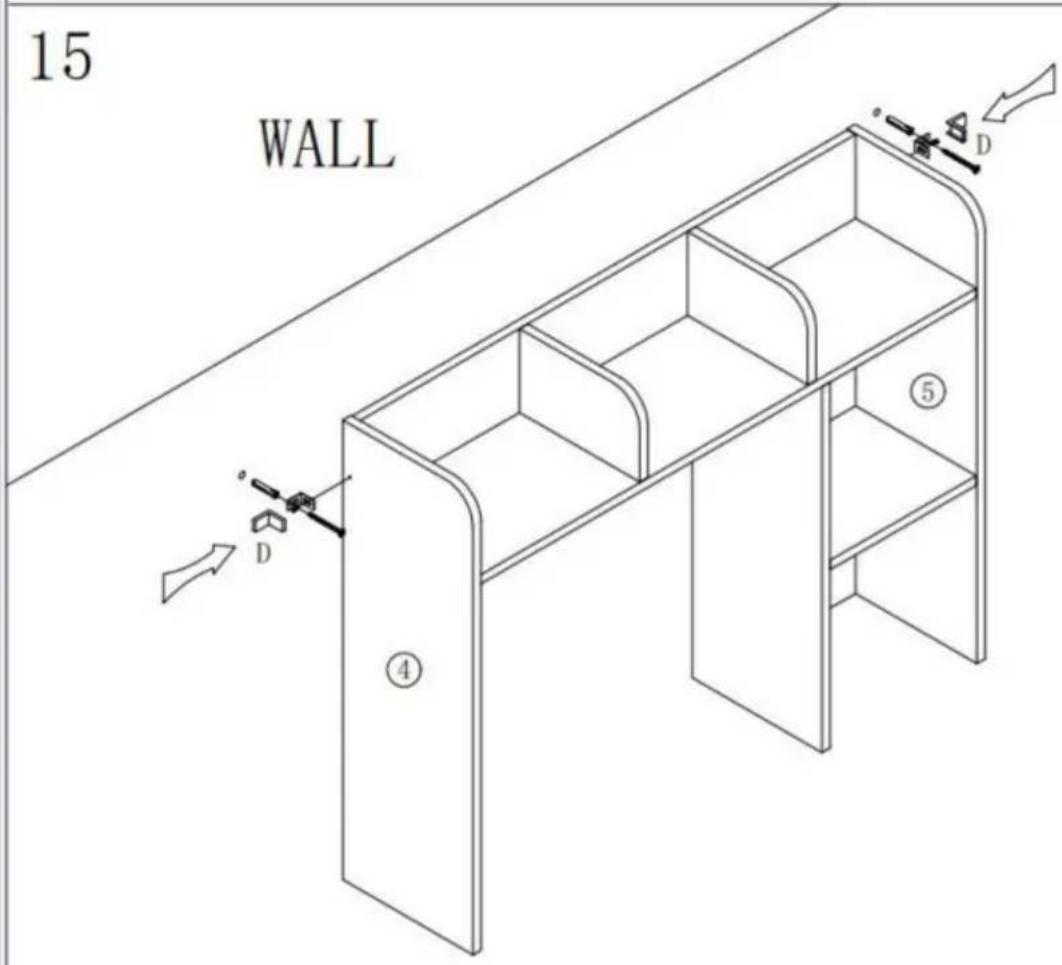

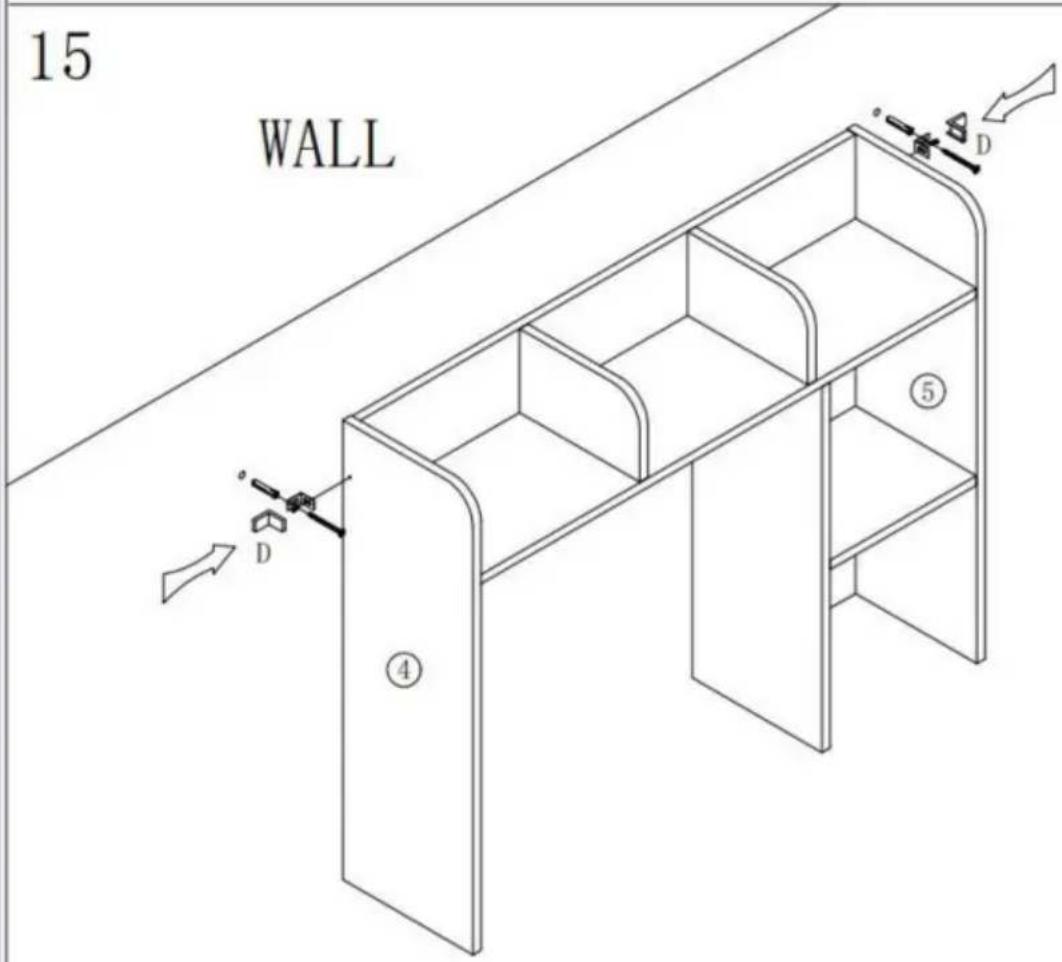

15 WALL ④ ⑤ D

D	X2

PRODUCT PARAMETER

Model	KLBS-04	KLBS-05	KLBS-06
Colour	Black	White	Wood
Safe Loading Weight	132 lbs
Product Size(L×D×H)	945*241*734mm
Net Weight	11.45kg

* Products such as specifications, appearance, and design are subject to modification without prior notice.
