KH-WD04 - Ladder safety equipment Vevor - Free user manual and instructions

Product Type	Ladder Stabilizer
Brand	Vevor
Model	KH-WD04
Ladder Compatibility	Rung width ≤ 35 mm, rung spacing 300-440 mm
Maximum Load Capacity	136 kg (300 lb)
Maximum Recommended Height	12 m (40 ft)
Main Materials	Steel, rubber
Accessory Weight	Approx. 2.5 kg
Central Unit Dimensions	Approx. 30 x 10 x 5 cm
Included Components	L-shaped loops (2), washers (2), D-rings (2), long bolts (2), nuts (2), rubber pads (2), leg extensions (2), central unit, short bolts (2), wrenches (2)
Main Functions	Ladder stabilization, load distribution, anti-tip safety
Installation	Attach to the top rung of the ladder, adjust leg extensions
Maintenance and Cleaning	Clean with a dry cloth, inspect before each use, do not lubricate
Safety Instructions	Do not stand on the stabilizer, avoid power lines, do not use on unstable ground
Repairability	Spare parts available upon request via customer service
Warranty	Electronic warranty via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (EU)	YH CONSULTING LIMITED, Frankfurt, Germany
Importer (US)	Sanven Technology Ltd., Rancho Cucamonga, CA
Importer (Australia)	SIHAO PTY LTD., Eastwood NSW

Frequently Asked Questions - KH-WD04 Vevor

How to install the KH-WD04 stabilizer on my ladder?

Attach the central unit to the highest rung of the ladder. Pass the long bolts through the L-shaped loops and the main frame, add washers and tighten nuts. Insert the leg extensions into the central unit and secure them with D-rings. Finally, install the rubber pads on the feet.

What types of ladders are compatible with this stabilizer?

This stabilizer is suitable for ladders with rung width less than 35 mm and rung spacing between 300 and 440 mm. It is not recommended for telescopic ladders with round tubes.

What is the maximum load capacity of the KH-WD04?

The maximum load capacity is 136 kg (300 lb), including the weight of the user and any carried equipment.

Can I use this stabilizer on a ladder over 12 meters?

No, use on ladders over 12 m (40 ft) is not recommended as it may compromise the stabilizer's stability.

How to maintain the ladder stabilizer?

Clean regularly with a dry cloth to remove dust and debris. Visually inspect components before each use for any cracks or deformations. Do not lubricate parts.

What to do if a part is missing or damaged?

Return the kit to the place of purchase. Do not replace any components with non-supplied parts. You can also contact technical support via www.vevor.com/support for spare parts.

Is the stabilizer suitable for use near power lines?

No! Metal conducts electricity. Danger: stay away from electrical wires and never use the stabilizer near electrical current.

Can I stand on the stabilizer?

Never stand on the stabilizer. It is designed solely to stabilize the ladder, not as a working platform.

What weather conditions are not recommended for use?

Avoid using the ladder in windy conditions as this may increase the risk of tipping. Ensure the ground is stable and level.

How can I get technical support or warranty?

All technical support and electronic warranty certificate are available at www.vevor.com/support. Keep your proof of purchase for any claims.

USER MANUAL KH-WD04 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Ladder Stabilizer

MODEL: KH-WD04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: KH-WD04

Technical line drawing of a mechanical support structure with circular holes and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY STATEMENTS & WARNINGS

Begin with an inspection:

• Failure to comply with all instructions may result in serious injury.
• Before installing this kit, identify all kit components. If any component missing or damaged, return the kit to place of purchase. Do not subany components.

- MAKE SURE THAT THE STABILIZER IS ASSEMBLED TO THE LADDER CORRECTLY.

- To properly secure a ladder to a roof, you need to begin with first analyzing the state of the ladder itself. Ensure there are no safety is that would prevent safe use. Also, ensure there is no oil, grease or substance on the later or the ground surface that could cause slippin - Stable surface: Place the ladder on a solid and level surface when Avoid using the ladder on unstable ground to ensure the proper function of the stabilizer.

- NEVER STAND ON STABILIZER.

- Windy conditions require extra caution.

- DO NOT use on ladders over 40 ft, as excessive height may com the stability the ladder stabilizers.

- DANGER: Keep Clear of electric wires! Never use near electrical copper metal conducts electricity.

- Never use stabilizer or any climbing equipment if you are not in g physical condition.

- Never repair a damaged stabilizer.

- This stabilizer is designed to support the weight of one person and material [300Lb. Maximum].

- Use extreme caution when pushing or pulling anything while on a ladder. You may lose your balance and tip the ladder.

- Proper installation: Follow the manufacturer's guidelines to correctly install the ladder stabilizer, Adhere to the installation steps and requirements, ensuring that the stabilizer is securely attached to the ladder without any looseness or shifting.

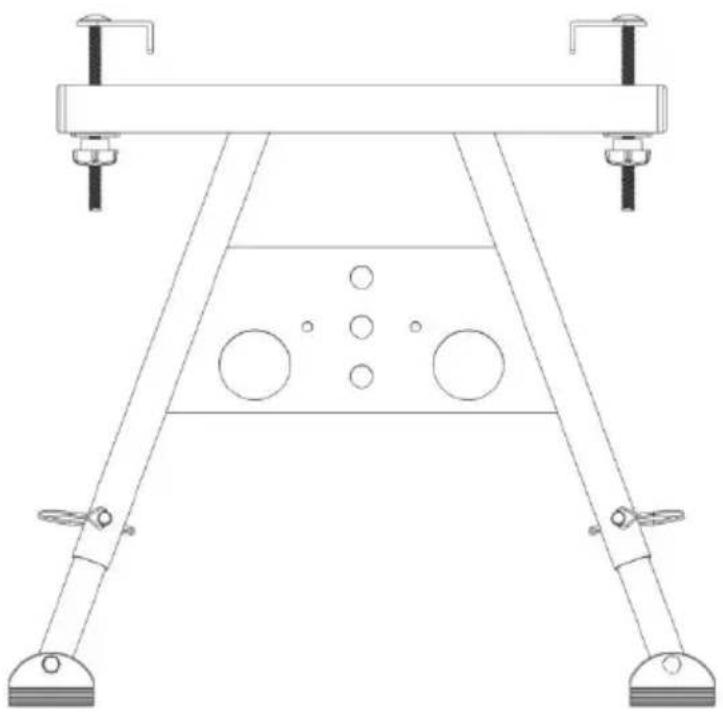

Number	Item	Quantity	Diagram
1	L-Buckle	2
2	Washers	2
3	D-ring	2
4	Long Bolt	2
5	Nut	2
6	Rubber pad	2
7	Extension leg	2
8	Mainframe	1
9	Short Bolt	2
10	Nut	2
11	Wrench	2

Ladder Size
30mm≤L1≤90mm	300mm≤L3≤440mm

SAFETY STATEMENTS & WARNINGS

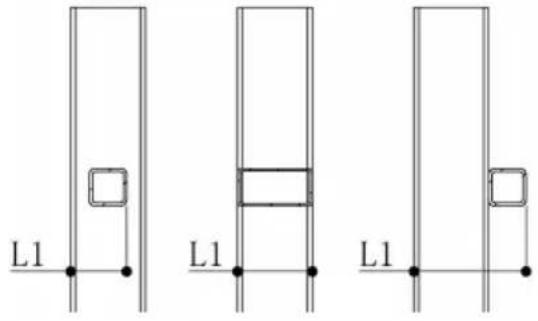

1. Make sure your ladder fits the product specifications before install. width of the ladder rungs should be less than 1.38 inches. We do no recommend using this product on telescopic round tube ladders.

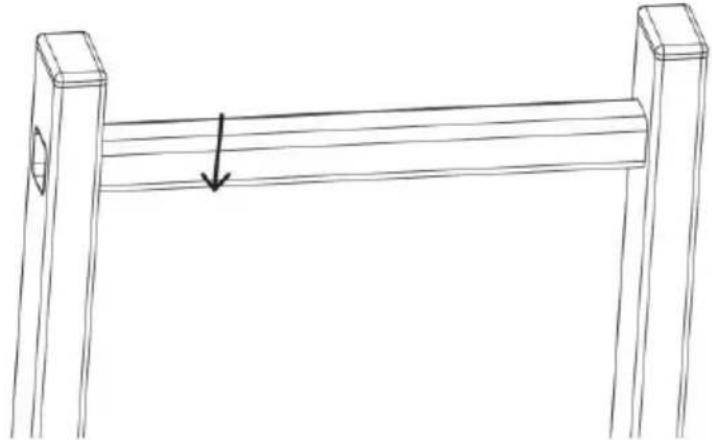

Simple line drawing of a wooden beam supported at both ends, with a downward arrow indicating compression or clearance (no text or symbols)

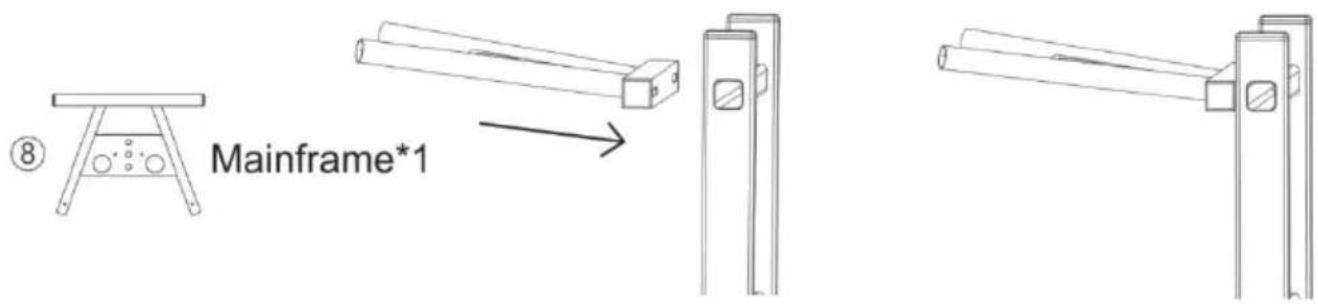

1. Attach the mainframe crossbar tightly to the ladder, facing upward.

1. Attach the assembled unit at the upper most rung of ladder, Be ca

not to fasten the L-buckle in the middle or lower section of the ladd may compromise the stability of the ladder.

Technical line drawing of a mechanical assembly with no visible text or symbols

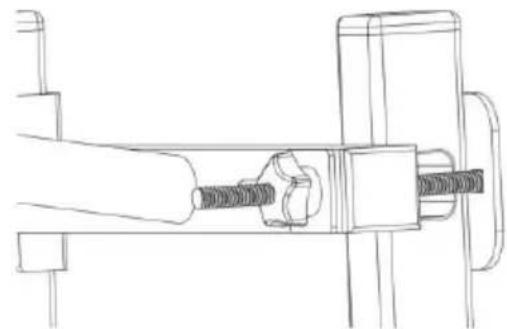

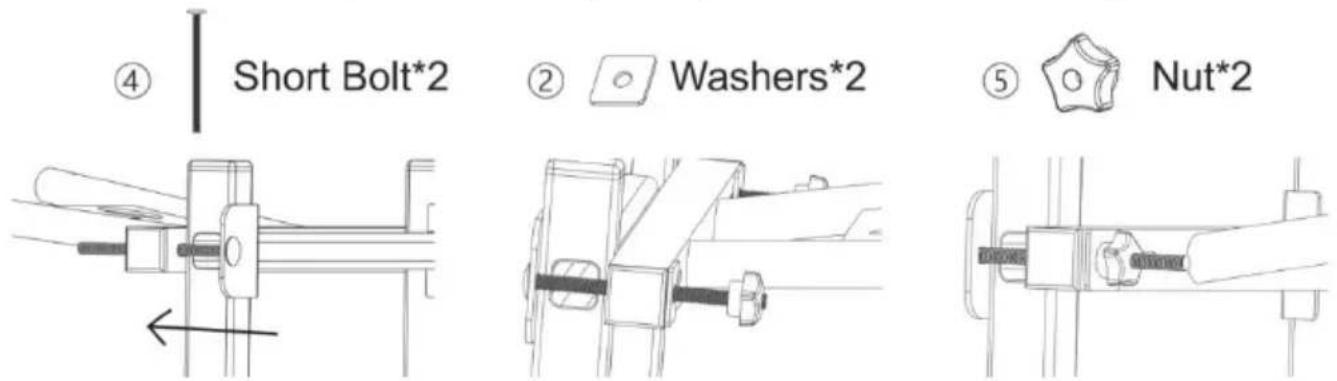

1. Secure by passing the bolt through the L-buckle and the stabilizer mainframe, then place a single square washer and tighten the nut.

1. Repeat the same procedure on the other side.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

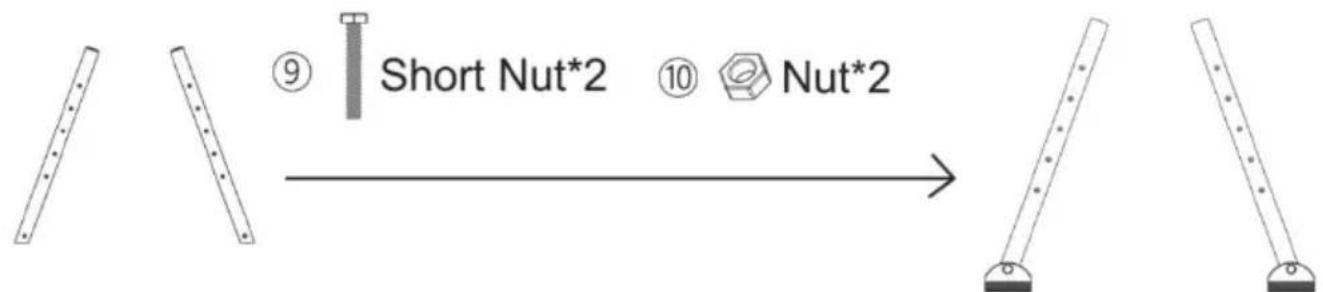

1. Install rubber feet in stabilizer extension legs.


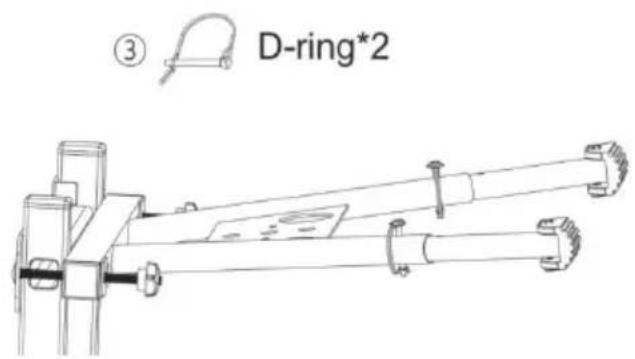

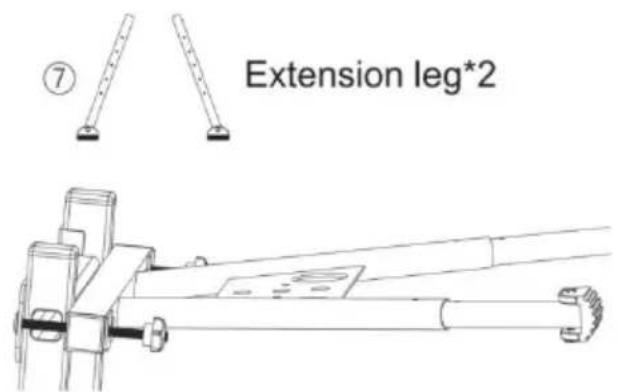

1. Insert the stabilizer extension leg, adjust it to the desired position, a secure it with the D-ring.

1. Repeat the same procedure on the other side.
2. Double check to make sure both extension legs are installed correct
