FARMHOUSE COFFEE TABLE USER MANUAL

MODEL:KLLT-04 KLLT-05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a rectangular metal frame structure with supports and diagonal bracing (no text or symbols)

KLLT-04 KLLT-05

Isometric line drawing of a rectangular metal frame structure with supports and a central vertical panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Farmhouse Coffee Table.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Farmhouse Coffee Table.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

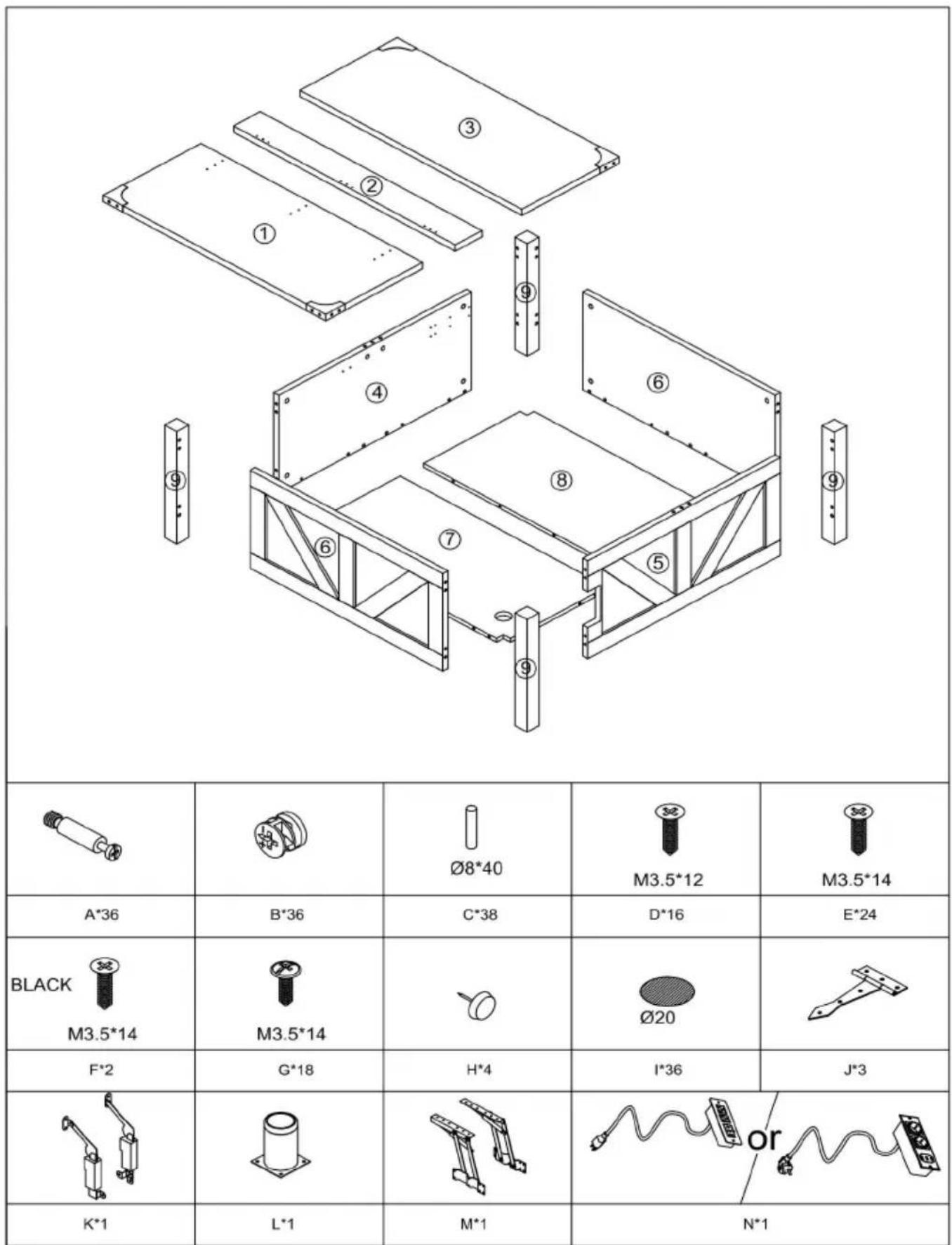

Technical diagram showing exploded view of a mechanical assembly with numbered components and corresponding assembly details table.

1

Technical line drawings of two rectangular metal components with bolt holes and mounting brackets, labeled 4 and 5 (no text or symbols beyond labels)

A*8+C*10

2

Technical line drawing of three rectangular metal plates with bolt holes and numbered callouts (7 and 8), no text or symbols present.

C*20

3

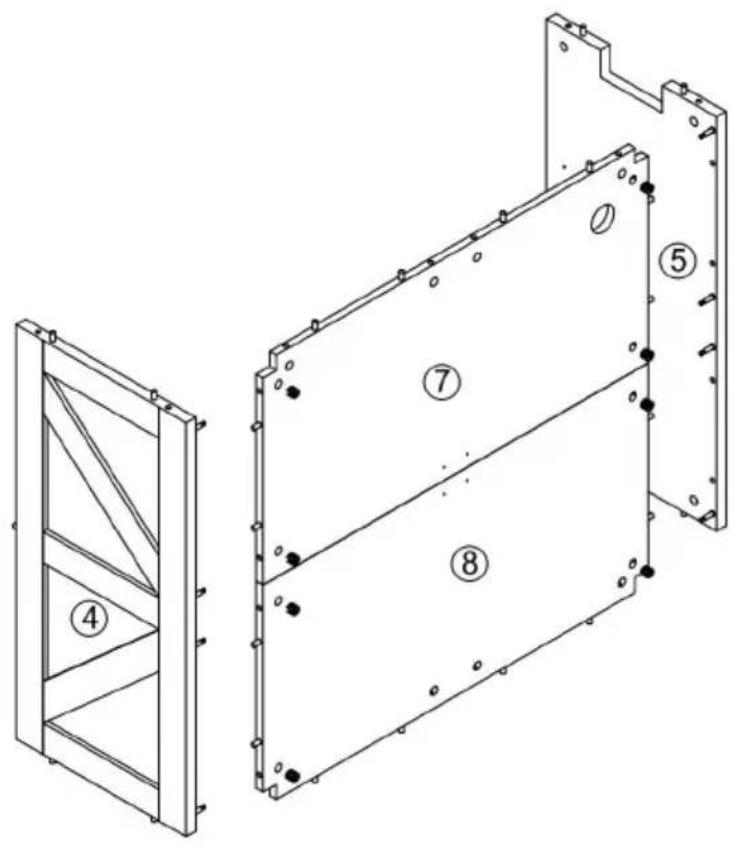

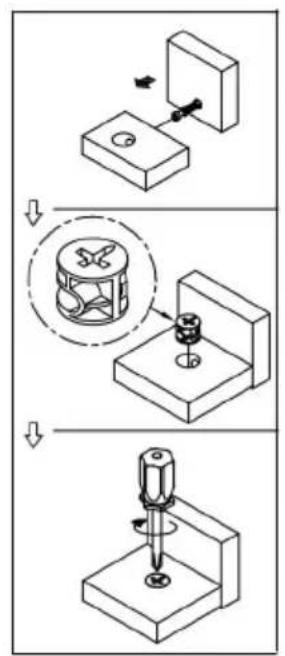

Technical diagram showing two views of a structural frame with numbered components, likely for engineering or CAD documentation.

Technical diagram illustrating three-step machining process: step-by-step assembly, detailed view of cylindrical workpiece, and final drilling with tool.

B*8
4

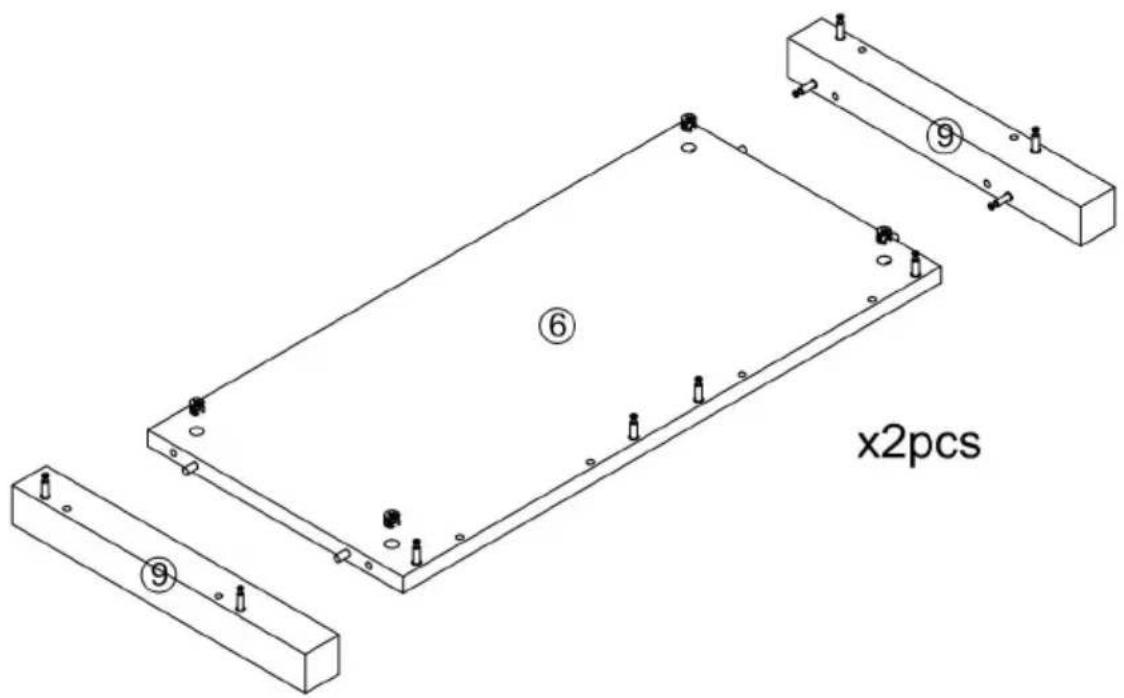

x2pcs ⑥ ⑨ x4pcs

A*24+C*8

5

x2pcs

B*8

6

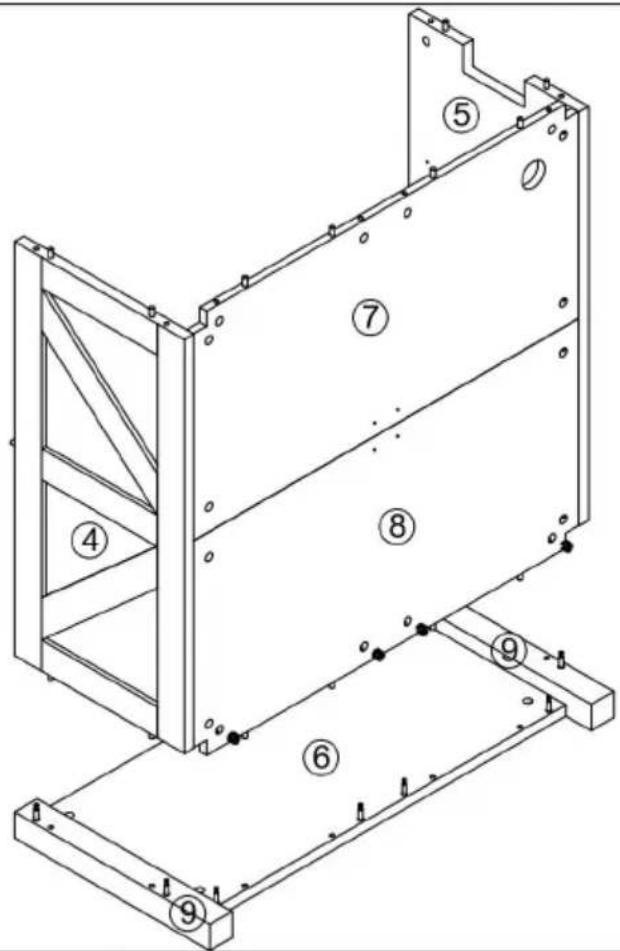

Technical diagram of a structural frame assembly with numbered components for identification

B*8

7

Technical diagram of a structural frame assembly with numbered components for identification

B*8
8

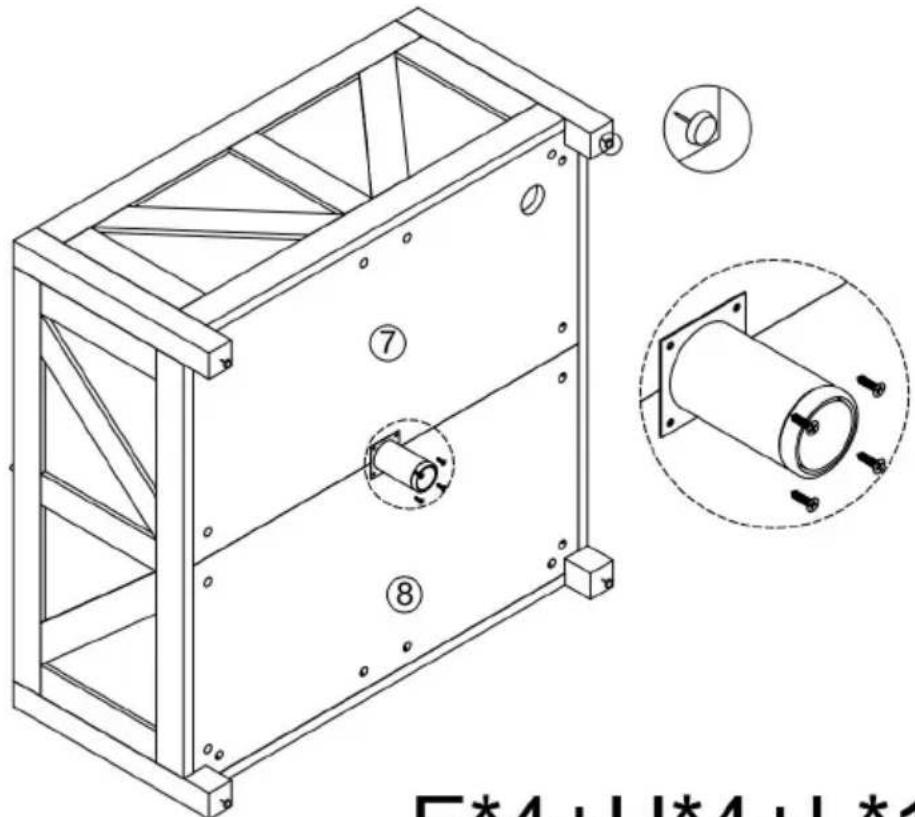

Technical diagram of a mechanical assembly with numbered components and close-up views of a cylindrical component

E*4+H*4+L*1

9

Isometric line drawing of a rectangular metal plate with four small protrusions and a central circular feature labeled '②' (no text or symbols on the plate itself)

A*4

10

Technical diagram of a structural frame with numbered components, likely for engineering or architectural drawing.

B*4

11

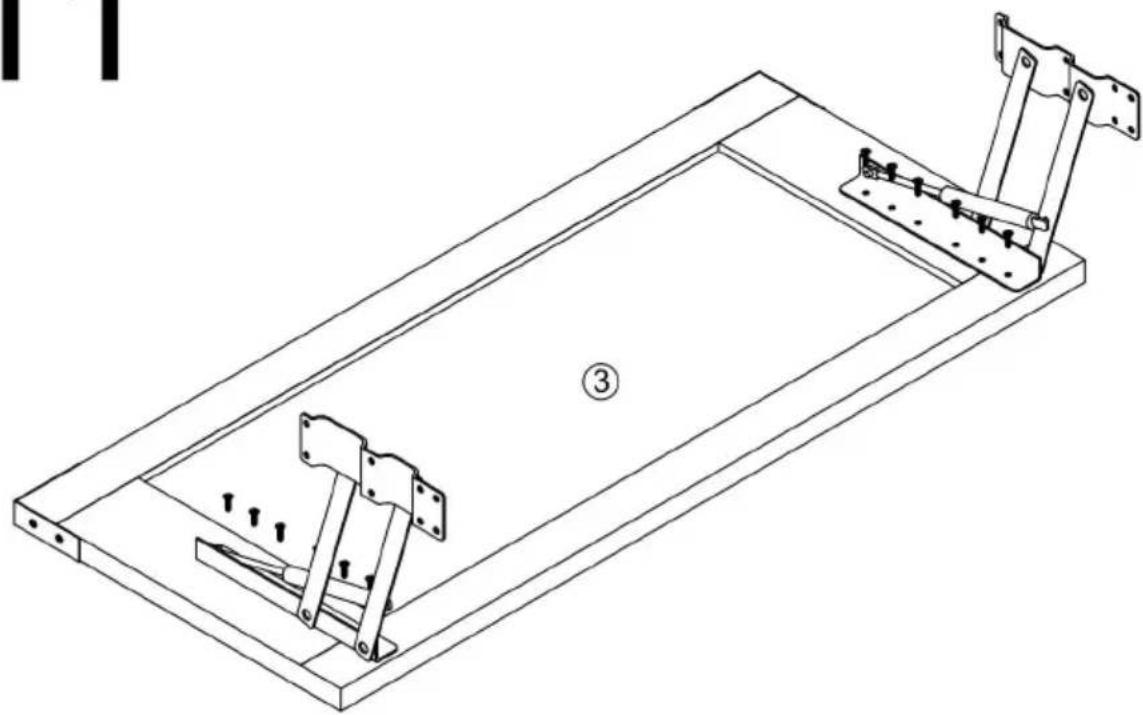

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

E*12+M*1

12

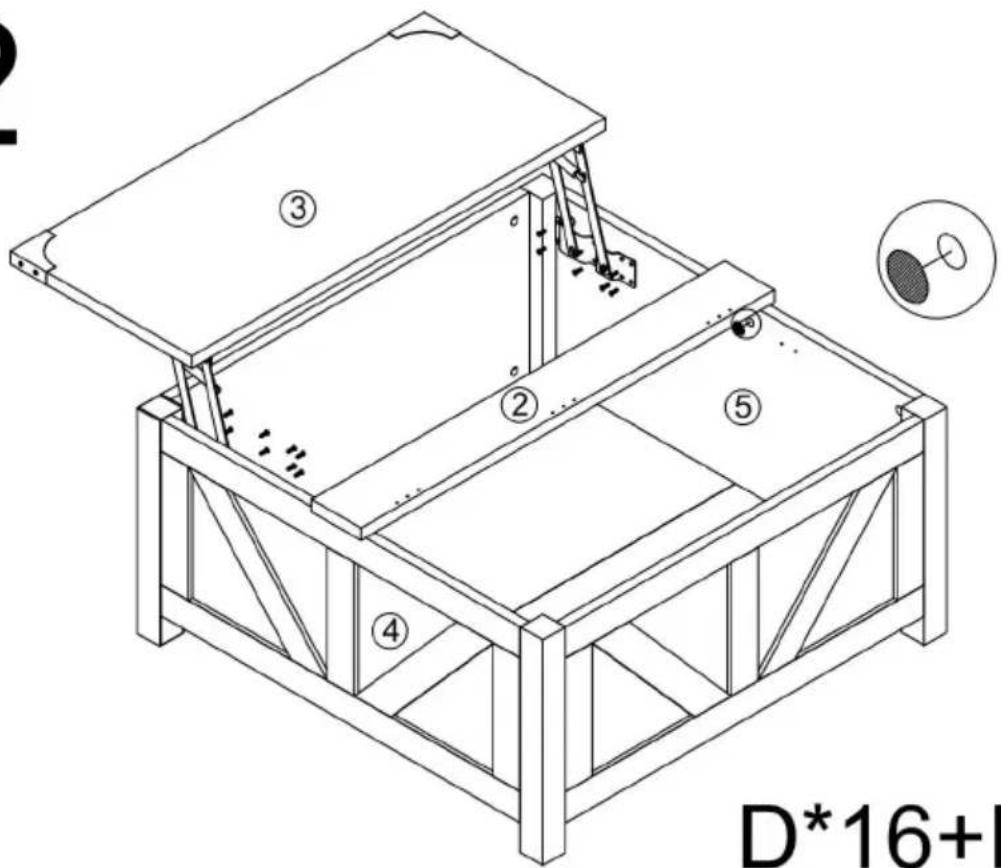

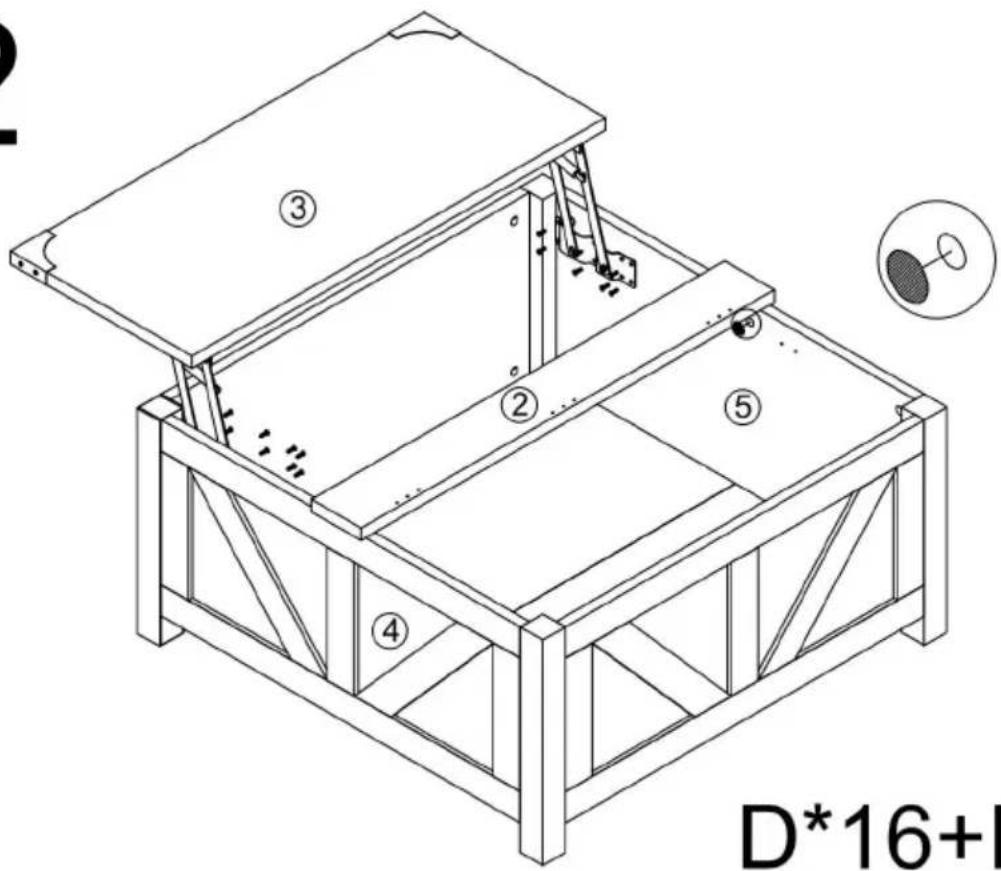

③ ② ⑤ ④ D*16+

D*16+I*36

13

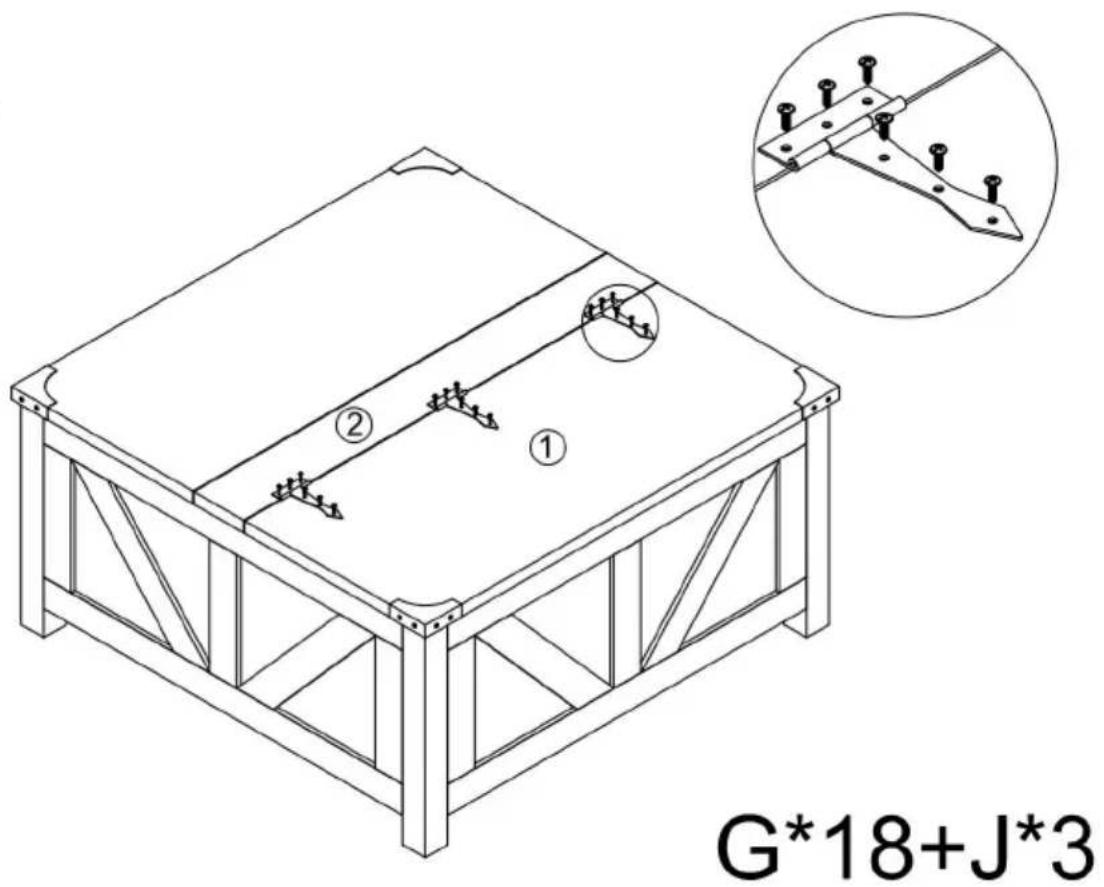

G*18+J*3

14

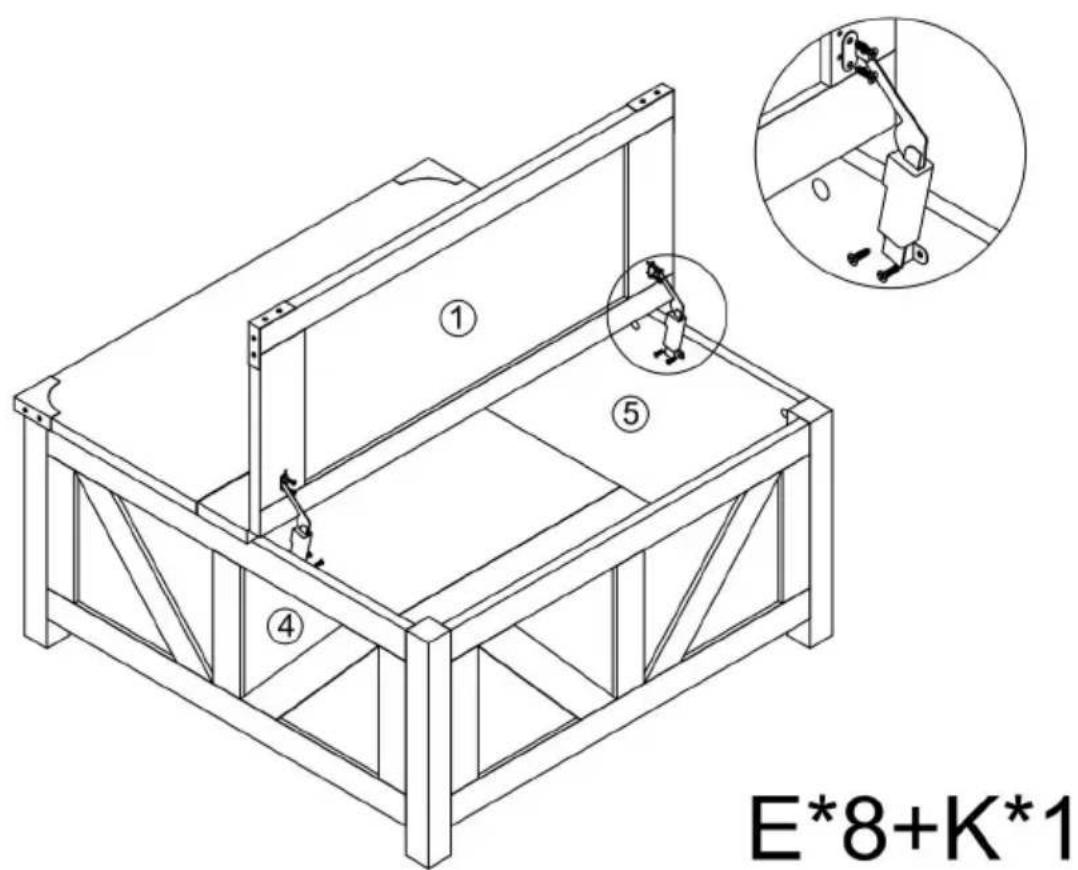

E*8+K*1

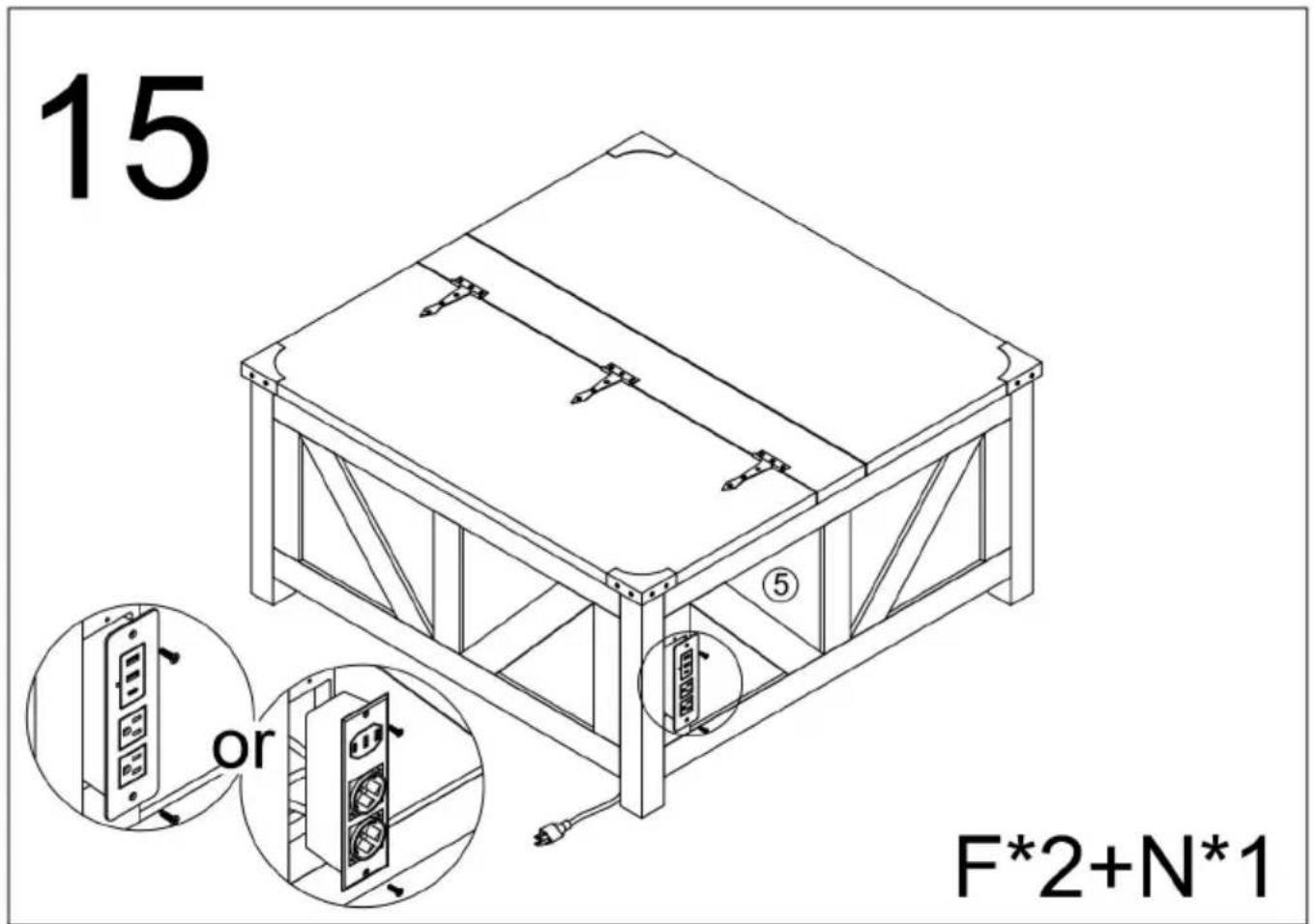

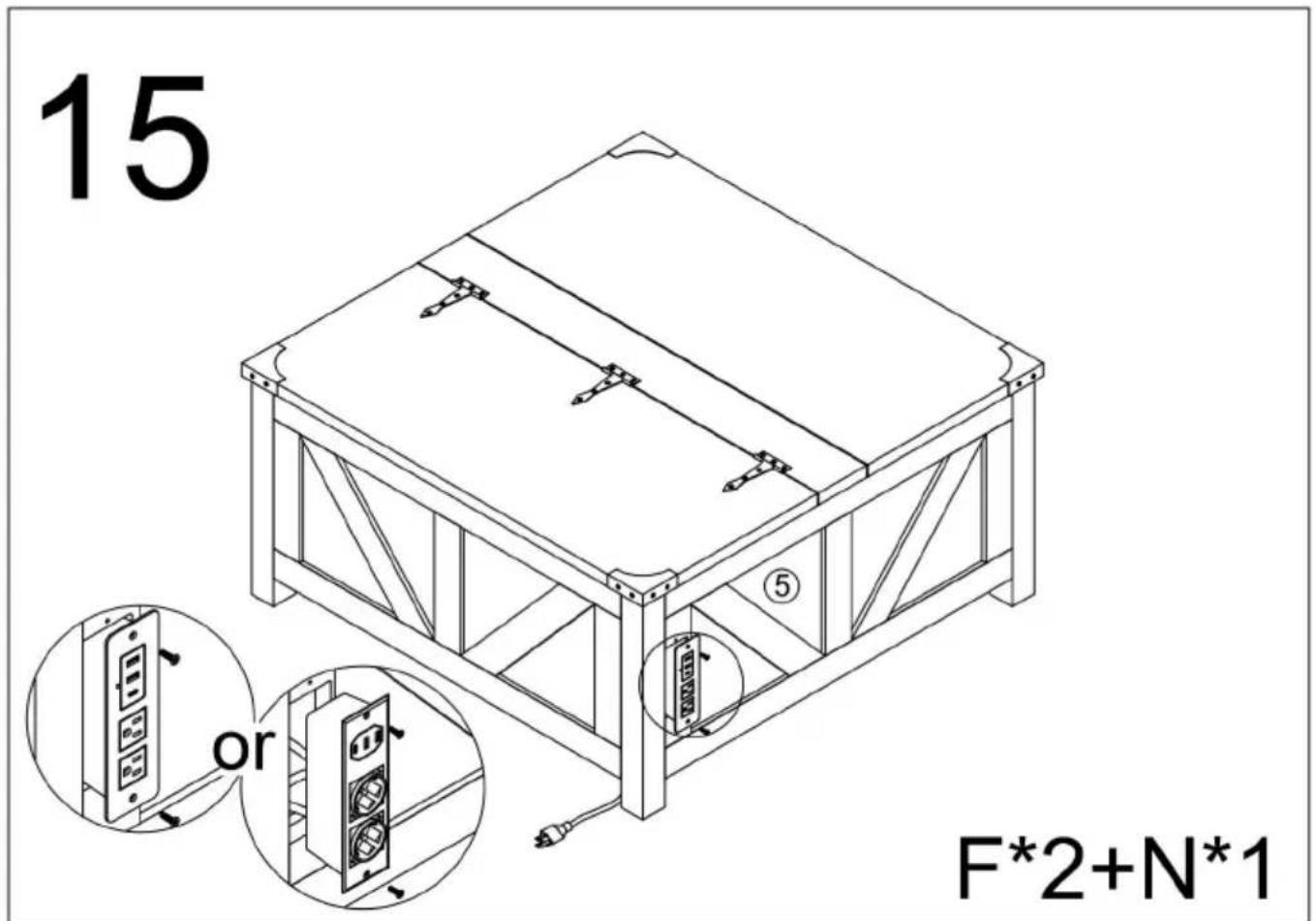

15 F*2+N*1

Isometric line drawing of a rectangular metal frame structure with supports and a curved top panel (no text or symbols)

Model	KLLT-04,KLLT-05
Safe Loading Weight	Table load after cover: 140 LBSTable load after lift: 60 LBS
Colour	Brown + White
Product Size	914*914*462mm
