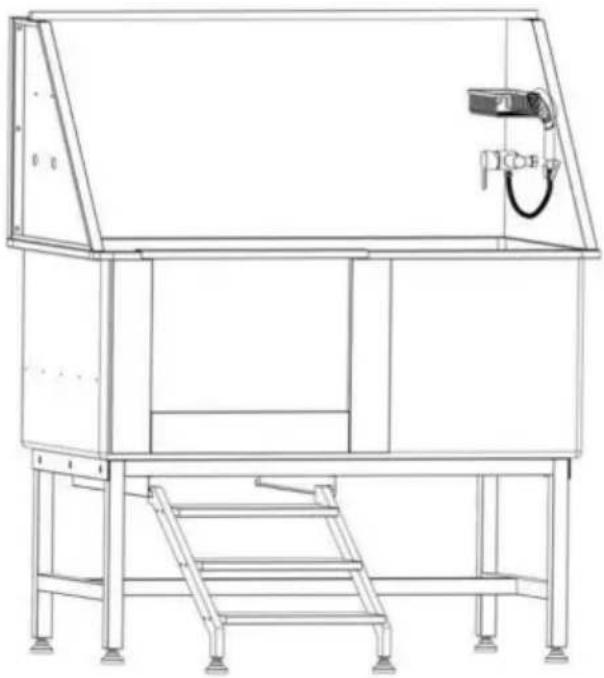

DOG GROOMING TUB

MODEL: K1E01021/K1E01022

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

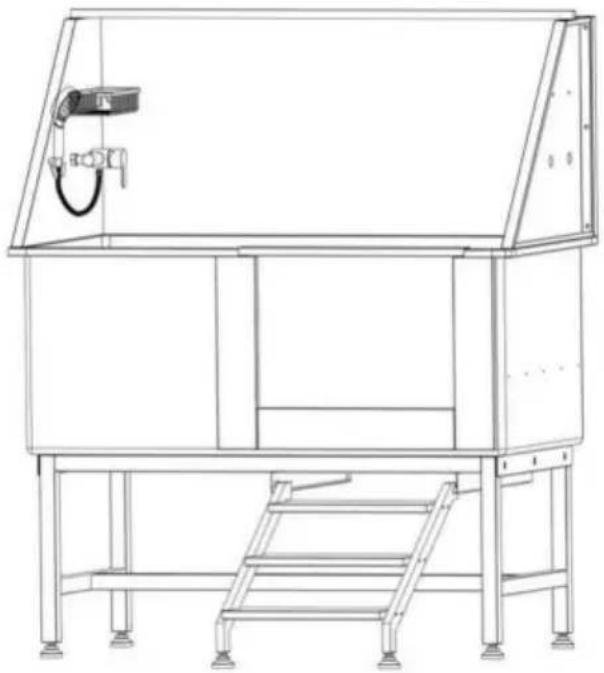

DOG GROOMING TUB

MODEL: K1E01021/K1E01022

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.

• Keep away from sharp points,blades and other items.
  Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

PREPARATIONS BEFORE INSTALLATION

1.Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

2.Necessary safety equipment:

Gloves,goggles.

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

A*2	B*1	C*1	D*1
Bottom bracket	Tub	Right side pane	Left side panel
E*1	F*1	G*1	H*1
Door	Water filter plate	Back panel	Faucet switch
		W
J*1	K*1	L*1	M*2 (600mm)
Storage basket	Shower head	Shower hose	Inlet pipe
N*1	P*4 (M4*15mm)	Q*4 (M4)	R*2
Strainer	Screw	Hex flange nut	Nut
S*1	T*1	U*6	V*2
Shower bracket	Comb	Adjustable foot	Sling
W*2	Y*20 (M6*15mm)	Z*12 (M6*35mm)	AA*1
Play ball	Screw	Screw	Gloves
AB*1		AC*2	AD*2
Crossbar		Washer	Nut
AE*1	AF*1	AG*1	AH*3
Sealing tape	Handle	Wrench	Stair board
AJ*2
Ladder rod

Installation steps

U*4 A*1	① Install the adjustable feet(U) the H rack(A). Caution:Ensure that the depth adjustable feet is not less than 12mm, and try to make the fo adjustable feet screw in the sa depth. Please tighten the spare nut during the installation, and adjust it later.
Left Door Bracket	Right Door Bracket
② Flip the bottom bracket, adjust the height of the feet to make height of water outlet side is 1-2 degrees lower than the other spirit level to show)
	③ Use screw(Z) to fix the bo bracket and tub(B)
④ Install the strainer(N),Ensure the sealing ring is free of dislocation and wrinkles. Caution:When installing, please pay attention to whether the sealing ring is placed correctly,avoid water leakage due to incorrect seal installation.
⑤ Use screw(Y) to fix the left side board(D&C), then use screw(Y) to fix the back panel(G) to use screw(Y) to fix side board(D&C) and back board(G)
⑥ Install the handle(AF) to the filter plate(F)
⑦ Install door(E) and put the wall filter plate to the tub(B)
⑧ Use screw(Z) to fix the stair board(AH) and ladder rod(AJ), the install the adjustable feet(U) on the bottom of the ladder rod(AH).Caution:Ensure that the depth of adjustable feet is not less than 12mm, and try to make the two adjustable feet screw in the same depth. and tighten the spare nut during the installation.
⑨ Install the stairs into the chassis rails

Use screw(P) and hex flange (Q) to install the storage basket(J and shower bracket(S) to the right side panel(C)

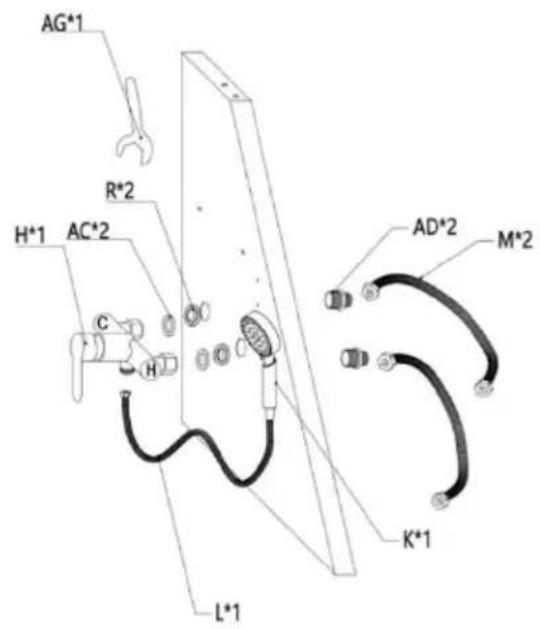

① Install hot and cold shower s and water inlet. Caution:Before you do this, mal sure that your water source is the left or right side of the ba and select the direction of installation of the tap switch. Step1:Pass straight all-copper connector(AD) through side panel (1 / 2^ end facing outside),screw nu R2 into the other end of the connector and use wrench(AG) screw down.

Step2: Align the faucet switch (H) with the connector (AD), then the two nuts on the switch (H), and note that the sealing ring nut is intact.

Step3: Connect the hose (M) at the water inlet end and the shower hose (L) at the faucet outlet. Also, when tightening the nut, pay attentive whether the sealing ring inside the nut is intact.

Step4: The other end of the hose (M) is connected to the water source, pay attention to the hot and cold water mark on the faucet sw represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution:The inlet hose is only 600mm long, if you want to let please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape(AE) when installing the nut

can make the installation more sealed and help prevent water the joint.
	⑬ Use screw(Y) to fix the cross (AB) to the left and right-side pa then install the sling(V)

DIMENSIONS AND PARAMETERS

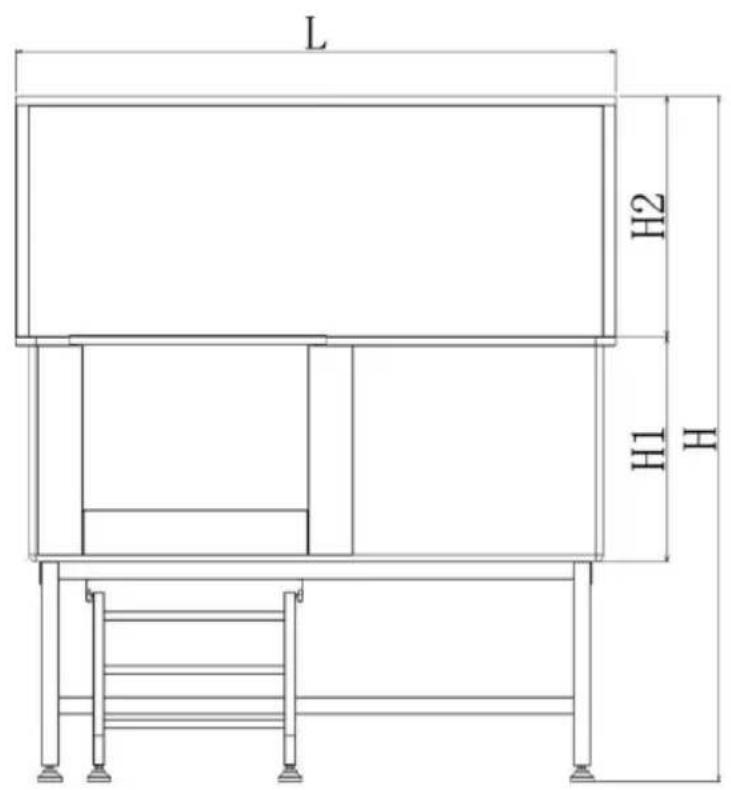

Left Door

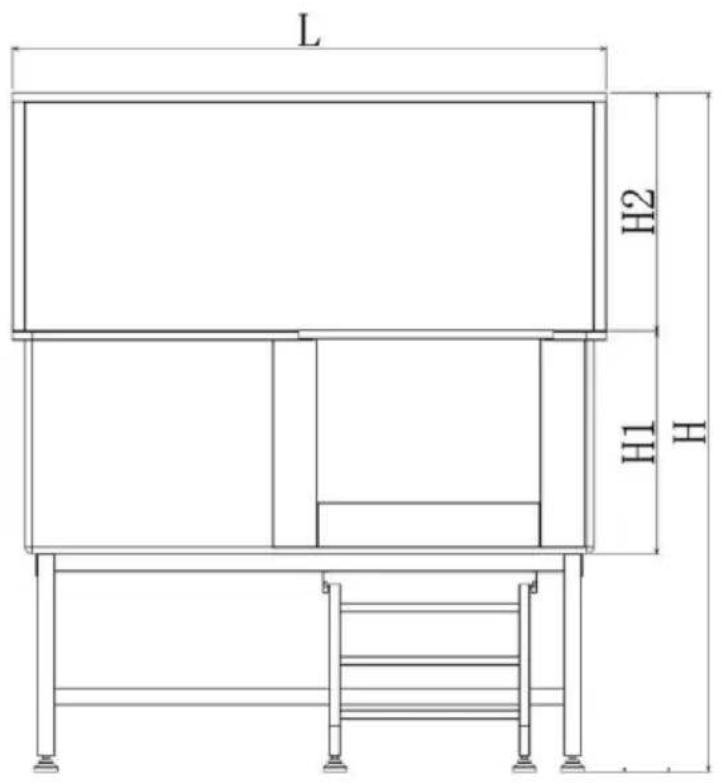

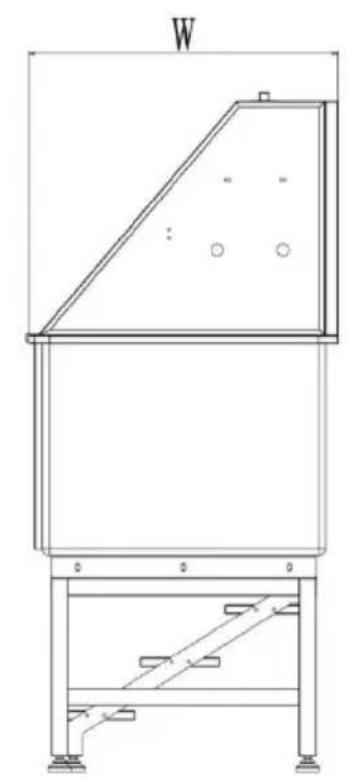

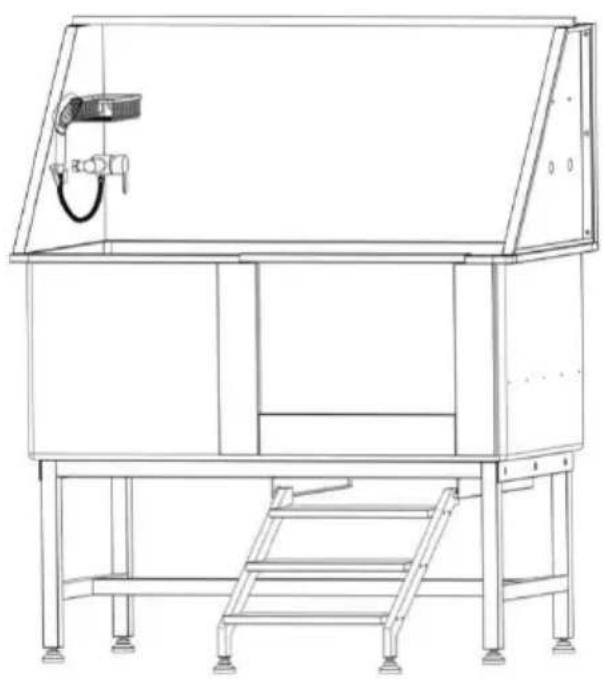

Right Door

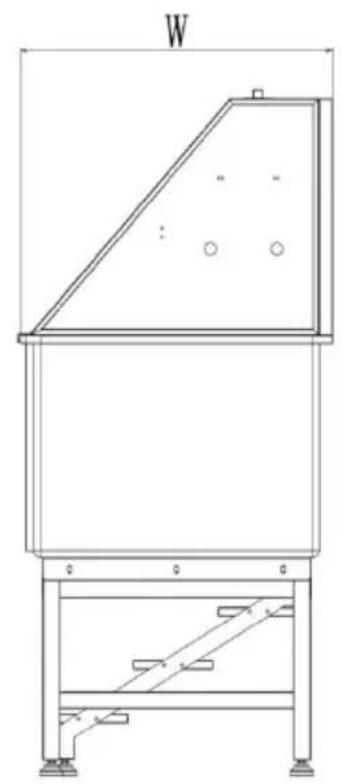

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K1E01021	1270	1491	500	480	700	57.3
K1E01022	1270	1491	500	480	700	57.3

Model#	Volume (CBM)	Loading Capacity (Ibs)	Recommended pet (in)
K1E01021	0.75	330	L×W×H:48×25×40
K1E01022	0.75	330	L×W×H:48×25×40

OPERATION

1. Make sure the water pipe connection is complete and the water is flowing normally. (Connect the hot and cold water pipes according to the hot and cold water signs of the faucet switch).

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the I itself or hold the pet inside the tub by yourself, then close the d
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.
   2.Pay attention to regularly clean the hair of the drain to avoid clogging.

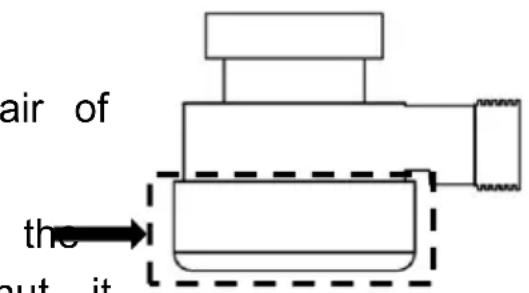

2. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not to leave the seal ring when installing it back.

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
