Product Type Over-the-toilet storage cabinet
Brand Vevor
Model JFS-002
Adjustable dimensions (center-to-center) 620 to 1037 mm
Adjustable height Yes, by combination of long and short posts
Material Metal and plastic
Compartment capacity 20 small and 20 large cases
No-drill installation Yes, by tension between floor and ceiling
Product weight Approximately 5 kg
Recommended maximum load 15 kg (evenly distributed)
Recommended number of people for assembly 2
Tools needed Safety glasses and work gloves
Care and cleaning Clean with a soft, dry cloth; do not use sharp objects
Spare parts available Yes, contact after-sales service
Repairability Repairable by part replacement
Warranty Electronic warranty via www.vevor.com/support

Frequently Asked Questions - JFS-002 Vevor

How to install the JFS-002 cabinet without drilling?
The cabinet is mounted by tension between the floor and ceiling. Adjust the vertical posts to the desired height and tighten the nuts to lock the tension. Make sure the top cap touches the ceiling and the feet are stable.
What is the maximum load per shelf?
The recommended maximum total load is 15 kg, evenly distributed across the compartments. Do not overload to avoid any risk of falling.
Can I adjust the height after installation?
Yes, you can unscrew the nuts, adjust the height by sliding the posts, then retighten. It is advisable to empty the shelves before adjusting.
What types of ceilings are suitable?
The tension system works on most flat and solid ceilings. Avoid glass or very fragile ceilings. Check stability after assembly.
How to clean the cabinet?
Use a soft, dry cloth. Do not use sharp objects or abrasive products that could scratch the surface.
Are the cases (small and large) removable?
Yes, the cases fit onto the supports and can be removed individually. They are designed to be securely attached but remain removable.
What to do if a part is missing or damaged?
Contact Vevor after-sales service via www.vevor.com/support. Provide the model JFS-002 and the part number for a replacement.
Can I use this cabinet in a humid bathroom?
The product is designed for dry indoor use. Prolonged exposure to humidity could damage metal parts. Ensure good ventilation.
How to adjust the spacing between the two posts?
The spacing can be adjusted between 620 and 1037 mm. Position the posts vertically, then slide the supports to adjust the width before tightening.
Is it possible to assemble the cabinet alone?
The manual recommends installation by two people for safety and ease. If you are alone, be very careful when holding the posts.

User questions about JFS-002 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Wardrobe in PDF format for free! Find your manual JFS-002 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JFS-002 by Vevor.

USER MANUAL JFS-002 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Over Toilet Storage Rack

MODEL: JFS-002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JFS-002

Vevor JFS-002 - Over Toilet Storage Rack - 1

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical ends (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFE INSTRUCTIONS

CAUTION: Carefully read instructions and procedures for safe operations. Failu to do so can result in serious injury.

Vevor JFS-002 - SAFE INSTRUCTIONS - 1

WARNING:

  1. Before using the storage rack, ensure that the storage rack is securely in to prevent personal injury and accidents.
  2. When using the storage rack, do not overload the storage rack to avoid personal injury or accident.
  3. Do not draw, cut, or use sharp objects on the storage rack to avoid dar
  4. If you need to disassemble the storage rack, please follow the reverse store disassemble and store it properly.
  5. This product is not a toy. Do not allow children to play with this item.

ASSEMBLY PRECAUTIONS

  1. Assemble only according to these instructions. Improper assembly can create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
  3. Keep assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble when tired or under the influence of alcohol, drugs or medication.
  6. Product capabilities apply to properly and completely assembled products or
  7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.
  8. For safety reasons, this hardware is recommended to be installed by 2 pc

SAVE THESE INSTRUCTIONS

Part List
No.PictureNameQTY.
1Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 1Top Cap2
2Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 2Flexible poles with ho2
3Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 3Long Pole4
4Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 4Short Pole2
5Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 5Foot Cap2
6Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 6Left Bracket4
7Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 7Right Bracket4
8Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 8Small Casing20
9Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 9Large Casing20

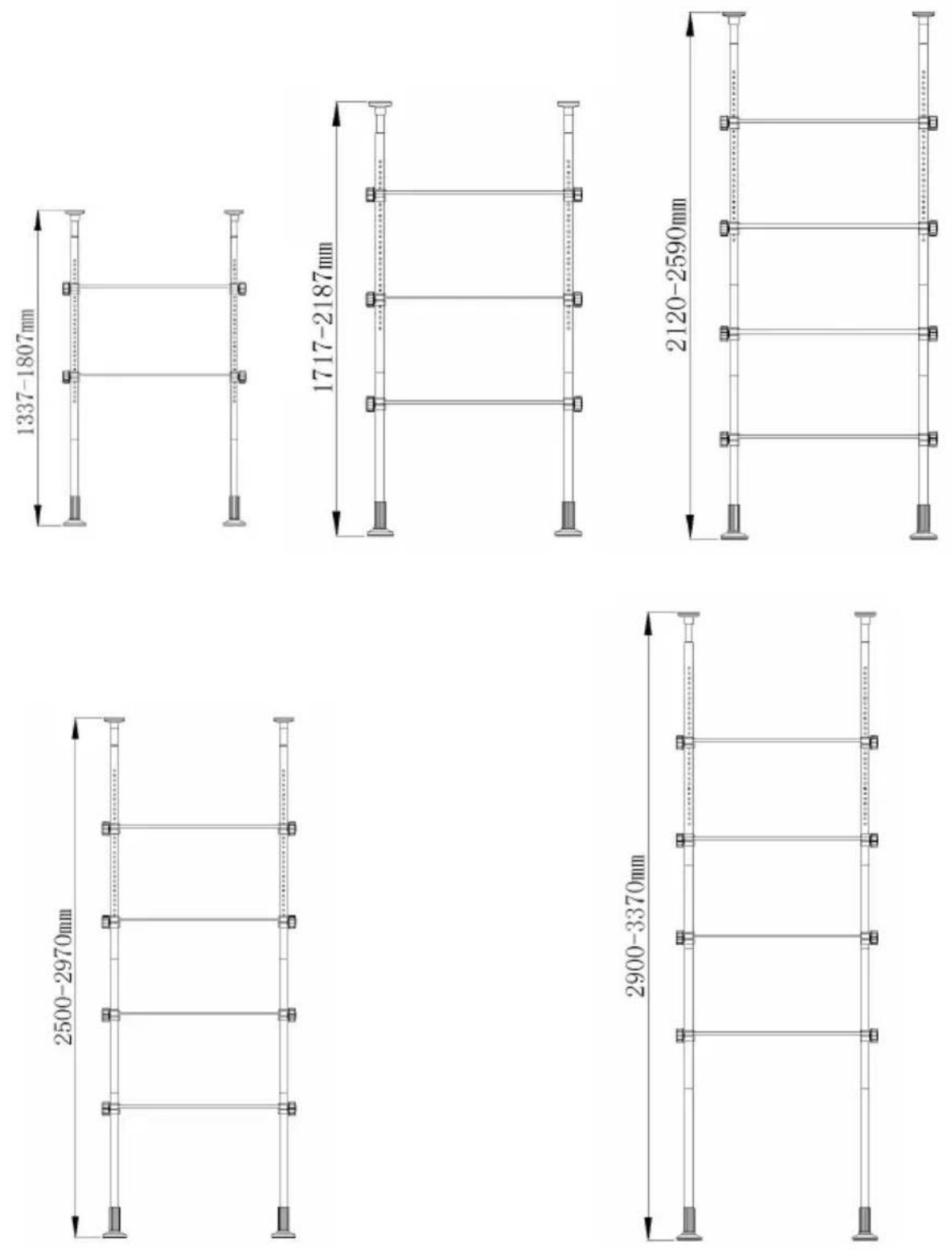

- It can be combined in a variety of forms, choose the height you want!

Vevor JFS-002 - SAVE THESE INSTRUCTIONS - 10

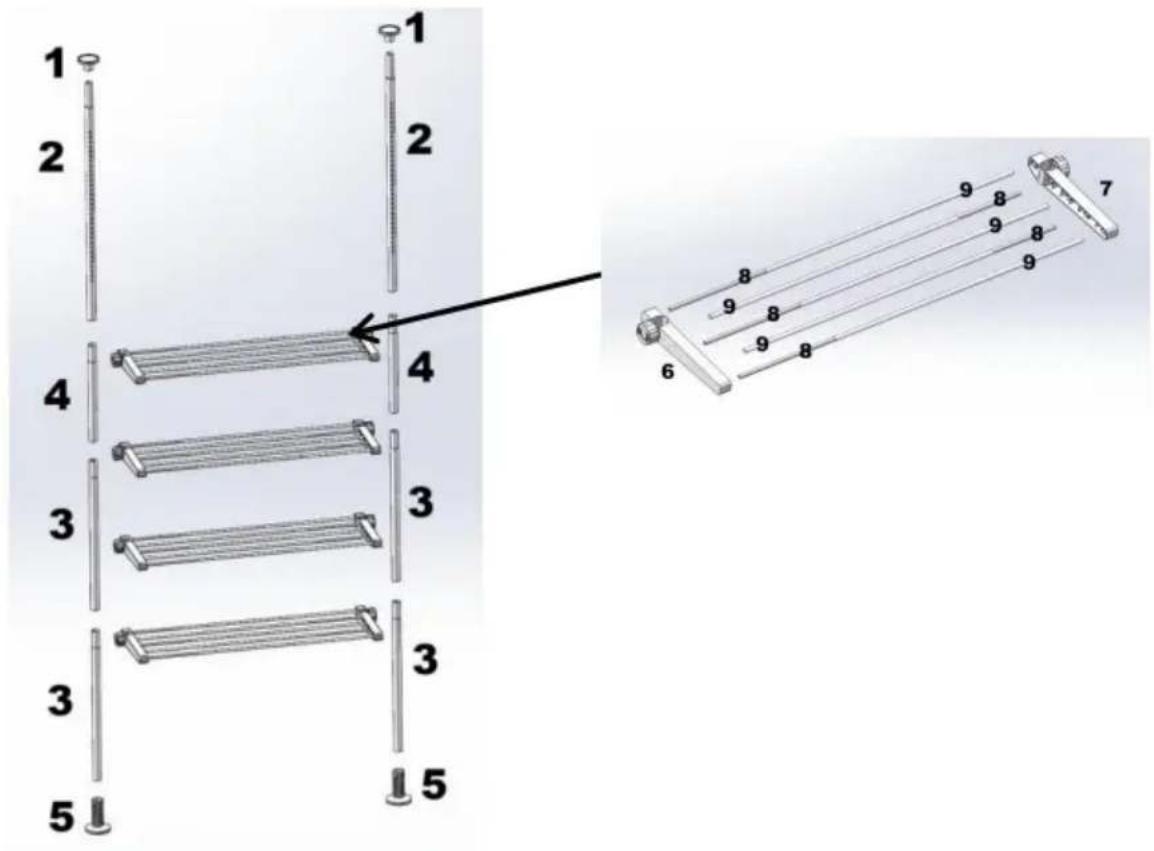

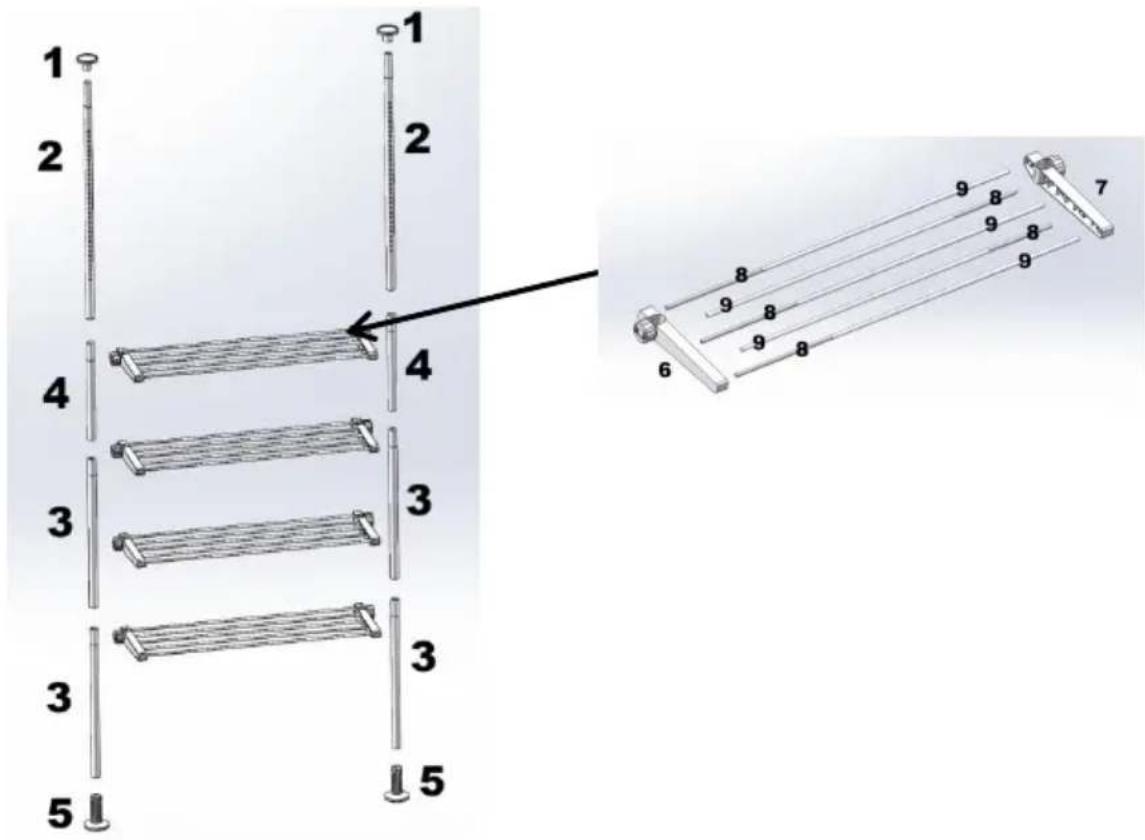

PRODUCT COMPOSITION

Vevor JFS-002 - PRODUCT COMPOSITION - 1

text_image 1 2 4 3 3 5 1 2 4 3 3 5 6 7 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8

PRODUCT ASSEMBLY

Step1: Assemble Top Cap (1) and Flexible poles with hole(2).

Vevor JFS-002 - PRODUCT ASSEMBLY - 1

natural_image Diagram showing a mechanical component before and after modification, with no visible text or symbols

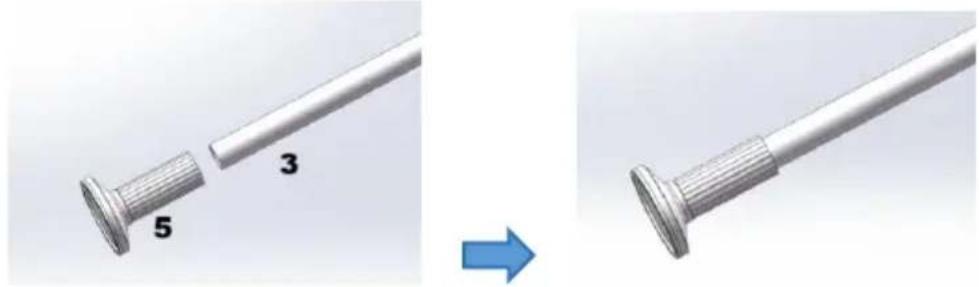

Step2: Assemble Pole (3 or 4) and Foot Cap(5).

Vevor JFS-002 - PRODUCT ASSEMBLY - 2

natural_image Two views of a metallic rod with threaded ends, one showing a blue arrow indicating direction (no text or symbols)

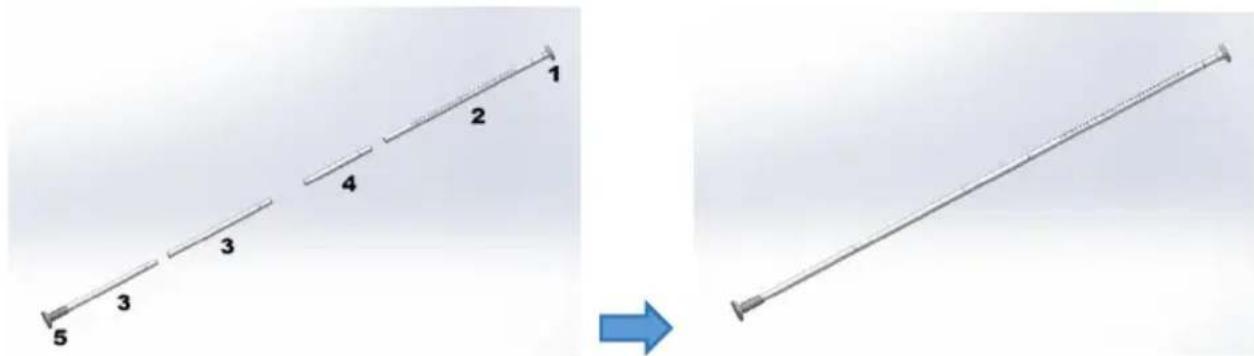

Step3: Select the assembly pole according to the height you want. (Follow the synchronized steps to assemble the other set of struts.)

Vevor JFS-002 - PRODUCT ASSEMBLY - 3

natural_image Two diagrams showing a rod with numbered segments (1-5) before and after an operation, indicated by a blue arrow (no text or symbols)

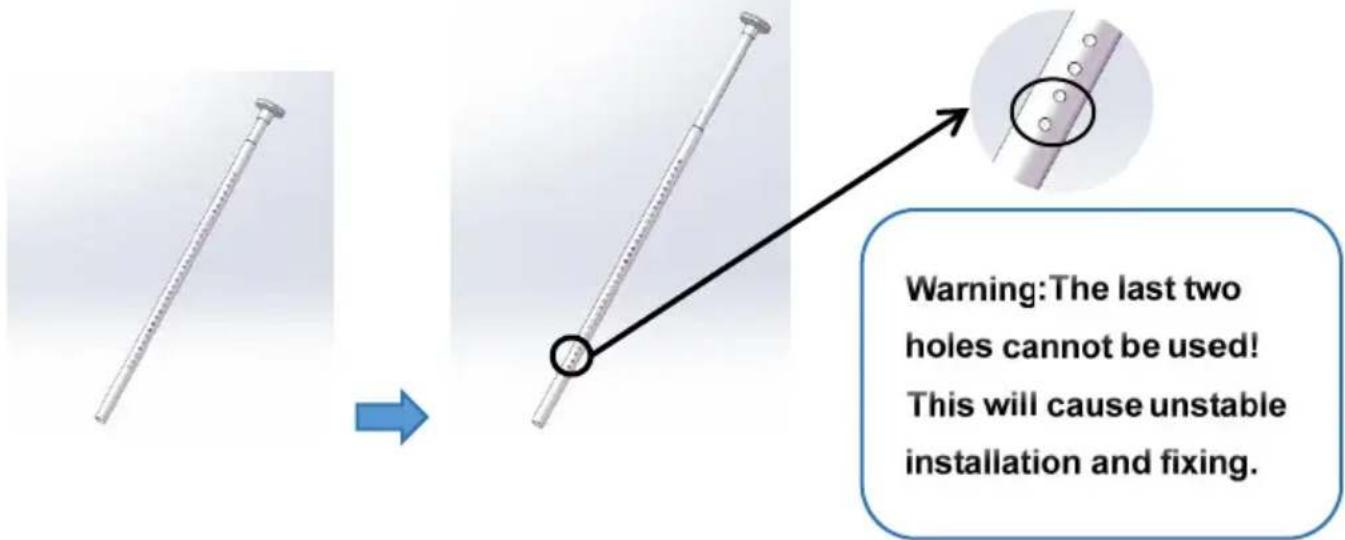

Here you can adjust the length according to your needs.

Vevor JFS-002 - PRODUCT ASSEMBLY - 4

text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.

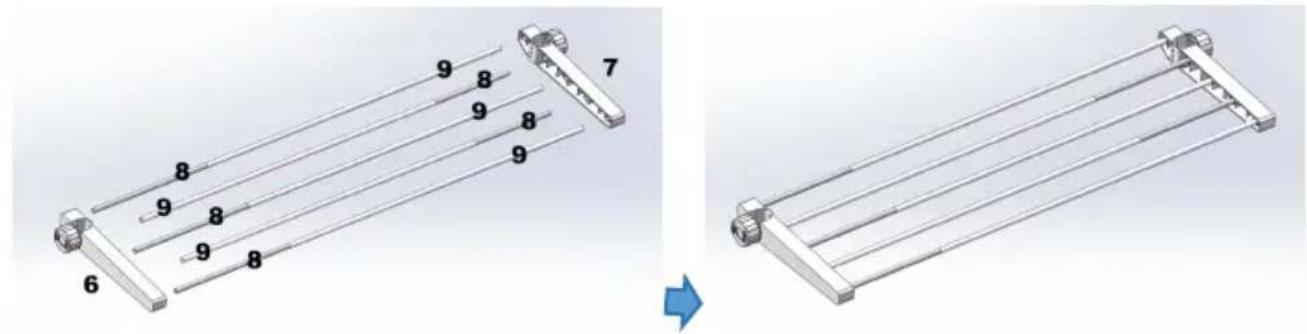

Step4: Install the Small Casing(8) and the Large Casing(9) on the Bracket (6&7). Make sure the casing and bracket are securely secured.

Vevor JFS-002 - PRODUCT ASSEMBLY - 5

text_image 6 7 8 9 8 9 8 9 8 9 8 →

Vevor JFS-002 - PRODUCT ASSEMBLY - 6

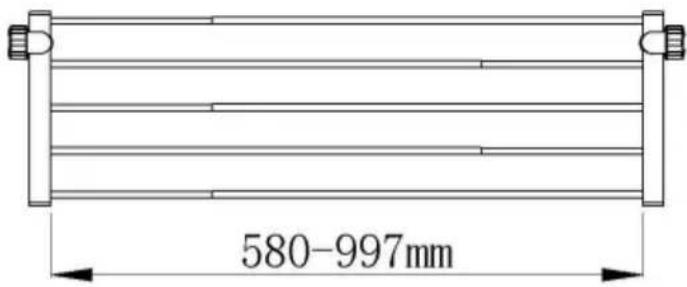

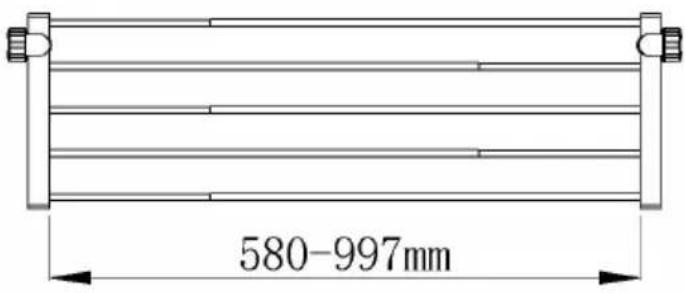

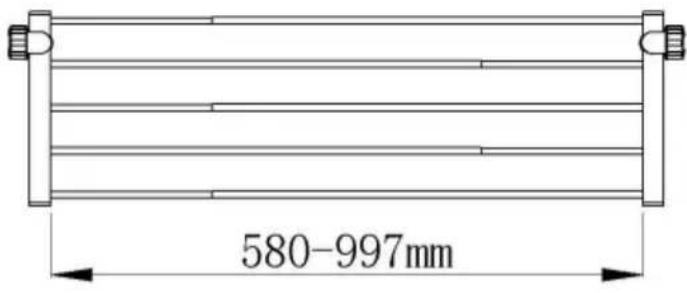

text_image 580-997mm

Range Of Regulation

Step5:

A. Hold on one upright pole. The part of Top Cap (1) is to the roof where you want to install the Over-the-Toilet Storage. Lift up upright pole ar move the Foot Cap (5) to the position to make part of the upright perpendicular to the roof and floor.

Vevor JFS-002 - Step5: - 1

natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)

B. Rotate the Foot Cap (5) counterclockwise, make the upright pole stable.

Vevor JFS-002 - Step5: - 2

natural_image Two architectural or mechanical components: a metallic column base and a vertical pole with evenly spaced legs (no text or symbols visible)

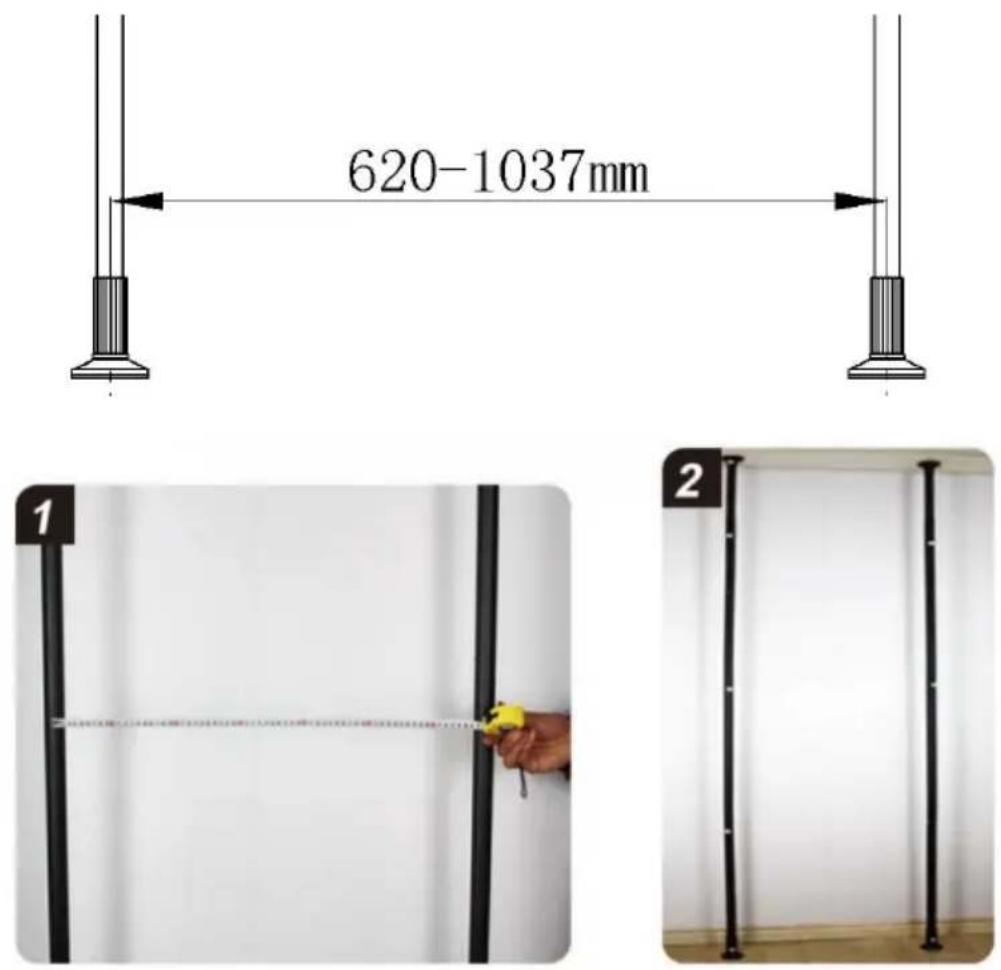

C. Same steps to install the other upright pole, Adjust the two vertical the center distance is 620-1037mm.

Vevor JFS-002 - Step5: - 3

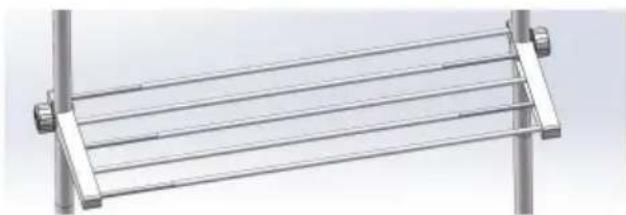

Step6:

A. Unscrew the nut. B. Adjust to the right length.

Vevor JFS-002 - Step6: - 1

natural_image Pure mechanical assembly diagram showing a horizontal beam supported by two vertical supports (no text or symbols)

Vevor JFS-002 - Step6: - 2

natural_image Pure electrical circuit lines without any symbols

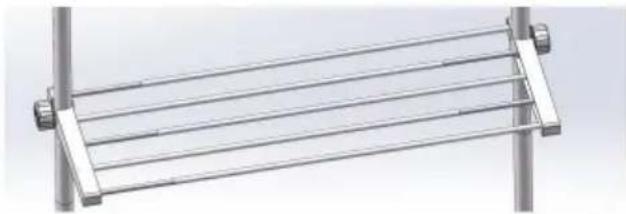

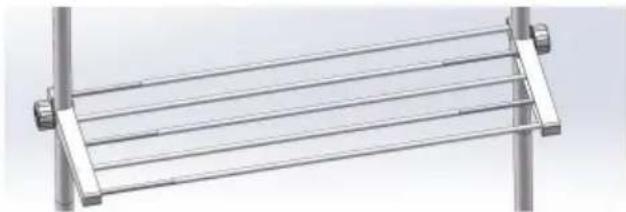

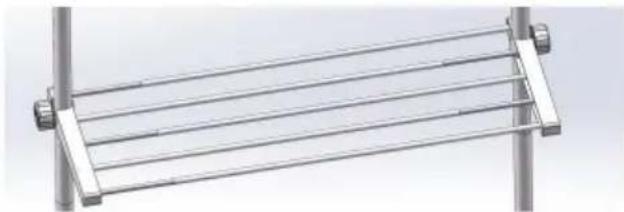

C. Elongate to installation position. D.Tighten the nut.

Vevor JFS-002 - Step6: - 3

natural_image Metal rack structure with metal bands and vertical supports (no text or symbols visible)

Vevor JFS-002 - Step6: - 4

natural_image Metal rack structure with vertical supports and mounting feet (no text or symbols)

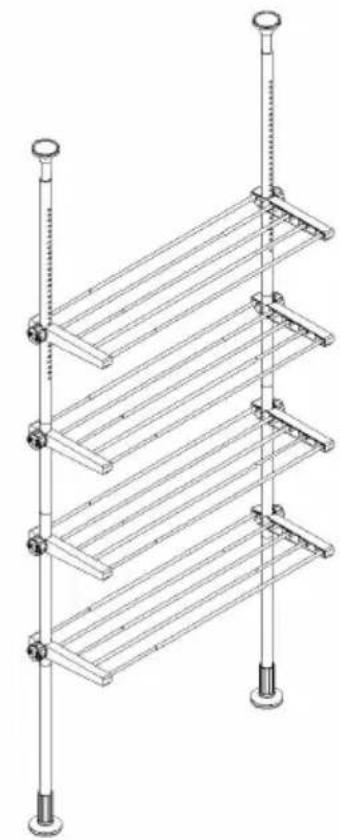

Step7: Done.

Vevor JFS-002 - Step6: - 5

natural_image Isometric line drawing of a multi-tiered metal shelving unit with vertical posts and cylindrical base (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

ASSEMBLAGE DU PRODUIT

natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two views of a metallic rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts, one before and one after an operation (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - ASSEMBLAGE DU PRODUIT - 1

text_image 580-997mm
natural_image Person in camouflage uniform climbing a pole against a plain wall (no text or symbols visible)
natural_image Two architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Pure mechanical assembly diagram showing a horizontal beam with supports and a small inset view (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal shelving rack mounted on a vertical pole (no text or symbols visible)

Vevor JFS-002 - ASSEMBLAGE DU PRODUIT - 2

natural_image Metal rack structure with vertical supports and mounting feet (no text or symbols)

Étape 7 : Terminé.
Vevor JFS-002 - ASSEMBLAGE DU PRODUIT - 3

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Vevor JFS-002 - ASSEMBLAGE DU PRODUIT - 4

text_image REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

natural_image Technical line drawing of a multi-tiered structural framework with vertical posts and horizontal beams (no text or symbols)
natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two views of a metallic rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts, one before and one after an operation (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - ASSEMBLAGE DU PRODUIT - 5

text_image 580-997mm

Regelungsbereich

Schritt

natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)
natural_image Two minimalist architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Pure mechanical assembly diagram showing a horizontal rod with two circular components attached (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal shelving unit with horizontal bars and vertical supports (no text or symbols visible)

Vevor JFS-002 - Schritt - 1

natural_image Metal rack structure with vertical supports and mounting feet (no text or symbols)

Schritt 7: Fertig.
Vevor JFS-002 - Schritt - 2

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor JFS-002 - Schritt - 3

text_image UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Vevor JFS-002 - Schritt - 4

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two views of a metallic rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts before and after assembly (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)
natural_image Technical line drawing of a mechanical support frame with mounting holes (no text or symbols)
natural_image Pure electrical circuit lines without any symbols

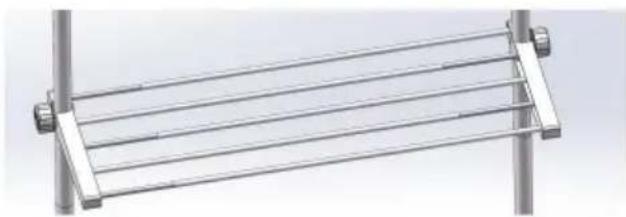

natural_image Metal shelving rack mounted on a vertical pole (no text or symbols visible)

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 1

natural_image Metal rack structure with three vertical supports and evenly spaced rings (no text or symbols)

Passaggio 7: fatto.

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 2

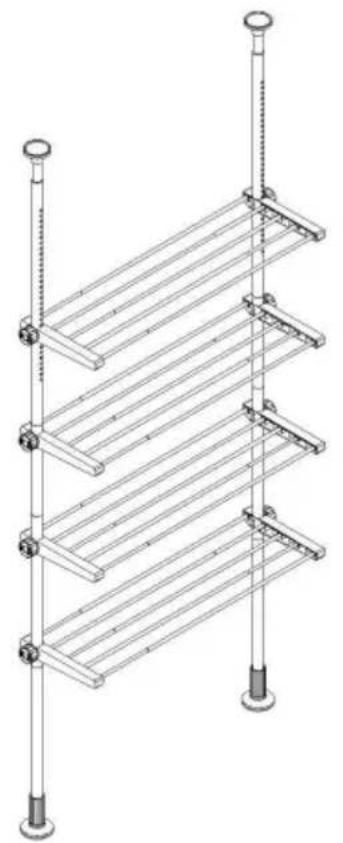

natural_image Isometric line drawing of a multi-tiered metal ladder structure with vertical posts and cylindrical supports (no text or symbols)

Importato in Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)
text_image 2500-2970mm

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 3

text_image 2900-3370mm
natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two-step illustration of a metal rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts, one before and one after an operation (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 4

text_image 580-997mm

Rango de regulación

Paso 5:

natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)
natural_image Two minimalist architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Technical line drawing of a mechanical frame or support structure (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal shelving unit with three horizontal bars mounted on a vertical pole (no text or symbols visible)

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 5

natural_image Metal rack structure with vertical supports and mounting feet (no text or symbols)

Paso 7: Listo.
Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 6

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200.000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 7

text_image REPRESENTANTE DEL REINO UNIDO

YH CONSULTING LIMITADO.

C/O YH Consulting Limited Oficina 147, Centurión Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 8

text_image REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two-step illustration of a metal rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts, one before and one after an operation (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 9

text_image 580-997mm

Zakres regulacji

Krok 5:

natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)
natural_image Two minimalist architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Pure mechanical assembly diagram showing a horizontal rod with two circular components attached (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal shelving unit with horizontal bars mounted on a vertical pole (no text or symbols visible)

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 10

natural_image Metal rack structure with metal plates and vertical supports (no text or symbols)

Krok 7: Gotowe.

Vevor JFS-002 - HO BISOGNO DI AIUTO? CONTATTACI! - 11

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200 000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Boven toiletopbergrek

MODEL: JFS-002

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two views of a metallic rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts, one before and one after an operation (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - HULP NODIG? NEEM CONTACT MET ONS OP! - 1

text_image 580-997mm
natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)
natural_image Two minimalist architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Pure mechanical assembly diagram showing a horizontal rod with two circular components attached (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal rack structure with vertical supports and mounting feet (no text or symbols)

Stap 7: Klaar.

Vevor JFS-002 - Stap 7: Klaar. - 1

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200.000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Vevor JFS-002 - Stap 7: Klaar. - 2

text_image EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

natural_image Technical line drawing of a multi-level metal structure with vertical posts and horizontal beams (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

text_image 2500-2970mm

Vevor JFS-002 - BEHÖVS HJÄLP? KONTAKTA OSS! - 1

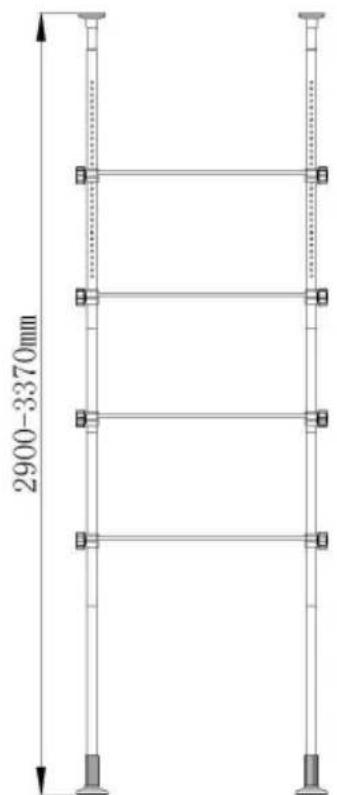

text_image 2900-3370mm

PRODUKTSAMMANSÄTTNING
Vevor JFS-002 - BEHÖVS HJÄLP? KONTAKTA OSS! - 2

text_image 1 2 4 3 3 5 1 2 4 3 3 5 6 7 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8 9 8

PRODUKTMONTERING

natural_image Diagram showing a mechanical component before and after assembly, with no visible text or symbols
natural_image Two views of a metallic rod with labeled parts, showing a blue arrow indicating transformation (no text or symbols present)
natural_image Two diagrams showing a mechanical rod with numbered parts before and after assembly (no text or symbols)
text_image Warning: The last two holes cannot be used! This will cause unstable installation and fixing.
natural_image Technical illustration of a mechanical assembly with numbered components, showing a 3D view before and after assembly (no text or symbols)

Vevor JFS-002 - PRODUKTMONTERING - 1

text_image 580-997mm

Regleringsområde

Steg 5:

natural_image Person in camouflage uniform holding a pole against a plain wall (no text or symbols visible)
natural_image Two minimalist architectural elements: a metallic column and a vertical pole, both without any text or symbols.
natural_image Pure mechanical assembly diagram showing a horizontal rod with flanges and two circular components attached (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Metal shelving unit with horizontal bars and vertical supports (no text or symbols visible)

Vevor JFS-002 - Steg 5: - 1

natural_image Metal rack structure with metal plates and vertical supports (no text or symbols)

Steg 7: Klart.
Vevor JFS-002 - Steg 5: - 2

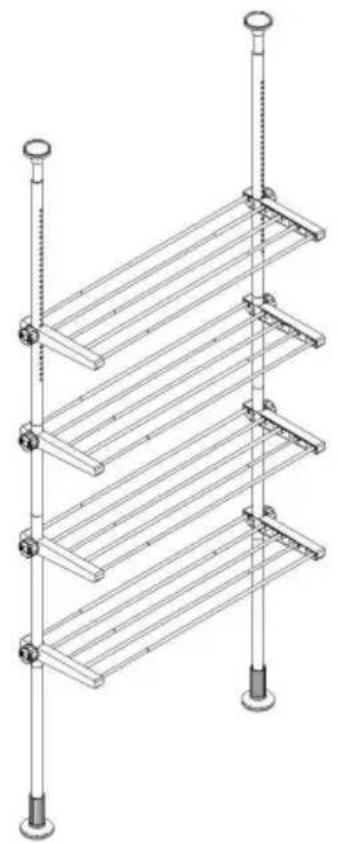

natural_image Isometric line drawing of a multi-tiered metal structure with vertical posts and cylindrical base (no text or symbols)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200 000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : JFS-002

Category : Wardrobe
