HYBG-SMBTG-010 - Wardrobe Vevor - Free user manual and instructions

USER MANUAL HYBG-SMBTG-010 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RATTAN ACCENT CABINET

USER MANUAL

MODEL NO.: HYBG-SMBTG-010

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Accent Cabinet

MODEL NO.: HYBG-SMBTG-010

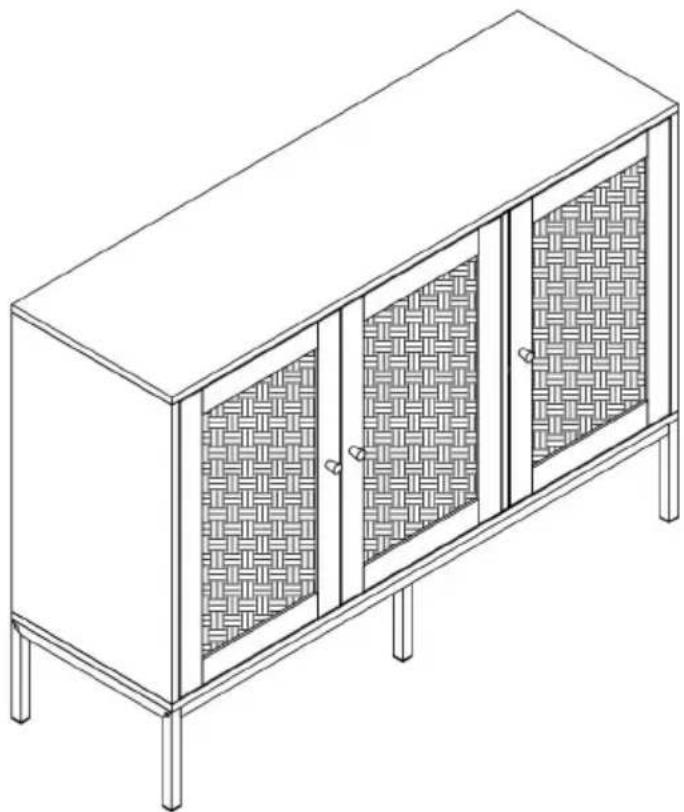

Line drawing of a three-tiered cabinet with lattice panels and a matching door (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Accent Cabinet.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Accent Cabinet.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	HYBG-SMBTG-010
Product Dimensions (LxWxH)(mm)	1200*360*800
Net Weight(kg)	About 29.3

*Products such as specifications, appearance, and design are subject to modification without prior notice.

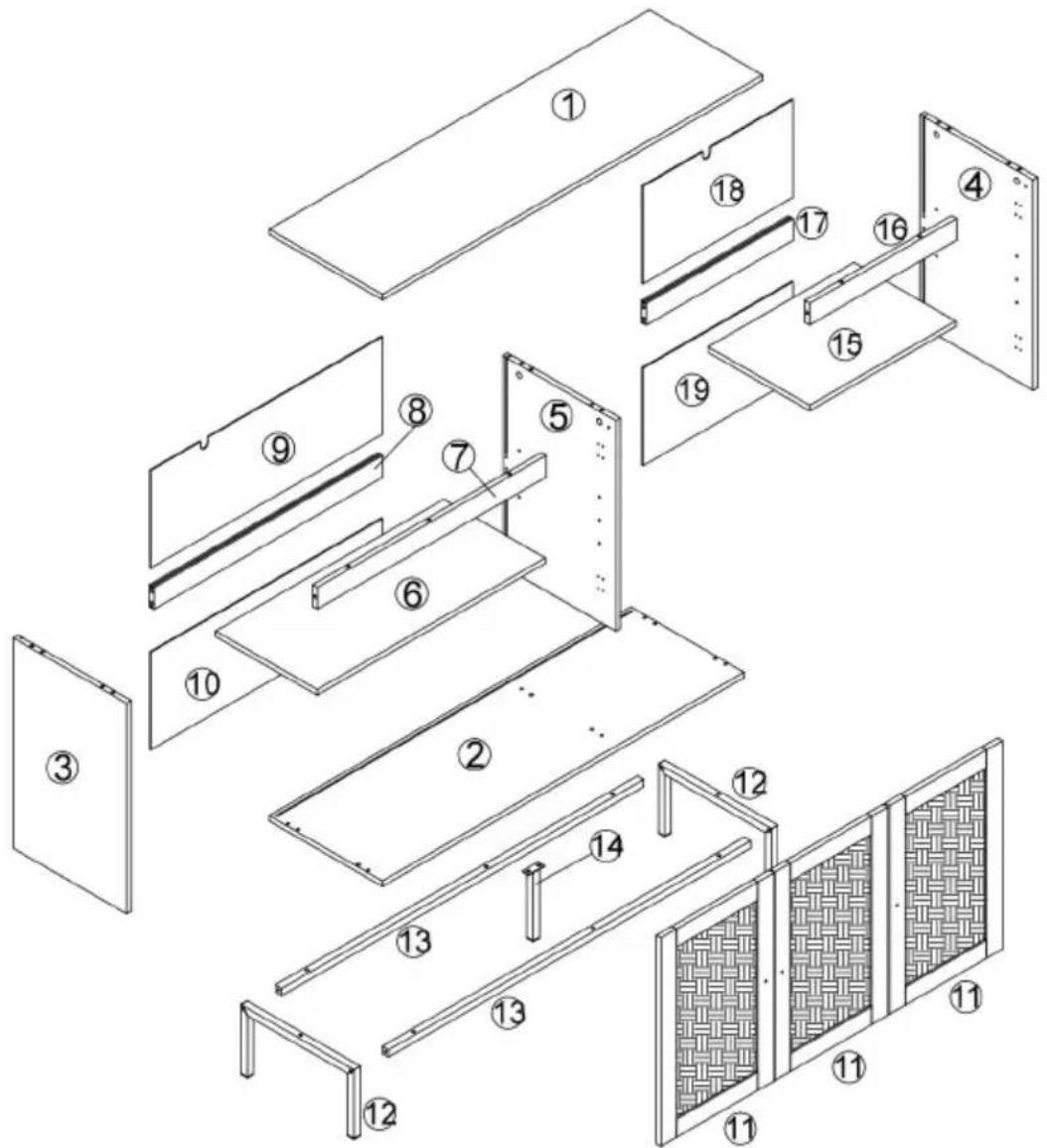

PACKAGE CONTENTS

Exploded view diagram of a modular furniture or panel assembly with numbered components

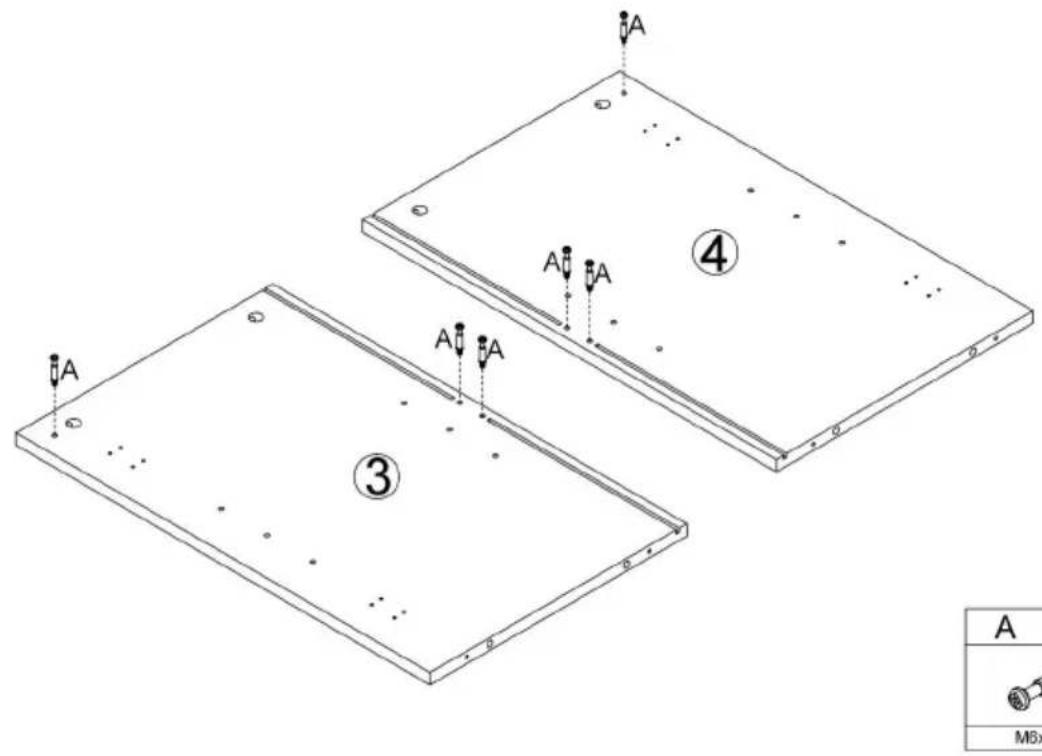

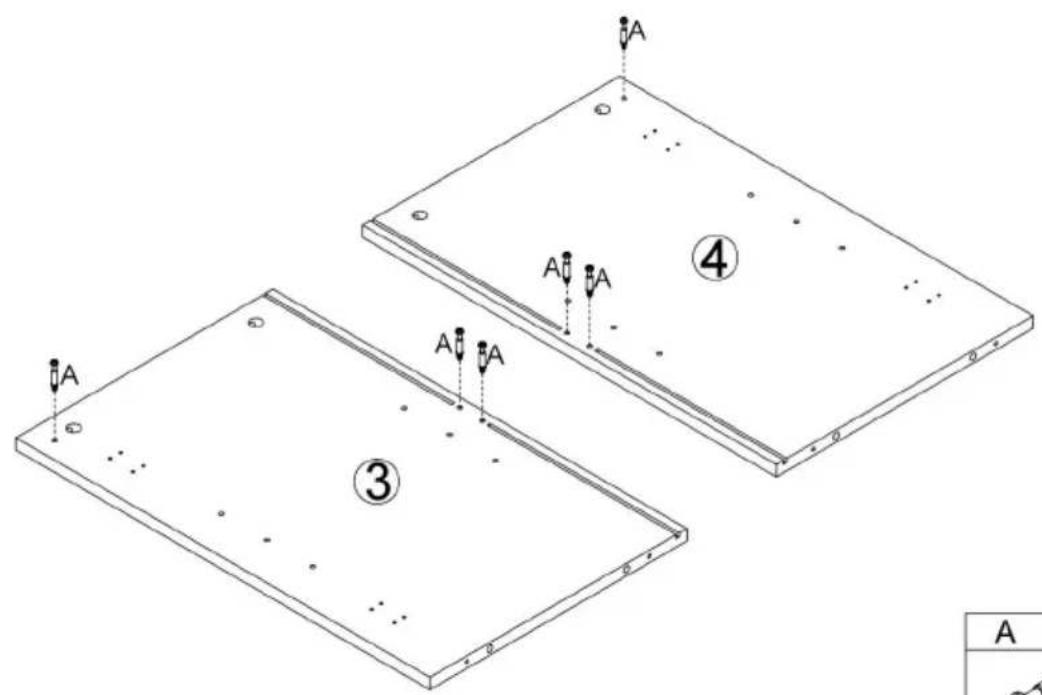

Step 1

A A A A ④ ③ A A A

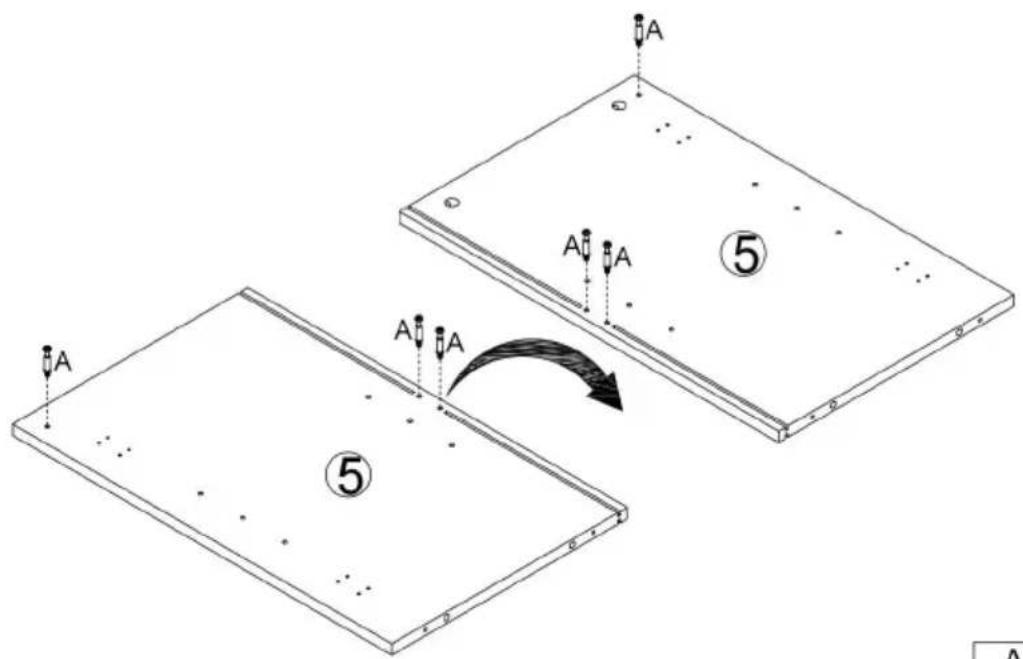

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

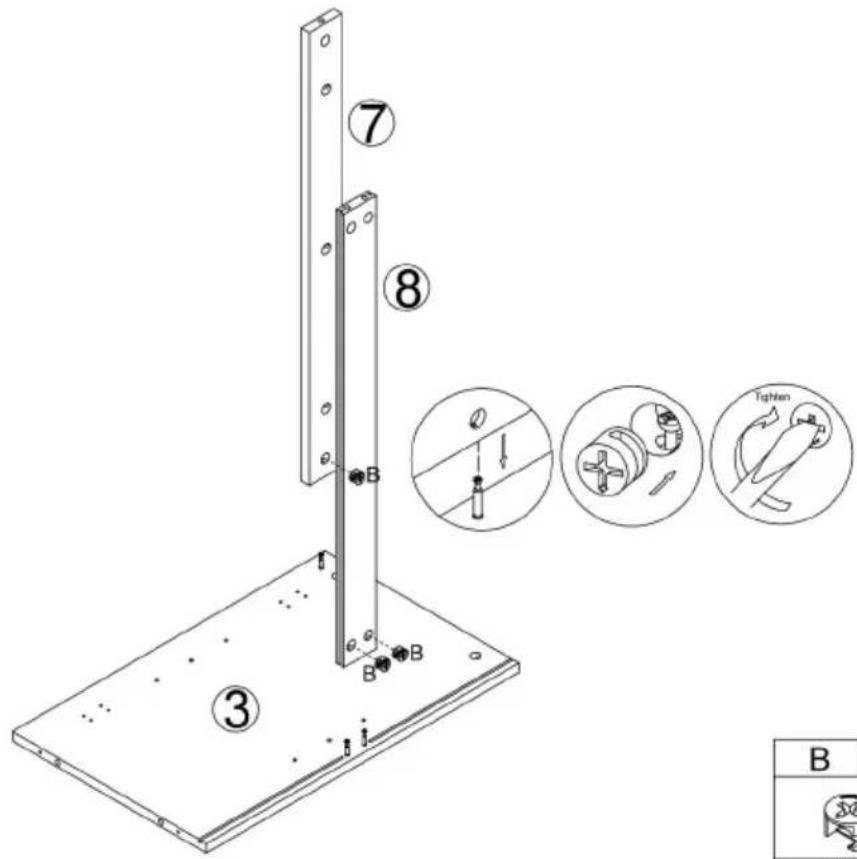

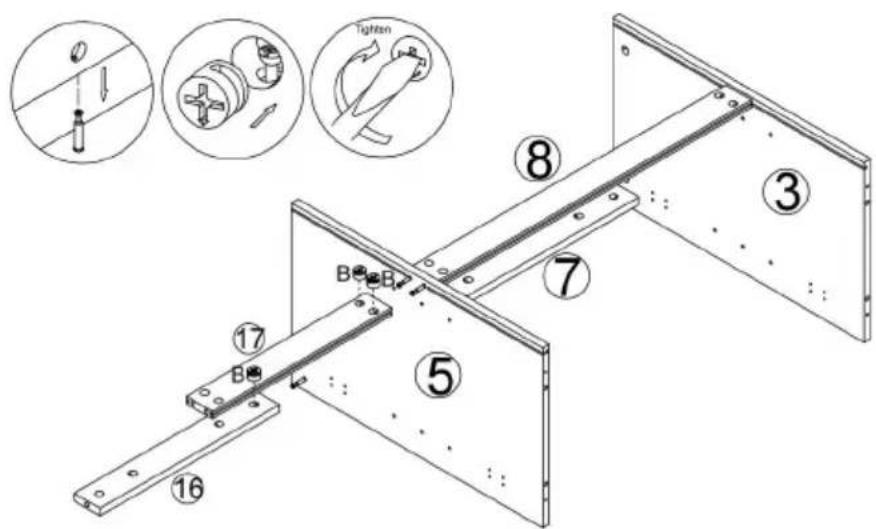

Step5

Technical diagram illustrating assembly steps with numbered components and tool icons for fastening or locking operations.

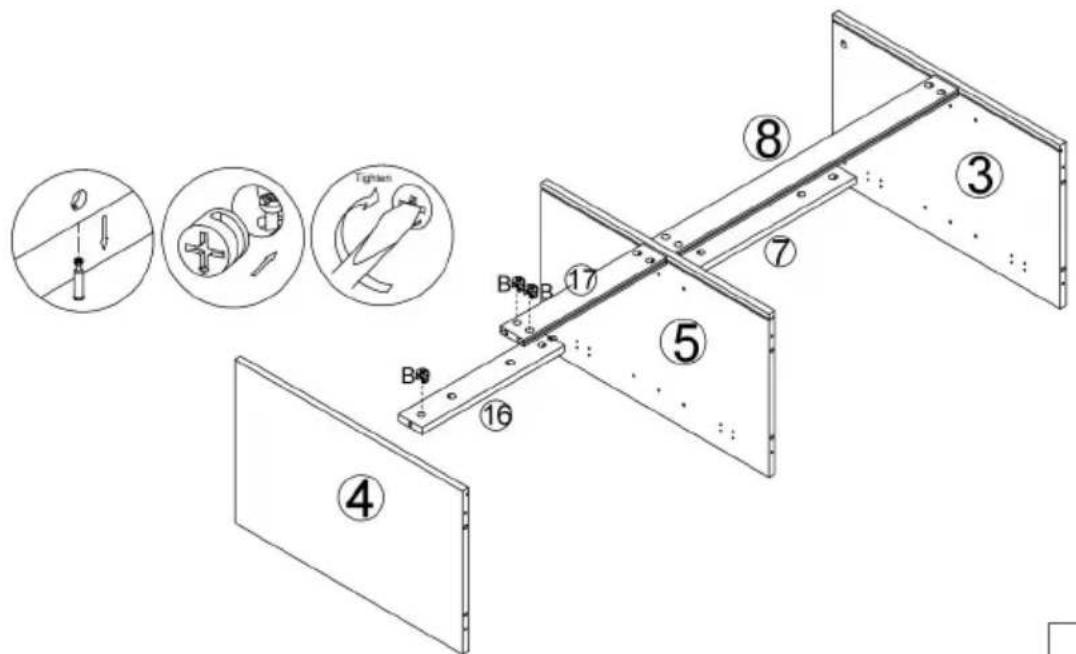

Step6

Technical diagram illustrating assembly steps with numbered components and labeled parts like 'Tighten' and B40

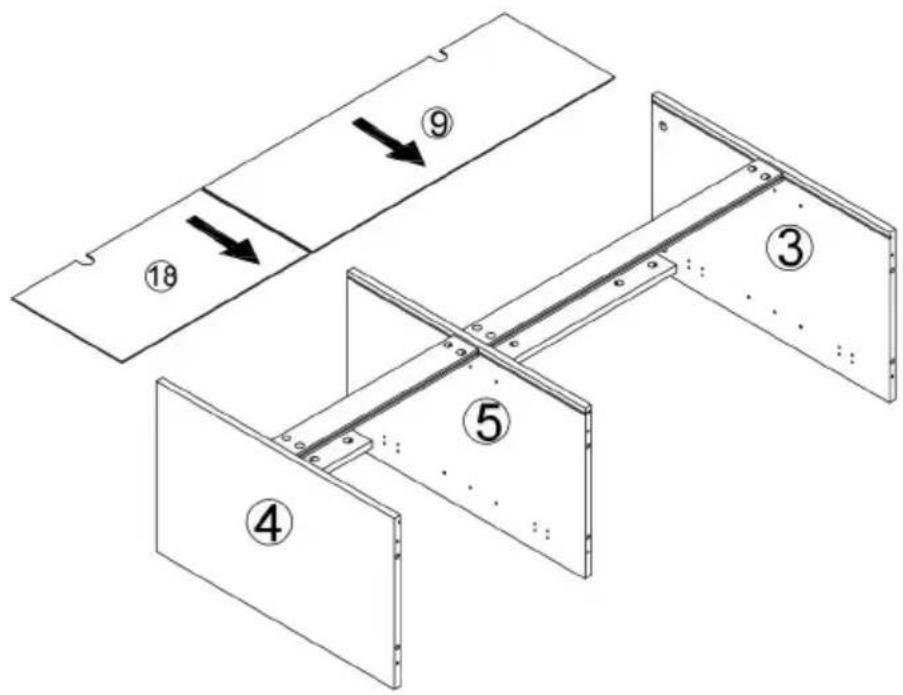

Step7

Technical diagram showing a multi-step assembly or installation with numbered components and directional arrows indicating flow or movement.

Step8

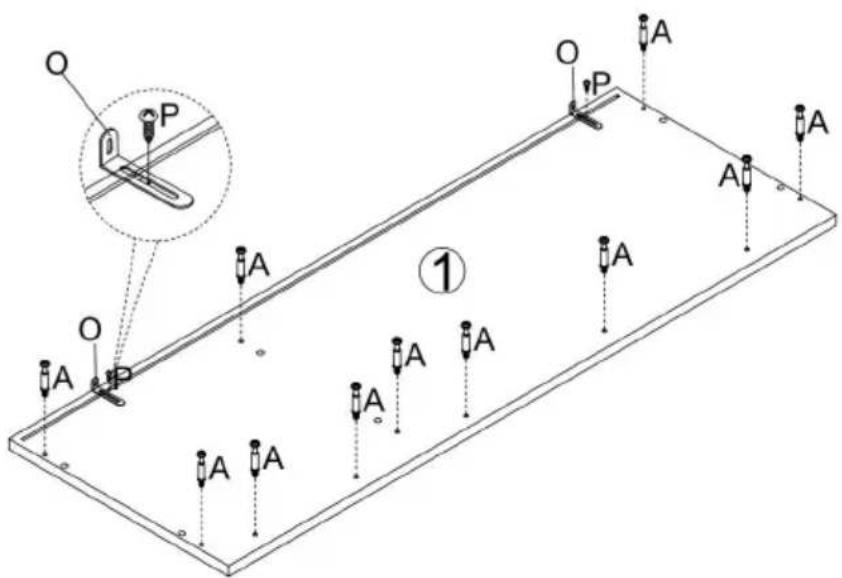

O P O P A A A A A ① A A A A

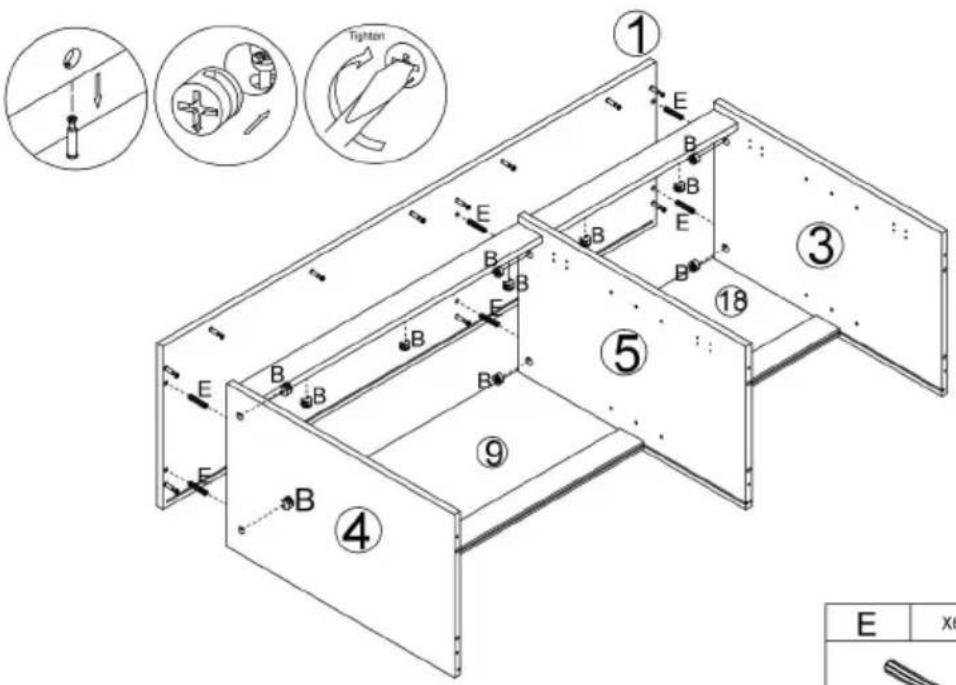

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and tighter mechanisms.

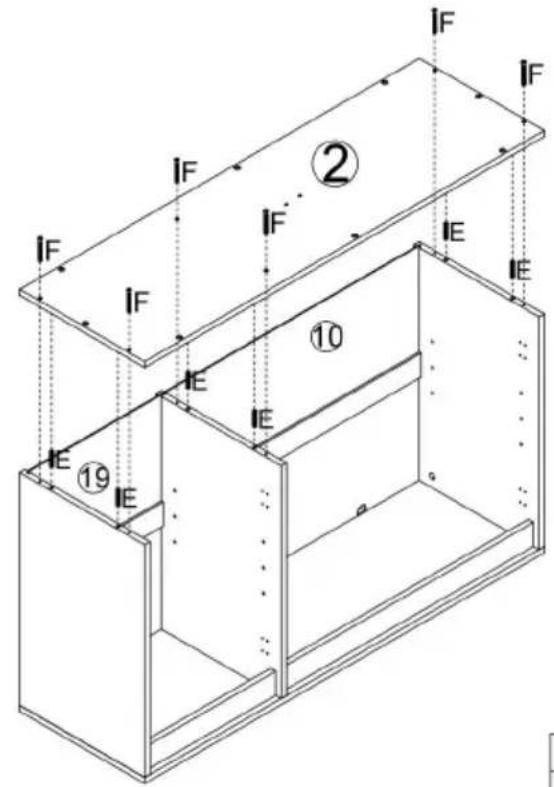

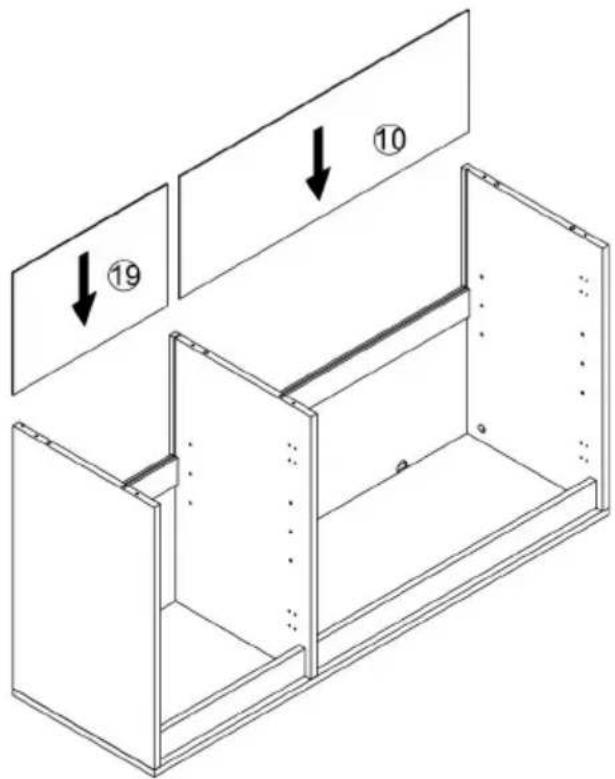

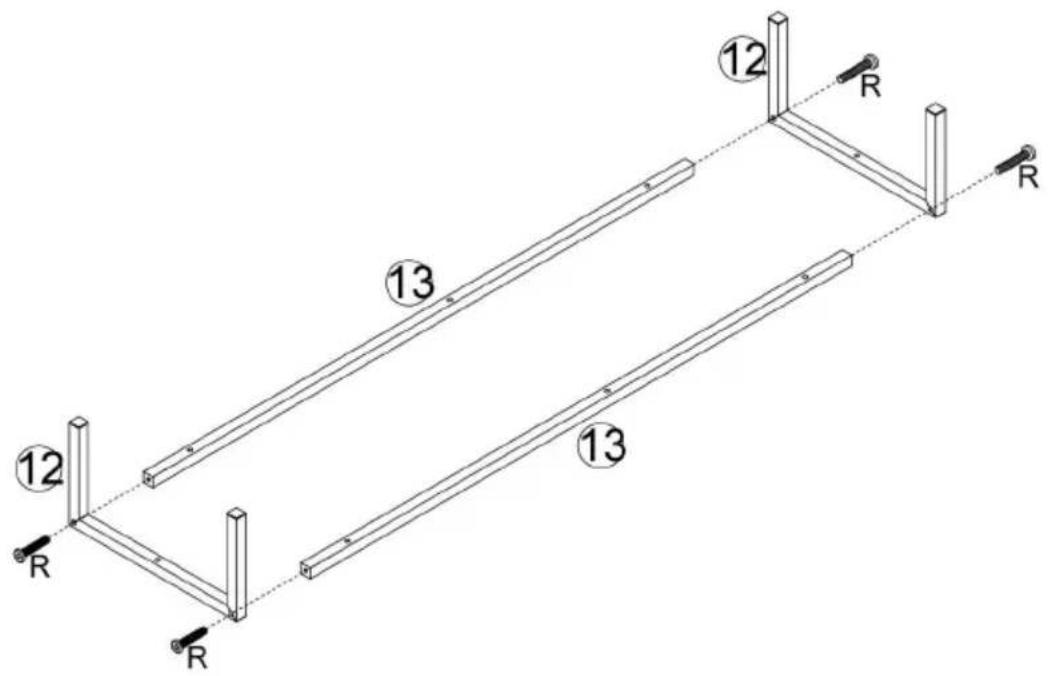

Step 10

Technical diagram showing a 3D layout of a cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

Technical diagram of a two-story building with labeled components and structural annotations

Step12

Technical diagram of a mechanical assembly with numbered components and R-rated connectors

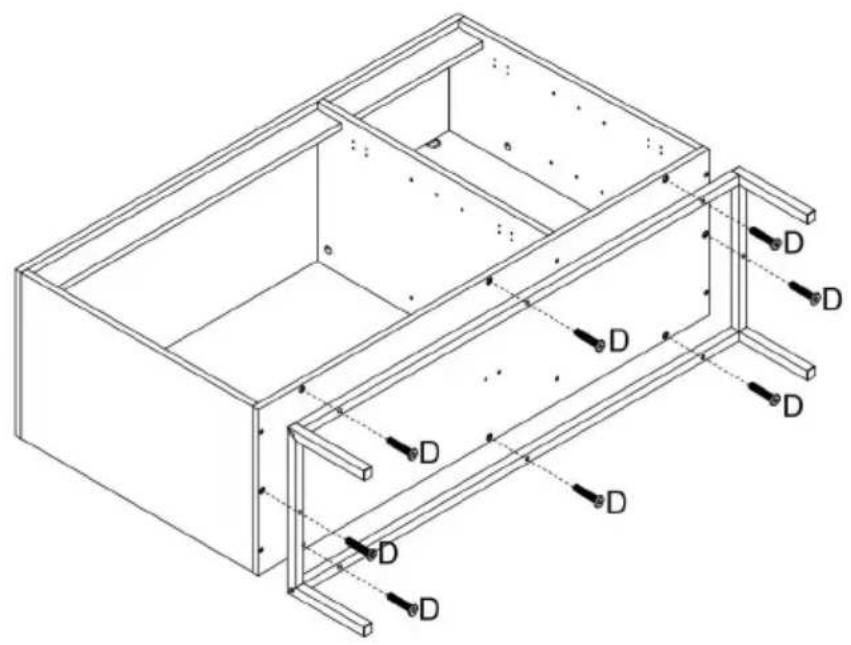

Step 13

Isometric line drawing of a rectangular frame with internal components and labeled D (no text or symbols beyond labels)

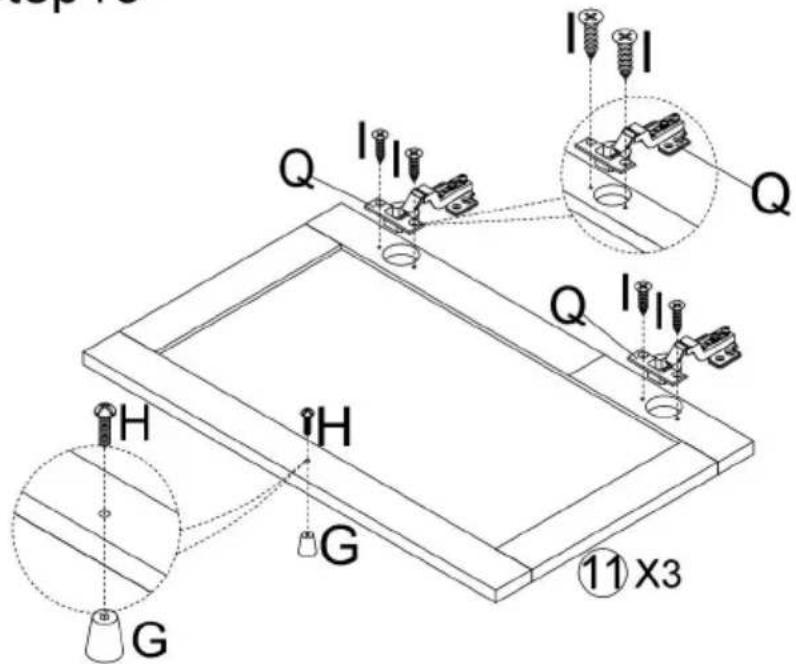

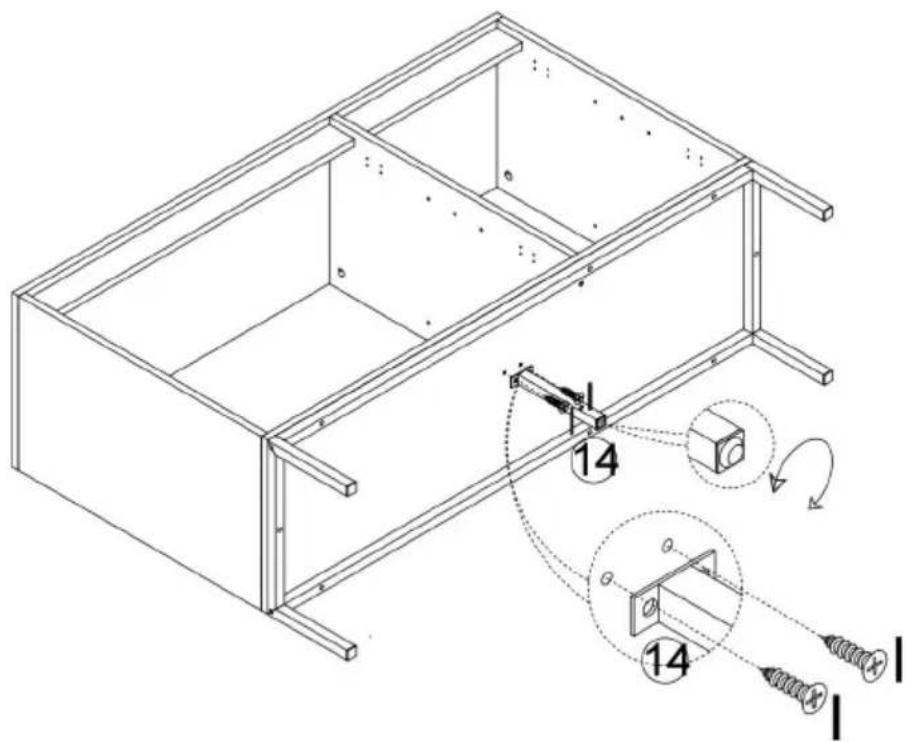

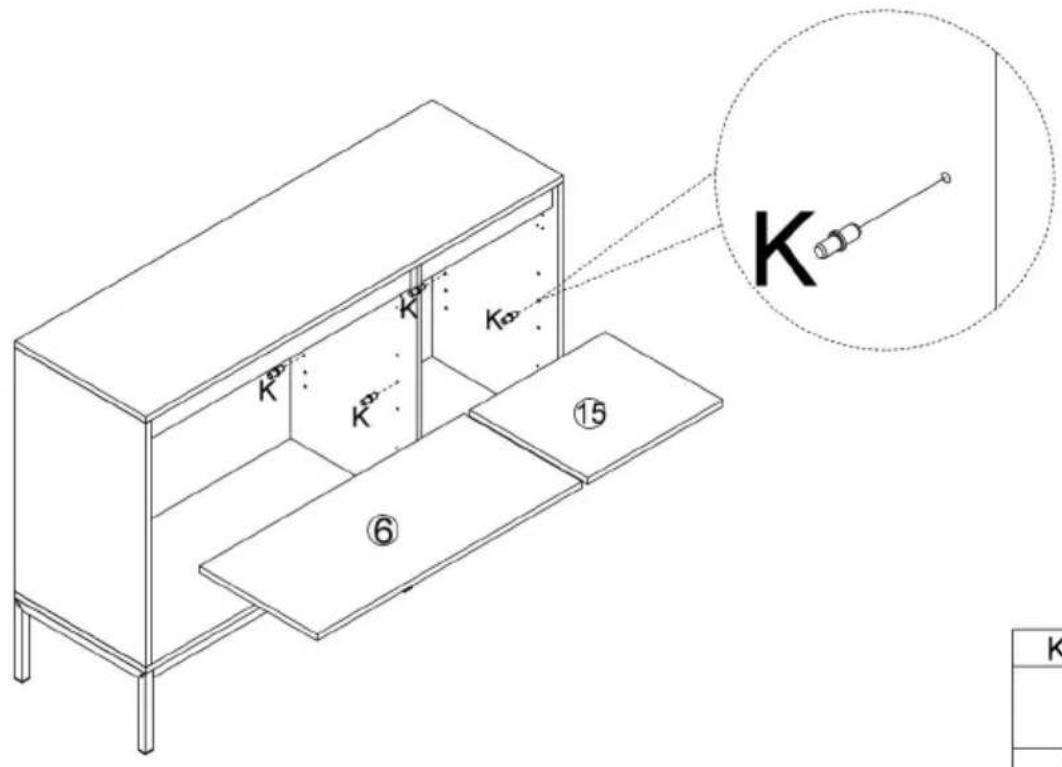

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

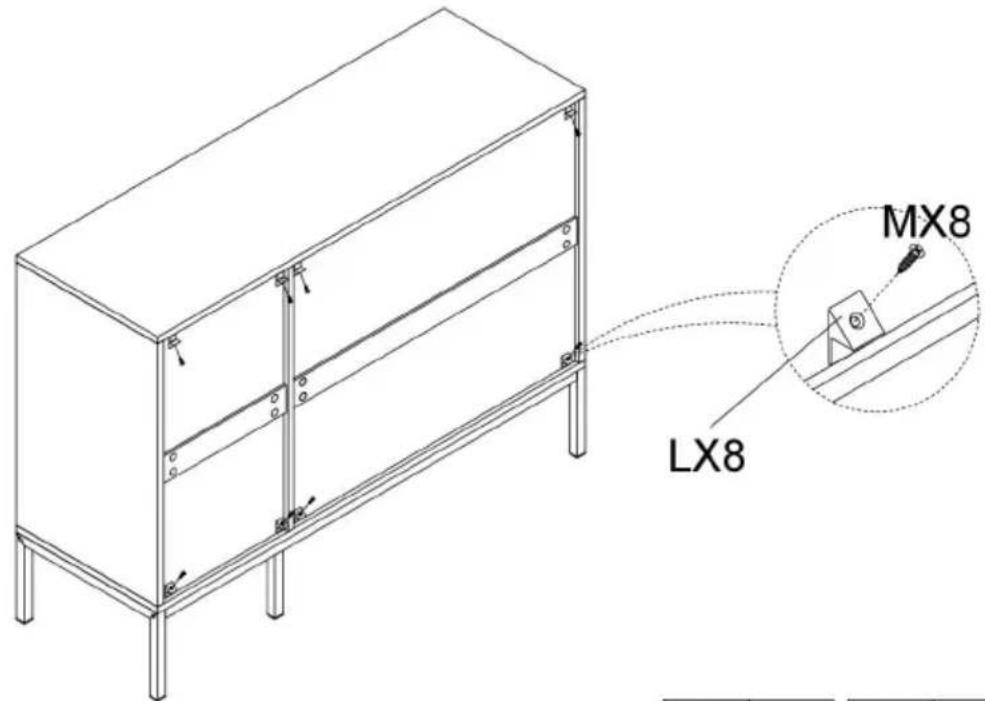

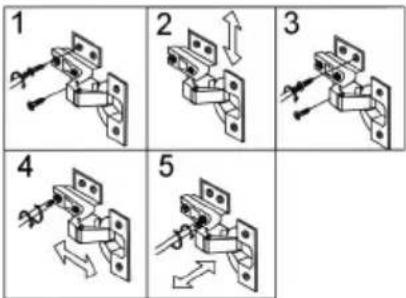

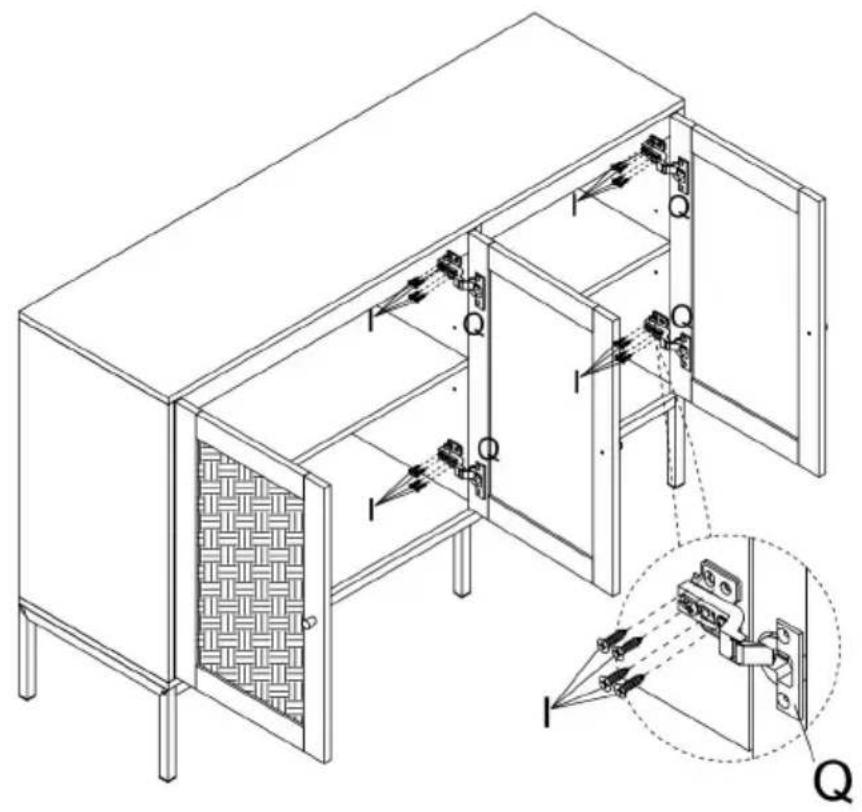

Step 15

MX8 LX8

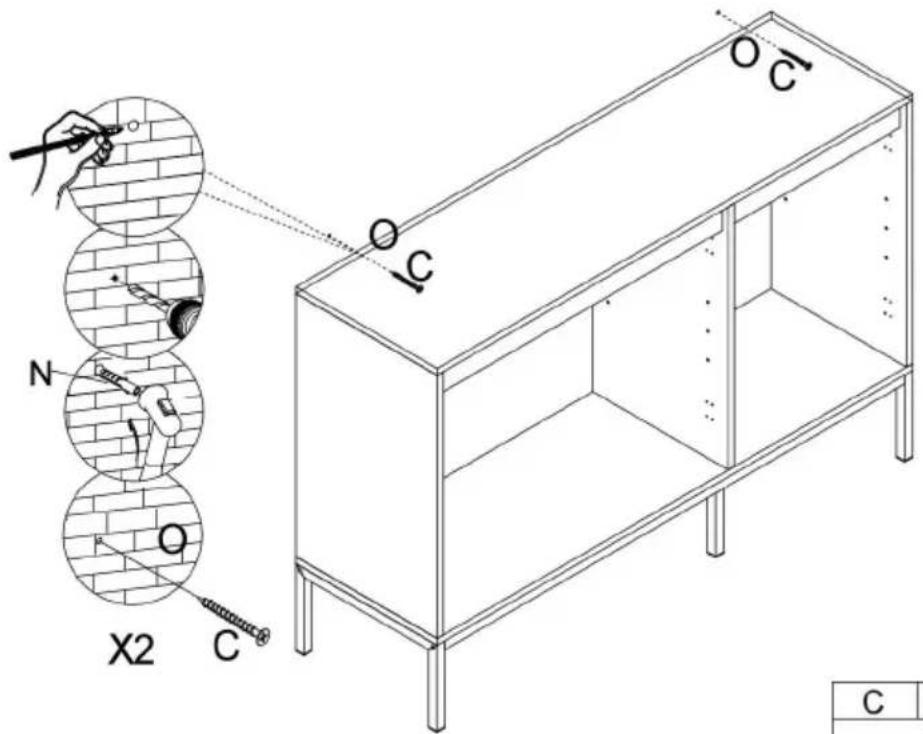

Step 16

X2 C N O O C O C C

Step 17

K K K K ⑯ ⑮ K

K	X8
∅5x20mm

Step 18

11×3 G H iH G Q I I I Q I I Q

Step19

Technical line drawing of a cabinet with internal components and a magnified inset showing assembly details (no text or symbols)

1 2 3 4 5

COMPLETION

Line drawing of a three-panel cabinet with woven panels and wooden legs (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
