Product type	Door seal gasket
Brand	Vevor
Model	JN-20FT
Length	20 feet (approximately 6.1 meters)
Main material	Aluminum for base plate, rubber/EPDM sealing strip
Color	Silver aluminum, black strip
Approximate weight	0.8 kg
Main function	Sealing under the door against drafts, dust, insects, and noise
Installation type	On the floor, under the closed door
Fixation	Double-sided adhesive + screws for aluminum base plate
Package contents	Sealing strip, aluminum base plate with guide rails, screws
Intended use	Standard interior and exterior doors
Usage conditions	Indoor, dry and clean areas
Maintenance and cleaning	Clean with a brush and mild detergent, let dry before installation; avoid solvents
Safety	Do not let children play with the product; use only as intended
Warranty	Electronic warranty via www.vevor.com/support
Country of origin	China
Repairability	Not repairable, replace the whole assembly if worn
Included accessories	No additional accessories

Frequently Asked Questions - JN-20FT Vevor

How to install the JN-20FT door seal?

Installation is done on the floor. First clean the floor with a brush and detergent, then let dry. Fix the aluminum base plate with the provided screws, then insert the sealing strip into the guide rails starting from one end.

Can the seal be cut to the desired length?

Yes, you can cut the sealing strip and the base plate to the desired length using a saw or a suitable cutter. Make sure to measure precisely under the door.

Does the adhesive hold well on all floors?

The adhesive is designed for clean and smooth floors. Porous, greasy or waxed surfaces may compromise adhesion. It is recommended to thoroughly clean and degrease the floor before installation.

How to maintain the door seal?

Regularly clean the sealing strip with a damp cloth and mild detergent. Avoid harsh solvents that could damage the rubber.

Is the JN-20FT seal suitable for an exterior door?

Yes, it can be used for exterior doors, but prolonged exposure to weather may reduce its lifespan. It is ideal for interior doors and protected exterior doors.

What is the height of the sealing strip?

The height of the strip is not specified in the manual, but it is generally designed to fit a gap under the door of 10 to 15 mm.

Does the seal reduce noise?

Yes, it helps reduce airborne noise by filling the gap under the door, which improves sound insulation.

How to replace a worn seal?

Unscrew the base plate, remove the old strip, clean the floor, and install a new strip in the rails. You can order the JN-20FT model as replacement.

Is the product guaranteed?

Yes, Vevor offers technical support and an electronic warranty. Register your product at www.vevor.com/support for more details.

Can I install the seal without screws?

Using screws is recommended to firmly fix the base plate, especially if the door is heavy. Adhesive alone may not suffice in the long term.

User questions about JN-20FT Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Door seal in PDF format for free! Find your manual JN-20FT - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JN-20FT by Vevor.

USER MANUAL JN-20FT Vevor

NEED HELP? CONTACT US!

Have product questions? Need technical support?

Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or software updates on our product.

Safety instruction and precautions

WARNING:

Read this material before using this product.

Failure to do so can result in serious injury.

This product is not a toy. Do not allow children to play with this item.
Use as intended only.

Operation Direction :

Lay seal on floor in position under door, mark seal position on floor, and cut the seal to length.
The floor should be cleaned with a scrubbing brush and detergent and left to dry (any contamination on floor will compromise, performance of adhesive, i.e oil, grease or wax).
Close door with seal underneath it Fig.1, and position seal as shown on Fig.2. and Fig.3 and mark the floor for location of seal.
Insert the "T-shaped heads" at both ends of the sealing strip into the two guide grooves of the aluminum base plate, slowly inserting from one end of the aluminum base plate to the other end. If the doors and windows are not equipped with aluminum bottom guide rails, it is necessary to fix the aluminum bottom guide rails with screws before installing the sealing strip.

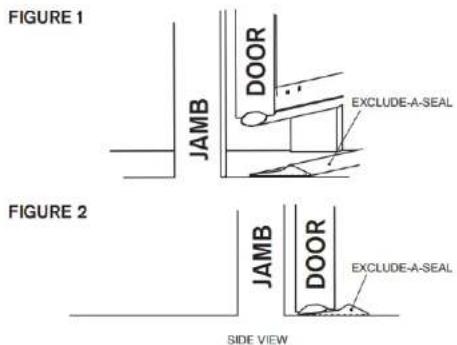

FIGURE 1 JAMB DOOR EXCLUDE-A-SEAL FIGURE 2 JAMB DOOR EXCLUDE-A-SEAL SIDE VIEW

FIGURE 3 JAMB EXCLUDE-A-SEAL JAMB TOP VIEW

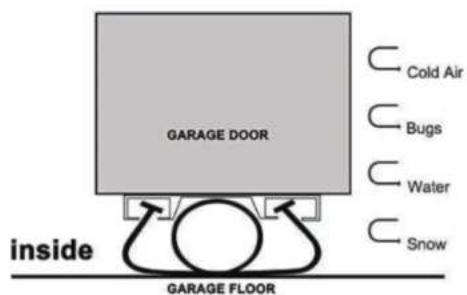

Sketch map :

GARAGE DOOR inside GARAGE FLOOR COLD AIR Bugs Water Snow

030201

	Items	Description
1	Name	Door seals set
2	Model	JN-10FT
3	Parameter	Length: 10ft

	Items	Description
1	Name	Door seals set
2	Model	JN-16FT
3	Parameter	Length: 16ft

	Items	Description
1	Name	Door seals set
2	Model	JN-16FT-AL
3	Parameter	Length: 16ft, Aluminum Plate

	Items	Description
1	Name	Door seals set
2	Model	JN-20FT
3	Parameter	Length: 20ft

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Door seals set

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.

You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Door seals set

Modèle : JN-10 FT / JN-16 FT / JN-20 FT / JN-16 FT - AL
