RATTAN ACCENT CABINET USER MANUAL

MODEL NO.: HYBG-SMBTG-011

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rattan Accent Cabinet

MODEL NO.: HYBG-SMBTG-011

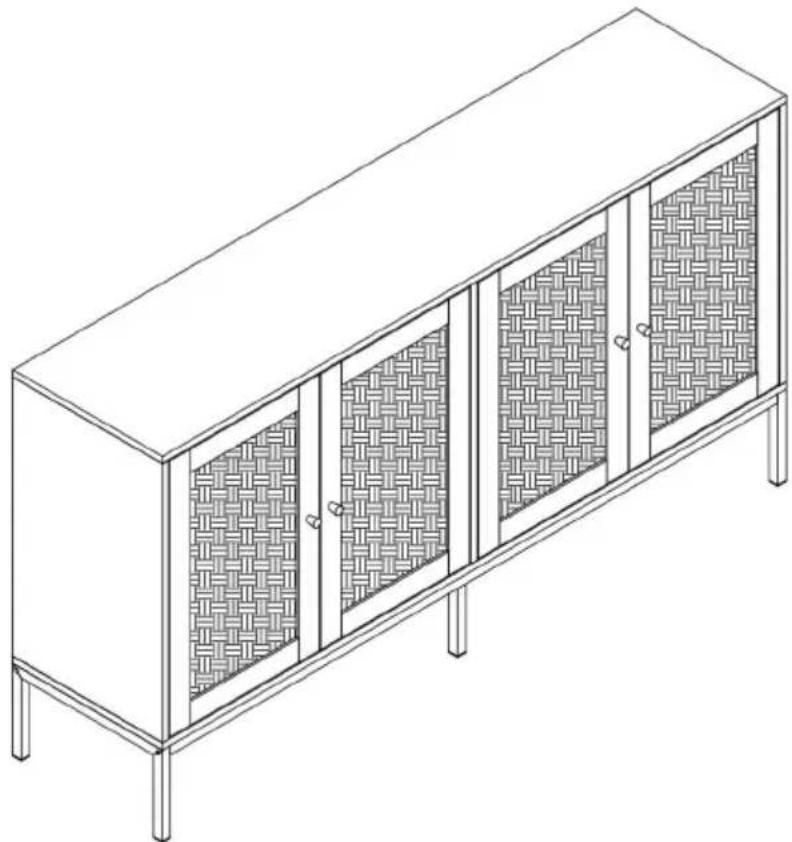

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Rattan Accent Cabinet.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy Do not allow children to play with or r item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Rattan Accent Cabinet.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	HYBG-SMBTG-011
Product Dimensions (LxWxH)(mm)	1500*360*800
Net Weight(kg)	About 35.3

*Products such as specifications, appearance, and design are subject to modification without prior notice.

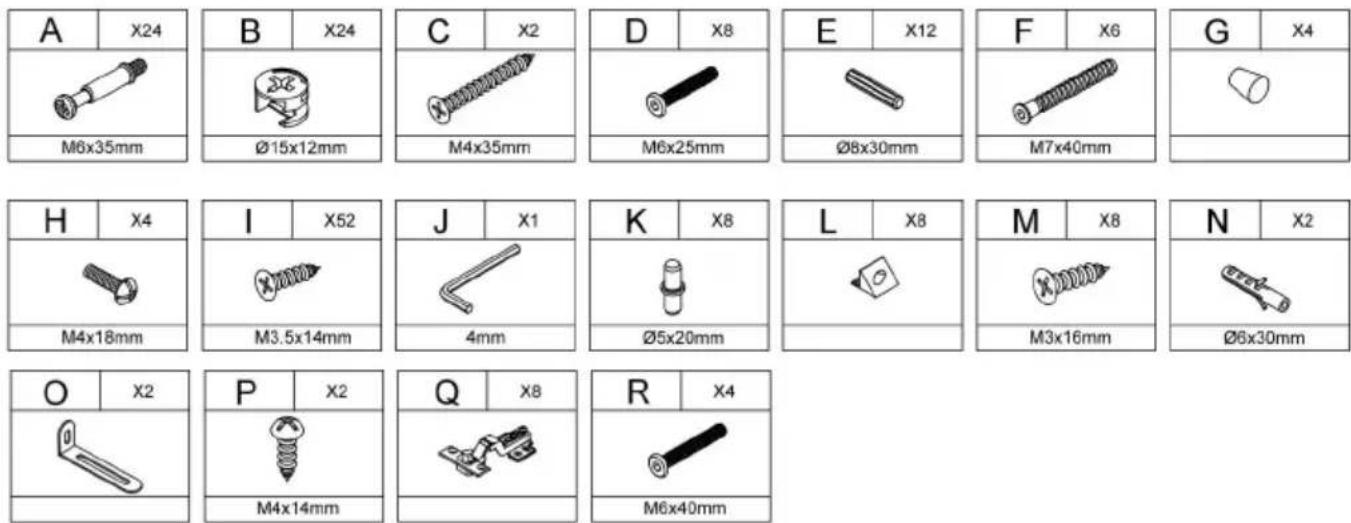

PACKAGE CONTENTS

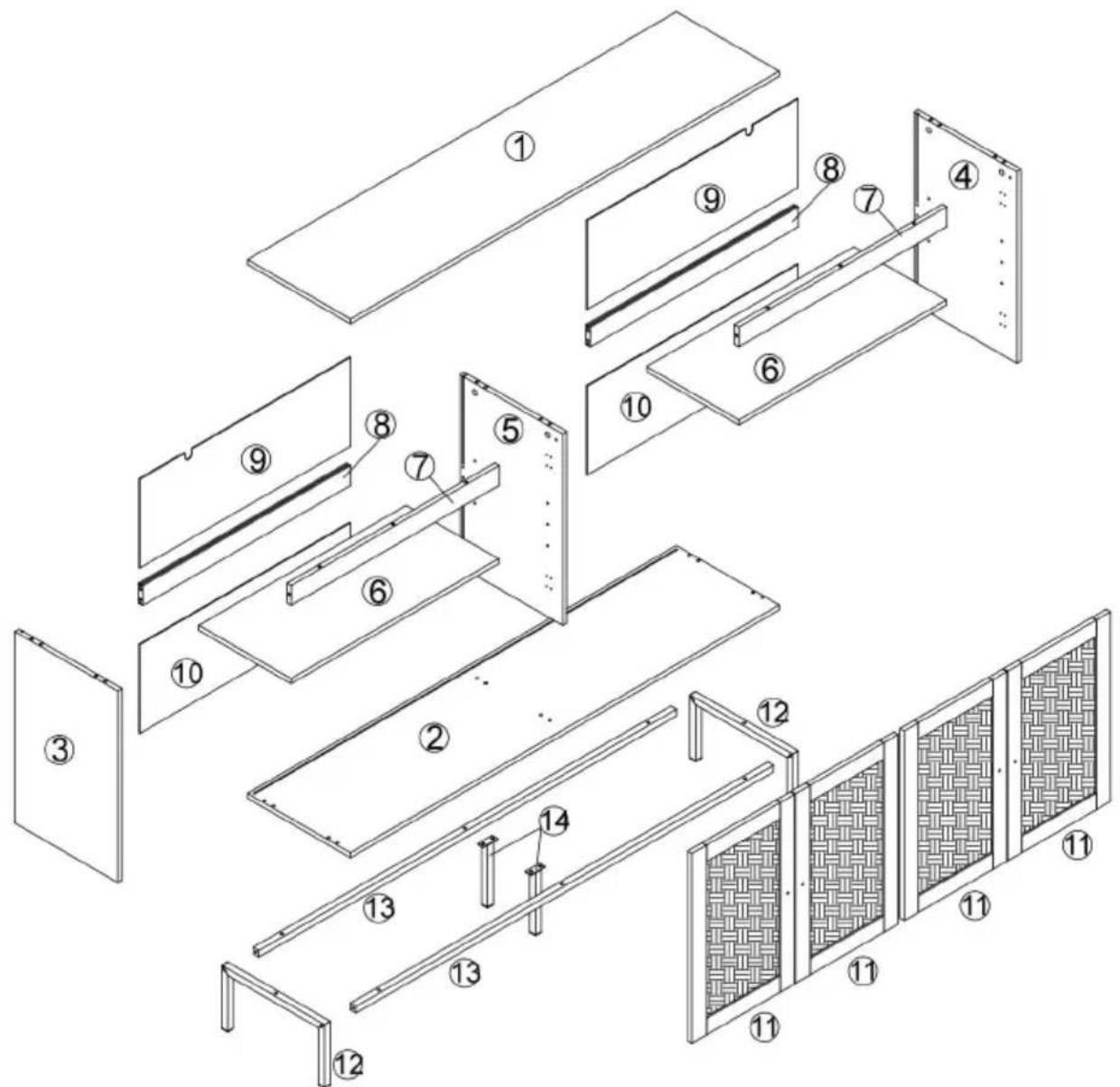

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

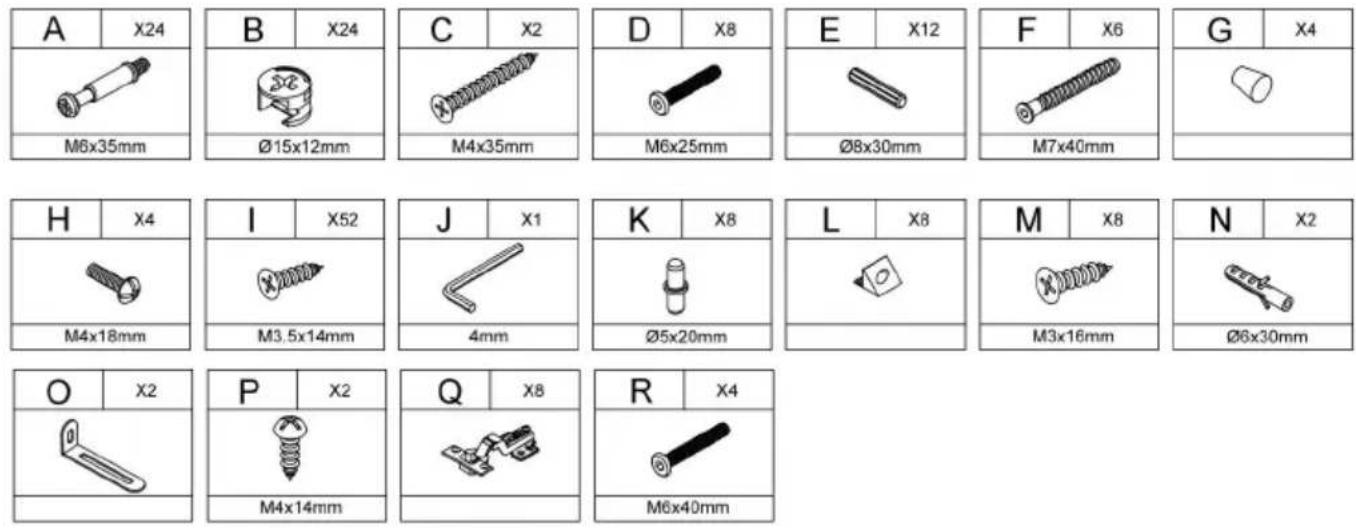

A X24 B X24 C X2 D X8 E X12 F X6 G X4 M6x35mm Ø15x12mm M4x35mm M6x25mm Ø8x30mm M7x40mm H X4 I X52 J X1 K X8 L X8 M X8 N X2 M4x18mm M3.5x14mm 4mm Ø5x20mm M3x16mm Ø6x30mm O X2 P X2 Q X8 R X4 M4x14mm M6x40mm

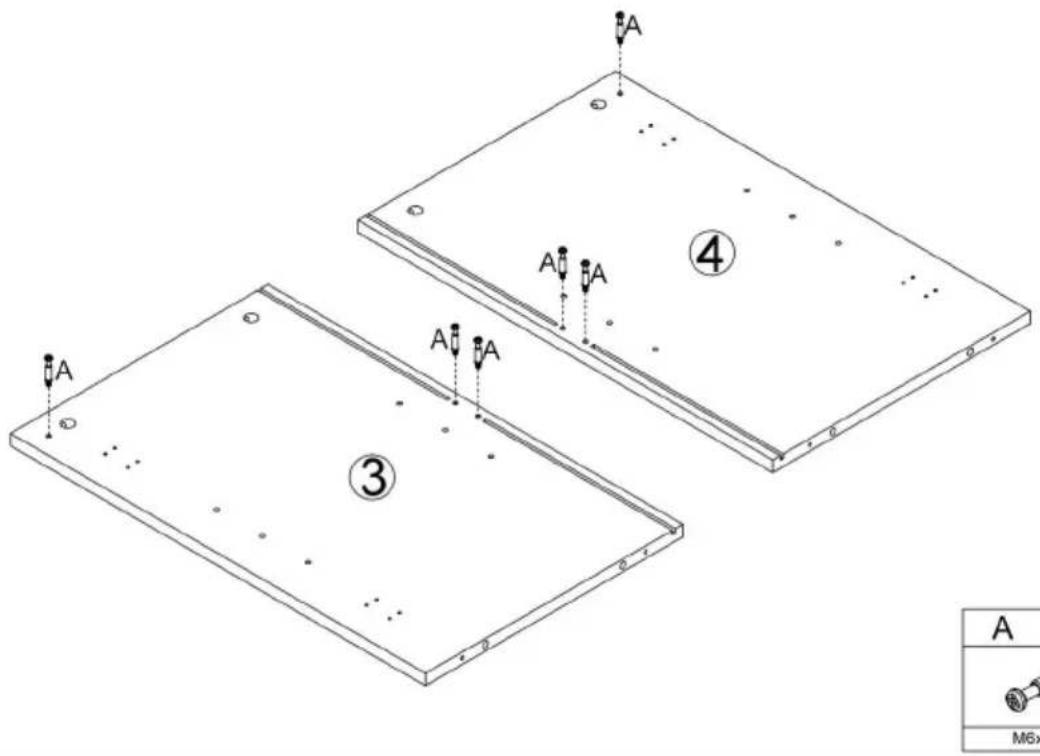

Step 1

Technical diagram showing three labeled panels (③, ④) with marked points A and a small inset panel labeled A.

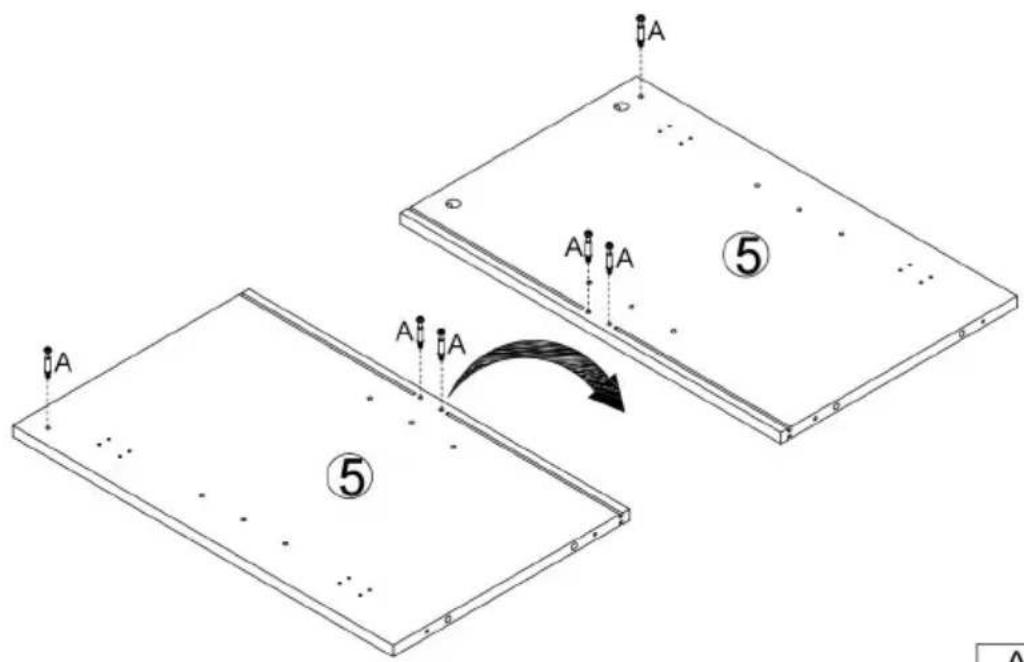

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

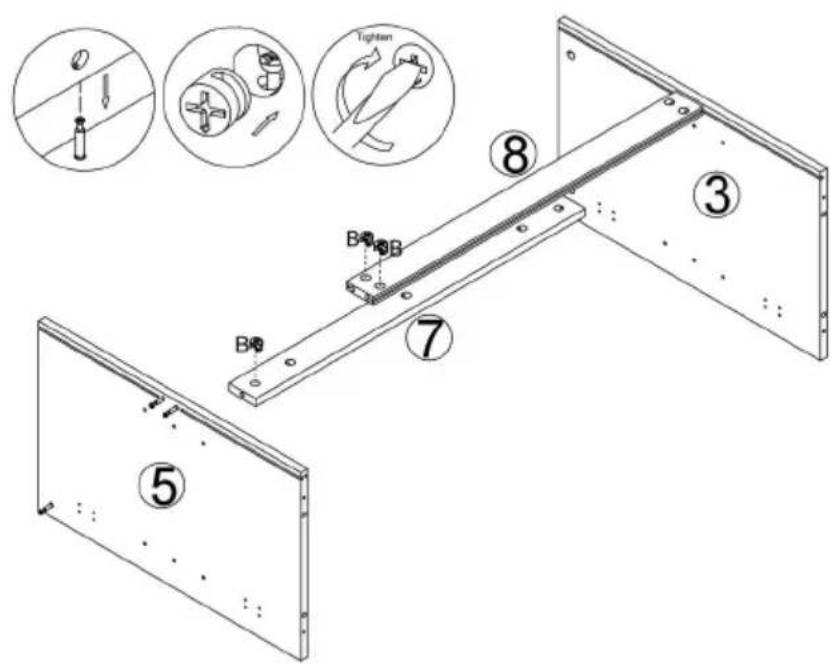

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

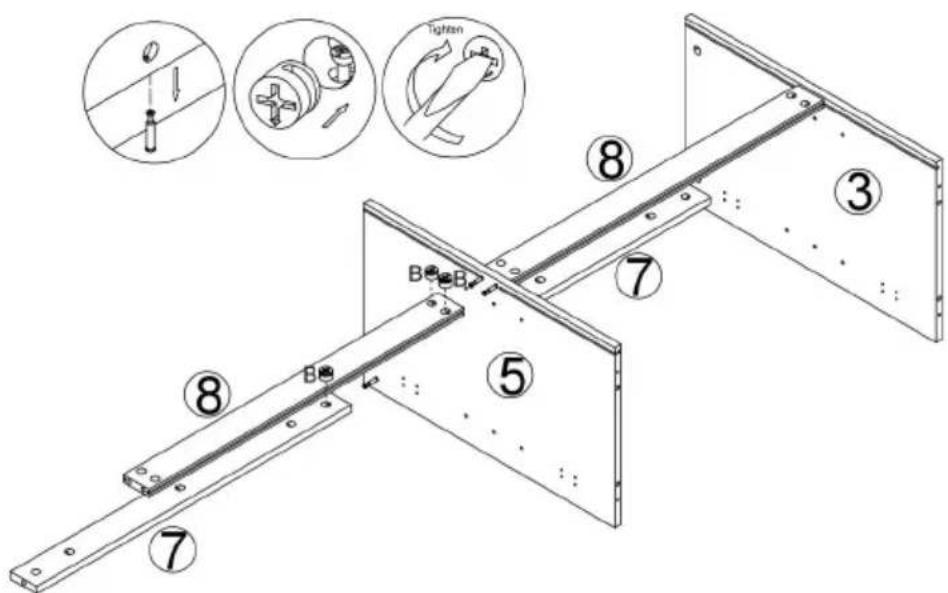

Step5

Technical diagram of a mechanical assembly with numbered components and tool icons for assembly steps

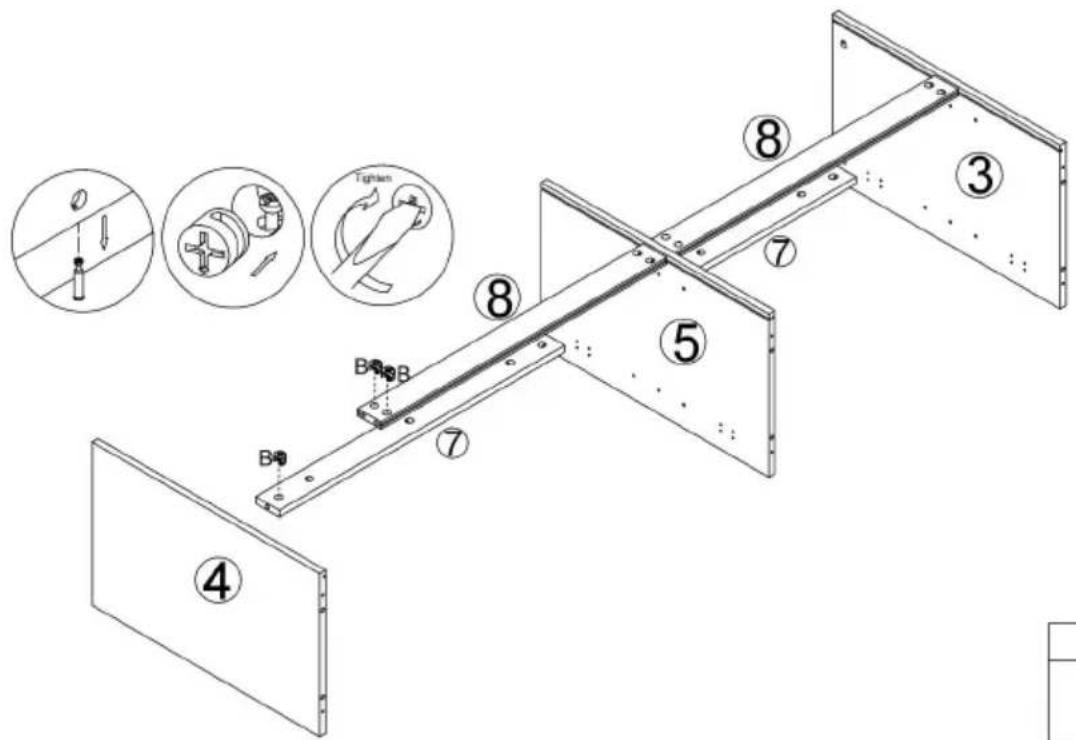

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

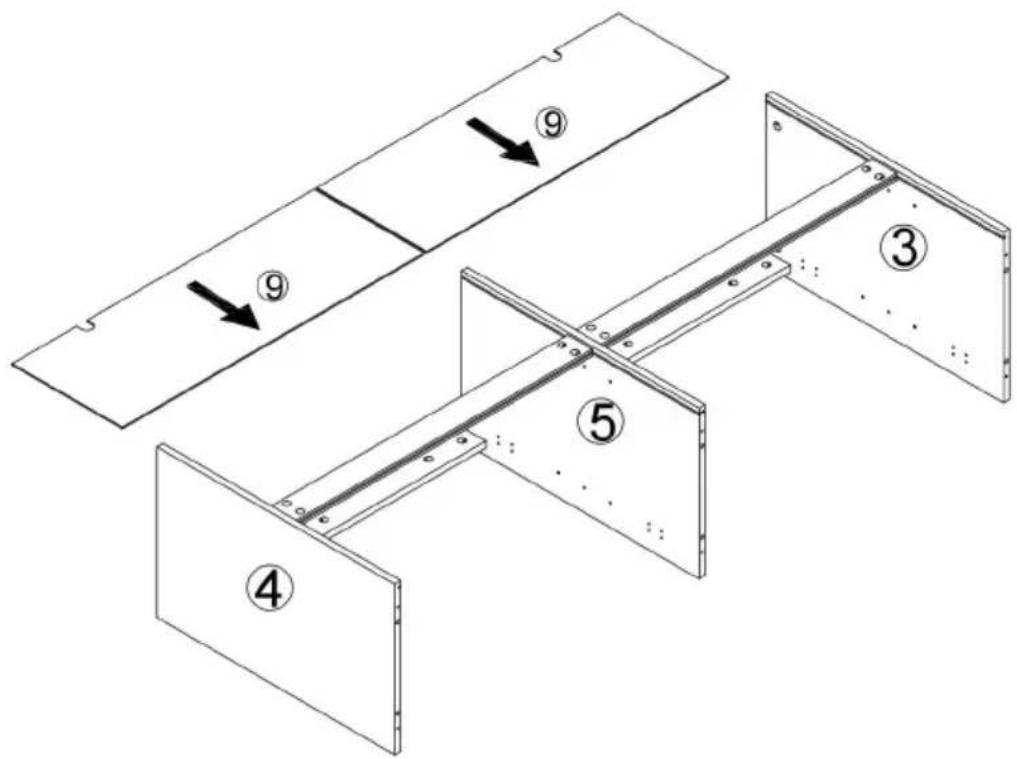

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

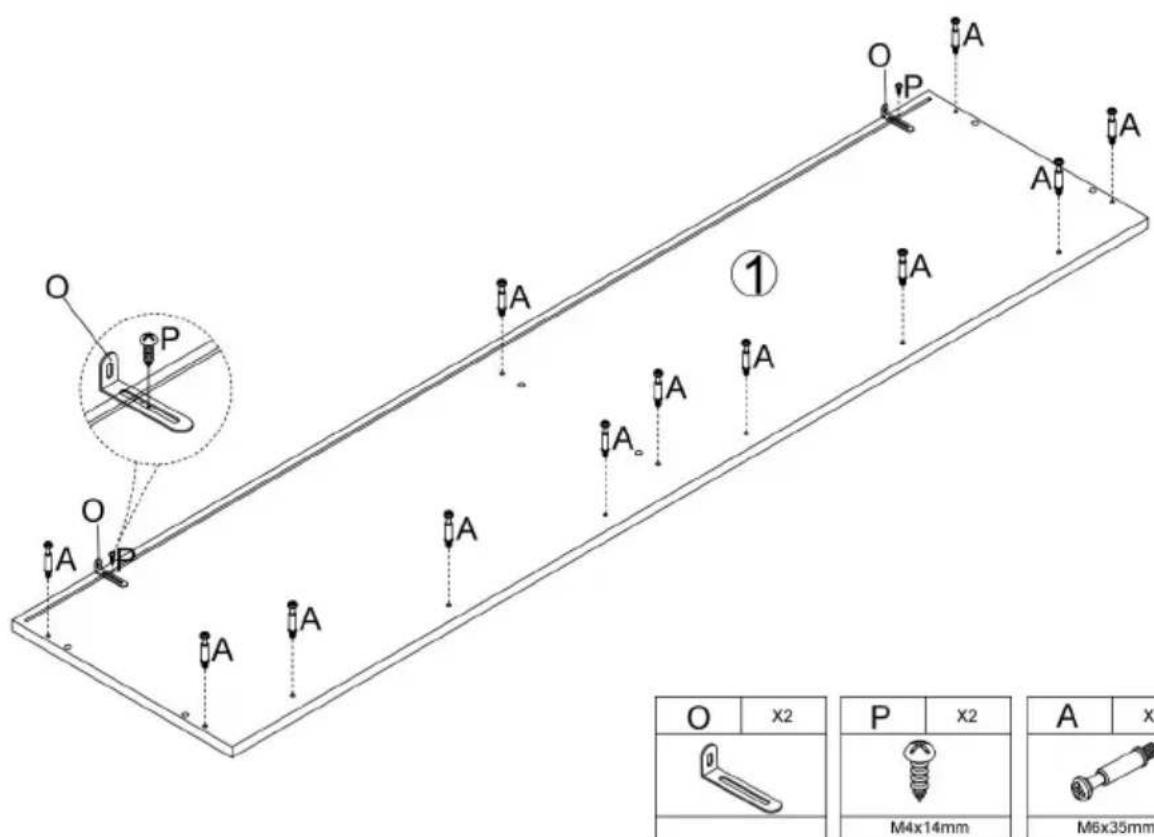

O P A O P A A A A ① A A A A A A O X2 P X2 A X M4x14mm M6x35mm

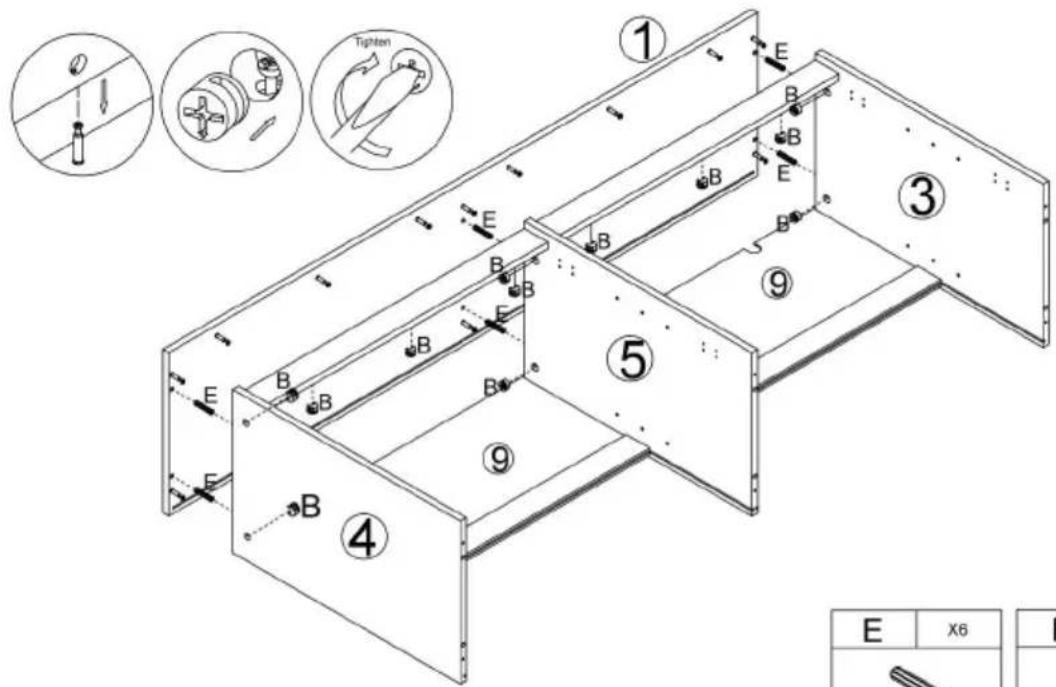

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

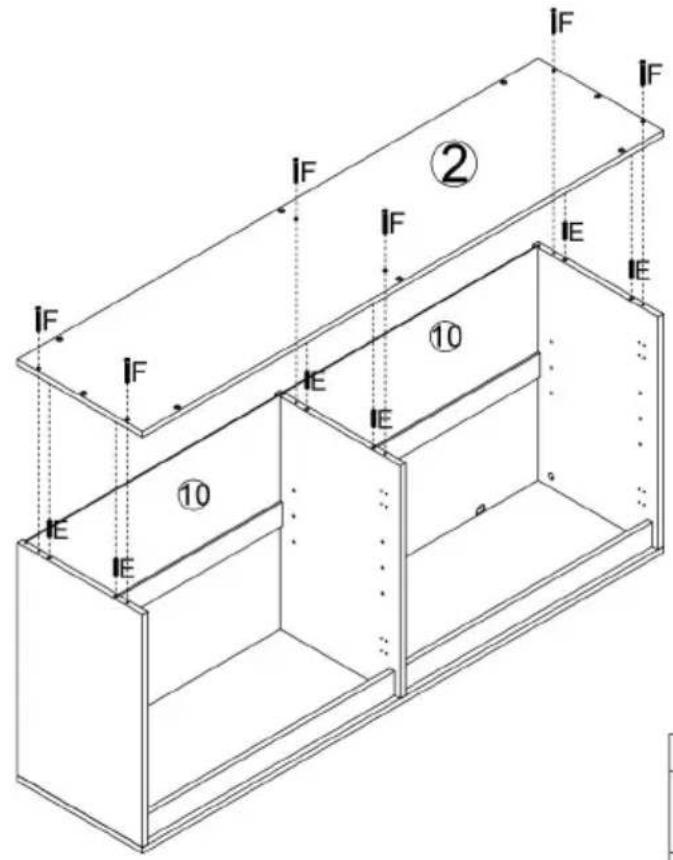

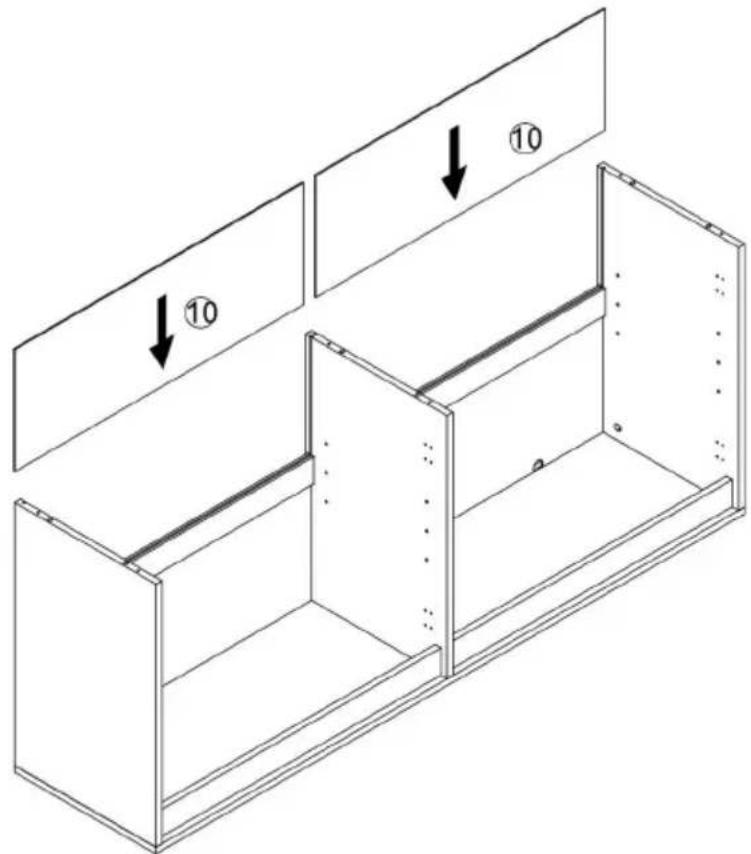

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

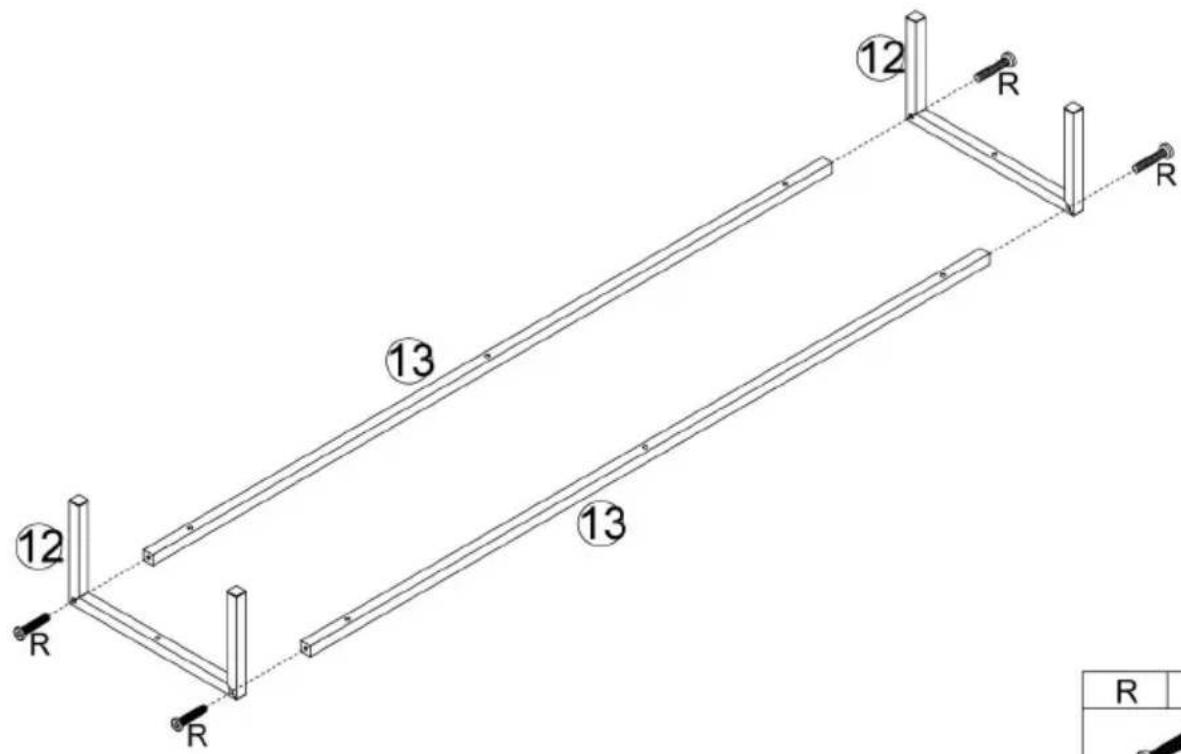

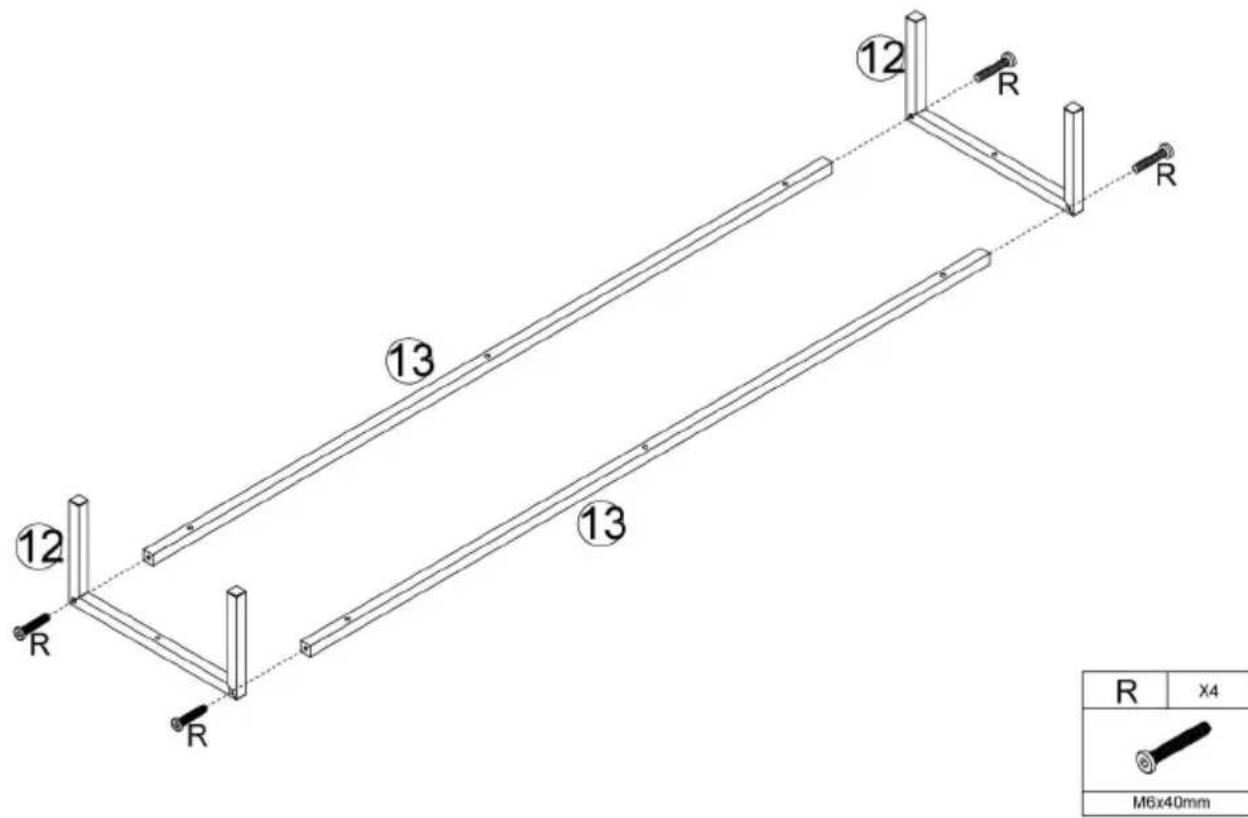

Step 12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

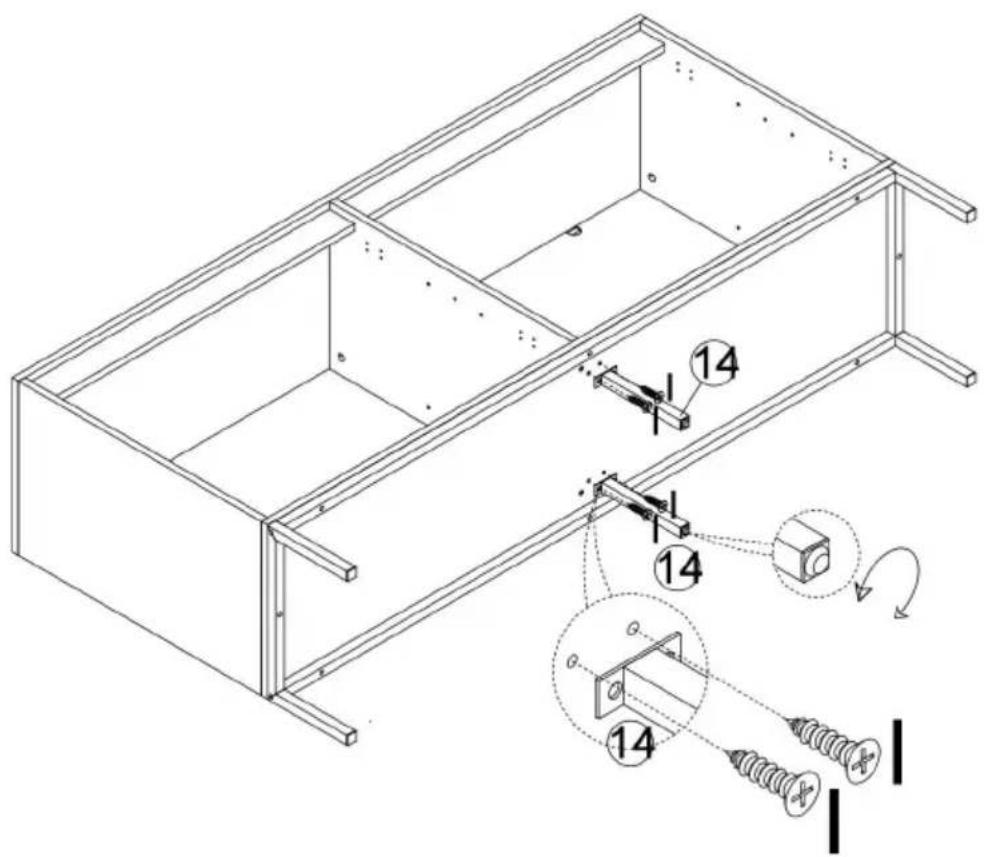

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

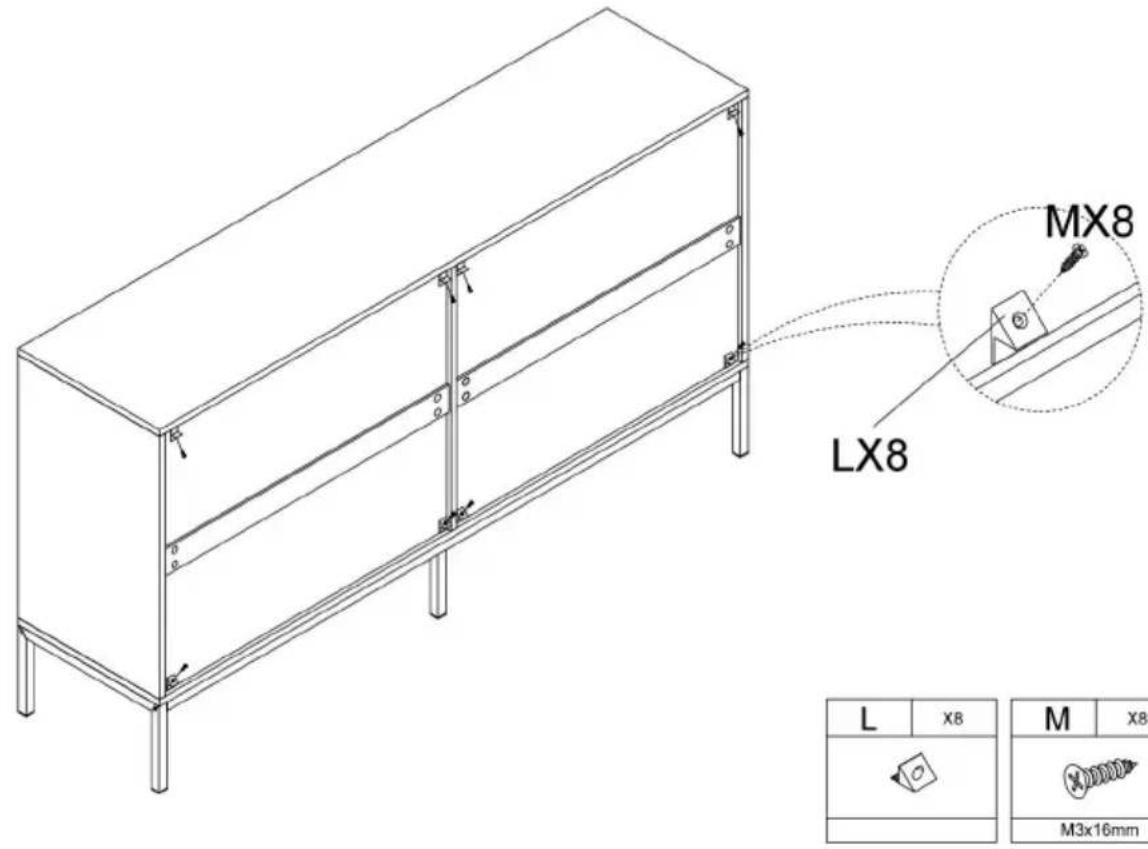

MX8 LX8 L X8 M X8 M3x16mm

Step 16

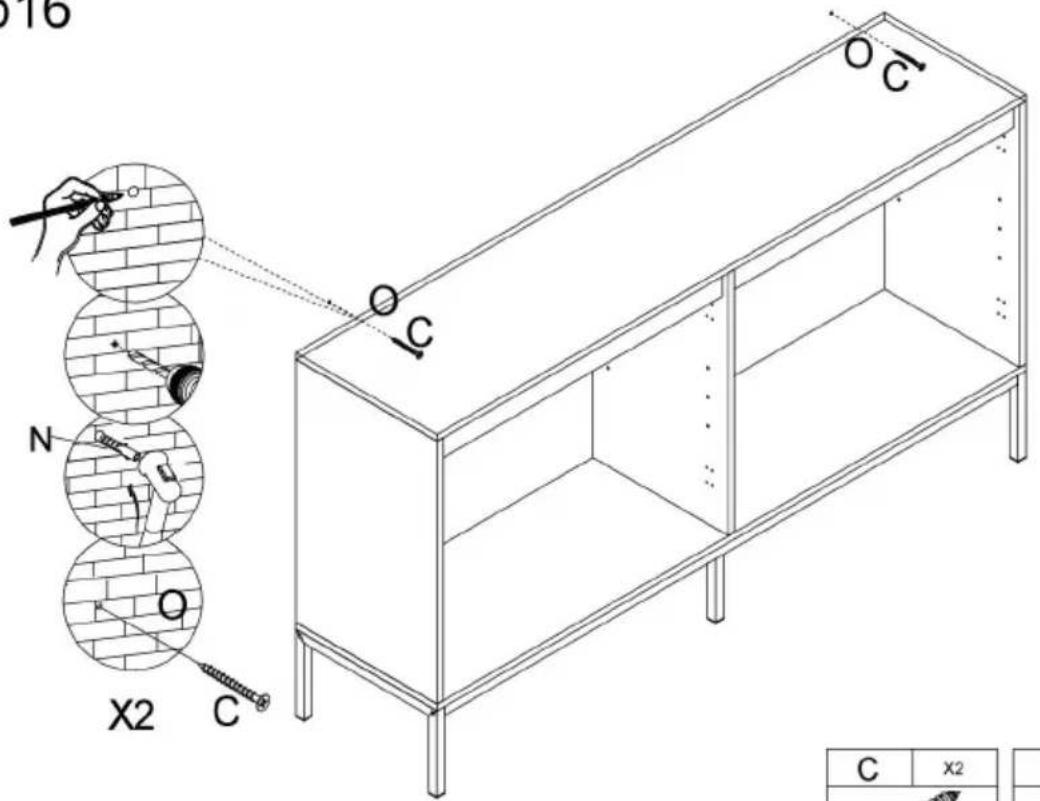

16 N O X2 C O C C X2

Step 17

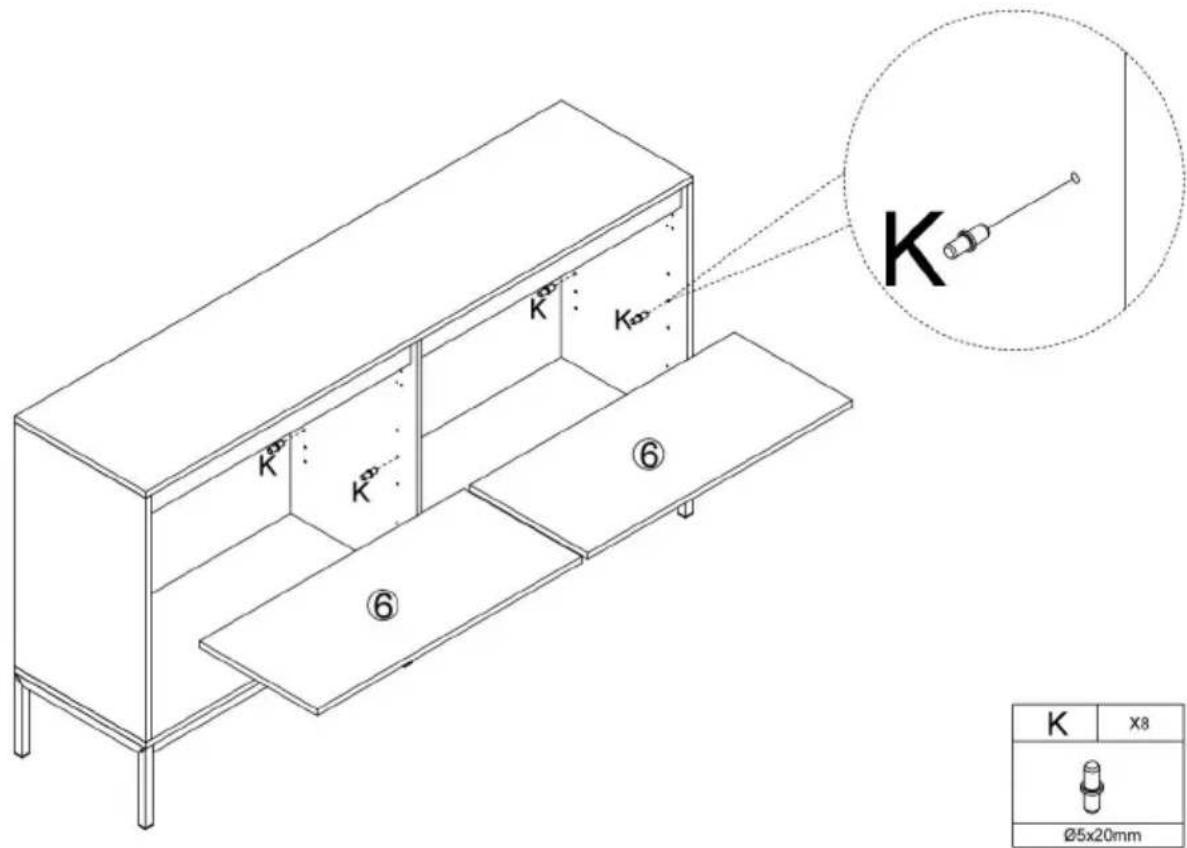

K K K K ⑥ ⑥ K X8 Ø5x20mm

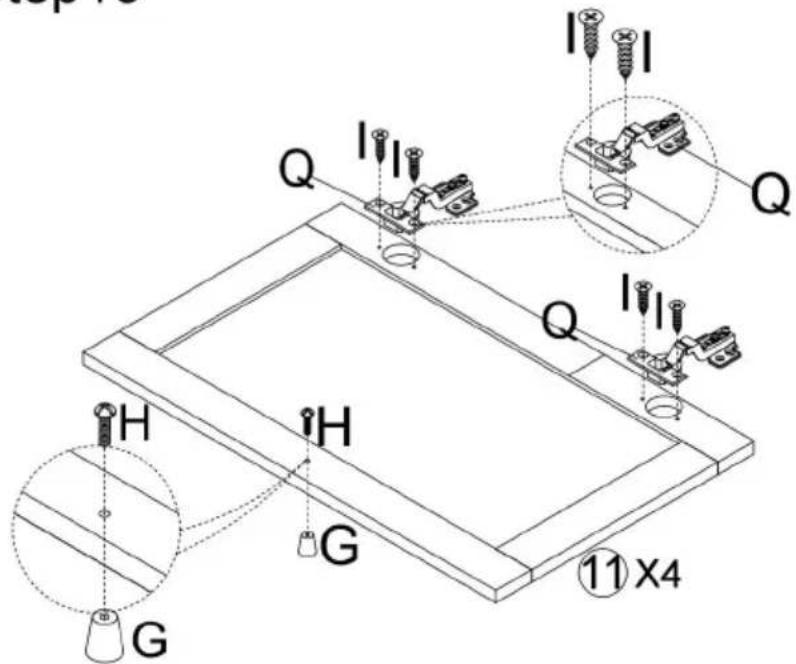

Step 18

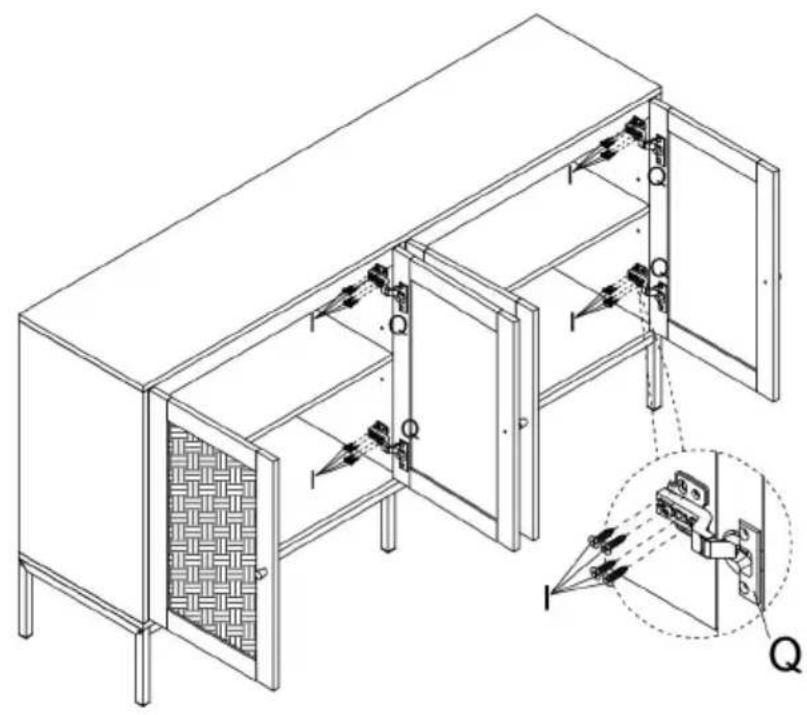

11×4 G H G Q I I I I Q I I H

Step19

Technical line drawing of a cabinet with open doors and internal components, showing structural details and a magnified inset (no text or symbols)

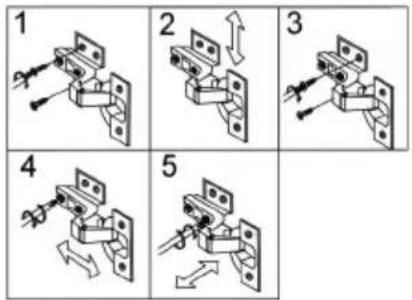

1 2 3 4 5

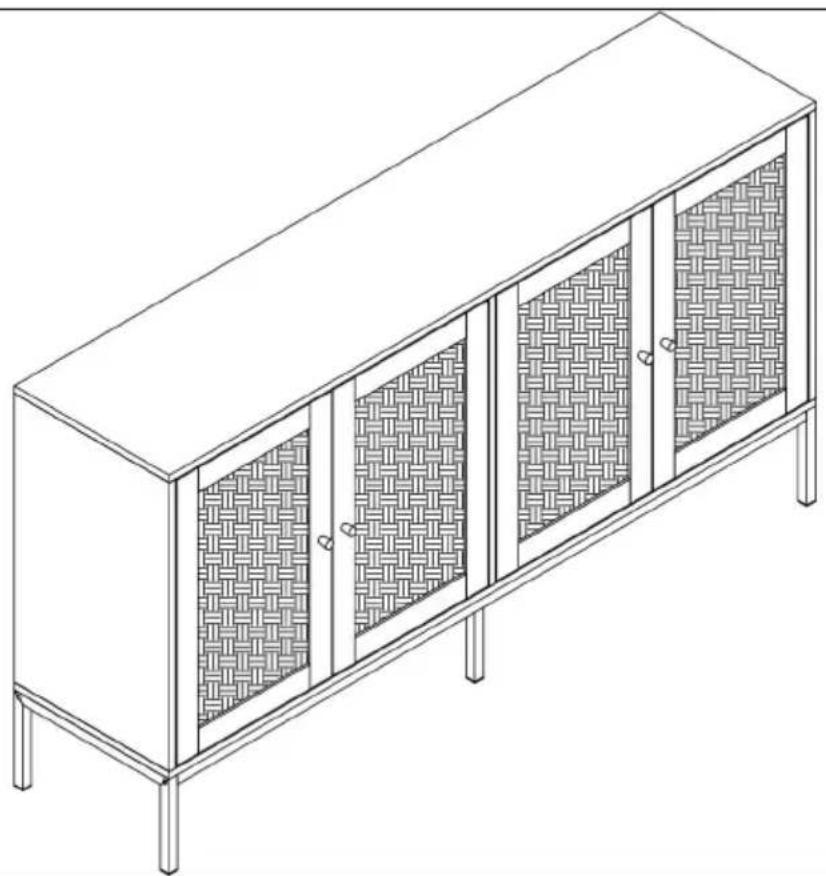

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

A X24 B X24 C X2 D X8 E X12 F X6 G X4 M6x35mm Ø15x12mm M4x35mm M6x25mm Ø8x30mm M7x40mm H X4 I X52 J X1 K X8 L X8 M X8 N X2 M4x18mm M3.5x14mm 4mm Ø5x20mm M3x16mm Ø6x30mm O X2 P X2 Q X8 R X4 M4x14mm M6x40mm

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram showing assembly steps of a mechanical component with numbered parts and tool icons

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A A A A ① A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step 12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I I Q I I H Q

Step19

Technical line drawing of a cabinet with structural components and an inset showing a close-up of a mechanical assembly (no text or symbols present)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australie

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

www.vevor.com/support

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram of a mechanical assembly with numbered components and tool icons for assembly steps

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A ① A A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step12

12 R R 13 13 12 R R R X4 M6x40mm

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I I Q I I H Q

COMPLETION

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram of a mechanical assembly with numbered components and tool icons for assembly steps

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A A A A ① A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I I Q I I H Q

Step19

Technical line drawing of a cabinet with structural components and an inset showing a close-up of a mechanical assembly (no text or symbols present)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A ① A A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step 12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I Q I I H

Step19

Technical line drawing of a cabinet with open doors and internal components, showing structural details and a magnified inset (no text or symbols)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

A X24 B X24 C X2 D X8 E X12 F X6 G X4 M6x35mm Ø15x12mm M4x35mm M6x25mm Ø8x30mm M7x40mm H X4 I X52 J X1 K X8 L X8 M X8 N X2 M4x18mm M3.5x14mm 4mm Ø5x20mm M3x16mm Ø6x30mm O X2 P X2 Q X8 R X4 M4x14mm M6x40mm

ASSEMBLY STEPS

Step 1

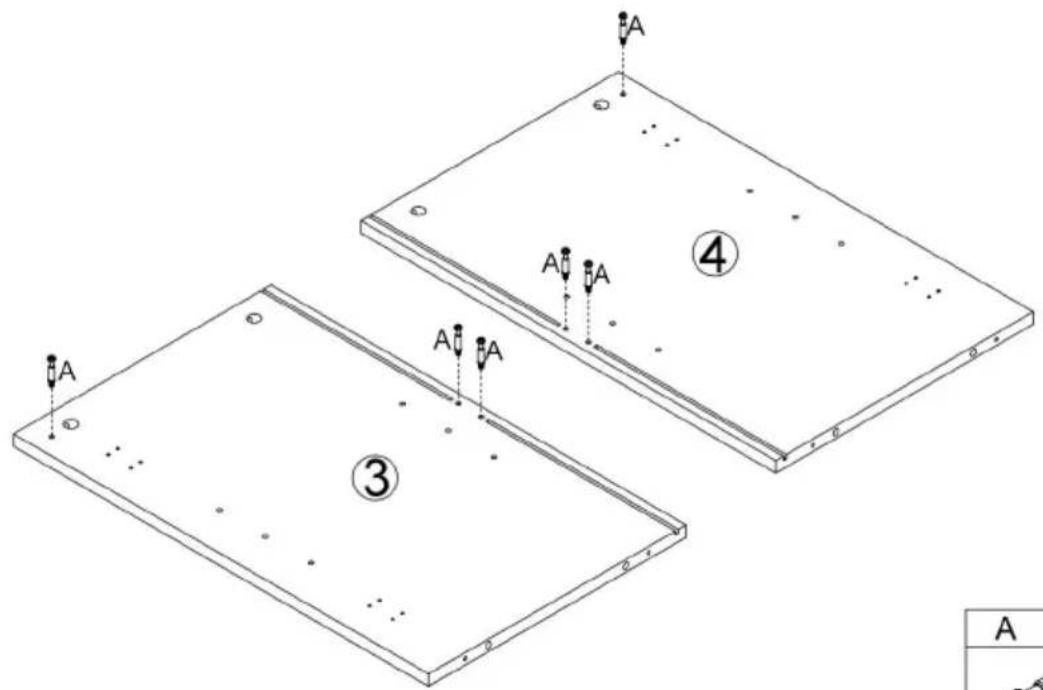

A A A A ④ ③ A M6x

Step2

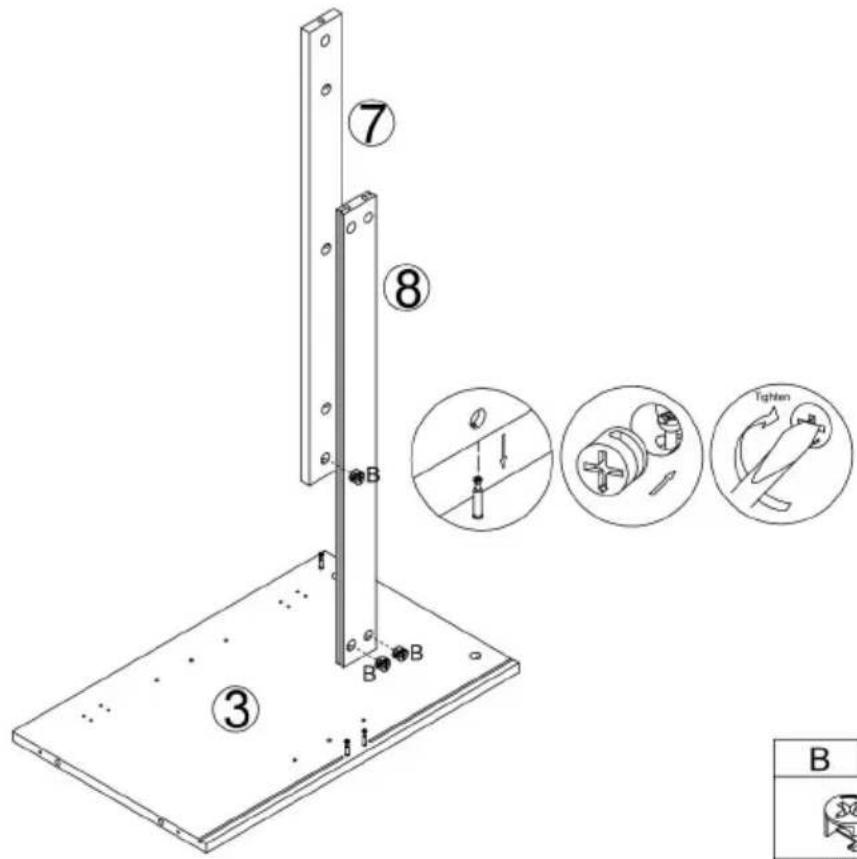

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A A A A ① A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step12

12 R R 13 13 12 R R R X4 M6x40mm

Step 13

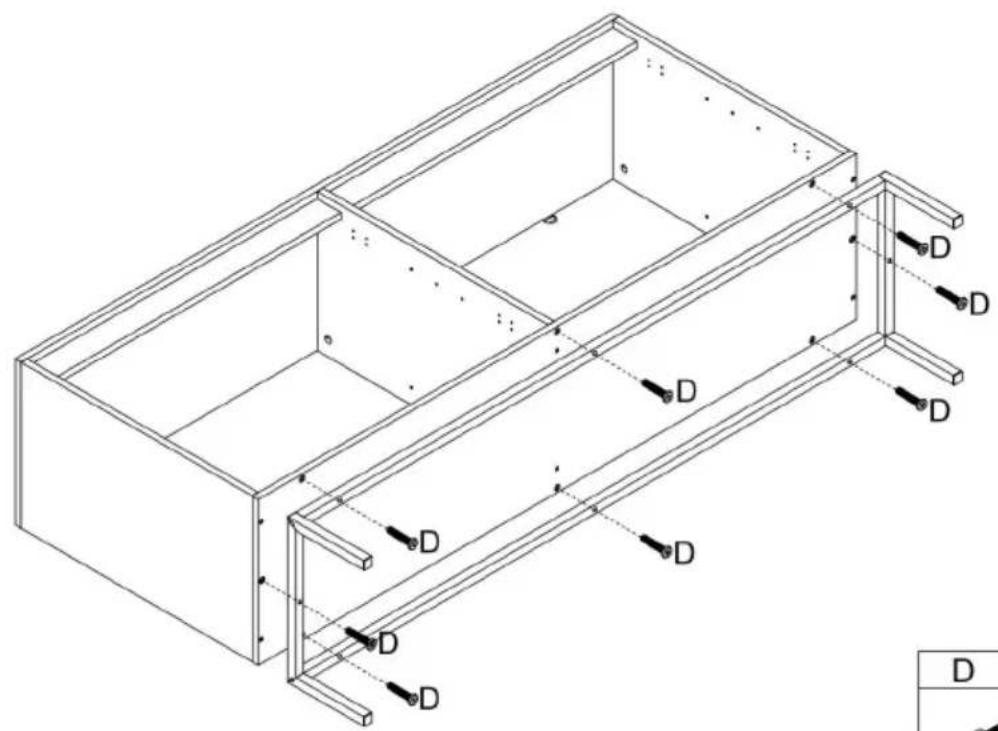

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I I Q I I H Q

Step19

Technical line drawing of a cabinet with structural components and an inset showing a close-up of a mechanical assembly (no text or symbols present)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

ROTAN ACCENTKAST

GEBRUIKSAANWIJZING

MODELNUMMER: HYBG-SMBTG-011

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

A X24 B X24 C X2 D X8 E X12 F X6 G X4 M6x35mm Ø15x12mm M4x35mm M6x25mm Ø8x30mm M7x40mm H X4 I X52 J X1 K X8 L X8 M X8 N X2 M4x18mm M3.5x14mm 4mm Ø5x20mm M3x16mm Ø6x30mm O X2 P X2 Q X8 R X4 M4x14mm M6x40mm

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram showing assembly steps of a mechanical component with numbered parts and tool icons

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A A A A ① A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I I Q I I H Q

Step19

Technical line drawing of a cabinet with structural components and an inset showing a close-up of a mechanical assembly (no text or symbols present)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-panel cabinet with lattice windows and metal legs (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical diagram of a modular wall assembly with numbered components for identification and construction reference.

A X24 B X24 C X2 D X8 E X12 F X6 G X4 M6x35mm Ø15x12mm M4x35mm M6x25mm Ø8x30mm M7x40mm H X4 I X52 J X1 K X8 L X8 M X8 N X2 M4x18mm M3.5x14mm 4mm Ø5x20mm M3x16mm Ø6x30mm O X2 P X2 Q X8 R X4 M4x14mm M6x40mm

ASSEMBLY STEPS

Step 1

A A A A ④ ③ A M6x

Step2

A A A ⑤ A A ⑤

Step3

Technical diagram showing assembly steps of a mechanical component with labeled parts and exploded views

Step4

Technical diagram showing assembly steps of a mechanical component with labeled parts and tool icons

Step5

Technical diagram showing assembly steps of a mechanical component with numbered parts and tool icons

Step6

Technical diagram of a mechanical assembly with numbered components and exploded views, including fasteners and assembly steps.

Step7

Technical diagram showing a multi-step assembly with numbered components and directional arrows indicating process flow.

Step8

O P A O P A ① A A A A A A A O X2 P X2 A X M4x14mm M6x35mm

Step9

Technical diagram of a mechanical assembly with numbered components and exploded views, including tool tips and assembly details.

Step 10

Technical diagram showing a 3D cabinet with labeled components and directional arrows indicating assembly or movement.

Step 11

② I F I F I F I E I E I F I F I E ⑩ I E I E ⑩ I E

Step 12

12 R 13 12 R 13 R R R

Step 13

Isometric technical drawing of a rectangular frame with internal partitions and labeled D (no text or symbols beyond labels)

Step14

Technical diagram of a structural frame assembly with numbered components and mechanical assembly details

Step 15

MX8 LX8 L X8 M X8 M3x16mm

Step16

16 N O X2 C O C C X2

Step 17

K K K K ⑥ ⑥ K X8 Ø5x20mm

Step 18

11×4 G H G Q I I I I Q I I H

Step19

Technical line drawing of a cabinet with structural components and an inset showing a close-up of a mechanical assembly (no text or symbols present)

1 2 3 4 5

COMPLETION

Line drawing of a four-panel cabinet with woven panels and metal legs (no text or symbols)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOC NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
