HS-20 - Saw Vevor - Free user manual and instructions

Product Type	Hot knife (thermal cutter) for ropes, fabrics, and straps
Brand	Vevor
Model	HS-20
Power Supply	110-120 V / 230 V
Power	200 W
Operating Temperature	Approximately 400 °C
Accessories Included	Spare blade, key, cleaning brush, storage box
Main Function	Thermal cutting of ropes, fabrics, straps, temperature adjustment
Temperature Adjustment	Adjustment knob, increase forward, decrease backward
Blade Type	Interchangeable blade for hot cutting
Blade Change	Unplug the device, wait for cooling, wear gloves, replace the blade and tighten the screws
Safety Precautions	Wear protective gloves, safety glasses, avoid contact with hot blades, keep away from children
Maintenance	Check for damage or rust before each use, clean with the provided brush
Cleaning	Brush off residues after cutting, do not use harsh detergents or solvents
Storage	In a clean, dry, warm place, after cooling
Compliance	Compliant with FCC Part 15 regulations
Recycling	Do not dispose of with household waste, follow Directive 2012/19/EU
Manufacturer	Shanghaiuxinmuyeyouxiangonsi, Baoshan, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim, CA

Frequently Asked Questions - HS-20 Vevor

How to change the blade of the Vevor HS-20 hot knife?

Before changing the blade, unplug the device and wait for the blade to cool completely. Wear protective gloves. Replace the old blade with a new one, then tighten the screws. Refer to the manual for more details.

What temperature to use for cutting rope?

Set the thermostat to a moderate temperature (approximately 400 °C maximum). Perform a test on an unused piece of rope before first use. Adjust the temperature if necessary to avoid smoke.

What to do if the blade overheats?

If the blade overheats, turn off the machine and let it cool to avoid damaging the blade. After 3 to 5 minutes of work, let the blades cool for 15 to 30 seconds.

Can I cut materials other than ropes, fabrics, or straps?

No, the intended use is limited to cutting ropes, fabrics, and straps. Do not use to heat liquids or cut other materials. This could damage the device or cause injury.

How to clean the hot knife?

Use the provided brush to remove residue stuck in the blades. Do not use harsh detergents or solvents. Store the device clean and dry.

What accessories are included with the HS-20?

The device comes with a spare blade, a key, a cleaning brush, and a storage box.

Is the device compliant with safety standards?

Yes, it is compliant with FCC Part 15 regulations. Operation is subject to two conditions: not causing harmful interference and accepting any interference received.

How to adjust the temperature on the Vevor HS-20?

Move the regulator forward to increase the temperature and backward to decrease it. The thermostat allows gradual adjustment.

What to do if cutting produces smoke?

If you see smoke, you are cutting too slowly or the blade is too hot. Release the trigger, lower the temperature, and start again. Maintain a constant speed.

What is the maximum length of the exposed blade part during cutting?

The length of the exposed blade part on ropes/fabrics must not exceed 2 cm. Release the trigger about 5 cm from the cut to keep the blade clean.

USER MANUAL HS-20 Vevor

Affordable. Reliable. Home Improvement.

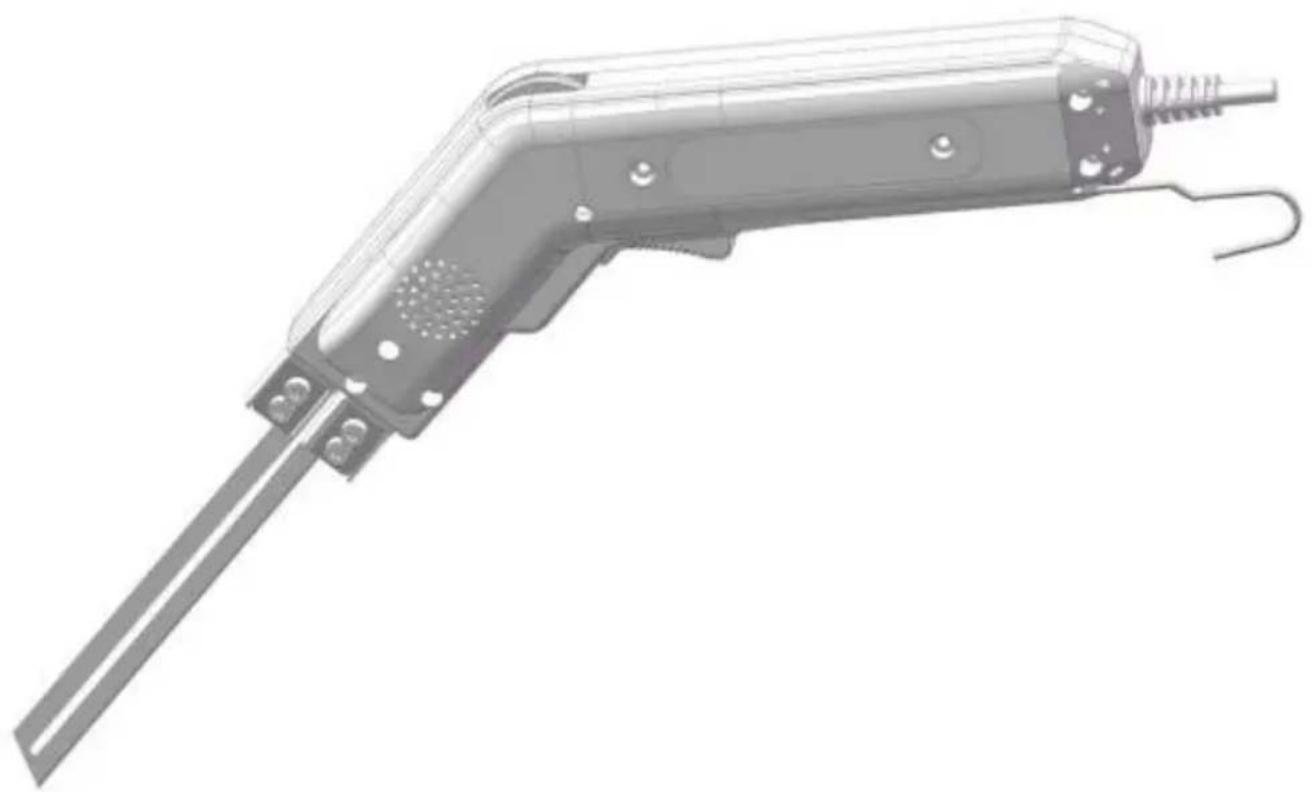

HANDHELD FOAM CUTTER

MODEL:HS-20

VEVOR

Affordable. Reliable. Home Improvement.

HANDHELD FOAM CUTTER

MODEL:HS-20

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec tri electronic devices

1. SAFETY WARNINGS

Before use make sure the set is complete and the machine is in wo order.Do not use the cutter if damaged.Contact your supplier for assistance.

Operate with caution.

Do not force the machine.

Keep the workplace clean, light and tidy.

Keep the machine away from moisture and rain.

The machine can only if wearing personal protective equipment(eyes

protector,breath protection,glove protector, ect.)

Keep children or other people away from the working area.

Regular checks and maintenance of all parts are required. Use only licensed accessories.

Keep the machine away from flammable and explosive substances.

Do not use the machine to warm up liquids.

Do not tread on the machine or the case.

Keep your hands or other parts of your boby away from hot knives. The instructions for recommended work intervals(see below). Never operate the machine if tired or under the influence of drugs or alcohol.

Packaging (interlayer, plastic bag etc.) should be kept away from children since some parts present a choking hazard.

1-1 INTENDED USE

The hot knife cutter can noly be operated on rope/fabric/webbing.Do r use with other materials.Do not use to warm up liquids.

2. INSTALLATION

The machine can only be used when all the replaceable blades are completely pre-assembled.

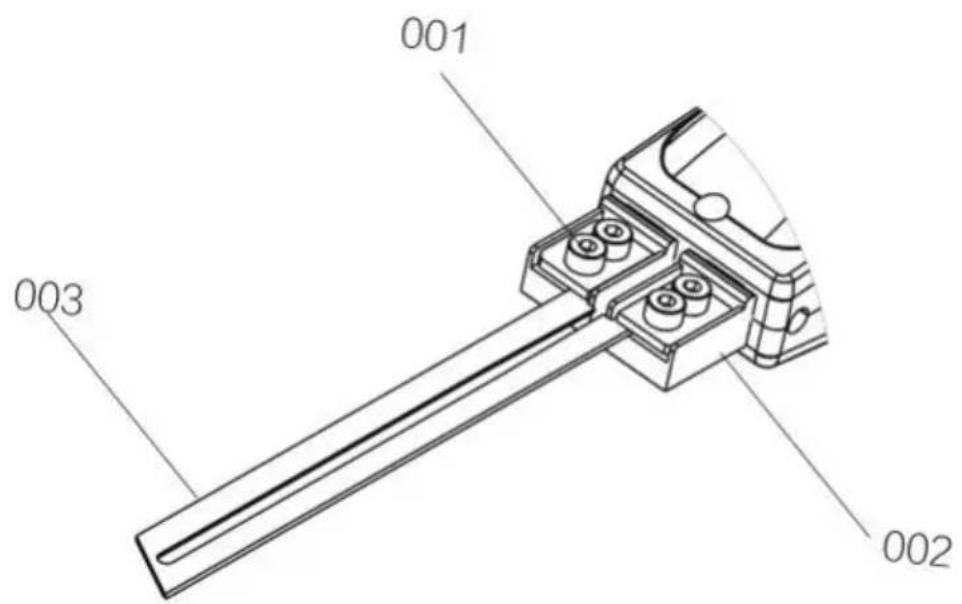

2-1 CHANGING BLADES

Before changing blades make sure that the machine is unplugged and blades have cooled(003).Remember to wear protective gloves since blades have sharp edges.Replace the old blade with a new one and fasten the screws.

3. OPERATION

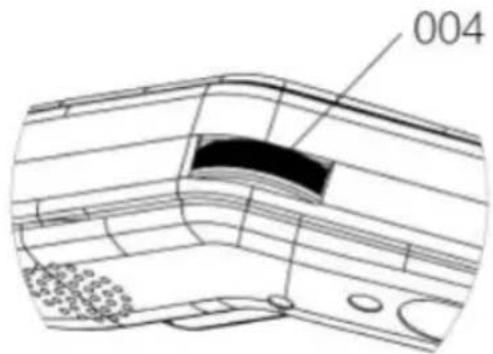

Set thermometer(004) to a moderate temperature, move regulator forward to increase the temperature and backward to decrease it (see the follo picture as reference).

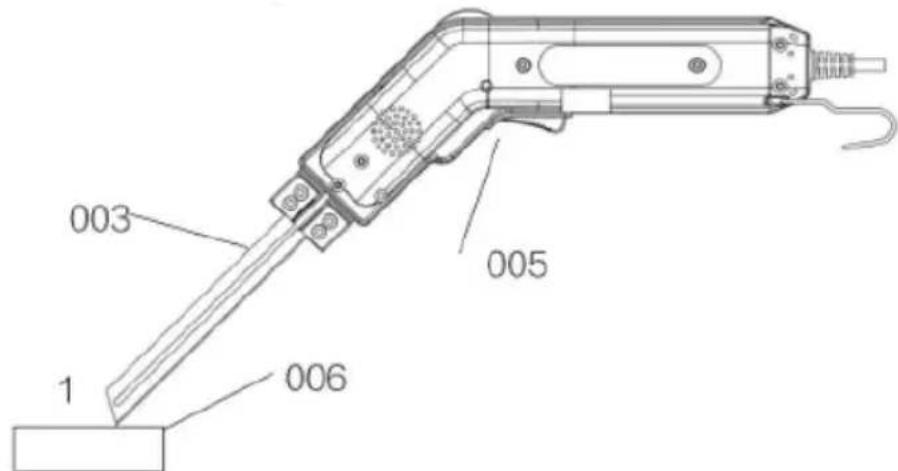

Put a blade(003) onto operating platform, then make sure the borrom switch(005) is on before cutting

3-1 INSTRUCTIONS

Before the first use test on a piece of unneeded rope/fabric/webbing. Hot knives may overheat. In case of overheating turn off the machine let it cool down to avoid damage to the blades. After 3-5 minutes of the blades cool down for 15-30 seconds.

When cutting ropes keep the temperature and speed unchanged. If you starting to get smearke during cutting, you are cutting too slowly or the is too hot which could result in an uneven cut. To fix this:

-release the trigger;

-lower the temperature and press the trigger again to start over.

Release the trigger at a distance of approximately 5 cm to ropes/fabric/webbing.

That will help keep the blade clean and will prolong the life of the The length of the exposed part of the blade over theropes/fabric durin cutting should not exceed 2cm.

4. MAINTENANCE

Before any maintenance unplug the machine.

Before each use check the cutter for signs of damage or rust and r sure the knife holder is stable. If case of any damage blades should replaced.Small piesces of foam may get stuck in blades after cutting.l dedicated brush to clean them off.

Do not use any aggressive detergents and resolvents.

Store the machine in a clean, dry and warm piece.

5. DISPOSAL OF WASTE

To dispose of this cutter please contact your dealer or use a local rabin

Do not dispose of the machine with other household waste.

6. SPECIFICATIONS

(see specifications below as reference since most machines vary)

Voltage	110V-120V/230V
Power	200W
Operating Temperature	Approx.400 °C
Accessories	Blade/Wrench/Brush/box

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
