USER MANUAL HM-590S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Portable Dance Pole

MODEL:HM-590S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HM-590S

Simple line drawing of a vertical cylindrical object with circular ends and measurement markings (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Can and common sense are not built into this product, since we believe uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.
2. Do not assemble when tired or when under the influence of alcohol drugs or medication.
3. Weight and elastic and other product properties are only applicable correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the g a professional. Do not allow children and pets to play alone or appro this item.
7. Inspect before every use. Do not use it if parts are loose or dan
   8 Do not apply this unit to any other purposes than the indicated us
8. Do not use it for commercial purposes.
9. Do not clean it with any abrasive material.
10. Never leave it unattended while in use.
11. Pet urine and feces can damage the product, please keep away.

12. Do not place the product on or near hot air, electric burners or

13. Young children should be supervised to ensure that they do not with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes falls. People or pets hanging on the product will cause injury or death.

FINDING A SUITABLE EXERCISE AND DANCE AREA

Try to find a suitable area in the centre of your room, where you want to install your pole. To use Dancing Pole properly you need to be a rotate around the pole with your arms outstretched and NOT be able or touch anything whilst rotating. Find the area by rotating around an imaginary pole with your arms outstretched, you can use a chair as imaginary pole or, measure a circle with a diameter of approximately 3.0\~3.5mtrs (10\~11.5ft). This area will enable you to fully extend your arms.

Once you have located the correct sized clear area you can look for ceiling joists above the area you have selected.

When you are installing, first measure the height of your ceiling to the ground in advance; then select the appropriate extension pole according your needs. Do not tighten the poles at the beginning of installation. After all installations, adjust to the tightest.

Make sure you measure properly the height of what will support your pole.

BEFORE USING YOUR POLE

Mis-using a pole can be dangerous, not only to the user but also to close to the pole. The use of a dance pole is always at the user's and it is the user's responsibility to check the pole is installed correctly and safely before use.

Pole Exercise is extremely physical and uses muscles that you will not have used before and therefore if you are not warmed up; muscle strains and injury can occur. Before using the Dance Pole, it is many to warm up and, after use, cool down. It is highly recommended that you use your Dance Pole, purchase a suitable DVD to learn the basic moves. Never try moves beyond your ability without an instructor. If a time whilst using your pole you feel uncomfortable, your muscles hurt, you are short of breath - take a break.

Always rest between moves and exercise sensibly, if you experient any health issues, seek medical advice.

SAFETY INSTRUCTIONS

1. Never use oil and/or lotion on your hands or body before using dance pole. The oil and/or lotion transferred onto the pole will make slippery and hard to hold, which might cause serious bodily injury.
2. The dance pole should not be installed under false or suspended ceilings that are not sturdy enough.
3. Never place a carpet under the dance pole as it could effect the stability of the product.
4. Before the installation, all protecting film covering the parts must removed.
5. The horizontal weight capacity of this product is 280 kg/617 lbs. vertical weight capacity of this product is 500 kg/1102 lbs. Never ap any weight over the weight capacity on this dance pole.
6. Ensure that the 3.5 meter peripheral area of the dance pole is 1 any objects.
7. We recommend the assembly of this product should be carried out two people.

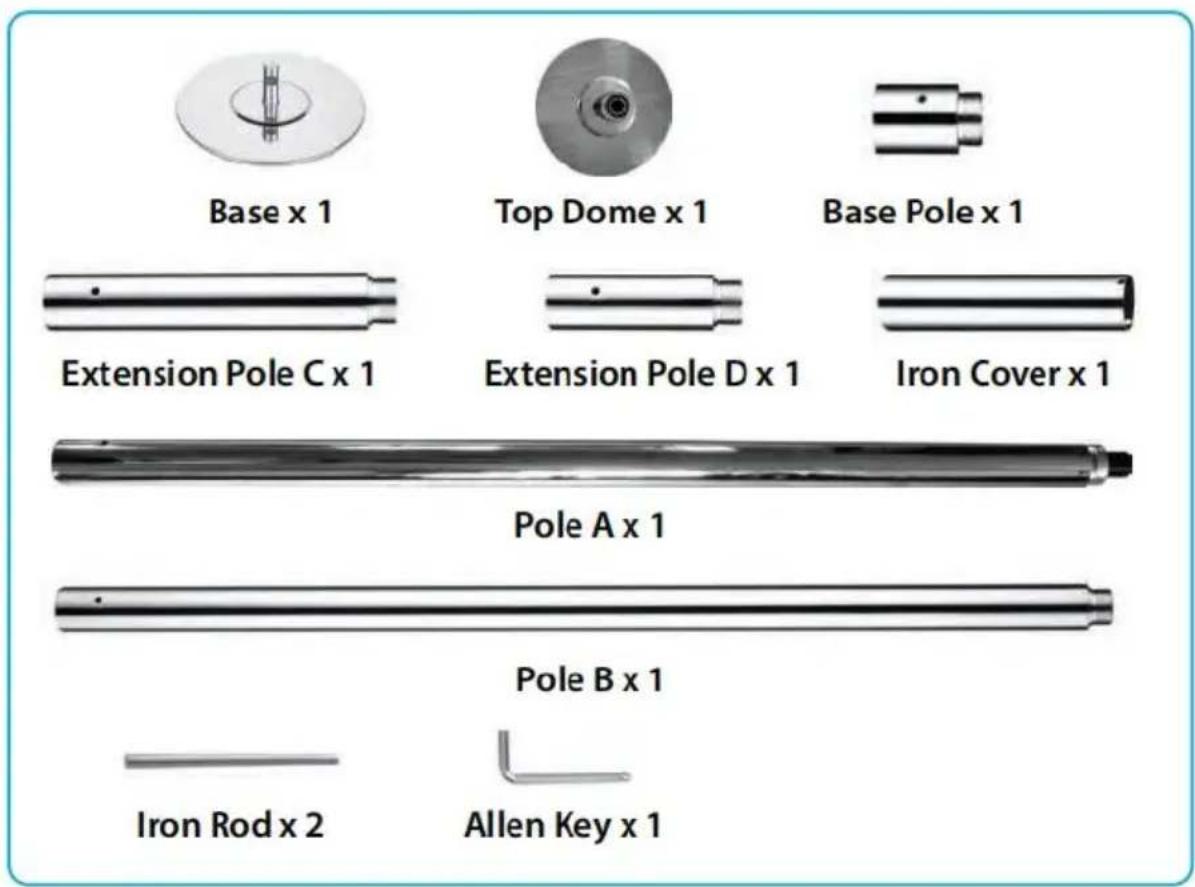

PACKAGE CONTENTS

Base x 1 Top Dome x 1 Base Pole x 1 Extension Pole C x 1 Extension Pole D x 1 Iron Cover x 1 Pole A x 1 Pole B x 1 Iron Rod x 2 Allen Key x 1

ASSEMBLY INSTRUCTIONS


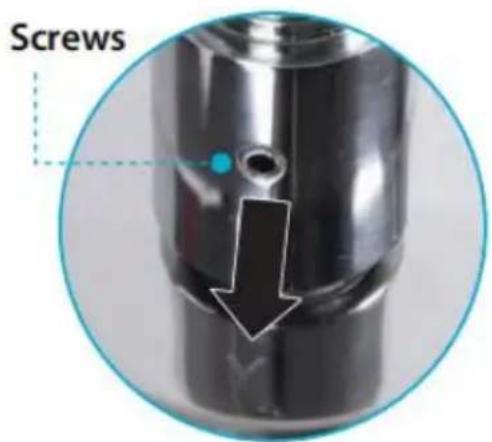

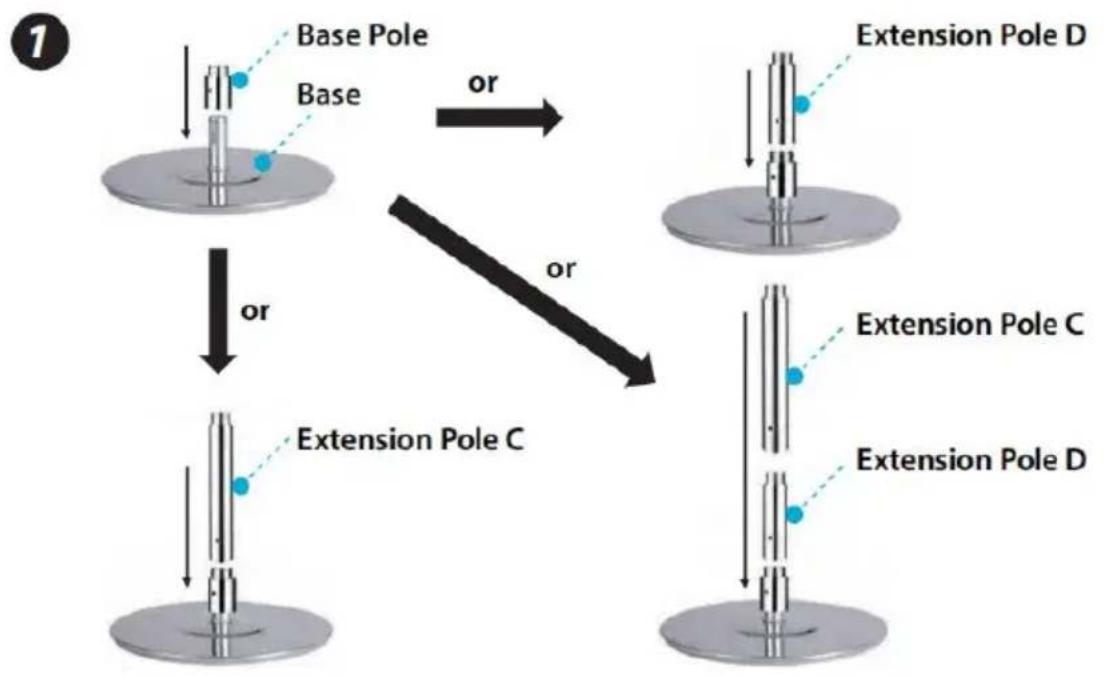

1. Use the allen key to loosen the screw base pole and install the base pole on Ensure one of the screws on the base aligned to the "Y" letter on the base (Fi After that, retighten the screws.

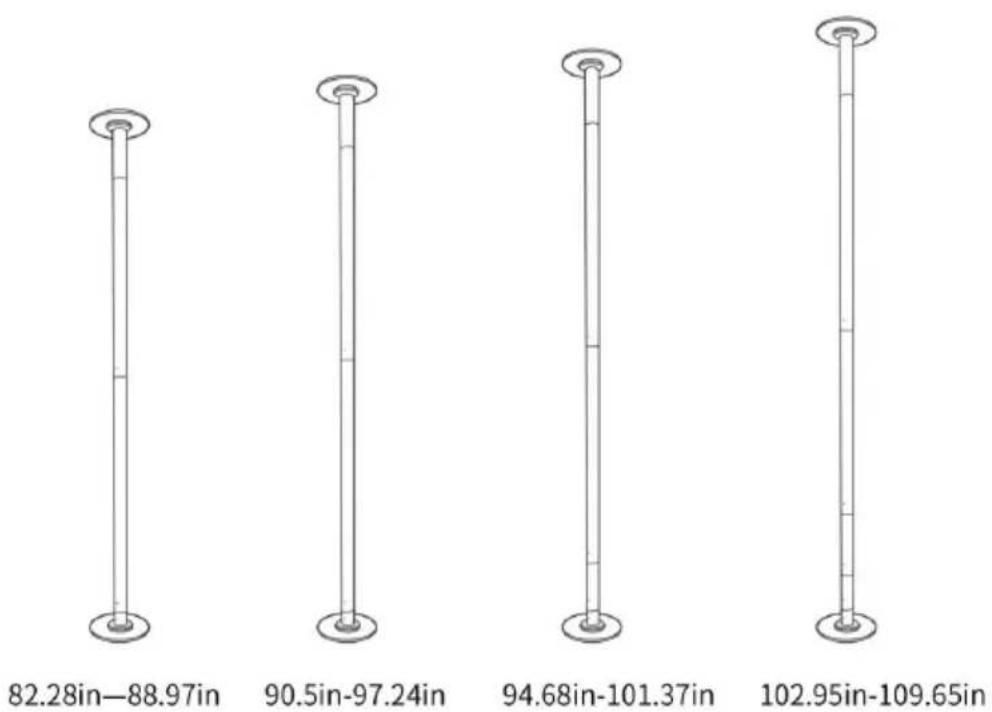

2. Measure the distance between your ground and ceiling and refer to the diagram below decide if you need to install either the pole D or extension pole C or both of none of them on the base. In the follow steps, we will take scenario of installing Extension Pole C only as an example.

Screws

Fig 1

2

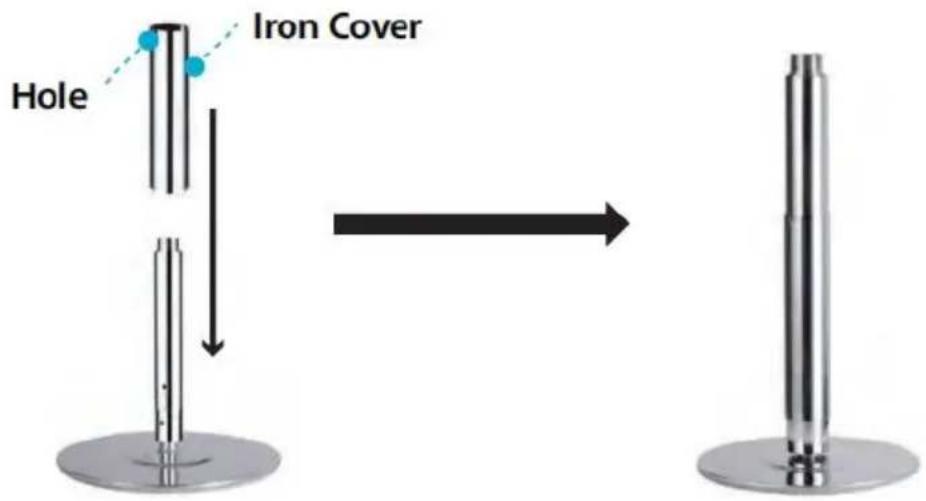

Iron Cover Hole

Slide down the iron cover through the pole and leave it on the base. Ensure the end with two holes faces upward.

3

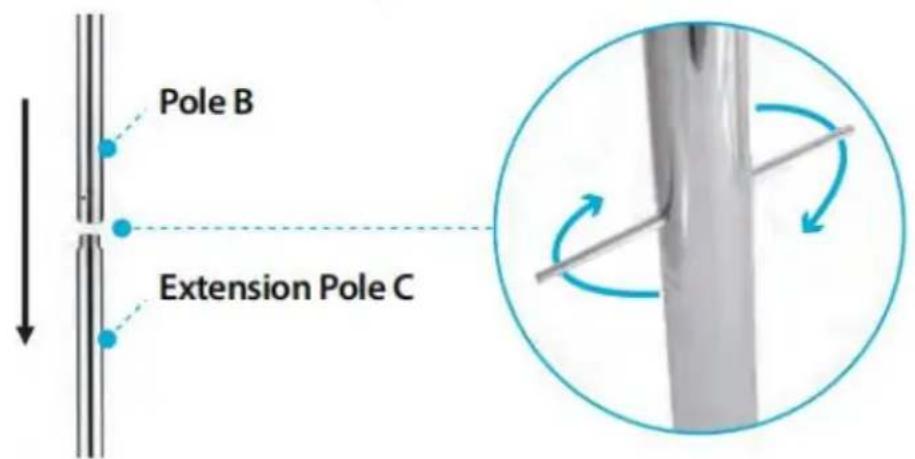

Pole B Extension Pole C

Install the pole B on the extension pole C as shown above. Fasten

connection with the iron rod.

4

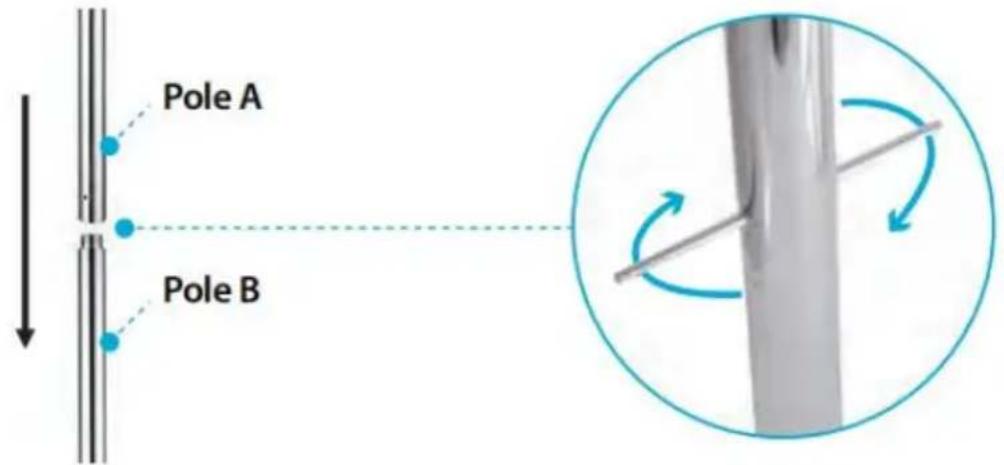

Pole A Pole B

Install the pole A on the pole B as shown above. Fasten the conne with the iron rod.

5

Install the top dome on the top pole A as shown above. Rotate top of pole A anticlockwise until hole of the inner pole shows up

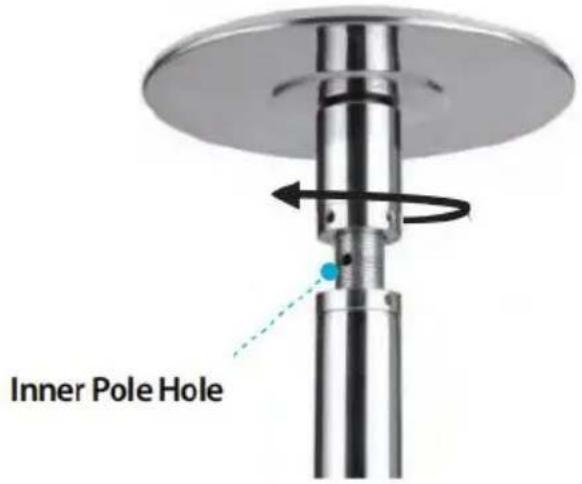

Inner Pole Hole

6

Use an iron rod to rotate the in- pole anti-clockwise until the upper base could not go up further against the ceiling. Please make sure that the pole is vertical between the ground and the ceiling and that the upper base i flat against the ceiling as shown the pictures below.

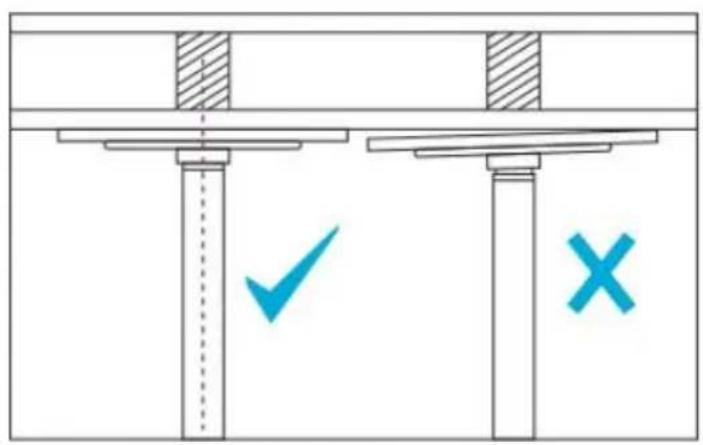

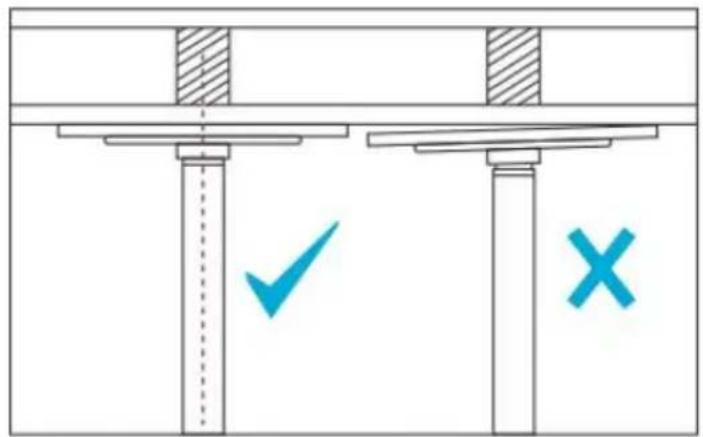

Ceiling

Simple diagram of a door with two vertical supports and two blue X marks, no text or symbols present.

Technical diagram showing two mechanical assembly states with checkmark and cross symbols indicating selection or failure.

7

Close-up of a metallic mechanical component with a circular top and vertical shaft, showing a small arrow pointing to a detail (no text or symbols)

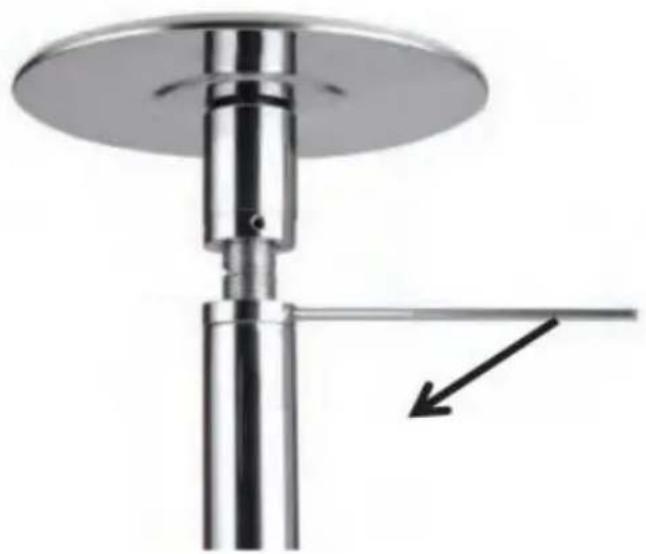

Use an iron rod to rotate the iron ring on the pole A clockwise to dance pole.

8

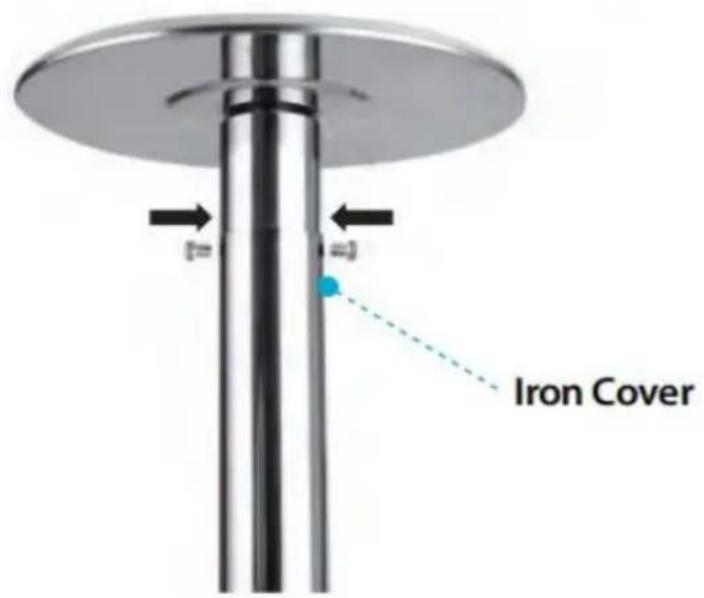

[=] = Iron Cover

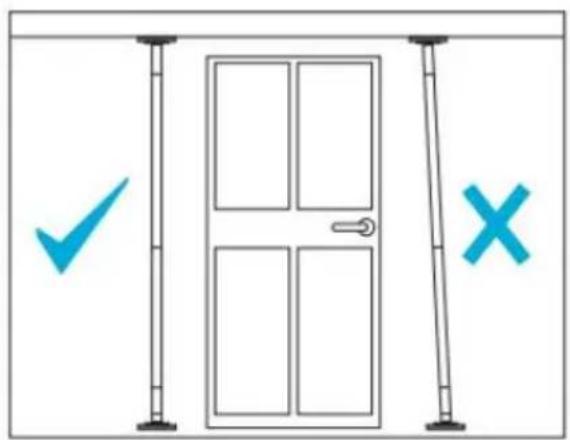

Ensure that the dance pole is set up firmly between your ceiling and ground. After that, slide the iron cover from the bottom base to the base. Fasten it with the two screws.

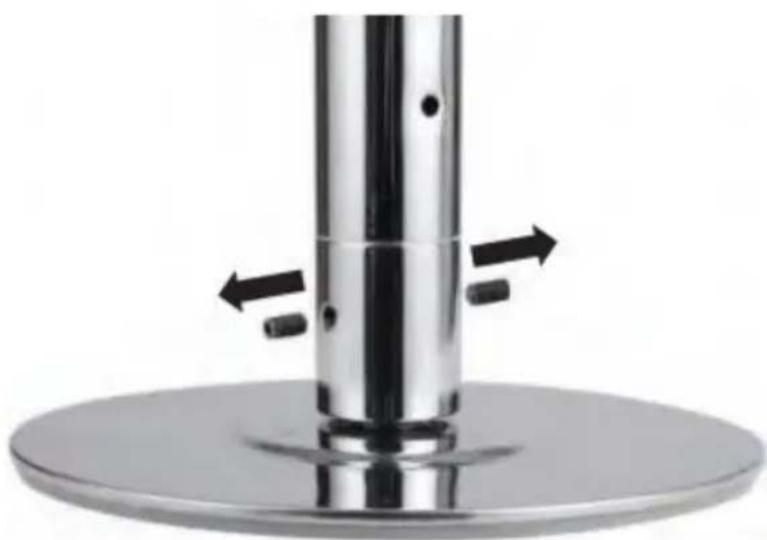

SWITCHING BETWEEN STATIC & SPINNING MODE

Close-up of a metallic cylindrical object with directional arrows indicating movement or force, mounted on a circular base (no text or symbols visible)

1. To set the dance pole into the spinning mode, loosen the two sc from the base pole.

2. To set it back to static mode, fasten the two screws back and e one of them is aligned to the "Y" letter on the base.

WHAT TO WEAR

Clothing

When it comes to clothing - Less is Best! So try to keep your a legs uncovered. Pole work needs the friction created by skin contacted T-shirt, crop top and shorts are best. However, you must feel comfortable so wear what you feel relaxed in (tracksuit bottoms etc.) even though may mean you are unable to do some of the pole moves properly because of lack of grip.

Shoes

Again comfort is essential. Bare feet, dance shoes, or trainers are fin Trainers have high friction so a trainer with a smooth as possible so

recommended. Later boots and high heels are great for making you I and feel good.

Pole Dancing Gloves

Pole dancing gloves can protect your hands from blisters and burns. pole dancing gloves come in fingerless designs. This protects your pa when you are learning your moves. Since your fingers are free, you feel the pole, but your hands will still be protected from injuries like and friction burns.

Oils and Lotions

NEVER use oils or lotions on your hands or body prior to using you. This is very dangerous. The oil transfers to the pole making it slippe impossible to hold and could cause you to have a serious accident.

NEVER USE OILS OR LOTIONS OF ANY TYPE PRIOR TO USING EXERCISE POLE.

POLE CLEANING

The pole will need regular cleaning as you use it. Clean your pole is baby wipes and then dry off with a tea cloth or towel. Keep two to hand one for the pole and one for you to wipe your hands and box

It can not be stressed highly enough the need to warm up before end and then to cool down afterwards. Severe injury can be caused if you warm up and in turn further damage can be caused if you do not cut down.

TROUBLESHOOTING

If you follow the assembly instructions there should be no reason for have any problems with your Portable Dancing Pole. If you do have problems please do not hesitate to contact our technical support line.

NEVER use your Portable Dancing Pole if you are in any doubt its assembly, stability or how to use it.

Locked Tubes

Sometimes if the pole has been worked hard the main poles and/or extensions can tighten and become locked together. If tubes do becor locked together use two release rods and twist both anti-clockwise.

If the tubes still will not release insert one of the release rods into tube. Lay the tube on a hard surface and inserting the other release the shorter tube give it a sharp tap with something solid, while holding larger tube rigid. It does not require heavy force just the shock of the release it.

Pole will not spin

This is normally due to the locking Hex screws not being unscrewed enough and flush with the outer surface of the pole. Check the screw

The other reason could be that the pole is not assembled correctly (cover flange is the wrong way round) or the pole is severely out alignment. Go back to square one and reassemble your pole as per instructions.

MAINTENANCE

Professional Spinning Dancing Pole should need very little maintenance.

Routine maintenance would be to check the pole joints are OK, check bearings turn freely, check the base screws are tight and generally e your pole is exercise worthy. Should you have any concerns your pol it's suitability for use please call our technical support department.

CAUTION:

STORE YOUR PROFESSIONAL SPINNING DANCING POLE ONLY IN A WARM, DRY PLACE.

Professional Spinning Dancing Pole

Portable & Removable Fitness Pole, Great For Training & Exercise

FEATURES

• Practical Design for Building Muscles, Keeps Fit and Healthy
• Increasing Strength and Flexibility
• Easy to Use, to Install and to Store, Saves Space
  • Height Adjustable and Smooth Connection
  • High-Quality Steel Pipe Dancing Pole
  • Strong and Durable Steel Structure
• Anti-Corrosion and Anti-Rust Surface
• Silicone Ring at the bottom of the Dome and Base Plate
• Suitable for Beginners, Professional Dancers, and Pole Fitness Love
• Uses for Physical Exercise at Home, Club, Bar, Gym or Prop for Photography.

WHAT'S IN THE BOX:

• Base • Pole A, (38.19"-inches)
• Top Dome • Pole B, (38.6"-inches)
• Base Pole
• Allen Key
• Extension Pole C, (12.5"-inches) • Screw
  • Extension Pole D, (8.46"-inches)
• Iron Cover, (7.5"-inches)

TECHNICAL SPECS:

• Threaded Tube Size: 2.2mm
  • Horizontal Weight Capacity: 617 lbs.
  • Vertical Weight Capacity: 1,102 lbs.
• Construction Material: Steel Tube

• Steel Tube Diameter: 1.77" -inches
- Plate Diameter: 9" -inches
- Overall Product Dimension (L x W x H): 9" x 9" x 108" -inches

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim F Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support
