HBD008-3 - Pets Vevor - Free user manual and instructions

Product type	Dog waste collection station
Brand	Vevor
Model	HBD008-3
Color	Green
Main material	Galvanized steel
Dimensions (L x W x H)	9.8 x 4.4 x 16.5 inches (250 x 112 x 420 mm)
Estimated net weight	1.5 kg
Power supply	None (manual operation)
Main functions	Bag dispensing, waste collection and storage, integrated bag holder
Included accessories	Rain cover, placement brackets for alcohol sanitizer, mounting bolts (M8, M6, M5, M4, M8-M12)
Care and cleaning	Clean with a damp cloth; do not use abrasive products
Safety	Do not sit or stand on the device; assemble on a flat surface; keep out of reach of children
Assembly required	Yes, simple screwing of provided components
Warranty	Electronic warranty certificate available at www.vevor.com/support
Customer service	Technical support via www.vevor.com/support
Country of origin	China

Frequently Asked Questions - HBD008-3 Vevor

How to install the collection station?

Follow the assembly steps: attach the alcohol sanitizer brackets to the bag box using M6 bolts, then attach the rain cover. Finally, mount the assembly on a post or wall with the provided M8 bolts. Make sure the surface is flat and solid.

What types of waste bags can I use?

The station is designed for standard dog waste bags. Bags must be compatible with the integrated dispensing system. We recommend using biodegradable bags for eco-friendly use.

How to clean the station?

Clean regularly with a damp cloth and mild soap. Avoid abrasive or corrosive products that could damage the paint or galvanized steel. Rinse with clean water and dry thoroughly.

Can the station be used outdoors in all weather?

Yes, thanks to the rain cover and corrosion-resistant galvanized steel, it is suitable for outdoor use. However, avoid prolonged exposure to standing water to extend its lifespan.

What is the weight capacity of the station?

The station is designed to hold waste bags and small waste. The maximum recommended load is about 2 kg. Do not exceed this limit to avoid tipping hazards.

Can I mount the station on a post or wall?

Yes, the bag box can be mounted using the provided M8 bolts on a solid post or wall. Make sure the mounting surface can support the weight and that the bolts are tightened securely.

Are waste bags included with the station?

The package contents include the station and mounting parts, but not the waste bags. You need to purchase them separately. The station is compatible with most waste bags on the market.

What to do if a part is missing or damaged?

Contact customer service via www.vevor.com/support. Have your model number (HBD008-3) and proof of purchase ready. The electronic warranty service can replace defective parts.

How to get the complete user manual?

The full manual is available for free download at notice-facile.com. You can also request it in another language via the translation form on the site.

Is it possible to buy spare parts separately?

Yes, contact Vevor support to order replacement bolts (M8, M6, etc.) or other parts. References are listed in the parts list in the manual.

USER MANUAL HBD008-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

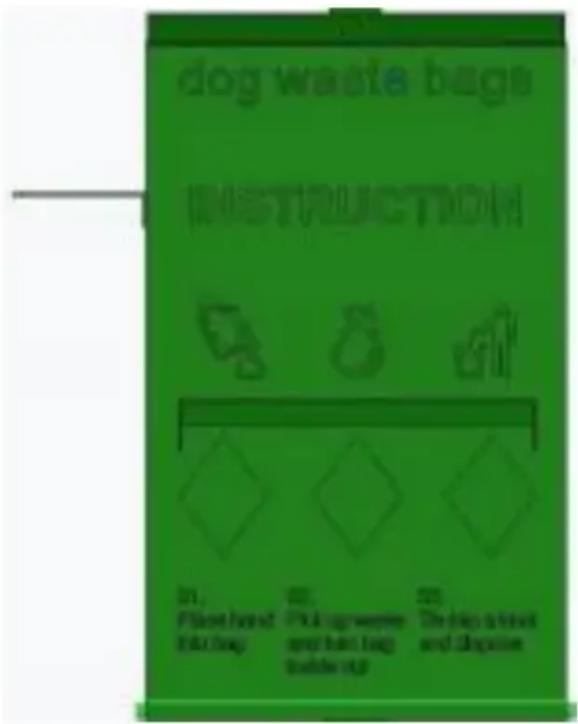

DOG WASTE STATION USER MANUAL

MODEL: HBD008-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: HBD008-3

HBD008-3

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Fabric Drawer Dresser.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Fabric Drawer Dresser.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

MODEL: HBD008-3

ASSEMBLY STEP

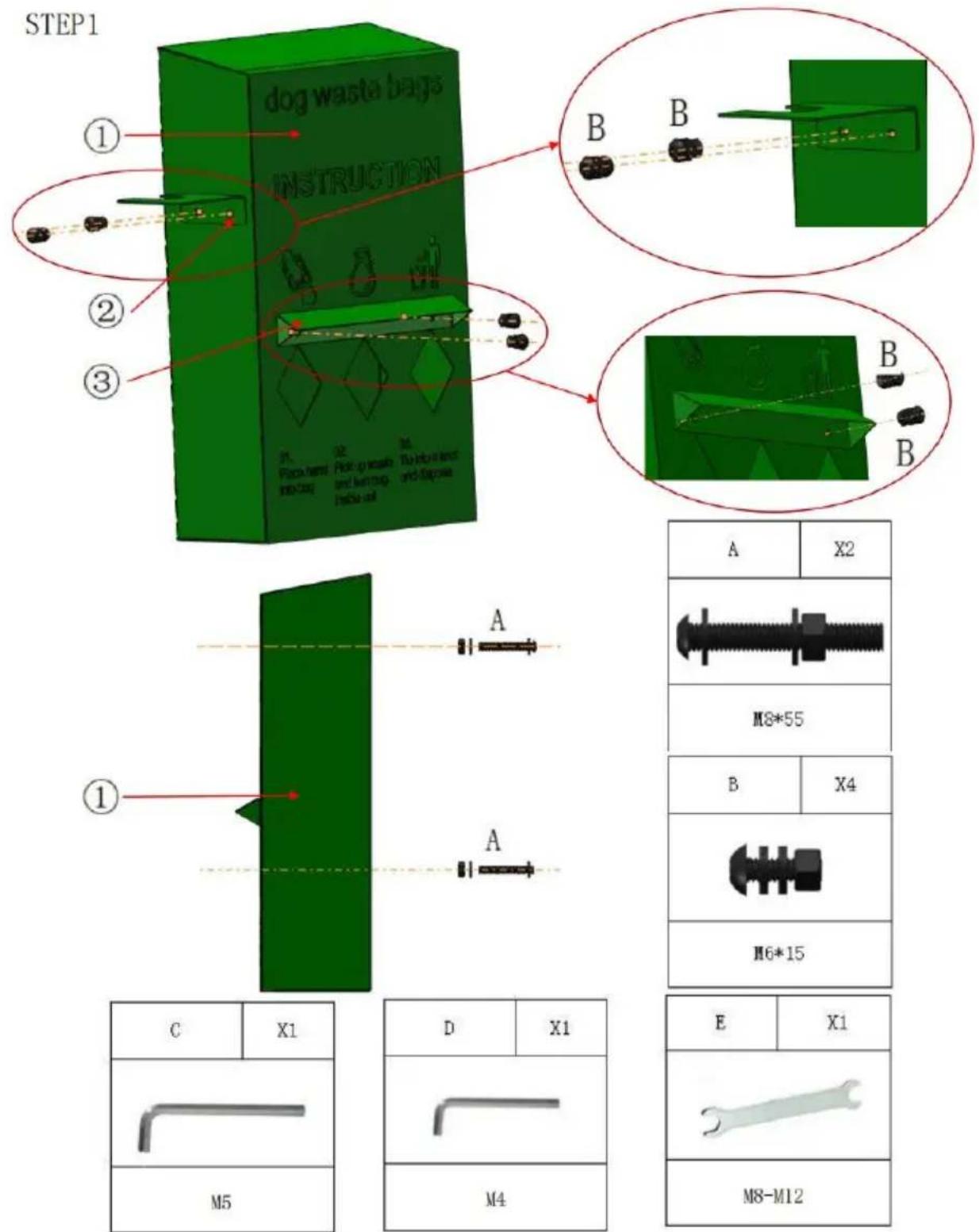

STEP1: Connect the sterilizing alcohol placement lugs(②) to the bagging box(①) through 2pcs M6 bolts(B), and then connect the rain flap(③) to the bagging box(①) through 2pcs M6 bolts(B). Finally, the user can mount the bagging box(①) where they want using 2pcs M8 bolts(B) of their choice.

PRODUCT PARAMETER

Model	HBD008-3
Colour	Green
Material	Galvanized Steel
Product Size	9.8*4.4*16.5in/250*112*420mmmm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

HUNDEKOTSTATION

Benutzerhandbuch

MODELL: HBD008-3

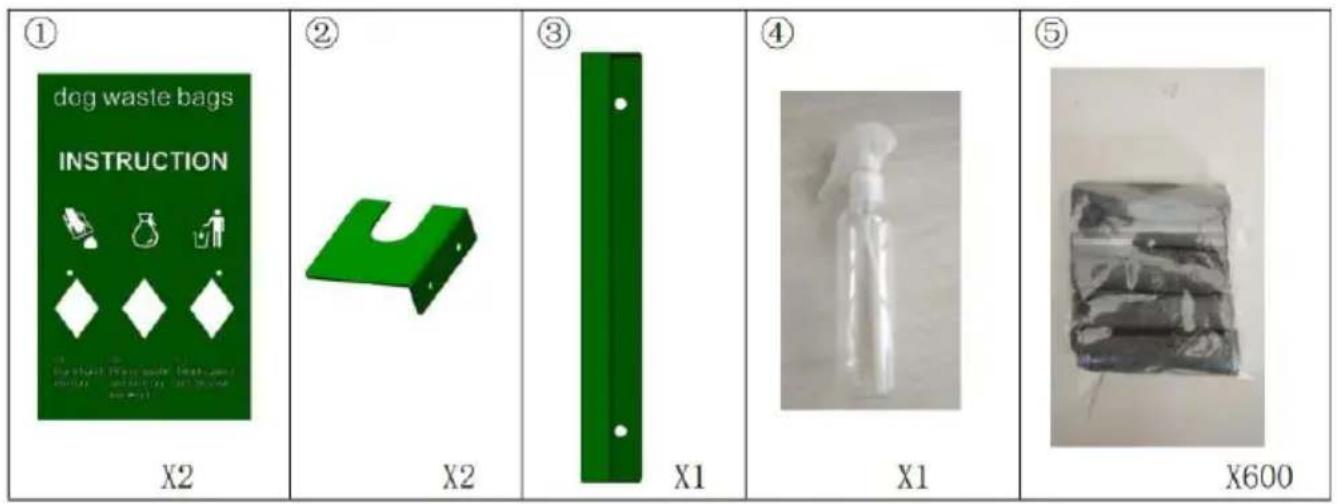

X2
②

X2
③

X1

④

Transparent plastic spray bottle with a pointed tip, isolated on a plain background (no text or symbols visible)

X1

⑤

Close-up of a dark, textured object with no visible text or symbols

X600

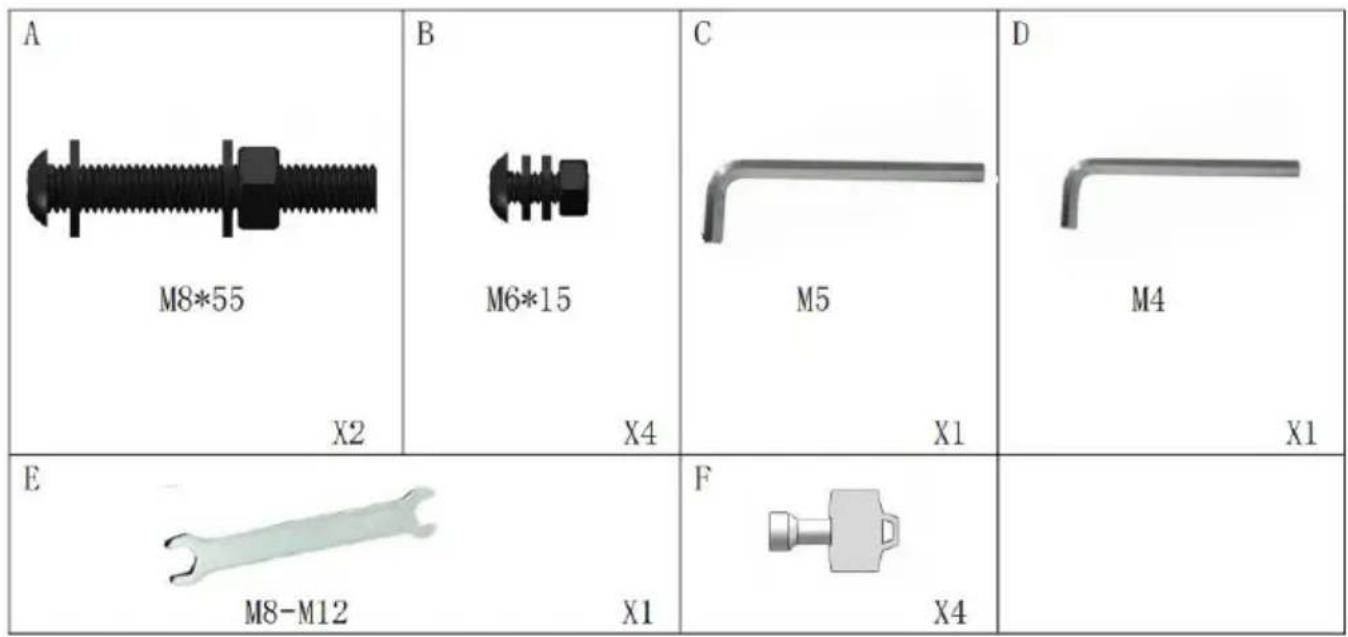

AM8*55X2	BM6*15X4	CM5X1	DM4X1
EM8-M12	FX1	X4

ASSEMBLY STEP
