USER MANUAL FBL760101 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMODE

MODEL:FBL760101

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMODE

MODEL:FBL760101

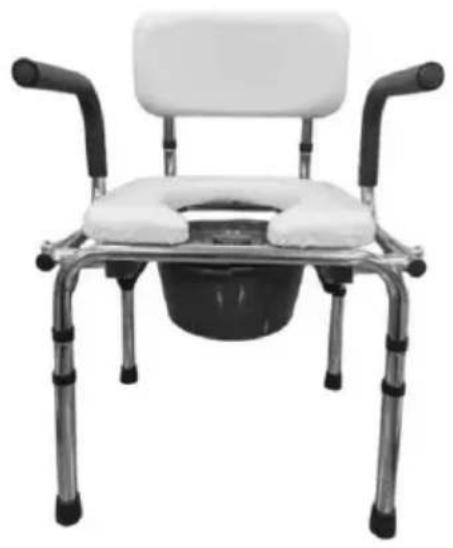

Medical mobility dials with adjustable arms and a central body (no text or symbols visible)

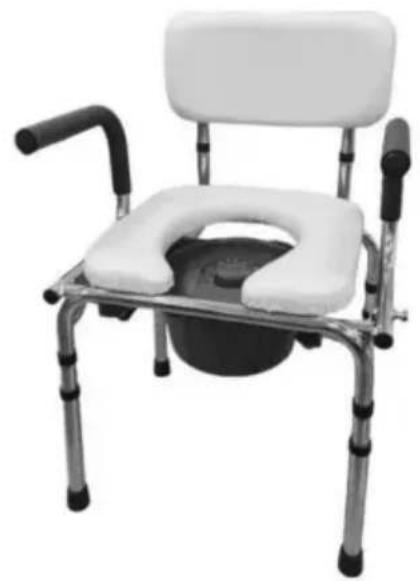

Medical mobility device with adjustable seat and handle (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read the manual completely to avoid harm, product damage, or warranty avoidance. Seek professional help if you encounter discomfort, pain or worsen symptoms. If necessary, use supervision in order to assemble and use this p correctly and safely. Do not exceed the weight limit.

Regularly check for secure assembly and contact support if in doubt. Ensure product's legs are even and locked before use, and discontinue usage if their signs of wear, damage, or missing parts. The product is to be used on flat, surfaces. Do not disassemble if not necessary, as it might compromise the longevity of the product. Do not modify the product unless specified in the n

Physiotherapist

1. Before first use, adjust the height and the width of the rail to your toilet.
2. Back up to the toilet with your assistive device (if available) until the bac legs are touching the toilet.
3. Reach back for the rail, hold firmly, and slowly lower yourself into a seat position on the toilet.
4. To return to a standing position, place your hands on the rails firmly and yourself up into a standing position.
5. Once you are standing, gradually let go of the rails, and only then, grab handle of your assistive device (if available).

IMPORTANT

1. Don't exceed the maximum weight capacity.
2. Use on stable surfaces only.
3. Regularly inspect for signs of wear, damage, or loose parts.
4. Clean regularly using a mild detergent and warm water, rinse off any soa residue. After cleaning, dry thoroughly.
5. Before use, confirm with your healthcare provider that the product meets y specific needs. The following guidelines are not a substitute for medical advice

SAVE THESE INSTRUCTION

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	NAME	QTY	NO	PICTURE	NAME	QTY
1		Leg Tube	4	6		Seat Frame	1
2		Backrest Connecting Tube	2	7		Pail	1
3		Backrest	1	8		Foot Mats	2
4		Left Handrail	1	9		Hex Wrench	1
5		Right Handrail	1

PRODUCT PAREMETERS

Model	FBL760101
Seat Measures (L×W)	415×415mm/16.3"×16.3"
Seat Height	490-640mm/19.3"-25.2"
Seat Rated Load	159kg / 350lbs

1. Installation Procedures

1

Three-panel illustration showing a hand operating a metal stand to lift a vertical pole, then adjusting the seat and backrest (no text or symbols present)

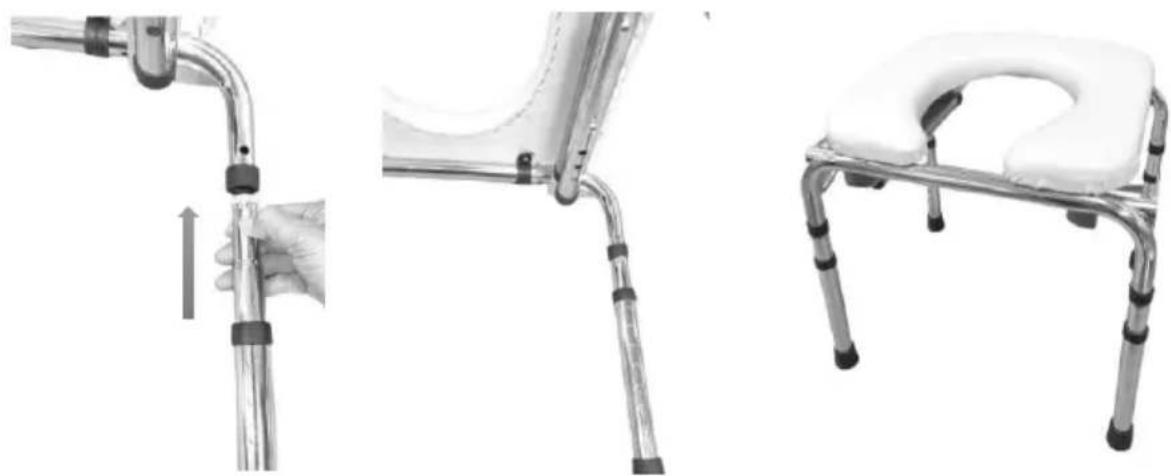

As shown in the picture: (Installation of the leg tube) Press the marble the foot tube into the mouth of the main frame tube, and the marble and snaps into place.

2

Three-panel image showing a person using a mobility device to adjust the seat area in different angles (no text or symbols visible)

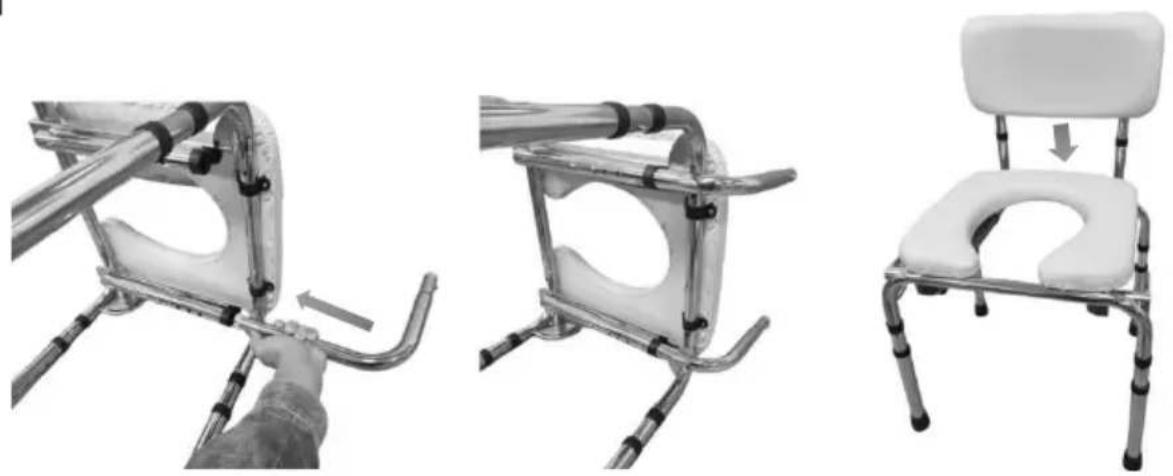

As shown in the figure: (Installation of the backrest) Before installing the backrest, press the marble and insert the backrest connecting tube into installation position.

3

Three-panel image showing a medical procedure: catheter insertion, hand positioning, and a medical chair with adjustable arm (no text or symbols visible)

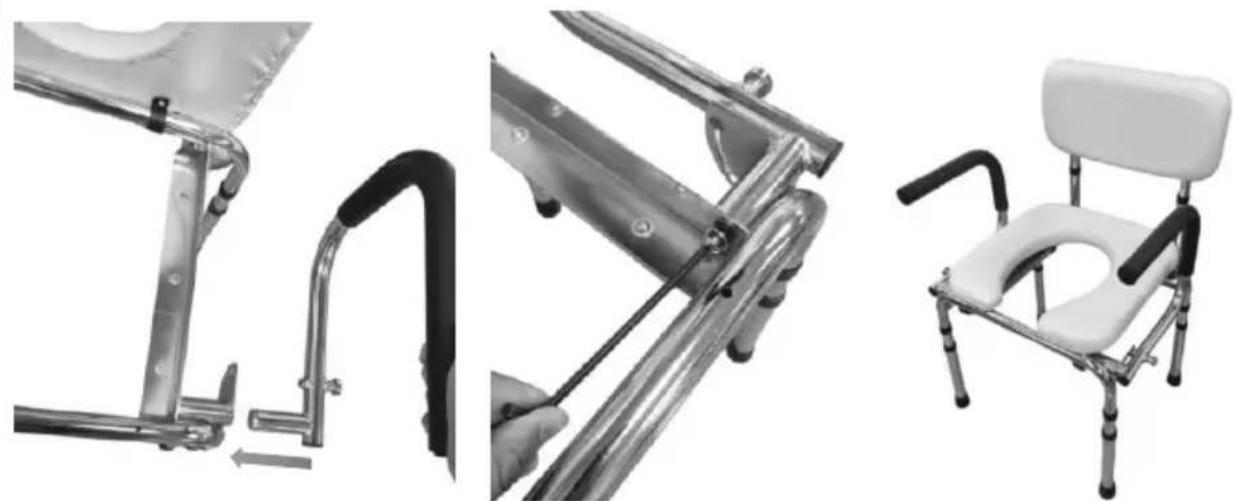

As shown in the picture: (Installing the handrail) Insert the handrail into frame, screws with spacers to lock the handrail.

4

Two-panel image showing a hand operating a metal mobility chair with black straps and blue legs, no text or symbols visible.

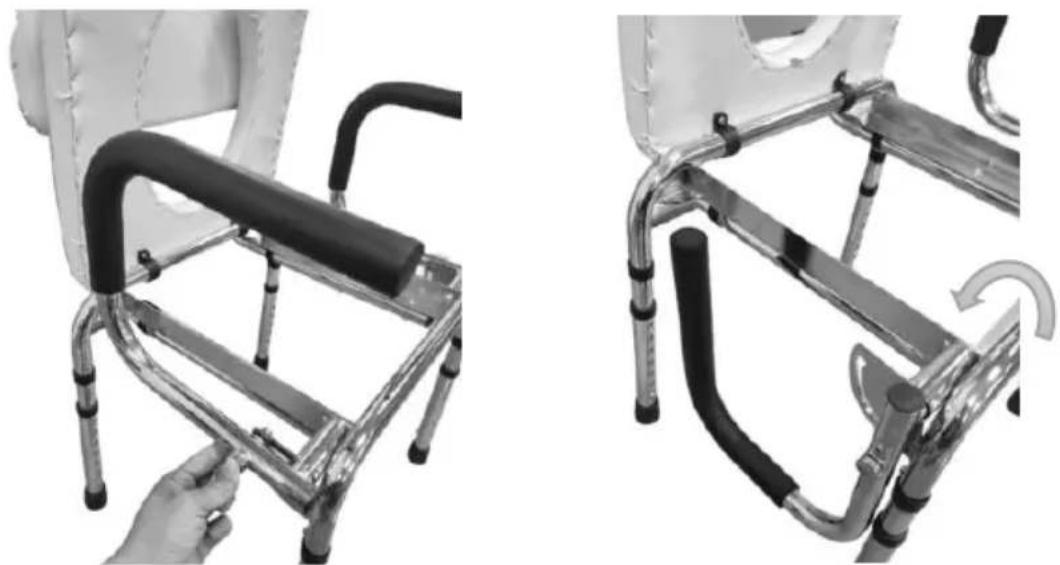

As shown in the picture: press and hold the handrail button to turn y by 90°.

5

Medical mobility device with a white seat, black adjustable arm, and blue cushion (no text or symbols visible)

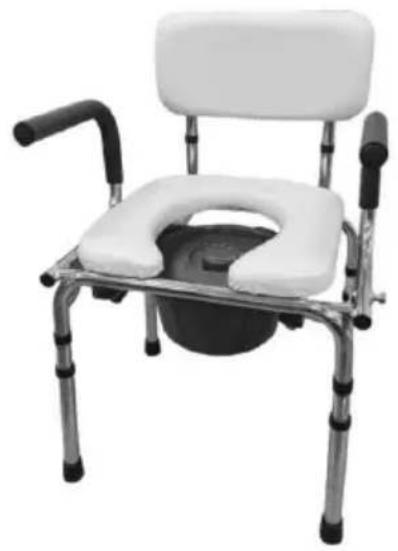

As shown in the picture: the installa is complete.
