USER MANUAL FBL900632 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOILET SAFETY RAILS

MODEL: FBL900632

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

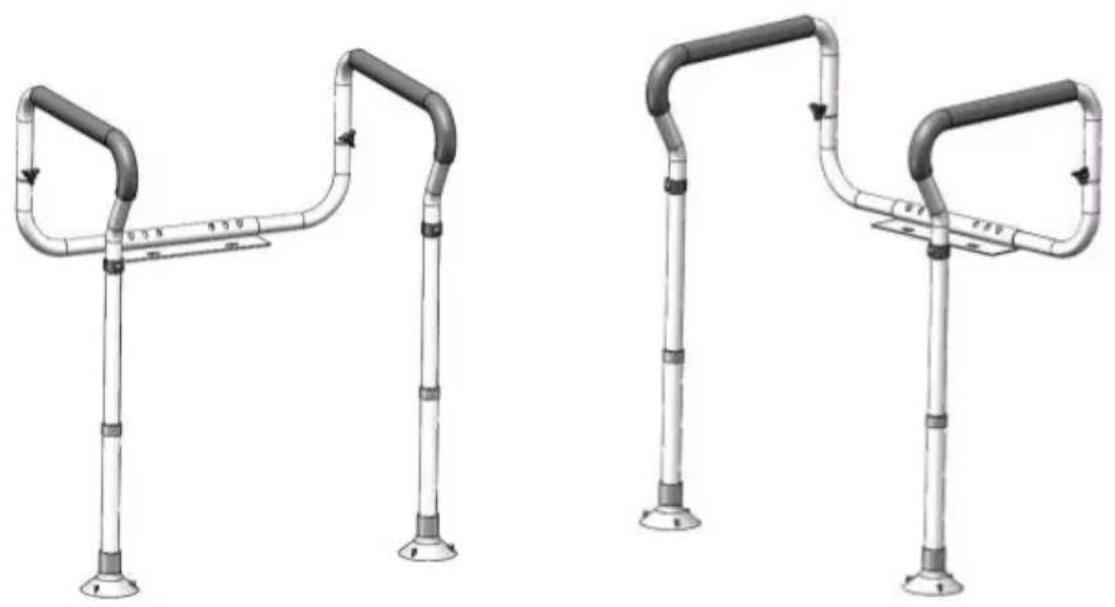

Toilet Safety Rails

MODEL: FBL900632

Three identical 3D illustrations of a vertical pipe support structure with flanged ends and base supports, shown from different angles (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

WARNING:

Read the manual completely to avoid harm, product damage, or warranty avoidance. Seek professional help if you encounter discomfort, pain, or worse symptoms. If necessary, use supervision in order to assemble and use this p correctly and safely. Do not exceed the 300lb weight limit.

Regularly check for secure assembly and contact support if in doubt. Ensure product's legs are even and locked before use, and discontinue usage if their signs of wear, damage, or missing parts. The product is to be used on flat, surfaces. Do not disassemble if not necessary, as it might compromise the longevity of the product. Do not modify the product unless specified in the n Use only parts approved by PELEGON LLC for this specific product. Confirm compatibility of the toilet rail with your toilet before first use. The product isn to withstand pressure or impact and isn't to be used as a ladder or loaded heavy objects.

Keep away from children and pets. Contains potentially hazardous small parts of choking hazard. Exercise caution during operation and assembly. Avoid extreme temperatures or open flames. If an allergic reaction occurs, cease use immediated and consult a healthcare professional.

Warranty Policy

We warrant your new VEVOR product to be free from defects in materials a workmanship 3 years of the original purchase. However, please keep in mind our guarantee policy does not cover counterfeit or replica items, nor does it extend to products purchased from unauthorized resellers or in used condition. Please note that each purchase is eligible for only one guarantee redemption, we cannot repeatedly refund, replace, or exchange your product. We also kind ask that you handle the product with care and use it according to the instruction provided. Unfortunately, we cannot cover damage resulting from misuse or abuse of the product. This warranty is not transferable and applies only to the original purchaser.

IMPORTANT

1. Don't exceed the weight capacity - 300 lb max.
2. Use on stable surfaces only.
3. Regularly inspect for signs of wear, damage, or loose parts.
4. Clean regularly using a mild detergent and warm water, rinse off any soap residue. After cleaning, dry thoroughly.
5. Before use, confirm with your healthcare provider that the product meets y specific needs. The following guidelines are not a substitute for medical advice

SAVE THESE INSTRUCTION

PARAMETER LIST

Model	FBL900632
Rated bearing capacity (lbs))	300
Width adjustment range (mm)	450-550
Height adjustment range (mm)	670-770
Net weight	1.4 kg
Product size (mm)	515-615*410*670-770

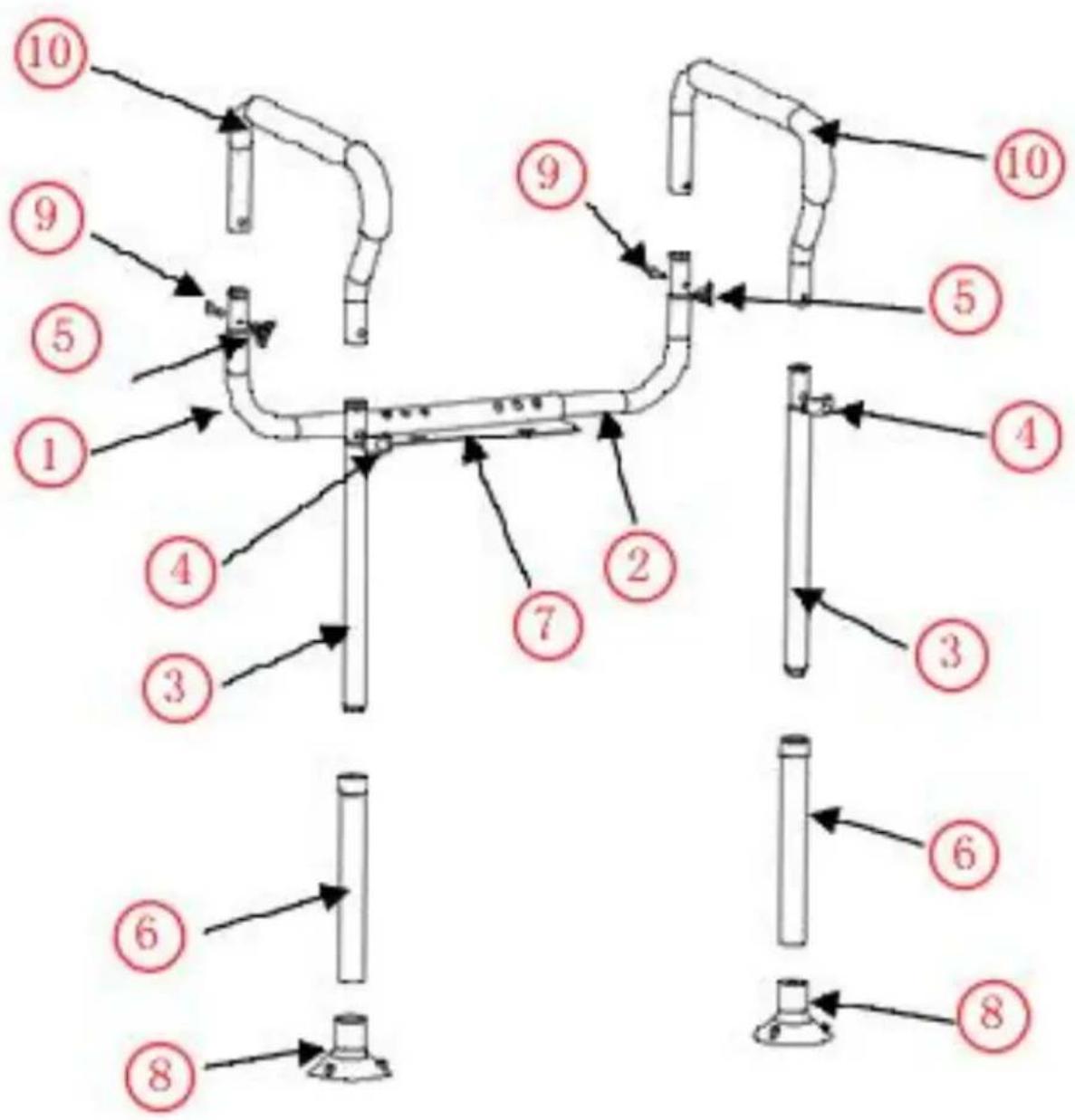

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NUMBER	QTY	NO	PICTURE	PART NUMBER	QTY
1		L-shaped tube right	1	6		inner jut pipe	2
2		L-shaped tube left	1	7		Figure 6 regulating tube	1
3		connecting pipe	2	8		Suction cup foot pad	2
4		Proximity Card	2	9		outer hexagon screw	2
5		Delta knob	2	10		pipe handrail	2

OPERATION

1. Installation Procedures

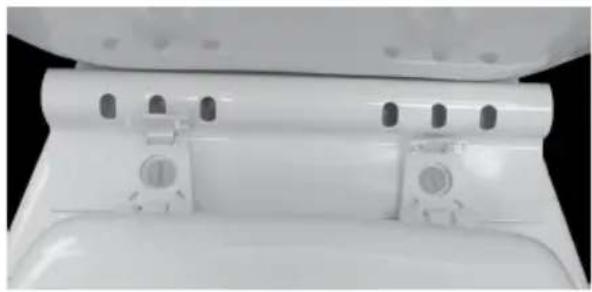

		1. Align the bolt holes on the 6-figure tube, and toilet seat, and secure the other end of the bolt
		2. Attach the two foot pads the two foot tubes
		3. Attach the two connecting tubes to the two pin tubes

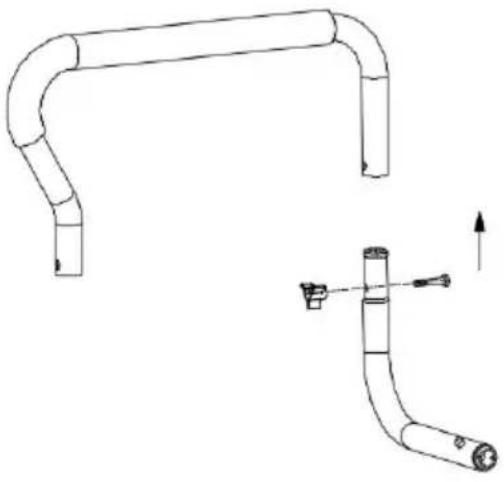

		4. Install L-shaped tube on hand tube (2 triangle knobs, 2 outer screws)
		5. Install the foot tube with the connecting tube on the left and handrail tube (2 C-type cards)

Technical diagram of a mechanical assembly with two vertical supports and a separate pipe fitting (no text or symbols)

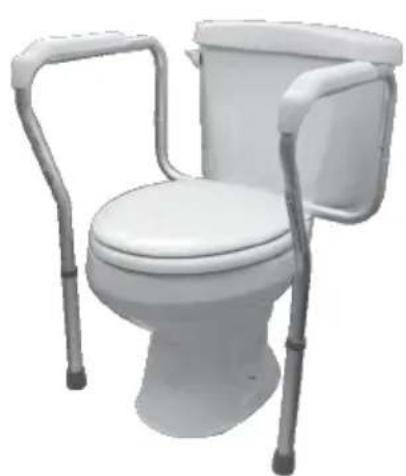

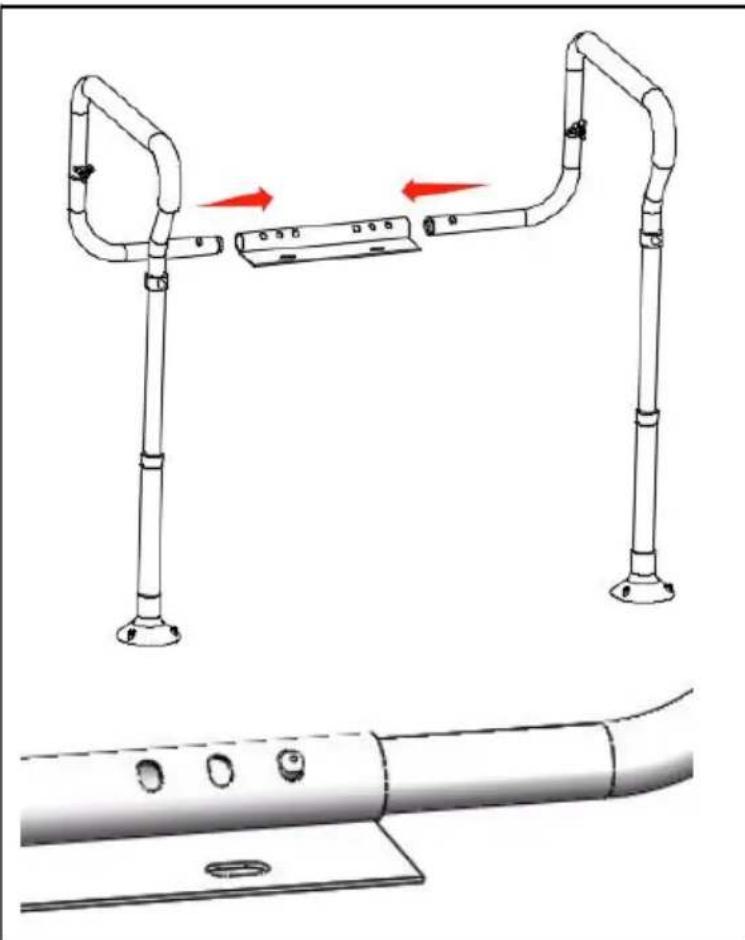

1. Install the assembled left handrail tube and right handrail on the adjustment tube (figure-6) and the assembled product as shown in the following figure.

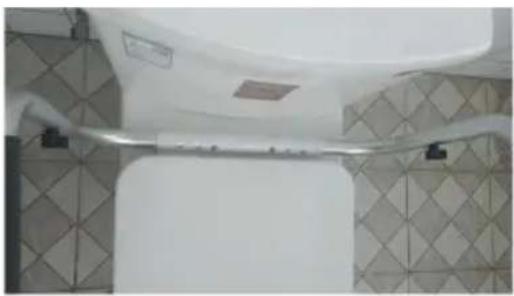

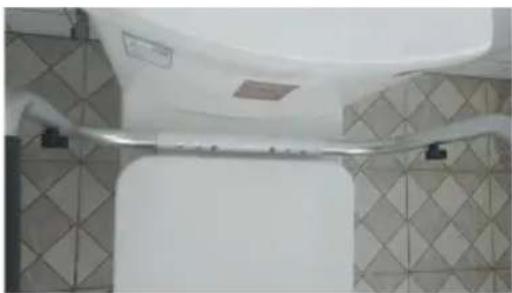

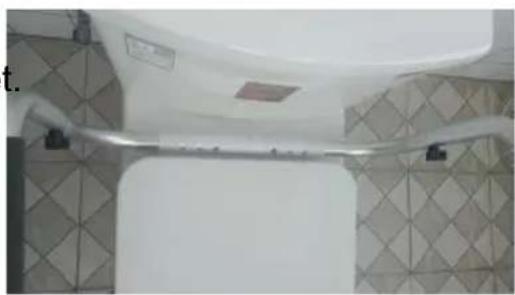

In the picture below, we insert the mounting hole into the pin of the toilet.

3D rendering of a white toilet with metal legs and handle, no text or symbols visible

Close-up of a white toilet with a metal railing, placed on tiled flooring (no visible text or symbols)

Top-down view of a white toilet with metal legs and handle, placed on tiled floor (no text or symbols visible)

2. Installation Procedures

• With the tailgate open, place Bed Extender pivot pins into the left and rig mounting brackets. Rotate to 45 until it drops into place, then lower it o open tailgate.
• Flip the Bed Extender out to contain cargo in the truck bed when the tai is open. CAUTION: 200lb maximum load on the open tailgate. Always distribute the cargo evenly and properly secure inside the bed. Do not s cargo to the Bed Extender or the tailgate.
• Before driving, secure Bed Extender by locking the provided strap buckles into the truck's tailgate latches. To release, pull the tailgate handle. NOTI Ensure that both buckles are properly locked into the latches by pulling each strap.
• Flip the Bed Extender forward and close the tailgate to keep smaller cargo safe and organized.
