FBL760598 - Toilet Vevor - Free user manual and instructions

USER MANUAL FBL760598 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

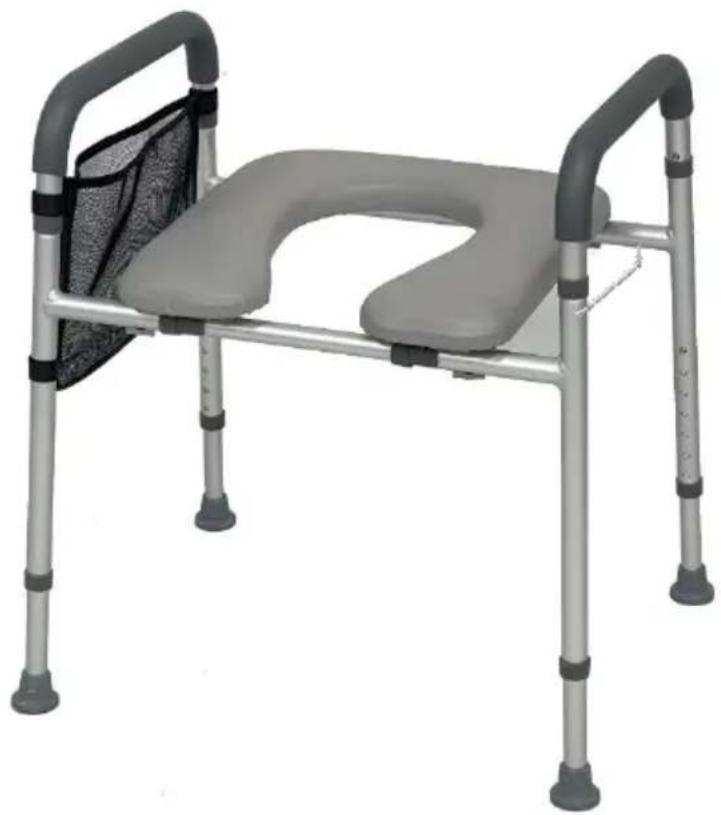

RAISED TOILET SEAT

MODEL: FBL760598

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RAISED

TOILET SEAT

MODEL: FBL760598

3D rendering of a gray and silver mobile phone seat with adjustable legs and handlebars (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, users must read the ins manual carefully.

WARNING:

Read the manual completely to avoid harm, product damage, or warranty voidance. Seek professional help if you encounter discomfort, pain, or worsening symptoms. If necessary, use supervision in order to assemble and use this p correctly and safely. Do not exceed the 350 lbs weight limit.

Regularly check for secure assembly and contact support if in doubt. Ensure product's legs are even and locked before use, and discontinue usage if their signs of wear, damage, or missing parts. The product is to be used on flat, surfaces. Do not disassemble if not necessary, as it might compromise the longevity of the product. Do not modify the product unless specified in the n Use only parts approved by VEVOR for this specific product. Confirm the compatibility of the toilet rail with your toilet before first use. The product isn to withstand pressure or impact and isn't to be used as a ladder or loaded heavy objects.

Keep away from children and pets. Contains potentially hazardous small parts choking hazard. Exercise caution during operation and assembly. Avoid extreme temperatures or open flames. If an allergic reaction occurs, cease use immedi and consult a healthcare professional.

Warranty Policy

We warrant your new VEVOR product to be free from defects in materials a workmanship 3 years of the original purchase. However, please keep in mind our guarantee policy does not cover counterfeit or replica items, nor does it to products purchased from unauthorized resellers or in used condition.

Please note that each purchase is eligible for only one guarantee redemption, we cannot repeatedly refund, replace, or exchange your product. We also kind ask that you handle the product with care and use it according to the instruction provided. Unfortunately, we cannot cover damage resulting from misuse or abuse of the product. This warranty is not transferable and applies only to the original purchaser.

IMPORTANT

1. Don't exceed the weight capacity - 350 lbs max.
2. Use on stable surfaces only.
3. Regularly inspect for signs of wear, damage, or loose parts.
4. Clean regularly using a mild detergent and warm water, rinse off any soap residue. After cleaning, dry thoroughly.
5. Before use, confirm with your healthcare provider that the product meets y specific needs. The following guidelines are not a substitute for medical advice

SAVE THESE INSTRUCTION

PARAMETER LIST

Model	FBL760598
Rated load (lbs)	350
Seat cushion height range(mm)	490-640mm
Net weight(kg)	3.01
Product size(mm)	525*640*655-805mm

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

NO	PICTURE	PART NUMBER	QTY	NO	PICTURE	PART NUMBER	QTY
1		Left front main frame	1	7		Storage bag	1
2		Left rear main frame	1	8		Right rear main frame	1
3	[H4AX]	Leg tube	4	9		Right front main frame	1
4		seat	1	10		armrest tube	2
5		flat knob	4	11		Seat frame tube	2
6		paper towel holder	1

OPERATION

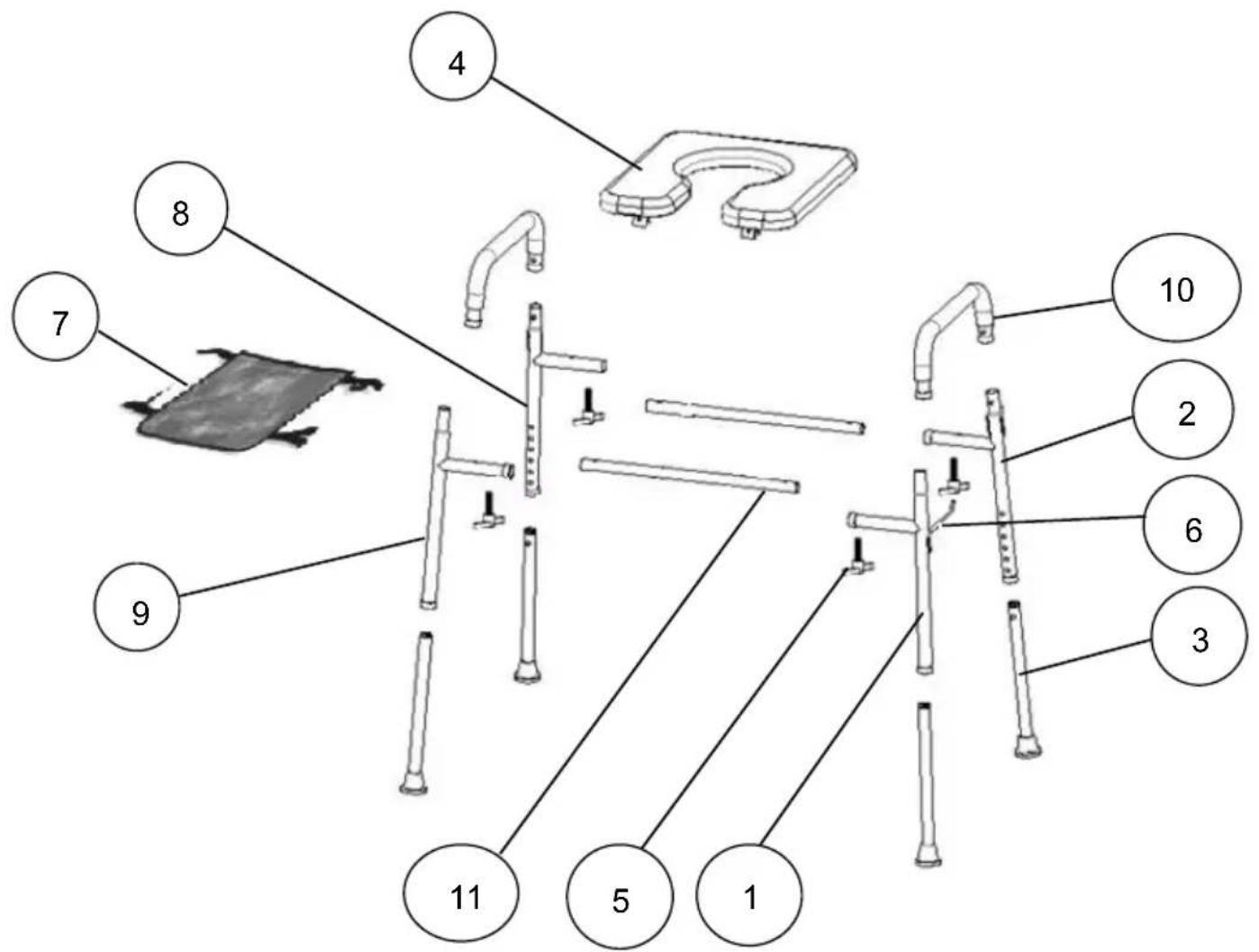

Labeled diagram of a mechanical device with numbered components for identification

1. Installation Procedures

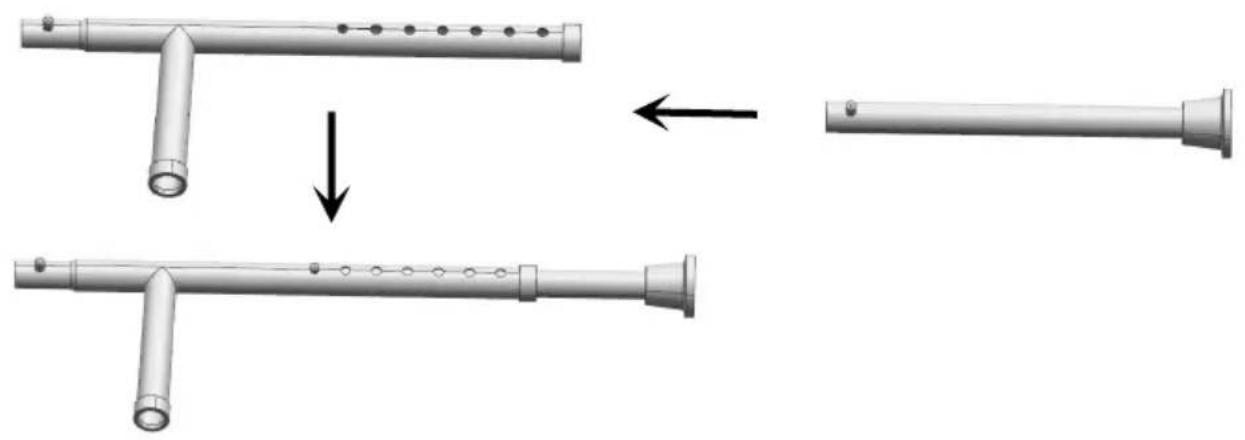

1. As shown in the figure, the four legs ③ are installed into the left frame ①, left rear main frame ②, right rear main frame ⑧, right front main frame ⑨ respectively.

Diagram showing a musical instrument with three stages: before, after, and after assembly (no text or symbols)

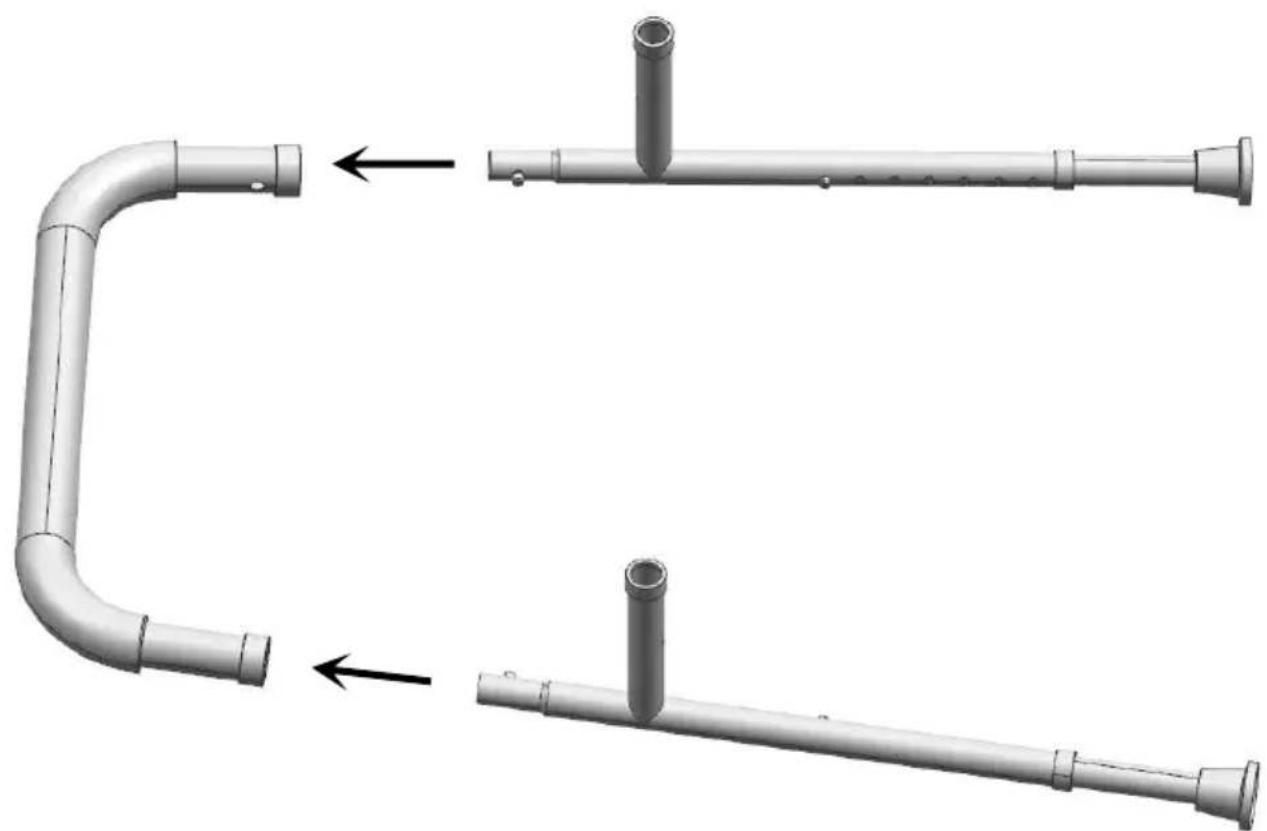

1. As shown in the figure, the assembled left front main frame ①, le frame ②, right rear main frame ⑧, right front main frame ⑨ are installed into the armrest tube ⑩, so that the marbles of each main frame are ejected

3D rendering of two pipe fittings with arrows indicating assembly or movement (no text or symbols)

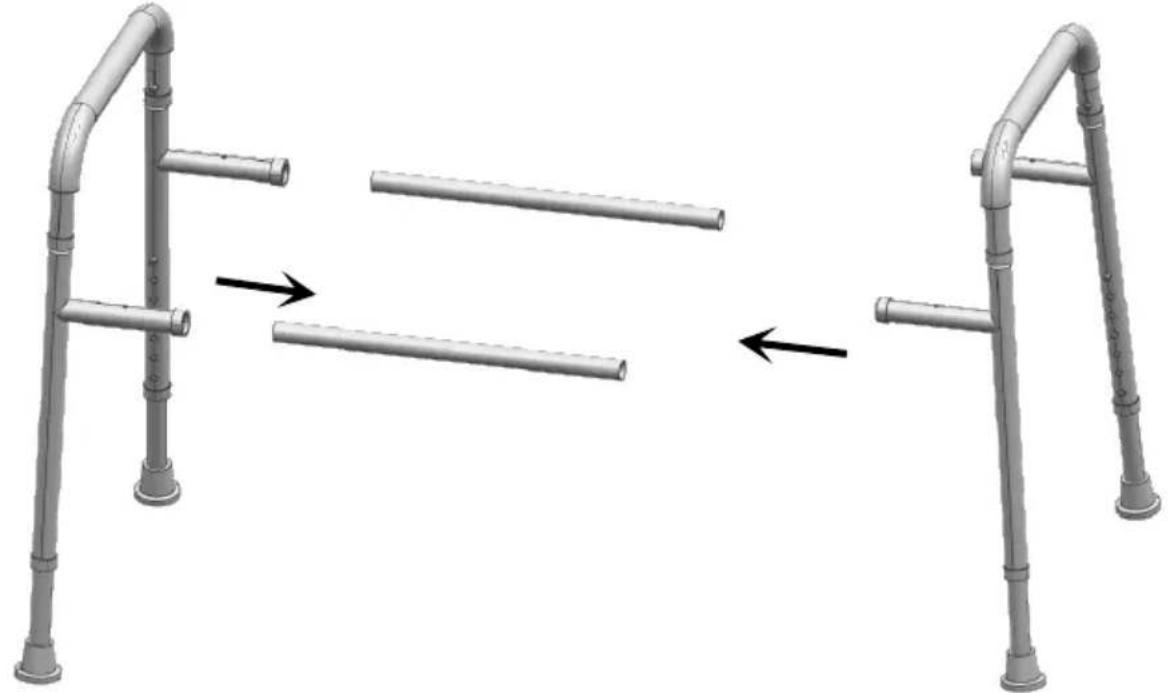

1. Insert the assembled left and right main frames in alignment with top openings of the seat frame tube display as shown.

3D diagram showing pipe fittings and structural changes, no text or symbols present

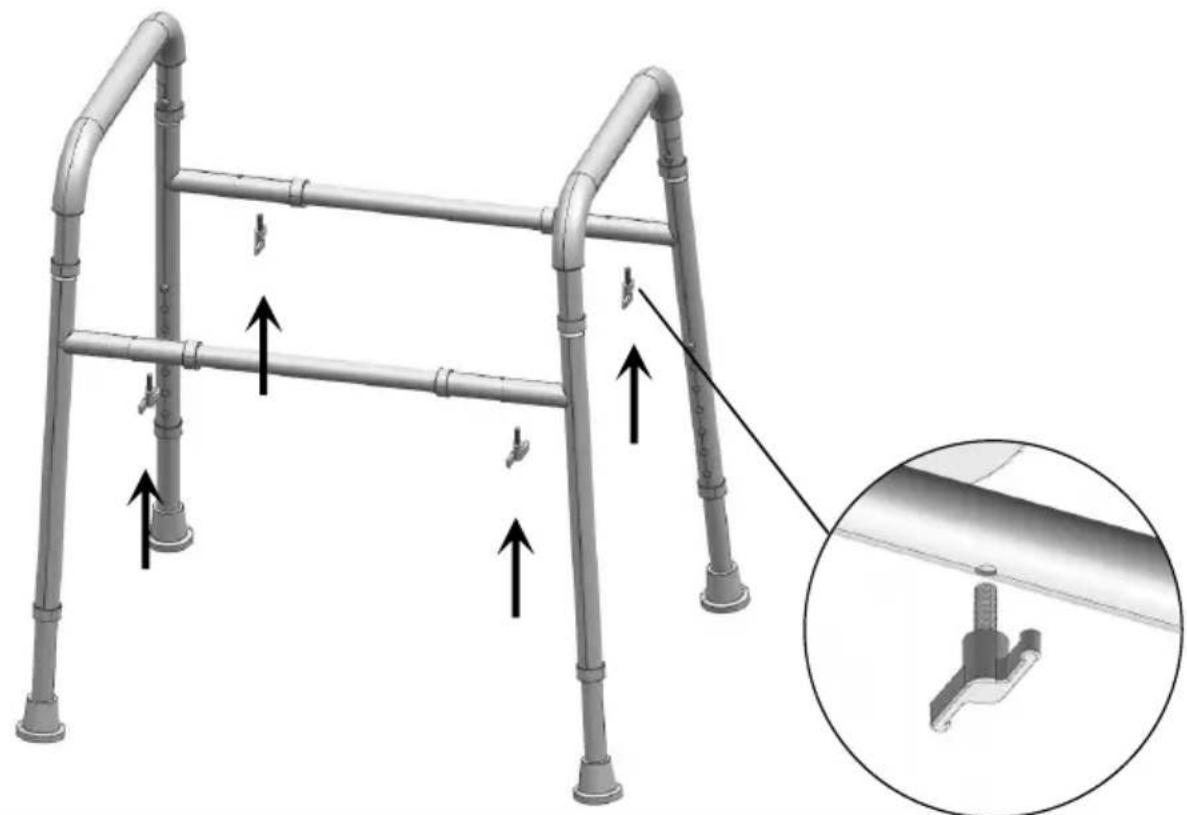

1. As shown in the figure, lock the 4 knobs ⑤ into the holes corresponds left and right main frame and seat frame tubes in turn.

Technical illustration of a metal walkway with attached pipes and a close-up inset showing a bracket detail (no text or symbols)

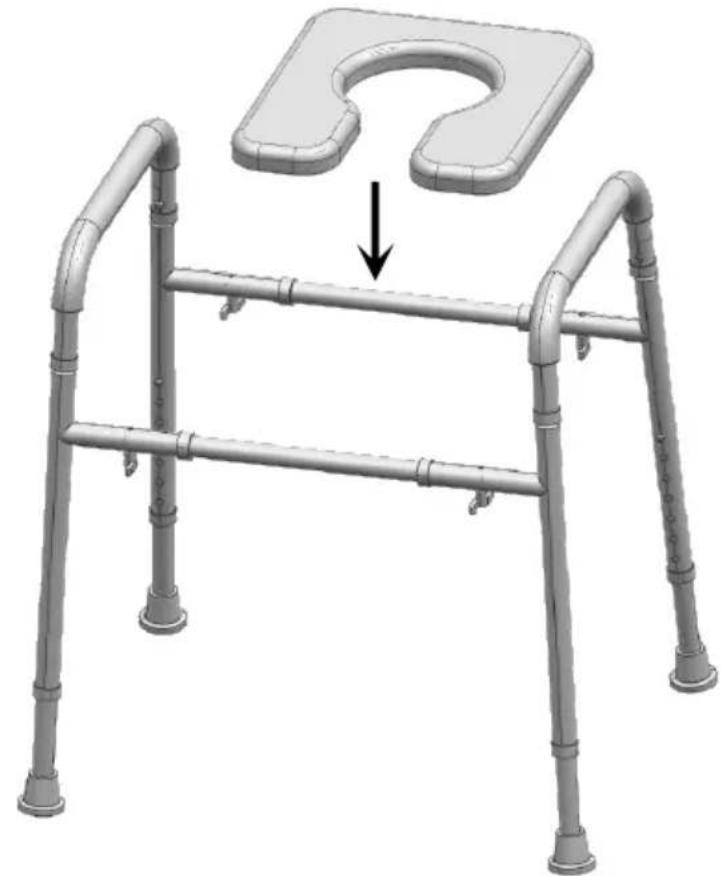

1. As shown in the figure, snap in the C-clips at the bottom of the against the seat frame tube ⑪.

3D rendering of a mobile walkable stand with a U-shaped top panel and metal railings, showing a downward arrow indicating compression or disassembly (no text or symbols present)

1. As shown in the picture, install the storage bag on the right side and the paper towel holder on the left side of the product (Note: the and the paper towel holder can be exchanged according to the user's

Medical mobility device with adjustable legs and seat, showing a close-up of the handle and arm mechanism (no text or symbols visible)
