USER MANUAL FBL760599 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOILET SAFETY RAILS

MODEL: FLB760599

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOILET SAFETY RAILS

MODEL: FBL760599

White plastic soap dispenser with two blue metal handles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

WARNING:

Read the manual completely to avoid harm, product damage, or warranty voidance. Seek professional help if you encounter discomfort, pain or worsenir symptoms. If necessary, use supervision in order to assemble and use this product correctly and safely. Do not exceed the 300 lbs weight limit Regularly check for secure assembly and contact support if in doubt. Ensure product's legs are even and locked before use, and discontinue usage if ther signs of wear, damage, or missing parts. The product is to be used on flat, surfaces. Do not disassemble if not necessary, as it might compromise the longevity of the product. Do not modify the product unless specified in the manual. Use only parts approved by VEVOR for this specific product. Co the compatibility of the toilet rail with your toilet before first use. The product built to withstand pressure or impact, and isn't to be used as a ladder or loaded with heavy objects.

Keep away from children and pets. Contains potentially hazardous small parts choking hazard. Exercise caution during operation and assembly.

Avoid extreme temperatures or open flames. If an allergic reaction occurs, cause use immediately and consult a healthcare professional.

Warranty Policy

We warrant your new VEVOR product to be free from defects in materials a workmanship 3 years of the original purchase. However, please keep in mind our guarantee policy does not cover counterfeit or replica items, nor does it extend to products purchased from unauthorized resellers or in used condition. Please note that each purchase is eligible for only one guarantee redemption, we cannot repeatedly refund, replace, or exchange your product. We also kind ask that you handle the product with care and use it according to the instruction provided. Unfortunately, we cannot cover damage resulting from misuse or abuse of the product. This warranty is not transferable and applies only to the original purchaser.

IMPORTANT

1. Don't exceed the weight capacity - 300 lbs max.
2. Use on stable surfaces only.
3. Regularly inspect for signs of wear, damage, or loose parts.
4. Clean regularly using a mild detergent and warm water, rinse off any soap residue. After cleaning, dry thoroughly.
5. Before use, confirm with your healthcare provider that the product meets y specific needs. The following guidelines are not a substitute for medical advice

SAVE THESE INSTRUCTION

PARAMETER LIST

Model	FBL760599
Rated load (lbs)	300
Elevated height (in)	3.5
Net weight(kg)	2.01
Product size(mm)	440*610*275

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NUMBER	QTY	NO	PICTURE	PART NUMBER	QTY
1		Seat	1	6		Bolt	2
2		Handrail	2	7		Butterfly nut	2
3		LongL-shaped tube	2	8		Ironwasher	2
4		ShortL-shaped tube	2	9		Plasticwasher	2
5		C-clip	4

OPERATION

1. Installation Procedures

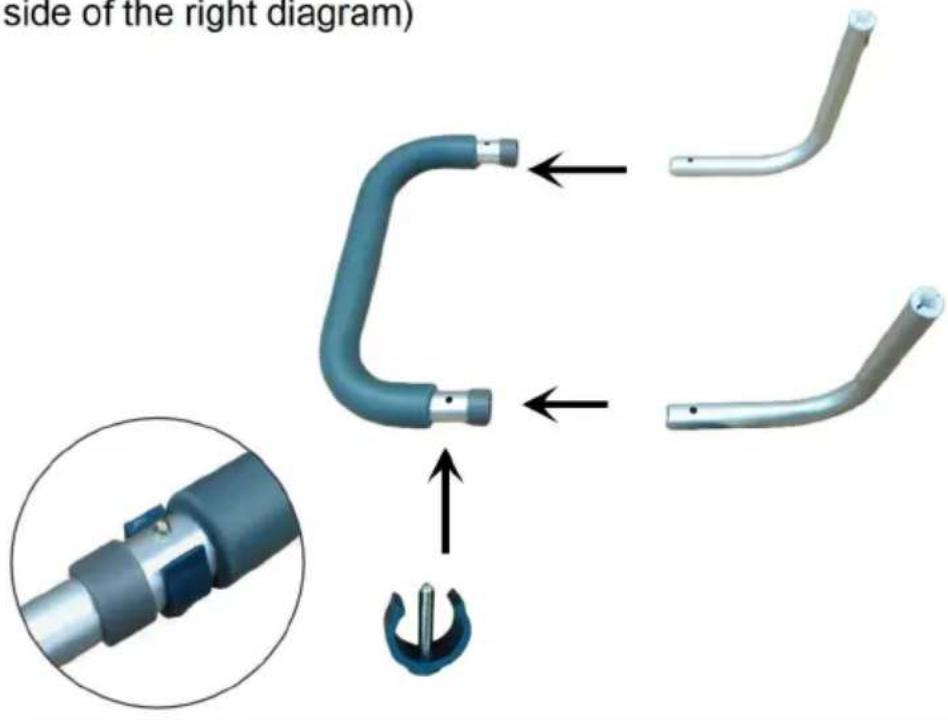

1. As shown in the figure, assemble the right handrail② by inserting the ③ and short L-shaped tubes ④ into the handrail tubes in order of their perforated ends, and then inserting the two C-clips into the aligned holes from the sides of the two L-shaped tubes in order of their perforated ends. (Not L-tube is on the lower side of the right diagram)

(side of the right diagram)

Insert the C-clip as shown in the right figure.

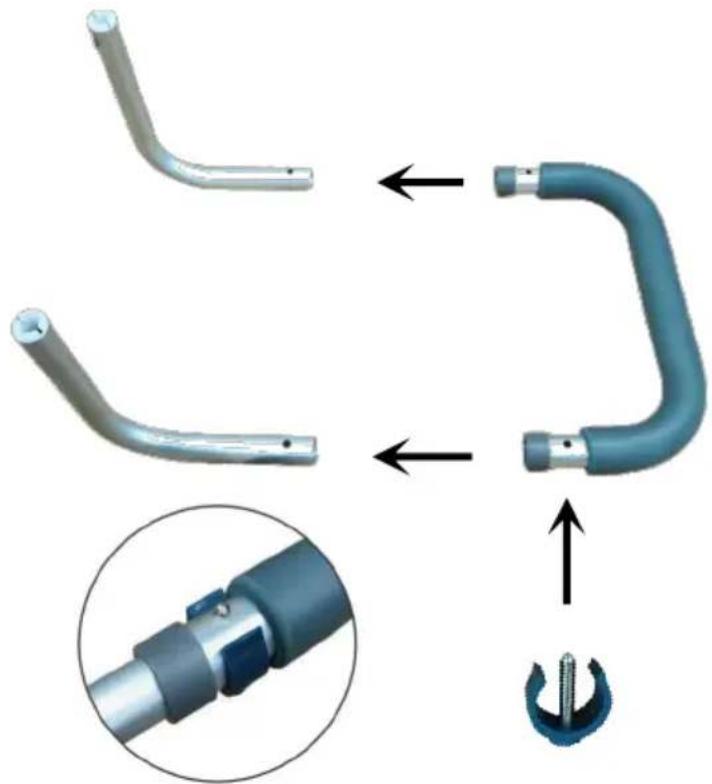

1. Follow the previous steps to install the left handrail.

Technical illustration of a mechanical component with three views: straight pipe, curved pipe, and threaded hook (no text or symbols)

Insert the C-clip as shown in the right figure.

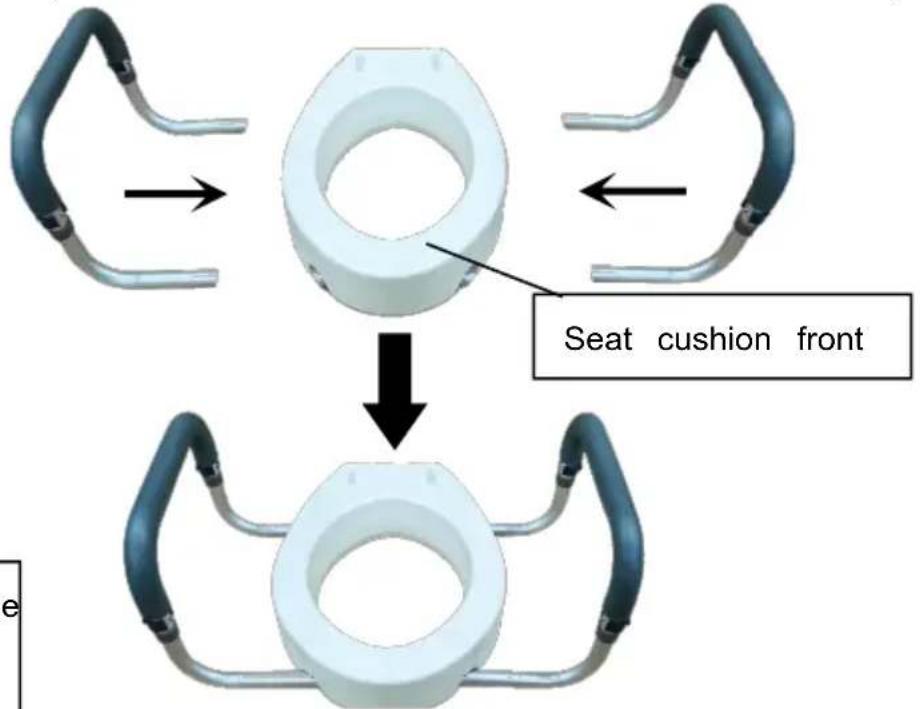

1. As shown in the figure, insert the assembled left/right handrail into opening of the seat cushion ① in the direction of the figure below un marbles of the long L-shaped tube ③ and the short L-shaped tube ④ smoothly ejected from the holes of the short tube at the bottom of the The long L-shaped tube is at the front of the seat cushion)

Seat cushion front

Pictures of the completed assembly

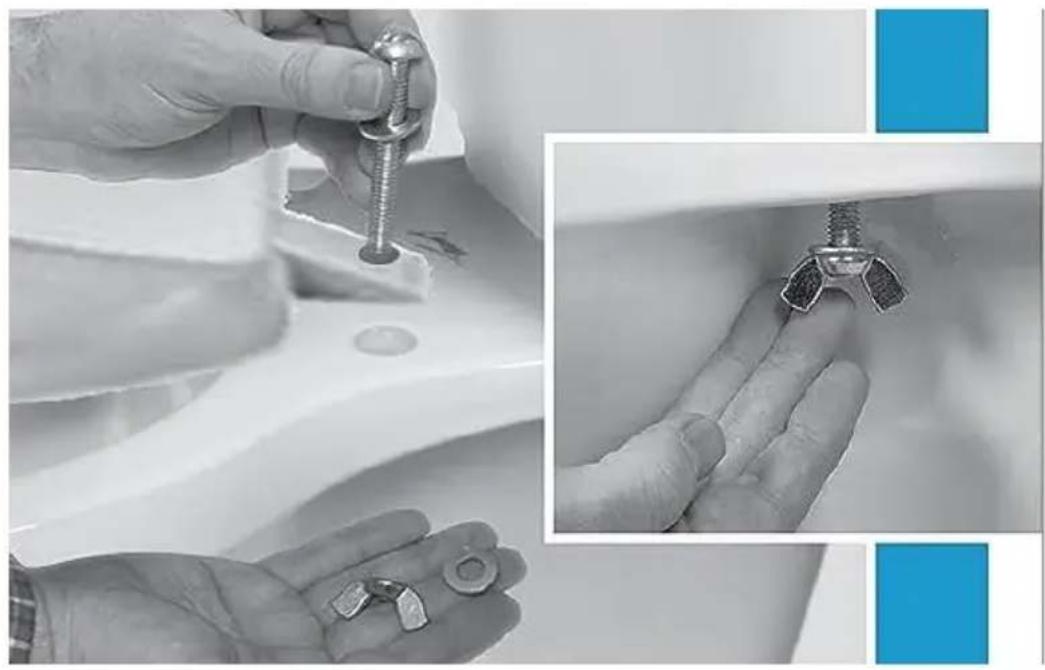

1. As shown in the figure, cover the toilet's original seat plate and seat locate the nut that secures the seat plate and seat cover, and remove original seat plate and seat cover by turning the butterfly nut counterclo

Close-up of hands installing a metal screw on a sink, with close-up of the installation detail (no text or symbols visible)

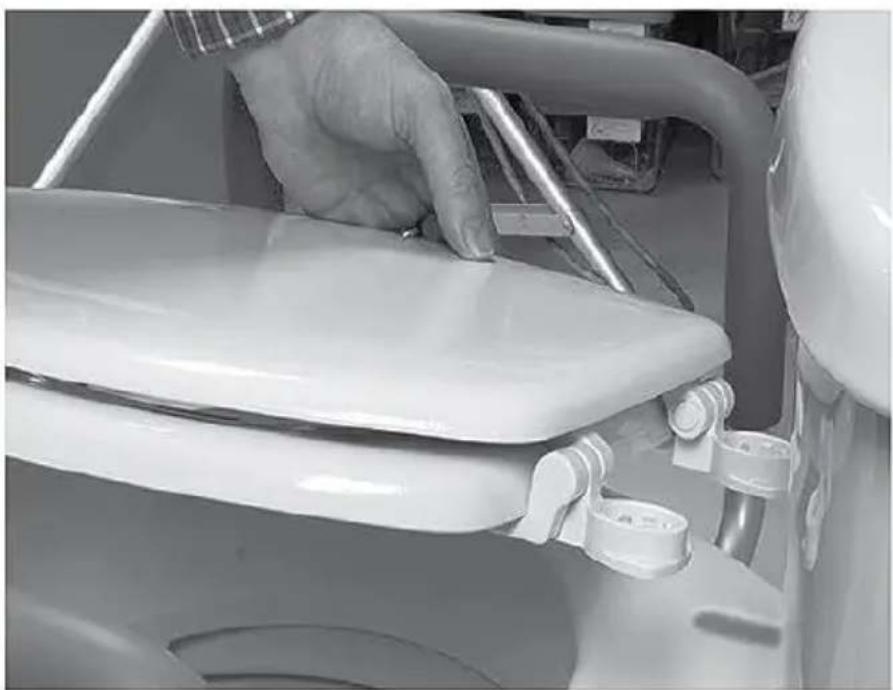

1. As shown in the figure, place the assembled seat on the toilet, the toilet's original seat plate and seat plate cover so that the fixing holes toilet, seat, seat plate and seat plate cover are aligned.

Close-up of a hand adjusting a white plastic chair seat, no visible text or symbols

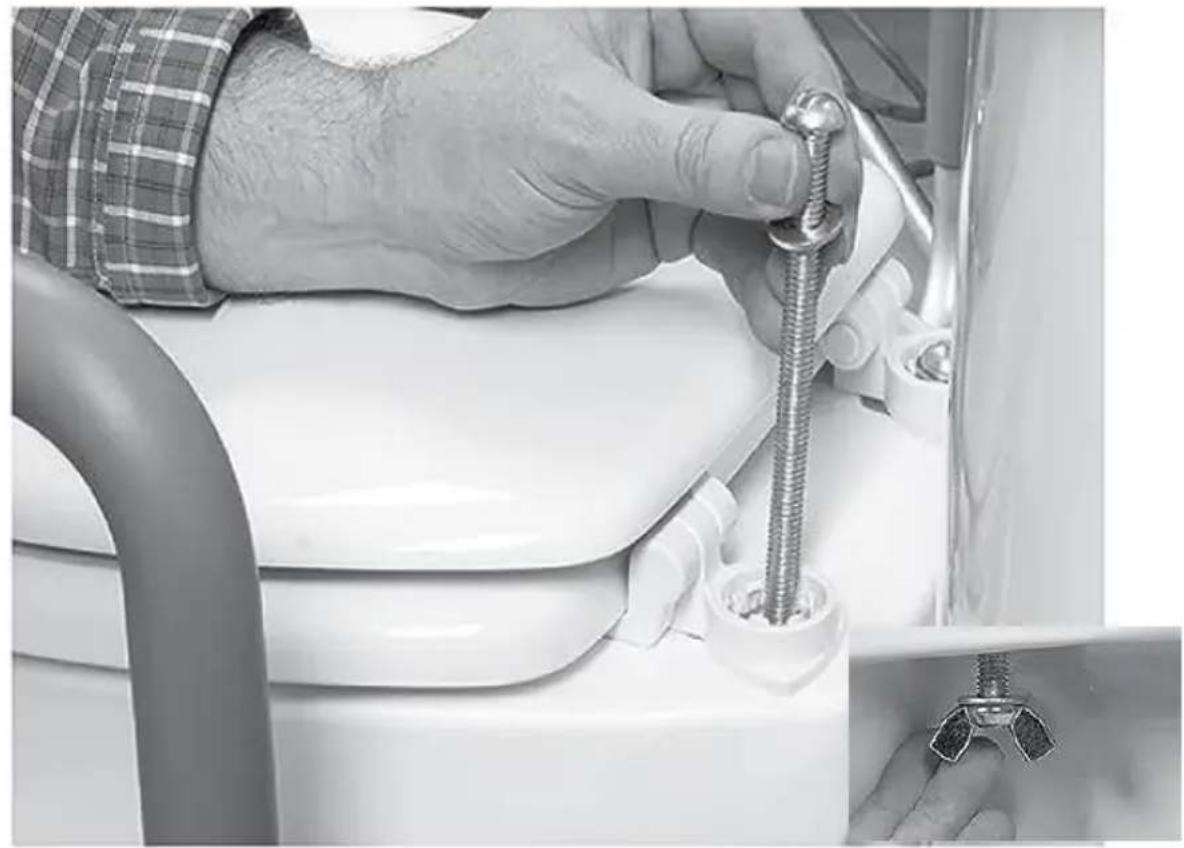

1. As shown in the figure, insert the bolt ⑥ into the fixing holes align toilet, seat, seat plate and seat plate cover, and then put the plastic v washer and butterfly nut on the other end of the bolt in turn and turn nut clockwise to lock it.

Close-up of a hand adjusting a screwdriver on a white toilet seat (no text or symbols visible)

Manufacturer: Zhongshan Bliss Medical Instrument Co., Ltd

Address: 3-6F & 7F-1, No. 63, Tongxing East Road, Yumin Community Xiaol Zhongshan, Guangdong, 528414, CHINA

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support
