USER MANUAL FSP20DC-4 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

CORDLESS WATER TRANSFER PUMP

MODEL: FSP20DC-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: FSP20DC-4

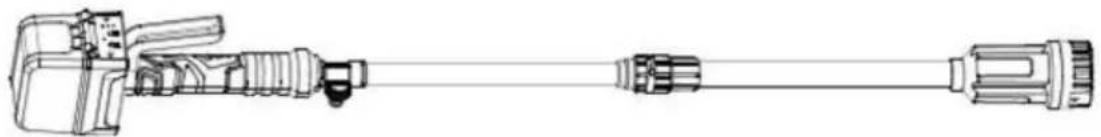

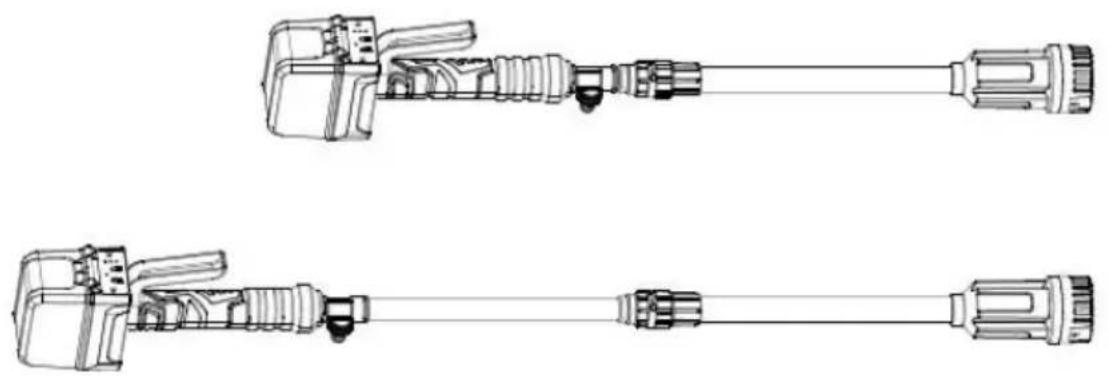

Technical line drawing of two mechanical components with connectors and shafts (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instru manual carefully.

This product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all acces marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic devices

INSTRUCTIONS

GENERAL PUMP SAFETY WARNINGS

WARNING: Read all safety warnings, instructions provided with this pu Failure to follow all instructions listed below may result in electric shock fire.

Know your tool

Stick water pump, powered by lithium battery, (Battery is NOT include designed to remove standing water from meter pits, valve boxes, and underground structures where standing water is a problem. The slim design of the pump head will fit it into tight areas where water remains most challenging.

Specification

Model	FSP20DC-4
Input	DC 20V Max 5.5A
H.max	26Ft (7.8m)
Q.max	528GPH (2000L/H)
waterproofing grade	IPX8

Safety Precaution

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate pump in explosive atmospheres, such as in presence of flammable liquids, gases or dust.
• Keep children or bystanders away while operating a pump. Distractions can cause you to lose control.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when you operate the pump. Do not use pump while you're tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hats or hearing protections used in appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source or battery pack, picking up carrying the pump. Carrying the pump with your finger on the sw or energizing
• Do not overreach. Keep proper footing and balance at all times. enables better control of the pump in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hand and clothing away from moving parts. Loose clothing or hair can caught by moving parts.

Do not let familiarity gained from frequent use of the pump allow you become complacent and ignore the pump safety principles. A careless action may cause severe inquiry within a fraction of a second.

PUMP USE AND CARE

1. Do not force the pump. Use the correct pump for your application The correct pump will do the job better and safer at the rate fo it was designed.
2. Do not use the pump if the switch does not turn it on and off. pump that cannot be controlled with switch is dangerous and must be repaired.
3. Remove the battery pack from the pump before making any adjustments, changing accessories, or storing. Such preventive safety measures reduce the risk of starting the pump accidentally.
4. Store idle pump out of the reach of children and do not allow pe unfamiliar with the pump or these instructions to operate the pump. Pumps are dangerous in the hands of untrained users.
5. To reduce the risk of injury, always wear proper eye protection.
6. Maintain pump and accessories. Check for misalignment or binding of the moving parts, breakage of parts and any other conditions may affect the pump's operation. If damaged, have the pump repaired before use. Many accidents are caused by poorly maintained pumps. Use the pump, accessories, etc. In accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pump for operations different from those intended could result in a hazardous situation.
7. Keep handles and grasping surfaces dry, clean and free from oil grease.
8. Before use, hand thread the outlet hose onto the pump's hose fitt Do not over tighten, or the threads may be damaged on the fitti hose.
9. Lay out the hose to ensure there are no blockages, kinks, or ber Take appropriate safety precautions to ensure the hose is secure your worksite.

WARNING! Do not submerge the tool past the handle.

NOTE: The pump will achieve best performance with filter as flat as possible and fully submerged in the water.

NOTE: The pump is not designed to sustain working in dry conditions. The pump will shutdown if working in dry conditions for long period of time.

1. Insert battery pack, turn on pump by ON/OFF switch to ON.
2. As soon as the pump begins to take in air or pump is complete off pump.
3. Allow liquid inside of the pump to drain out. NOTE: If anything I clear water is accidentally pumped, flush with clear water for at 30 seconds immediately after use.
4. Remove the battery and hose from the pump, pull the fast coupl switch, fold the tubes and take care of the wires inside. Let pum and hose drain before storing. It is necessary to clear the filter t prevent any blockage.
5. Removing/Inserting the battery.

To remove the battery, push in the release buttons and pull the bat pack away from the tool.

Trouble Shooting

Problem	Cause	Solution
Pump not running	*Wires are damaged*Filter is not attached*Battery is not well inserted*Battery installed when pump turned on.	*Check the wires and make sure are well connected.*Install the filter*Insert the battery again*Correct situation, then turn pump then back on to reset.
Flow rate to low	*Hose is clogged or damaged.*Filter is clogged with debris.	*Flush the hose , or replace the if damaged.*Clean the filter.
Pump shutdown	*Dry Pump shut down	*Correct situation, then turn pump then back on to reset.

MAINTENANCE

WARNING! To reduce the risk of injury, always unplug the charger a remove the battery pack from the charger or tool before performing a maintenance. Never disassemble the tool, battery pack or charger. Cor seller for all repair.

Maintenance tool

Inspect your tool for issues such as undue noise, misalignment or bir of moving parts, breakage of parts, or any other condition that may be the tool operation.

If the tool doesn't start or operate at full power with a fully charged pack, clean the contacts on the battery pack. If the tool still doesn't properly, contact the seller.

Storage

Never store with liquid inside the pump. To store the tool:

1. Flush the filter and lit tube with clear water after use to prevent damage to the tool.
2. Remove the hose and battery pack.

WARNING! To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid inside them.

Accidental Submersion

If the tool gets submerged past the handle:

1. Retrieve the tool out of the water and immediately remove the ba pump.
2. Lay the pump on a flat surface and allow to self-drain for 24 ho before using again.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4
