USER MANUAL DT810 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

PET BIKE TRAILER

MODEL: DT810

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DT810

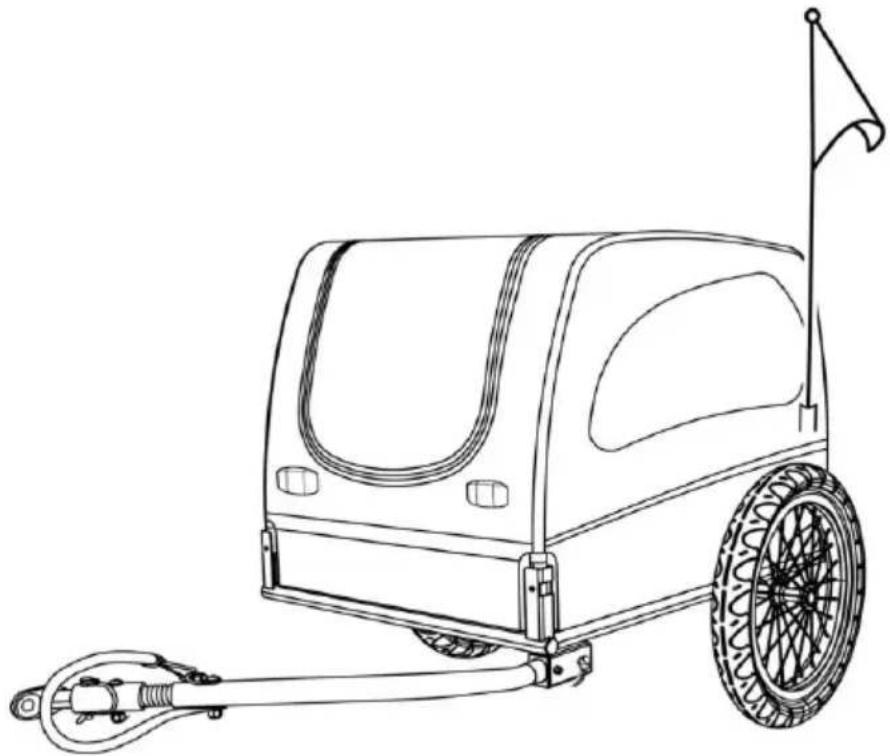

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

Important: Keep these instructions for future reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

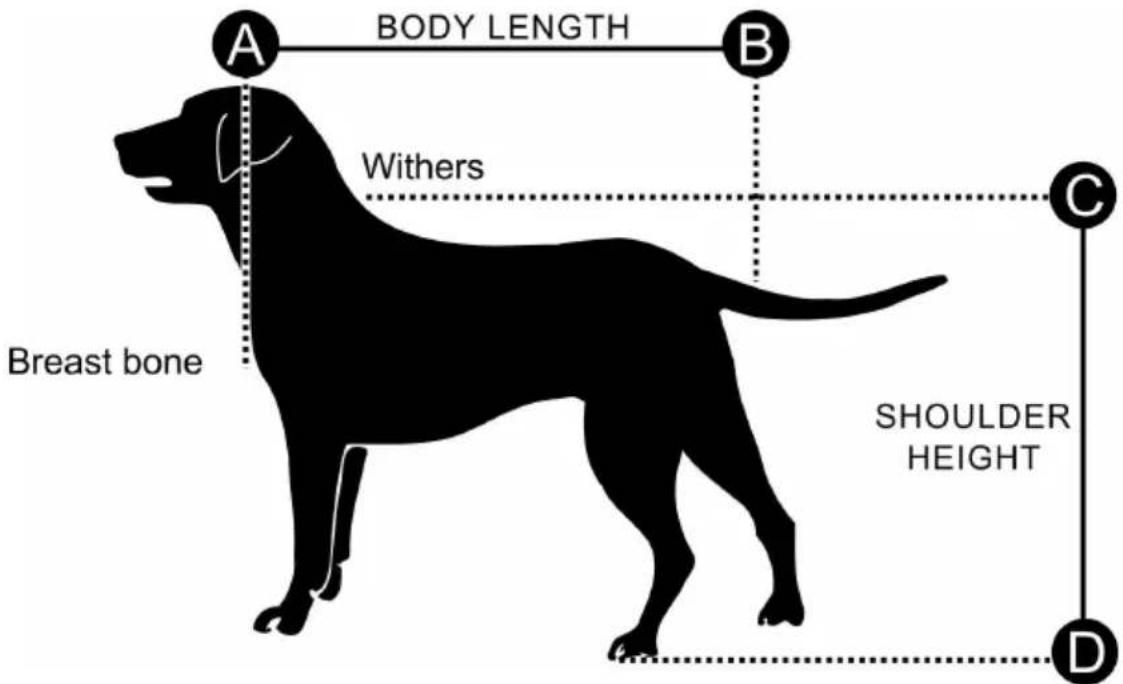

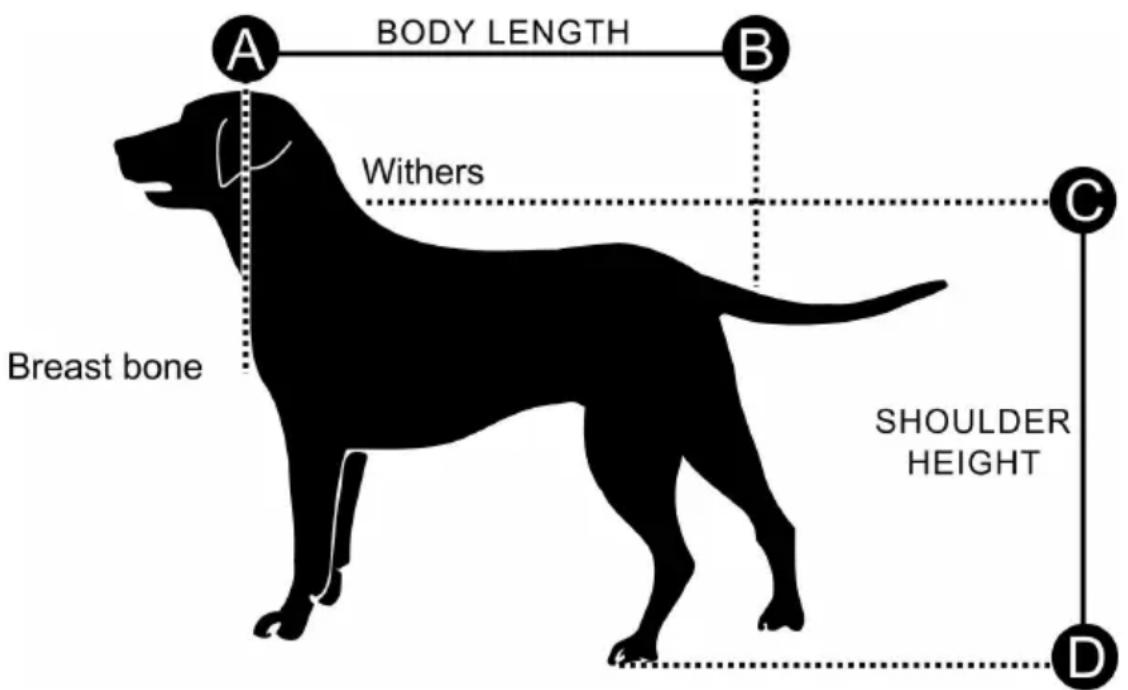

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Trailer Size	Large
Max. Body Length	31 in. (80 cm)
Max. Shoulder Height	22 in. (56 cm)
Max. Weight	88 lbs. (40 kg)

SAFETY INSTRUCTIONS

WARNING

Do read instructions before driving. Failure to comply with the instructions and warnings in this manual could result in serious injury or death.

• Consult a veterinarian to ensure it is safe for your pet to ride in
  ● Make sure pet cannot make contact with the wheel spokes.
• Check comfort and safety of pet frequently, especially during hot or cold weather.

• Never leave pet unattended and ALWAYS HOLD THE TRAILER/STROLLER FROM TIPPING BACKWARD WHEN DOG IS ENTERING OR LEAVING THE TRAILER.
  ● DO NOT use with a total load that exceeds 88 lbs. (40kg).
  ● Never use pet trailer for transporting child or cargo.

• DO NOT make any modifications to the product. Any parcels place the trailer may cause the trailer to become unstable.

• DO NOT over-inflate the tires. Failure to comply with the rated pre on the tire sidewall may lead to explosion of the tire and possible
• Before each ride, be sure the trailer does not interfere with braking pedaling or steering of the bicycle.
• Always comply with local regulations when using the trailer on publ roadways.
• Never ride a bicycle at night without adequate lighting. Obey all legal requirements for lighting.
• When using your trailer, you are towing extra weight and a bigger vehicle. You must allow more time for braking, slowing, stopping a starting, and allow more room for turns and passageways. Experim with the loaded trailer in an uncongested area until you become f with how your bike handles towing a trailer.
• Avoid rocks, curbs, hard braking and sudden swerving. Avoid riding over obstacles with one wheel, as this may cause the trailer to ti
  ● Always ride with the front and rear doors fully closed to protect pe flying debris and prevent pet from jumping from the trailer
  ● The rider of the bicycle must be at least 16 years old.
• Recommended speed limits: - 10 mph (16 km/h) on smooth, straight roads - 5 mph (8 km/h) when turning or on uneven roads.
• Trailer weight must be properly distributed for safe handling. The weight on the hitch connector should be between 30 N (≈6.6 lbs. kg) and 80 N (≈17.6 lbs. or 8 kg). To measure this, load your t place it next to bathroom scale. Step on scale and make a note weight. Standing on scale, lift up the end of the tow bar one foc (approximately 25cm) off the ground. If the weight is too low, the wheel of the bicycle could lose traction. If it is too high the hitch overloaded.

Never overload the trailer and never ride with a tow bar load that is the specified range of 6.6 to 17.6 lbs. (3 - 8 kg). Always distribute evenly. Failure to do so could result in accidents with serious injury death.

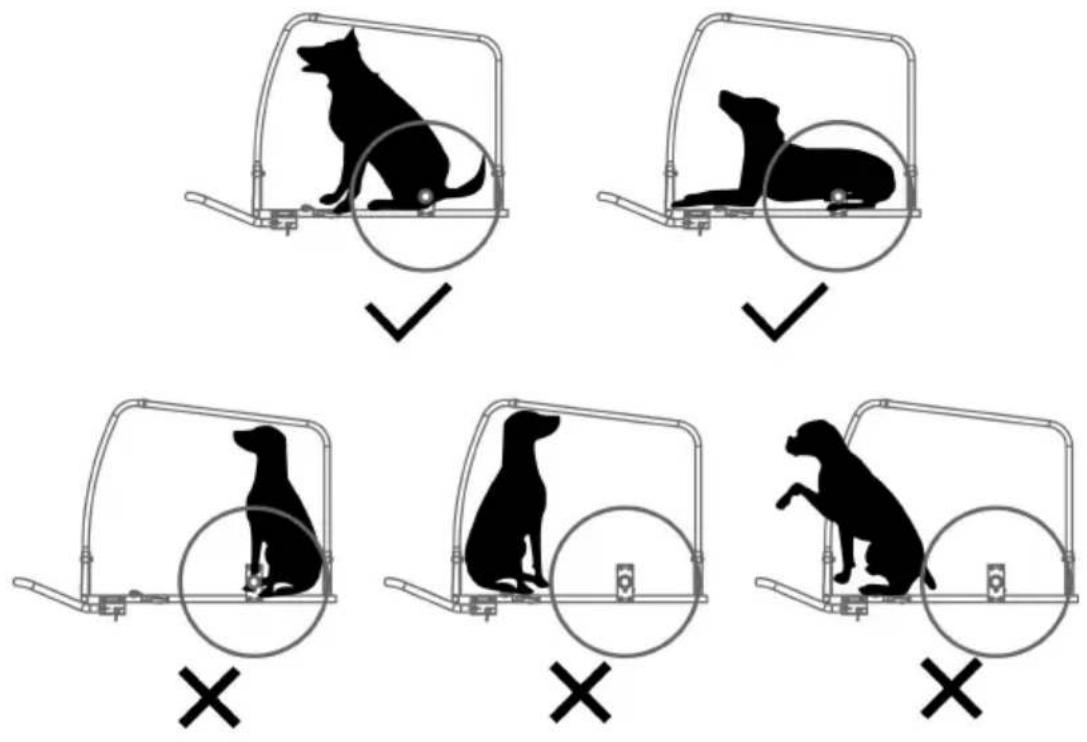

Tip: Make sure that your dog is positioned with its center of gravity as possible to the wheel axle. This is the best way to ride with an weight distribution.

MODEL AND PARAMETERS

Model	DT810
Type	Tow
Max. Load	88lbs
Bin Size	31.5*21*20.8inch
Wheels	Steel, 16*1.75inch
Material	Steel, 600D Oxford cloth
Color	Black & Grey

CONTENTS

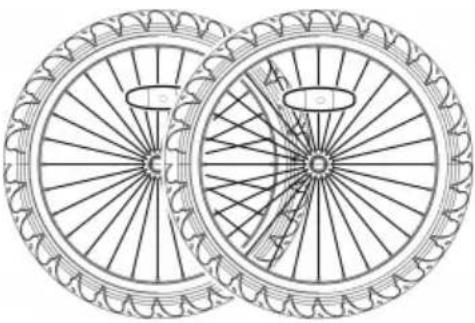

1 x Main frame	2 x Wheels
2 x Wheel axle	1 x Universal hitch
1 x Tow bar	1 x Flag
2 x Front reflectors (white)	2 x Rear reflectors (red)
1 x 19mm Wrench +1 x User Manual

How to Assemble

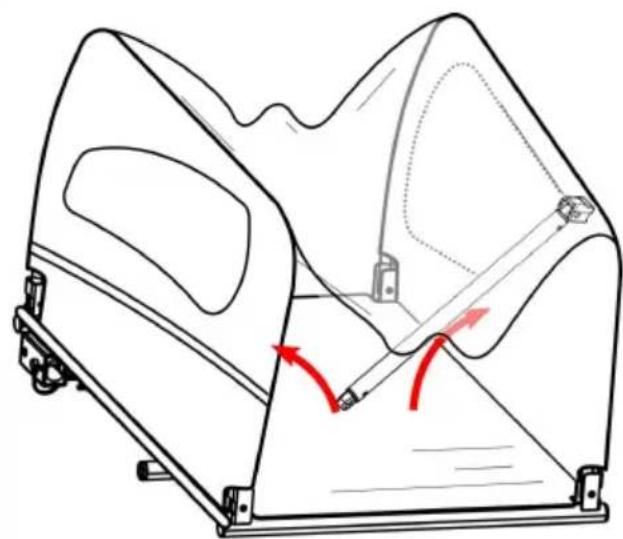

1. Opening the Main Frame

Technical line drawing of a mechanical device with internal components and red directional arrows indicating motion (no text or symbols)

Figure 1

Take out the trailer's main frar and all other components from the carton. Remove black protective caps on 4 corners. Raise both side panels to an upright position (Figure 1).

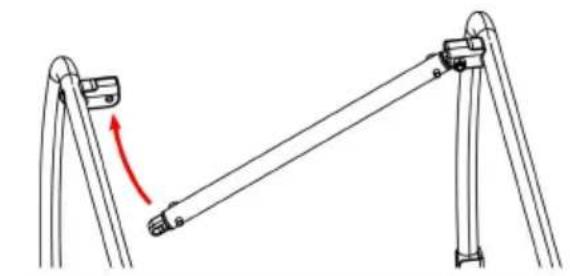

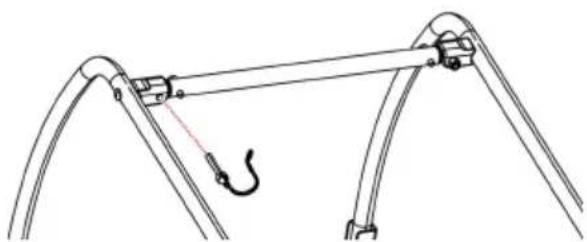

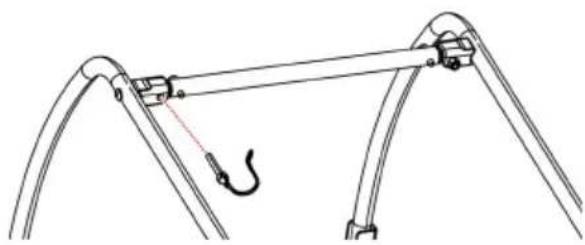

Fasten the crossbar to the top part of the main frame. Raise the cross bar using the safety pin attached to the bolt (Figure sure that safety pins are properly locked in place as shown

Diagram of a mechanical linkage system with a red arrow indicating rotational motion (no text or symbols)

Technical line drawing of a mechanical linkage with a hook, no text or symbols present

Figure 2

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Pure mechanical component diagram with no text or symbols

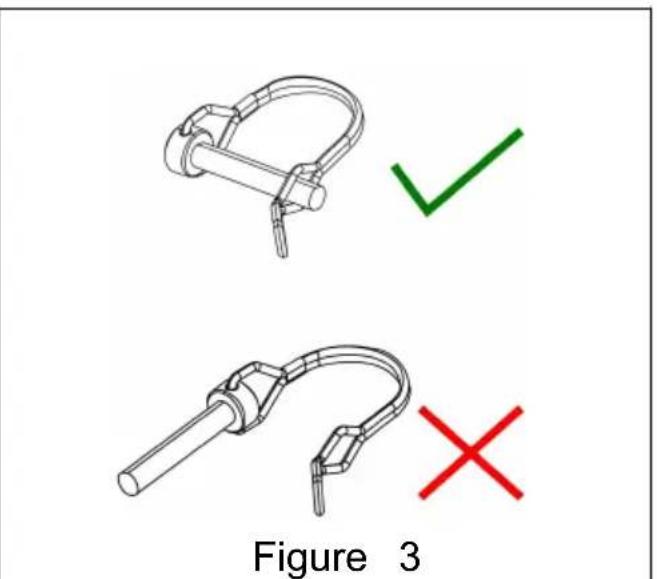

Figure 3

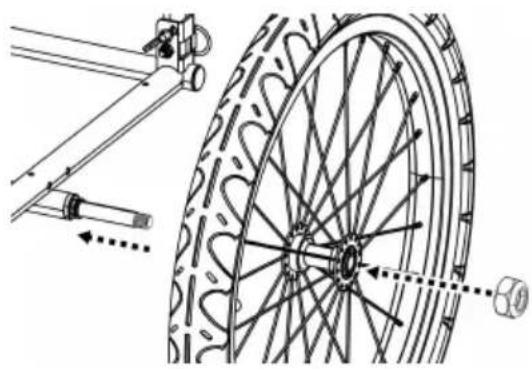

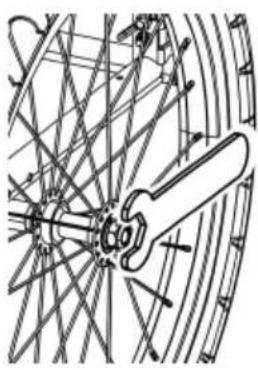

2. Attaching the Wheels

	Insert wheel axle into axle receiver underneath the trailer frame and lock the safety pin (Figure 4). Put the wheel and screw nut on the axle (Figure Fasten the screw nut with 19r wrench (Figure 6).
Figure 5	Figure 6

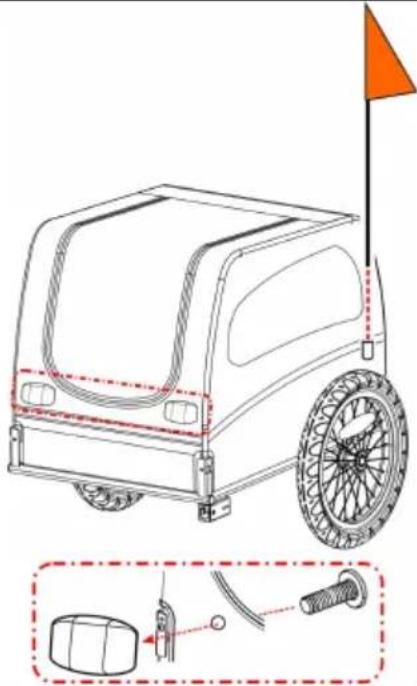

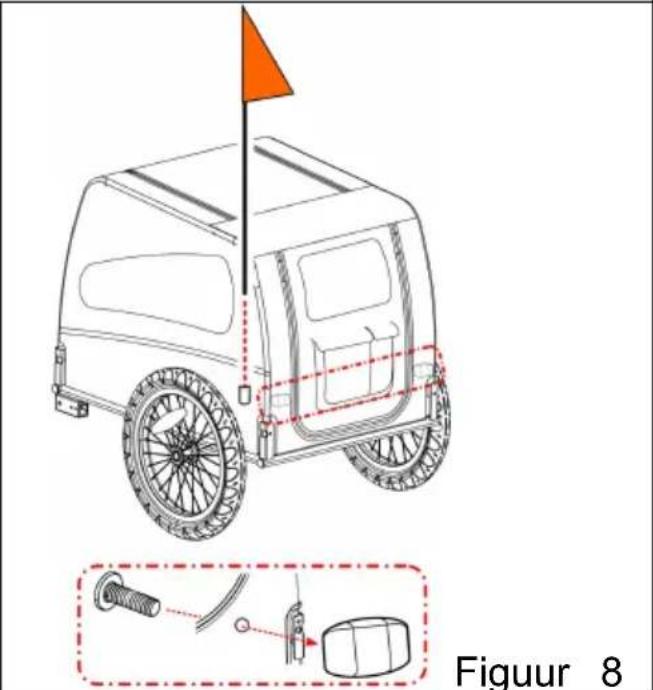

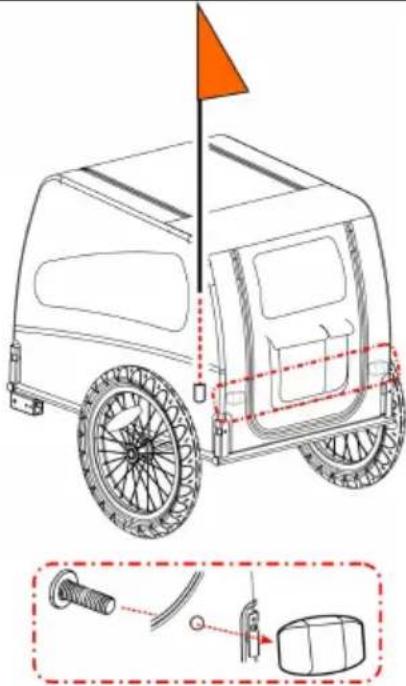

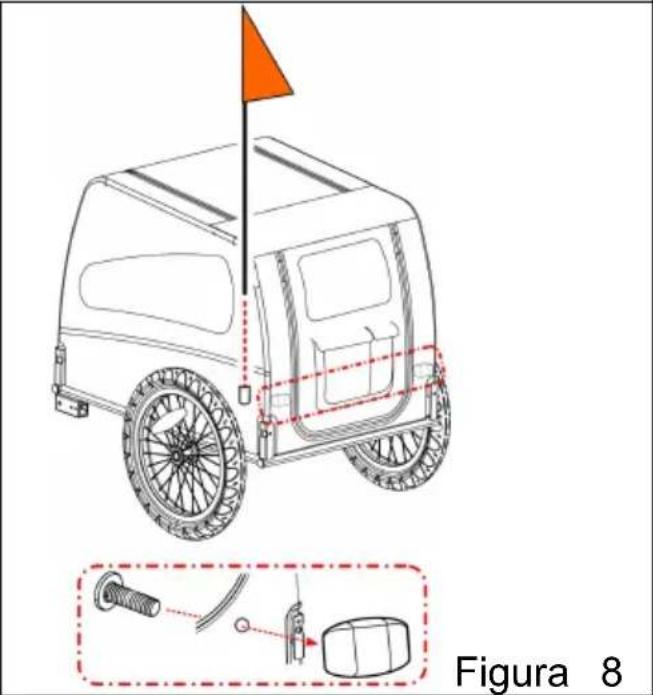

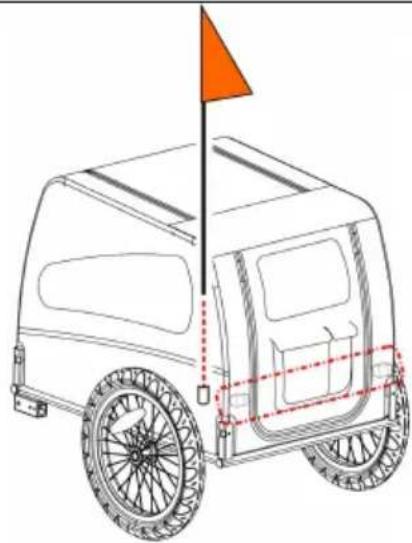

3. Attaching the Flag

Insert the flag pole into the flagpole pocket at the left rear side panel (Figure 7, Figure 8).Insert screws into holes on the cover to fasten front (white) (red) reflectors.
Figure 7	Figure 8

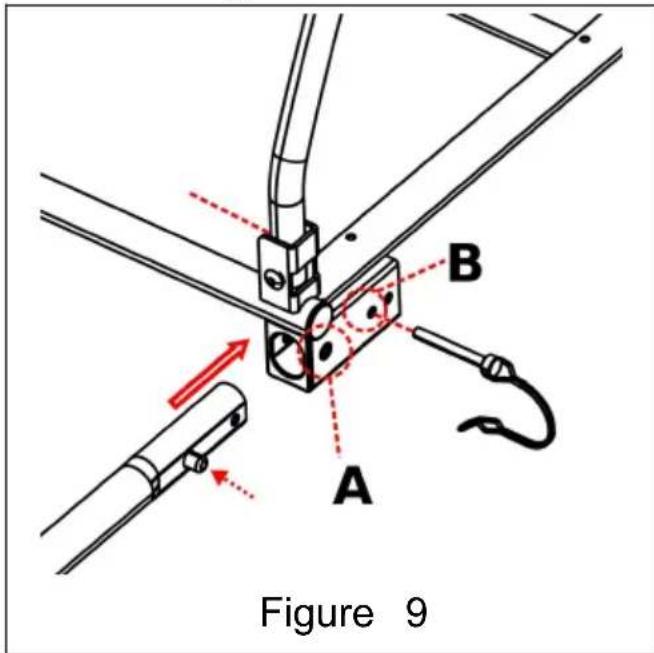

4. Installing the Tow Bar

Figure 9 A B

Pressing the spring button, slid the tow bar into the tow bar receiver until the spring button comes out of the hole A. Inse safety pin from the hole B th the other side. Make sure the safety pin is properly locked in place (Figure 9).

5. Attaching Trailer to Bicycle

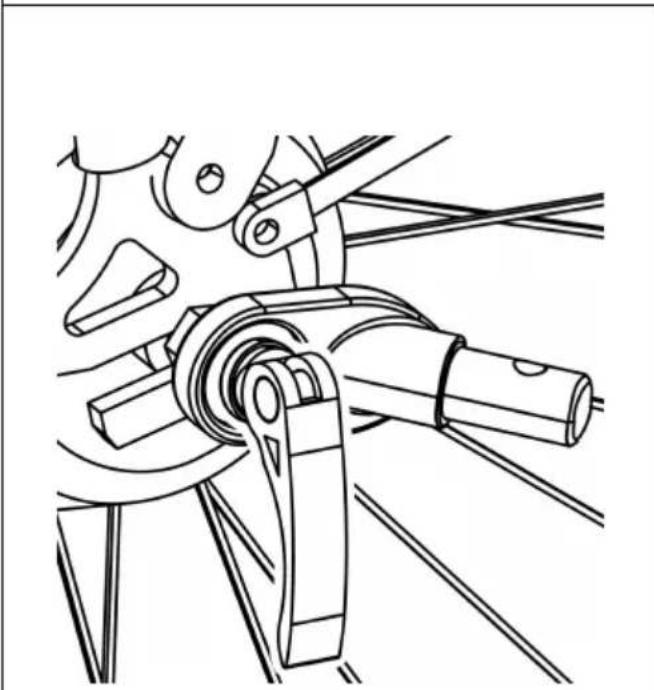

1. Quick-release Axle: Remove the quick-release from the left bike's rear axle. Install the hitch between the quick-release an Tighten the quick-release following the bike manufacturer's man Hitch can remain on the bike when the trailer is removed (Fi

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 10

⚠ WARNING The tension-adjusting nut must engage the threads for at least five full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the tension-adjusting nut fully may result in accidents with serious injury or death. If the quick-release skewer is too much it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Nutted Axle: Unscrew the nut with washer from the left s bike's rear axle. Install the hitch onto the axle and screw the on with the washer(Figure 11).

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Figure 11

WARNING

The axle nut must engage the threads for at least five full tu in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result accidents with serious injury or death. If the axle is too short Universal Hitch cannot be used Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Thru Axle: The universal hitch doesn't fit a bike with thru Please consult the retailer for possible solution.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Mechanical assembly diagram showing gear and shaft components with motion arrows (no text or labels)

Figure 12

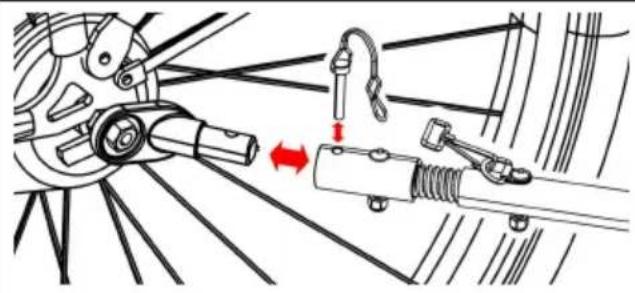

Connect the coupler on the bar and secure the safety pi (Figure 12). Once the tow bar attached, wrap safety belt arou the frame of the bike and hoo onto the D-ring on the tow ba

Before You Ride

Check before each use:

1. Wheels are properly secured to the trailer
2. Tires are inflated to recommended pressure on the tire side wall
3. Tow bar is properly secured to the trailer
4. Hitch is properly secured to the bicycle
5. All safety pins are securely locked in place.

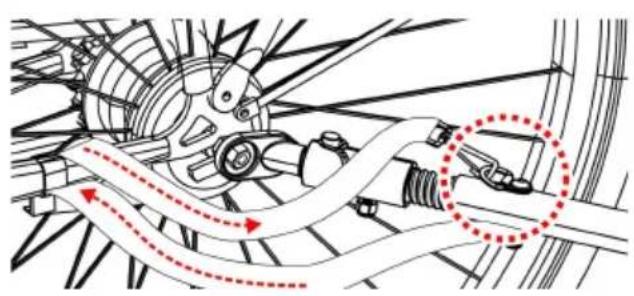

6. Safety strap on the tow bar is properly installed
7. Weight of tow bar at coupler is greater than 6.6 lbs. (3 kg) but exceed 17.6 lbs. (8 kg) with fully loaded trailer
8. Make sure that bicycle is in proper working order, especially brake and tires (refer to bicycle manufacturer's instructions)
9. Safety flag is in place
10. Always leash your dog/pet in the trailer.

MAINTENANCE

Storage: For longer product life, store trailer indoors. The trailer should be stored at temperatures less than -10^ F ( -23^ C) or greater than 15^ C ( 65^ C).

Fabric Care: Hand wash fabric parts with warm water and mild soap NOT use bleach or solvents. Wipe dry and store out of direct sunlight dry, well-ventilated area. Clean windows with a damp, soft cloth

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : DT810

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Diagram showing five scenarios of dog silhouettes on a vehicle chassis, with check and cross icons indicating correct and incorrect states.

MODEL AND PARAMETERS

Technical line drawing of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Figure 1

Technical line drawing of a mechanical linkage assembly with a red arrow indicating motion direction (no text or symbols)

Figure 2

Figure 3

Technical illustration of a bicycle wheel assembly with mechanical components and motion arrows (no text or symbols)

Technical line drawing of a bicycle wheel assembly with no visible text or symbols

Line drawing of a multi-wheeled vehicle with a flag and mechanical components, labeled Figure 7 (no text or symbols on the diagram itself)

Figure 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 10

⚠ AVERTISSEMENT

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figure 11

⚠ AVERTISSEMENT

Technical diagram showing mechanical assembly with labeled components and motion arrows, including a highlighted circular detail.

Figure 12

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: DT810

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Technical line drawing of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Abbildung 1

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 10

⚠️ WARNING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Abbildung 11

⚠️ WARNING

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

RIMORCHIO PER BICI PER ANIMALI DOMESTICI

MODELLO: DT810

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: DT810

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Technical line drawing of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Figura 1

Technical line drawing of a mechanical linkage assembly with a red arrow indicating motion direction (no text or symbols)

Figura 2

Figura 3

Technical illustration of a bicycle wheel assembly with labeled components and motion arrows (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with intersecting rods and a central hub (no text or symbols)

Line drawing of a multi-wheeled vehicle with a flag and mechanical components, labeled as Figure 7 (no text or symbols on the diagram itself)

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 10

ATTENZIONE

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 11

ATTENZIONE

Technical diagram showing mechanical assembly with labeled components and motion arrows, including a highlighted circular detail.

Figura 12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: DT810

Line drawing of a wheeled cart with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Diagram showing two cylindrical objects with textured surfaces, connected by a separate screw-like component (no text or symbols)

Diagram showing two cylindrical objects with different surface textures, connected by a separate screw-like component (no text or symbols present)

2 x reflectores frontales ( blanc

2 x reflectores traseros ( rojo

Technical line drawing of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Figura 1

Technical line drawing of a mechanical linkage assembly with a red arrow indicating motion direction (no text or symbols)

Figura 2

Figura 3

Technical illustration of a bicycle wheel assembly with labeled components and motion arrows (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with intersecting rods and a central shaft (no text or symbols)

Line drawing of a multi-wheeled vehicle with a flag and mechanical components, labeled as Figure 7 (no text or symbols on the diagram itself)

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 10

ADVERTENCIA

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 11

ADVERTENCIA

Technical diagram showing mechanical assembly with labeled components and motion arrows, including a highlighted circular detail.

Figura 12

www.vevor.com/support

PRZYCZEPKA ROWEROWA DLA ZWIERZAT

MODEL: DT810

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DT810

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Diagram showing six scenarios of dog posture changes using a vehicle-mounted platform, with check and cross icons indicating correct and incorrect states.

MODEL AND PARAMETERS

Technical line drawing of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a wheeled cart with a flag and wheel rim, no text or symbols present

Diagram showing mechanical assembly steps with labeled components and directional arrows

Rysunek 7

Line drawing of a wheeled vehicle with a red flag and wheels, no text or symbols present

Diagram showing a screw, cable, and mechanical component with no visible text or symbols

Rysunek 8

Technical line drawing of a mechanical assembly with levers and gears (no text or symbols)

Rysunek 10

⚠️ OSTRZEŻENIE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DT810

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT A B C D

Simple line drawing of a wrench (no text or symbols)

+

Technical line drawing of a mechanical device with internal components and red motion arrows indicating movement (no text or symbols)

Figuur 1

Technical line drawing of a mechanical linkage assembly with a red arrow indicating motion direction (no text or symbols)

Figuur 2

Figuur 3

Technical illustration of bicycle wheel assembly with labeled components and motion arrows (no text or symbols on diagram)

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Line drawing of a multi-wheeled vehicle with a flag and wiring, labeled 'Figuur 7' (no text or symbols on the diagram itself)

Figuur 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 10

⚠ WAARSCHUWING

Mechanical linkage diagram showing a chain with joints and rods (no text or labels)

Figuur 11

⚠ WAARSCHUWING

Mechanical assembly diagram showing a motor, suspension rod, and linkage mechanism (no text or labels)

Mechanical assembly diagram showing gear and linkage components with red dotted arrows indicating motion paths (no text or labels)

Figuur 12

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

HUSDJURSCYKELVAGN

MODELL: DT810

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: DT810

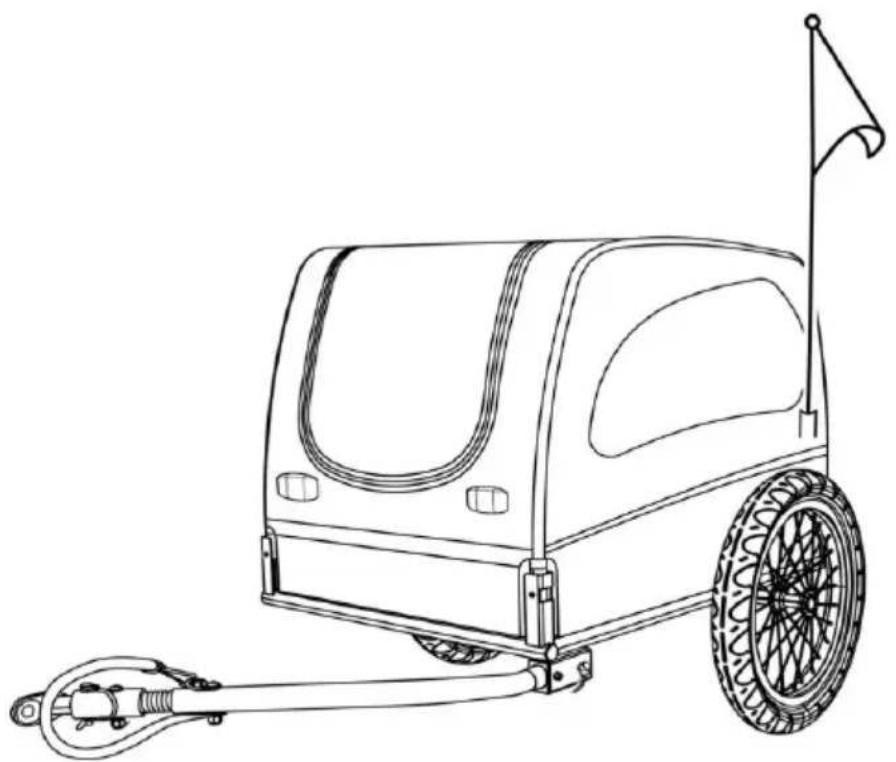

Line drawing of a two-wheeled vehicle with a flagpole and mechanical linkage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CHOOSE THE RIGHT SIZE OF TRAILER

BODY LENGTH Withers Breast bone SHOULDER HEIGHT C D

Technical line drawing of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Figur 1

Diagram of a mechanical linkage system with a red curved arrow indicating rotation (no text or symbols)

Mechanical linkage diagram showing a hook and lever mechanism (no text or symbols)

Figur 2

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Pure electrical circuit lines without any symbols

Figur 3

37. Fästa hjulen

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Bild 11

⚠️ WARNING

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Mechanical assembly diagram showing gear and shaft components with motion arrows (no text or labels)

Bild 12

www.vevor.com/support
