USER MANUAL GJ0058 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RAMP USER'S MANUAL

MODEL: GJ0058

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RAMP

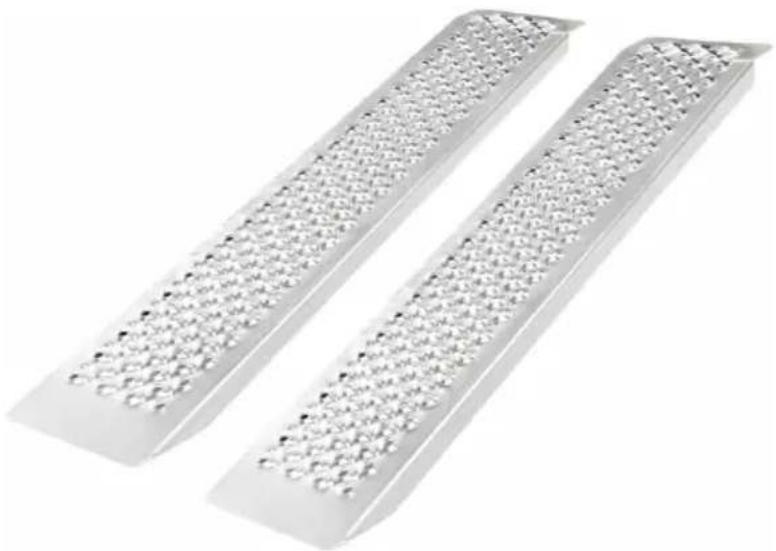

Two white metal heating grates with perforated metal surfaces, no visible text or symbols

GJ0058

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

Read the instructions carefully before using the device

【Catalogue】

1. Technical parameters
2. Safety precautions
3. Save these instructions
4. Common fault analysis

1. Technical parameters

Model	GJ0058
Maximum load bearing (lbs/pcs)	440
Quantity (pcs)	2
Product size (mm/pcs)	1200*215*42mm
Net weight (kg/pcs)	2.6

2. Safety precautions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all to under subheadings therein before setting up or using t product.

WARNING

TO PREVENT SERIOUS INJURY:

Before loading or unloading, turn vehicle's engine off, set its transmission in or park, engage its emergency brake and block its wheels. Make sure the R are clean and dry before loading or unloading.

Instructions are as follows:

1. Ramp surface must be dry, clean and free from oil or grease.
2. Park vehicle or trailer on flat, firm ground, be sure the vehicle is PARKE emergency/parking brake ON and the engine turned OFF.
3. Place ramps on the tailgate or trailer to accommodate the wheelbase of t loading vehicle.
4. Ensure the plate or fingers of the ramp are securely in place.

Before use

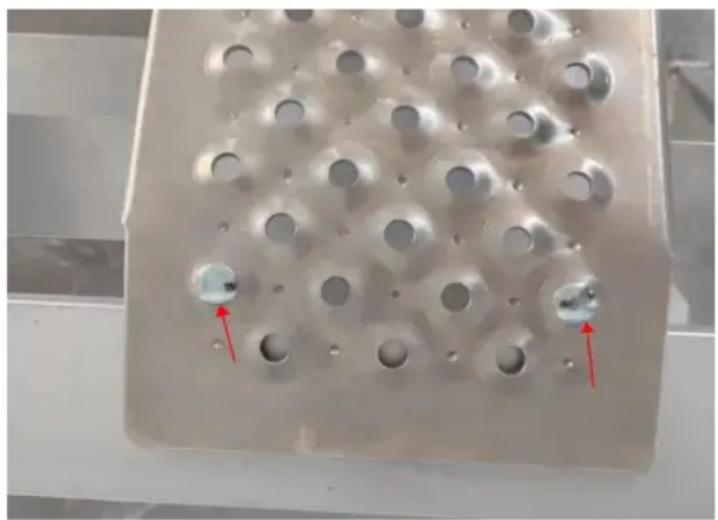

Thread 2 screws through the two holes (arrows) of the ramp.

Close-up of a perforated metal tray with two small circular holes and red arrows pointing to them (no text or symbols visible)

Motorcycle use:

1. NEVER ride a Motorcycle or any other motorized equipment up or down on single runner loading ramp.
2. Slowly push machine up the ramps MAKING SURE TIRES ARE CENTERED ON THE RAMP AT ALL TIMES. (Two or more adult people are recommended loading)
3. Acceleration must be slow, controlled and constant. The operator must remain in control of machinery at all times during loading and unloading.
4. Use the brake as necessary to control your speed while unloading. Sudde erratic braking or accelerating will cause ramps to pull away from the tailgate trailer or even broke the ramp.

ATV use:

1. Always have a second adult to spot for the rider when loading.
2. Slowly drive machine up the ramps MAKING SURE TIRES ARE CENTERE ON THE RAMP AT ALL TIMES.
3. Acceleration must be slow, controlled and constant. The operator must remain in control of machinery at all times during loading and unloading.
4. Use the brake as necessary to control your speed while unloading. Sudder erratic braking or accelerating will cause ramps to pull away from the tailgate trailer or even break the ramp.

WARNING - NEVER EXCEED THE MAXIMUM LOAD CAPACITY OF THE RAMPS. USE AT YOUR OWN RISK.

Failure to follow these procedures may result in damage to machinery, injury or death. The seller is not responsible for misuse or damages incurred during the use of the ramps.

4- Wheel ATV Loading and Unloading

WARNING

• These ramps are for use with 2-wheeled dirt bikes and 4-wheeled ATV's o not use these ramps to load/unload 3-wheeled vehicles.
• Do not use these ramps to load or unload any vehicle that is wider than ramp.
• Do not use these ramps to load or unload any vehicle that is carrying geracks.
• Do not use these ramps if the tailgate on the vehicle being loaded or unhigher than half each ramp's length.

WARNING! TO PREVENT SERIOUS INJURY: Riding an ATV while loading or unloading is dangerous and should not be attempted.

WARNING! Be aware of dynamic loading!

Sudden load movement may briefly create excess load causing the Ramps to WARNING! TO PREVENT SERIOUS INJURY: All persons not involved in the process must stand clear of the Ramps and truck. Make sure no pets are nearby.

Loading Using a Winch (not included)

1. The winch and mounting connection points must all have appropriate capacity to pull the ATV up the ramps safely.
2. ATV Mounted Winch Setup: Unwind cable from the winch and attach it secure mounting location on the truck, at the same height as the winch will after the ATV has been loaded.
3. Truck Mounted Winch Setup: Attach the cable to the bottom front part (frame.
4. While operating the winch, stand back and to the side of the ATV, with vehicle between you and the winch cable.
5. Operate the winch to slowly load the ATV onto the vehicle.

Unloading

WARNING! TO PREVENT SERIOUS

INJURY: Riding an ATV while unloading is dangerous and should not be attempted.

1. Have an assistant monitor the Ramp tongues for slippage on the tailgate.
2. Setup the ramps on the truck bed as explained under operation. Remove down straps and securing equipment from the ATV.

WARNING! TO PREVENT SERIOUS

INJURY: Be sure the 4-wheel ATV is centered on ramps.

1. While staying off the ATV, start the engine, disengage the parking brake, transmission into reverse, and make sure the wheels are in a straight line with ramps. While holding the brake, position yourself in front of the ATV.

2. Release the brake and push on the ATV to get it started down the ramp, the ATV to roll down naturally, do not attempt to steer it or apply the brake stops while on the ramps, gently give it throttle to back it off the ramps.

2-Wheel Bike Loading

1. Do not attempt to load any dirt bike or other 2-wheel motor bike alone. qualified adult assist.
2. Line up the 2-wheel bike with one of the Ramps.
3. With one person pushing the bike slowly up the Ramp, a helper should I the bed of the hauling vehicle both to guide and to apply the brake if it is necessary to stop the bike while it is on the ramp. Have one person with a on the bike hand brake for safety.
4. Once the person inside the truck bed has hold of the handle bars, apply brake and steady the bike while the other person moves behind the bike (but one side) and pushes it all the way into the truck bed.

NOTE: While most dirt bikes are light enough to safely load with two people third person can make the job easier and safer.

1. Once the bike is safely loaded, secure it with four tie down straps (not included), one on each side of the front, and one on each side at the rear bike.

2- Wheel Bike Unloading

1. Position the Ramp against the truck tailgate behind the rear tire of the bi attach the Safety Chain to the truck bed.
2. Remove the tie-down straps (not included).

4. Common fault analysis

Fault Phenomenon	Failure Cause	Solution
The ladder deformation	The actual load weight exceeds the maximum product load	The actual load weight do not exceed the maximum product load

5. Range of application

Tent ramp, Used to load equipment such as ATVs, motorcycles, four-wheel drives, lawn mowers, snow blowers, and more into sheds, barns, and garages. Not suitable for transferring equipment to trucks
