Product type	Square wall-mounted table
Brand	Vevor
Model	DL-BC03
Color	Black
Tabletop dimensions	L800 x W300 mm (31.5 x 11.8 in)
Maximum load capacity	50 lb (22.7 kg)
Main material	Metal and wood (MDF)
Wall mounting	Yes, with backplate and fixings
Folding mechanism	Yes, quick-folding parts
Safety level	Do not sit or stand on it
Assembly required	Yes, tool provided (simple wrench)
Included parts	Backplate, tabletop, fixings A/B, leveling parts, screws, butterfly screws, wrench
Maintenance	Clean with a soft dry cloth
Repairability	Contact Vevor support (www.vevor.com/support)
Warranty	Electronic warranty certificate available online
Intended use	Indoor, domestic use
Country of origin	China

Frequently Asked Questions - DL-BC03 Vevor

How to assemble the Vevor DL-BC03 wall-mounted table?

Follow the steps in the manual: assemble fixings A and B, install the leveling parts on the backplate, then attach the tabletop with the folding parts. Use the provided wrench to tighten the screws.

What is the maximum weight supported by the table?

The safe load capacity is 50 lb (22.7 kg). Never exceed this limit.

What are the dimensions of the table?

The tabletop measures L800 x W300 mm (31.5 x 11.8 inches).

Can I sit on the table?

No, it is strictly forbidden to sit or stand on the table. It is designed to support placed objects, not a person.

Is the table easy to install?

Yes, assembly is simple with the provided parts and tools. Make sure to mount on a flat surface and follow the instructions.

How to clean the table?

Use a soft dry cloth. Avoid abrasive or liquid products that could damage the finish.

What to do if a part is missing?

Contact Vevor technical support via www.vevor.com/support with your order number and model DL-BC03.

Is there a warranty?

Yes, an electronic warranty certificate is available online. Visit www.vevor.com/support for more information.

Can the table be painted?

It is not recommended to paint the table as it could affect the finish and safety. Use it as is or contact the manufacturer.

What types of screws are included?

The kit includes 26 screws and 4 butterfly screws. Use only those provided for assembly.

USER MANUAL DL-BC03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SQUARE HANGING TABLE USER MANUAL

MODEL:DL-BC03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

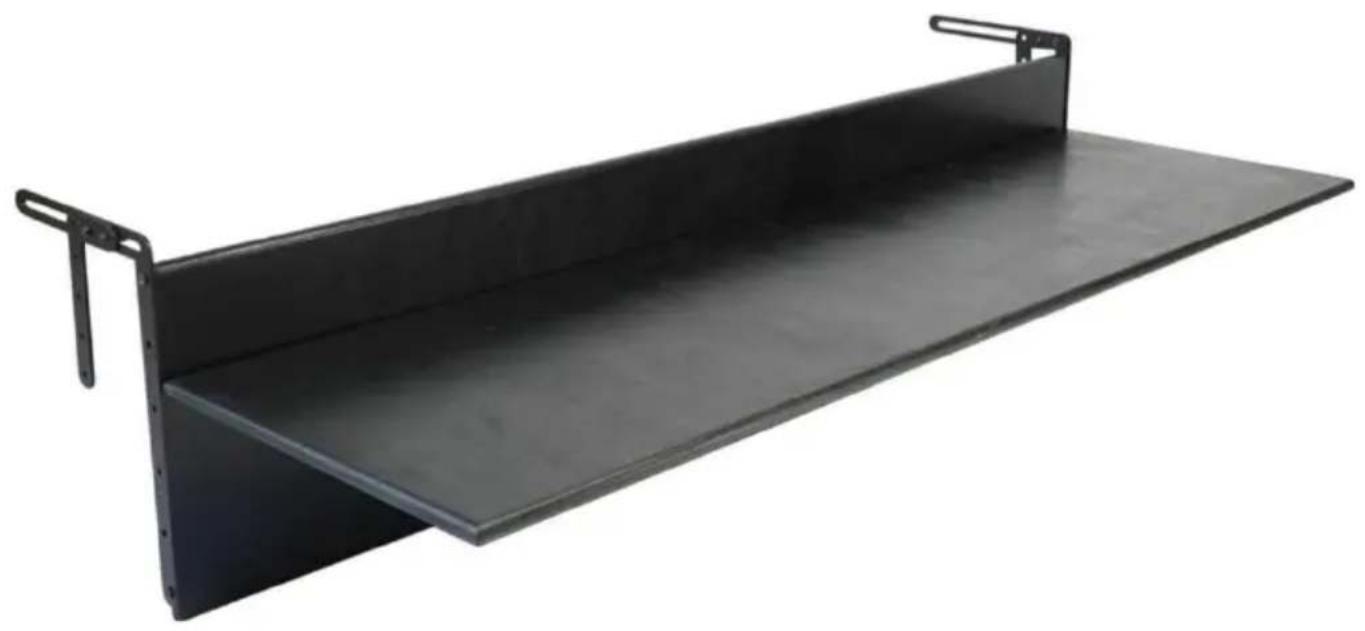

SQUARE HANGING TABLE

MODEL:DL-BC03

Black metal shelf support frame with metal brackets and mounting feet (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

No.	Name	Component Picture	Quantity
A	Back Plate		x1
B	Desktop		X1
C	Fixings B		X2
D	Fixings A		X2
E	Quick folding parts		X2
F	Leveling pieces		X2
G	Screw		X26
H	Butterfly screw		X4
I	Simple wrench		X1

ASSEMBLY STEP

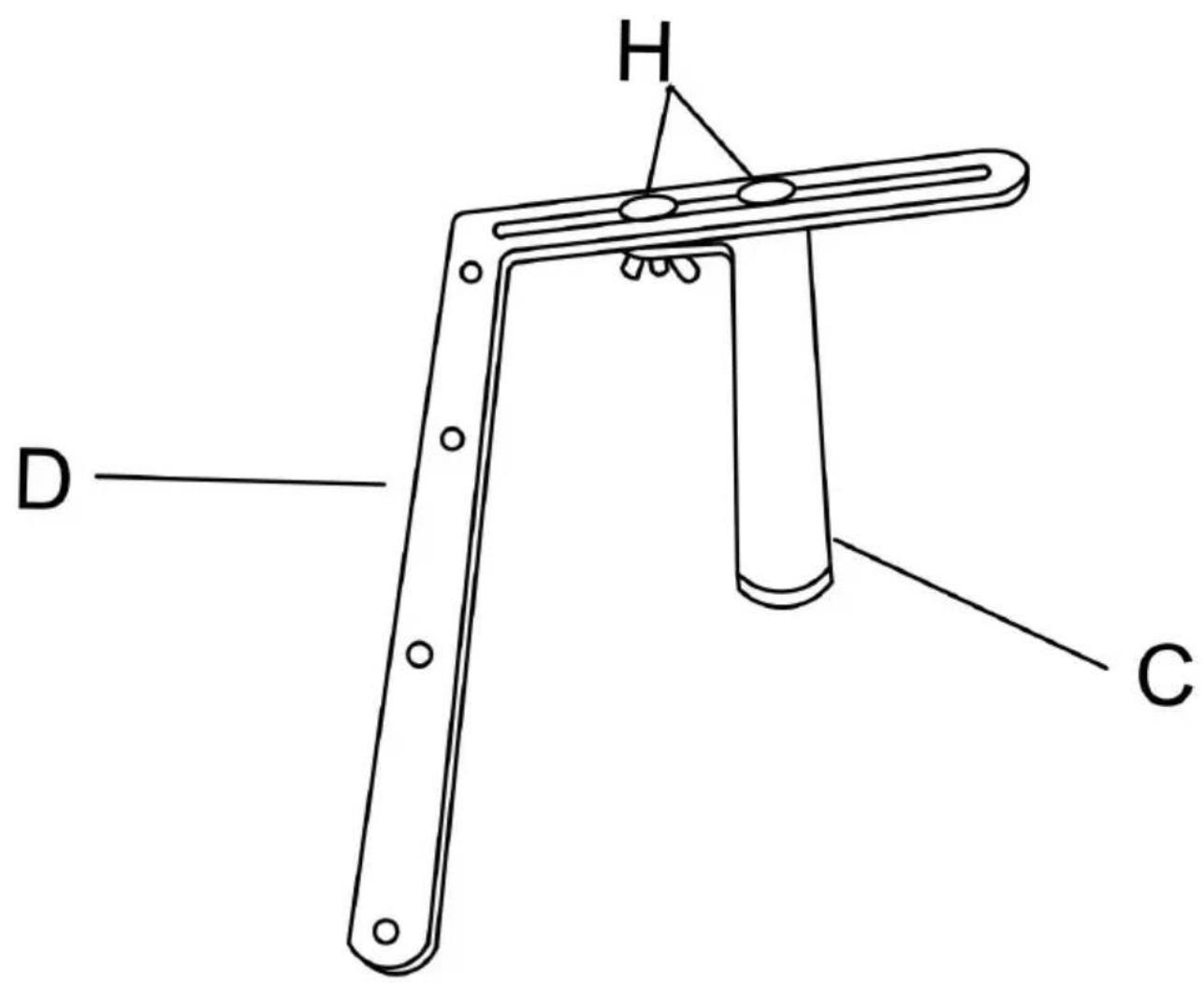

Assemble fixings A(D) and fixings B(C) together.

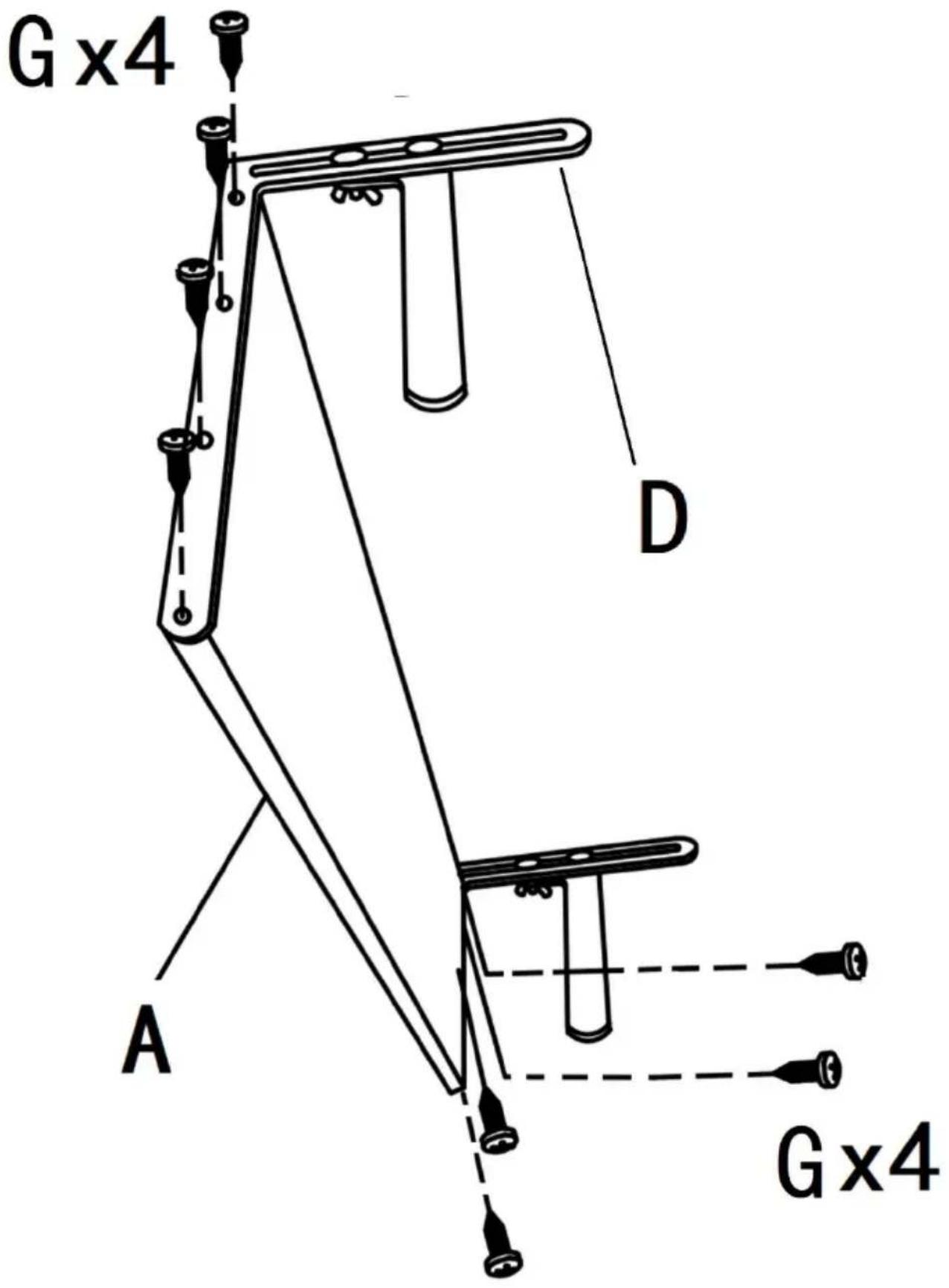

Install the mounting bracket(Dx2) to the back panel(A).

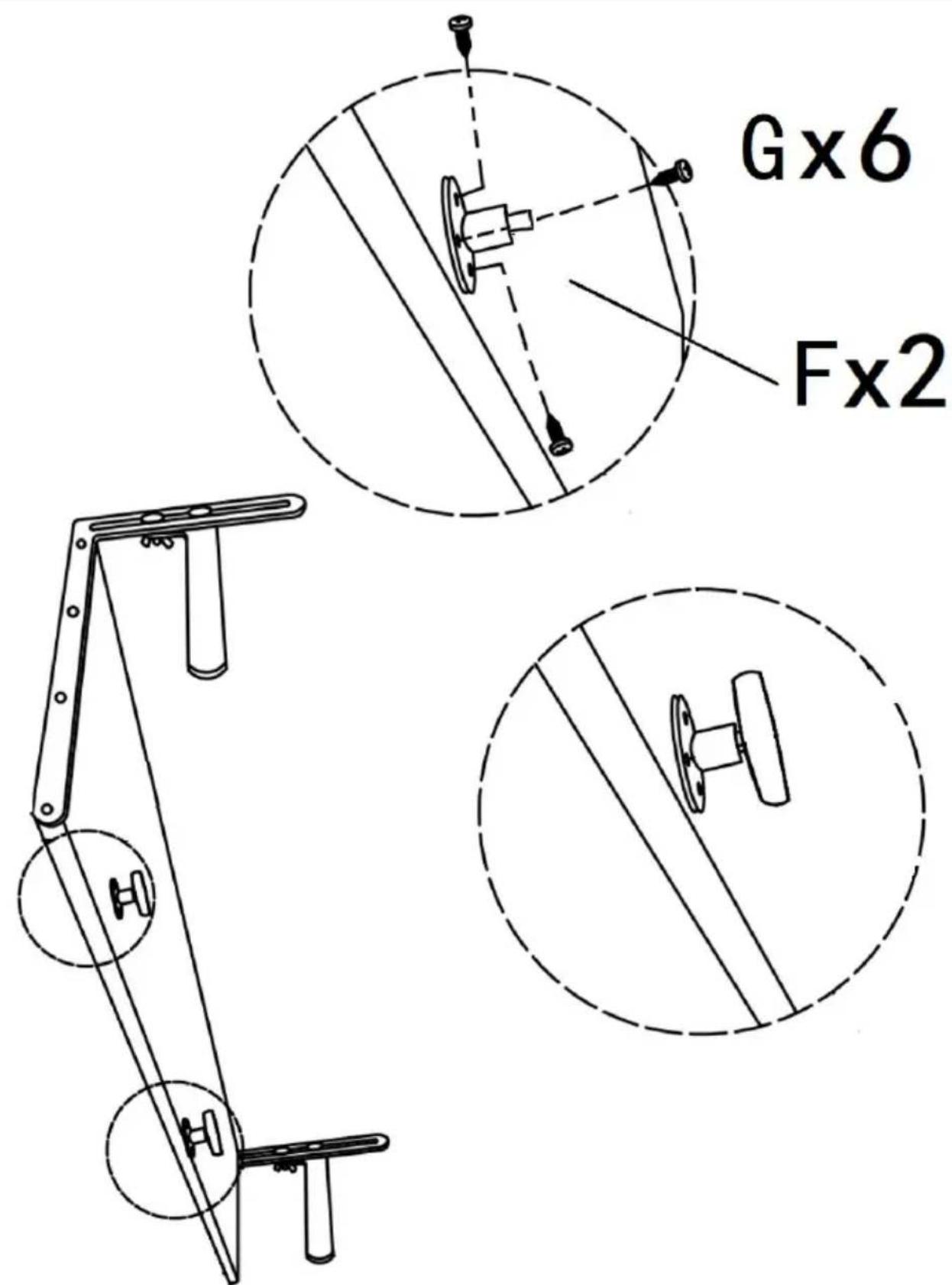

1. Remove the plastic part of the Leveling pieces(F).
2. Install the leveling pieces(Fx2) onto the back plate(A). Note there are mounting holes on the back panel.
3. Install the plastic parts back to the Leveling pieces(F).

Gx10

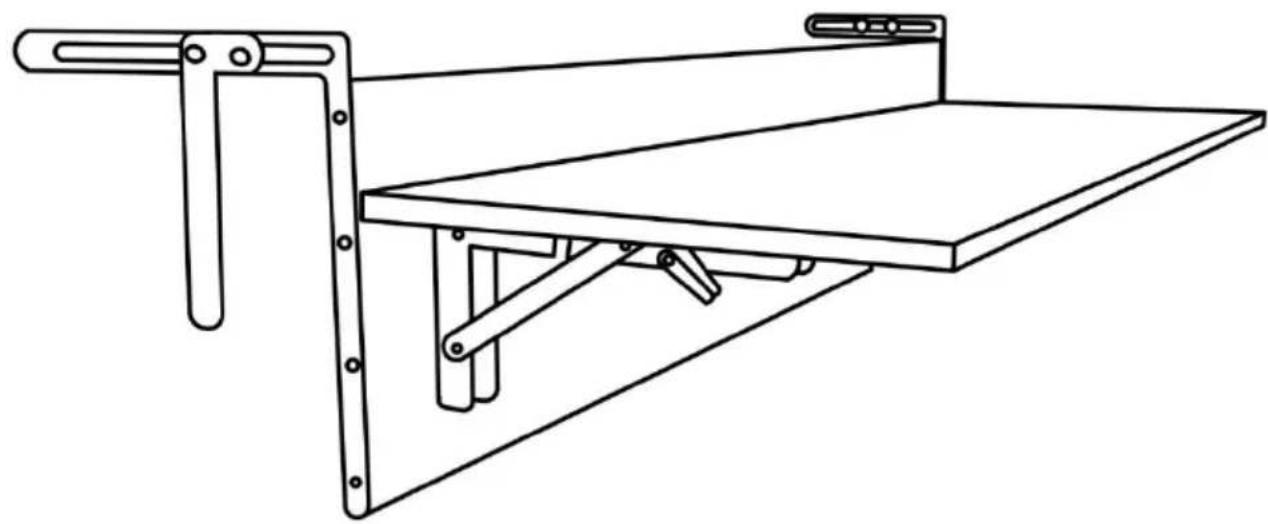

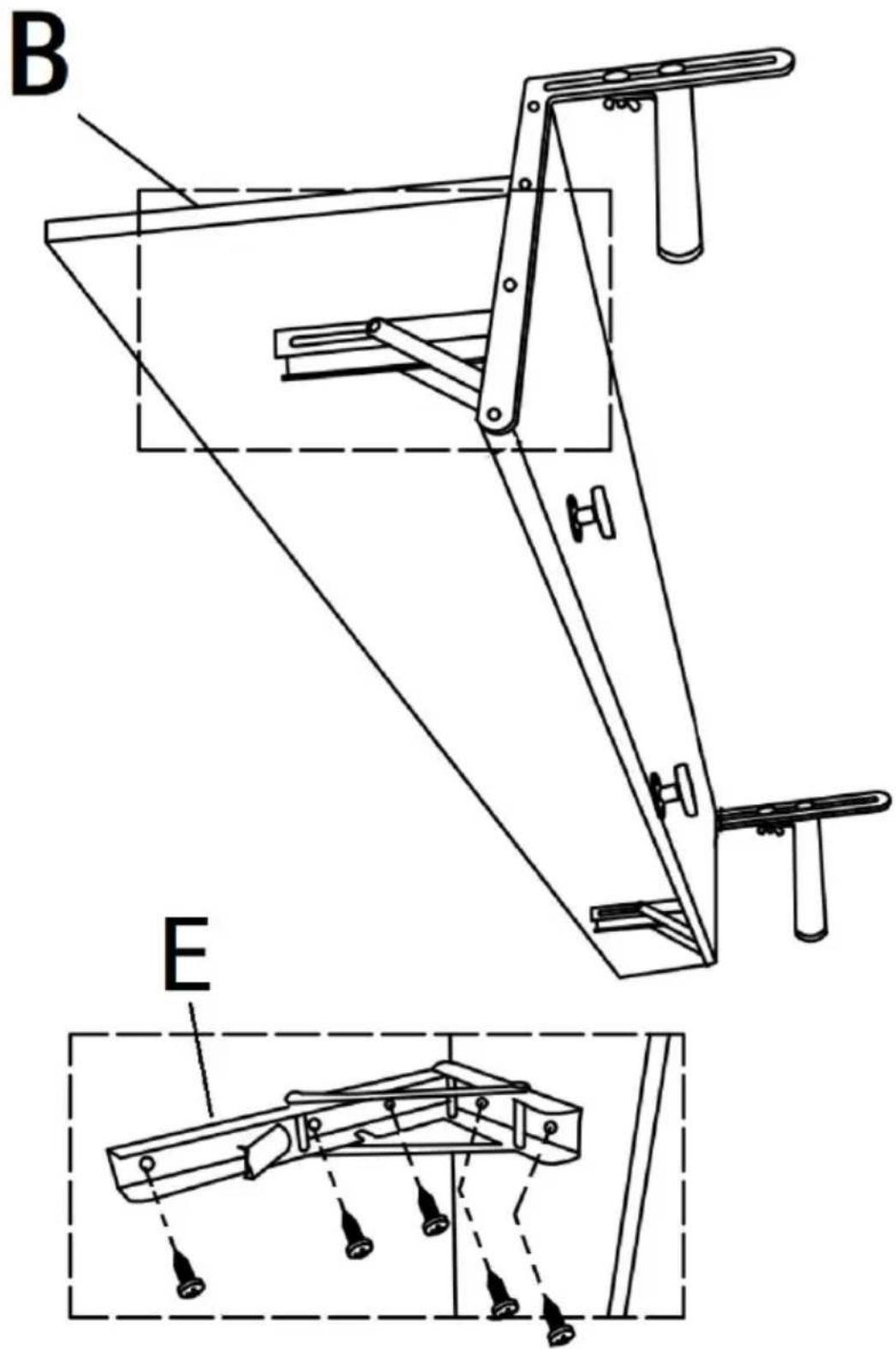

Attach the folding piece(Dx2) and the tabletop(B) to the back panel(A).

Note that there are mounting holes on the back panel(A) and tabletop(B).

Line drawing of a mechanical support structure with metal plates and mounting brackets (no text or symbols)

Assembly is completed.

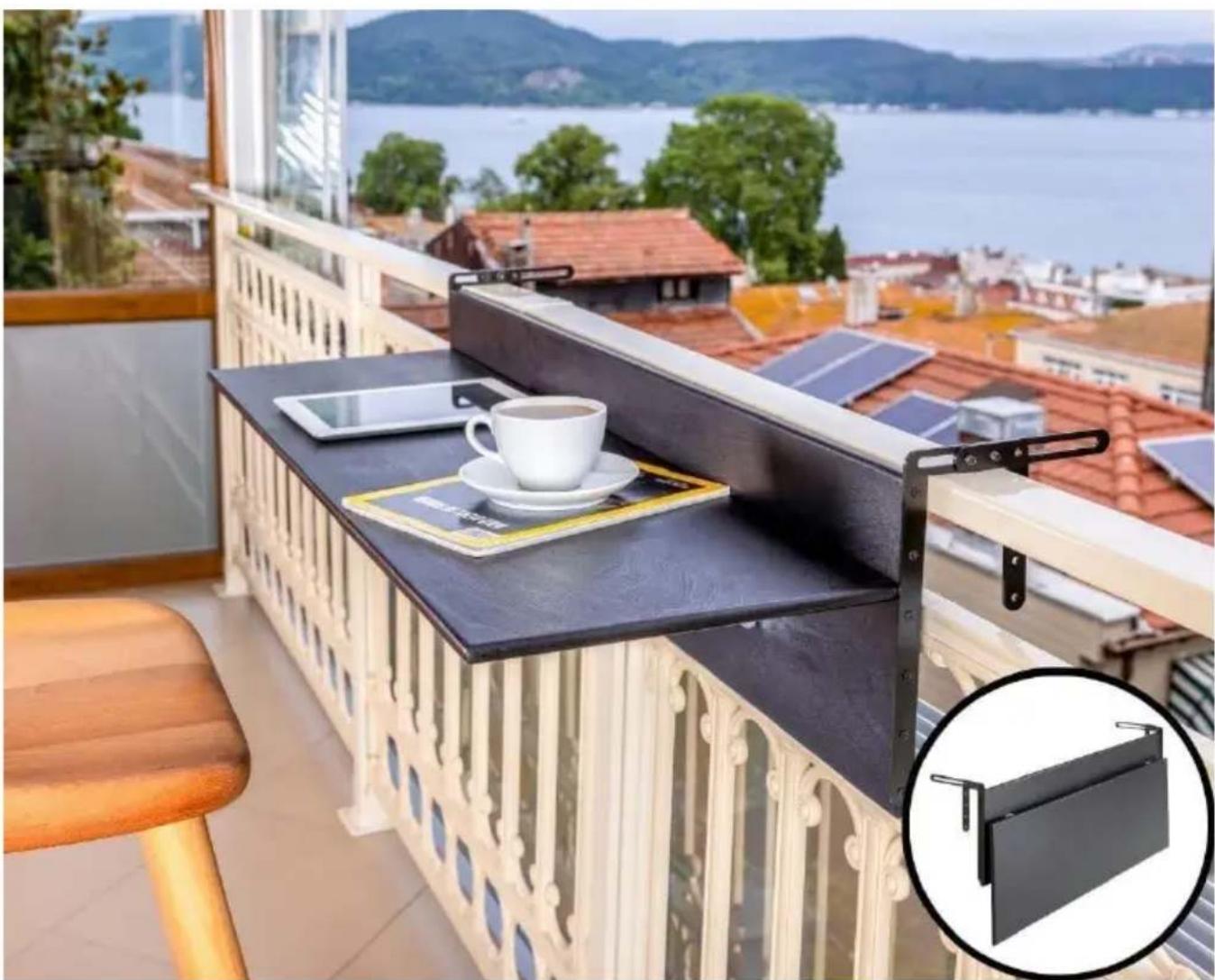

Exterior view of a modern balcony with a black tray, coffee cup, and tablet, overlooking a lake with hills in the background (no signage or text visible)

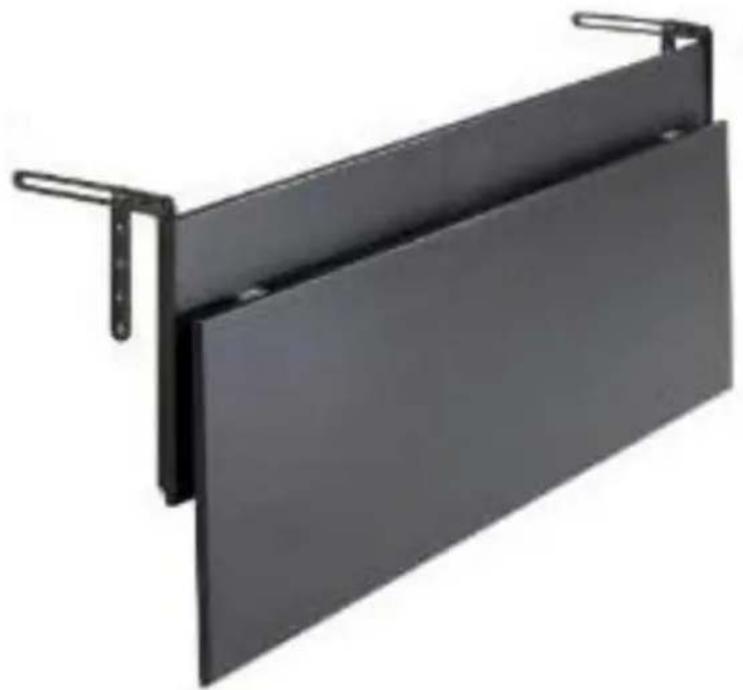

Exterior view of a black metal shelf or panel with two metal brackets (no text or symbols visible)

PRODUCT PARAMETER

Model	DL-BC03
Safe Loading Weight	50 LBS
Colour	Body:Black ; Metal bracket: Black
Desktop Size	L31.5*W11.8in (L800*W300mm)

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
