USER MANUAL CT-6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Under Desk Drawer

MODEL: CT-6 / CT-7 / CT-8

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: CT-6 / CT-7 / CT-8

Vevor CT-6 - MODEL: CT-6 / CT-7 / CT-8 - 1

CT-6

Vevor CT-6 - MODEL: CT-6 / CT-7 / CT-8 - 2

CT-7
Vevor CT-6 - MODEL: CT-6 / CT-7 / CT-8 - 3

CT-8

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

1. SAFETY INSTRUCTIONS

	Warning - To reduce the risk of injury, user must read ins manual carefully.
	Warning- Be sure to wear gloves when using this product.

1.1 Please make sure to read and understand all instructions before assembling and installing this product.
1.2 Make sure to use the correct tools and fixings for installation a avoid using unsuitable substitutes.
1.3 Please be careful when installing to avoid pinching hands or ot body parts.
1.4 Do not store items in the drawer that exceed the recommended to avoid injury or damage due to the drawer falling off.

Product Description

Under desk drawers are a type of drawer used for storing and orgar tools, parts, or other items, usually installed beneath a workbench. The help keep the work area neat and orderly, allowing users to convenie access the tools or items they need at any time.

Under desk drawers can be widely used in workshops, laboratories, h garages, offices, and various other places, making it convenient to store and retrieve all kinds of necessary tools or items.

Product Parameter

Model	drawer layers	Total drawer length	Inner drawer length	With dividers	With lock	Hub	Stainless steel rails	liner
CT-6	1	22.8inch	21.7inch	×	×	2pcs	√	1
CT-7	1	26.7inch	26inch	×	×	2pcs	√	1
CT-8	1	30.7inch	30inch	×	×	2pcs	√	1

Part List - CT-6


P1x1	P2x1	P3x1

P4x1	F1x4 M5	F2x2 M4

INSTALLATION INSTRUCTIONS - CT-6

Step 1 : Assemble P1 and P2 u screw F1

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-6 - 1

Step2: Assemble P4 and P3 using screw F2

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-6 - 2

Step 3: Assemble the component from Step1 and Step2

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-6 - 3

Step4: Assemble the product under desk. Finished

Part List - CT-7 / CT-8

r1x1	P2x1	P3x1
P4x1	P5x1	F6x1
P7x1	(ATSC)F1x6 M5	(062x)F2x11 M6
F3x6 M5	(TRD8)F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

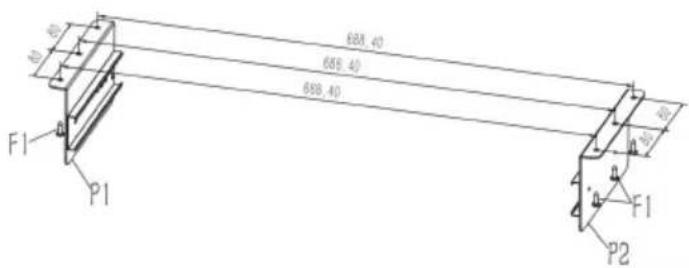

Step 1 : Assemble P1 and P2 u screw F1

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-7 - 1

Step2 :Assemble P3 , P4, P6 using screw F2

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-7 - 2


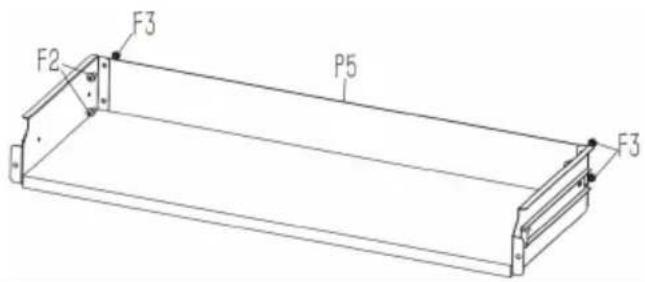

Step3: Assemble P5 with the component from Step 2 using scr F2 and nut F3

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-7 - 3

Function 1: Assemble the produce under desk. In this mode, it can be used as a keyboard tray.

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-7 - 4


Step4: Assemble P7 with the component from Step 3 using scr F3 and nut F4	Step5: Assemble the product under desk. (Function 2)

INSTALLATION INSTRUCTIONS - CT-8

Step 1 : Assemble P1 and P2 u screw F1

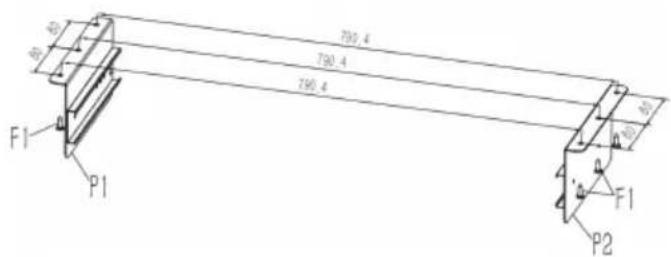

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 1

Step2: Assemble P3, P4, P6 screw F2

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 2

Step3: Assemble P5 with the component from Step 2 using scr F2 and nut F3

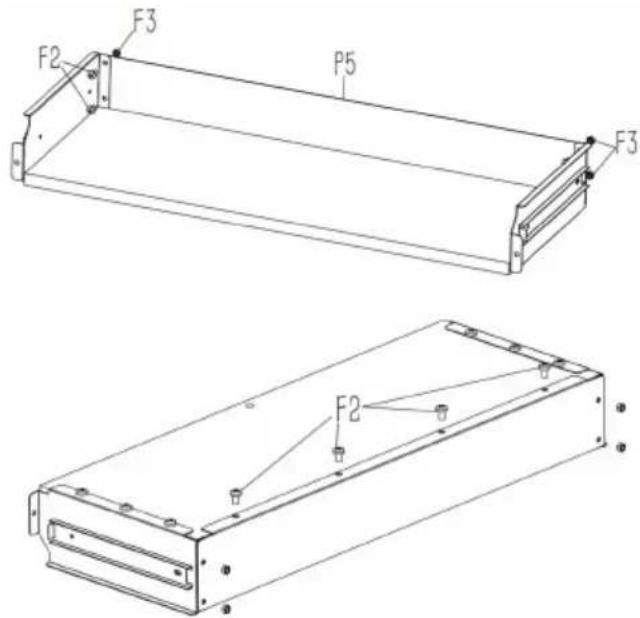

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 3

Function 1: Assemble the produce under desk. In this mode, it can be used as a keyboard tray.

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 4


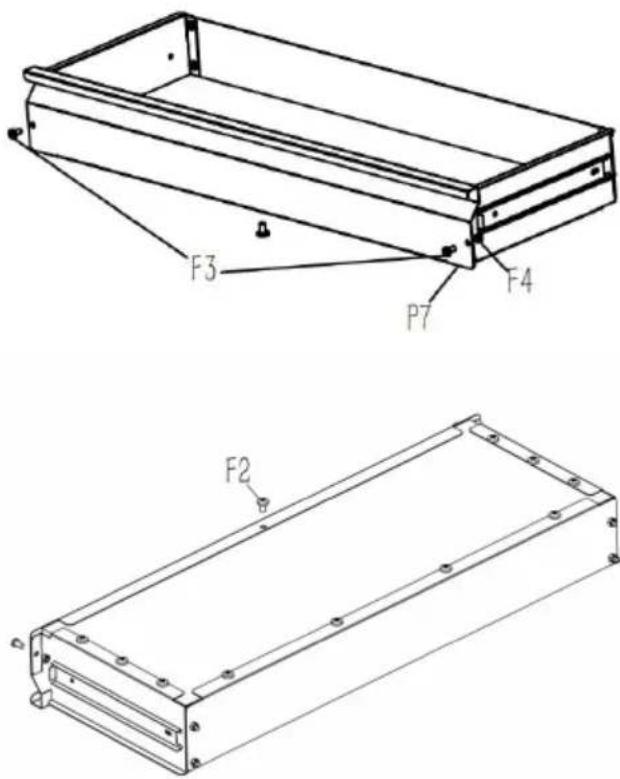

Step4: Assemble P7 with the component from Step 3 using scr F3 and nut F4

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 5


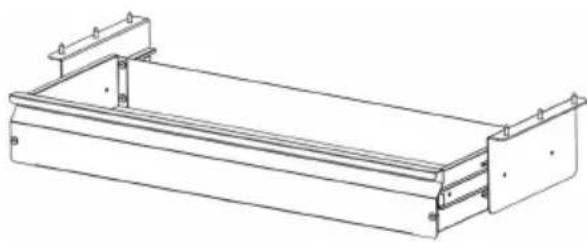

Step5: Assemble the product under desk. (Function 2)

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-8 - 6

PRECAUTIONS FOR USE

Gently pull the handle to open or close the drawer smoothly.
Avoid pulling the drawer violently to prevent damage to the slide ra derailment of the drawer.

TROUBLESHOOTING INSTRUCTIONS

Drawer is not stable: Check if the slide rail is installed correctly and bolts are tight.
Drawer is difficult to pull: Check if there is foreign matter or damage the slide rail, clean the slide rail or replace it if necessary.
Drawer is loose: Retighten all fixing bolts.

MAINTENANCE

Check all drawer fastenings regularly to ensure they are securely fastened.
Avoid using corrosive or abrasive cleaning agents

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

CT-6

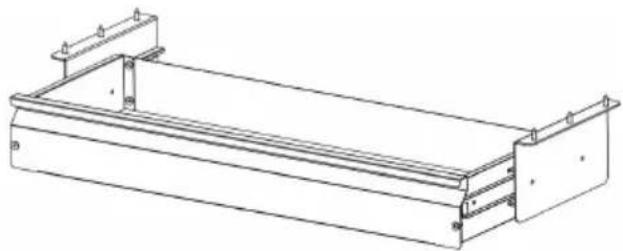

Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 1


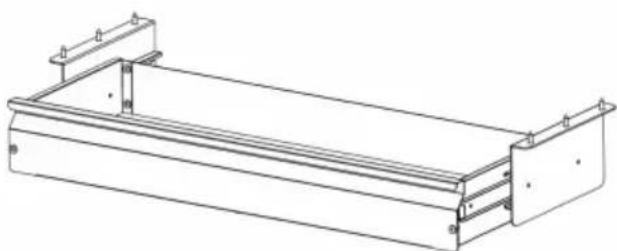

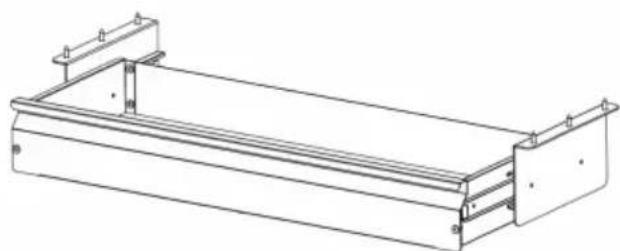

CT-7
Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 2

CT-8

BESOIN D'AIDE? CONTACTEZ-NOUS!

2. SAFETY INSTRUCTIONS

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	F1x6 M5	F2x11 M6
F3x6 M5	F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

TROUBLESHOOTING INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CT-6

Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 1

CT-7
Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 2

CT-8

3. SAFETY INSTRUCTIONS

Part List - CT-7 / CT-8

r1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	F1x6 M5	F2x11 M6
[6T46]F3x6 M5	F4x6 M5

Vevor CT-6 - SAFETY INSTRUCTIONS - 11

INSTALLATION INSTRUCTIONS - CT-8

PRECAUTIONS FOR USE

TROUBLESHOOTING INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

CT-6

Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 1

CT-7
Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 2

CT-8

4. SAFETY INSTRUCTIONS

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	Y36Y[F1x6 M5]	F2x11 M6
F3x6 M5	F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

TROUBLESHOOTING INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: CT-6 / CT-7 / CT-8

Vevor CT-6 - MODELO: CT-6 / CT-7 / CT-8 - 1


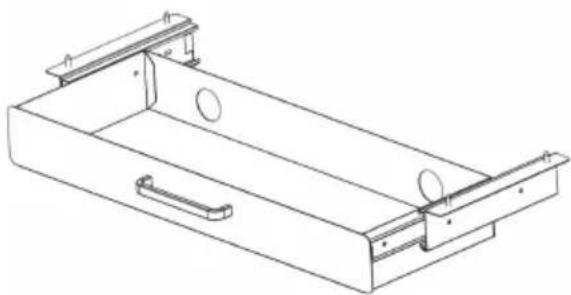

CT-6

Vevor CT-6 - MODELO: CT-6 / CT-7 / CT-8 - 2


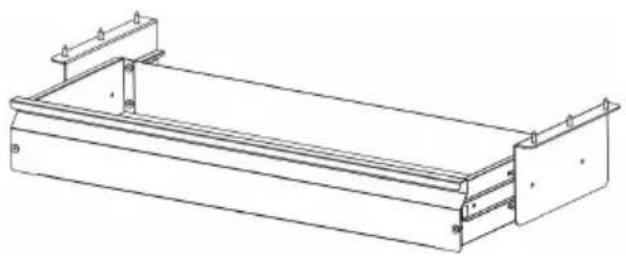

CT-7
Vevor CT-6 - MODELO: CT-6 / CT-7 / CT-8 - 3

CT-8

5. SAFETY INSTRUCTIONS

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	[0002]F1x6 M5	F2x11 M6
F3x6 M5	[AWKE]F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

Paso 1: Ensamble P1 y P2 usar tornillo F1

Vevor CT-6 - INSTALLATION INSTRUCTIONS - CT-7 - 1

TROUBLESHOOTING INSTRUCTIONS

Place, Rancho Cucamonga, CA 91730

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road. Staines-upon-Thames. Surrey. TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELE: CT -6 / CT-7 / CT-8

Vevor CT-6 - MODELE: CT -6 / CT-7 / CT-8 - 1

CT-6

Vevor CT-6 - MODELE: CT -6 / CT-7 / CT-8 - 2

CT-7
Vevor CT-6 - MODELE: CT -6 / CT-7 / CT-8 - 3

CT-8

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

6. SAFETY INSTRUCTIONS

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	F1x6 M5	F2x11 M6
F3x6 M5	F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

TROUBLESHOOTING INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

Onder bureau lade

MODEL: CT-6 / CT-7 / CT-8

CT-6

Vevor CT-6 - Onder bureau lade - 1

CT-7
Vevor CT-6 - Onder bureau lade - 2

CT-8

HULP NODIG? NEEM CONTACT MET ONS OP!

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	[XCXX]F1x6 M5	F2x11 M6
[YZZZ]F3x6 M5	F4x6 M5

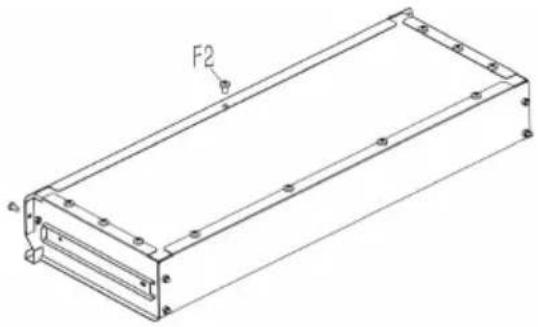

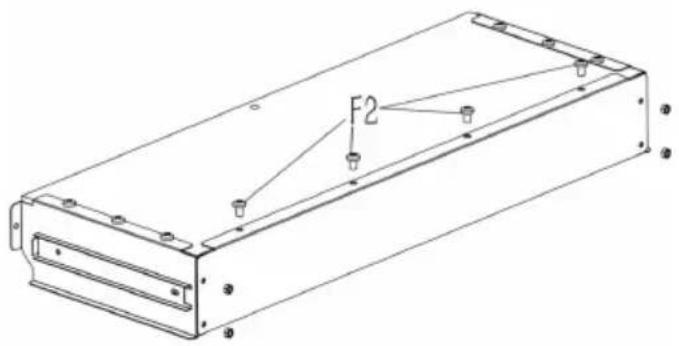

INSTALLATION INSTRUCTIONS - CT-7

TROUBLESHOOTING INSTRUCTIONS

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

CT-6

Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 1

CT-7
Vevor CT-6 - TOUGH TOOLS, HALF PRICE - 2

CT-8

BEHÖVER HJÄLP? KONTAKTA OSS!

Part List - CT-7 / CT-8

P1x1	P2x1	P3x1
P4x1	P5x1	P6x1
P7x1	[X6TT]F1x6 M5	[XX2Y]F2x11 M6
F3x6 M5	[W723]F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

TROUBLESHOOTING INSTRUCTIONS

Rancho Cucamonga, CA 91730

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road. Staines-upon-Thames. Surrey. TW18 4
