USER MANUAL DL-BC04 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SQUARE HANGING TABLE USER MANUAL

MODEL:DL-BC04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SQUARE HANGING TABLE

MODEL:DL-BC04

Line drawing of a mechanical support frame with metal brackets and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c cause hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

No.	Name	Component Picture	Quantity
A	Back Plate		x1
B	Desktop		X1
C	Fixings B		X2
D	Fixings A		X2
E	Quick folding parts		X3
F	Leveling pieces		X2
G	Screw		X31+2
H	Butterfly screw		X6
I	Simple wrench		X1
J	Fixings C		X2

ASSEMBLY STEP

H D C

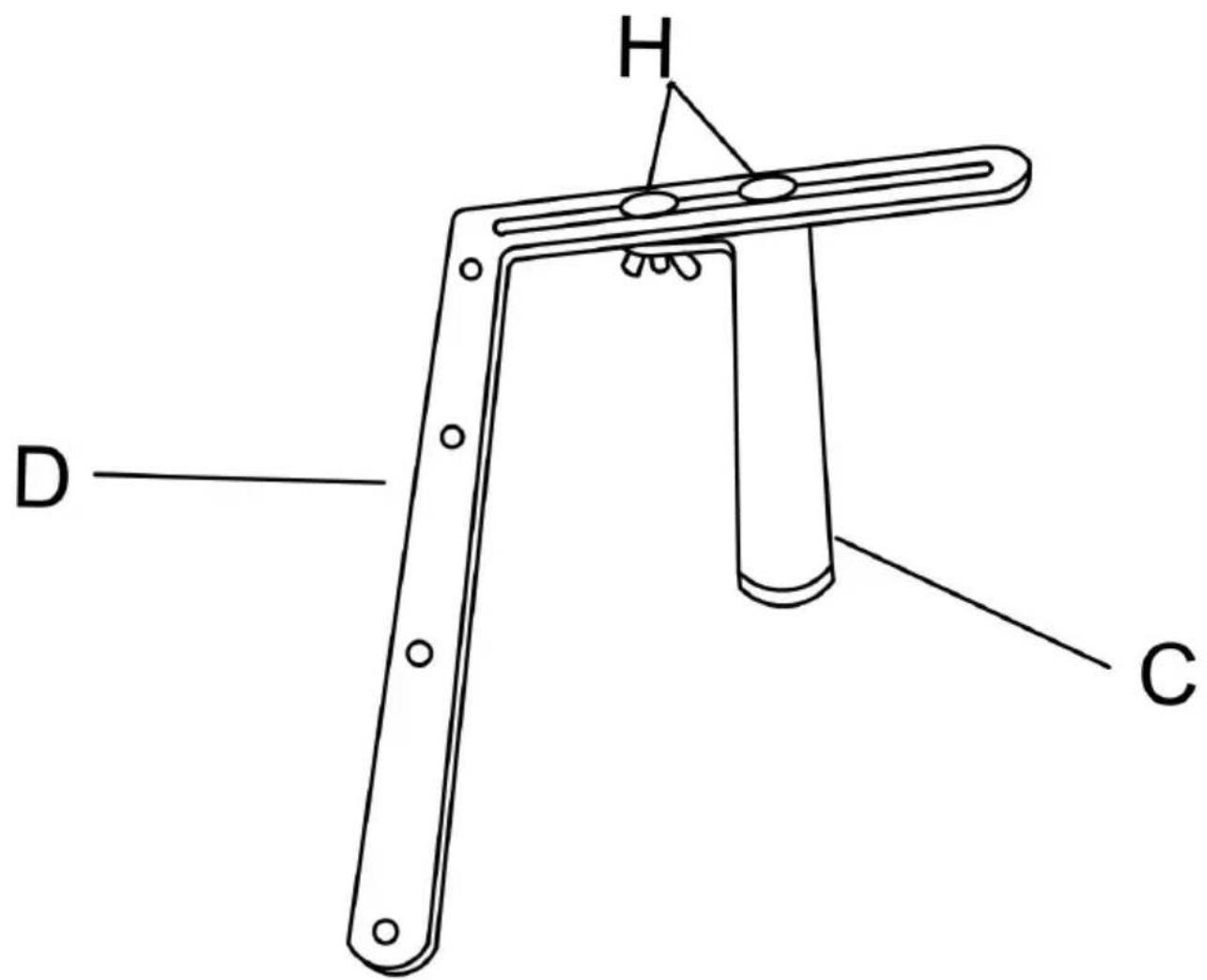

Assemble fixings A(Dx2) and fixings B(Cx2) together.

G x4 D A G x4

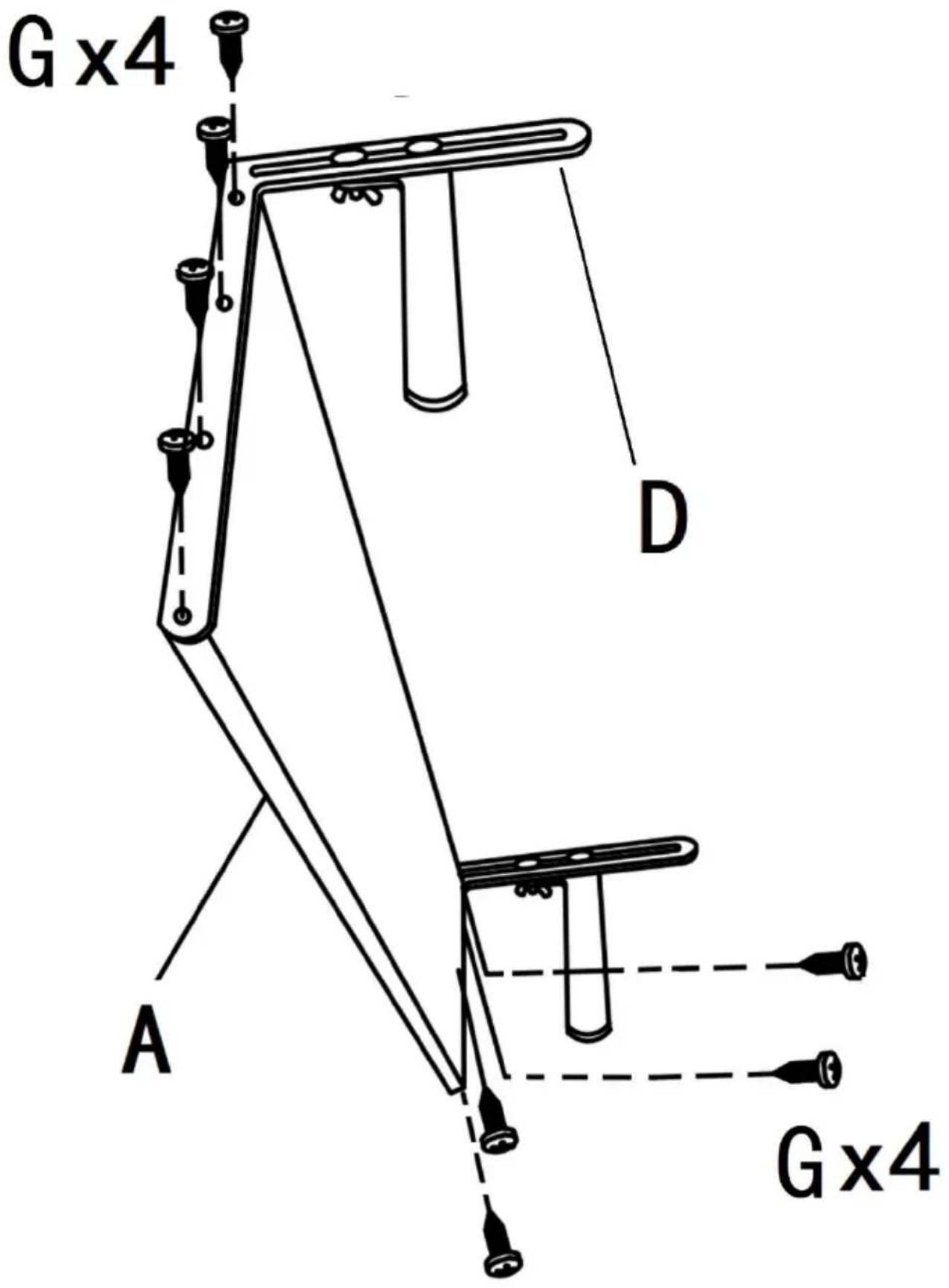

Install the mounting bracket(Dx2) to the back panel(A).

Gx6 Fx2

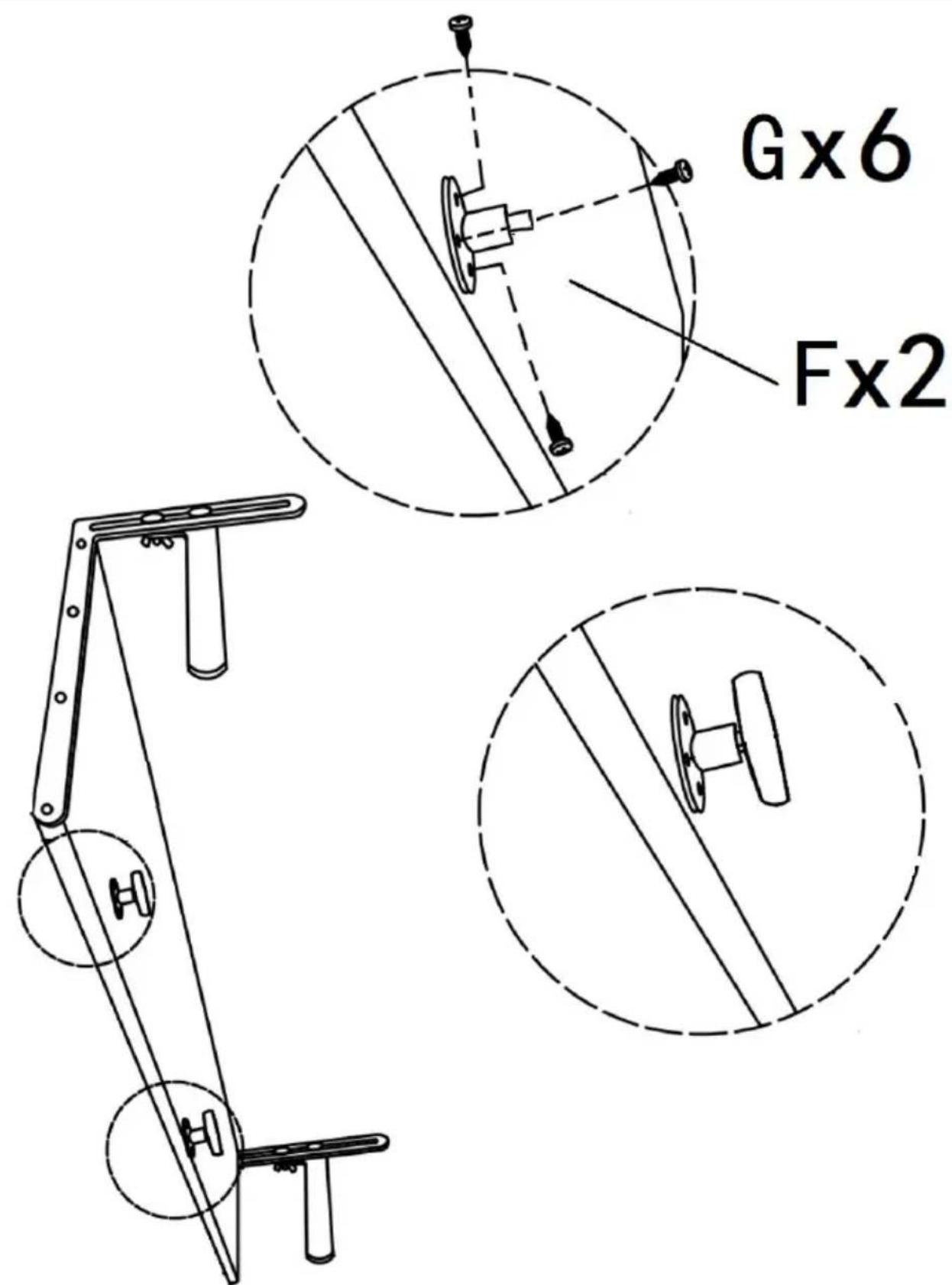

1. Remove the plastic part of the Leveling pieces(F).
2. Install the leveling pieces(Fx2) onto the back plate(A). Note there are mounting holes on the back panel.
3. Install the plastic parts back to the Leveling pieces(F).

B E

Gx15

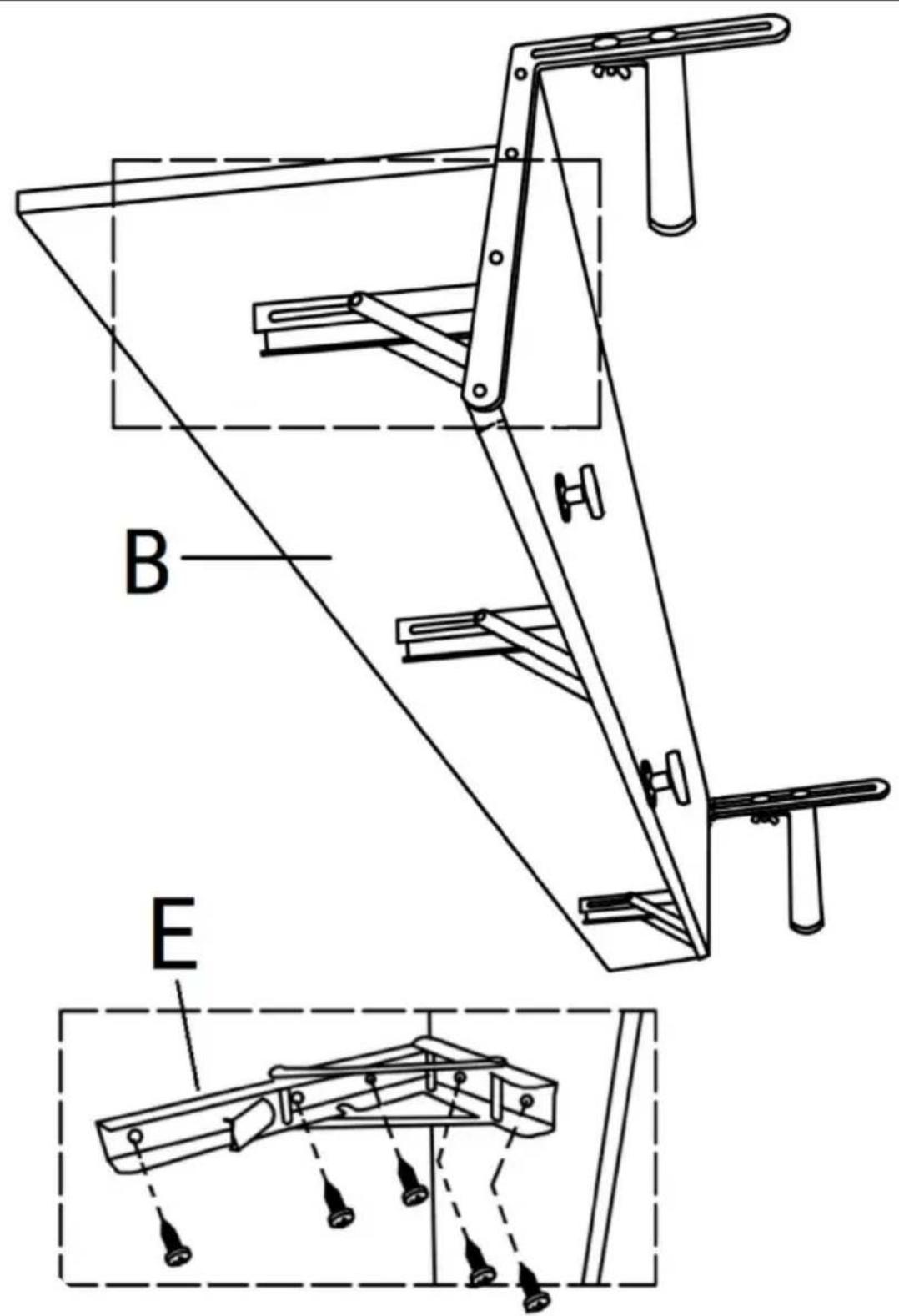

Attach the folding piece(Ex3) and the tabletop(B) to the back panel(A).

Note that there are mounting holes on the back panel(A) and tabletop(B).

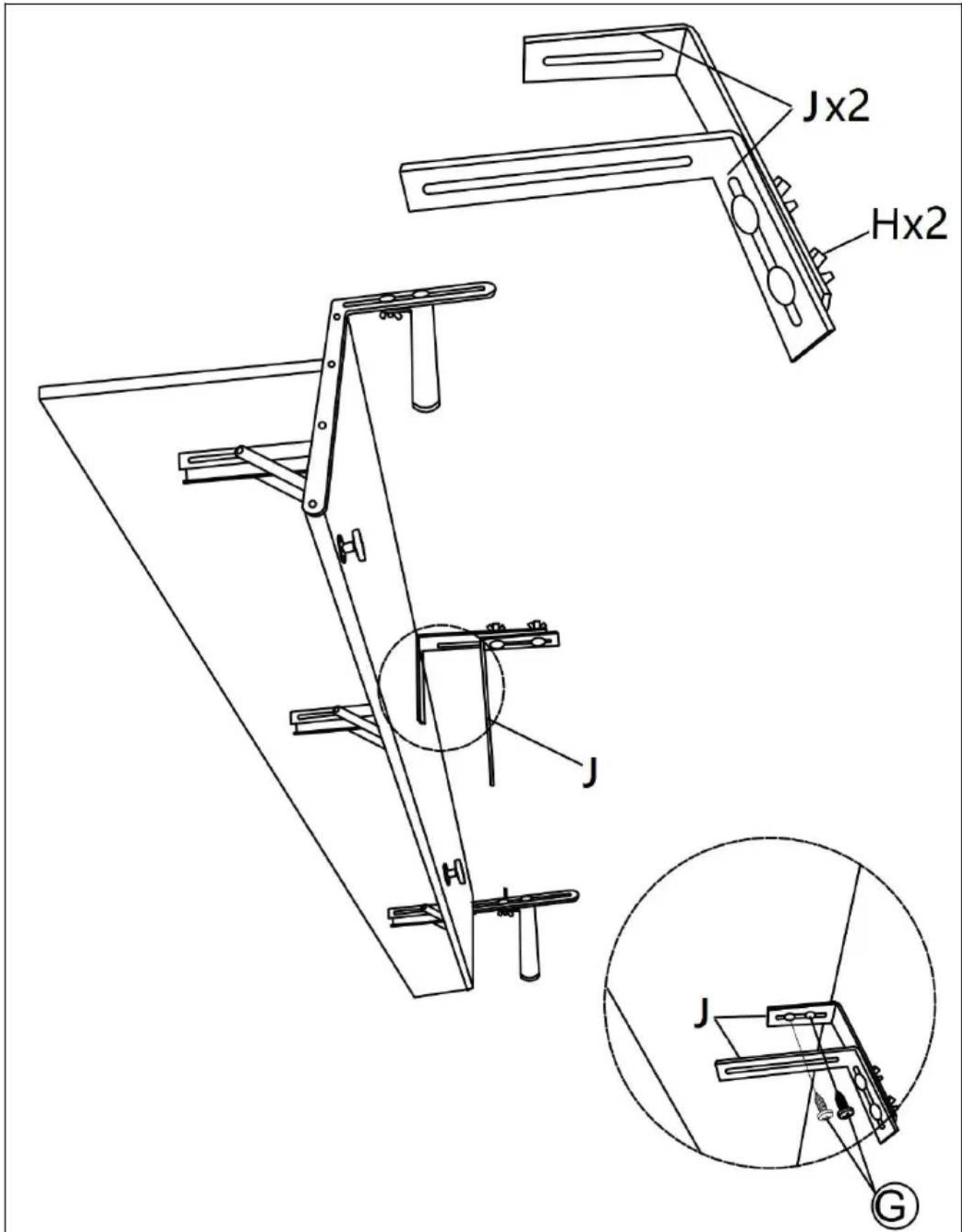

Jx2 Hx2 J G

Install the Fixings C(Jx2) onto the back plate(A).
Note that there are mounting holes on the back panel.

Line drawing of a mechanical support frame with metal brackets and mounting feet (no text or symbols)

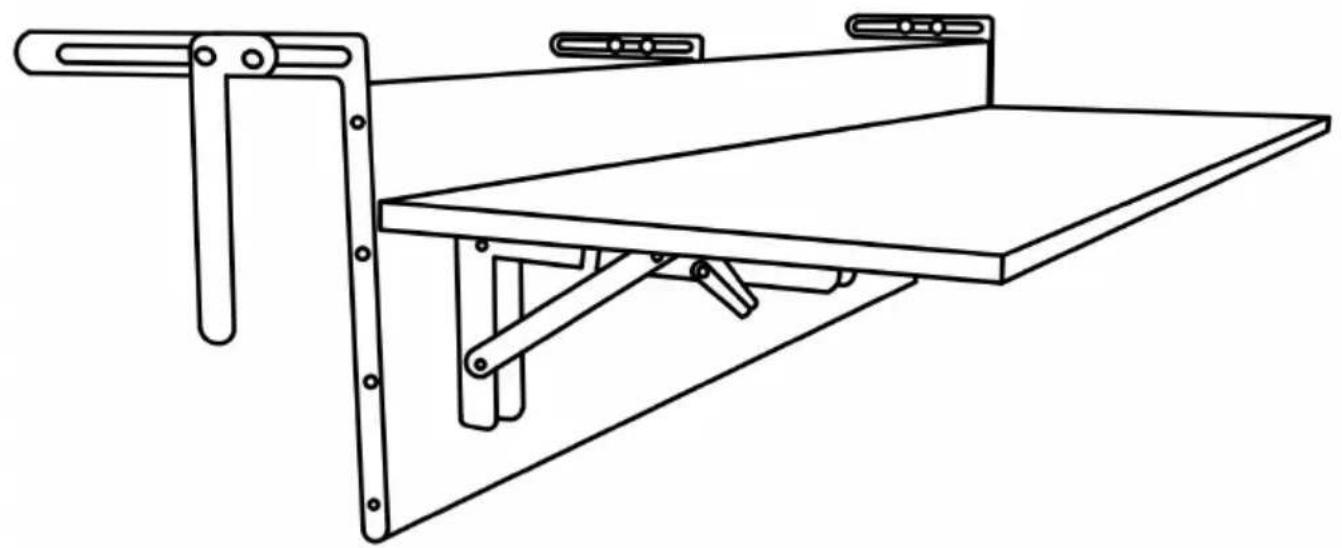

Assembly is completed.

PRODUCT PARAMETER

Model	DL-BC04
Safe Loading Weight	50 LBS
Colour	Body:Black ; Metal bracket: Black
Desktop Size	L48*W11.8in (L1220*W300mm)

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,

shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147,CenturionHouse,LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
