USER MANUAL CT-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Under Desk Printer

MODEL: CT-1 / CT-2 / CT-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: CT-1 / CT-2 / CT-3

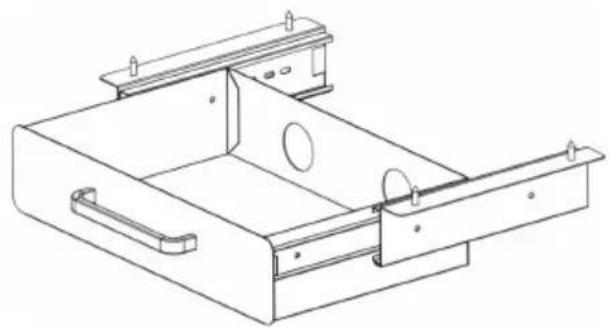

CT-1

CT-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Warning - To reduce the risk of injury, user must read inst manual carefully.

Warning- Be sure to wear gloves when using this product.

1.1 Please make sure to read and understand all instructions before assembling and installing this product.
1.2 Make sure to use the correct tools and fixings for installation and avoid using unsuitable substitutes.
1.3 Please be careful when installing to avoid pinching hands or ot body parts.
1.4 Do not store items in the drawer that exceed the recommended to avoid injury or damage due to the drawer falling off.

Product Description

Under desk drawers are a type of drawer used for storing and organ tools, parts, or other items, usually installed beneath a workbench. Th help keep the work area neat and orderly, allowing users to convenie access the tools or items they need at any time.

Under desk drawers can be widely used in workshops, laboratories, garages, offices, and various other places, making it convenient to store and retrieve all kinds of necessary tools or items.

Product Parameter

Model	loader layers	Total loader length	Inner loader length	With dividers	With lock	Hub	Stainless steel rails	liner
CT-1	1	13inch	12inch	×	×	2pcs	√	1
CT-2	1	13inch	12.6inch	√	√	×	√	1
CT-3	2	13inch	12.6inch	√	√	×	√	2

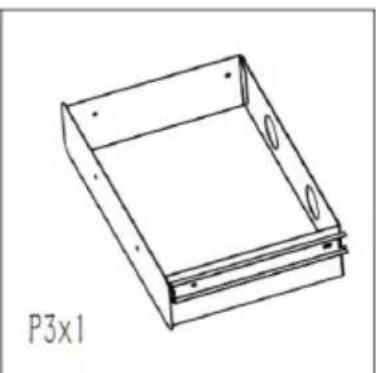

Part List - CT-1

INSTALLATION INSTRUCTIONS - CT-1

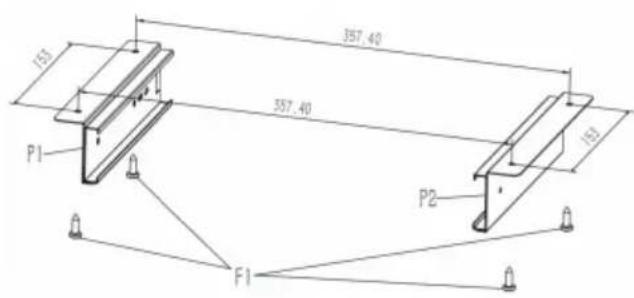

Step 1 : Assemble P1 and using screw F1

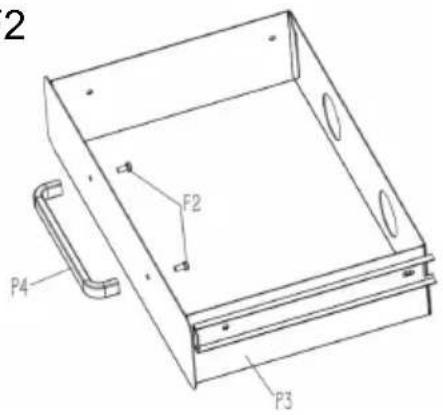

Step2: Assemble P4 and P3 using screw F2

Step 3: Assemble the compone from Step1 and Step2

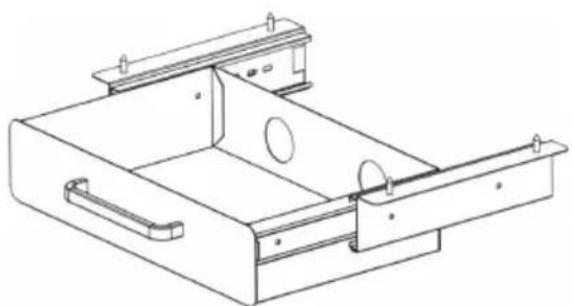

Step4: Assemble the product un desk. Finished

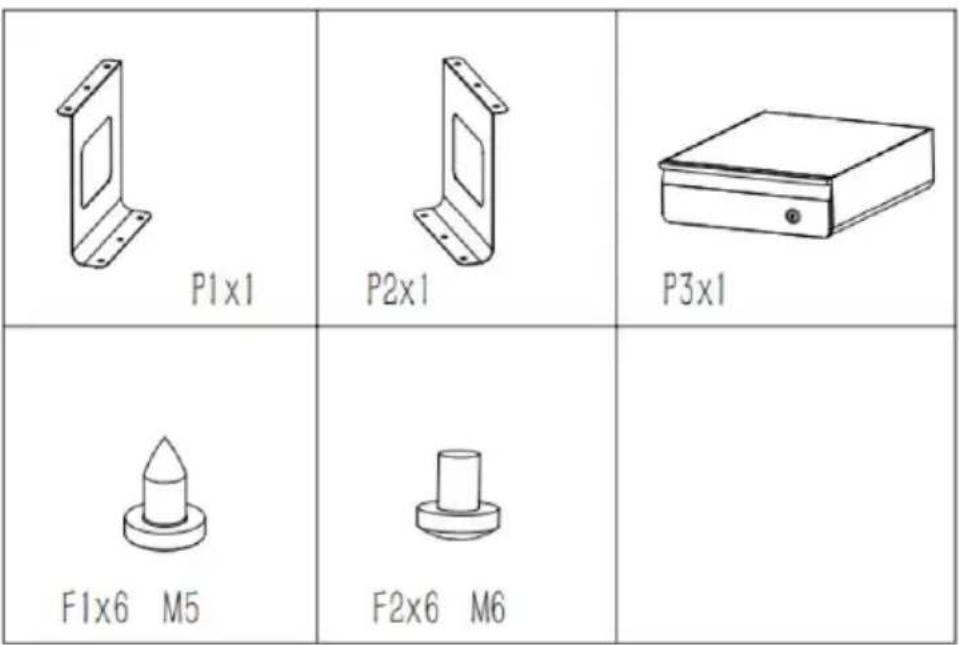

Part List - CT-2

INSTALLATION INSTRUCTIONS - CT-2

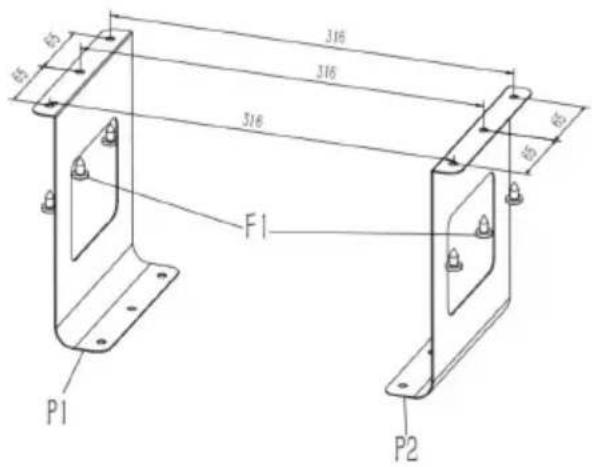

Step 1: Assemble P1 and P2 using screw F1

Step3: Assemble the product un desk.

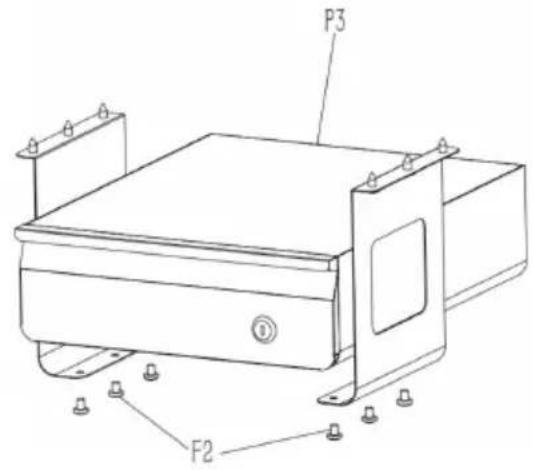

Step2: Assemble P3 with the component from Step 1 using so F2.

Finished

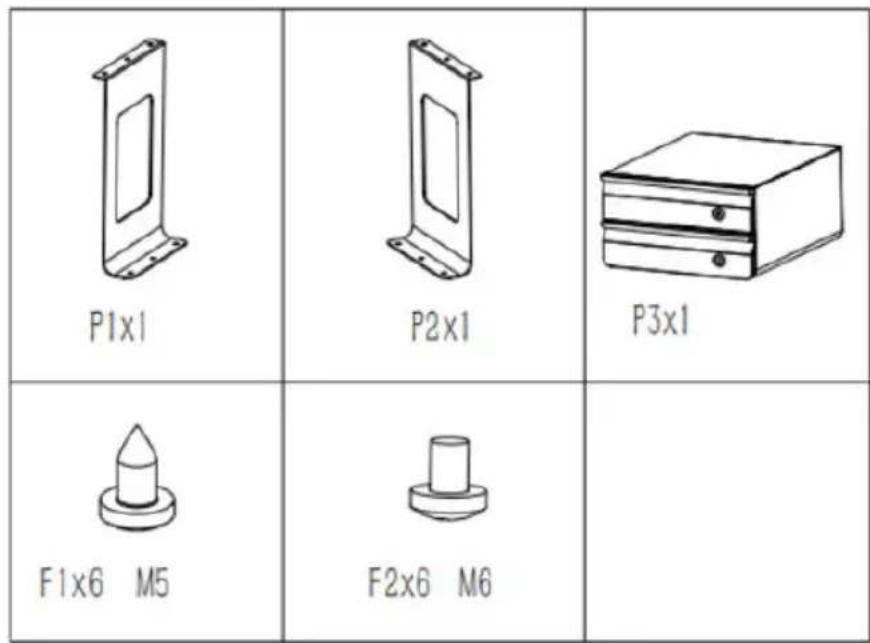

Part List - CT-3

INSTALLATION INSTRUCTIONS - CT-3

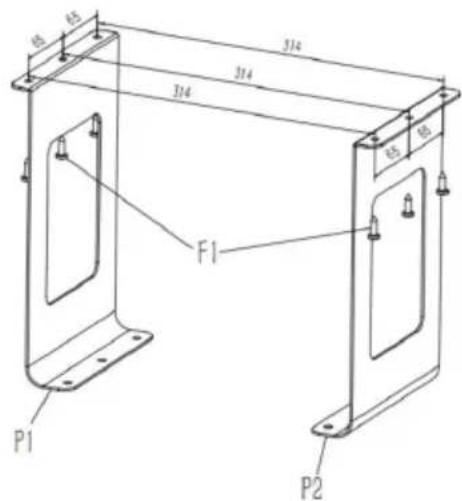

Step 1 : Assemble P1 and P2 using screw F1

Step3: Assemble the product un desk.

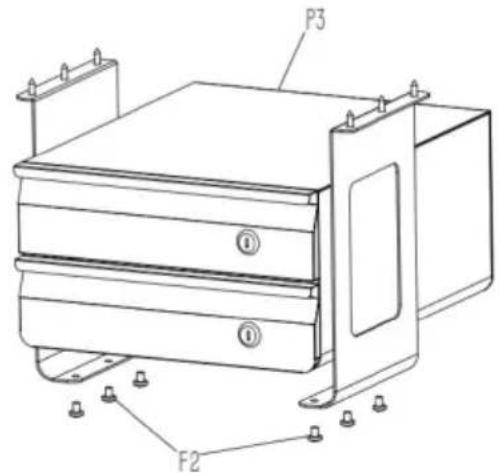

Step2:Assemble P3 with the component from Step 1 using scF2.

Finished

PRECAUTIONS FOR USE

1. Gently pull the handle to open or close the drawer smoothly.
2. Avoid pulling the drawer violently to prevent damage to the slide derailment of the drawer.

TROUBLESHOOTING INSTRUCTIONS

1. Drawer is not stable: Check if the slide rail is installed correctly and bolts are tight.
2. Drawer is difficult to pull: Check if there is foreign matter or damag the slide rail, clean the slide rail or replace it if necessary.
3. Drawer is loose: Retighten all fixing bolts.

MAINTENANCE

1. Check all drawer fastenings regularly to ensure they are securely fastened.
2. Avoid using corrosive or abrasive cleaning agents
