CXFC06-4 - Jack Vevor - Free user manual and instructions

Product Type	RV Leveling Jack Pad
Brand	Vevor
Model	CXFC06-4
Quantity	4 pads
Support Height	1.1 inch (28 mm)
Single Maximum Load	5000 lb (2268 kg)
Suitable Support Foot Size	5.5 x 5.5 inch (139.7 x 139.7 mm)
Material	High-strength steel and rubber
Package Contents	4 pads, 1 lubricating oil
Main Use	Protect support foot and increase support area
Compatibility	Camper trailer jacks
Maintenance	Lubricate with included oil; clean with dry cloth
Safety	Wear protective goggles and gloves; avoid open flames; clean and dry workspace
Precautions	Do not use as toy; keep out of reach of children
Installation	Ensure the pad is securely installed and stable
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Country of Origin	China (Shanghai)
Pad Dimensions (approx.)	5.5 x 5.5 x 1.1 inch
Estimated Unit Weight	Approximately 1.5 kg
Repairability	Parts not user-serviceable; contact technical support

Frequently Asked Questions - CXFC06-4 Vevor

How to use the Vevor CXFC06-4 jack pad?

Place the pad under the foot of the RV leveling jack. Ensure it is properly centered and stable. Follow the instructions in the manual to avoid any movement or tipping. Use only on a hard, level surface.

What is the maximum load supported by one pad?

Each pad can support up to 5000 lb (2268 kg) single maximum load. Never exceed this limit.

Is this pad compatible with all RV jacks?

It is designed for camper trailer jacks. The CXFC06-4 model fits support feet of size 5.5 x 5.5 inches (139.7 x 139.7 mm). Check your jack dimensions before use.

How to maintain the jack pad?

Clean the pad with a dry cloth after each use. Regularly apply the provided lubricating oil to prevent corrosion and ensure smooth operation. Store in a dry place.

What are the important safety instructions?

Wear safety goggles and protective gloves during use. Keep the work area clean, dry, and well-ventilated. Keep away from open flames as the product can ignite. Do not use in flammable, explosive, or humid environments.

Can I use this pad with a standard hydraulic jack?

This product is specifically designed for RV leveling jacks. For other types of jacks, check the foot dimensions and load capacity. It is not recommended for use with hydraulic jacks without adaptation.

How many pads are included in the package?

The CXFC06-4 model contains 4 pads and one lubricating oil pump.

How to store the jack pad?

Store the pads in a dry, dust-free place. Clean them before storage. Avoid extreme temperatures and humidity to prolong lifespan.

What to do in case of damage or defect?

Contact Vevor technical support through the website www.vevor.com/support to get an electronic warranty certificate and repair or replacement instructions.

Is the jack pad repairable?

The pad is not designed to be user-repaired. If the product is damaged, contact technical support for a replacement. Do not attempt to disassemble or modify it.

USER MANUAL CXFC06-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RV LEVELING JACK PAD

MODEL: CXFC05-4/ CXFC06-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

RV LEVELING JACK PA

MODEL: CXFC05-4/ CXFC06-4

CXFC05-4 CXFC06-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

• Please read this manual carefully before using the product.
• Keep away from sharp points, blades and other items, so as not scratch the product.
• Use the product only after receiving professional training.
• Wear necessary personal protective equipment such as safety goggles, and protective gloves during use.
• Ensure that the workspace remains clean, dry, and well-ventilated during operation.
• Keep away from open flame. This product will ignite and burn if brought into contact with an open flame. Do not use the jackpa flammable, explosive, or damp environments.
• Ensure that the jack pad is securely installed and stable to prevent movement or tipping during use.
• Follow safe operating procedures when using the jack pad, avoid excessive force or incorrect techniques.
  Fix it first when using it. so as not to be injured.
• This product is not a toy, keep away from children and cannot be as toys for children to play with

Suitable for camping trailer jacks, each pad bearing up to 5,000 pour. Designed specifically for the strength and quality.

It can be embedded into the support tripod to protect the support food increase the support area.

PRODUCTION CONFIGURATION

Model	CXFC05-4	CXFC06-4
Quantity (pcs)	4	4
Support Height (inch / mm)	0.59 / 15	1.1 / 28
Single Max. Load (lbs / kg)	5000 / 2268	5000 / 2268
Adapt to support foot size (inch/ mm)	10(Φ254mm)	5.5*5.5 (139.7*139.7)

1 pcs oil is included.

PRODUCT INTRODUCTION

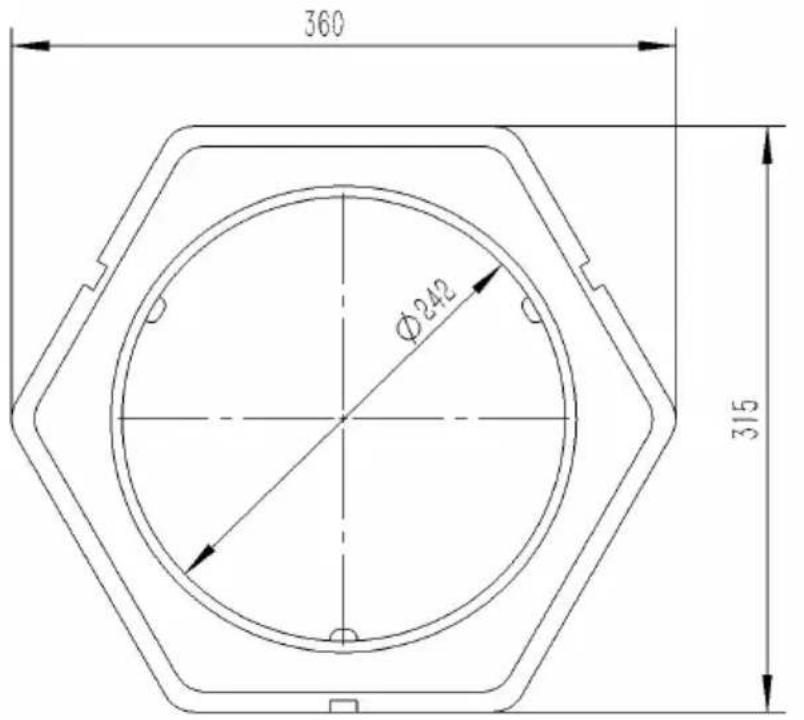

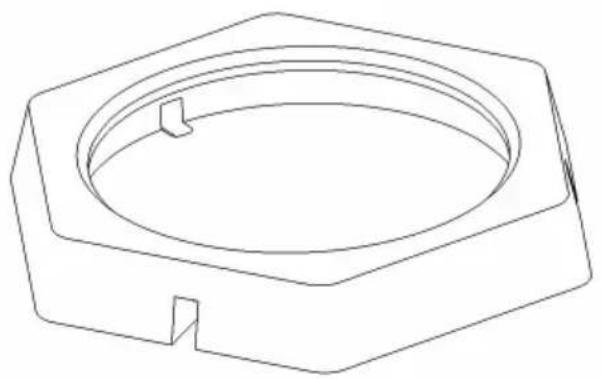

Model: CXFC05-4

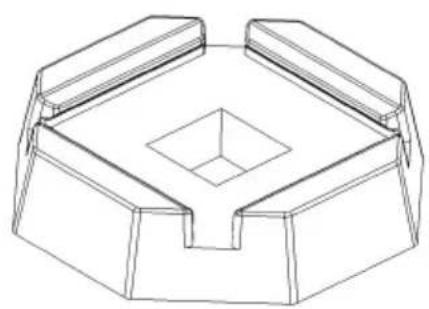

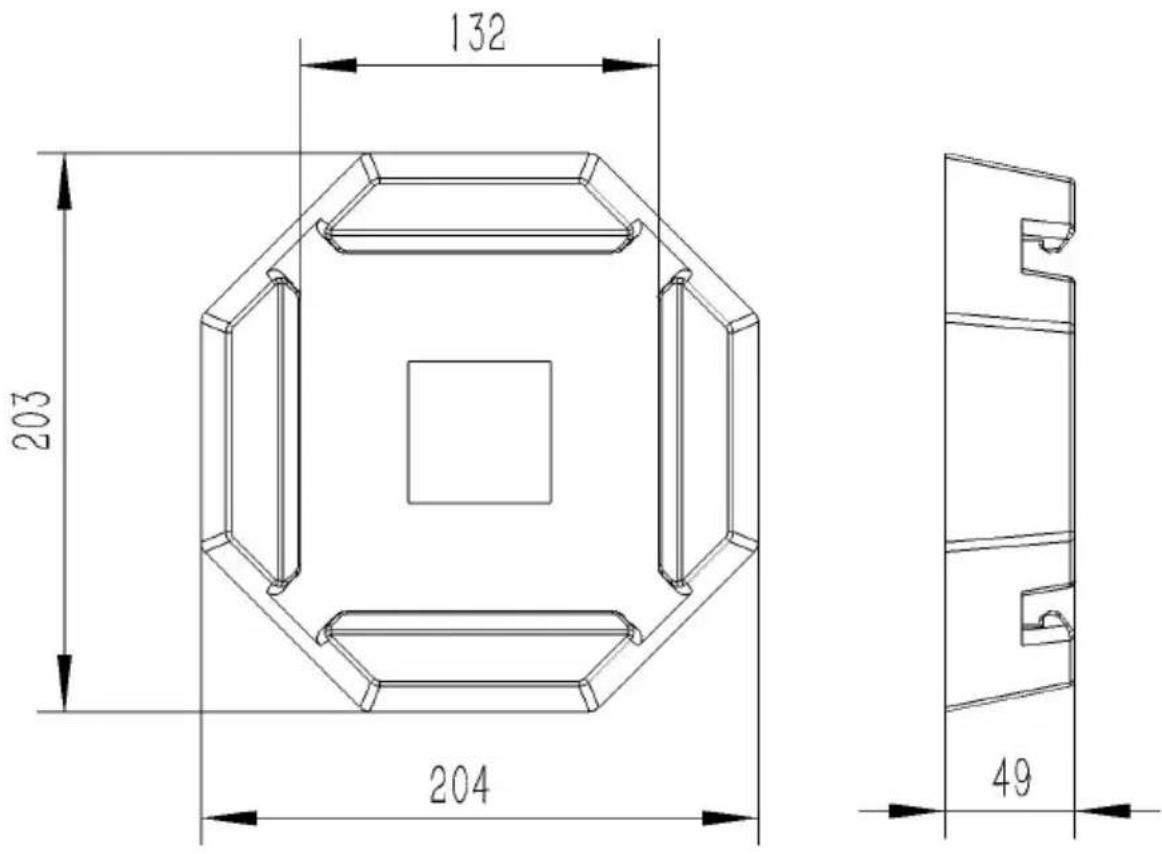

Model: CXFC06-4

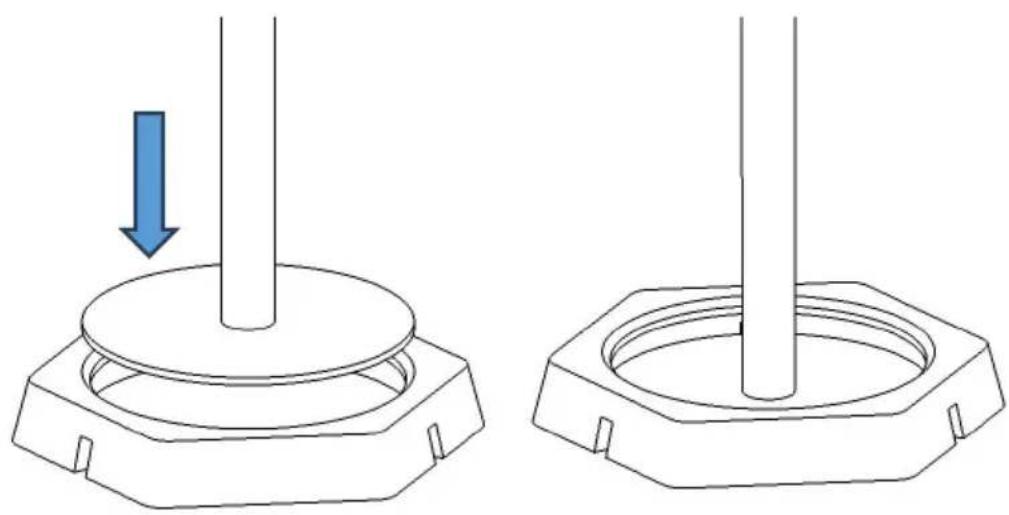

USE INDICATION

Model: CXFC05-4

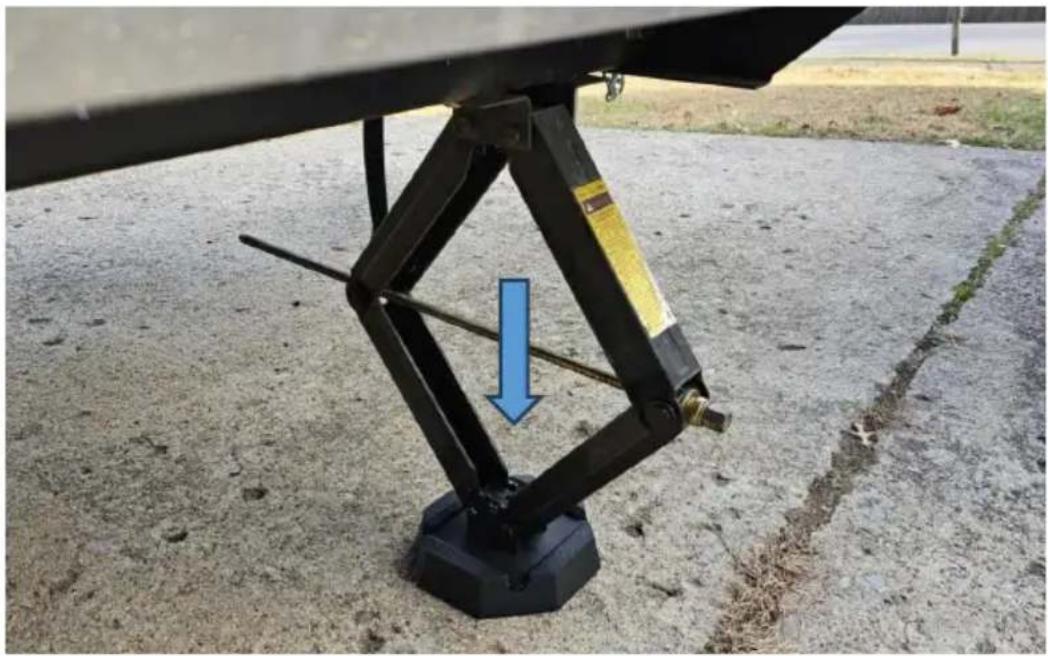

Model: CXFC06-4

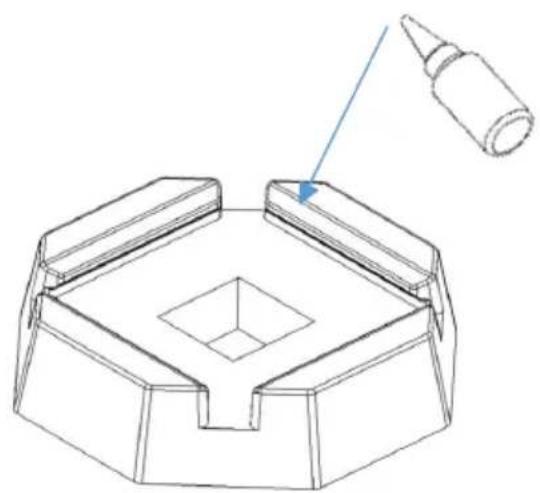

LUBRICATING OIL USE METHOD

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
