JEEP DOOR AND ROOF STORAGE TOOLS MODEL: D45T1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cc all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

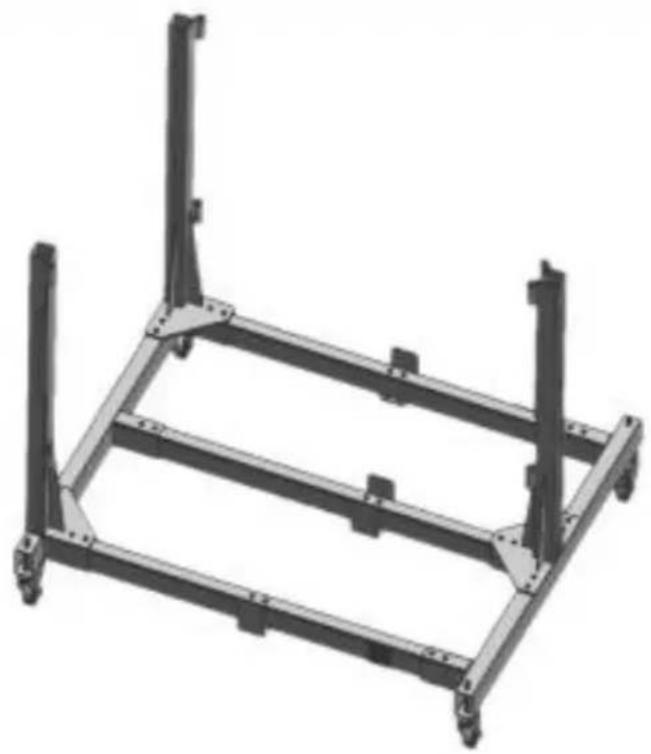

JEEP DOOR AND ROOF

STORAGE TOOLS

MODEL: D45T1

Metal frame structure with support legs and mounting holes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY PRECAUTIONS

• During installation and use, be sure to wear protective gloves to prevent ha injuries.
• When using a box cutter or other sharp tools to remove packaging, be ex careful to avoid cutting yourself and those around you.
• Ensure that the vehicle is in a stable parked state during installation. Pull handbrake and use wheel chocks if necessary to prevent the vehicle from sli
• When tightening nuts and washers, pay attention to the appropriate force to avoid damaging parts or stripping threads due to excessive force.

PRODUCT DESCRIPTION

This product is specifically designed for 07 - 17 Jeep Wrangler and Unlimited used for carrying and storing doors and roofs. The main bracket and side by cooperate to form a stable support structure that can firmly hold the doors and roofs. The black foam and EVA foam effectively cushion and prevent scratch and damage to vehicle parts during carrying and storage. The combination of wheels with brakes and without brakes facilitates flexible movement and precise positioning in different sites. The cap nuts and lock washers ensure the stability the overall structure, providing Jeep owners with a convenient, safe and efficient solution for vehicle modification, repair, long-term part storage and other scenarios.

PRODUCT PARAMETERS

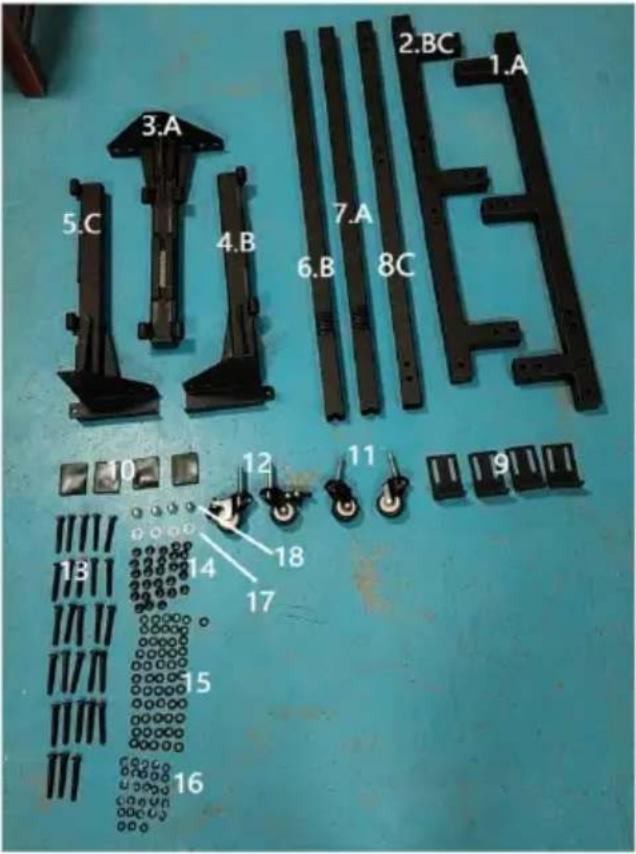

SN	Name/Quantity	picture
1	Cross Tube A * 1pcs
2	Cross Tube BC * 1pcs
3	Door Bracket A * 1pcs
4	Door Bracket B * 1pcs
5	Door Bracket C * 1PCS
6	Cross Tube B * 1 PCS
7	Middle Cross Tube A * 1 P
8	Cross Tube C * 1 PCS
9	Limit Plate * 6 PCS
10	Protective Rubber * 6 PCS
11	Wheels without Brakes * 2 F
12	Wheels with Brakes * 2 PCS
13	Hexagon Socket Head Cap Screw M8 * 60/32 PCS
14	Hexagon Nut M8/32 PCS
15	Plain Washer M8/64 PCS
16	Spring Washer M8/32 PCS
17	Cap Nut M10/4 PCS
18	Lock Washer M10/4 PCS
19	Instruction Manual * 1 PCS

INSTALLATION INSTRUCTIONS

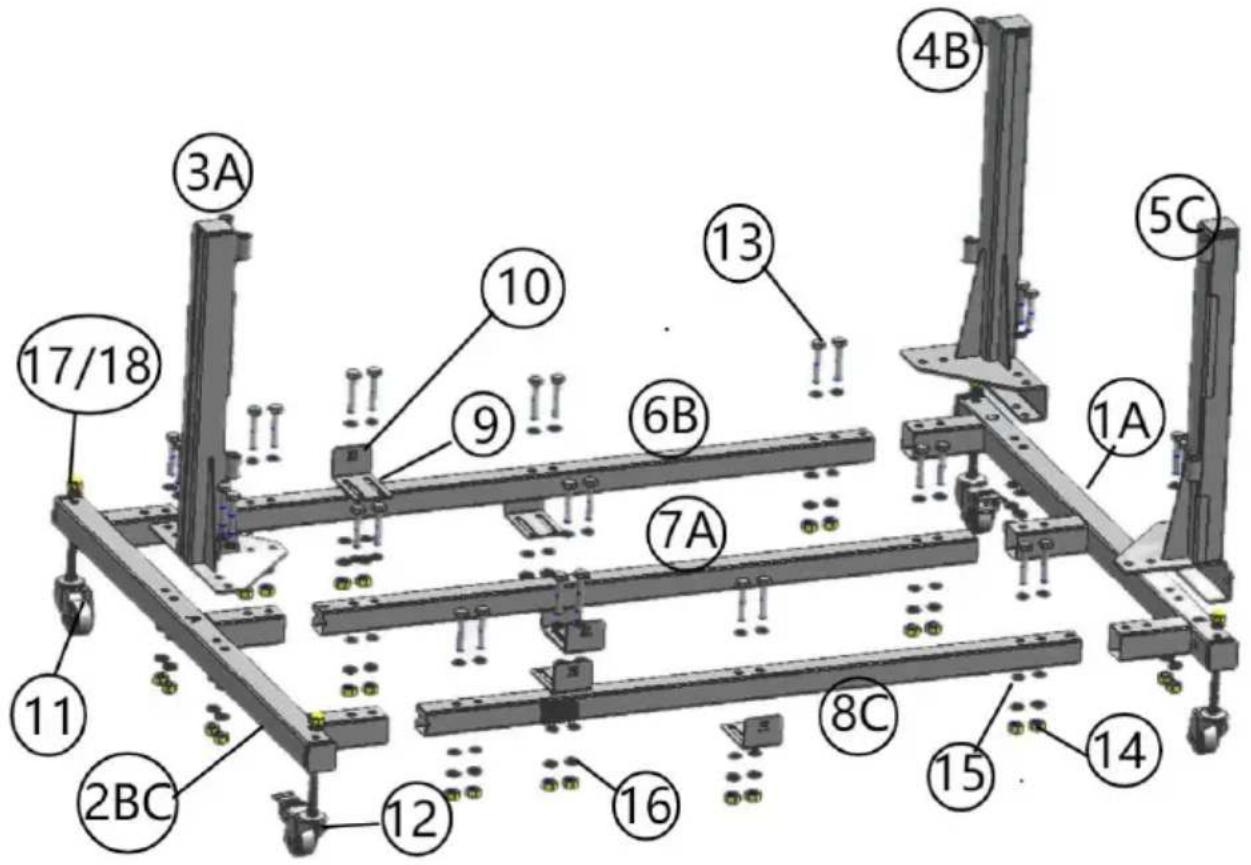

17/18 3A 10 9 6B 7A 13 4B 5C 1A 11 2BC 12 16 8C 15 14

Please follow the installation steps carefully

Step 1:

Prepare 1A and 2BC.

Install 2BC onto 1A and tighten with screws 13, 15, 16 and 14.

Step 2:

Prepare 2BC and 3A.

Install 3A onto 2BC and tighten with screws 13, 15, 16 and 14.

Step 3:

Prepare 6B, 7A and 8C.

Install 6B, 7A and 8C onto 1A and 2BC respectively according to the picture tighten with screws 13, 15, 16 and 14.

Step 4:

Prepare 11 and 12.

Install 11 and 12 onto 1A and 2BC respectively according to the diagram, a tighten with screws 17 and 18.

Step 5:

Glue 10 onto the inner side of 9.

After gluing, install the whole onto 6B, 7A and 8C according to the diagram, tighten with screws 13, 15, 16 and 14.

After installation, please check if all parts are installed firmly and if the overall structure is stable.

PRODUCT MAINTENANCE INSTRUCTIONS

• Regularly check whether the connections of each part are loose. If loose, it them in time with appropriate tools.
• Gently wipe the surface of the product with a damp cloth to remove dust stains and keep the appearance clean.
• Avoid using corrosive cleaners to prevent damage to the material of the pr
• When not in use for a long time, store it in a dry and ventilated environ prevent parts from rusting, aging or deforming.
