USER MANUAL BS20S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PRESSURE WASHER SURFACE CLEANER

MODEL: BS20S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRESSURE WASHER

SURFACE CLEANER

MODEL:BS20S

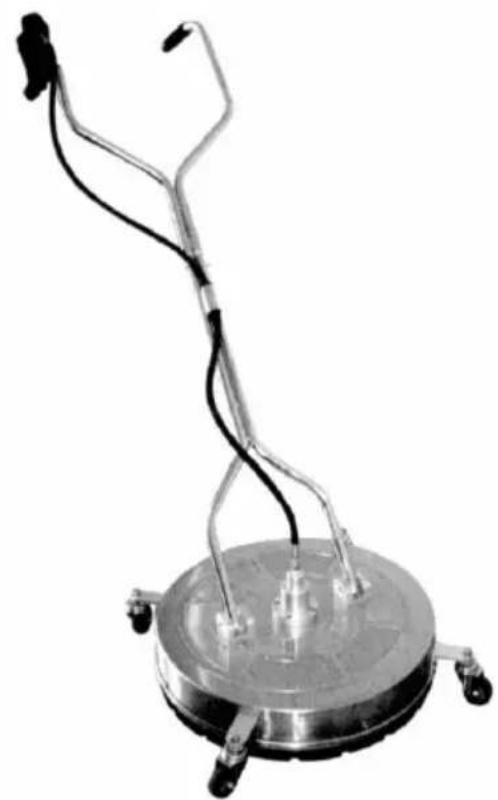

Metal floor-mounted cleaning or pressure tool with attached cable and handle (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

INTRODUCTION

20-inch Stainless Steel Surface Cleaner for pressure washer is designed clean large surface. This flat-surface cleaner features dual-handle with trigger gun. The cleaner can be used on horizontal surfaces including decks, patios, sidewalks, driveways, pool decks, etc.

Dual High-Pressure Rotating Jets

For a thorough clean that is fast and streak free. The jets spin whe under high pressure, removing dirt and grime from surfaces with ease Cleans up to 5X FASTER than a standard spray nozzle.

Dome Housing Design Controls Over spray

Stainless steel housing-good corrosion-resistance, designed for bad circumstances. The power of the high-pressure water jets is contained inside of the dome enclosure to concentrate all of the cleaning on the surface at hand with no over spray or back splash.

Convenient operation

Heavy Duty Stainless steel housing with compact design & light alumni handle & Four universal wheels.

WARNING:

To reduce the risk of injury, user must read and understand the operator's manual for their pressure washer before using this accessory. Fits most pressure washers. Ensure compatibility and proper fit before using this accessory. Wear eye protection marke

comply with Z87.1. Risk of fluid injections. Do not point at people electrical devices or the unit itself. Turn off the pressure washer changing or adjusting accessories. For cold water use only. Save instructions.Refer to them frequently and use them to instruct other users. If you loan someone this tool, loan them these instructions

SPECIFICATIONS

Max. Pressure(PSI/BAR)	4500/310
Min. Pressure(PSI/BAR)	2000/138
Max. Flow Rate(GPM/LPM)	3.9/14.7
Max. Temperature(°F/°C)	140/60

PACKAGE LIST

1 x Pressure Washer Surface Cleaner 2 x Replacement Nozzles
1 x Teflon Tape 4 x O-rings
1 x Through-hole Needle 1 x Wrench
2 x Adapter 1 x Quick Adapter Kit
1 x Operating Instruction

ASSEMBLING THE SURFACE CLEANER

See Figure 1-4.

• Place the legs of the lower handle in the mounting brackets on the surface cleaner deck. Align the holes in the legs with the holes in the brackets.
• Insert pin through the holes in the mounting brackets and legs. Insta ring through hole on the end of the pin to secure.
• Repeat this process to secure the other leg.
• Attach the upper handle to the lower handle.Secure with pin and string.

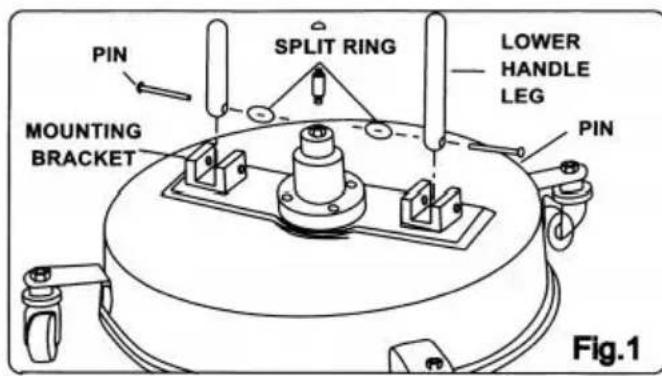

PIN SPLIT RING MOUNTING BRACKET LOWER HANDLE LEG PIN Fig.1

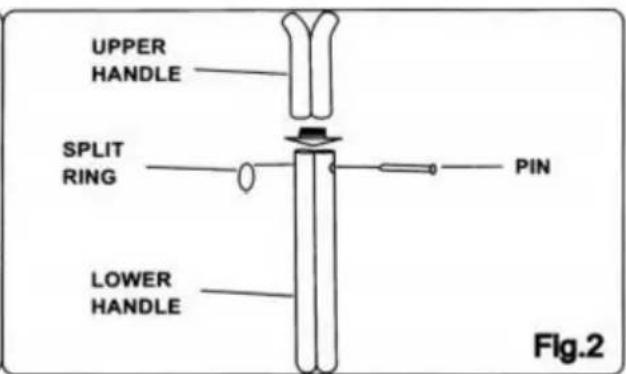

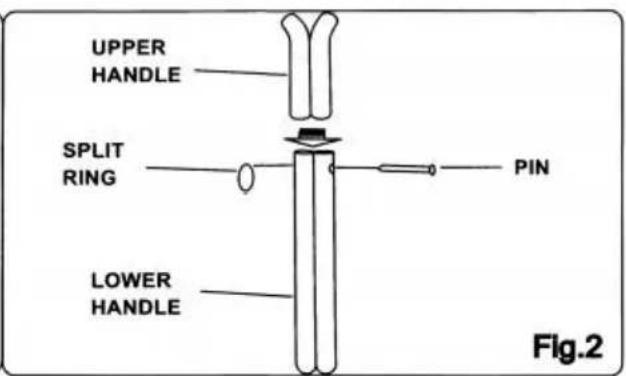

UPPER HANDLE SPLIT RING PIN LOWER HANDLE Fig.2

• Apply high strength thread locker liquid or teflon tape (if needed) to ends of the hose.
• Attach the fixed end of the hose to the trigger handle inlet. Secure tighten, but do not overtighten.
• Attach the swivel end of the hose to the inlet on the top of the cleaning deck. Securely tighten, but do not overtighten.
• Check the bottom of the surface cleaner deck to verify that the no are tightened securely and are aligned correctly.

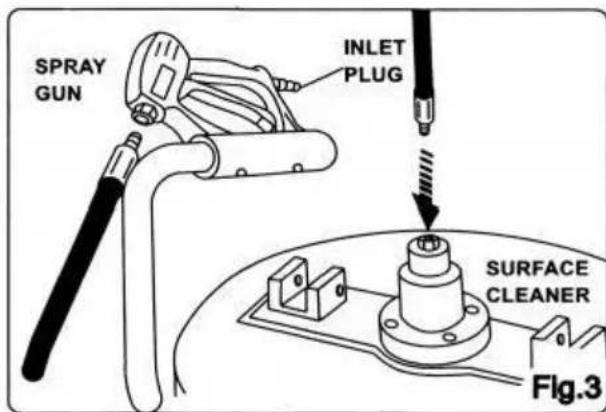

SPRAY GUN INLET PLUG SURFACE CLEANER Fig.3

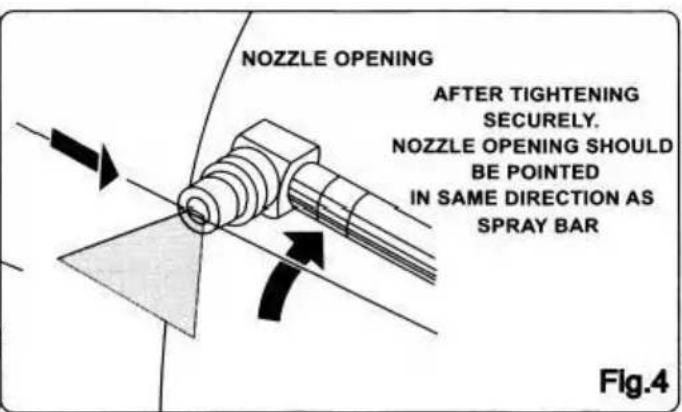

NOZZLE OPENING AFTER TIGHTENING SECURELY. NOZZLE OPENING SHOULD BE POINTED IN SAME DIRECTION AS SPRAY BAR Fig.4

USING THE SURFACE CLEANER

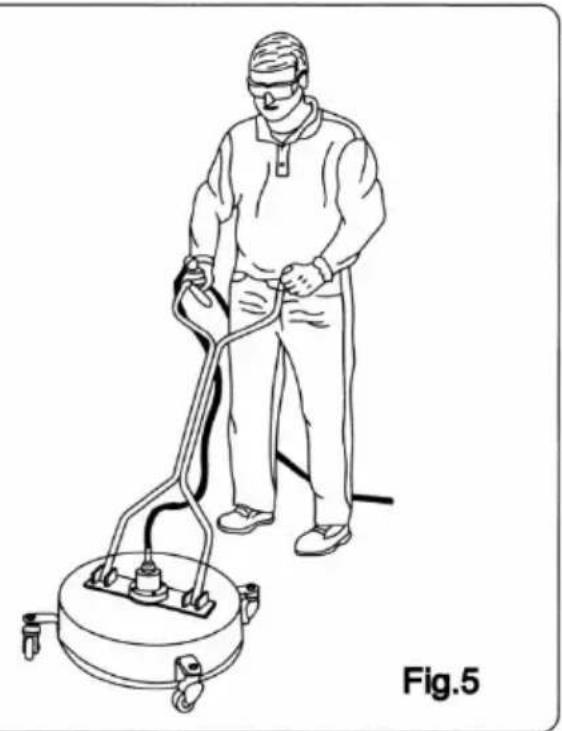

See Figure 5.

*Attach the high pressure hose of your pressure washer to the inlet plug on the surface cleaner's spray gun.

*Connect the garden hose to your pressure washer and start the pressure washer as described in your pressure washer manual.
* Walk slowly behind the cleaning deck, cleaning as you go.

NOTE: If striping or swirling occurs, slow your pace. If striping or Swirling continues, the surface cleaner skirt bristles may be worn and in need of replacement.

Line drawing of a person cleaning a large circular water heater (no text or symbols)

CAUTION:

Striking any raised obstacle while using the surface cleaner will damage the unit. If contact does occur and causes vibration when operating the pressure washer, stop and replace the spray bar. Continuing to operate the unit without replacing the spray bar could result in serious injury damage to the unit.

NOTE: See figure 6 for the location of the spray bar.

NOZZLE MAINTENANCE

See Figure 6.

Excessive pump pressure (a pulsing sensation felt while squeezing the trigger) may be the result of a clogged or dirty nozzle

Turn off the pressure washer and shut off the water supply. With the cleaner on the ground, pull trigger to release water pressure.

* Disconnect surface cleaner from high pressure hose.
* Remove the nozzle from the spray bar using a wrench (not provide

NOTE: Never point the spray bar at your face.

Using a straightened paper clip or nozzle cleaning tool (provided), free foreign materials clogging or restricting the nozzle.

* Using a garden hose, fush debris out of nozzle by back fushing (the water through the nozzle backwards or from the outside to the in
* Reconnect the nozzle to the spray bar and tighten securely. After tightening, make sure the nozzle opening is pointed in the same direction as the spray bar as shown in figure 4.
* Reconnect the high pressure hose to the spray wand.

Tum on the water supply and start the pressure washer.

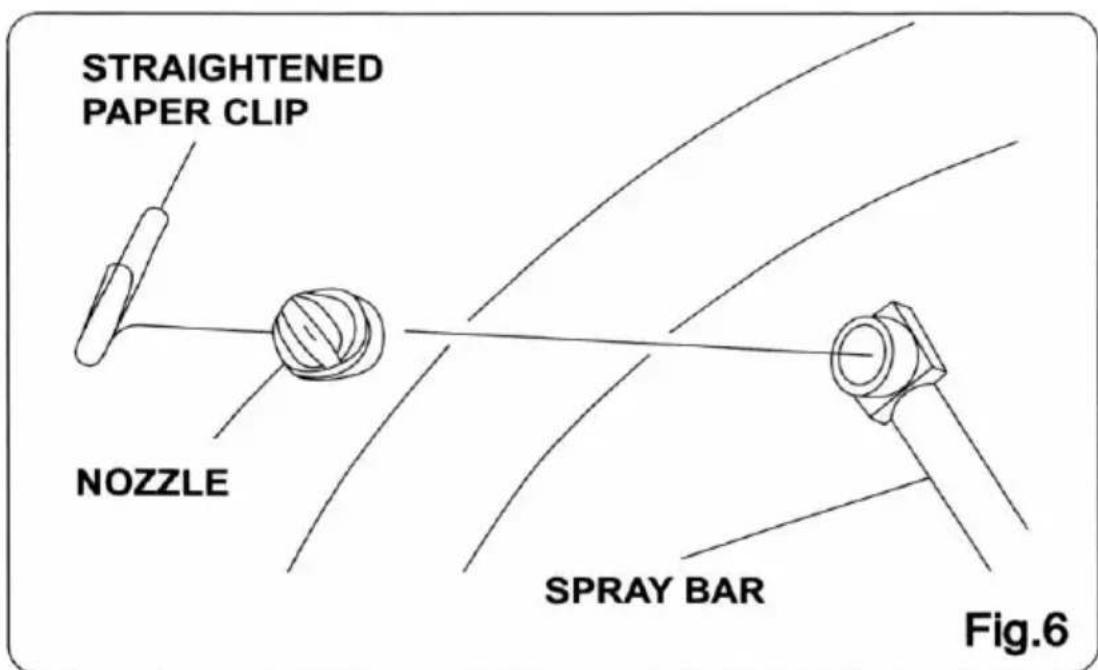

STRAIGHTENED PAPER CLIP NOZZLE SPRAY BAR Fig.6

NOZZLE REPLACEMENT

1. Remove the nozzle from spray bar with an appropriate wrench. Rinse mounting holes with fresh water to clean impurities.
2. Cover new nozzles thread with attached teflon tape.
3. Align the nozzle opening, reinstall nozzles to the spray bar. Tighten securely.

Note: If the nozzle is difficult to remove, please heat it with a hot b before removing.

1 11mm

Close-up of a mechanical component with a curved arrow indicating a turning point (no text or symbols visible)

3 Teflon Tape

Close-up of a metallic mechanical component with a circular knob and a small protrusion, labeled '4' in the corner (no text or symbols on the object itself)

TROUBLESHOOTING
PROBLEM	PROBABLE CAUSI	CORRECTIVE ACTION
Missing parts	Damaged package	Contact our Customer Service help.
Inadequate cleaning power	Not enough PSI f pressure washer	Ensure unit produces a minim pressure washer 2,000 PSI.
	Nozzle obstructed worn	Clean or replace the nozzles.
Spray bar will not rotate	Defective,snap ring dislodged	Do not use! Contact our Customer Service help.
	Unstable connection, the spray bar fell
	Seal malfunction,water shooting from swiv
Excessive vibration of surface cleaner	Nozzle clogged	Clean or replace the nozzles.
Streaked cleaning pattern	Nozzle clogged	Clean or replace the nozzles.
	Cleaning too fast	Slow down pace.
