Product Type	Red Light Therapy Belt
Brand	Vevor
Model	BRL-1140
Dimensions	550 × 350 × 6 mm
Net Weight	1.25 kg
Power Supply	AC Adapter (included)
Rated Power	132 W
Actual Power	26 W
Number of LEDs	264
Wavelengths	630 nm, 660 nm (red), 850 nm (infrared)
Max Irradiance	40 mW/cm²
Adjustable Timer	5, 10, 15, 20, 25, 30 minutes
Energy Modes	L0 to L4 (5 levels)
Pulse Function	Yes
Material	Fabric
Lifespan	Over 50,000 hours
Warranty	1 year
Package Contents	Belt, controller, power cord, 2 elastic straps, adapter, manual, protective glasses
Maintenance	Regularly clean the light-emitting surfaces
Safety	Do not look directly at the LEDs; do not use with a pacemaker; keep out of reach of children
Compliance	FCC, CE, FDA
Therapy Type	Weight loss and pain relief

Frequently Asked Questions - BRL-1140 Vevor

How to use my red light therapy belt?

Place the belt on the area to be treated and secure it with the straps. Press and hold the power button for 3 seconds to turn on. Select the energy level (L0 to L4) and set the timer (5 to 30 min). Press again to start. To turn off, press and hold the button for 3 seconds.

What is the difference between modes L0 to L4?

The modes correspond to light intensity: L0 is the lowest, L4 the highest. Choose a comfortable level. Start with a low level if you are a beginner.

Can I use the belt if I have a pacemaker?

No, use is prohibited for pacemaker wearers as the device may interfere with their operation.

How to clean the belt?

Clean the light-emitting surfaces with a soft, dry cloth. Do not immerse in water. Make sure the ports are clean to avoid loss of efficiency.

Can I look directly at the LEDs?

No, never look directly at the LEDs, especially with optical instruments. Wear the provided protective glasses to protect your eyes.

How long does a treatment session last?

The timer can be set from 5 to 30 minutes per session. Follow the manufacturer's recommendations and adjust according to your comfort.

Does the belt emit visible light?

Yes, the 630 nm and 660 nm LEDs emit visible red light. The 850 nm LEDs are infrared and invisible to the naked eye, but you can see them through a phone's camera.

Can I use it on multiple body parts?

Yes, the belt is flexible and designed to fit different areas such as abdomen, back, thighs, etc. Secure it with the provided elastic straps.

How to know if the belt is working properly?

Turn on the belt: the LEDs should light up (visible for red). If no light appears, check the connections and power supply. Use your phone's camera to check the infrared LEDs.

Where can I find the complete user manual?

The manual is included in the pack. You can also download it for free in PDF format from the website www.vevor.com/support.

USER MANUAL BRL-1140 Vevor

TechnicalSupportandE-WarrantyCertificatewww.vevor.com/support

REDLIGHTTHERAPYBELT

MODEL:BRL-1140

Wecontinuetobecommittedtoprovideyoutoolswithcompetitiveprice. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimateofsavingsyoumightbenefitfrombuyingcertaintoolswithuscomparedtothemajor topbrandsanddosesnotnecessarilymeantocoverallcategoriesoftoolsofferedbyus.You arekindlyremindedtoverifycarefullywhenyouareplacinganorderwithusifyouare actuallysavinghalfincomparisonwiththetopmajorbrands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Woman sitting on a sofa holding a red LED-based device with grid pattern (no visible text or symbols)

NEEDHELP?CONTACTUS!

Haveproductquestions?Needtechnicalsupport?Pleasefeelfreeto contactus:

TechnicalSupportandE-WarrantyCertificate

www.vevor.com/support

Thisistheoriginalinstruction, pleasereadallmanualinstructions carefullybeforeoperating.VEVORreservesaclearinterpretationofour usermanual.Theappearanceoftheproductshallbesubjecttothe productyoureceived.Pleaseforgiveusthatwewon'tinformyouagainif thereareanytechnologyorsoftwareupdatesonourproduct.

InstructionalManual

NEAR INFRARED- INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Measuredvalue

630nm

660nm

850nm

3D diagram of a device with red circular components and grid lines, no visible text or symbols

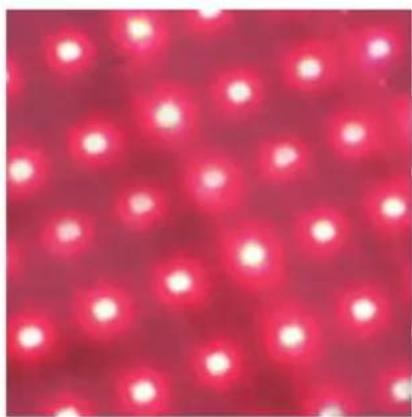

Abstract pattern of red and white dots on a solid background (no text or symbols)

Features:

1: Perfect performance for body treatments likeweight loss and pain relief.
2: Protabledesignsoyoucanuseitindifferentsituations.
3.264pcsledswithwavelength660nm630nmredlightand850nminfraredlight (this lightcannotseebyourowneyes,buttheycanbelightenup,youcancheck with youphonecamera).

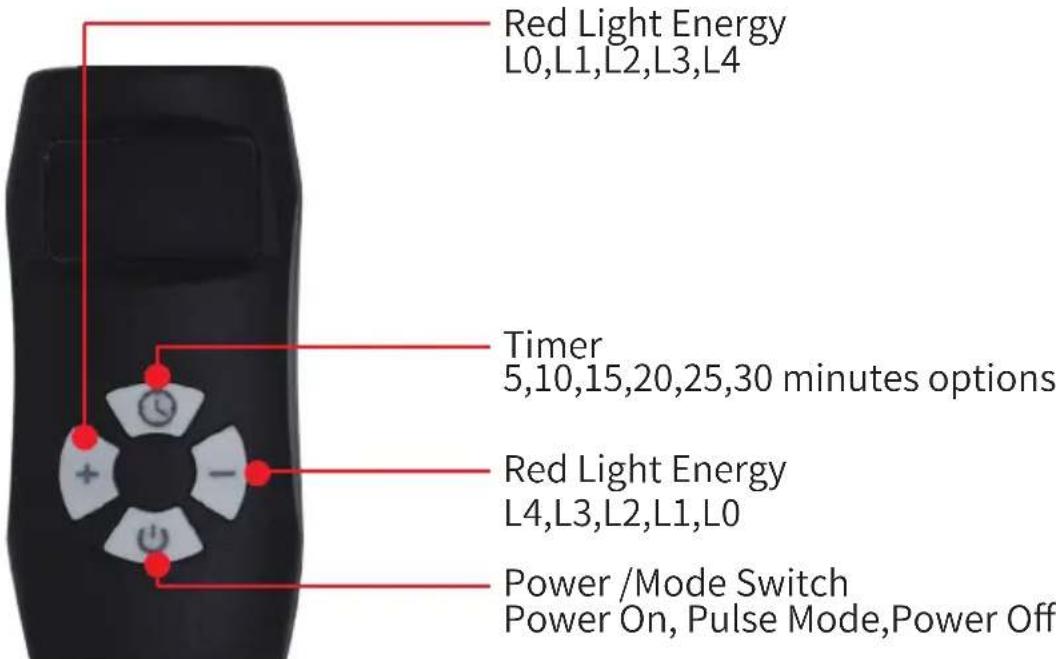

4. Please press the on & off button for 3 seconds when using the switch.
5. Weprovide1yearwarrantyforourbelt.

weightlossandpainrelief

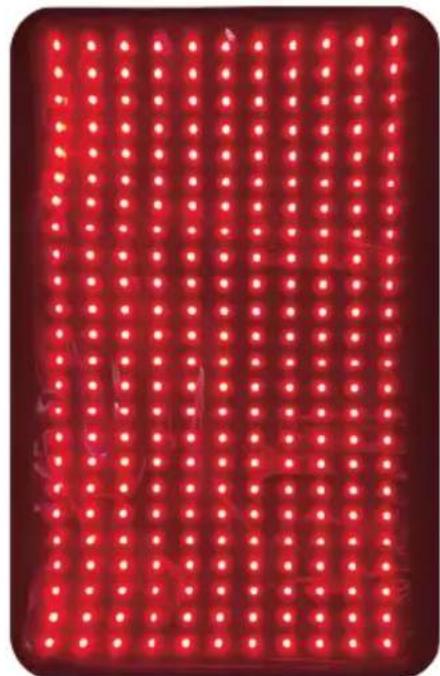

Red LED array pattern on dark background, no text or symbols visible

Woman sitting on a blue couch with a red LED device attached, showing illuminated facial zones (no text or symbols visible)

Woman sitting on a light blue sofa, holding a tablet with red laser effect (no visible text or symbols)

Person lying on a bed with a tablet device, no visible text or symbols

Specifications:

Ratingpower132W
ActualPower26W
ProductSize550*350*6MM
LEDQTY264*0.5W
NetWeight1.25KG
Wavelength1*630nm;1*660nm;1*850nm
EMFOUT
Irradiance	Max:40mW/c m^2
TimerM5/10/15/20/25/30min
MaterialFabric
Lifespan	Over50,000Hours

Thispackageincludes:

1* Red light therapy pad

1* Controller

1* Power cord

2* Stretchy straps

1* Adaptor

1* User manual

1*Goggles

SAFETYCAUTION:

1. Donotmakedirectvieworobservationtothelaserbeamsviaanyoptical instruments.

2. Keepoutofreachofchildrentopreventinjuriestotheireyes.

3. It's forbidden for pacemaker users since the device may interfere with the operation of pacemaker.
4. During the treatment period, the diet structures should be improved and proper exercises are necessary toenhancethemetabolism.
5. When using the device, please keep lightemiting ports clean. Otherwise, the light losses will increase and then affect effects.
6. Thesymptomslikethirst, dryeyes, d izzinessorriseofpulserateafteruseare normalphenomena.

CORRECTDISPOSAL

ThisproductissubjectttotheprovisionofeuropeanDirective 2012/19/EU. Thesymbolshowingawheeliebincrossedthrough indicatesthattheproductrequiresseparaterefusecollectioninthe EuropeanUnion. Thisappliestotheproductandallaccessories

markedwiththissymbol.Productsmarkedassuchmaynotbediscardedwith normaldomesticwaste,butmustbetakentoacollectionpointforrecycling electricalandelectronicdevices.

FCCInformation:

CAUTION: Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe equipment!

ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothe followingtwoconditions:

1) Thisproductmaycauseharmfulinterference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changesormodificationstothisproductnotexpresslyapprovedby theparty.responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe product.

Note: ThisproducthasbeentestedandfoundtocomplywiththelimitsforaClass B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to providereasonableprotectionagainsttharmfulinterferenceinaresidential installation.

Thisproductgenerates,usesandcanradiatera diofrequencyenergy,andifnot installedandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisproductdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby turningtheproductoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasu res.

• Reorientorrelocatethereceivingantenna.
• Increasethedistancebetweentheproductandreceiver.
• Connect the product to an outlet on a circuit different from that which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforassistance.

VEVOR®

TOUGH TOOLS, HALF PRICE

TechnicalSupportandE-WarrantyCertificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Woman sitting on a sofa holding a red LED-based fitness card (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Valeur mesurée

630 nm

660 nm

850 nm

Close-up of a metallic electronic component with red circular features and a grid pattern (no visible text or symbols)

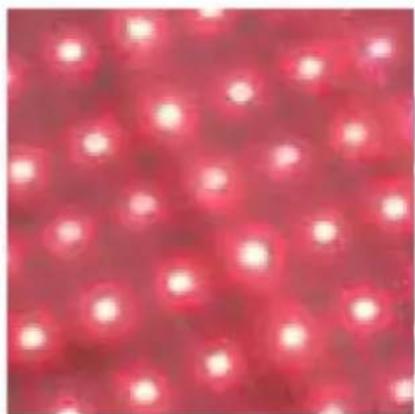

Abstract pattern of red and white dots on a dark background (no text or symbols)

Caractéristiques:

Red rectangular panel with evenly spaced small white dots arranged in a grid pattern (no text or symbols)

Woman sitting on a blue sofa with a red digital display showing internal activity (no text or symbols visible)

Top-down view of a black remote control device with five rotary buttons (clock, plus, minus, power) and red indicator lines (no text or symbols)

Options de minuterie 5, 10, 15, 20, 25, 30 minutes

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red flame (no text or symbols visible)

Caractéristiques:

Woman sitting on a sofa holding a red LED-shaped device (no text or symbols visible)

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Messwert

630 nm

660 nm

850 nm

Close-up of a metallic electronic component with red circular features and a grid pattern (no visible text or symbols)

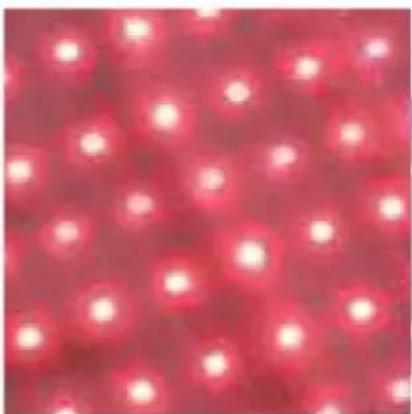

Abstract pattern of red and white dots on a dark background (no text or symbols)

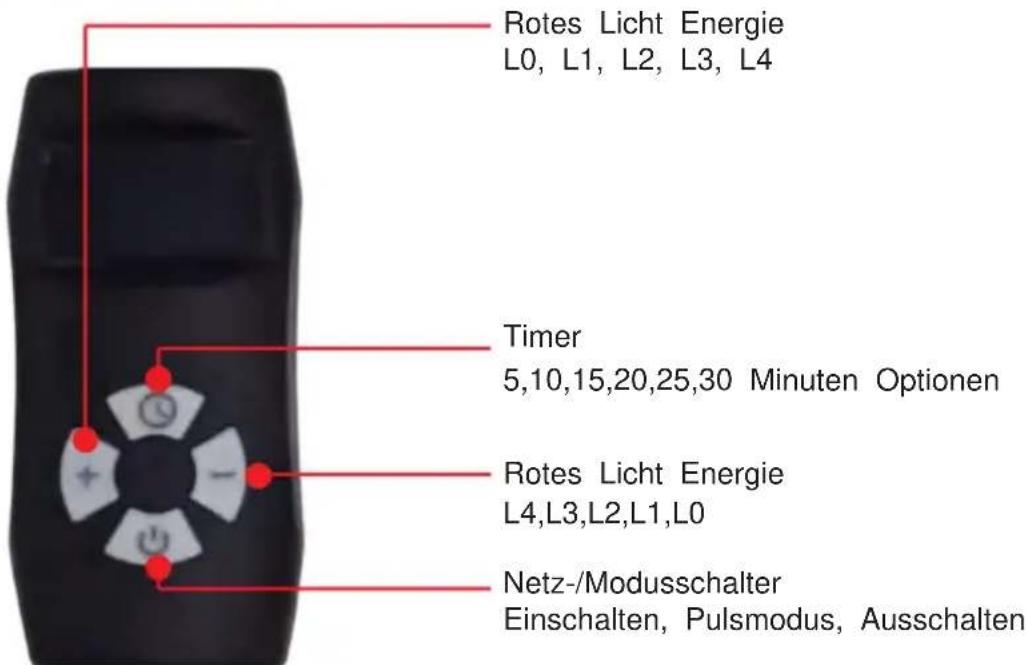

Merkmale:

Red LED array pattern with evenly spaced dots, no text or symbols visible

Woman sitting on a sofa with a tablet displaying a red thermal or therapeutic device, no visible text or symbols.

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red thermal or heat map (no visible text or symbols)

Spezifikationen:

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Woman sitting on a sofa holding a red LED-based fitness card (no text or symbols visible)

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Valore misurato

630nm

660nm

850nm

3D diagram of a device with red circular components and dashed lines indicating alignment or measurement (no text or symbols)

Abstract pattern of red and white dots on a dark background (no text or symbols)

Caratteristiche:

Red rectangular panel with evenly spaced small white dots arranged in a grid pattern (no text or symbols)

Woman sitting on a sofa wearing a blue top and white tank top, lying on her back with a red thermal imaging device (no visible text or symbols)

Close-up of a black remote control device with five rotary buttons and red indicator lights (no text or symbols visible)

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red X-ray or CT scan (no visible text or symbols)

Specifiche:

Woman sitting on a sofa holding a red illuminated rectangular device with dot patterns (no text or symbols visible)

NEAR INFRARED- INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Valor medido

630 nm

660 nm

850 nm

Close-up of a metallic electronic component with red circular features and a grid pattern (no visible text or symbols)

Abstract pattern of red and white dots on a dark background (no text or symbols)

Características:

Red LED array pattern with evenly spaced dots, no text or symbols visible

Woman sitting on a sofa with a tablet displaying a red thermal or therapeutic device, no visible text or symbols.

Close-up of a black remote control device with four rotary buttons and indicator lights (no text or symbols visible)

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red flame (no text or symbols visible)

Presupuesto:

Woman sitting on a sofa holding a red illuminated rectangular device (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Wartość zmierzona

630nm

660nm

850nm

3D diagram of a device with red circular components and dashed lines indicating alignment or measurement (no text or symbols)

Abstract pattern of red and white dots on a dark background (no text or symbols)

Cechy:

Red rectangular panel with evenly spaced small white dots arranged in a grid pattern (no text or symbols)

Woman sitting on a sofa wearing a blue top and white tank top, lying on her back with a red thermal imaging device (no visible text or symbols)

Woman sitting on a blue sofa with a bandage, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red flame (no text or symbols visible)

Dane techniczne:

Woman sitting on a sofa holding a red illuminated rectangular device with glowing spots (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Gemeten waarde

630nm

660nm

850nm

3D diagram of a device with red circular components and dashed lines indicating alignment or measurement (no text or symbols)

Abstract pattern of red and white dots on a dark background (no text or symbols)

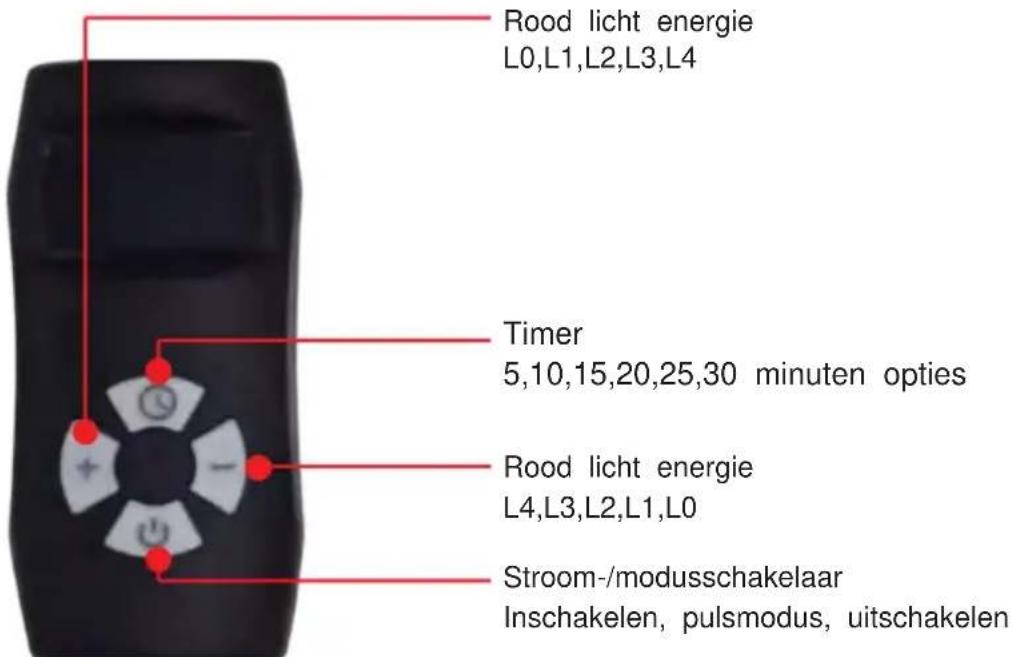

Functions:

Red LED array pattern with evenly spaced dots on a dark background (no text or symbols)

Woman sitting on a sofa with a tablet displaying a red thermal or therapeutic device, no visible text or symbols.

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red flame (no text or symbols visible)

Specifications:

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Woman sitting on a sofa holding a red LED-based fitness card (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

NEAR INFRARED-INFRARED A (IR A)

Usually use 660nm-850nm

Invisible near infrared energy are absorbed by muscle, subcutaneous tissue, which results in THERMAL EFFECT

your body responds to this radiation heat with increased blood flow, allowing the parts of the body to receive the oxygen and nutrients they need in order to function more effectively, regeneration is stimulated.

Uppmätt värde

630 nm

660 nm

850 nm

Close-up of a metallic electronic component with red circular features and a grid pattern (no visible text or symbols)

Abstract pattern of red and white dots on a dark background (no text or symbols)

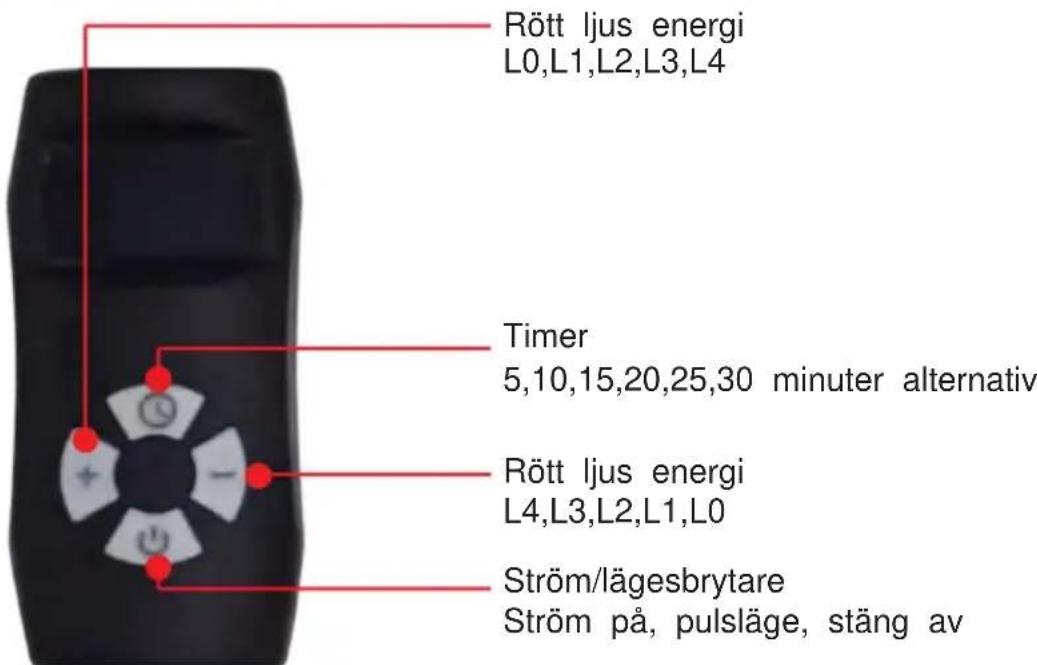

Drag:

Red LED array pattern with evenly spaced dots, no text or symbols visible

Woman sitting on a sofa with a red overlay of text on her back, no visible text or symbols in the image.

Woman sitting on a blue sofa with a bandaged leg, wearing a white top and black shorts (no visible text or symbols)

Person lying on a bed with a tablet displaying a red flame (no text or symbols visible)

Specifikationer:
