BRL-1120 - Red light therapy device Vevor - Free user manual and instructions

Product Type	Red Light Therapy Belt
Brand	Vevor
Model	BRL-1120
Wavelengths	660 nm (visible red light) and 850 nm (near infrared)
Rated Power	60 W
Actual Power	15 W
Maximum Irradiance	40 mW/cm²
Number of LEDs	120 (0.5 W each)
Built-in Timer	20 minutes
Dimensions (L x W)	41 cm x 20 cm
Net Weight	200 g
Material	Fabric
Lifespan	Over 50,000 hours
Power Supply	AC adapter included; compatible with external USB battery
Package Contents	Light pad, power cord, adapter, USB cable, extension straps, user manual
Usage	Humans and animals
Applications	Muscle and joint pain, wound healing, blood circulation, weight loss, anti-inflammatory
Safety	Do not look directly at LEDs; do not use more than 30 min per session; not recommended for children and pregnant women; not waterproof; do not use while sleeping
Certifications	FC, FDA, CE
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - BRL-1120 Vevor

How long per session should I use the therapy belt?

It is recommended not to exceed 30 minutes per session. The built-in timer is set to 20 minutes by default.

Can I use the device on my pet?

Yes, the device is designed for use on humans and animals. Follow the same safety precautions.

What wavelengths are used and what do they do?

The device combines LEDs at 660 nm (visible red light) targeting skin cells, and LEDs at 850 nm (invisible near infrared) penetrating deep tissues.

Can I use the device if I have a pacemaker?

No, use is prohibited for pacemaker wearers as the device may interfere with their function.

How to clean the belt?

The device is not waterproof. To clean it, use a slightly damp soft cloth. Do not use chemicals and do not immerse it in water.

Can I use an external battery to power the device?

Yes, the device can be powered via the USB port using an external battery (not included). This allows for portable use.

Are there risks to the eyes?

Yes, never look directly at the LEDs. Keep the device out of reach of children to avoid risk of eye injury.

Is the device effective for joint pain?

Yes, red light therapy is recognized to help relieve muscle and joint pain, improve blood circulation, and reduce inflammation.

Can I use the device during pregnancy?

No, use is not recommended for pregnant women as a precaution.

What if the device stops working?

Contact technical support via www.vevor.com/support for assistance and to benefit from the electronic warranty.

USER MANUAL BRL-1120 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RED LIGHT THERAPY BELT

MODEL: BRL-1120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RED LIGHT THERAPY BELT

MODEL: BRL-1120

Woman wearing a black-and-white bodyband and holding a cup, standing beside a red LED grid panel (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your product.

InstructionalManual

Red-Light-TherapyforHuman&Animals!

Thankyouforpurchasingourlight,wehopeyoucanreapbenefitsofredlight therapyathome.

Sayhellotoyourredlight!

Beforestartingyourfiestsession, pleasemakesuretoreadthismanualasitmay explainimportantoperatingprocedures.

Notes: Eachleddiodeinsidewiththreechipsat1pc660nmand2pcs850nmis invisibletothehumanmakedeves.

Specifications

RatingPower60W	Wacelength1*660nm2*850nm
ActualPower15W	Irradiance		Max:40mW/c m^2
ProductSize16.1	in*7.9in/41cm*20cmTimer20min
LEDQTY	120*0.5w	Material	Fabric
Net Weight	200g	Lifespan	Over 50,000 Hours

Theredlightdeviceusescombined660nmandInfrared850nmledswhichis chosen to give the ideal wavelengths found in the scientific research of the last threedecades.

660nmofredlight

Thislightcanbeseenbythehumaneyesandtargetsskincells.

850nmofnearinfraredlight

Thislightcannotbeseenbythehumaneyesandtargetsdeeptissue.

Thispackageincludes

1* Red light therapy pad

1* Power cord

1* Adaptor 1* USB power cord

1* Stretchy straps

1* User manual

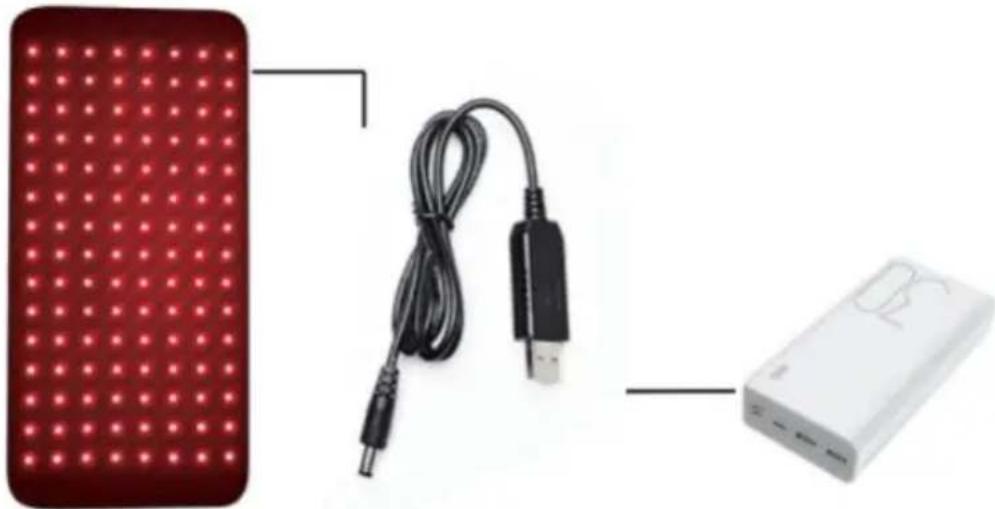

Way 2 : Power bank supply power

Product photo showing a red LED grid panel connected to a black USB cable and a white power bank (no text or symbols visible)

Benefitsbackedbyscience:

Research shows that the wavelengths in the spectrum of 660-900nm show optimalbiotical response.

-Muscle and Joints Pain
-Speed wound healing
-Enhanced blood circulation
-Weight loss
-Anti-inflammatory
-Decreases pain

Even though this technology don't have side effects, we suggest taking the following precautions:

This device is not waterproof

This device is not suitable for children and pregnant woman

Do not use this device exceed 30 minutes each time

Do not stare at the light directly

It's NOT recommend to use it when sleeping

Please storage it away from children

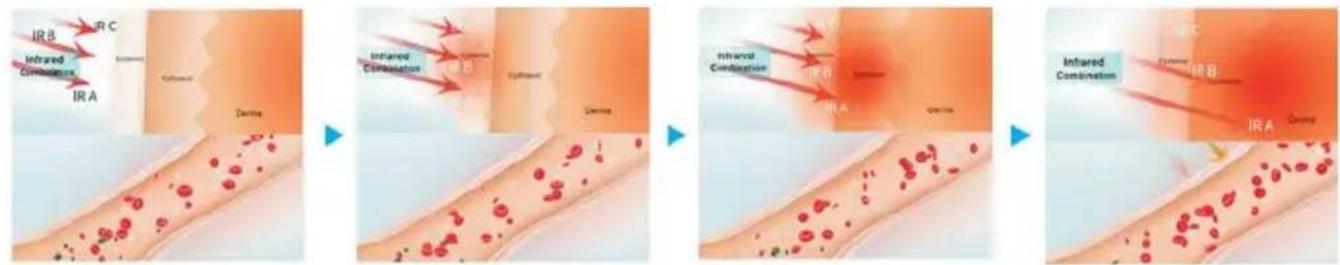

Application

Here show you some examples how to use the red light device . You and your pets can enjoy the red light at different ways for like thighs, calves, kn Near Infrared-Infrared A(IR A)

Usually use 660nm\~850nm

Invisible near infrared energy are absorbed by muscle , subcutaneous tissue, which results in THERMAL EFFECT, your body responds to this radiation heat with increased blood flow,allowing the parts of the body to receive the oxygen nutrients they need in order to function more effectively,regeneration is stimula

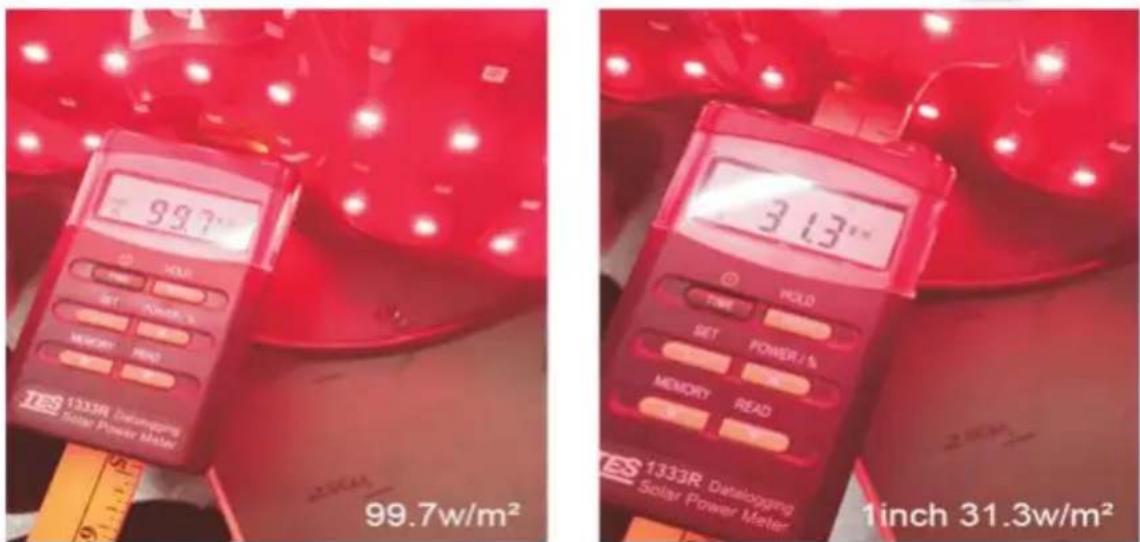

Measured value

Note:

Indoor use only : Light is not waterproof . can not used in water or in wEspecially can not be used with essential oils.

Repairing : If your light need after-sale service, please contact us directly. Installation: To avoid the danger of electric shock, please turn off the power switch before installation.

SAFETY CAUTION:

1. Do not make direct view or observation to the laser beams via any optic instruments.
2. Keep out of reach of children to prevent injuries to their eyes.
3. It's forbidden for pacemaker users since the device may interfere with the operation of pacemaker.
4. During the treatment period, the diet structure should be improved and an proper exercises are necessary to enhance the metabolism.
5. When using the device, please keep light emitting ports clean. Otherwise, light losses will increase and then affect effects.
6. The symptoms like thirst, dry eyes, dizziness or rise of pulse rate after u normal phenomena.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must taken to acollection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
