7009FL - Shower panel Vevor - Free user manual and instructions

Product Type	Shower Panel Tower
Model	7009FL
Mounting Type	Wall Mount
Connection Thread	G1/2"

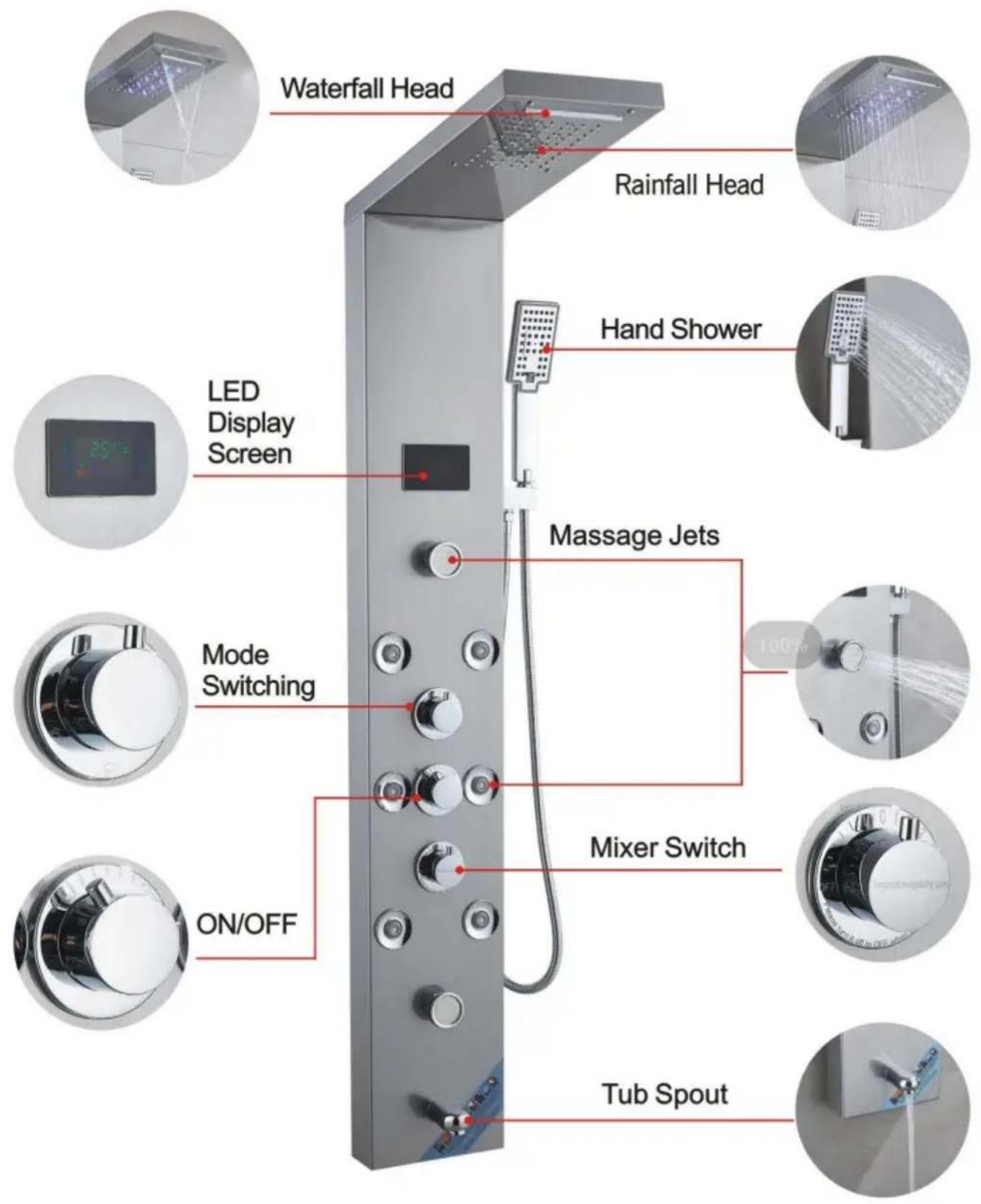

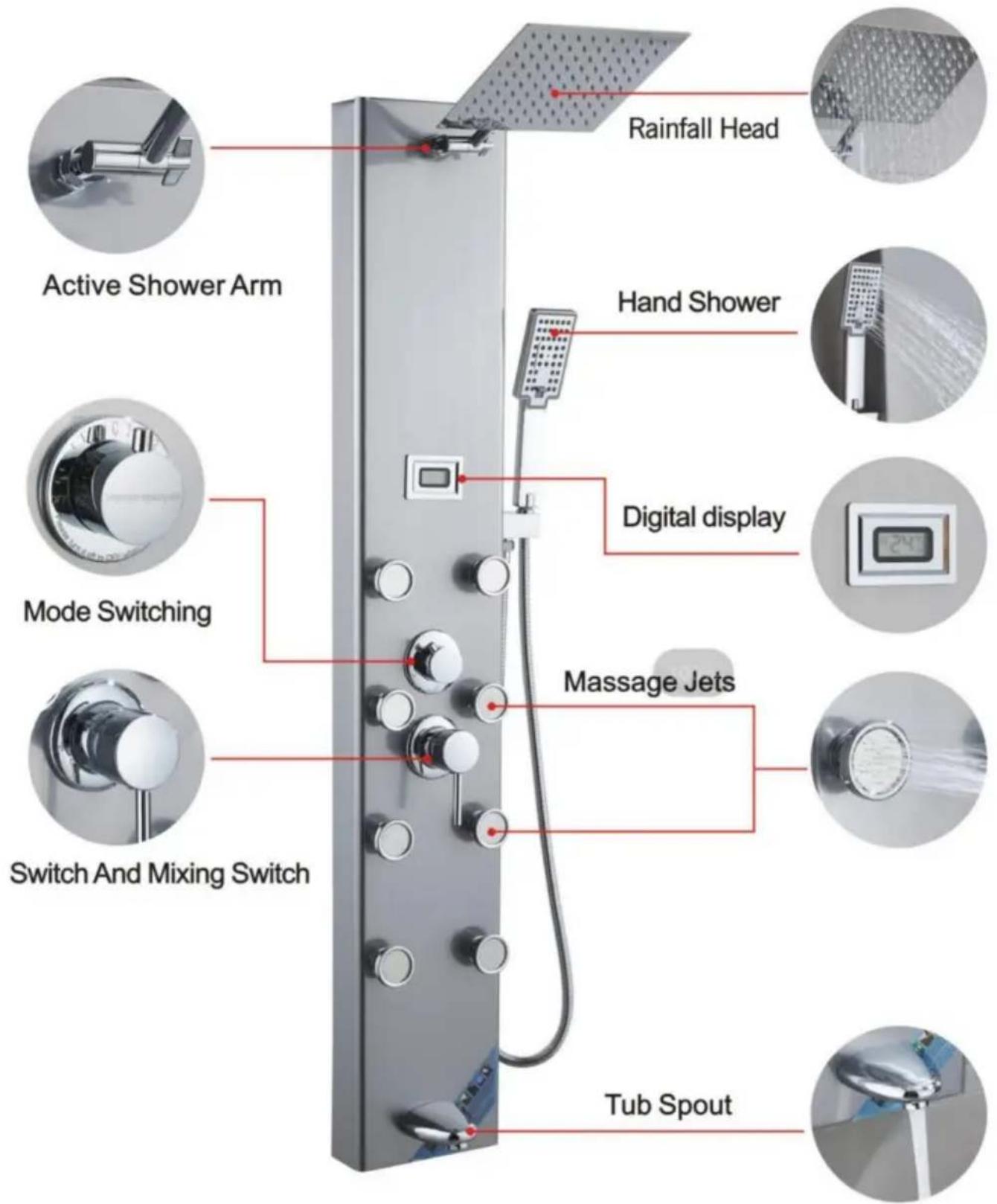

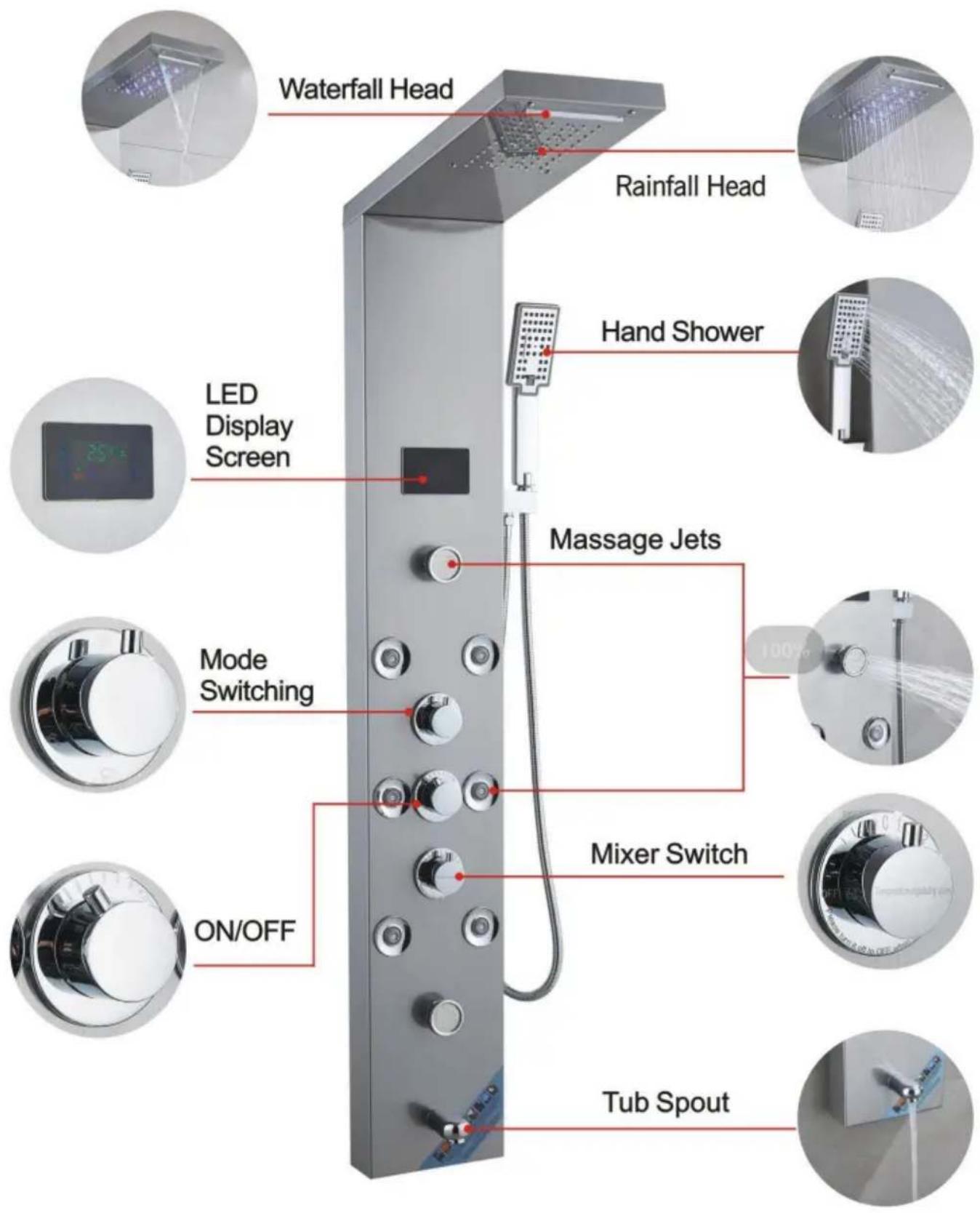

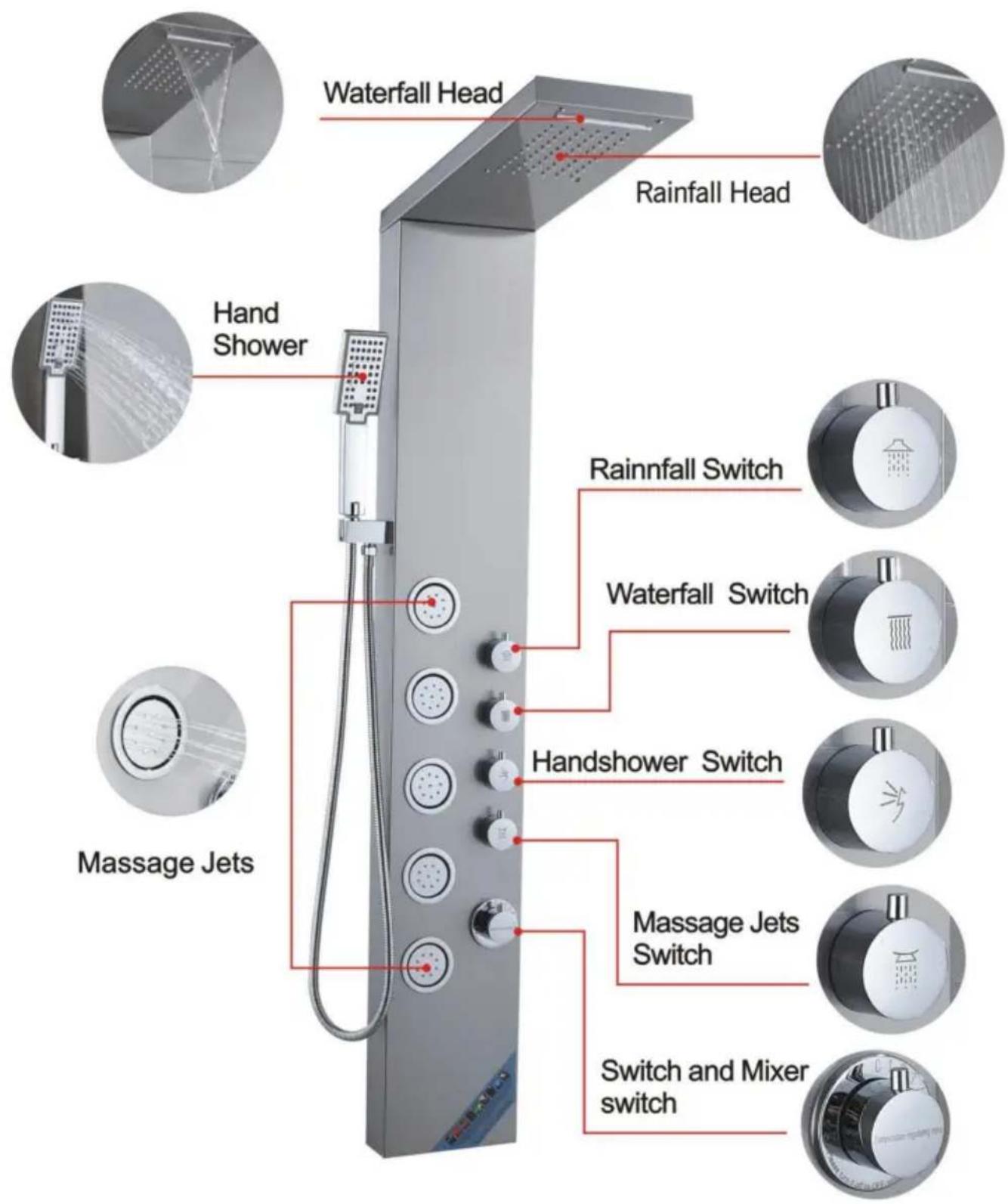

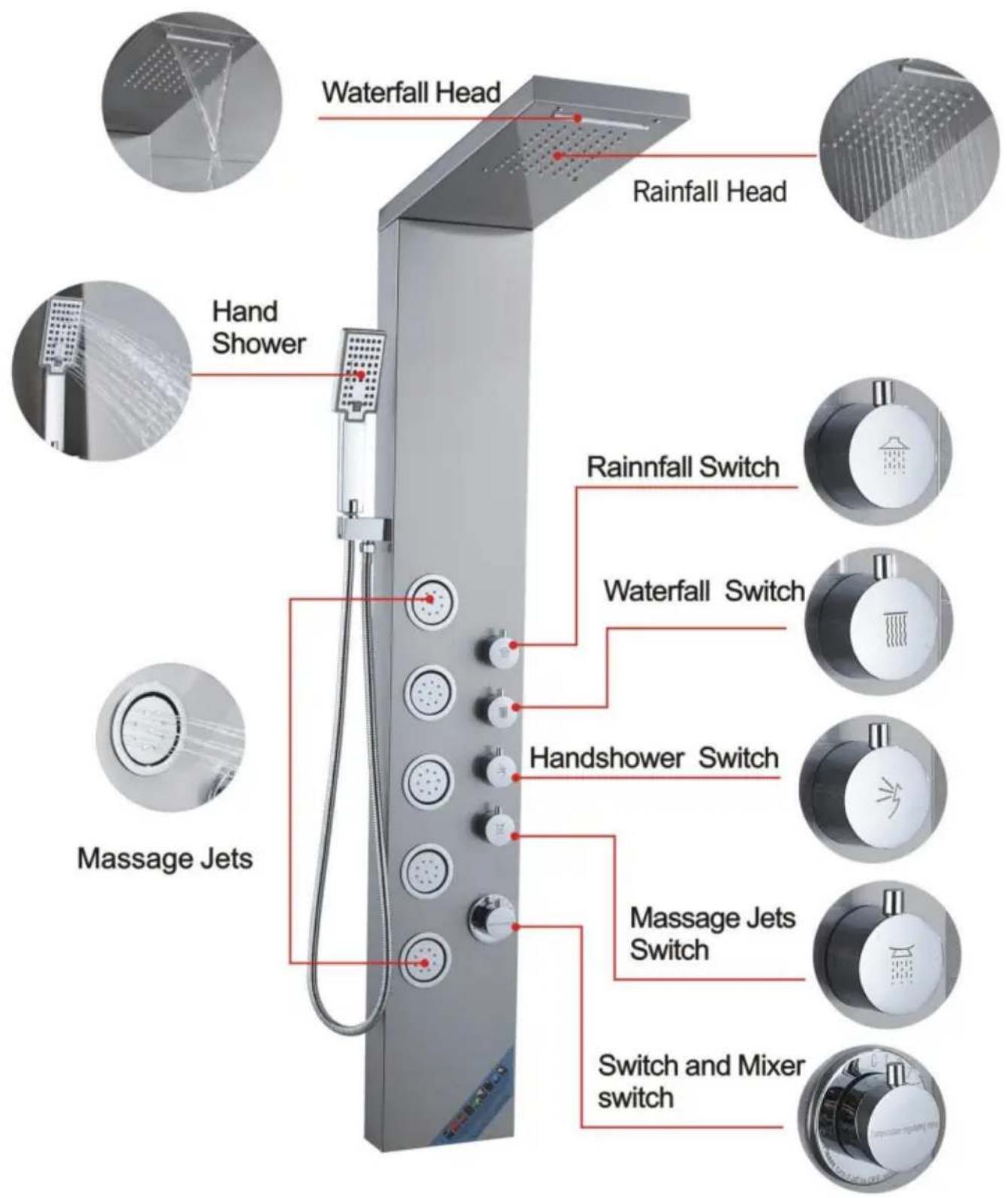

Functions	Five Modes (Rainfall, Hand Shower, Massage Jets, Tub Spout, Mode Switching)
Temperature Display	Yes (Digital Display)
LED Lamp	No
Power Supply	Dry Cell (DC3V) – 2 pcs AA batteries
Hand Shower	3-Setting Handheld Shower
Tub Spout	Yes
Finish	Fingerprint-free Brushed Nickel
Material	Stainless Steel, Brass, PVC, ABS
Handspray Hose Length	1.5 meters
Package Contents	Panel, Top Spray, Hand Shower, Hose, Mounting Hardware, Battery Box, etc.
Maintenance	Clean with water or mild detergent; wipe with soft cloth
Safety	Use gloves during installation; tighten all joints to prevent leaks; ensure water inlet pipes are not folded
Compliance	FCC Part 15, European Directive 2012/19/EC (WEEE)
Warranty	Technical support and e-warranty certificate via www.vevor.com/support

Frequently Asked Questions - 7009FL Vevor

What is the power source for the VEVOR 7009FL shower panel?

The panel operates on DC 3V power supplied by 2 AA batteries installed in the battery box.

Can the shower panel be used without batteries?

No, the digital display and certain functions require the battery power. Without batteries, only basic water flow may function.

Does the 7009FL model include an LED light?

No, the 7009FL does not have an LED lamp feature. It has a digital temperature display but no lighting.

How many spray functions does the handheld shower have?

The handheld shower comes with 3 different settings you can switch between for varied water spray patterns.

What is the connection size for the water supply?

The panel uses standard G1/2 inch (1/2 inch BSP) connections for both hot and cold water inlets.

How do I clean and maintain the brushed nickel finish?

Clean with water or mild detergent and wipe with a soft cloth. Avoid abrasive cleaners to preserve the fingerprint-free finish.

Is the tub spout included with the 7009FL model?

Yes, the 7009FL includes a tub spout for filling the bathtub.

What materials is the shower panel made of?

The panel is constructed from stainless steel, brass, PVC, and ABS plastic for durability.

How do I install the shower panel on the wall?

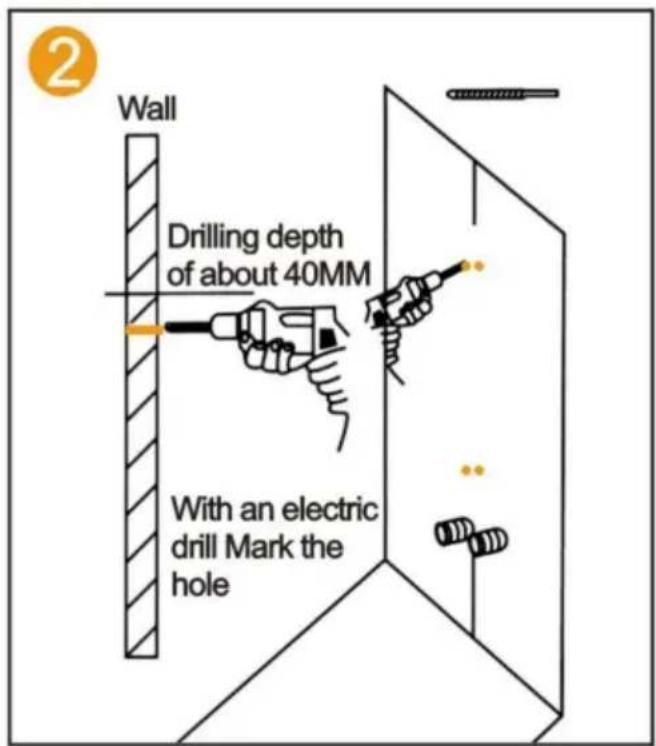

Mark the mounting points, drill holes about 40 mm deep, insert wall plugs, mount the fasteners, connect the water supply, then hang the panel onto the fasteners. All hardware is provided.

Where can I find technical support for the VEVOR 7009FL?

Visit the VEVOR support website at www.vevor.com/support for manuals, technical support, and warranty claims.

USER MANUAL 7009FL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOWER PANEL TOWER

MODEL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOWER PANEL TOWER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

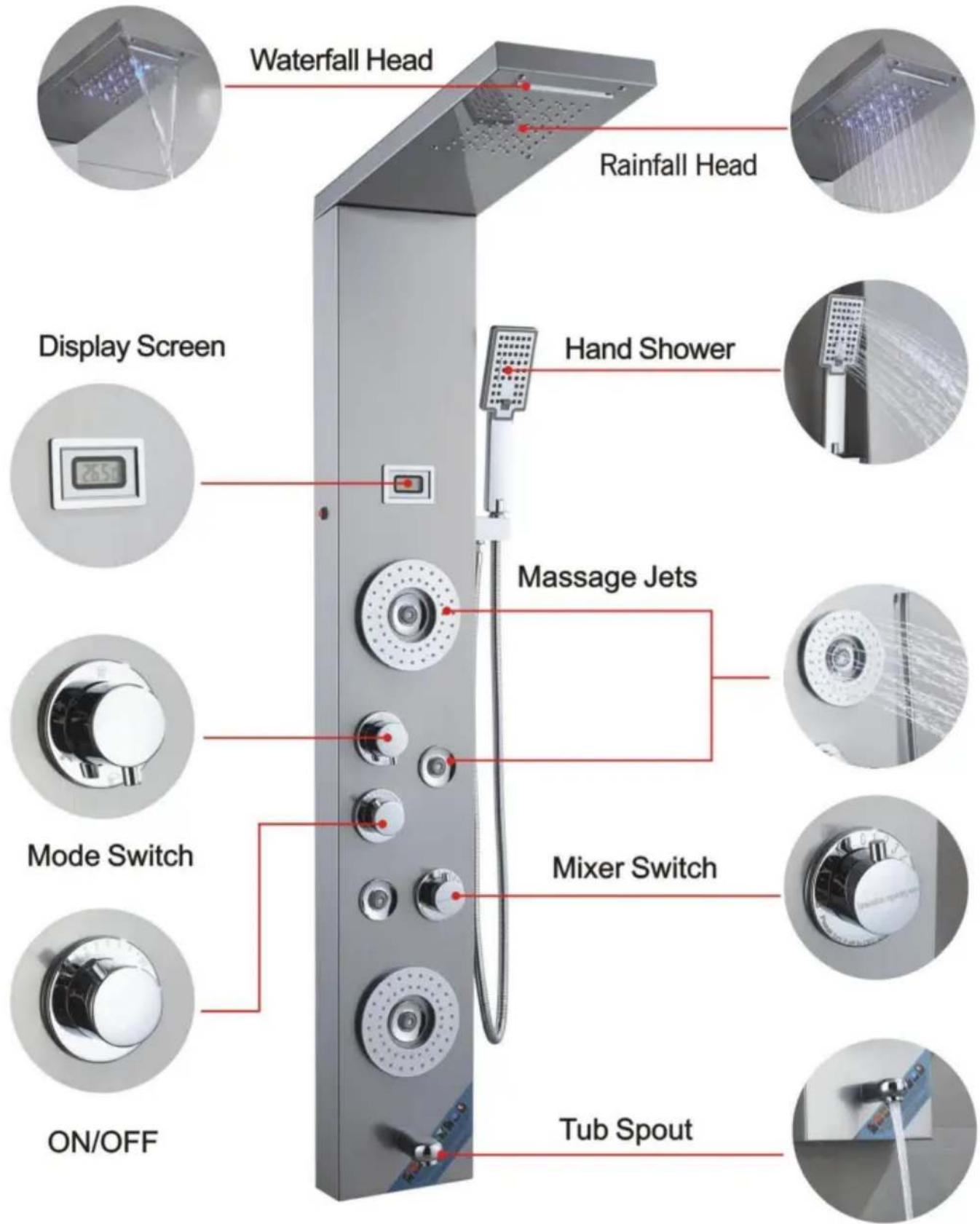

PRODUCT INTRODUCTION

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices.

Warning Tips:

1. During the installation process, it is best to wear gloves to prevent sharp
   corners on the panel from scratching the palm of the
2. When installing the shower, ensure that all joints a tightened to avoid water leakage.

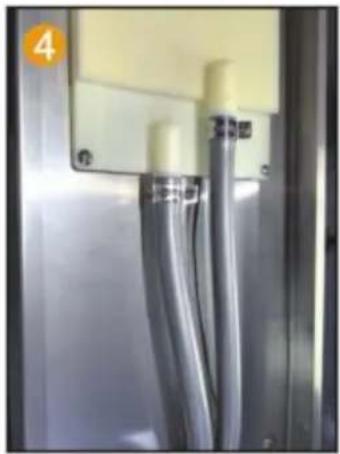

3. Ensure that the red and blue water inlet pipes inside the panel are in a folded state to avoid affecting water pressure.
4. When the shower is not in use, please close the switch valve of the sh

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules. These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

INSTALLATION INSTRUCTIONS

Model	8015FL	6002FL	8039FL	8009FL	8004FL	7009FL
Mounting Type	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount	Wall Mount
Connection Thread	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functions	Four Modes	Five Modes	Six Modes	Six Modes	Six Modes	Five Modes
Tub Spout	×	√	√	√	√	√
Temperature Display	×	×	√	√	√	√
LED Lamp	×	√	√	√	√	×
Power	×	Dry Cell (DC3V)	Dry Cell (DC3V)	Hydro Power (AC6V)	Hydro Power (AC6V)	Dry Cell (DC3V)
Hand Shower	3-Setting	1-Setting	3-Setting	3-Setting	3-Setting	3-Setting
Finish	Fingerprint-free Brushed Nickel shower system
Material	Stainless Steel, Brass, PVC, ABS

PARTS LIST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

ASSEMBLY INSTRUCTIONS

MODEL 8015FL/6002FL/8039FL/8009FL

Close-up of hands installing a cable or wire component on a metal frame (no text or symbols visible)

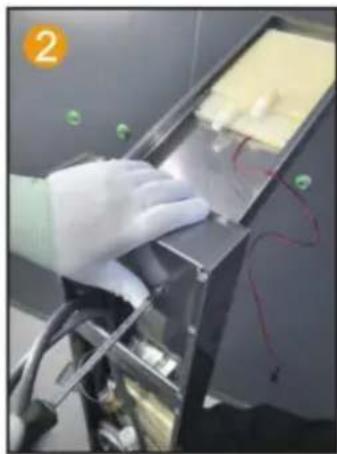

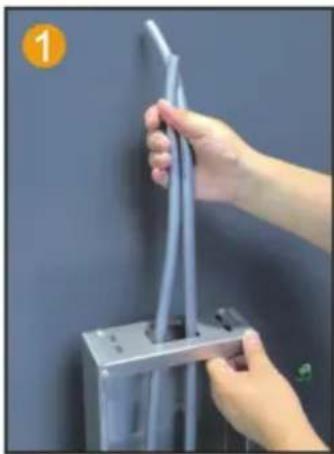

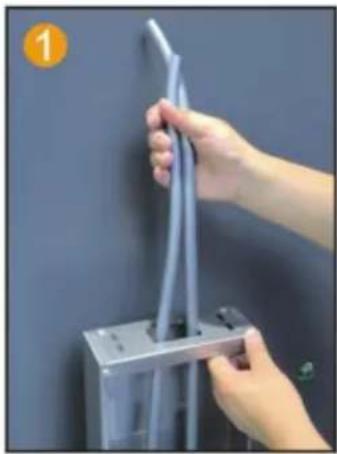

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic cable with wires inside a metal enclosure (no visible text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a central rectangular cutout and bolt holes (no visible text or symbols)

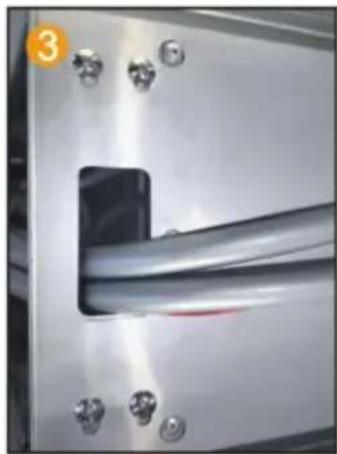

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of a metallic shelf with white insulation and coiled tubing, no visible text or symbols

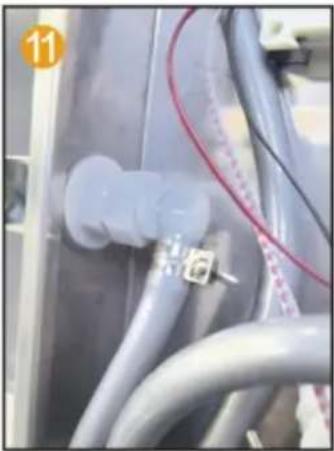

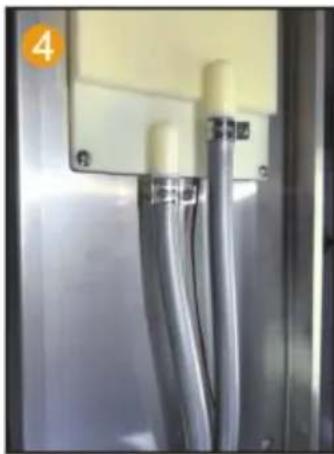

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of hands using a tool to adjust or install a cable or wire inside an electrical enclosure (no visible text or symbols)

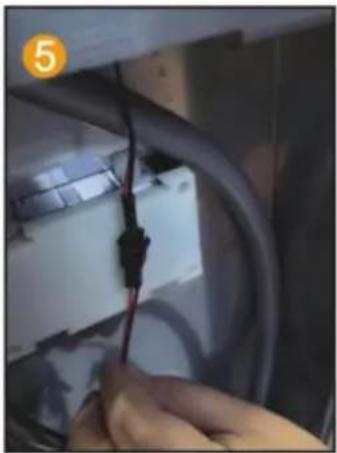

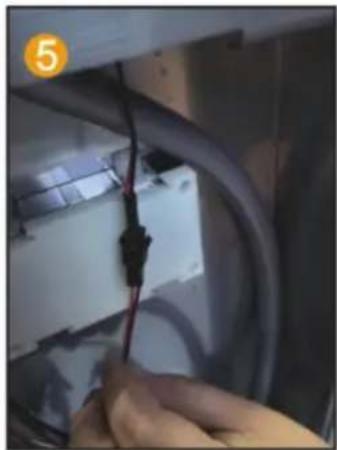

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

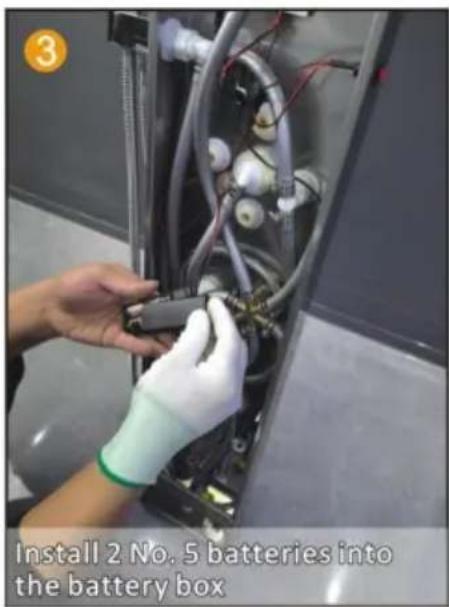

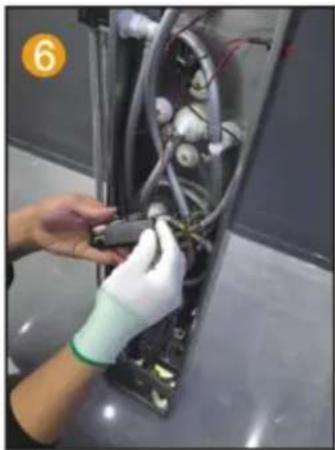

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic device with wires, next to mechanical components (no visible text or symbols)

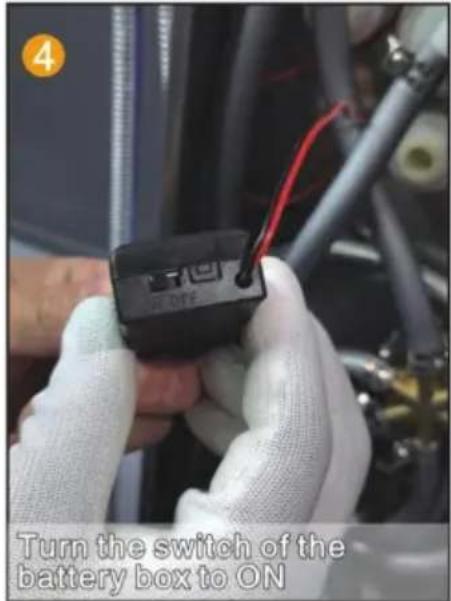

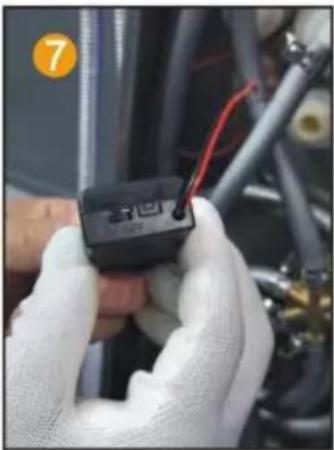

Point the switch of the battery box towards ON

Close-up of a metallic connector with red wires attached, no visible text or symbols

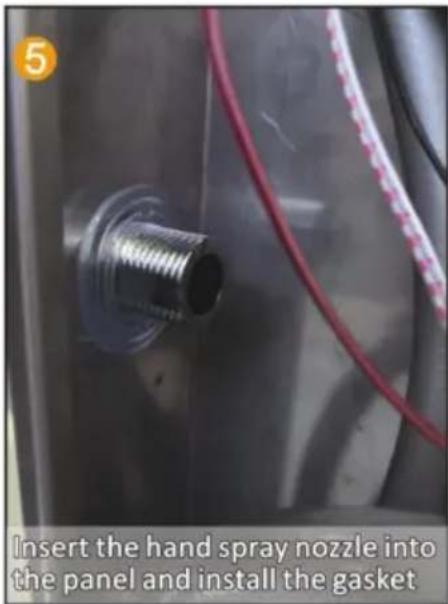

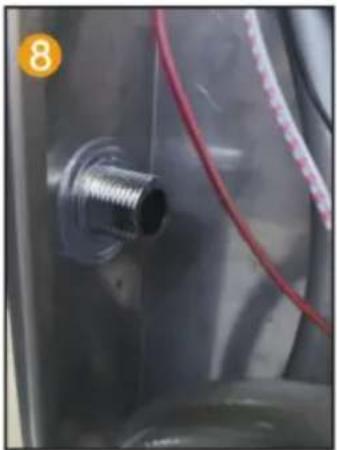

Insert the hand spray nozzle into the panel And install the gasket

Close-up of a metallic industrial electrical panel with wiring and connectors (no visible text or symbols)

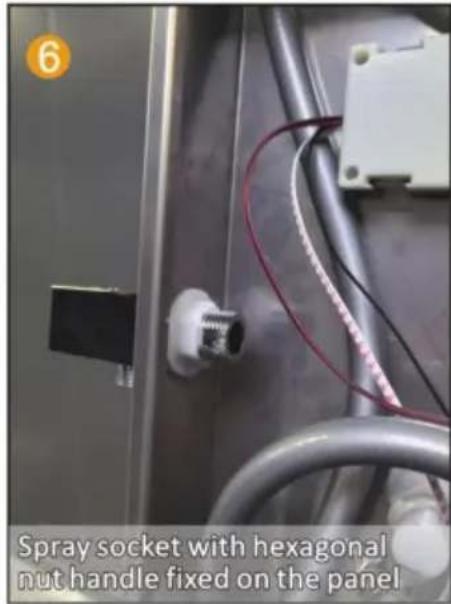

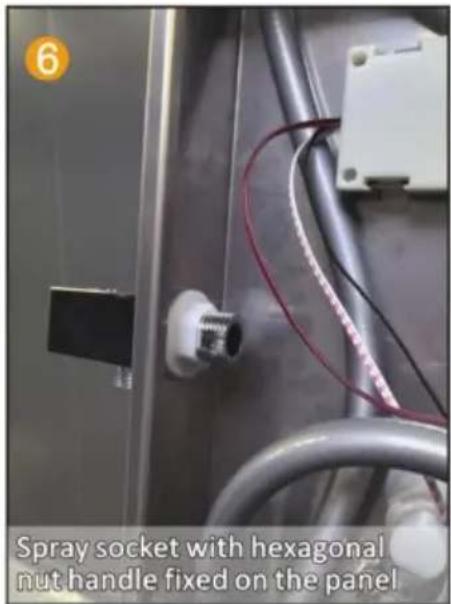

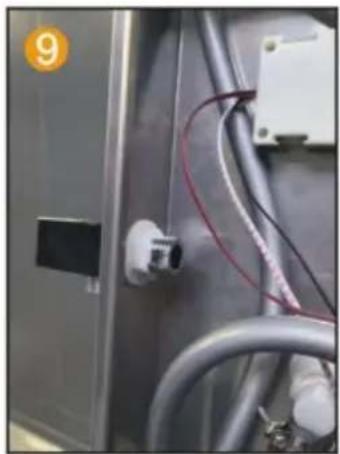

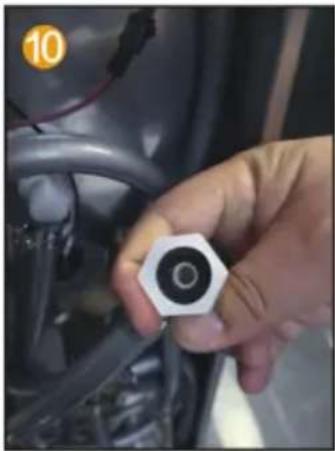

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal nut component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Close-up of a medical or laboratory setup with blue plastic connectors and tubing (no visible text or symbols)

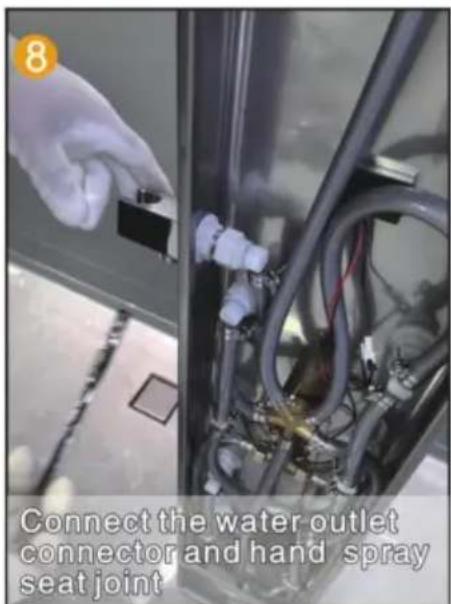

Connect the water outlet connector and hand spray Seat joint

Close-up of a mechanical component with threaded fasteners and a vertical blade (no visible text or symbols)

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel appliance with a digital display and control panel (no visible text or symbols)

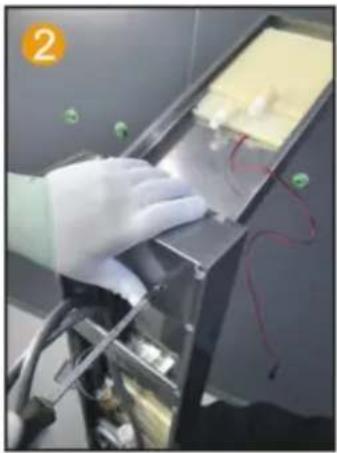

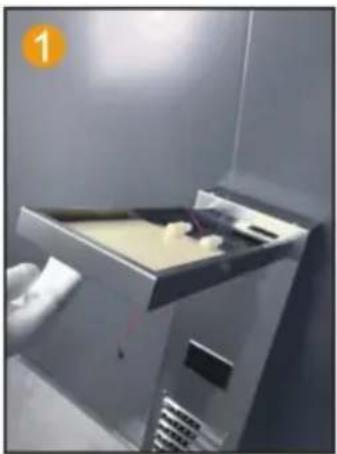

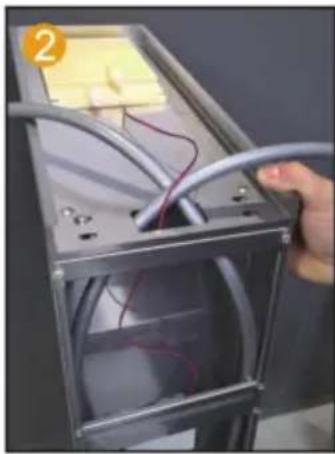

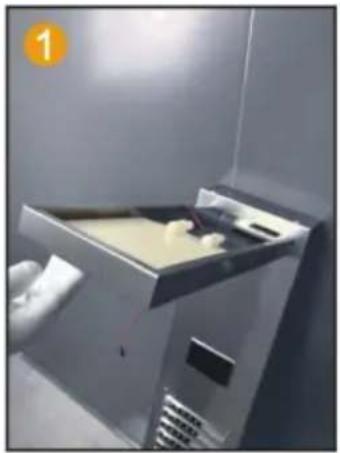

Insert the top spray into the motherboard inside the hole

Person in gloves handling a device with wires and components (no visible text or symbols)

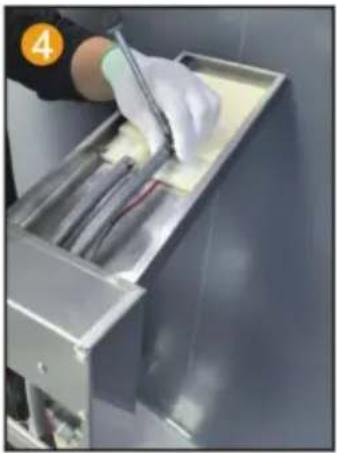

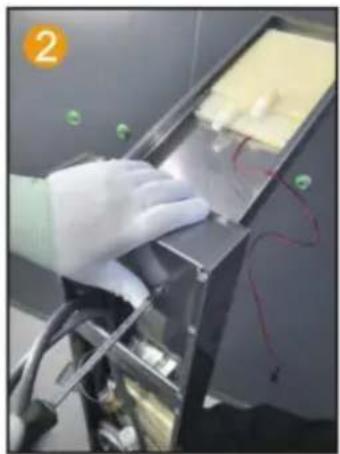

Use 2 M4 screws to secure the main Fixed plate and top spray

Close-up of a laboratory setup with two tubes inserted into a container, no visible text or symbols

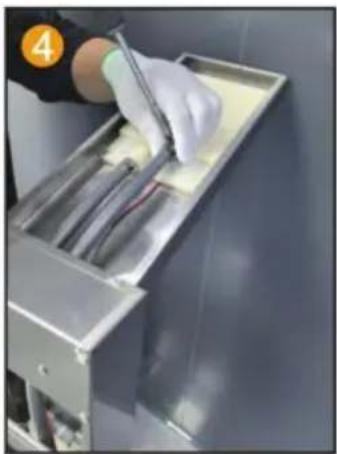

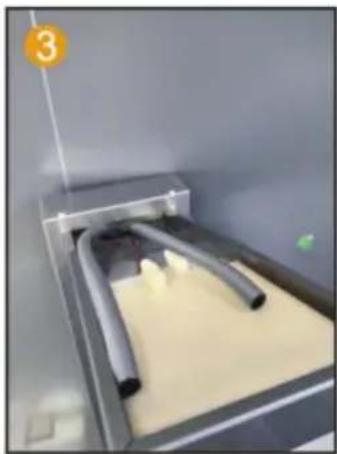

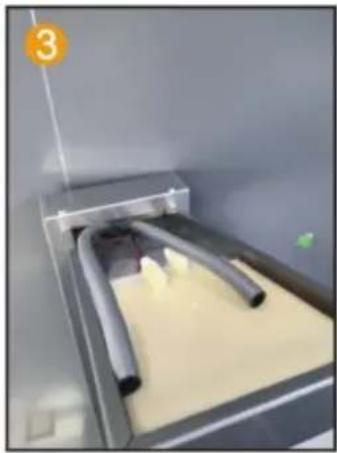

Connect PVC pipes and LED light wires Thread through the hole

Close-up of a gloved hand using a tool to clean or inspect internal components (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

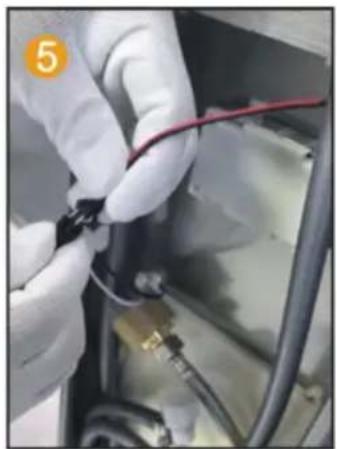

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

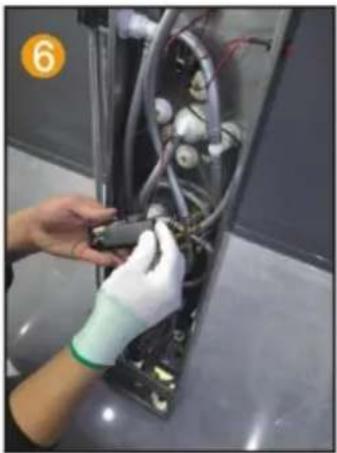

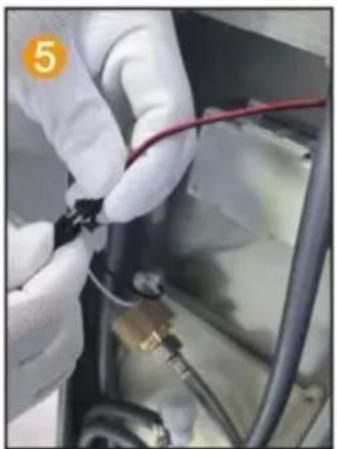

Connect the LED light cable and power supplyline

Close-up of a metallic connector with threaded shaft and red cable, no visible text or symbols

Insert the hand spray nozzle into the panel and install the gasket

Close-up of a metallic industrial electrical panel with visible wiring and connectors (no text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

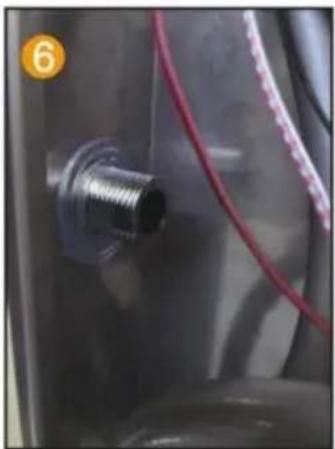

Close-up of hands holding a small mechanical component inside a device (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

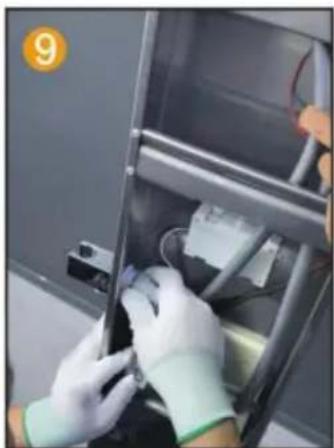

Person in gloves installing or adjusting a device inside a stainless steel enclosure (no visible text or symbols)

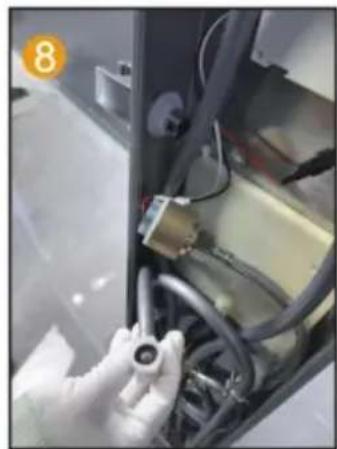

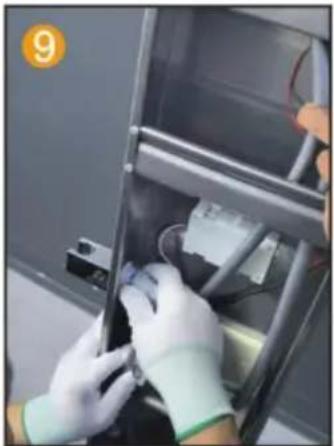

Connect the water outlet connector and hand spray Seat joint

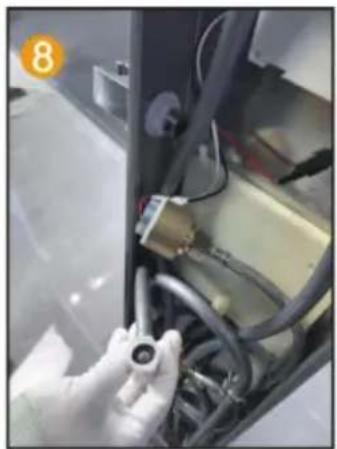

Person in gloves handling industrial equipment with visible pipes and components (no text or symbols)

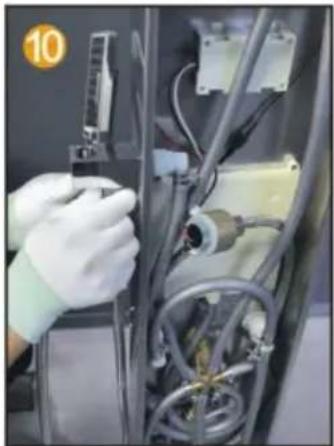

Connect the hand spray hose to the handheld one shower head

MODEL 7009FL

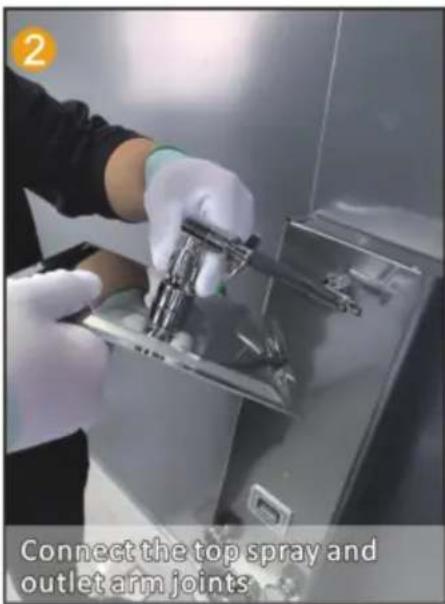

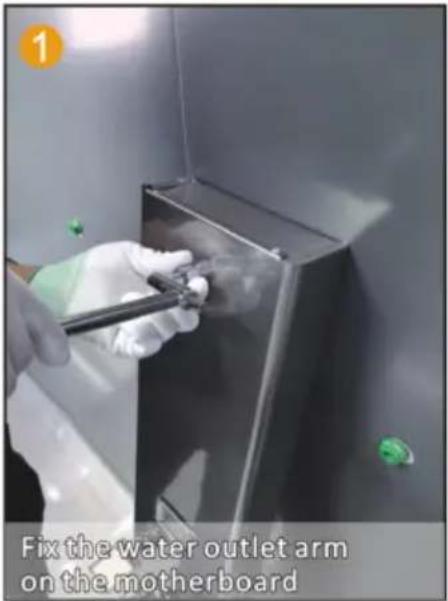

INSTALLATION STEPS (GENERAL)

Installation Notes

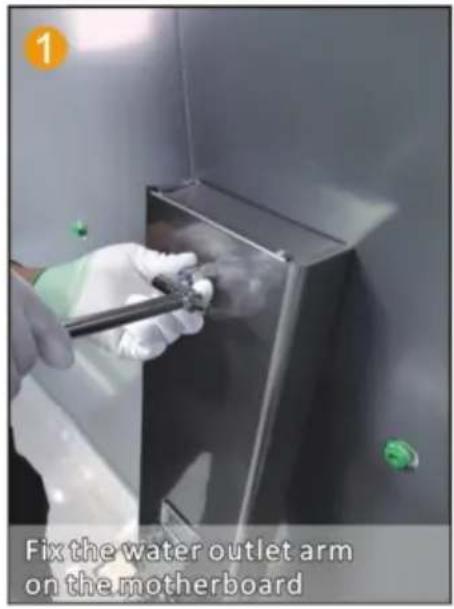

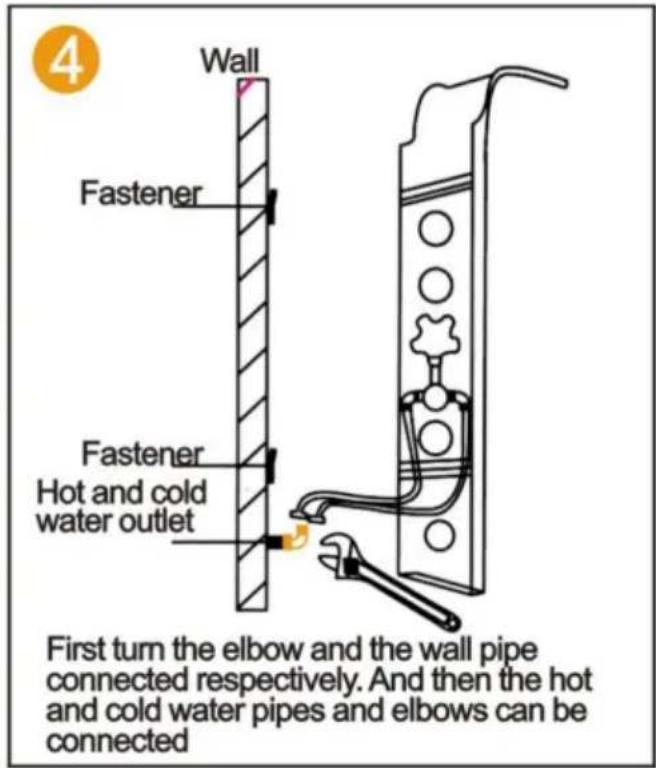

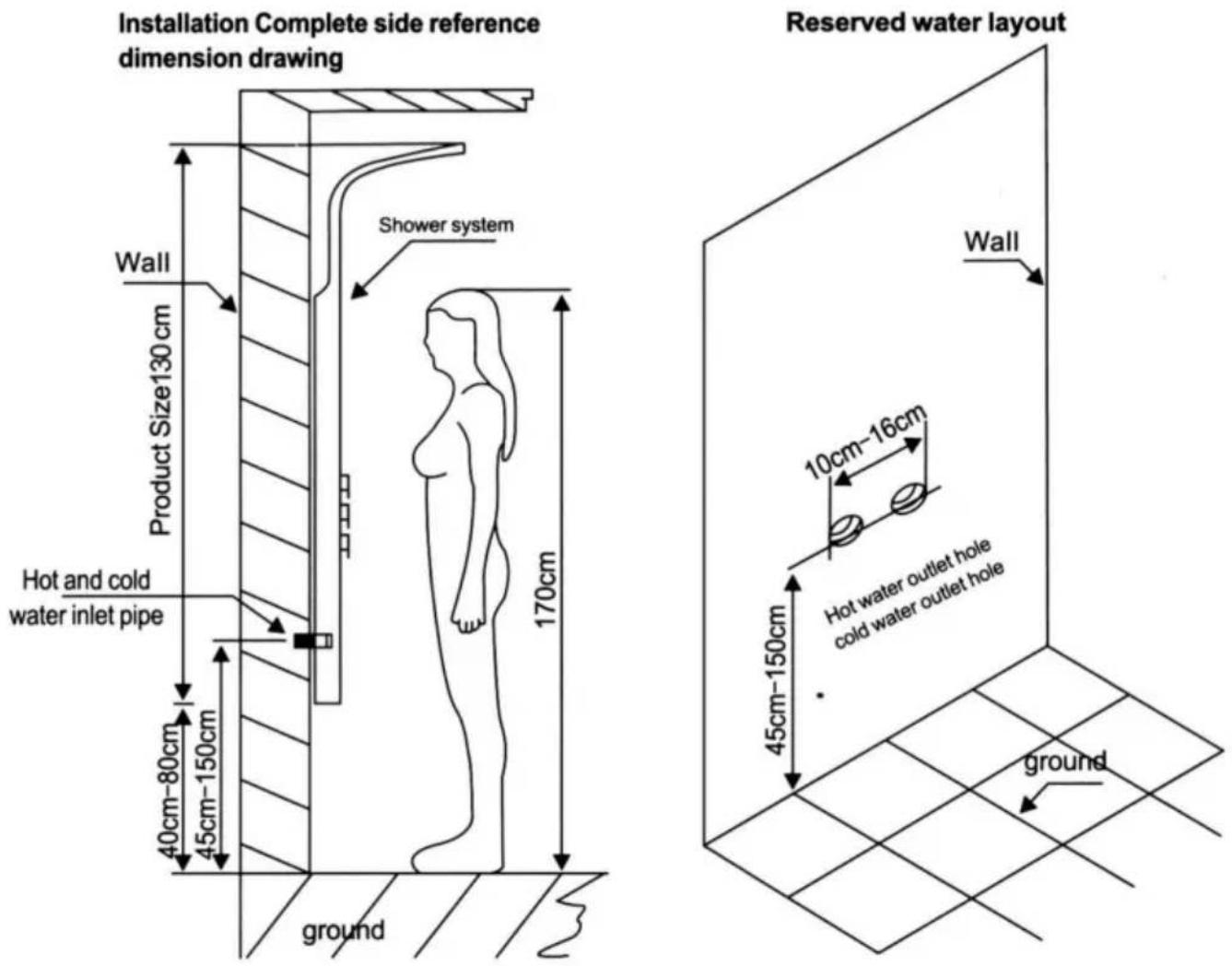

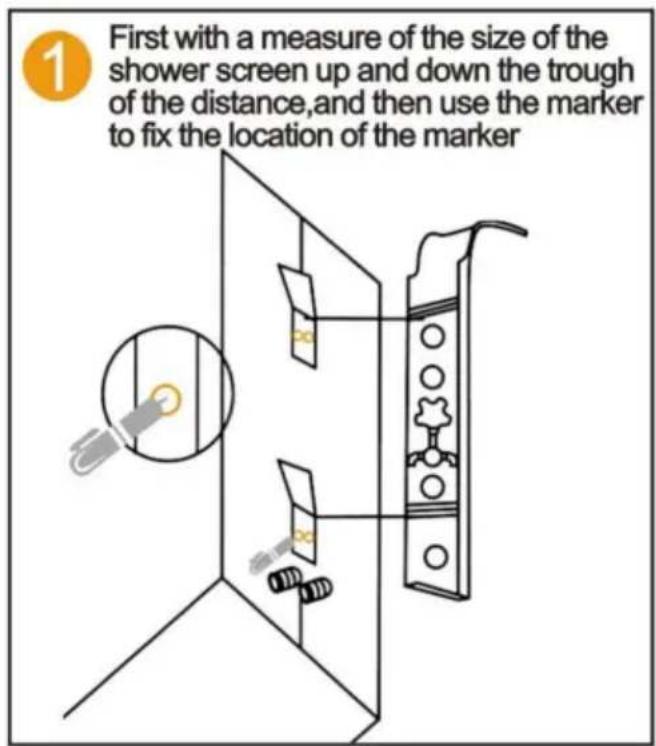

1. According to the height of the family height budget shower system installation height, measure the shower system on the back of the bar Distance, mark a wall, in the corresponding position of the tag fixed hanging iron (up and down one).
2. Connect the hot and cold water hose (be sure to clean the magazine and dirt in the wall Scale so as not to block, affect the water effect).

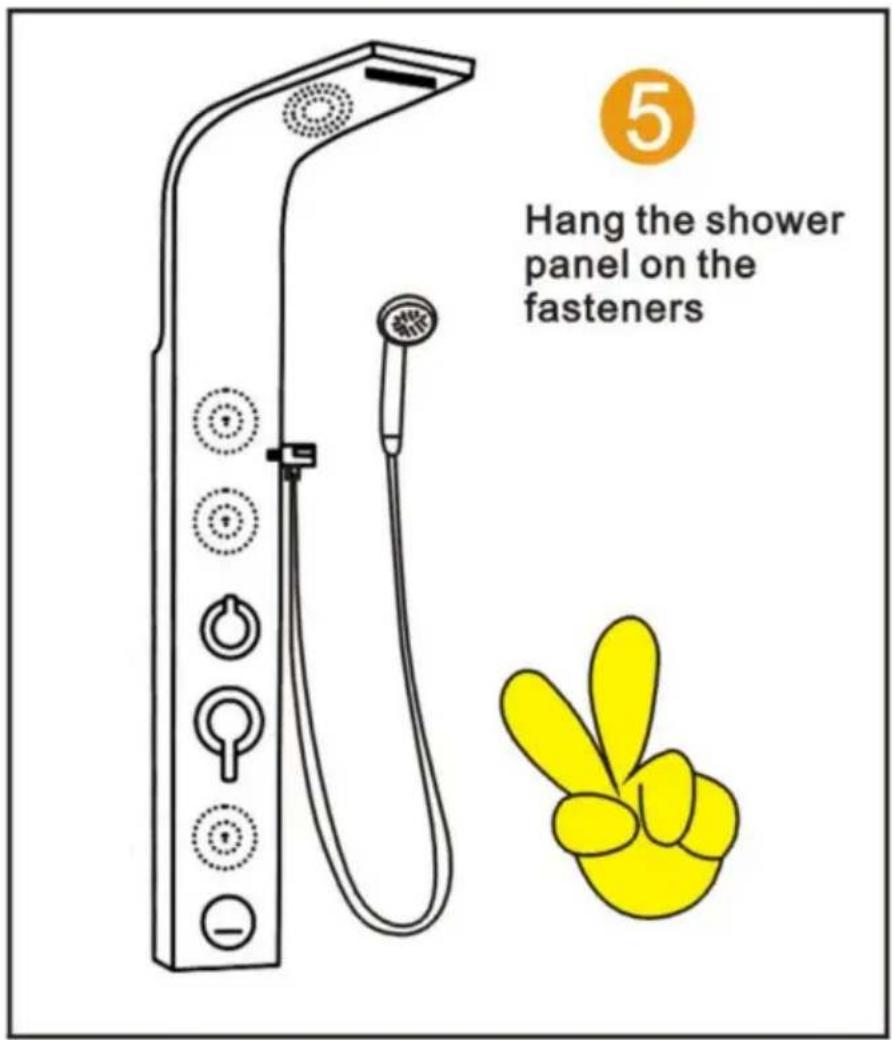

3. Shower system hanging on the wall, the upper and lower two cards were clamped in two hanging pastes (Note: shower After the system wall, the main close to the wall is not shaking, do not need to use another glass glue and tools fixed).

Stainless steel shower system maintenance methods:

1. Regular cleaning of the product in order to keep its appearance bright an clean;
2. Clean the surface with water or a mild detergent and wipe it with a soft
3. Note that the clean product of the hidden position, timely cleaning can make products lasting.

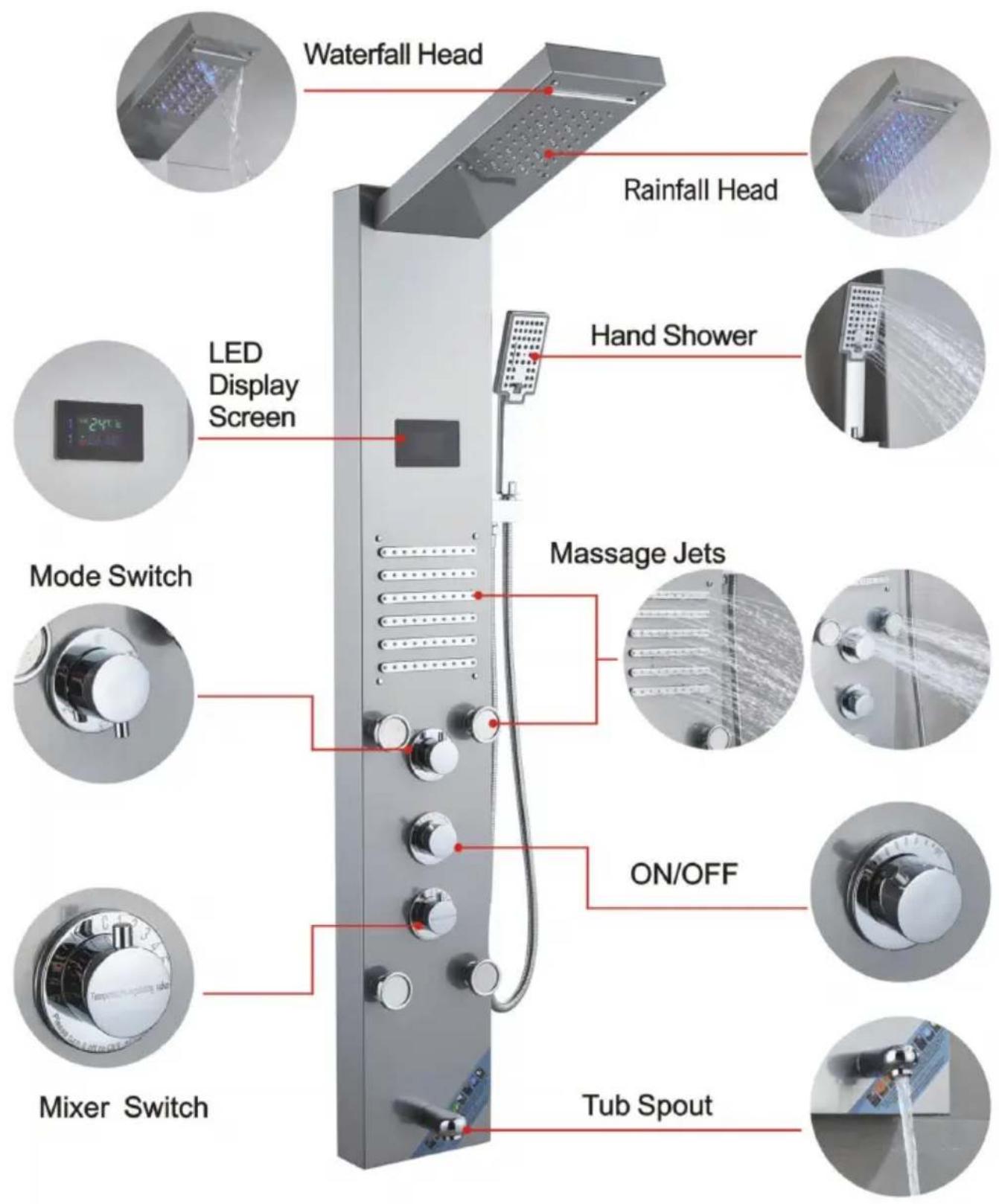

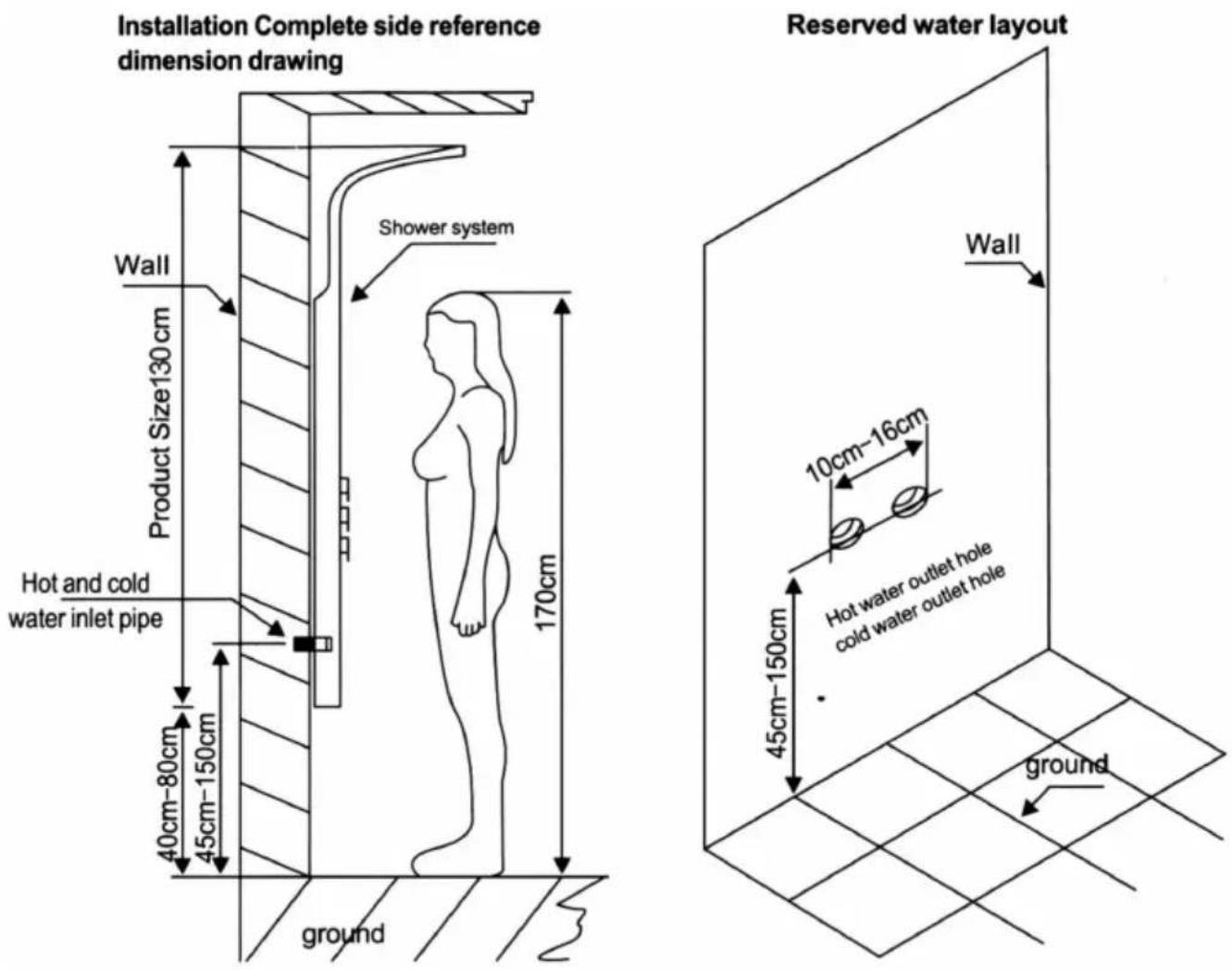

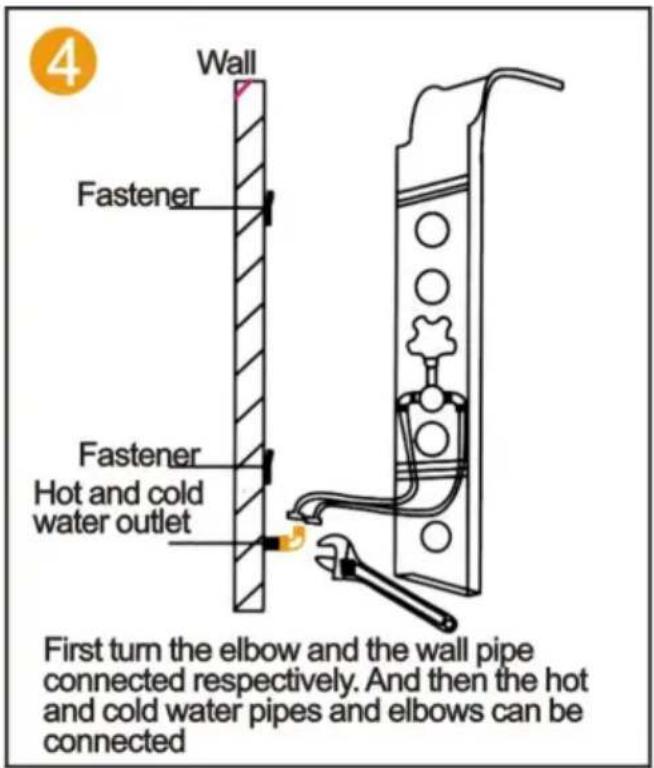

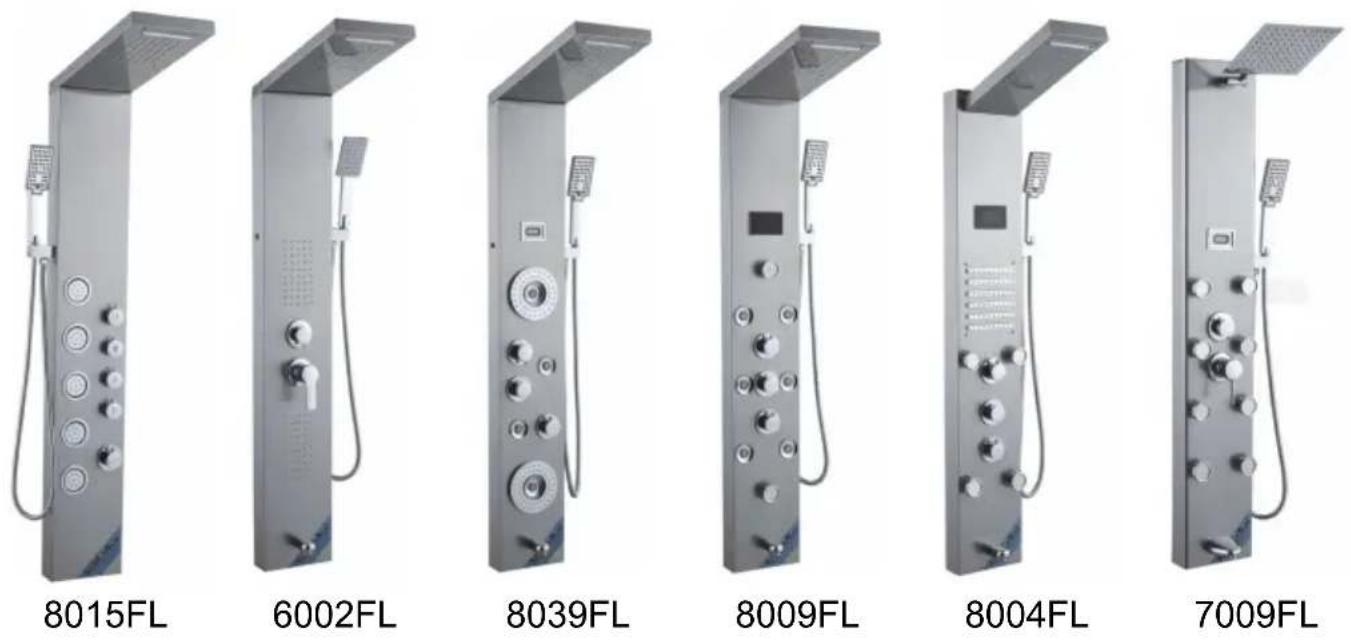

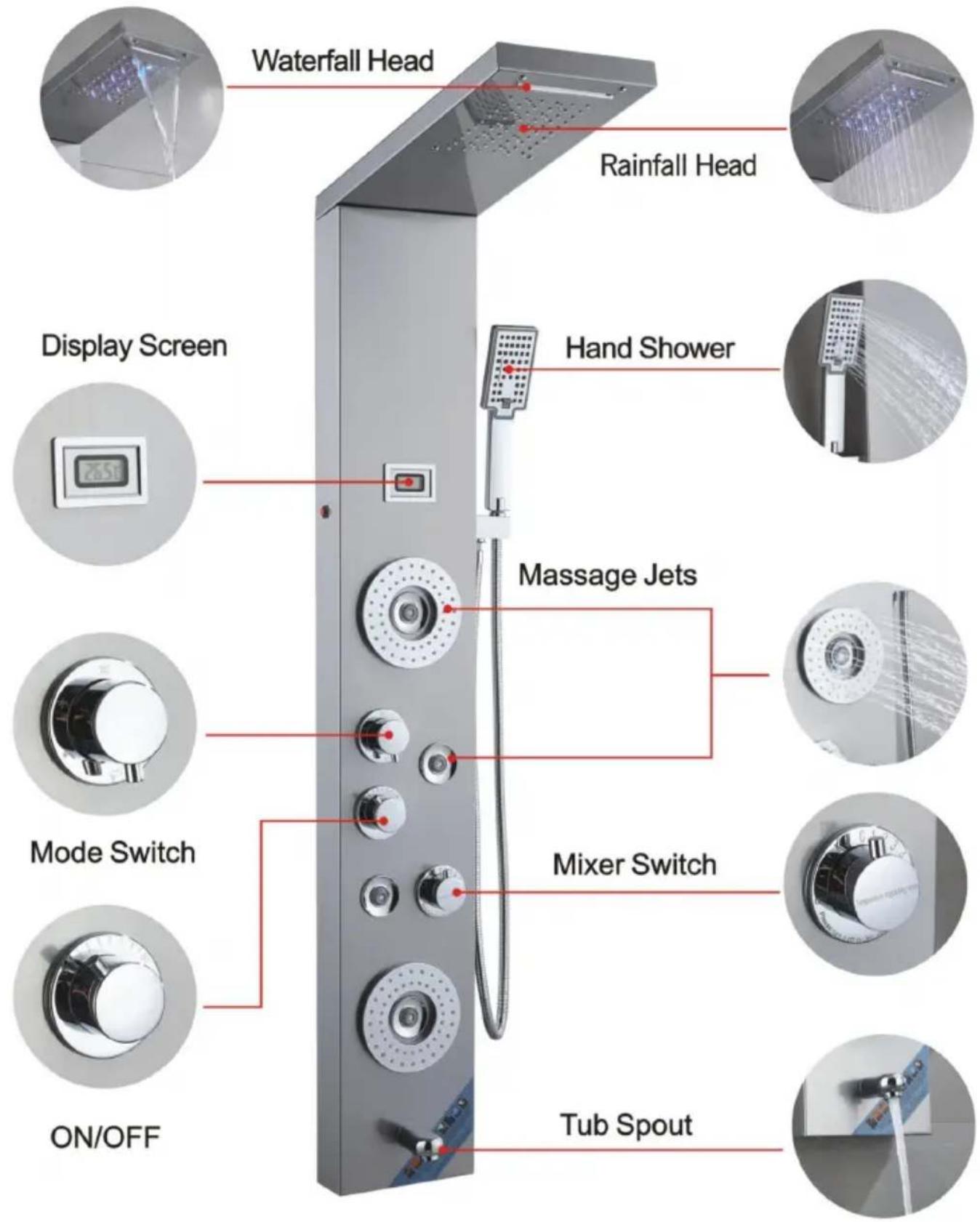

SHOWER PANEL SERIES INSTALLATION DIAGRAM

8015FL

6002FL

8039FL

8009FL

8004FL

7009FL

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

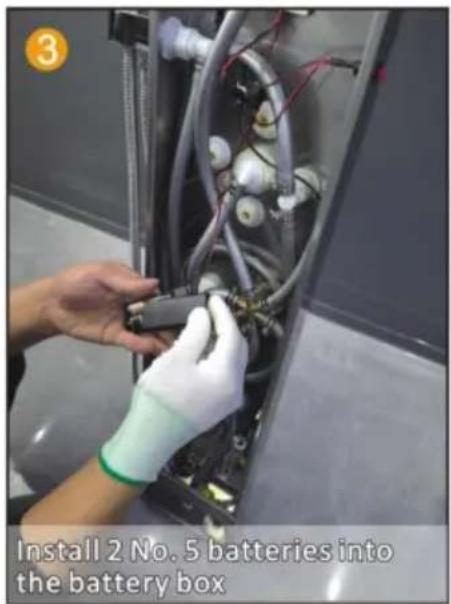

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

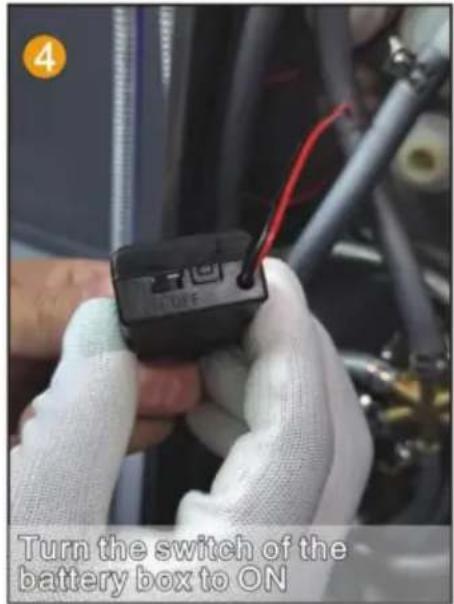

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

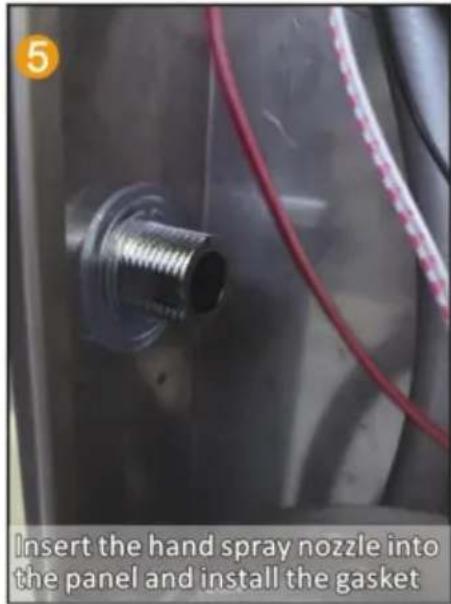

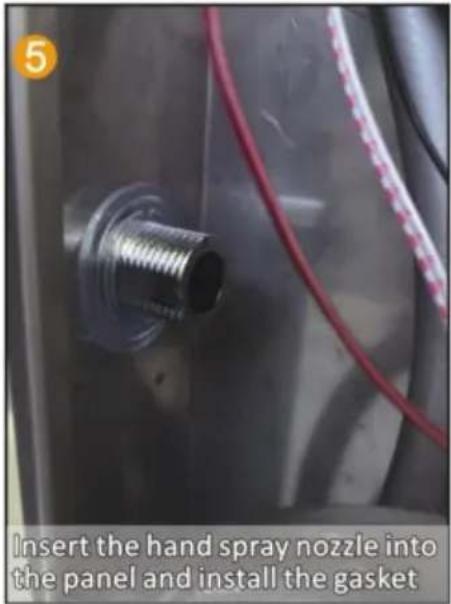

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

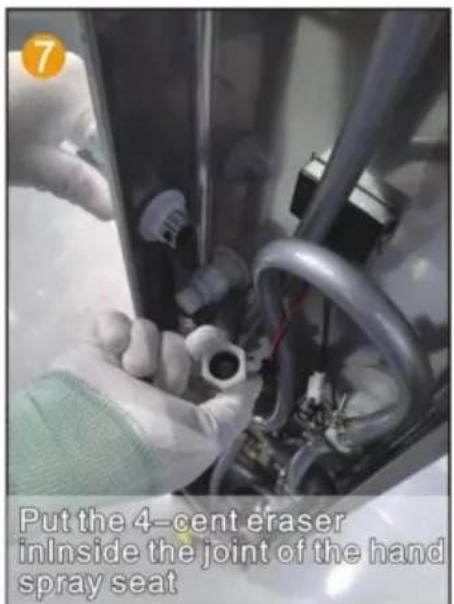

Put the 4-point rubber into the hand spray Inside the joint of the seat

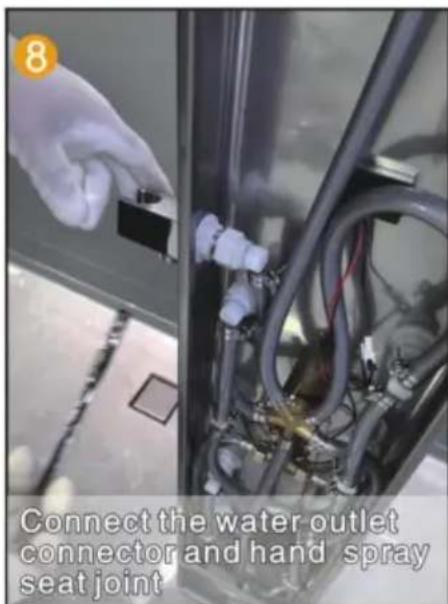

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

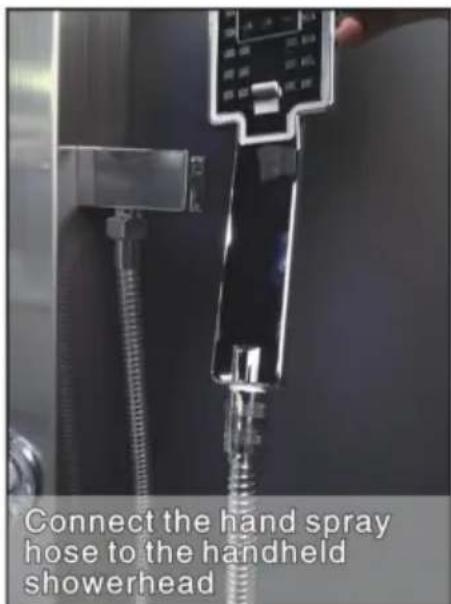

Connect the hand spray hose to the handheld one shower head

MODÈLE 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODÈLE 7009FL

ÉTAPES D'INSTALLATION (GÉNÉRAL)

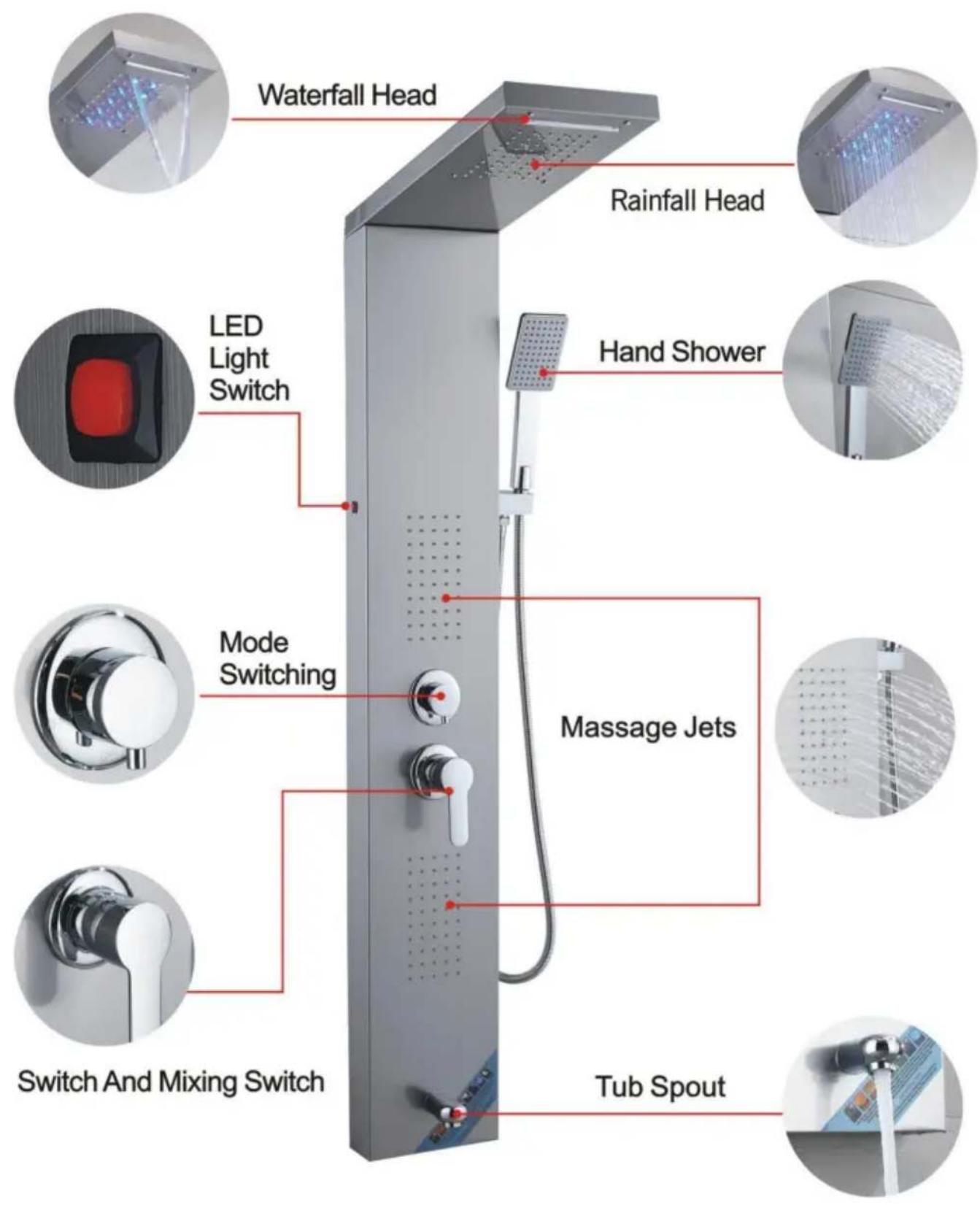

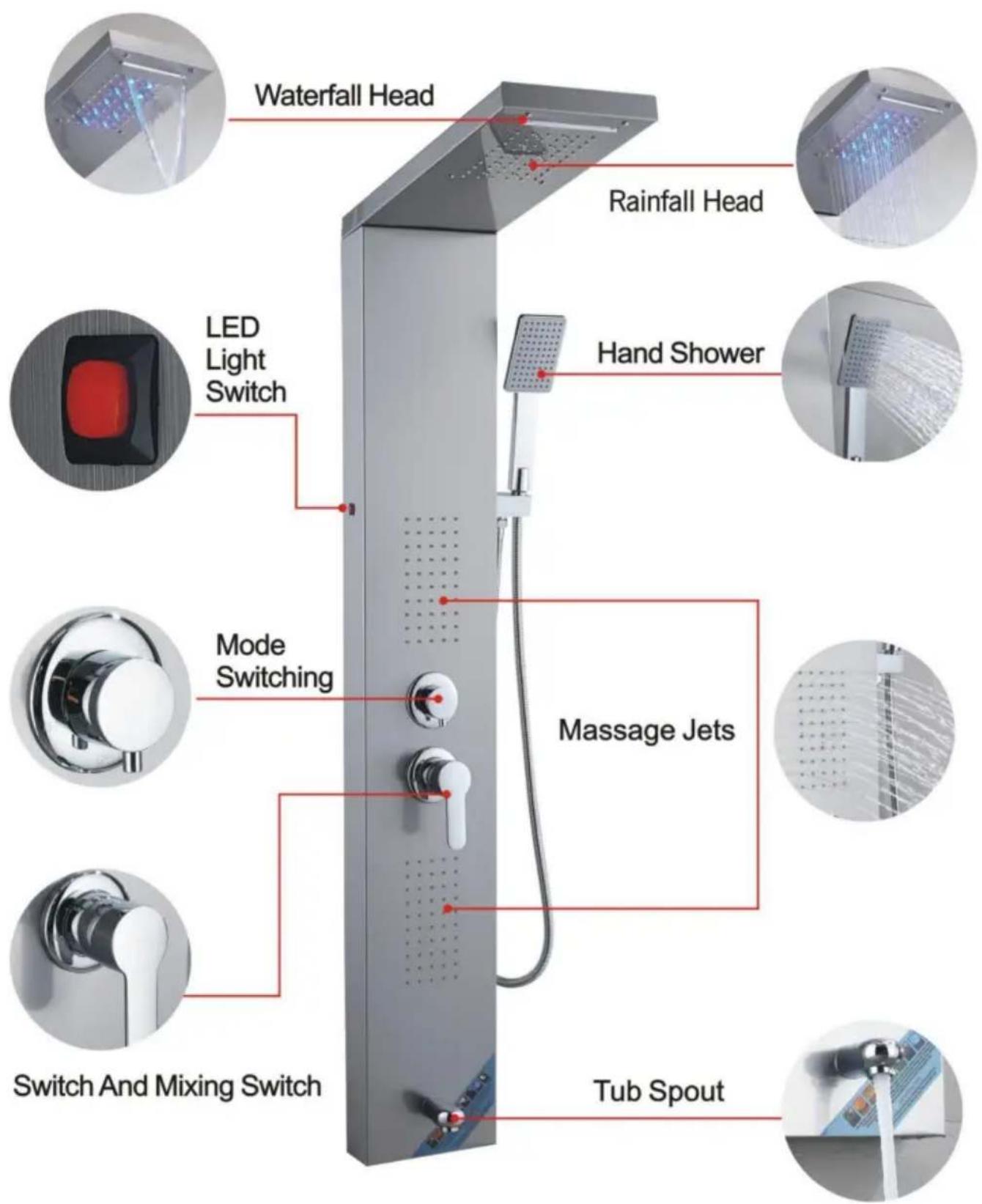

INTRODUCTION DES FONCTIONS

8015FL

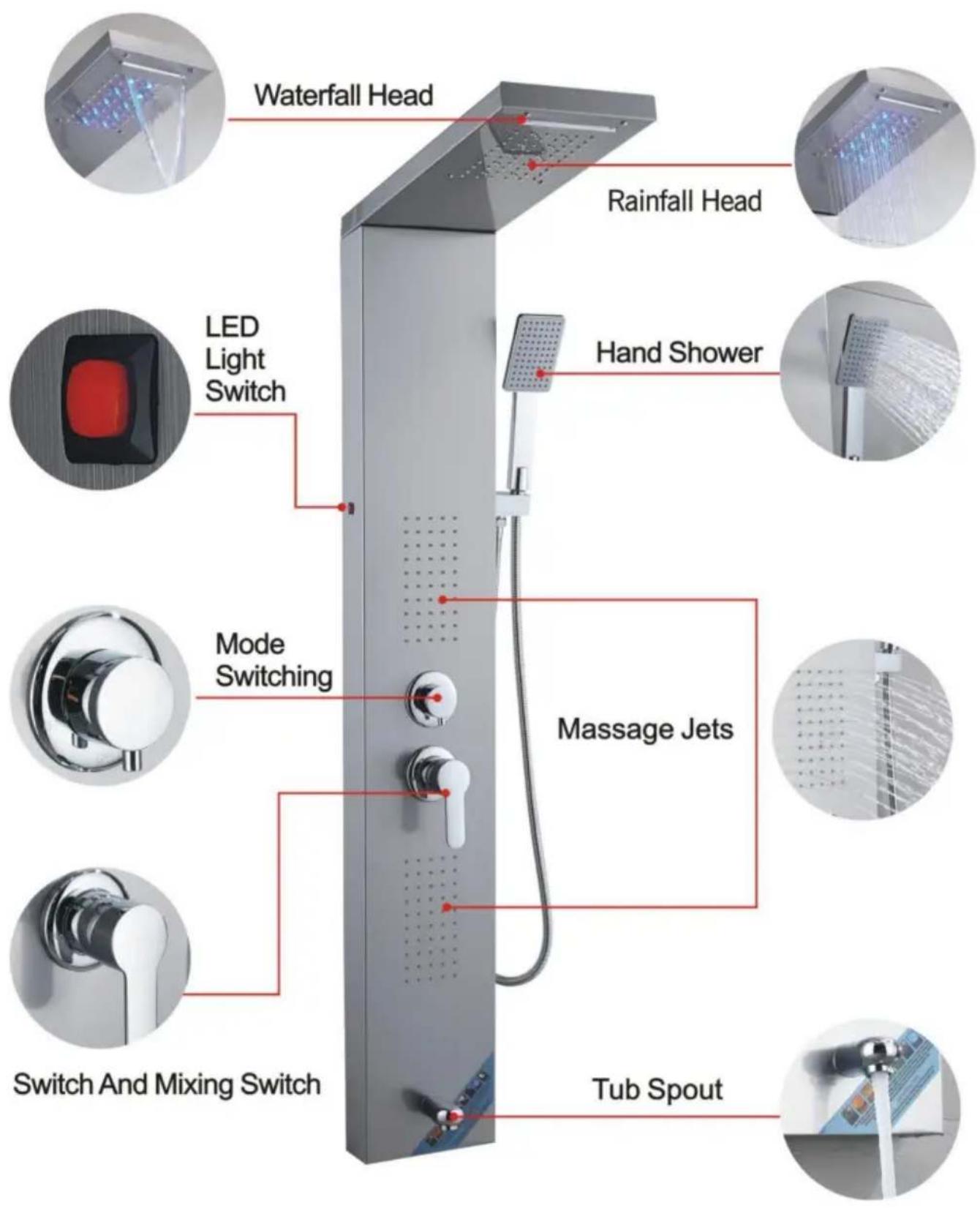

INTRODUCTION DES FONCTIONS

6002FL

INTRODUCTION DES FONCTIONS

8039FL

INTRODUCTION DES FONCTIONS

8009FL

INTRODUCTION DES FONCTIONS

8004FL

INTRODUCTION DES FONCTIONS

7009FL

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODELL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange circular badge (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELL 7009FL

INSTALLATIONSSCHRITTE (ALLGEMEIN)

Installationshinweise

INSTALLATIONSDIAGRAMM DER DUSCHPANEEL-SERIE

FUNKTIONSEINFÜHRUNG

8015FL

FUNKTIONSEINFÜHRUNG

6002FL

FUNKTIONSEINFÜHRUNG

8039FL

FUNKTIONSEINFÜHRUNG

8009FL

FUNKTIONSEINFÜHRUNG

8004FL

FUNKTIONSEINFÜHRUNG

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of a metallic industrial electrical panel with wiring and connectors (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELLO 7009FL

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODELO 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

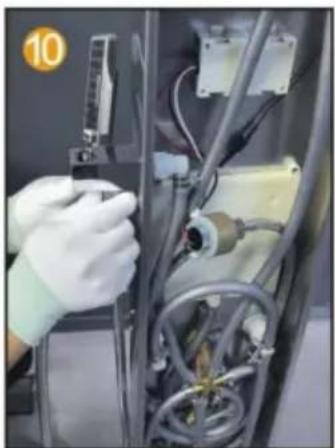

Connect the hand spray hose to the handheld one shower head

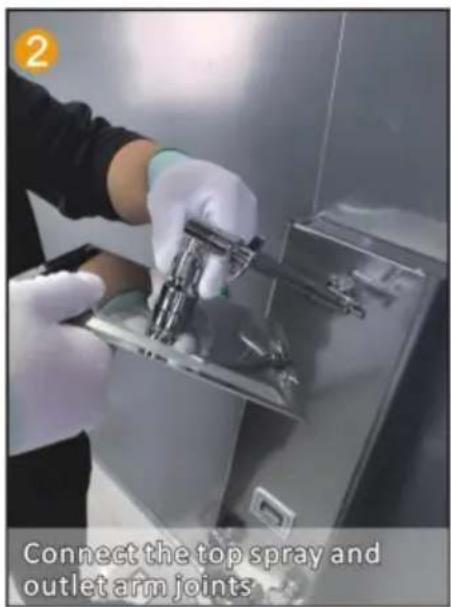

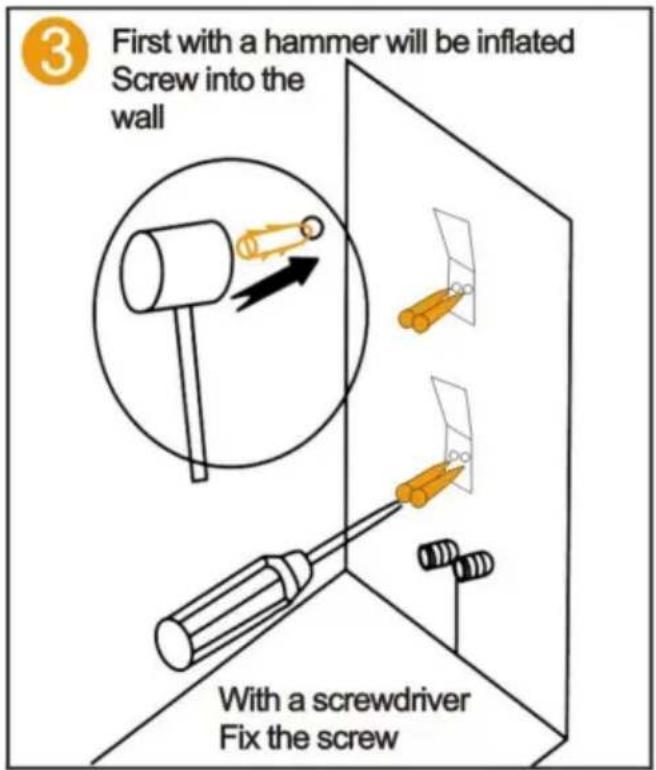

MODELO 7009FL

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in gloves operating a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

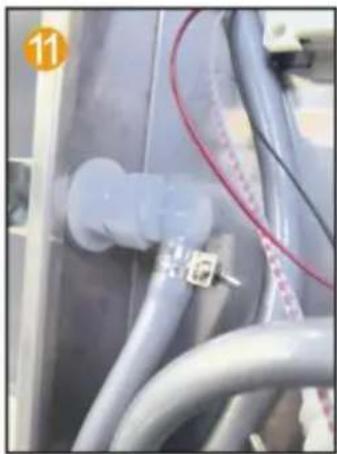

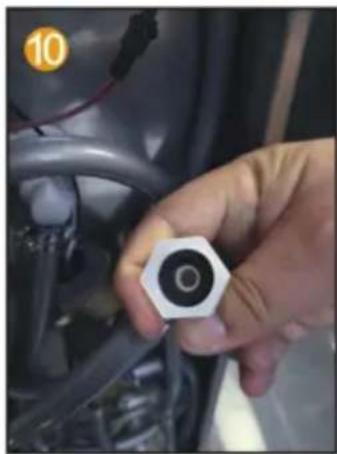

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODEL 7009FL

KROKI INSTALACJI (OGÓ LNE)

WSTEP FUNKCJI

8015FL

WSTEP FUNKCJI

6002FL

WSTEP FUNKCJI

8039FL

WSTEP FUNKCJI

8009FL

WSTEP FUNKCJI

8004FL

WSTEP FUNKCJI

7009FL

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

DOUCHE PANEEL TOREN

MODEL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Model	8015FL 6002FL 8039FL 8009FL 8004FL 7009FL
Montage Type	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren	MuurMonteren
Verbinding Draad	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Functies	VierModi	VijfModi	ZesModi	ZesModi	ZesModi	VijfModi
Baduitloop	×	ÿ	ÿ	ÿ	ÿ	ÿ
Temperatuur e Weergave	×	×	ÿ	ÿ	ÿ	ÿ
LED lamp	×	ÿ	ÿ	ÿ	ÿ	×
Stroom	×	Droge cel (DC3V)	Droge cel (DC3V)	Hydro Stroom (AC6V)	Hydro Stroom (AC6V)	Droge cel (DC3V)
Hand Douche	3-instellingen	1-instellingen	3-instellingen	3-instellingen	3-instellingen	3-instellingen
Finish	Vingerafdrukvrij douchesysteem van geborsteld nikkel
Materiaal	Roestvrij staal, messing, PVC, ABS

ONDERDELEN LIJST

MODEL		8015FL8039FL8009FL	6002FL	8004FL	7009FL
M6 nut		4pcs	4pcs	0pcs	0pcs
M6 * 10 screw		4pcs	4pcs	0pcs	0pcs
Hose Clamp		2pcs	2pcs	2pcs	0pcs
M4 * 10 screw		0pcs	0pcs	2pcs	0pcs
Brass shower arm		0pcs	0pcs	0pcs	1pcs
Single function handheld shower		0pcs	1pcs	0pcs	0pcs
Panel cotton bag		1pcs	1pcs	1pcs	1pcs
Top spray cotton bag		1pcs	1pcs	1pcs	0pcs
Three function handheld shower		1pcs	0pcs	1pcs	1pcs
1.5 meter hand spray hose		1pcs	1pcs	1pcs	1pcs
Hand spray seat		1pcs	1pcs	1pcs	1pcs
1/2 right angle adapter		2pcs	2pcs	2pcs	2pcs
4-point rubber		2pcs	2pcs	2pcs	2pcs
Self tapping screw		4pcs	4pcs	4pcs	4pcs
Fastener		2pcs	2pcs	2pcs	2pcs
Grommet		1pcs	1pcs	1pcs	1pcs
Hexagon nut		1pcs	1pcs	1pcs	1pcs

MONTAGE-INSTRUCTIES

MODEL8015FL/6002FL/8039FL/8009FL

Close-up of hands installing a cable or wire component on a wall, no text or symbols visible

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

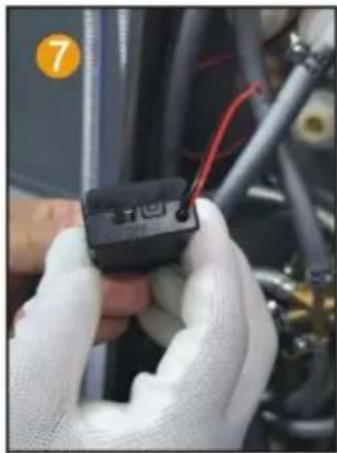

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

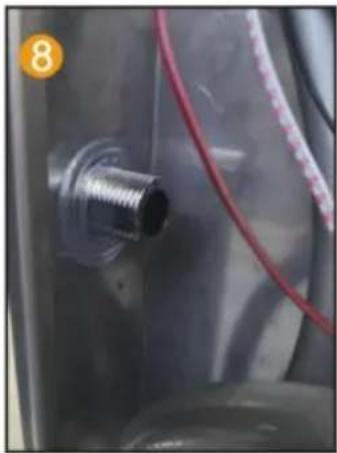

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

Connect the hand spray hose to the handheld one shower head

MODEL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange circular badge (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODEL 7009FL

INSTALLATIESTAPPEN (ALGEMEEN)

gebruikshandleiding

FUNCTIE INLEIDING

8015FL

FUNCTIE INLEIDING

6002FL

FUNCTIE INLEIDING

8039FL

FUNCTIE INLEIDING

8009FL

FUNCTIE INLEIDING

8004FL

FUNCTIE INLEIDING

7009FL

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:8015FL/6002FL/8039FL/8009FL/8004FL/7009FL

PRODUKT INTRODUKTION

Close-up of hands installing a cable or wire component on a metal frame (no text or symbols visible)

Insert the PVC pipe from the top openingTo pierce out

Close-up of a hand holding a metallic device with visible wiring and components (no text or symbols)

Route the LED light wire along the holeInsert into the motherboard

Close-up of a metallic mechanical component with a rectangular cutout and bolted joints (no visible text or symbols)

Fix the motherboard and top spray with 4 pairs of M6 screws and nuts

Close-up of industrial equipment with coiled cables and a numbered label (4) in the corner, no readable text or symbols on the cables themselves.

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of a hand holding a black cable with a red connector, next to a white appliance (no visible text or symbols)

Connect the LED light cable and power supplyline

Person in gloves installing or adjusting electrical wiring inside a device (no visible text or symbols)

Install 2 No. 5 batteries to chargePool box

Close-up of hands holding a black electronic component with red wires, next to mechanical parts (no visible text or symbols)

Point the switch of the battery box towards ON

Close-up of a metallic connector with red cable and blue plastic wrap, no visible text or symbols

Insert the hand spray nozzle into the panel And install the gasket

Close-up of industrial equipment with white cables and wiring, no visible text or symbols

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a hand holding a hexagonal connector component, no visible text or symbols

Put the 4-point rubber into the hand spray Inside the joint of the seat

Connect the water outlet connector and hand spray Seat joint

Close-up of a black industrial cabinet or enclosure with a coiled spring, no visible text or symbols

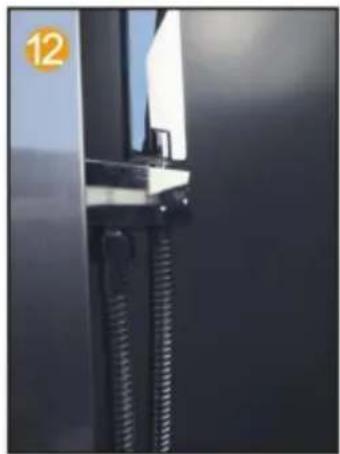

Connect the hand spray hose to the handheld one shower head

MODELL 8004FL

Interior view of a stainless steel kitchen appliance with a door and side panel (no visible text or symbols)

Insert the top spray into the motherboard inside the hole

Person in cleanroom gloves handling a device with wires and components (no visible text or symbols)

Use 2 M4 screws to secure the main Fixed plate and top spray

Interior view of a laboratory or lab apparatus with a curved tube and two small objects on a beige surface, labeled with number 3 (no readable text or symbols)

Connect PVC pipes and LED light wires Thread through the hole

Person in gloves handling a white plastic component inside a metal enclosure (no visible text or symbols)

Fix the PVC pipe with a throat clamp On the top spray joint

Close-up of gloved hands installing or adjusting a black cable with red wire, no visible text or symbols

Connect the LED light cable and power supplyline

Close-up of a black plastic connector with red cable and orange number 6 (no visible text or symbols)

Insert the hand spray nozzle into the panel and install the gasket

Close-up of industrial equipment with metal components and wiring (no visible text or symbols)

Spray socket with hexagonal nut handle Fixed on the panel

Close-up of a gloved hand inserting a small component into a device panel (no visible text or symbols)

Spray socket with hexagonal nut handle Fix the 4-point rubber on the panel and spray it by hand Inside the joint of the seat

Person in gloves handling a device inside a stainless steel enclosure (no visible text or symbols)

Connect the water outlet connector and hand spray Seat joint

Person in gloves operating industrial machinery with visible wiring and components (no text or symbols)

Connect the hand spray hose to the handheld one shower head

MODELL 7009FL

INSTALLATIONSSTEG (ALLMÄNT)

FUNKTION INTRODUKTION

8015FL

FUNKTION INTRODUKTION

6002FL

FUNKTION INTRODUKTION

8039FL

FUNKTION INTRODUKTION

8009FL

FUNKTION INTRODUKTION

8004FL

FUNKTION INTRODUKTION

7009FL

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
