USER MANUAL 3066 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Outdoor pillar lights USER MANUAL

MODEL: 3066

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repressor estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

MODEL:3066

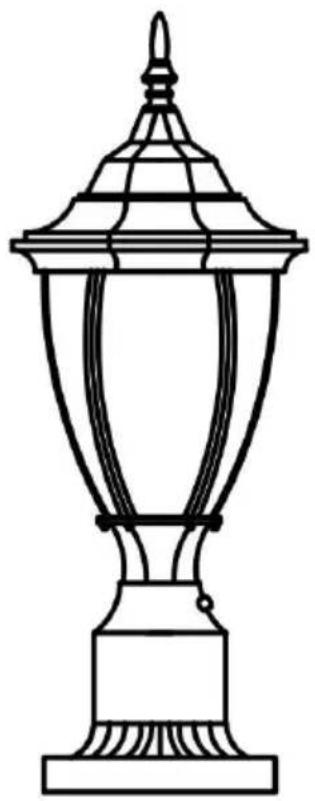

Line drawing of a decorative lamp with a conical spire and base (no text or symbols)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the proof and all accessories marked with this symbol. Products may as such may not be discarded with normal domestic waste must be taken to a collection point for recycling electrical electronic devices

INSTRUCTIONS

Thank you very much for choosing this product, please read all the instructions before use. This information will help you get the best results

WARNING: if any Special Control Devices are used with this Fixture, Follow the instructions Carefully to assure full compliance with NEC requirements, if there are any questions, contact a Qualified Electrical Contractor.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects and / or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product

CAUTION: All glass is fragile use care when handling Glass component(s) and or Lamp(s).

ASSEMBLY & INSTALLATION INSTRUCTIONS

CAUTION: Read instructions carefully and turn electricity off at main circuit breaker panel before beginning installation.

1. Mounting method of fixed table.

●The name of the part.

A. Mounting table.(The factory is not matched, you need to buy it yourself
B. Expanded plastic parts.
C. lamp holder.
D. Screw.

E/F. cable.

G. Cable connection caps.

H. Fixing screws for the lamp body.

I. Lamp body.

J. Fixing screws for the top cover of the lamp.

K. Gasket.

L. Lamp.(The factory is not matched, you need to buy it yourself).

M. Lamp top cover.

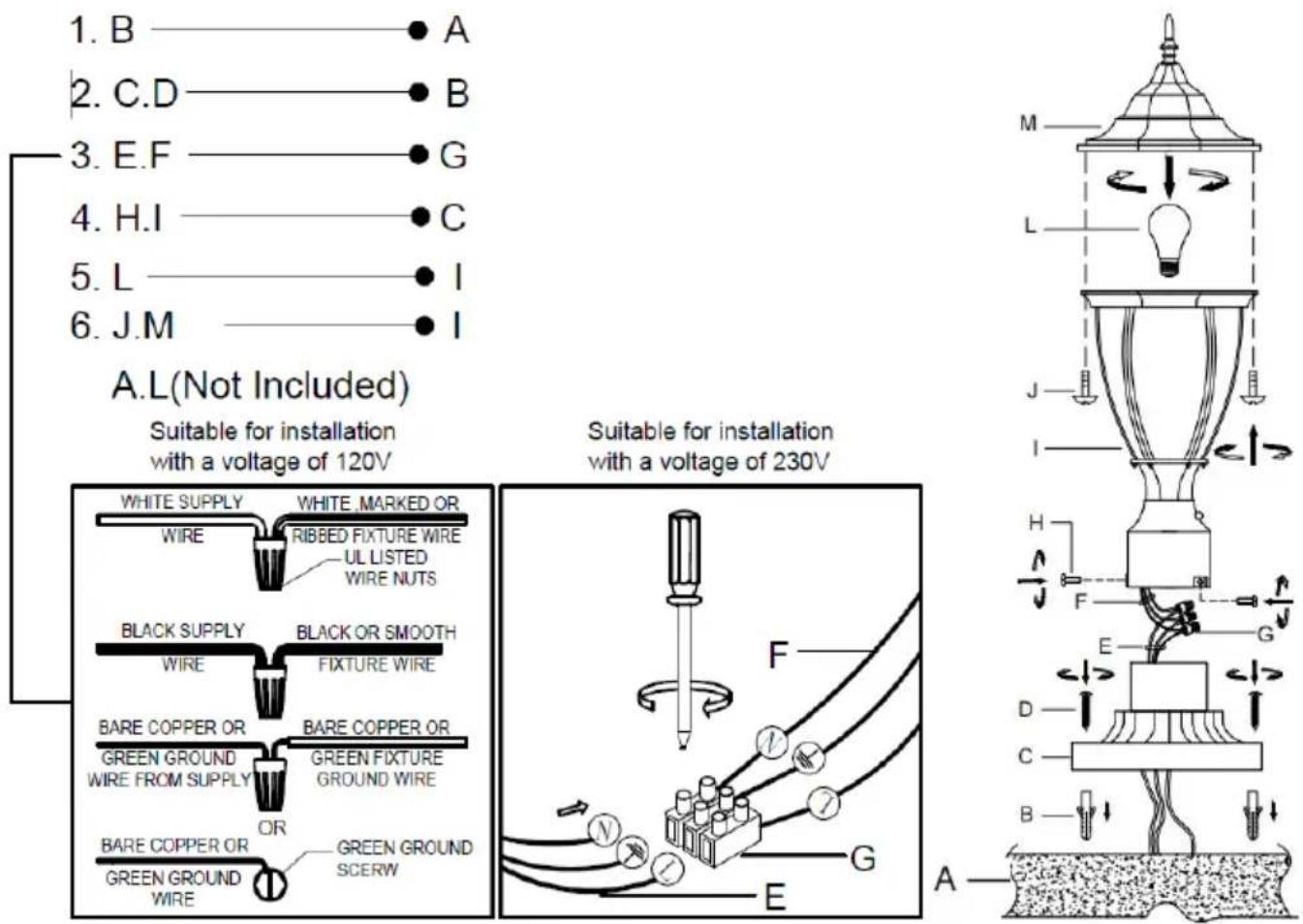

●Schematic diagram of component installation.(See Figure 1).

1. B —● A 2. C.D —● B 3. E.F —● G 4. H.I —● C 5. L —● I 6. J.M —● I A.L(Not Included) Suitable for installation with a voltage of 120V Suitable for installation with a voltage of 230V WHITE SUPPLY WHITE MARKED OR WIRE RIBBED FIXTURE WIRE UL LISTED WIRE NUTS BLACK SUPPLY BLACK OR SMOOTH WIRE FIXTURE WIRE BARE COPPER OR BARE COPPER OR GREEN GROUND GREEN FIXTURE WIRE FROM SUPPLY GROUND WIRE OR OR OR BARE COPPER OR GREEN GROUND GREEN GROUND SCERW F E G A

Figure 1

2. Column mounting.

●The name of the part.

A. pillar.(The factory is not matched, you need to buy it yourself).

E/F. cable.

G. Cable connection caps.

H. Fixing screws for the lamp body.

I. Lamp body.

J. Fixing screws for the top cover of the lamp.

K. Gasket.

L. Lamp.(The factory is not matched, you need to buy it yourself).

M. Lamp top cover.

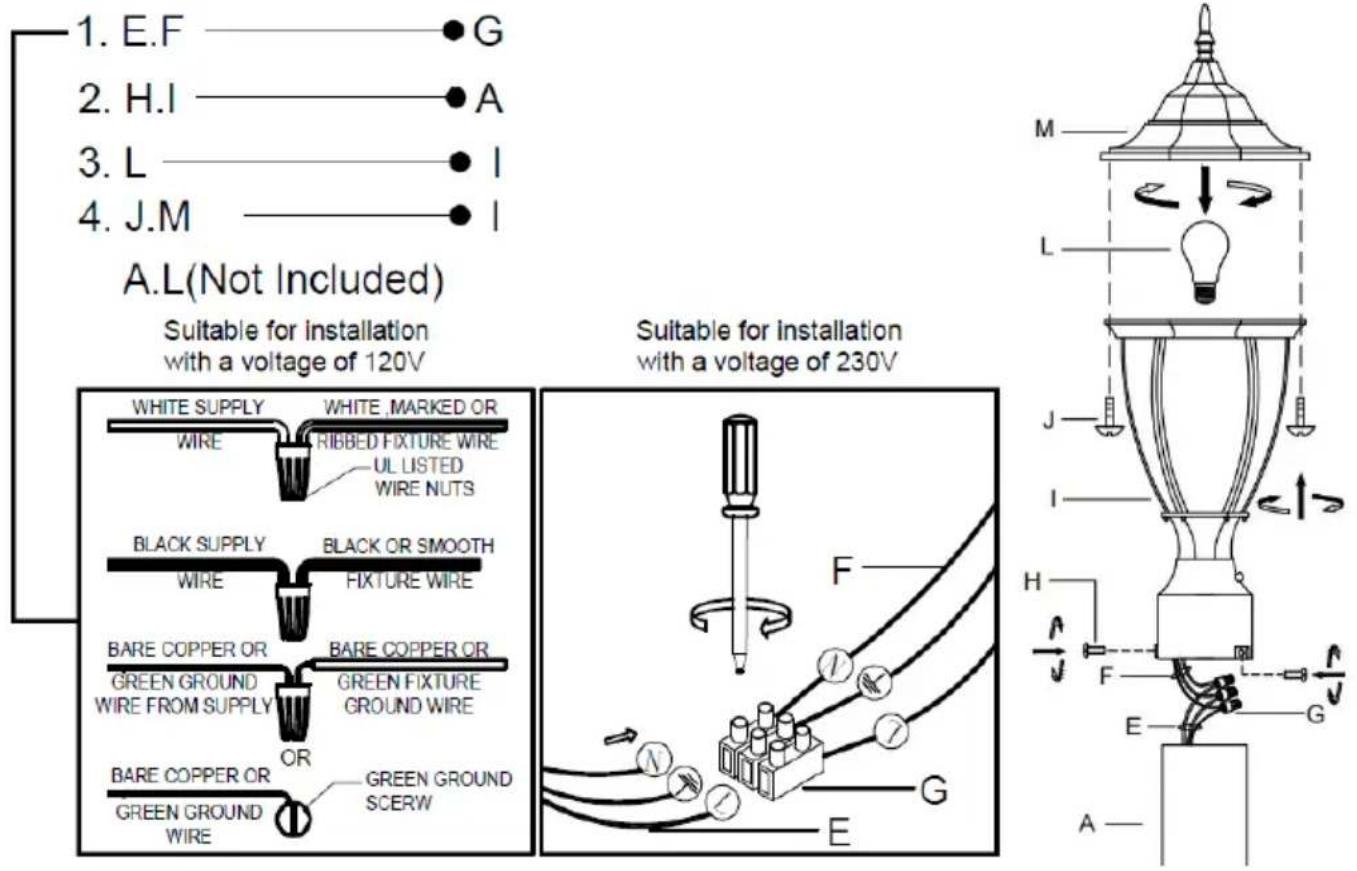

●Schematic diagram of component installation.(See Figure 2).

1. E.F —● G 2. H.I —● A 3. L —● I 4. J.M —● I A.L(Not Included) Suitable for installation with a voltage of 120V White Supply White ,MARKED OR WIRE RIBBED FIXTURE WIRE UL LISTED WIRE NUTS BLACK SUPPLY BLACK OR SMOOTH WIRE FIXTURE WIRE BARE COPPER OR BARE COPPER OR GREEN GROUND GREEN FIXTURE WIRE FROM SUPPLY GROUND WIRE OR OR BARE COPPER OR GREEN GROUND GREEN GROUND SCERW Suitable for installation with a voltage of 230V F G E M L J I H F E G A ——

Figure 2

Note:

1. Our products have light sensing components, and when there light during the day, the light goes out; At night, when there is light, the lights are on.
2. When installing the lamp, the light sensor part of the lamp can be blocked, and it cannot be directed at other light sources that shine at night, otherwise the lamp will not be lit or will be lit time.
3. When you find that the light sensor is not sensitive, please use soft cloth to gently wipe the surface of the light sensor part a clean the dust and debris on the surface. Exclude the irradiation of light-sensitive parts by other light sources at night.
4. Note that the cable terminal is waterproof and insulated and cannot be exposed to water. Otherwise, there will be a risk of leakage.
5. Light sensor parameter description: When the color temperature 2845K, about 10\~30LUX, 1 second will automatically turn on the light.About 80\~120LUX, 10\~20seconds, the light automatically turns off.

Warning:

1. The mains power supply must be disconnected before Installati
2. Installation must be carried out by a professional electrician.

TECHNICAL PARAMETERS

Enter the power supply	Europe: 230V 50Hz
	North America: 120V 60Hz
Maximum power	100W
Lampholder thread specifications	Europe: E27
	North America: E26
Product dimensions	440*165*165mm

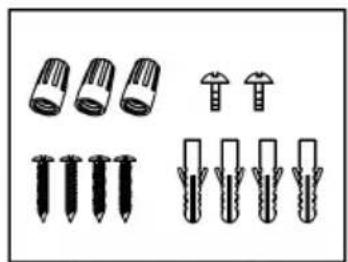

1. Instructions *1
2. Expanded plastic stopper *4
3. Screw *4
4. Junction caps *3
5. Top cover screws *2

Illustration of various screw and nut components (no text or symbols)

Kit for 120V installation

Diagram showing two sets of screwdrivers with different head positions (no text or symbols)

Kit for 230V installation

Note: Accessories are subject to the actual package.
