USER MANUAL 9244S Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Outdoor pillar lights USER MANUAL

MODEL:9244S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:9244S

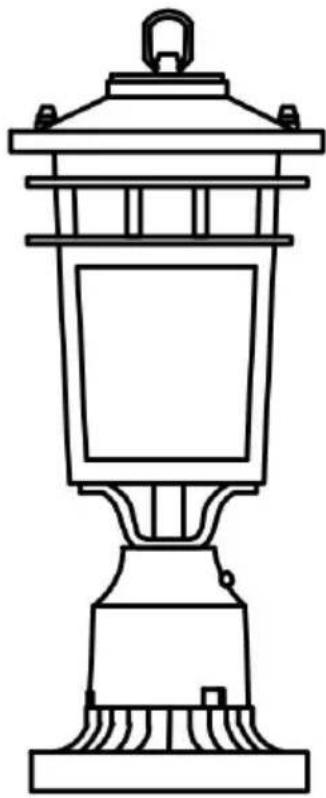

Line drawing of a traditional-style lamp or decorative lamp with a lid and base (no text or symbols)

(The picture is for reference only, please refer to the actual object

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate ref collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic v but must be taken to a collection point for recycling e and electronic devices

INSTRUCTIONS

Thank you very much for choosing this product, please read all the instructions before use. This information will help you get the best res

WARNING: if any Special Control Devices are used with this Fixture, Follow the instructions Carefully to assure full compliance with I requirements, if there are any questions, contact a Qualified Electrical Contractor.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects and / or other reproductive health. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product

CAUTION: All glass is fragile use care when handling Glass component(s) and or Lamp(s).

ASSEMBLY & INSTALLATION INSTRUCTIONS

CAUTION: Read instructions carefully and turn electricity off at main circuit breaker panel before beginning installation.

1. Mounting method of fixed table.

●The name of the part.

A. Mounting table.(The factory is not matched, you need to buy it yc
B. Expanded plastic parts.
C. lamp holder.
D. Screw.

E/F. cable.

G. Cable connection caps.
H. Fixing screws for the lamp body.

I. Lamp body.
J. Fixing screws for the top cover of the lamp.
K. Gasket.
L. Lamp.(The factory is not matched, you need to buy it yourself).
M. Lamp top cover.

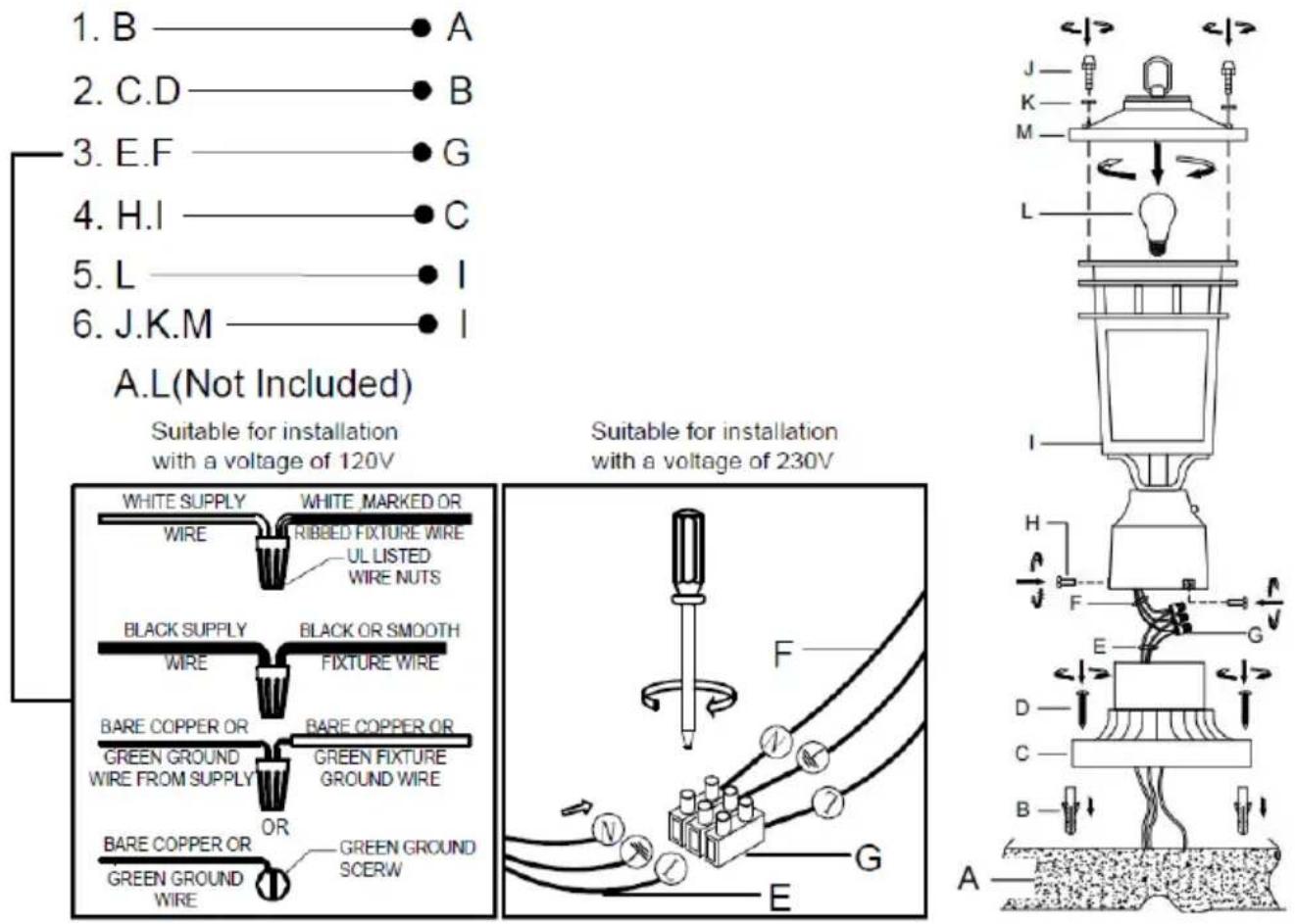

●Schematic diagram of component installation.(See Figure 1).

1. B — A 2. C.D — B 3. E.F — G 4. H.I — C 5. L — I 6. J.K.M — I A.L(Not Included) Suitable for installation with a voltage of 120V Suitable for installation with a voltage of 230V WHITE SUPPLY WIRE WHITE MARKED OR RIBBED FIXTURE WIRE UL LISTED WIRE NUTS BLACK SUPPLY WIRE BLACK OR SMOOTH FIXTURE WIRE BARE COPPER OR GREEN GROUND WIRE FROM SUPPLY OR BARE COPPER OR GREEN GROUND WIRE GREEN GROUND SCERW F G E A

Figure 1

2. Column mounting.

●The name of the part.

A. pillar.(The factory is not matched, you need to buy it yourself). E/F. cable.
G. Cable connection caps.
H. Fixing screws for the lamp body.
I. Lamp body.
J. Fixing screws for the top cover of the lamp.
K. Gasket.
L. Lamp.(The factory is not matched, you need to buy it yourself).
M. Lamp top cover.

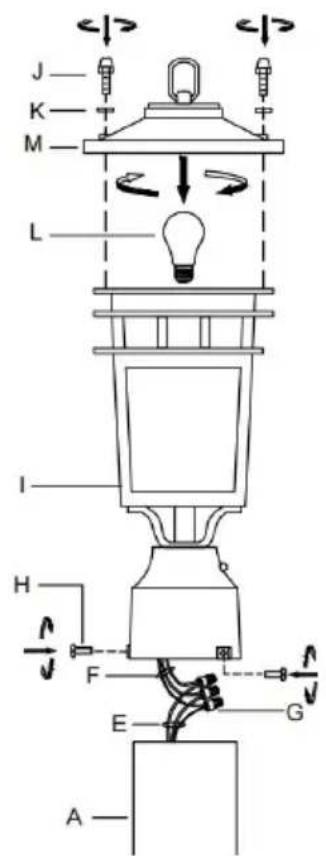

●Schematic diagram of component installation.(See Figure 2).

1. E.F —● G 2. H.I —● A 3. L —● I 4. J.K.M —● I

A.L(Not Included)

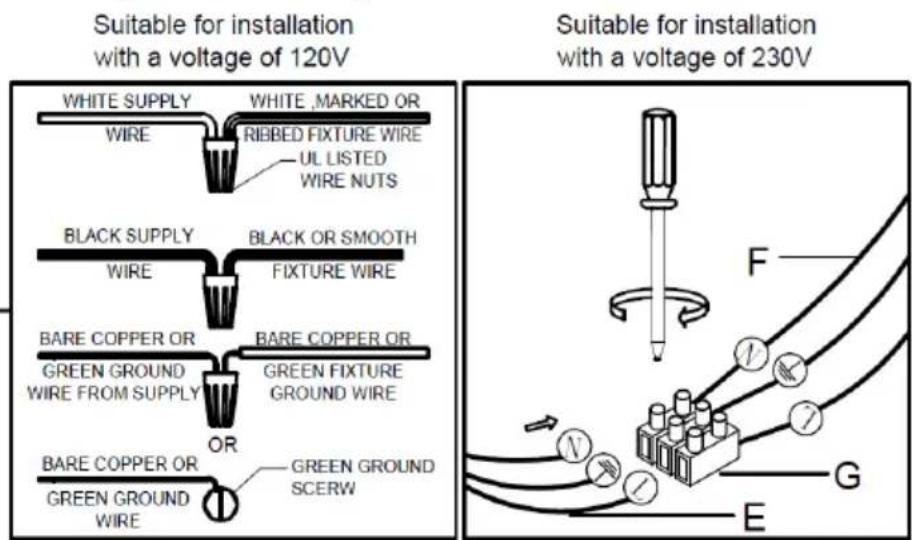

Suitable for installation with a voltage of 120V WHITE SUPPLY WIRE WHITE MARKED OR RIBBED FIXTURE WIRE UL LISTED WIRE NUTS BLACK SUPPLY WIRE BLACK OR SMOOTH FIXTURE WIRE BARE COPPER OR GREEN GROUND WIRE FROM SUPPLY OR BARE COPPER OR GREEN GROUND WIRE GREEN GROUND SCERW Suitable for installation with a voltage of 230V F G E

J K M L I H F E G A

Figure 2

Note:

1. Our products have light sensing components, and when there light during the day, the light goes out; At night, when there is light, the lights are on.
2. When installing the lamp, the light sensor part of the lamp can be blocked, and it cannot be directed at other light sources that shine at night, otherwise the lamp will not be lit or will be lit time.
3. When you find that the light sensor is not sensitive, please use soft cloth to gently wipe the surface of the light sensor part a clean the dust and debris on the surface. Exclude the irradiation light-sensitive parts by other light sources at night.
4. Note that the cable terminal is waterproof and insulated and cannot be exposed to water. Otherwise, there will be a risk of leakage.
5. Light sensor parameter description: When the color temperature 2845K, about 10\~30LUX, 1 second will automatically turn on the light.About 80\~120LUX, 10\~20seconds, the light automatically turns off.

Warning:

1. The mains power supply must be disconnected before Installati
2. Installation must be carried out by a professional electrician.

TECHNICAL PARAMETERS

Enter the power supply	Europe: 230V 50Hz
	North America: 120V 60Hz
Maximum power	100W
Lampholder thread specifications	Europe: E27
	North America: E26
Product dimensions	450*180*180mm

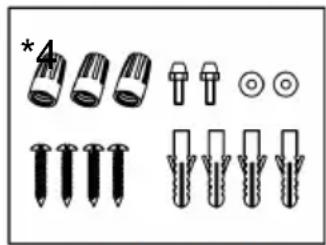

ACCESSORIES LIST

1. Instructions *1
2. Expanded plastic stopper
3. Screw *4
4. Junction caps *3
5. Top cover screws *2
6. Gasket *2

Collection of mechanical components including screws, pliers, and screw holes (no text or symbols)

Kit for 120V installation

Pure diagram of screw and pin symbols without any text or labels

Kit for 230V installation

Note: Accessories are subject to the actual package.
