Product type	Rack cabinet
Brand	Vevor
Model	ABS-8UL
Main material	ABS (engineering plastic)
Height (rack unit)	8U
Width (standard rack)	19.25 inches (approx. 48.9 cm)
Estimated depth	Approx. 50 cm (20 inches)
Estimated weight	Approx. 10 kg
Maximum load capacity	Approx. 50 kg (uniform distribution)
Front door	Yes, with latch lock
Lock	Butterfly-type latch (central locking)
Main color	Black (raw ABS)
Included accessories	32 screws and 32 plastic washers
Main uses	Installation of servers, network equipment, audio/video, industrial control, laboratories
Installation	Standard 19-inch rack mounting, equipment fixed with screws and washers
Maintenance	Regular dry cleaning, avoid dust accumulation
Safety	Lock the doors, distribute weight evenly, do not exceed max load.
Repairability	Spare parts available (screws, washers, latches)

Frequently Asked Questions - ABS-8UL Vevor

How to install the ABS-8UL rack cabinet?

Unpack the cabinet, check the accessories (32 screws + 32 washers). Attach the doors if not mounted, then insert the equipment into the rack using the provided screws. Make sure to distribute the weight evenly.

What is the maximum load capacity?

The recommended maximum load capacity is about 50 kg with uniform distribution across the rack. The heaviest equipment should be placed at the bottom.

Is the cabinet ventilated?

The ABS-8UL model is made of solid ABS. There is no specific ventilation. Ensure the environment is air-conditioned and that air circulates around the cabinet to prevent equipment overheating.

What types of equipment can I install?

This rack is designed to accommodate servers, network equipment, audio/video devices, industrial controllers and any 19-inch format device. Use the provided screws for fixing.

How to clean the cabinet?

Use a soft dry cloth to remove dust. Avoid solvents or abrasive products that could damage the ABS plastic. For stains, a little soapy water is enough.

Is the cabinet lockable?

Yes, it is equipped with a butterfly latch on the front door. To lock, push the center part until it clicks. To open, pull it outward.

What are the exact dimensions?

The height is 8U (about 35.6 cm), the width is 19.25 inches (48.9 cm) and the estimated depth is 50 cm. Exact measurements may vary slightly.

What to do if a screw or washer is missing?

Contact Vevor after-sales service via www.vevor.com/support. Spare parts may be provided under warranty. You can also use compatible standard M6 screws.

Is there a warranty?

Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support and keep the proof of purchase. The standard duration is 12 months.

Can I mount the cabinet on the wall?

No, this model is not designed for wall mounting. It should be placed on the floor or on a stable flat surface. For wall mounting, choose a specific model.

USER MANUAL ABS-8UL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RACK CASE USER MANUAL

MODEL:ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Warning - To reduce the risk of injury, user must read the manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or cable management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed at the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabinet to ensure they are intact and that only authorized personnel can access internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating or short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on the cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation ● Network Equipment Storage ● Communication Equipment Protection
• Industrial Control Systems ● Audio and Video Equipment Installation ● Laboratories and R&D Environments ● Power Management ● Security and Protection ● Data Centers and Server Rooms

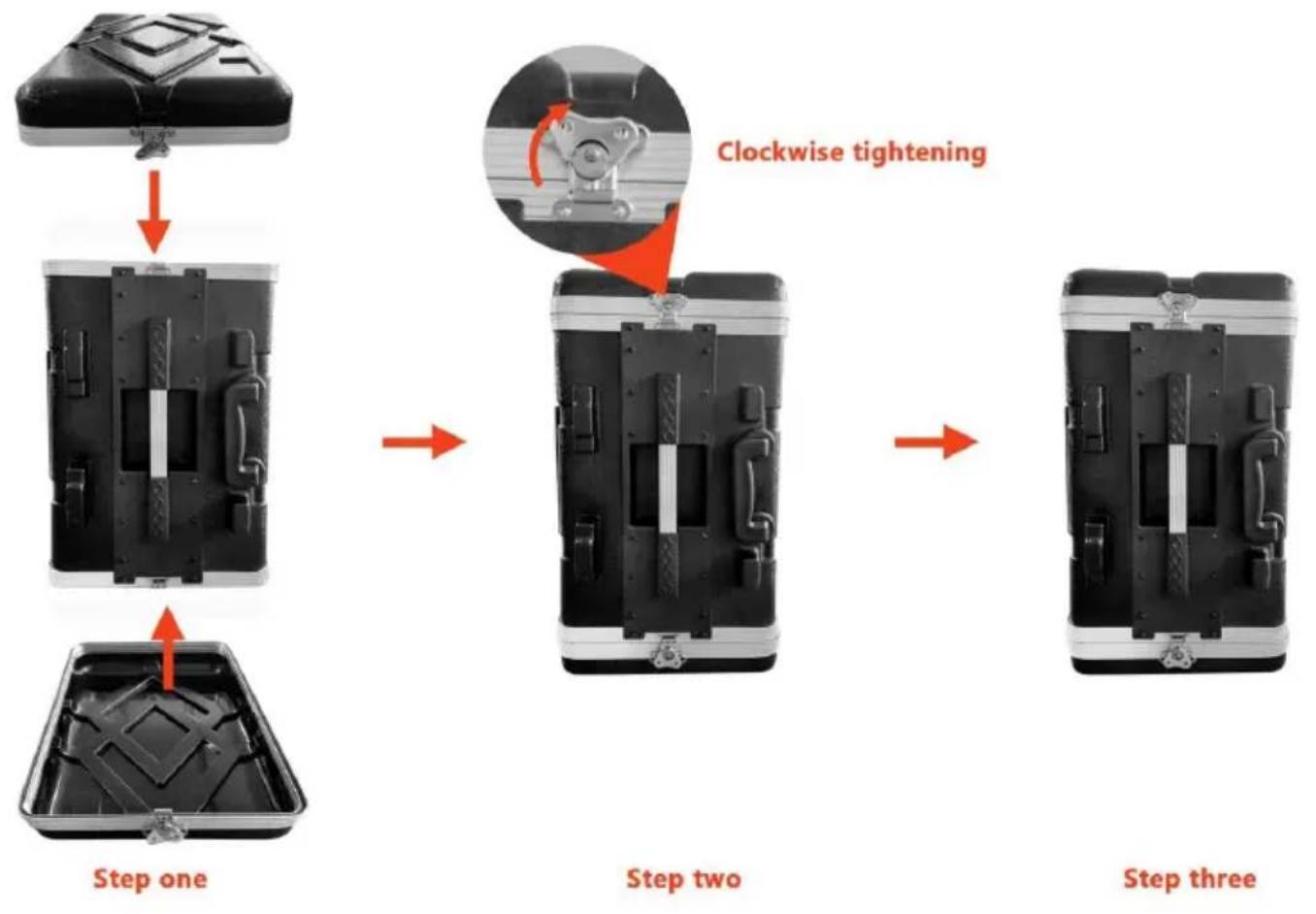

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free of obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making sure it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be easily opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8、Plastic gasket *8
ABS-4UM	Screw *16、Plastic gasket *16
ABS-4UL	Screw *16、Plastic gasket *16
ABS-6UM	Screw *24、Plastic gasket*24
ABS-6UL	Screw *24、Plastic gasket*24
ABS-8UL	Screw *32、Plastic gasket*32
