1902 - Boat accessory Vevor - Free user manual and instructions

Product Type	Winch Stand for Boat Trailer
Brand	Vevor
Model	1902
Compatibility (trailer tongue)	50.8 - 76.2 mm (2 - 3 inches)
Material	Steel
Net Weight	2 kg (estimated)
Package Dimensions	Approximately 30 x 20 x 15 cm
Package Contents	1 winch stand, 1 V-roller set, 2 U-bolts, 4 M12 nuts, 4 M12 washers, 4 M12 spring washers
Main Function	Guiding and supporting the trailer during winching
Safety	Wear safety goggles and gloves during assembly and use
Installation	Attach the V-roller set with 2 U-bolts, washers and M12 nuts onto the winch post
Initial Tightening	Do not overtighten the nuts during initial assembly
Maintenance	Regularly check the tightness of bolts and condition of rollers
Spare Parts	U-bolts, M12 nuts, M12 washers, M12 spring washers
Repairability	Standard parts can be replaced individually
Manufacturer	Shanghaiuxinmuyeyouxiangonsi
Australia Importer	SIHAO PTY LTD, 1 ROKEVA STREET, ASTV NSW 2122
United States Importer	Sanven Technology Ltd., Suite 250, 9166 Anaheim

Frequently Asked Questions - 1902 Vevor

How to install the Vevor 1902 winch stand?

Place the V-roller set onto the trailer winch post. Use the 2 U-bolts to secure it, inserting each bolt into the designated holes. Add a flat washer, a spring washer, and an M12 nut on each end. Tighten the nuts by hand, then finish with a wrench being careful not to overtighten to allow for later adjustment.

What tools are needed for assembly?

You will need an adjustable wrench or an 18 mm wrench (for the M12 nuts), a screwdriver (if needed to align the holes), and safety equipment: ANSI approved safety goggles and heavy-duty gloves.

Is this product compatible with my trailer?

The stand is suitable for trailer tongues with a width between 50.8 and 76.2 mm (2 to 3 inches). Measure your tongue before purchase. If it is outside this range, the product will not be suitable.

How to adjust the V-rollers?

The V-rollers are mounted on an adjustable bracket. You can loosen the U-bolts, move the assembly to center the rollers under the tongue, then retighten. Make sure the rollers guide the trailer without excessive friction.

What safety precautions should be followed?

Always wear ANSI approved safety goggles and gloves during assembly and use. Keep the work area clean and well lit. Do not assemble if you are tired or under the influence of substances. Keep children away.

How to clean and maintain the stand?

Clean the rollers and bolts regularly with a damp cloth to remove dirt and corrosion. Apply a light lubricant to the bolts if necessary. Periodically check the tightness of nuts and wear of rollers.

Where to find spare parts?

Spare parts (U-bolts, M12 nuts, washers) are available from the manufacturer Vevor or on standard hardware parts websites. Contact Vevor customer service to order specific parts.

What to do if the U-bolts are too long or too short?

The provided bolts are designed for the specified tongue size. If the tongue is thicker, the bolts may be too short. In this case, obtain U-bolts of M12 diameter with a suitable length. For thinner tongues, you can add additional washers under the nuts.

Can I use this stand for another type of trailer?

This product is specifically designed for boat trailers. Using it on other types of trailers (utility, RV) is not recommended as the shape and size of tongues may differ. Always check compatibility.

What is the maximum load capacity?

The load capacity is not specified in the manual. For safe use, do not exceed the trailer weight recommended by the winch manufacturer. Generally, this type of stand is suitable for light to medium boat trailers (up to approximately 500 kg).

USER MANUAL 1902 Vevor

Affordable. Reliable. Home Improvement.

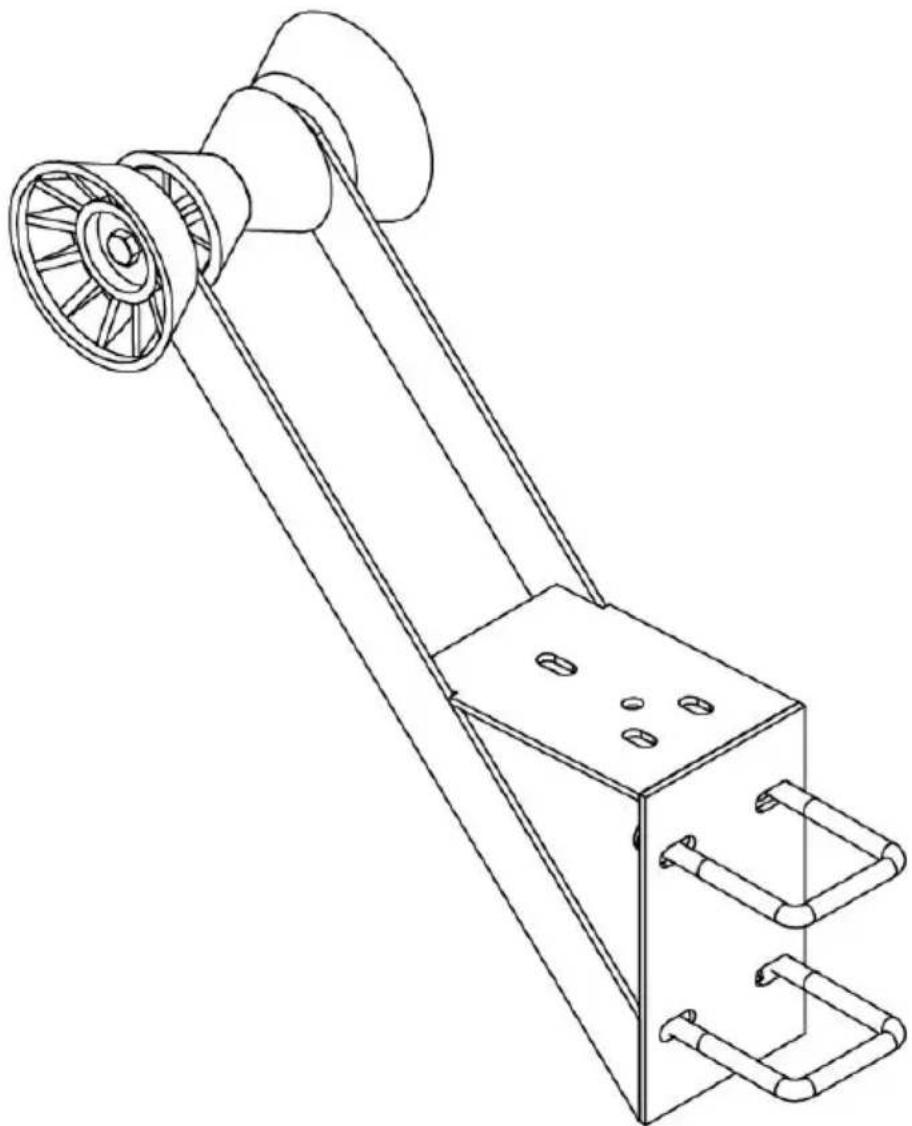

BOAT TRAILER WINCH SEAT

MODEL:1902

MODEL:1902

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage

to valuable property.

1. Assemble only according to these instructions. Improper assembly can create hazards. 2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
2. Keep the assembly area clean and well-lit.
3. Keep bystanders out of the area during assembly. 5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication. 6. Product capabilities apply to properly and completely assembled products only.
4. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SPECIFICATIONS

Model Series	1902
Fit for trailer tongues	2-3 × 2-3in (50.8-76.2 × 50.8-76.2 mm)

PACKAGE CONTENTS

Part	Description	QTY
1	Boat Trailer Winch Seat	1
2	V roller set	1
3	U bolts	2
4	M12 nuts	4
5	M12 wahser	4
6	M12 spring washer	4

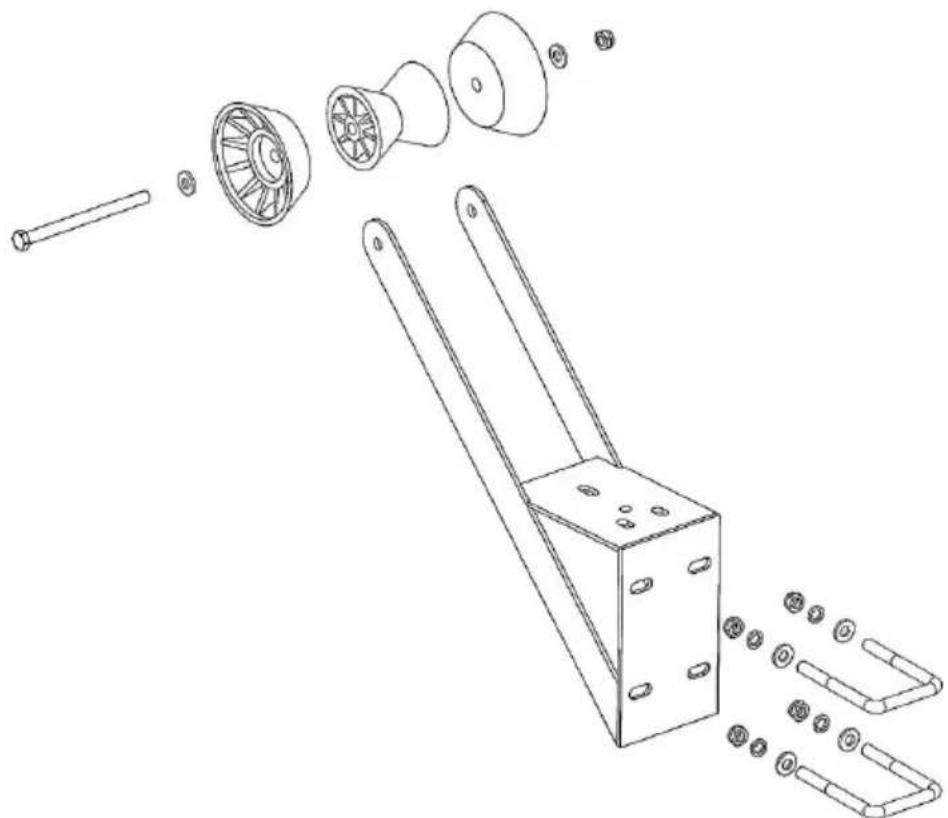

INSTALLATION GUIDE:

Step 1: Put the V roller set into the post as below. Use 2 bolts to fix it on the trailer boat winch post with M12 washers, spring washers, and M12 nuts. Tighten the nuts, but do not fully tighten.

Manufacturer: Shanghai Xinmu Yuye Youxiang Gongsi

Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
