USER MANUAL 005A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Ab Workout Equipment

MODEL:005A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ab Workout Equipment

MODEL:005A

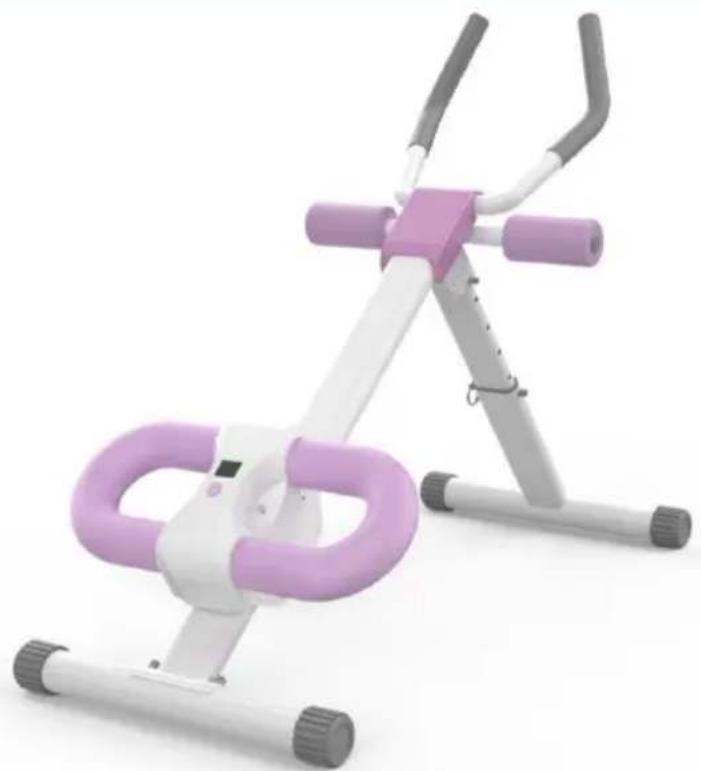

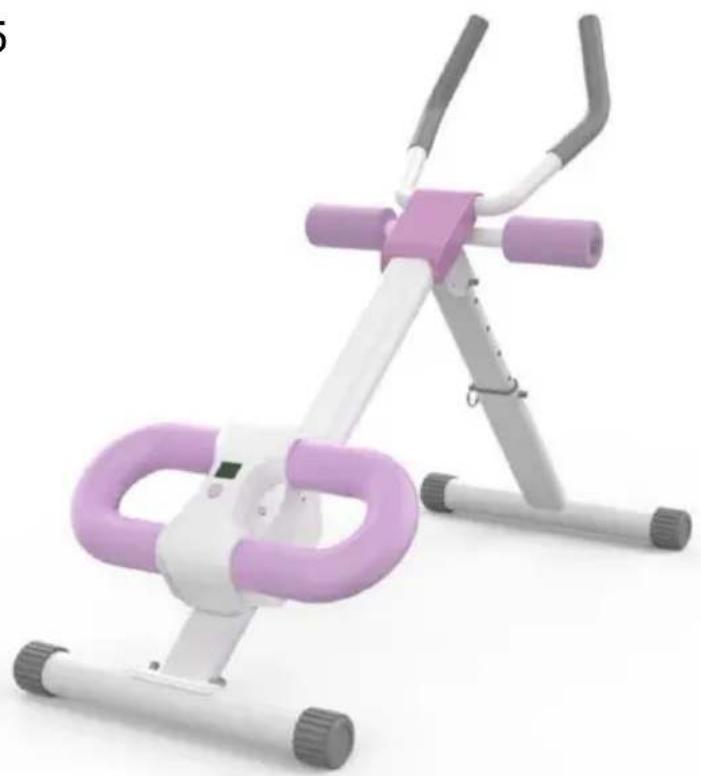

3D rendered image of a pink and white exercise bike with gray arms (no text or symbols visible)

Note: The product picture is for reference, the actual details shall prevail

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction carefully.
	CORRECT DISPOSAL for DisplayThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a point for recycling electrical and electronic devices.
	Compliance is a EC security certification.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

• Do not use it if you are pregnant
• Please install strictly according to the instructions
• To ensure user safety, please check whether all screws and other connecting parts on the device are intact before each use
• Incorrect or excessive intensity exercise is not good for health. It is recommended to consult a docto rbefore exercising
• It is best to wear sportswear and sports shoes when exercising
• If you feel dizziness, vomiting or other adverse symptoms during exercise, you should stop training immediately.
  ● Children and disabled people can only use it under the supervision

relevant personnel.

• This machine is designed to adjust the intensity of exercise by adjusting the height, which can beadjusted back and forth from low high.
  ● The user's weight cannot exceed 330lbs
  ● Note that all screws and nuts must be tightened before

Exercise Plans

1. Beginners are recommended to start with less reps, 5 reps as 1 set example and add reps as goes.
2. Please do not exercise half an hour before /after meals or 1 hour sleep
   3 .Please make exercise plans.

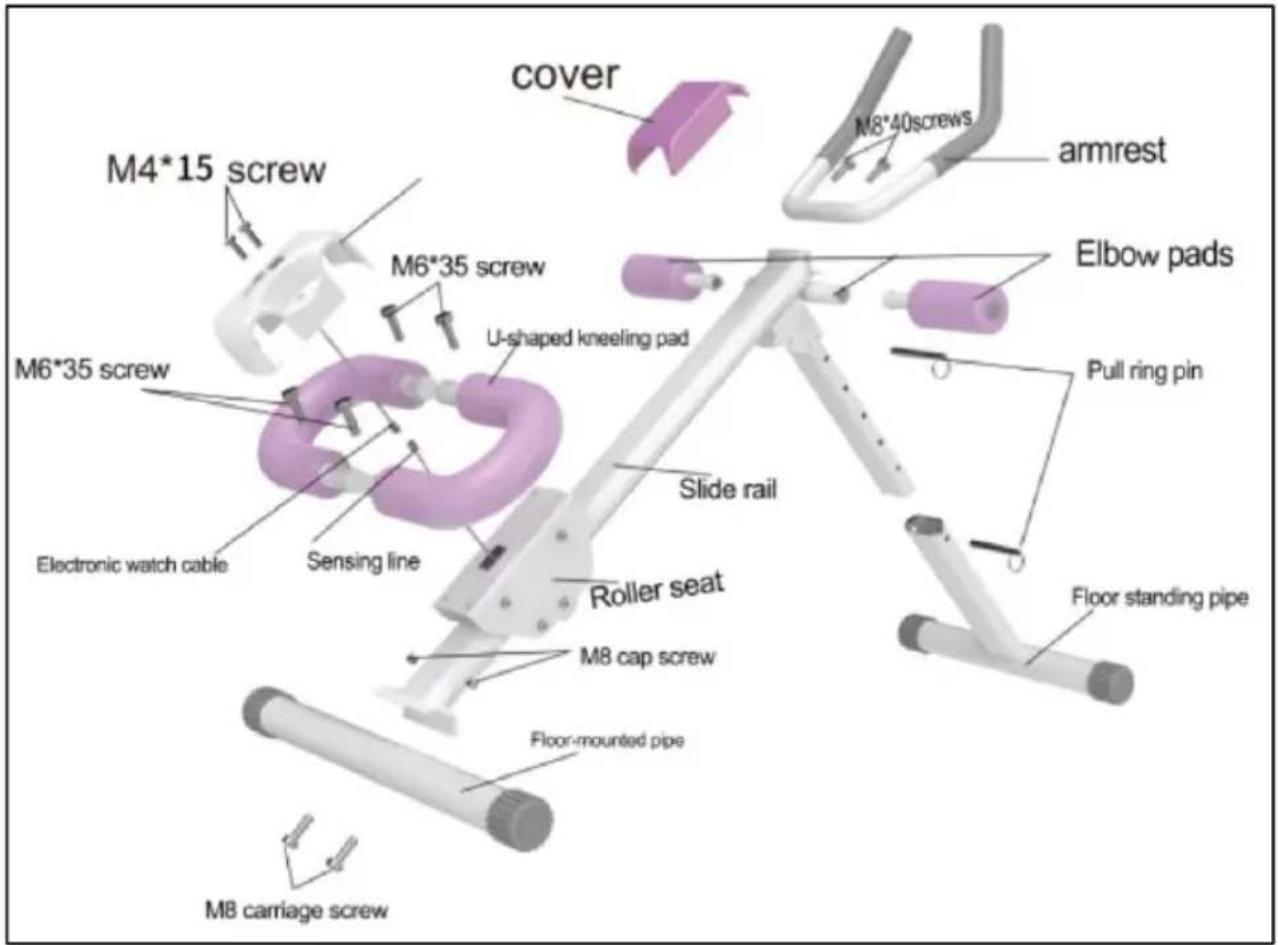

Exploded view

cover M8*40screws armrest M4*15 screw M6*35 screw Elbow pads U-shaped kneeling pad M6*35 screw Pull ring pin Slide rail Roller seat Electronic watch cable Sensing line M8 cap screw Floor-mounted pipe Floor standing pipe MB carriage screw

Assembly

Step 1:

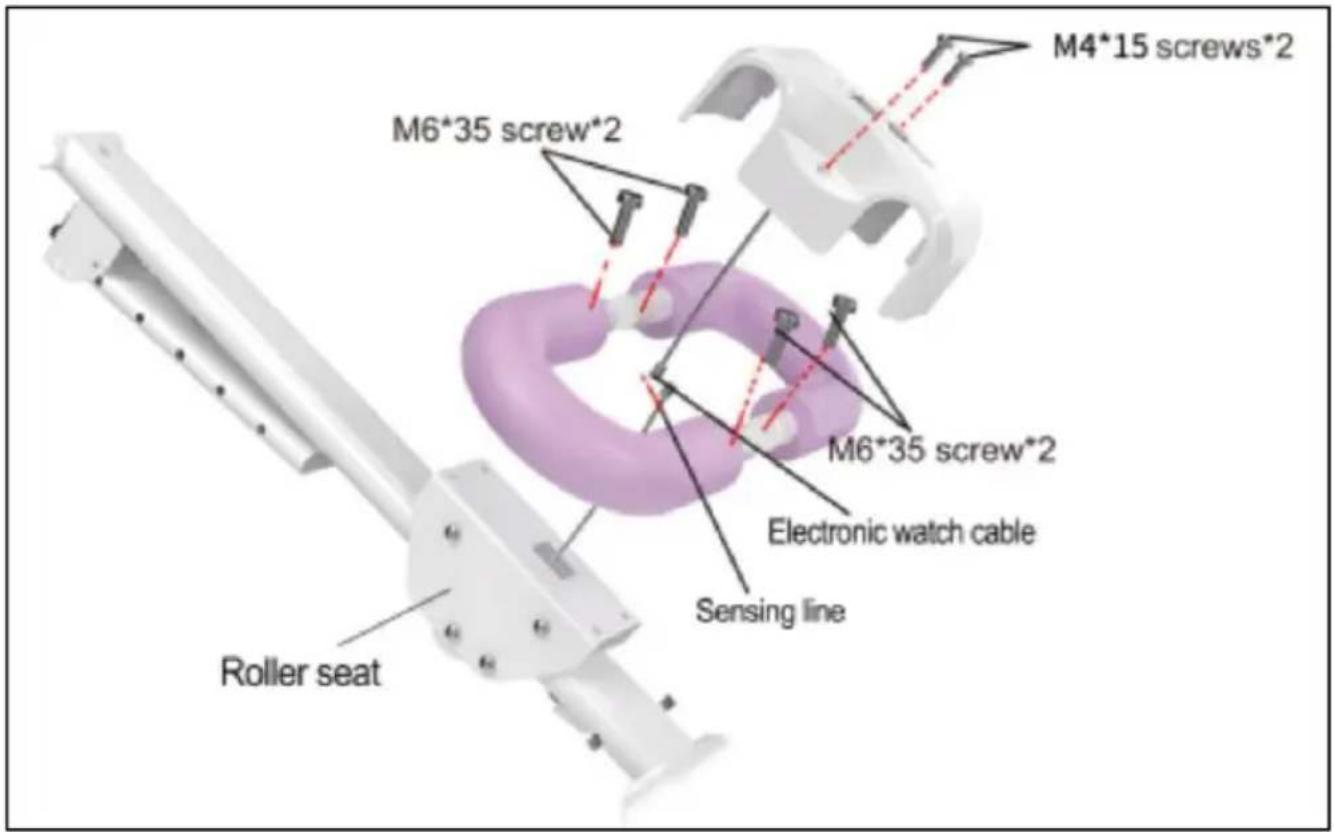

Insert U-shaped kneeling pad as required Align M6*35 screw-4 and tie the screw holes of the roller base. Plug in the electronic watch cable the induction wire on the base of the roller. Use M4*15-2 screws to electronic watch on the roller base

M4*15 screws*2 M6*35 screw*2 M6*35 screw*2 Electronic watch cable Sensing line Roller seat

Step 2:

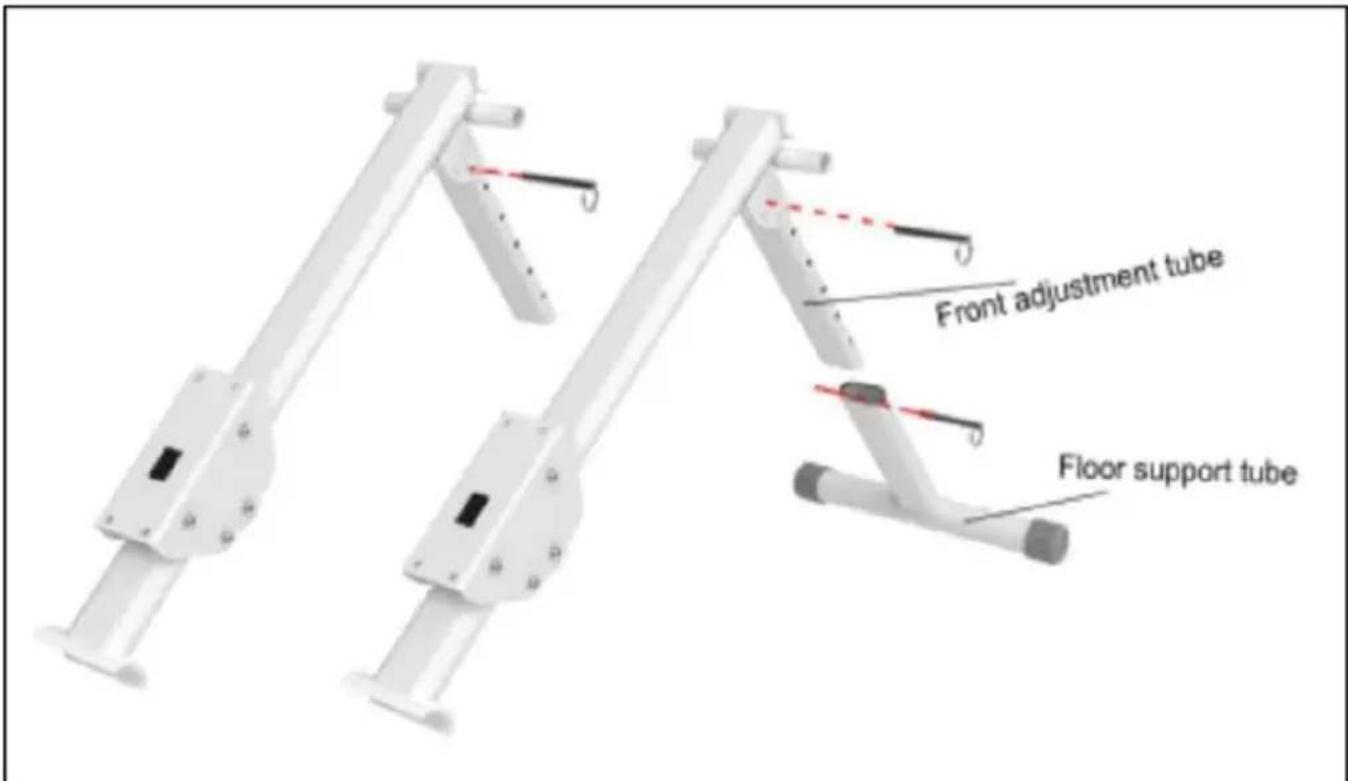

Pull out the belt ring buckle, rotate the front adjustment tube outward. a then secure the front adjustment tube with the belt ring pull pin, then the ground support tube and secure with the belt ring pull pin.

Front adjustment tube Floor support tube

Step 3:

Attach Head Pad (11) and Back Pad (10) to Seat Pad Frame (6). L Internal Hex Cap Screw M8*40 (15) and Flat Washer D8 (19). Tighte screws.

M8*50 screw cap*2 M8*50 nuts*2

Step 4:

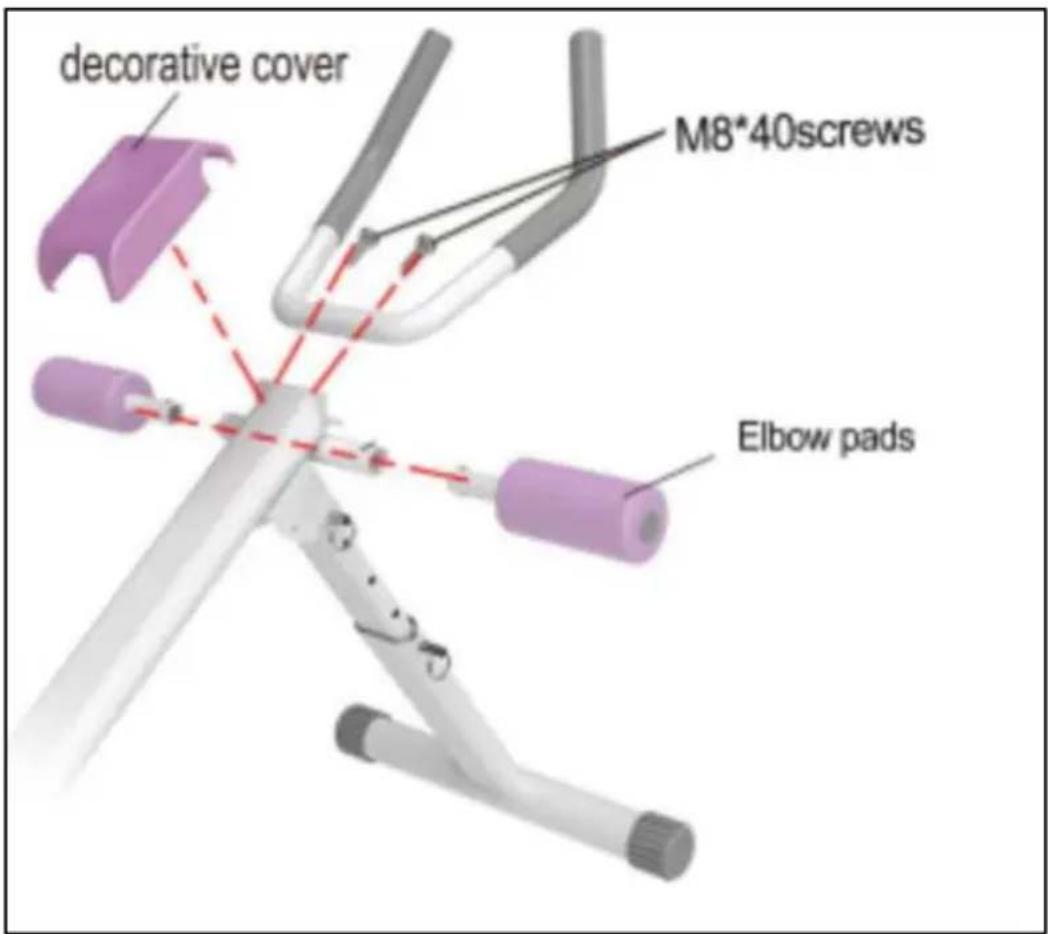

Fix the amrest with M8*40 screws. Use M5*40 self-tapping screws to connect the handrails

decorative cover M8*40screws Elbow pads

Debug

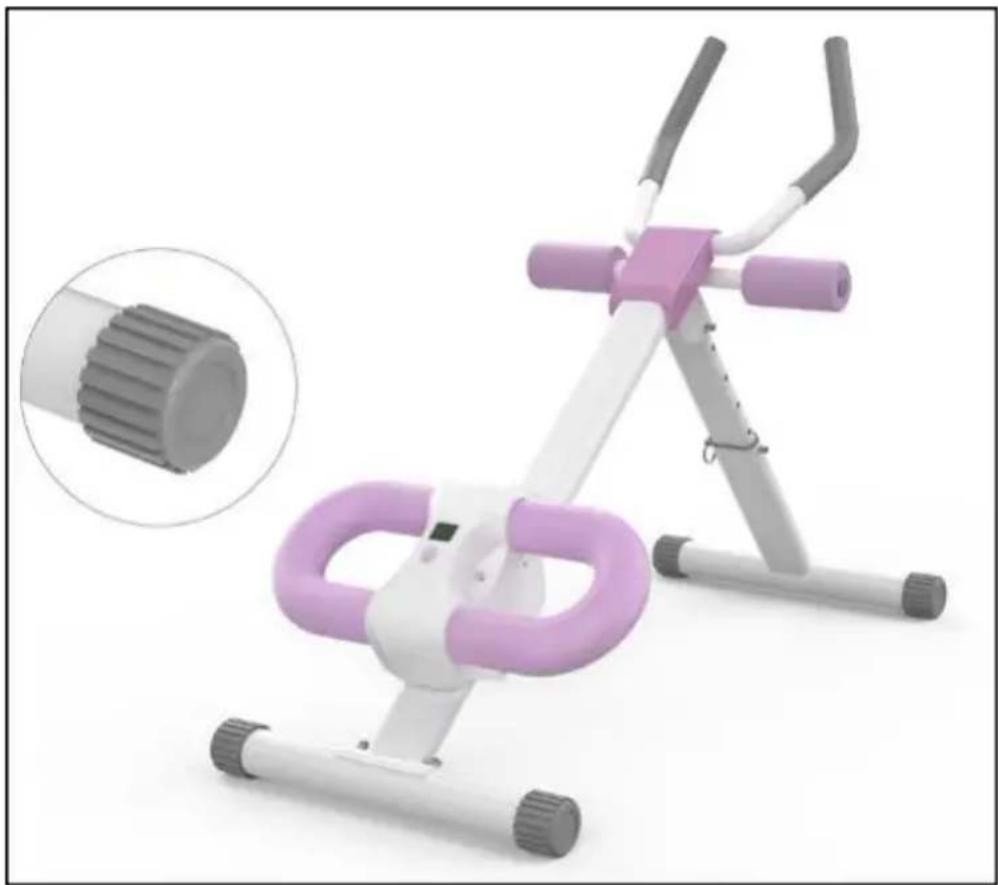

Debugging: After the complete machine is installed place it on the level ground. Make sure the machine is level and tighten all the screws on machine with the accompanying tools. If it is uneven, you can use the eccentric foot sleeves on the front and rear feet to adjust it to the floor before you can move.

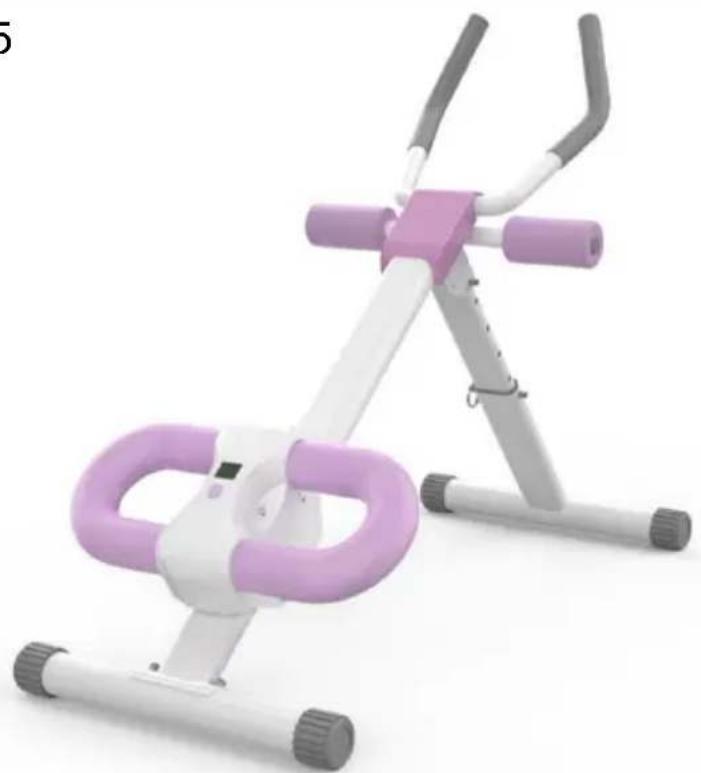

Product photo of a pink and white exercise bike with a gear inset showing the mechanical component (no text or symbols visible)

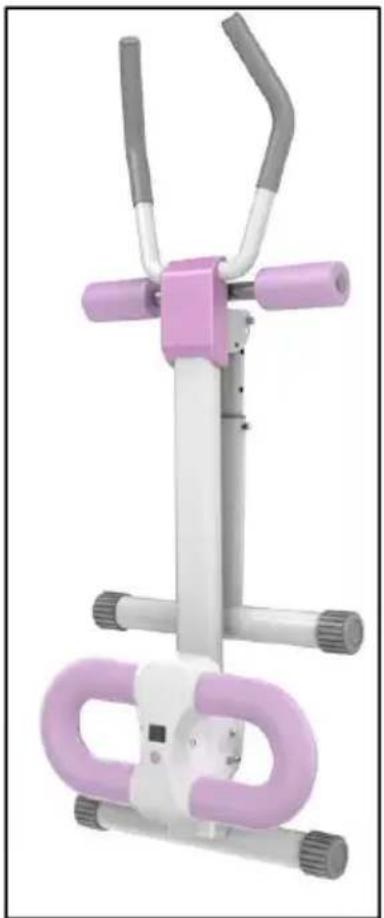

Fold

The machine must be stored in a dry place To prevent dust or other contamination. Please wipe clean with a rag before use.

Exterior view of a pink and white exercise bike with adjustable arms (no text or symbols visible)

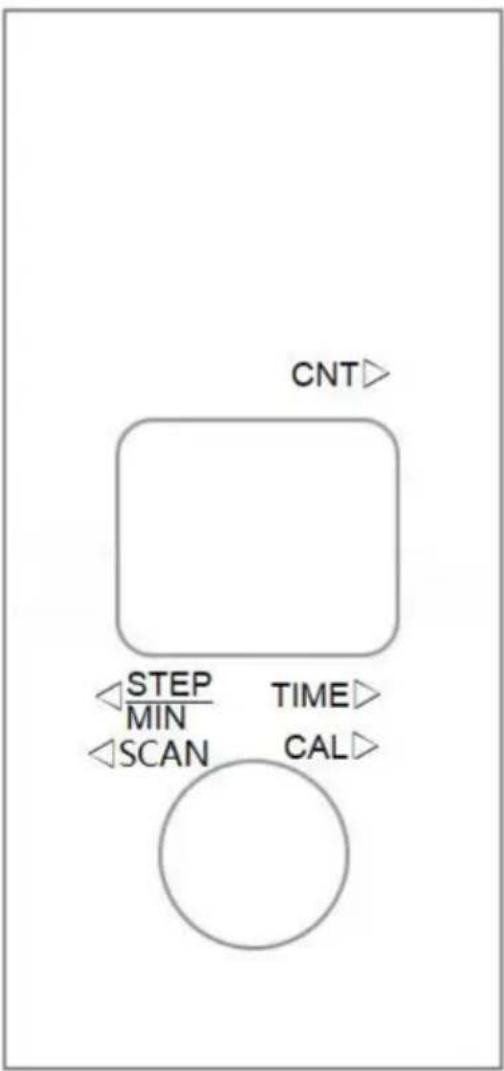

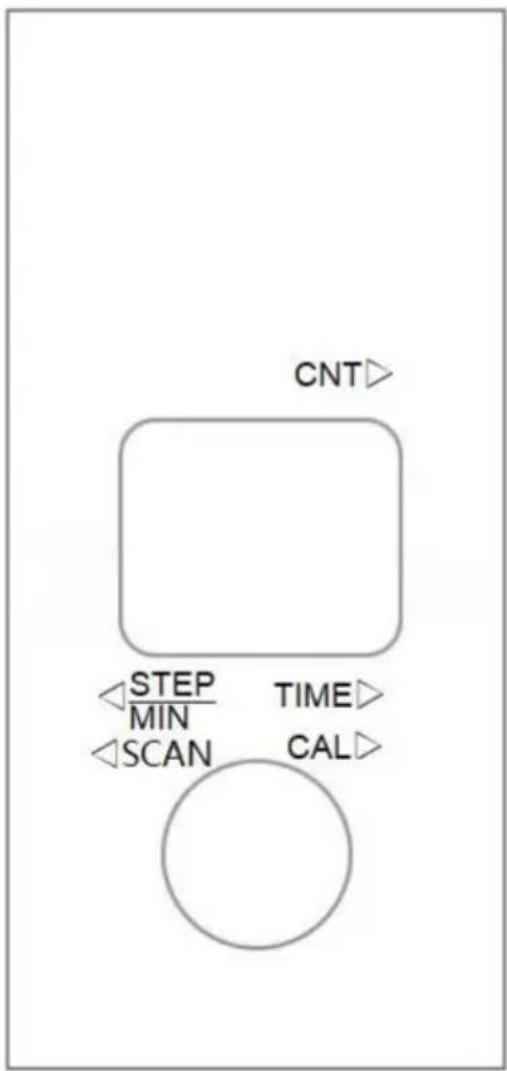

Counter

Count: 0\~9999

CNT: 00:00\~99:59min

CAL: 0\~9999kcal

STEP/SCAN 40-220bpm

The electronic watch lets you choose the mode you want, press 3 seconds to cl

Function:

1. Count: After pressing the red (gray) button key for 3 seconds, the movement
   starts to count
2. Time: Press the red (gray) button u the pointer is fixed to TIME to start th movement time
3. Calories: Press the red (gray) button the pointer is fixed to the CAL to move showing the burning calories.
4. Number / minute: Press the red (gra button until the pointer is fixed to STE MIN to show the number of movements minute
5. SCAN:Cyops show counts, times, calories

Tips:

A. With no signal for 4-5 minutes, the screen will be turned off
B. If the display does not appear, replace the battery(LR44).

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
