Product Type	Floor Washer (vacuum mop)
Brand	Eureka
Model	FloorShine 880
Power Supply	Rechargeable battery 4,000 mAh (model BP21640A)
Charging Base	BC09C (220-240 V~)
Charging Time	3 to 5 hours
Cleaning Modes	Auto, Turbo, Rapid
Special Functions	Automatic brush cleaning, soft/rapid drying, brush LED lighting
Compatible Floor Types	Tile, marble, granite, wood, bamboo, waxed floors, etc. (indoor hard floors)
Clean Water Tank	Removable, capacity not specified (estimated 500 ml)
Dirty Water Tank	Removable, capacity not specified (estimated 400 ml)
Recommended Use	Eureka cleaning solution only
Tilt Angle	Up to 180° (horizontal mode for cleaning under furniture)
Visual Indicators	Display screen: battery level, mode, dirt detection, tank status
Voice Guidance	Yes, can be activated/deactivated
Weight	Not specified (estimated 4-5 kg)
Dimensions	Not specified (estimated 30x25x110 cm)
Roller Brush	Removable and washable
Filter	Dirty water tank filter, washable
Included Accessories	Charging base, cleaning brush, cleaning solution, manual
Safety	Automatic shut-off in vertical position, overheating protection, shut-off if tank full
Noise Level	Not specified (estimated 75 dB)
Warranty	Not specified (standard manufacturer warranty)

Frequently Asked Questions - FloorShine 880 EUREKA

Which cleaning solution should I use with the FloorShine 880?

Use only Eureka cleaning solution. Using other solutions may damage the device and void the warranty.

How to charge the battery for the first time?

Place the device upright on the BC09C charging base plugged into a 220-240 V outlet. Full charging takes 3 to 5 hours. The screen turns off when the battery is full.

What if suction is weak?

Check that the roller brush, cover, and dirty water tank are properly installed. Clean the brush, filter, and suction opening if clogged. Remove any hair tangled around the brush.

How to activate automatic cleaning and drying mode?

Place the device on the charging base with battery >15%. Press the automatic cleaning pedal. The machine cleans the brush and tube, then drying starts automatically. You can choose soft or rapid drying with the Drying button.

Can I use the device on carpet?

No, this product is designed only for indoor hard floors. It can damage carpets and the suction is not suitable.

How to clean the dirty water tank?

Press the release button and remove the tank. Lift the cover using the handle, empty the dirty water, rinse the tank and filter, air dry. Reinstall until it clicks.

What if water comes out of the air outlet?

The dirty water tank is probably full or the body is wet. Empty and wipe the tank. Do not tilt the device too much.

How to disable voice guidance?

Press and hold the Mode button for 2 seconds to disable the voice. Repeat to enable it again.

The device is not charging, what should I do?

Check that the charging contacts on the base and under the brush are clean and dry. Clean them if necessary. Make sure the device is properly positioned on the base.

How to remove and clean the roller brush?

Remove the clean water tank. Spread the right handle of the brush and pull it off. Clean it with water or the included brush. Air dry before reinstalling by aligning the left shaft and snapping the right handle until it clicks.

USER MANUAL FloorShine 880 EUREKA

Line drawing of a vacuum cleaner with a cylindrical body and base (no text or symbols)

INSTRUCTION MANUAL

NEW880BK

FLOOR WASHER

Please read the manual before use.

CONTENTS

English 02

SAFETY INSTRUCTIONS 03

PRODUCT OVERVIEW 06

PRODUCT INSTALLATION 08

OPERATION INSTRUCTIONS 11

CLEANING AND MAINTENANCE 14

TROUBLESHOOTING 18

French 20

German 38

Italian 56

Spanish 74

Polish 92

SAFETY INSTRUCTIONS

Important Safety Instructions

• This product is suitable for hard floors in the indoor environment, including waxed floors, stone floors, rubber floors, marble floors, granite floors, terrazzo floors, solid wood floors, composite floors, bamboo floors, as well as glazed tiles, ceramic facing tiles and other flat ground. It may not achieve the best results if the product is used on uneven ground surface.
• Do not use this product near or on the surface of flammable and explosive objects, which may cause fire and explosion.
• Do not use this product near a working fireplace or heater to prevent deformation of the machine casing.
• Do not use it to clean high-temperature substances (unextinguished cigarette butts, matches or hot ash, etc.), ultra-fine substances (such as lime, cement, wood chips, gypsum powder, ashes, charcoal, etc.), dangerous substances (such as solvents, descaling agents, etc.), chemical substances (such as acidic substances, detergents, etc.) and other substances with uncertain physical properties.
• Do not use this floor washer to absorb detergent, kerosene, gasoline, alcohol, paint or perfume, or else it may cause short-circuit, fire or explosion.
• Do not use this floor washer to absorb toner used in laser printers and copiers, or else it may cause fire or explosion.
• Do not use this floor washer to absorb sharp or large objects, such as glass shards, small toys, pins, paper clips, stones, plaster and large pieces of paper, or else it may block up and damage the machine.
• Do not use this floor washer to absorb any burning or smoking objects, such as soot from the unextinguished heat source, burning cigarette butts or matches. This product can't be used to clean stains of strong grease, strong viscosity, or strong dyeing properties such as shoe polish, paint, and pigments.
• Do not touch the plug or any live part of the product with wet hands to avoid the risk of electric shock.
• Stop using it if the plug is damaged. Please call our service personnel for replacement in order to avoid hazards.
• Please keep the airflow channels and moving parts of this product away from long hair, loose clothing, fingers and other parts of the body. Do not point the suction tube, accessory tip or tool to the eyes or ears, or put them in the mouth.
• Please use only Eureka cleaning solution with this device.
• The use of non-Eureka cleaning solutions may result in damage and void the warranty.

SAFETY INSTRUCTIONS

• If electric leakage, motor over-temperature, abnormal noise, peculiar smell or weak suction is found during use, stop using it immediately and call our service personnel.
• After using the machine, please clean the dirty water tank in time to avoid peculiar smell, and keep the ventilation path unobstructed, so as to avoid obstruction, or else it will cause the suction power to drop, the motor to heat up, and will affect the service life of the floor washer.
• After using the machine, please store it in a dry place. A humid place will affect the insulation and service life of the appliance.
• Do not soak or rinse the floor washer or floor brush in water.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children should not play with the appliance.
• Please check the suction nozzle regularly. If there is a blockage, please clear it in time to avoid decrease in suction and affecting the performance of the machine. Turn off the power before replacing the brush.

• In the following situations, do not use the machine, contact to our customer service center for inspection and repair in time:

• Obvious damage or abnormal operation caused by drop;

• Power cord is damaged.

• Do not disassemble the enclosed machine without permission. There are no user serviceable parts. Do not try to change the performance of the machine, or else it will cause danger.

• Using a voltage that does not match the specifications will cause damage to the product and more likely to cause harm to the user. The correct rated voltage is marked on the nameplate.
• When cleaning the stairs, be extra cautious to prevent falling.
• Do not shake or impact the machine up and down to prevent dirty water from flowing into the motor.
• When the motor is working, do not lift or carry the appliance up and down, and do not put the machine on its side to prevent the dirty water from entering the motor. To prevent tip-over, place the machine against the wall after use.
• Do not use the floor washer before the clean water tank and dirty water tank are installed properly.
• Do not place any small objects in the outlet or block the outlet. Remove any small objects that may interfere with the flow of air through the outlet to prevent overheating of the machine.

05

SAFETY INSTRUCTIONS

• Do not wet the machine body, or it may cause damage and fire due to short circuit.
• This is only allow to use the docking station for charge the battery.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• All the technologies and other data in this manual are obtained by our company or the designated third party testing company, and we reserve the right of final interpretation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.
• For the purposes of recharging the battery, only use Base Station BC09C provided with this appliance.
• The BC09C can provide charging for the batteries with model BP21640A, and the rated capacity of the BP21640A is 4000 mAh.
• Please do not recharging non-rechargeable batteries.
• This appliance contains batteries that are only replaceable by skilled persons.

Use and Precautions of Washer Detergent

• Mix and clean according to instructions. For optimal performance and to maintain warranty coverage, use only Eureka cleaning solution with this device, , which do not contain acid, alkali solutions or substances harmful to the environment.
• If a large amount of cleaning solution is added, more foam will be generated when used, which may infiltrate into the motor and cause danger.
• The cleaning solution should be kept out of reach of children. If the cleaning solution accidentally gets into eyes, rinse thoroughly with clean water; in case of accidental ingestion, seek medical treatment immediately. Follow local environmental protection regulations when handling dirty water and cleaning solution.

For indoor use only

Read the instructions before use

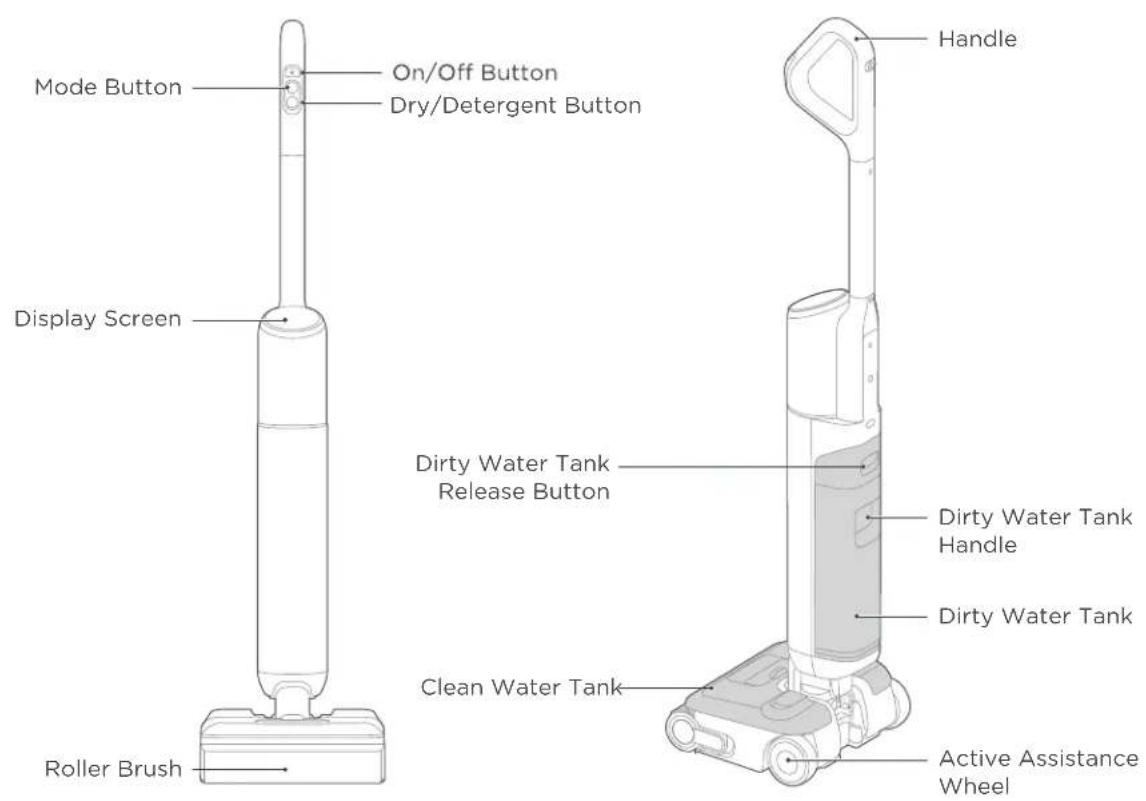

PRODUCT OVERVIEW

Mode Button On/Off Button Dry/Detergent Button Display Screen Roller Brush Dirty Water Tank Release Button Clean Water Tank Handle Dirty Water Tank Handle Dirty Water Tank Active Assistance Wheel

PRODUCT OVERVIEW

List of accessories

Charging Base Cleaning Brush

Solution

User's Manual

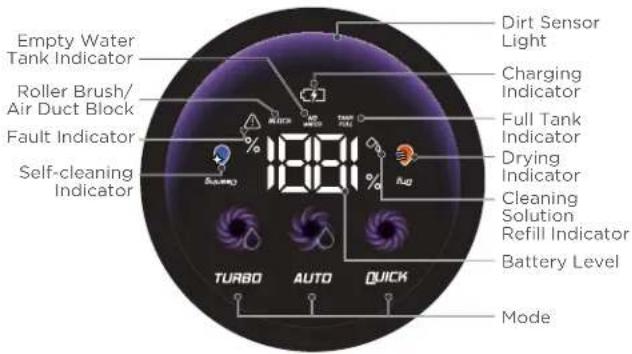

Display screen

Empty Water Tank Indicator Roller Brush/ Air Duct Block Fault Indicator Self-cleaning Indicator 1881 TURBO AUTO QUICK Mode Dirt Sensor Light Charging Indicator Full Tank Indicator Drying Indicator Cleaning Solution Refill Indicator Battery Level

Function Mode Instructions

When the machine is powered on, it defaults to Auto Mode. Pressing the mode button switches it to Turbo Mode or Quick Mode.

1. Auto Mode:

During the cleaning process, the machine automatically adjusts suction power based on the degree of dirt on the floor. Meanwhile, the dirt detection indicator intelligently changes color.

2. Turbo Mode:

The machine increases suction power and water flow for deep cleaning of the floor.

3. Quick Mode:

The machine stops water output and can suction up debris or residual water on the floor.

Tips

• The dirt sensor light indicates the level of dirtiness: purple for "clean", orange for "dirty", and a breathing orange ring for "heavily soiled."
• The smart display of the dirt sensor light is activated only in Auto Mode.

clean dirty

PRODUCT INSTALLATION

Handle Installation and Removal Deodorization

Installation

Insert the end of the handle into the port of the machine along the vertical direction until there is a click, which indicates the installation is successful.

Removal

Remove the rubber from the hole in the back, insert a screwdriver or other tools into the hole, and pull out the handle upward.

Insert

Disassembly Hole

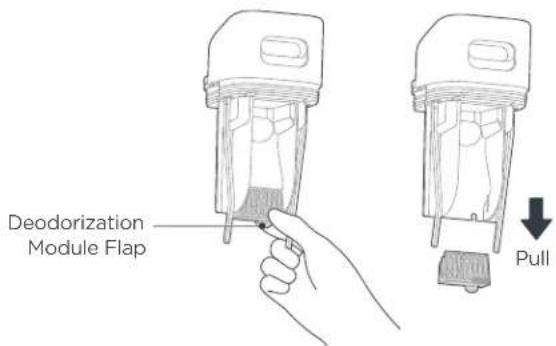

Rule Installation and Removal

1. Remove the dirty water tank by lifting the handle on the tank lid and taking off the lid.
2. Lift the tank lid, press the latch on the deodorization module, and pull outward to remove. To install, align the deodorization module with the slot and insert it until a "click" sound is heard, indicating successful installation.

Deodorization Module Flap Pull

PRODUCT INSTALLATION

Charging Battery

ATTENTION

Charge the product before the first use.

1. Connect the power plug to 220-240V- power supply.

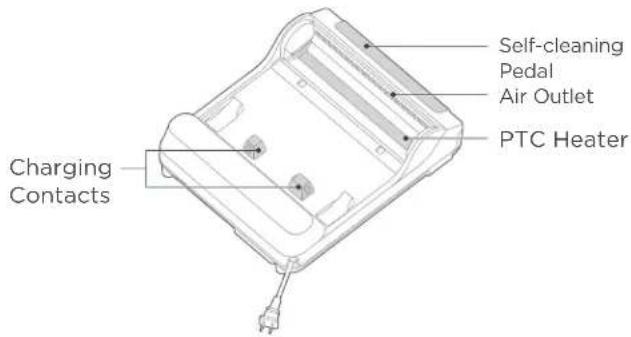

Charging Contacts Self-cleaning Pedal Air Outlet PTC Heater

CAUTION

Scald. High temperature component inside (PTC Heater).

1. Put the machine upright into the charging base, and make sure that the bottom of the body completely falls into the charging base. At this moment, a voice will prompt "start charging", and the indicator light flashes.
2. It takes about 3-5 hours to fully charge the machine. When the battery is fully charged, the screen will go out and the machine will automatically power off.
3. When the machine is powered on for the first time, the voice function is turned on by default. Press and hold the Mode Button for 2 seconds to turn off the voice function, then press and hold for 2 seconds again to turn it on.

MODE Mode Button

ATTENTION

Voice cannot be triggered when turned off.

PRODUCT INSTALLATION

Filling clean water tank

ATTENTION

Fill water only to the clean water tank.

01

Press the clean water tank button and pull out the tank.

Diagram of a mechanical device with directional arrows indicating rotation (no text or symbols)

02

Open the top cover of the clean water tank and fill tap water to the tank.

Cover of Clean Water Tank

03

If deep cleaning is required, add 2-3 capfuls of Eureka's cleaning solution into the tank.

Cleaning Solution

Cover of Cleaning Solution

04

Place the clean water tank into the floor brush, and it is successfully installed when you hear a "click" sound.

Illustration of a device with a curved arrow indicating rotation (no text or symbols)

OPERATION INSTRUCTIONS

Turning on and Cleaning

01

Step on the floor brush and pull the handle, and the machine enters standby state.

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Press the On/Off button to turn on/off the machine.02

On/Off Button

03

When powered on, the machine enters Auto Mode. Press the mode switch button to change to Turbo Mode. Press the button again to switch to Quick Mode. In any mode, press the Dry/Detergent button to enable or disable the automatic cleaning solution dispensing function.

DHQ DETERGENT Detergent Button MODE Mode ButtonDry/

ATTENTION

After using the machine, it is recommended to place it vertically on the specially designed charging base.

OPERATION INSTRUCTIONS

Upright Pause Function

In working state, you can step on the floor brush to make the body upright, the machine will stop working and enter standby state; it will automatically turn off after 3 minutes of standby.

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

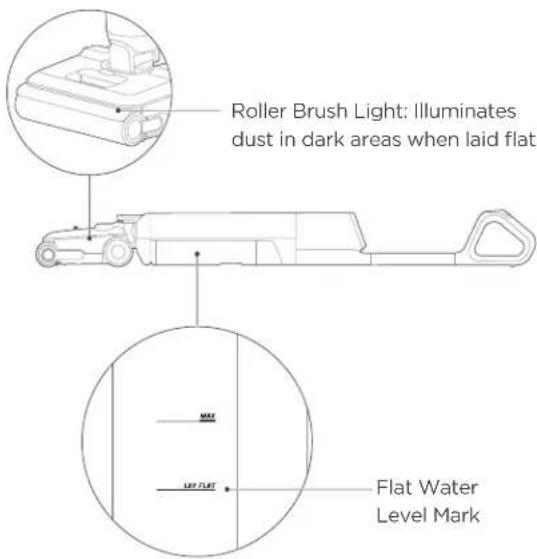

Instructions to lay-flat mode

1. The unit can operate at a 180-degree flat position.
2. When the unit is tilted to about 20 degrees from the ground, it automatically enters the lay-flat mode, allowing for cleaning of the bottom of furniture.
3. In lay-flat mode, the unit's suction power is reduced.
4. In lay-flat mode, the capacity of dirty water tank is lower than that of normal use.

Roller Brush Light: Illuminates dust in dark areas when laid flat. Flat Water Level Mark

Tips

• When dirty water in the dirty water tank exceeds the flat water level mark, please empty the dirty water tank before performing cleaning in flat mode.
• When cleaning in lay-flat mode, please place the unit properly and avoid shaking it vigorously.

OPERATION INSTRUCTIONS

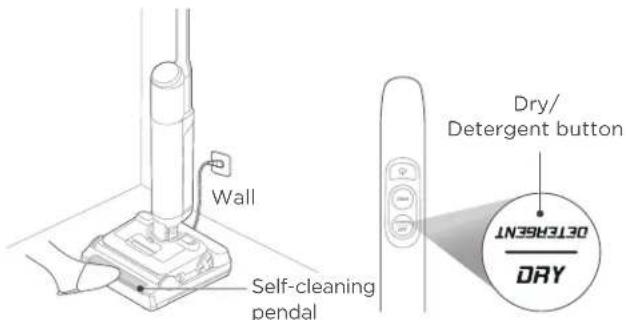

Self-cleaning + Drying

Put the machine into the charging base, ensure that it is in the charging state and the battery stays above 15%. Step on the pedal with your foot to start self-cleaning and soft drying.

Self-cleaning: The machine automatically cleans the roller brush and body tube.

98% Breathing light

Self-cleaning mode

Drying: Keep blowing warm air on the charging base, and dry the roller brush, tube, and filter properly.

During self-cleaning, press the "Dry" button to switch to quick drying mode. Press again to cancel the drying mode. Press once more to return to soft drying mode.

a. Soft drying mode: Indicator light breathes; longer drying time with better results.

b. Quick drying mode: Indicator light stays solid.

c. Cancel the drying mode: Only self-cleaning is performed.

- To stop self-cleaning or drying, press the power button or long-press the self-cleaning pedal for 3 seconds.

- While charging, short-press the "Dry" button to activate soft drying or quick drying mode.

(Recommended: Perform self-cleaning first to clean the roller brush and tube.)

Wall Self-cleaning pendal Dry/ Detergent button 30 31 32 33 34 35 36 37 38 39 40 DRY

Tips

• When battery is below 15%, there will be a voice prompt when you press the pedal: "Low battery. Please recharge."
• The machine does not charge during drying; it automatically enters charging mode after drying is complete.
• Progress Display: In self-cleaning mode, the screen shows progress from 0-100%. 100% indicates completion, with the self-cleaning indicator light breathing.

Soft drying: Breathing light Quick drying: Solid light

Drying mode

CLEANING AND MAINTENANCE

Cleaning dirty water tank

1. In order not to affect the performance of the machine, it is recommended that you regularly maintain its parts.
2. Before cleaning, please disconnect the power supply to stop the machine.
3. Scrub with water or cleaning solutions, wring out the cleaning cloth before scrubbing to avoid water leaking into the electrical components.

01

Press the release button of dirty water tank and pull outward to remove the tank.

Pull outwards

02

Hold the tank with one hand, rotate the dirty water tank handle upwards with the other hand and lift off the cover of dirty water tank.

Handle Cover of dirty water tank Upwards Dirty water tank

ATTENTION

The dirty water tank handle is only meant to assist in lifting off the dirty water tank cover. Do not use the handle to directly pour out the dirty water, as this may cause the handle to break.

CLEANING AND MAINTENANCE

03 | Empty the dirty water tank and rinse it, remove the filter from the top cover of the dirty water tank, rinse and dry it, and put it back.

Filter Cleaning Air dry

04 Install the dirty water tank back to the unit until there is a click sound (when installing dirty water tank, it is recommended to hold the body with another hand to avoid tipping over).

Handle Dirty water tank

After cleaning, it is recommended to place the machine upright in the charging base; do not place the machine in places with direct sunlight or moisture.

Clean water tank and roller brush cleaning

ATTENTION

• If there are residual stains on the suction nozzle, please wipe them off with a damp cloth. Do not rinse with water.
• It is recommended to clean and air dry the roller brush after each use to keep it clean and tidy.

01 | Removing the clean water tank: Press the buckle according to the illustration and lift the clean water tank upward.

02 | Removing the roller brush: Push aside the handle on the right end of the roller brush and pull it out.

Two-step diagram showing a hand holding a roller being inserted, then applying force to a cylindrical roller (no text or symbols present)

CLEANING AND MAINTENANCE

03 | Cleaning the suction port: Gently slide the floor brush motor outward and use a dry cloth or a cleaning brush to clean the suction port of the floor brush. *Do not rinse the floor brush directly under a faucet to avoid damaging the electrical components.

04| After self-cleaning, if hair or other debris is still entangled on the roller brush, remove the entangled debris from the roller brush. For heavy stains (e.g., ketchup, soy sauce, etc.), if dirt remains on the roller brush after self-cleaning, perform the self-cleaning again or remove the roller brush for cleaning.

05 If there is residual dirt on the clean water tank after self-cleaning, rinse the roller brush cover with water.

Line drawing of a faucet with liquid dripping into a base (no text or symbols)

06 If there are any residual stains on the suction port after self-cleaning, please wipe it with a damp cloth instead of rinsing.

Line drawing of a hand cleaning a mechanical component (no text or symbols)

CLEANING AND MAINTENANCE

07 | Installing the roller brush: Hold the handle on the right end of the roller brush, align the left side of the brush with the brush shaft, push the entire brush to the left, then fully insert the handle on the right end of the brush into the groove on the right side of the floor brush. It will be successfully installed when you hear a "click".

Mechanical component diagram showing a cylindrical shaft with a sliding mechanism and an arrow indicating motion (no text or symbols)

08 | After cleaning, place the clean water tank into the floor brush. It will be successfully installed when you hear a "click".

3D illustration of a mechanical component with a black arrow indicating rotation (no text or symbols)

TROUBLESHOOTING

Please check the following table in case of any abnormal scenarios when using the product.

Problem Possible cause Solution
The machine does not work	The screen displays "BLOCK", prompts "Please clean filter and clear blockages"	Clean filter and clear blockages
	The dirty water tank is full Clean the dirty	water tank
	Low battery	Charge the machine
Suction power is weakened	Roller brush, roller brush cover and dirty water tank are not installed properly	Reinstall
	The roller brush is entangled with hair and other objects	Clean the roller brush
	The nozzle or pipe is blocked Clean up ob	stacles in the pipe and the suction port
	Dirty water tank filter is dirty or missing C	lean or install the filter

TROUBLESHOOTING

Problem Possible cause Solution
Abnormal noise when machine is on	The suction port is blocked Clean up obstacles in the suction port
	The clean water tank is empty	Add water to the clean water tank
	The clean water tank is not installed in place Reinstall the clean water tank
Does not spray water	The clean water tank is empty	Add water to the clean water tank
	The clean water tank is not installed in place Reinstall the clean water tank
Water leaking from air outlet	The dirty water tank is full or the body of tank is wet	Empty the dirty water tank and wipe dry
No response when charging	There is water or dirt on the charging contacts of the charging base and the bottom of the floor brush	Wipe away the water or clean the dirt
The screen does not light up when the machine is placed on the drying base	The machine is not properly placed	Properly place the machine on the drying base

TABLE DES MATIÈRES

English 02

French 20

INSTRUCTIONS DE SÉCURITÉ 21

PRÉSENTATION DU PRODUIT 24

INSTALLATION DU PRODUIT 26

INSTRUCTIONS D'UTILISATION 29

NETTOYAGE ET ENTRETIEN 32

DÉPANNAGE 36

German 38

Italian 56

Spanish 74

Polish 92

INSTRUCTIONS DE SÉCURITÉ

INSTALLATION DU PRODUIT

INSTALLATION DU PRODUIT

INSTALLATION DU PRODUIT

3D diagram of a mechanical device with directional arrows indicating movement or rotation (no text or symbols)

02

Illustration of a device with a curved arrow indicating rotation (no text or symbols)

INSTRUCTIONS D'UTILISATION

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

ad corps. 98% Voyant clignotant

Two-step illustration showing a hand pressing a component into a device, then adding a roller to a cylindrical object (no text or symbols present)

NETTOYAGE ET ENTRETIEN

Line drawing of a faucet with liquid dripping into a base (no text or symbols)

Line drawing of a hand cleaning a mechanical component (no text or symbols)

NETTOYAGE ET ENTRETIEN

07

Mechanical component diagram showing a cylindrical shaft with a moving part, no text or symbols present

08

3D rendering of a mechanical device with a black arrow indicating rotation (no text or symbols)

DÉPANNAGE

Diagram of a mechanical device with directional arrows indicating rotation (no text or symbols)

02

Illustration of a device with a curved arrow indicating rotation (no text or symbols)

BEDIENUNGSANLEITUNG

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

02

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Two-step illustration showing a hand pressing down on a cylindrical device, then adding a black arrow to a rolled paper (no text or symbols present)

Line drawing of a faucet dispensing liquid into a base (no text or symbols)

Line drawing of a hand cleaning a mechanical device with a cloth (no text or symbols)

Mechanical component diagram showing a cylindrical shaft with a moving part, no text or symbols present

08

3D rendering of a mechanical device with a black arrow indicating rotation (no text or symbols)

FEHLERBEHEBUNG

Diagram of a mechanical device with directional arrows indicating rotation (no text or symbols)

02

Illustration of a device with a curved arrow indicating rotation (no text or symbols)

ISTRUZIONI PER L'USO

Line drawing of a vacuum cleaner with a hand holding the base, showing a right-hand rule for change (no text or symbols present)

02

Pulsante On/Off

03

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Two-step illustration showing a hand inserting a component into a vehicle chassis and then rolling a cylindrical object with a scroll (no text or symbols)

Line drawing of a faucet dispensing liquid into a base (no text or symbols)

Line drawing of a hand cleaning a mechanical device with a cloth (no text or symbols)

Mechanical assembly diagram showing a cylindrical component with a directional arrow indicating motion (no text or symbols present)

3D illustration of a mechanical component with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with directional arrows indicating rotation (no text or symbols)

02

Illustration of a vehicle with a curved arrow indicating rotation (no text or symbols)

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

02

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Two-step illustration showing a hand inserting a component into a vehicle chassis and then rolling a cylindrical object with a curved handle (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Line drawing of a faucet dispensing liquid into a base (no text or symbols)

Line drawing of a hand cleaning a mechanical component (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Mechanical component diagram showing a cylindrical shaft with a moving part, no text or symbols present

3D illustration of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with directional arrows indicating rotation (no text or symbols)

02

Illustration of a device with a curved arrow indicating rotation (no text or symbols)

INSTRUKCJA UŻYTKOWANIA

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

02

Line drawing of a vacuum cleaner with a hand operating the base (no text or symbols)

Two-step illustration showing a hand pressing a roller onto a vehicle chassis, then adding force to a cylindrical component (no text or symbols present)

CZYSZCZENIE I KONSERWACJA

Line drawing of a faucet with liquid dripping into a base (no text or symbols)

Line drawing of a hand cleaning a mechanical component (no text or symbols)

CZYSZCZENIE I KONSERWACJA

07

Mechanical component diagram showing a cylindrical shaft with a moving part, no text or symbols present

08

3D illustration of a mechanical device with a curved arrow indicating rotation (no text or symbols)

WYKRYWANIE I USUWANIE USTEREK
