USER MANUAL YX-RGXB01EU Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Light Soft box Instructions

MODEL:SH-LT-019, SH-LT-020

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only

represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

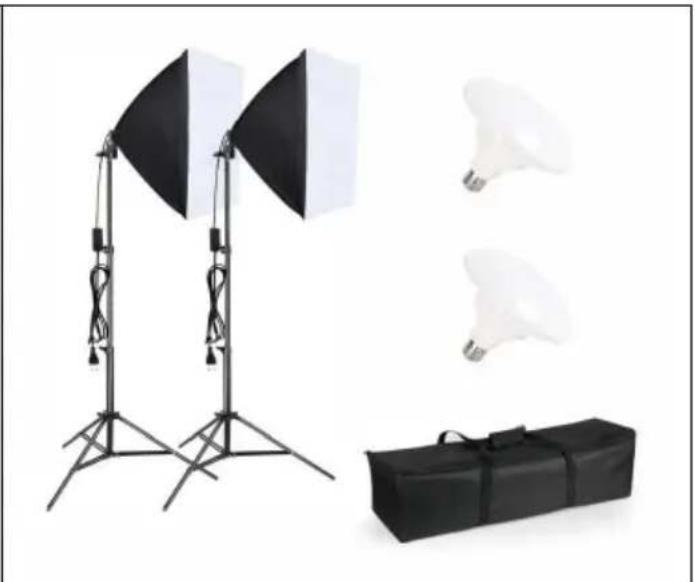

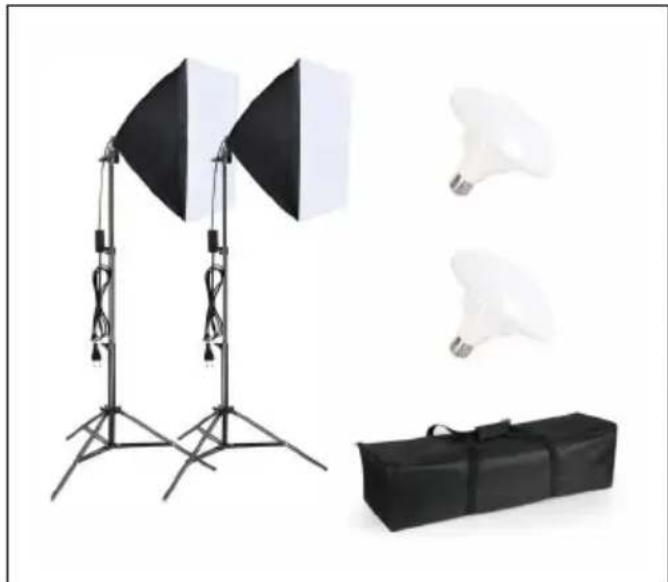

Light Soft box

SH-LT-019 SH-LT-020

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Correct Disposal

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

IMPORTANT

• Please buy the battery by yourself (There is no battery in remote control).
• Keep the bulbs safe from falling and dropping.
• Keep the softmax lighting kits away from water and liquids to protect products and extend service life.
• Keep it away from children while using (unless accompanied by adults).
• Please do not touch the bulbs directly after a long time of use.
• Please do not touch the socket when your hands are wet. Remember to takeout the bulbs when you need to package the softbox lighting kits.
• Please store the kits in a cool, dry, and dust-free location. And do not put heavy things on it.
• Please follow the correct instruction when taking out the bulbs or the bulbs may be malfunctioning.
• Some accessories may be damaged during long-time transportation, please contact us for replacement in time.
• Please turn on the switch on the cable after plugging it in. AC220V-240V voltage is the working voltage for the LED softmax lighting kits.

MODEL: SH-LT-019 Components List Please make sure all accessories listed below are completed before using. If not, please contact us immediately.
61*61cm Softbox*2	White Diffuser*2
30W Adjustable LED Bulb*2
68cm-200cm Light Stand*2	Carrying Bag*1
MODEL: SH-LT-020 Components List Please make sure all accessories listed below are completed before using. If not, please contact us immediately.
50*71cm Softbox*2	White Diffuser*2
30W Adjustable LED Bulb*2
68cm-200cm Light Stand*2	Carrying Bag*1

SOFTBOX INSTALLATION

Section 1:install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob at the bottom of the light stand	3.Pull the legs of the stand, push the stand from top to bottom
90°
4.The tripod's connect piece is perpendicular to the vertical pole	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	& Tighten the knob to fix the position	9.The bracket is installed as shown in the picture

Section 2:install the softmax

1.Open the softmax and press the snap ring onto the lamp holder	2.Rotate the LED bulb into E27 holder	3.Cover the four corners with front diffuser
4.Glue the Velcro on the fou sides	5.Loosen the knob of the softbox	6.Install the softmax to the lig stand
7.Tighten the softmax knob clockwise(please install the softmax completely onto the li stand, as shown in the pictu	8.Loosen the upper knob of softbox	9.Adjust the head of the soft upward to adjust the soft box 210%
10.Adjust the softmax downwa to the angle you want to sh	11.Plug in socket and press switch button
		12.Completely mount the softmax on the light stand as shown in the picture

INSTALLATION:

It's very easy to install, you can search FGen led softmax and brows YouTube or read the video on the amazon product page for more information. In addition, here are the steps for you:

1. Open the softmax umbrella. Press the snap ring onto the lamp hole until you hear a click.
2. Rotate the LED E27 light bulb into the softmax.
3. Cover the four corners with the front diffuser and then glue the the four sides.
4. Pull the legs of the stand, push the stand from top to bottom, Pl bottom of the softmax perpendicular to the tripod feet, It becomes most stable.
5. Connect the softmax umbrella to the stand. Before assembly, you remove the plastic sleeve which protects the thread on the 1/4 "thread the stand.
   6.Plug in and open the control button on the cable to turn on the s

Model	SH-LT-019 SH-LT-020
Input	AC 220-240V, 60Hz
Softbox Size	61*61 cm 50*71 cm
Tripod Height	68-200 cm	68-200 cm
Bulb Power	30W
CCT	5500K
Light Socket	E27
Bulb Base	E27
